Description

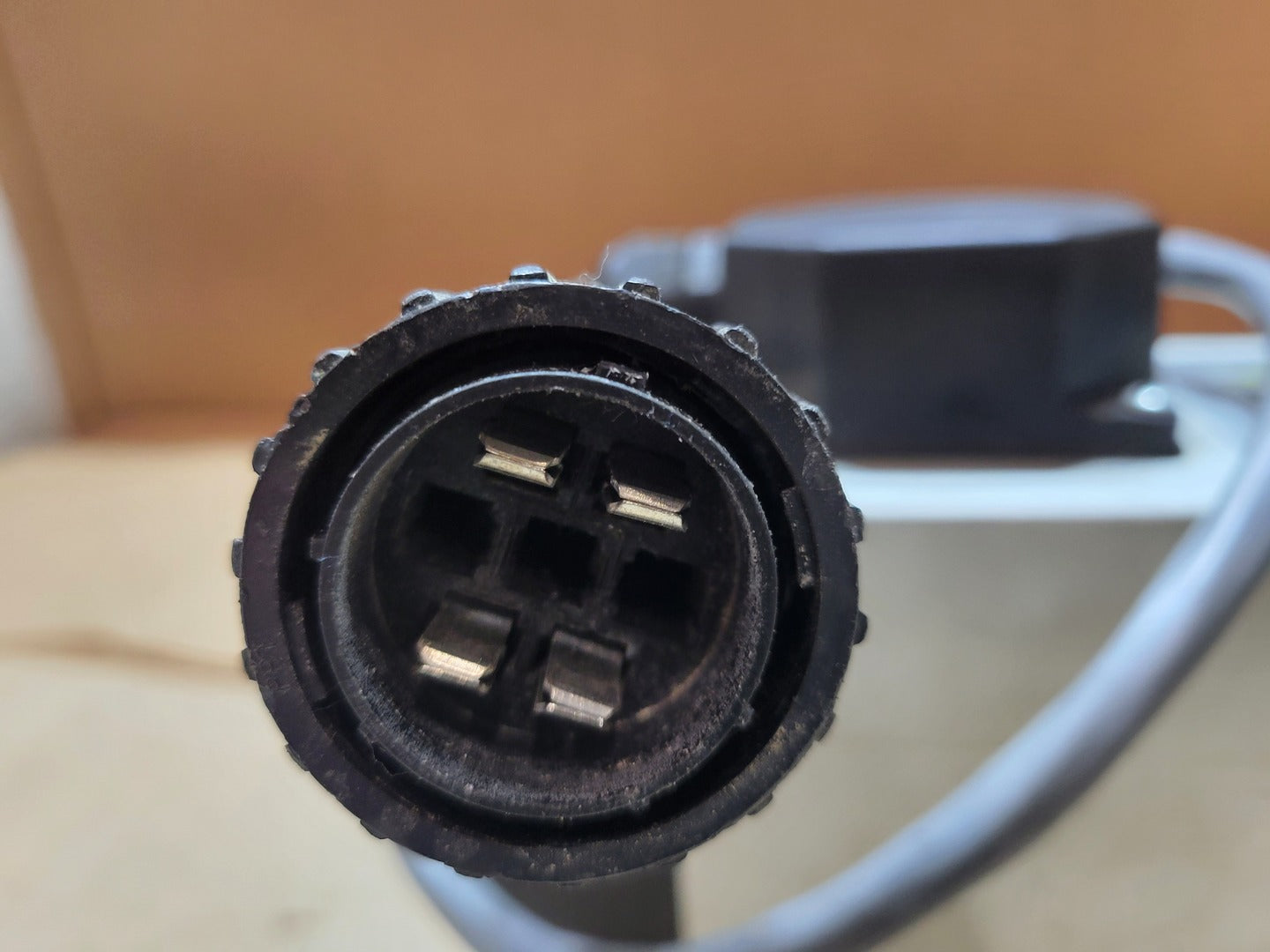

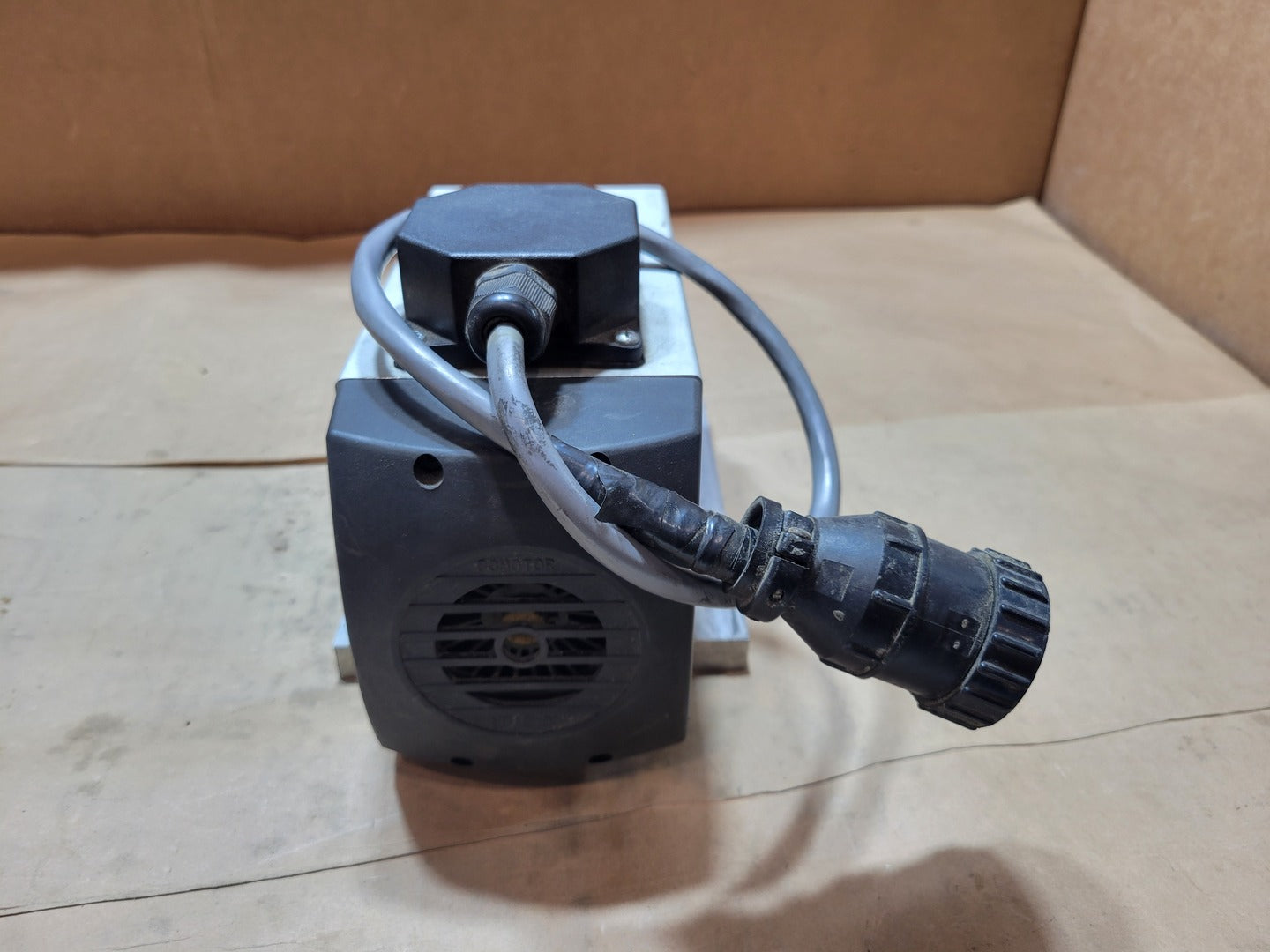

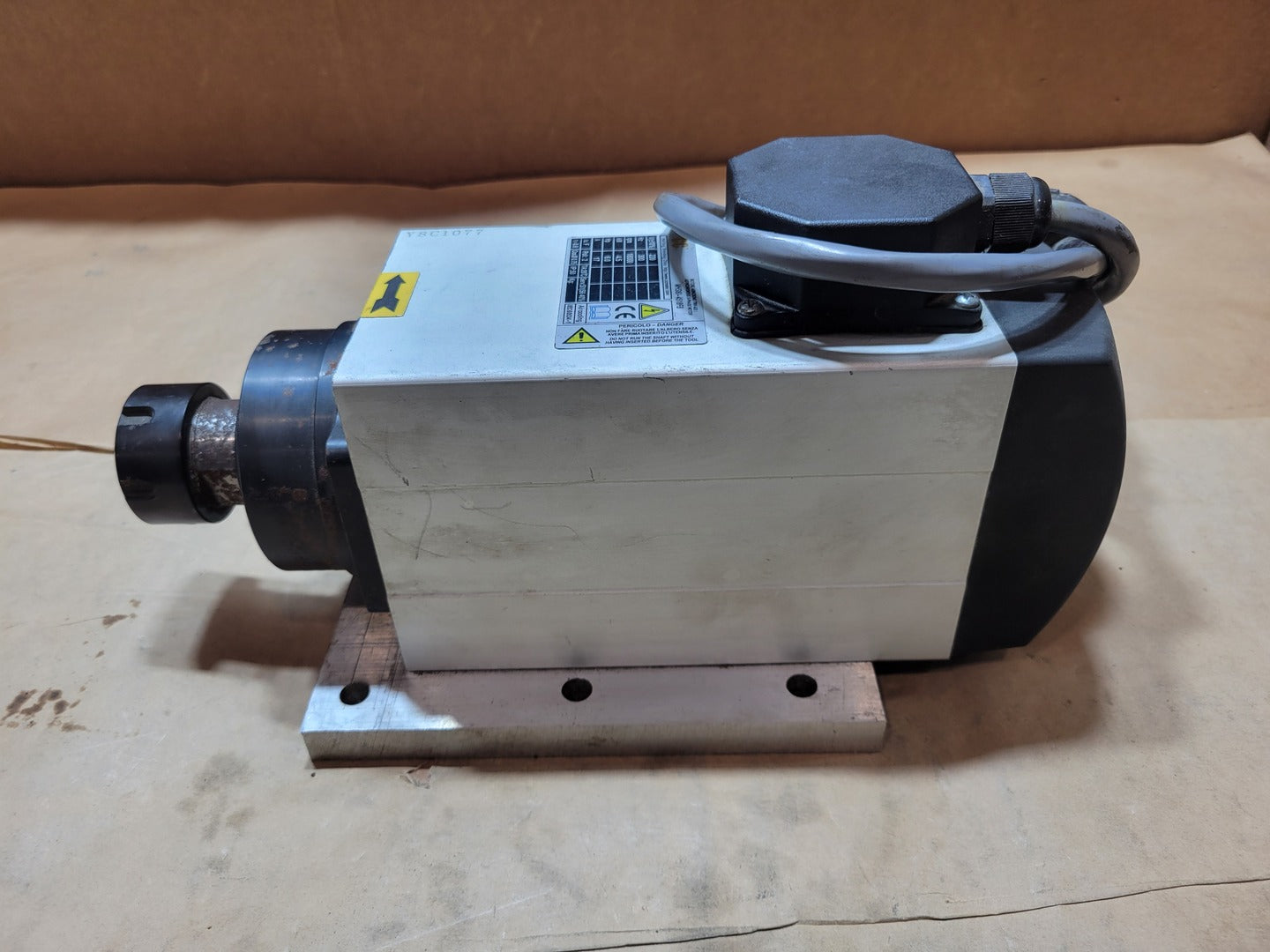

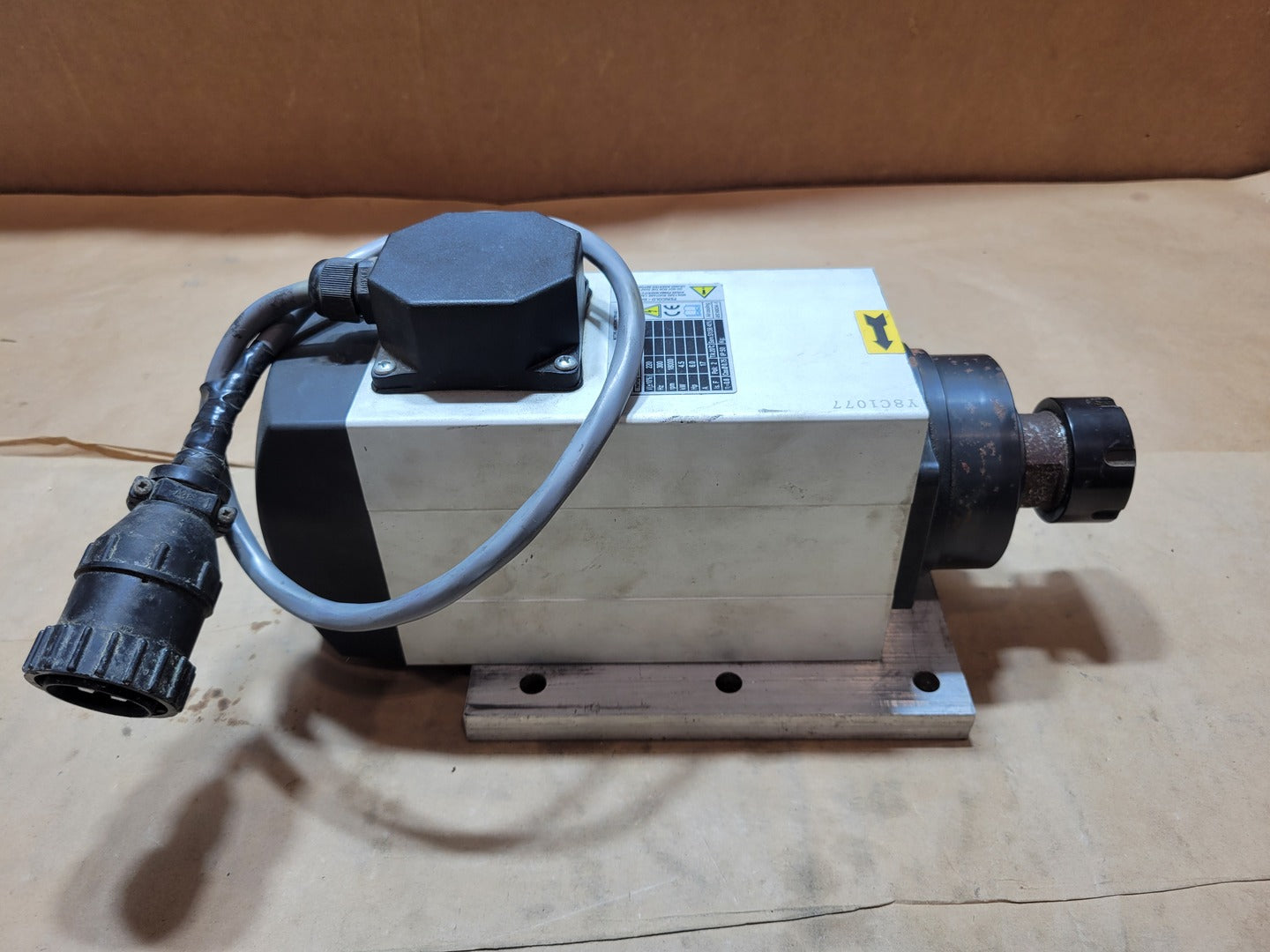

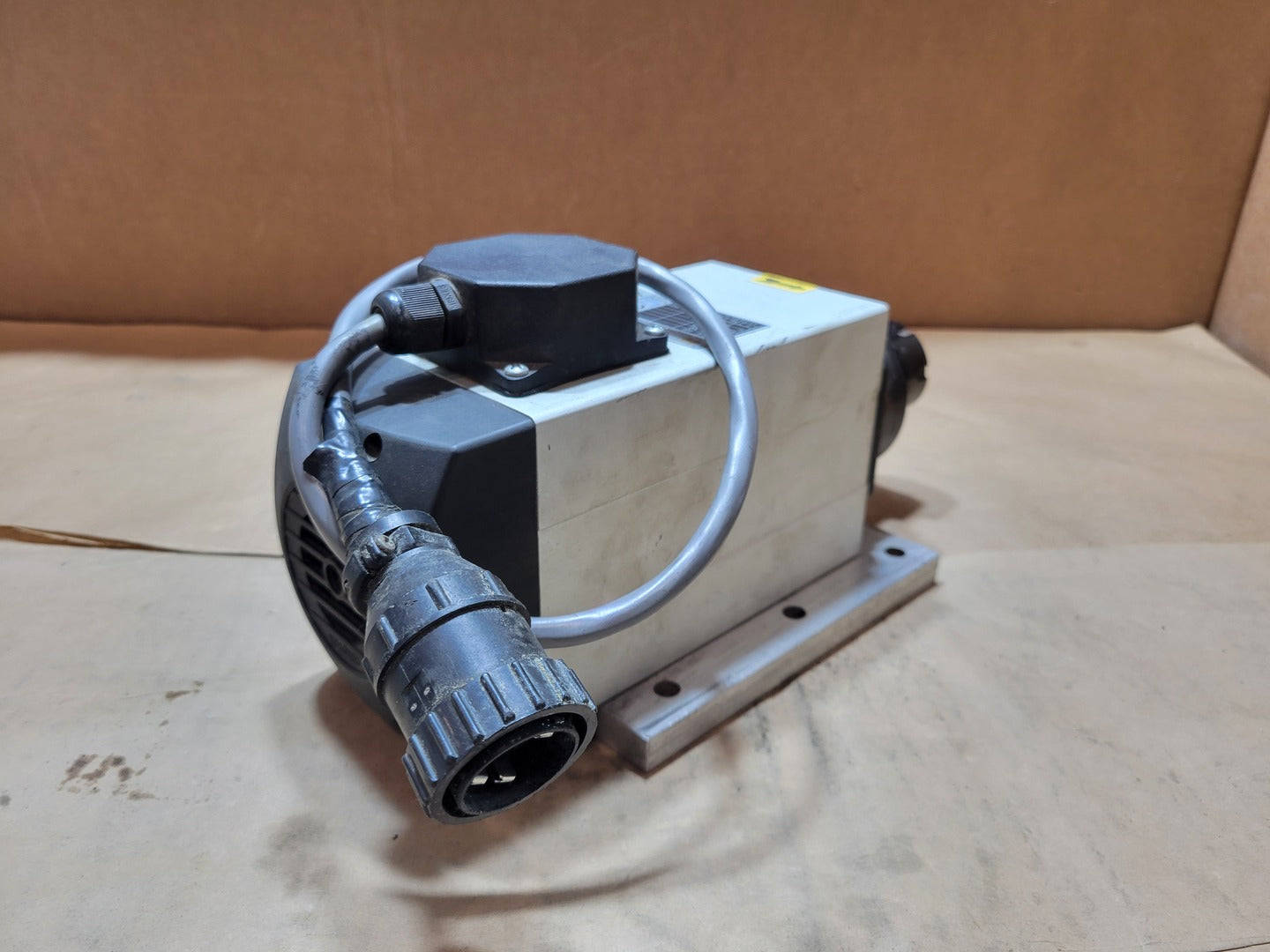

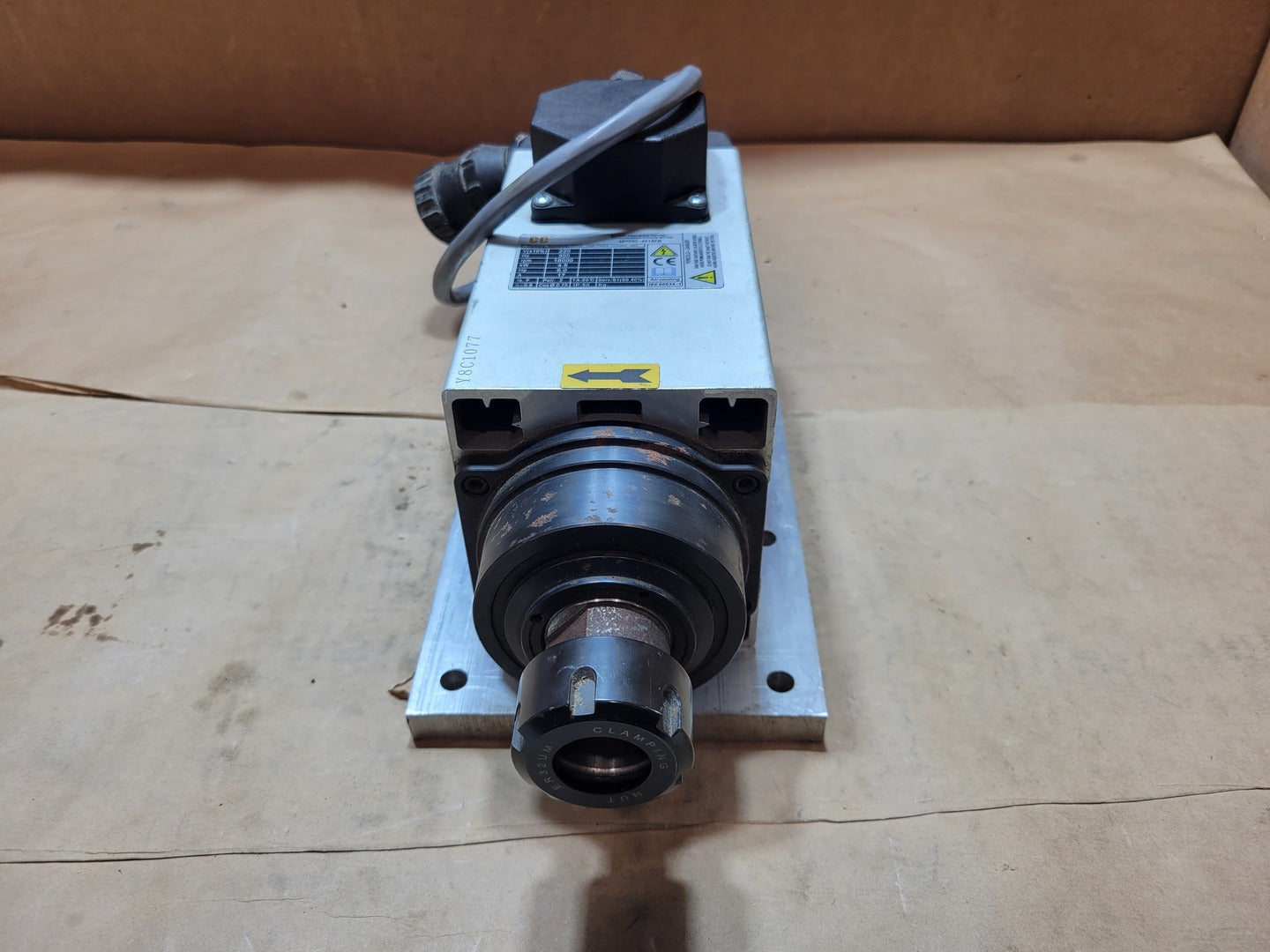

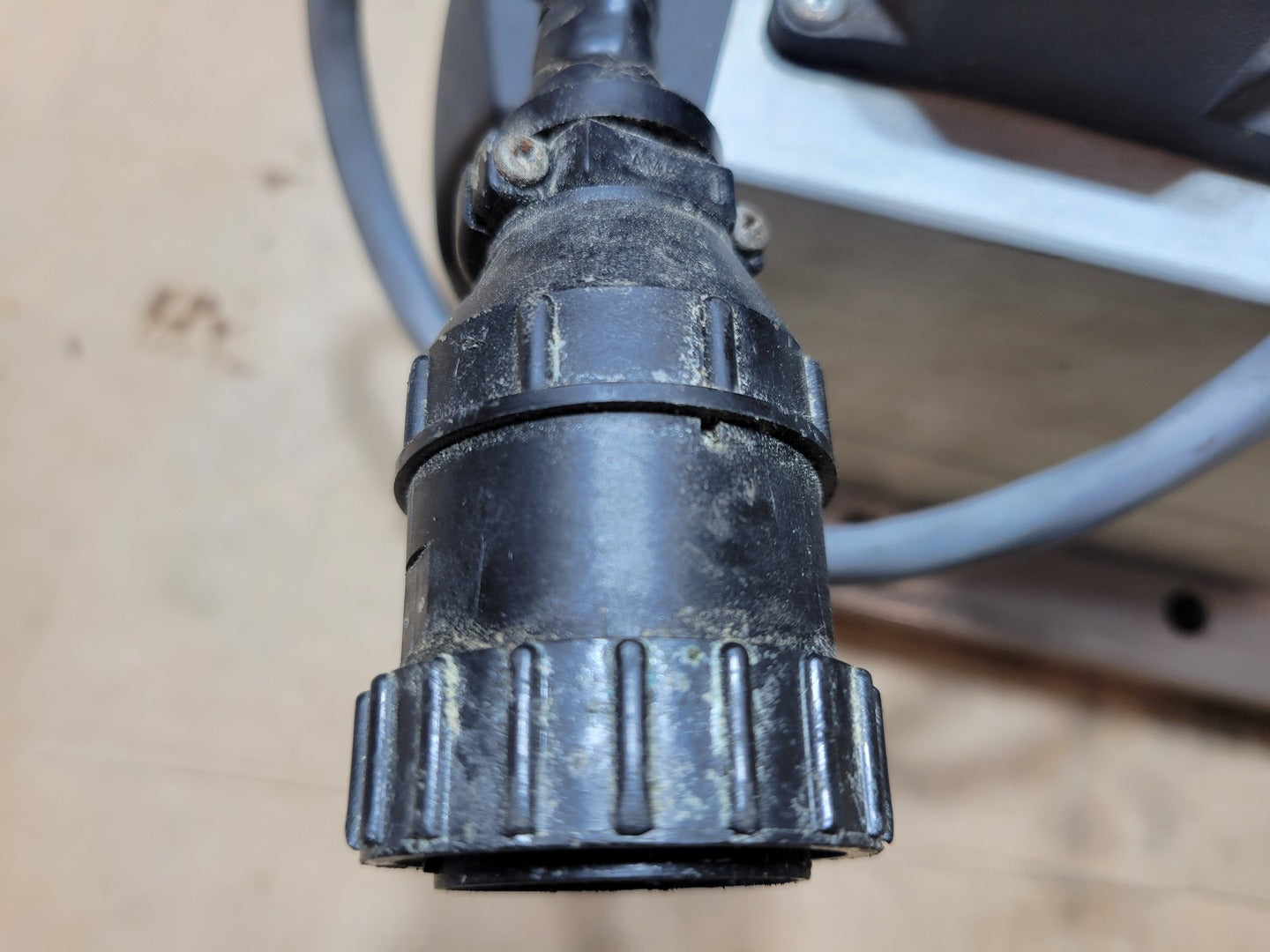

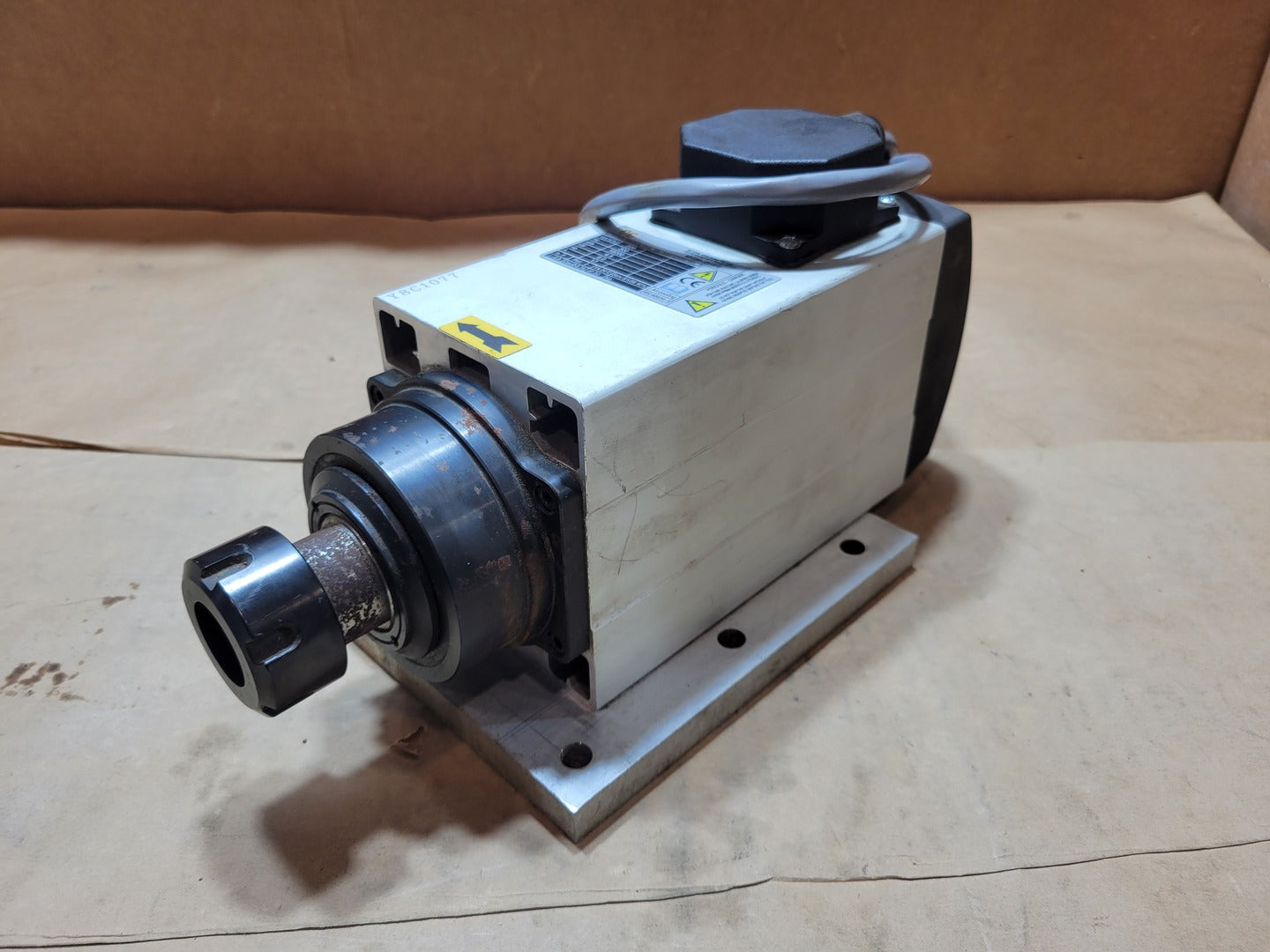

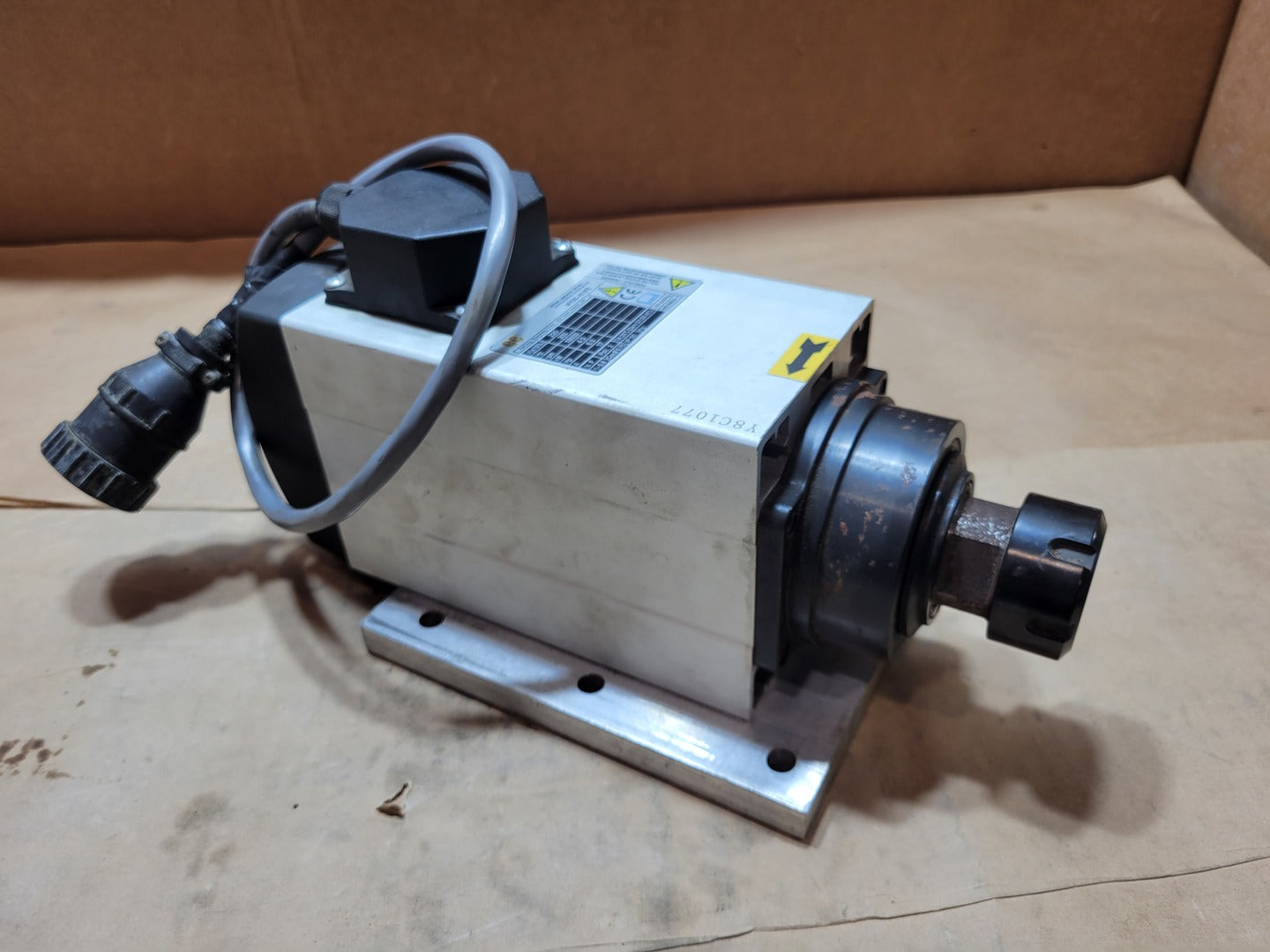

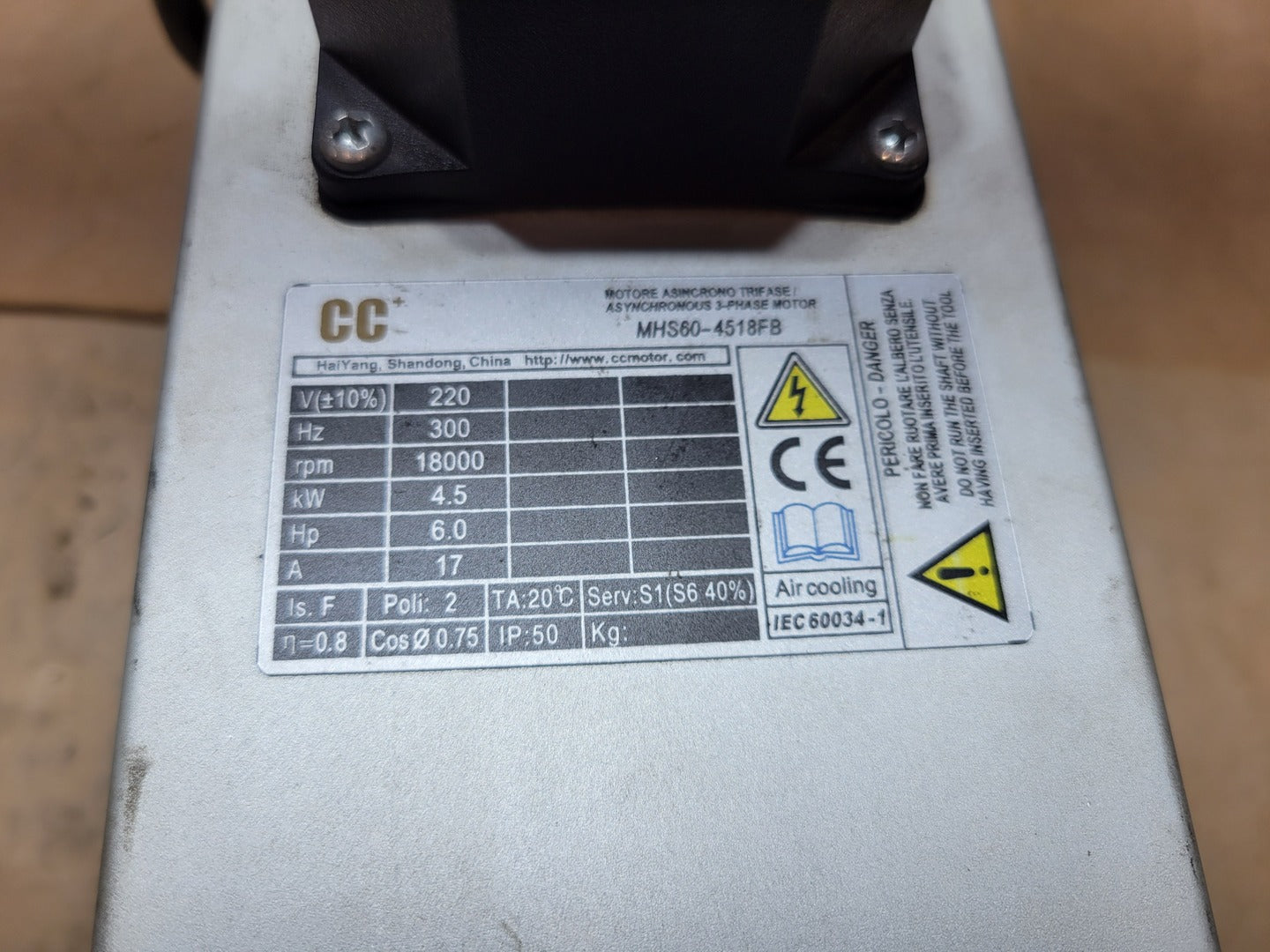

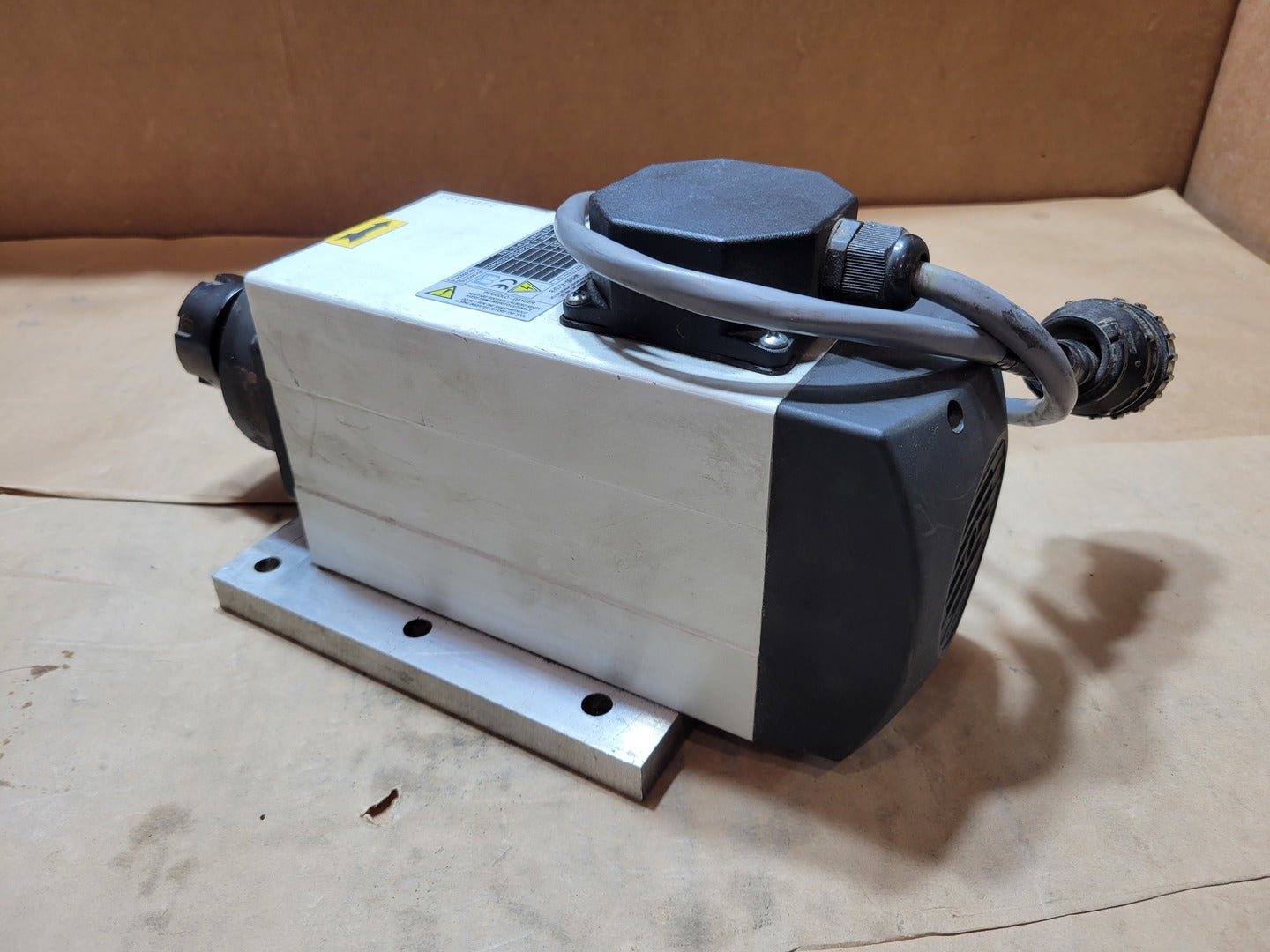

CC Motor model MHS60-4518FB air-cooled asynchronous CNC spindle motor rated at 4.5 kW, 6 HP, and 18,000 RPM. The nameplate confirms 220V, 300 Hz, 3-phase operation with S1/S6 duty ratings and an ER32 clamping nut. The assembly includes its mounting base, cooling fan, terminal box, attached cable, and circular connector, making it suitable for compatible CNC routing, engraving, drilling, and machining systems.
| Specifications | |
|---|---|
| Model | MHS60-4518FB |
| Condition | Used |
| Other Specifications |
|---|
|

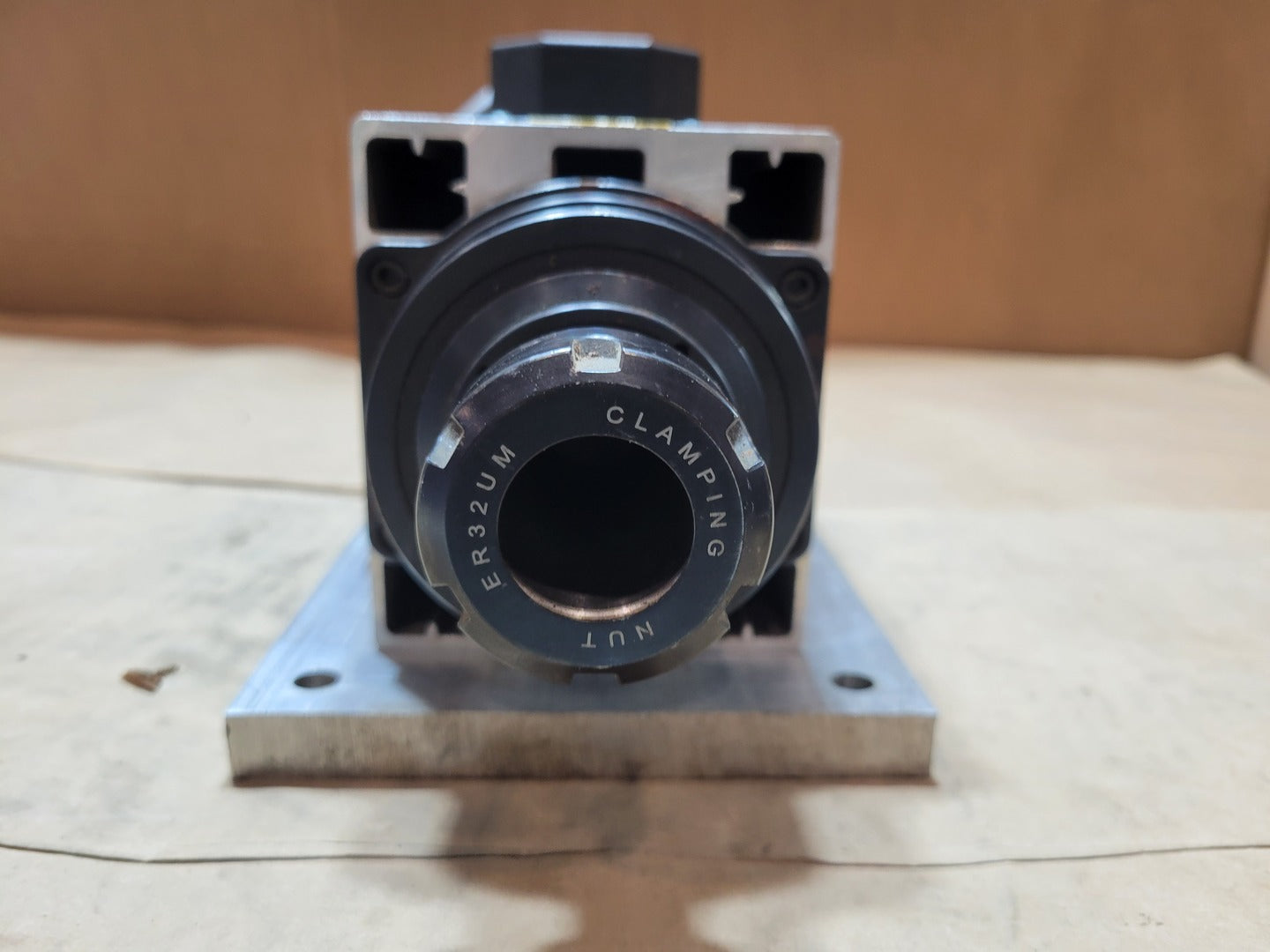

Equipment Type: High-Speed CNC Spindle Motor / Electrospindle Motor Type: Asynchronous Motor Tool Change Type: Manual Tool Change Power: 4.5 kW Horsepower: 6 HP Voltage: 220V AC +-10% Current: 17A Phase: 3-Phase Frequency: 300 Hz Maximum Speed: 18,000 RPM Poles: 2 Tool Interface: ER32 Clamping Nut: ER32UM Cooling Method: Air-Cooled Insulation Class: Class F Protection Rating: IP50 Continuous Duty: S1 Intermittent Duty: S6, 40% Efficiency: 0.80 Power Factor: 0.75 Rated Ambient Temperature: 20°C Applicable Standard: IEC 60034-1 Certification Marking: CE Housing Material: Aluminum housing with black end covers |
