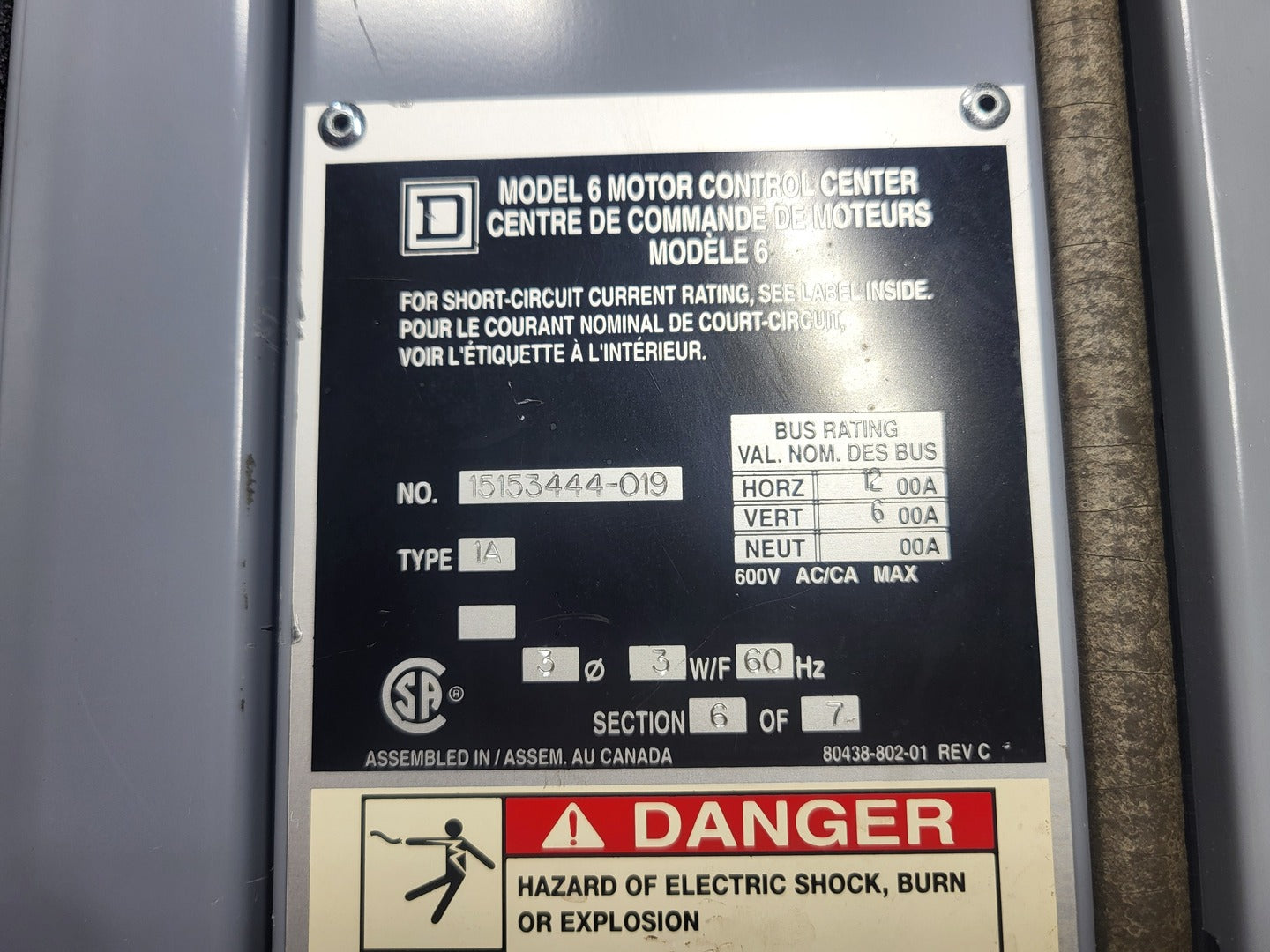

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151957
Price:
$7,425

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model Model 6
Condition Used
Other Specifications

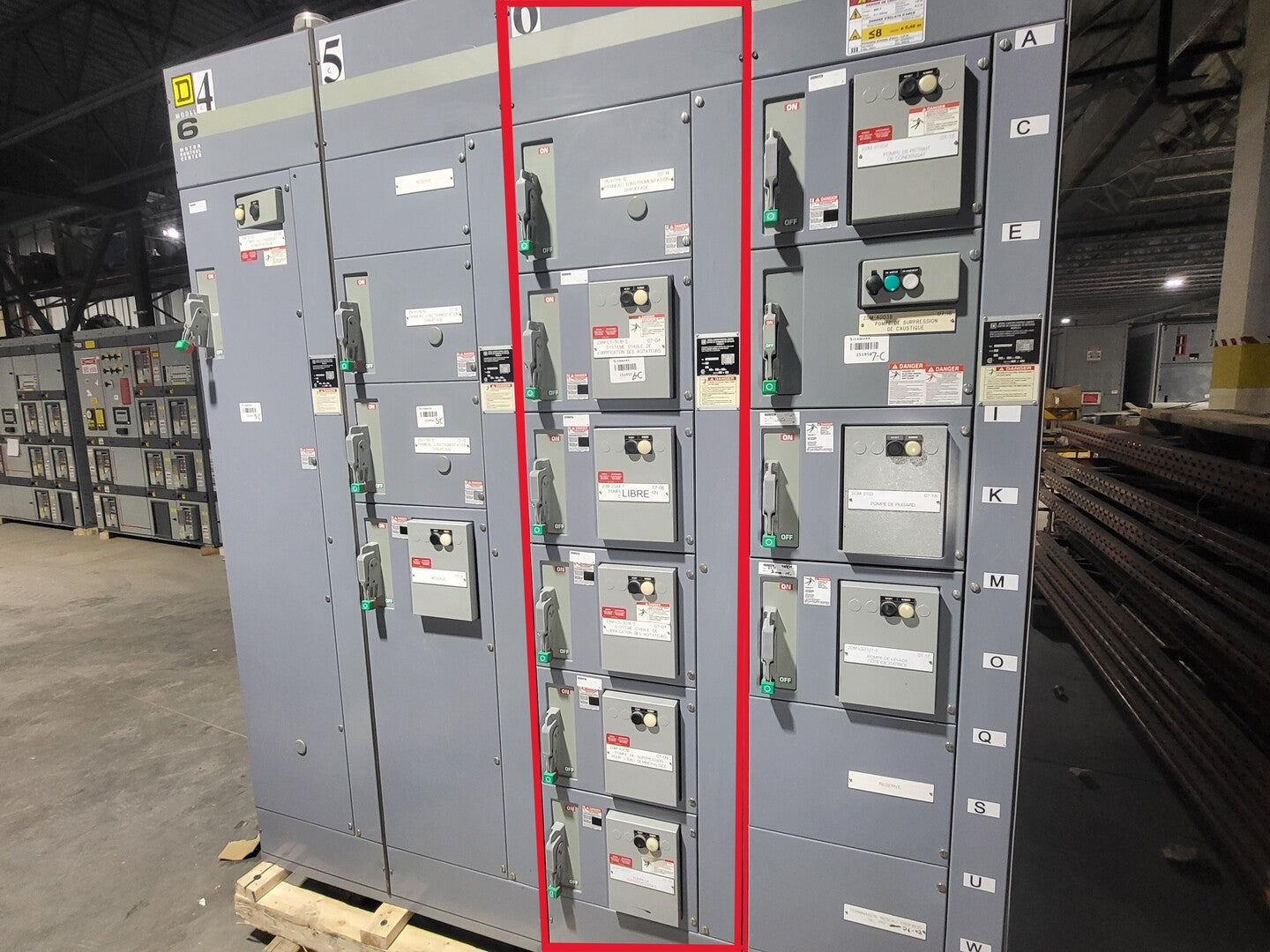

Note: Section 6 only

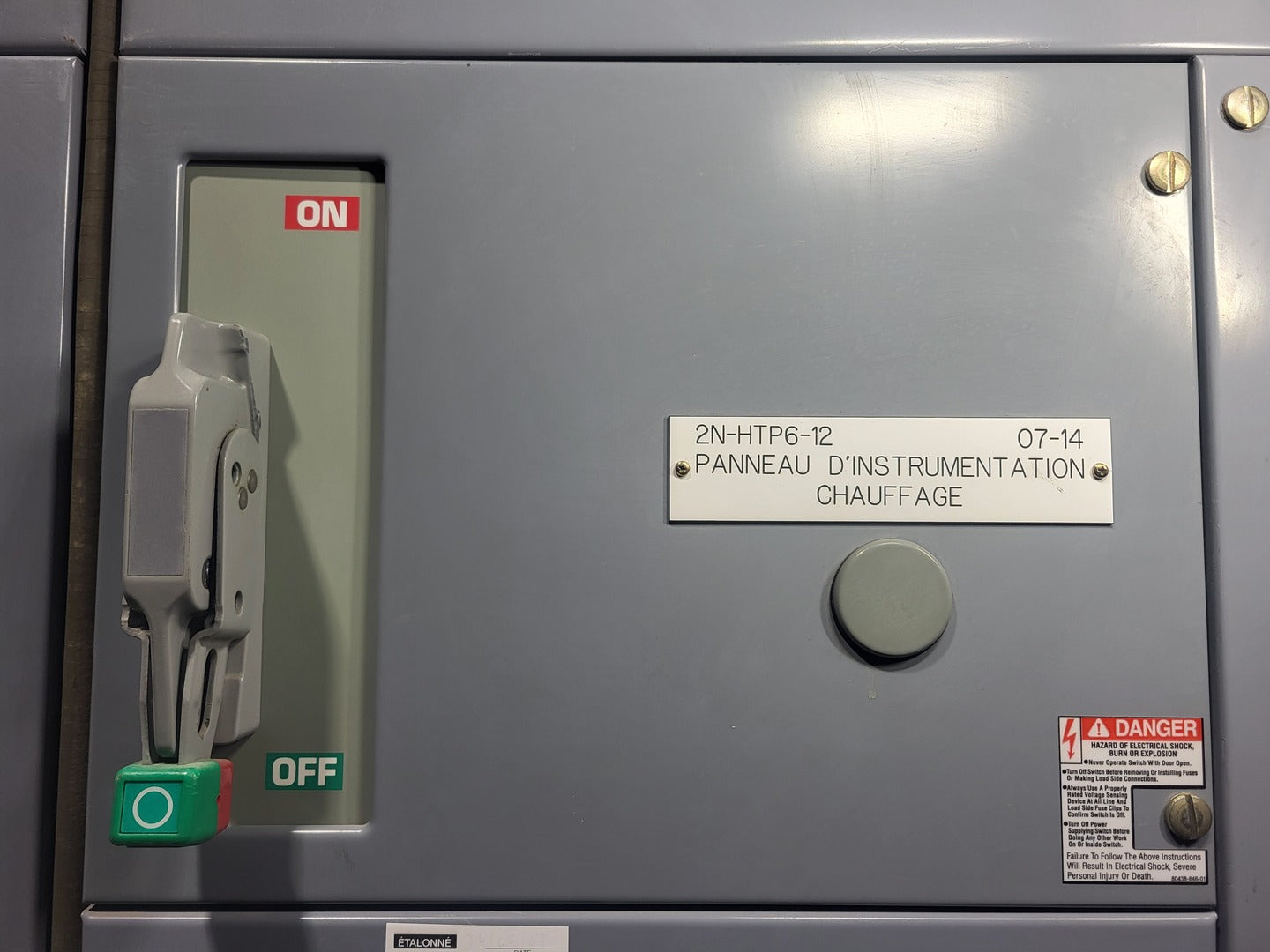

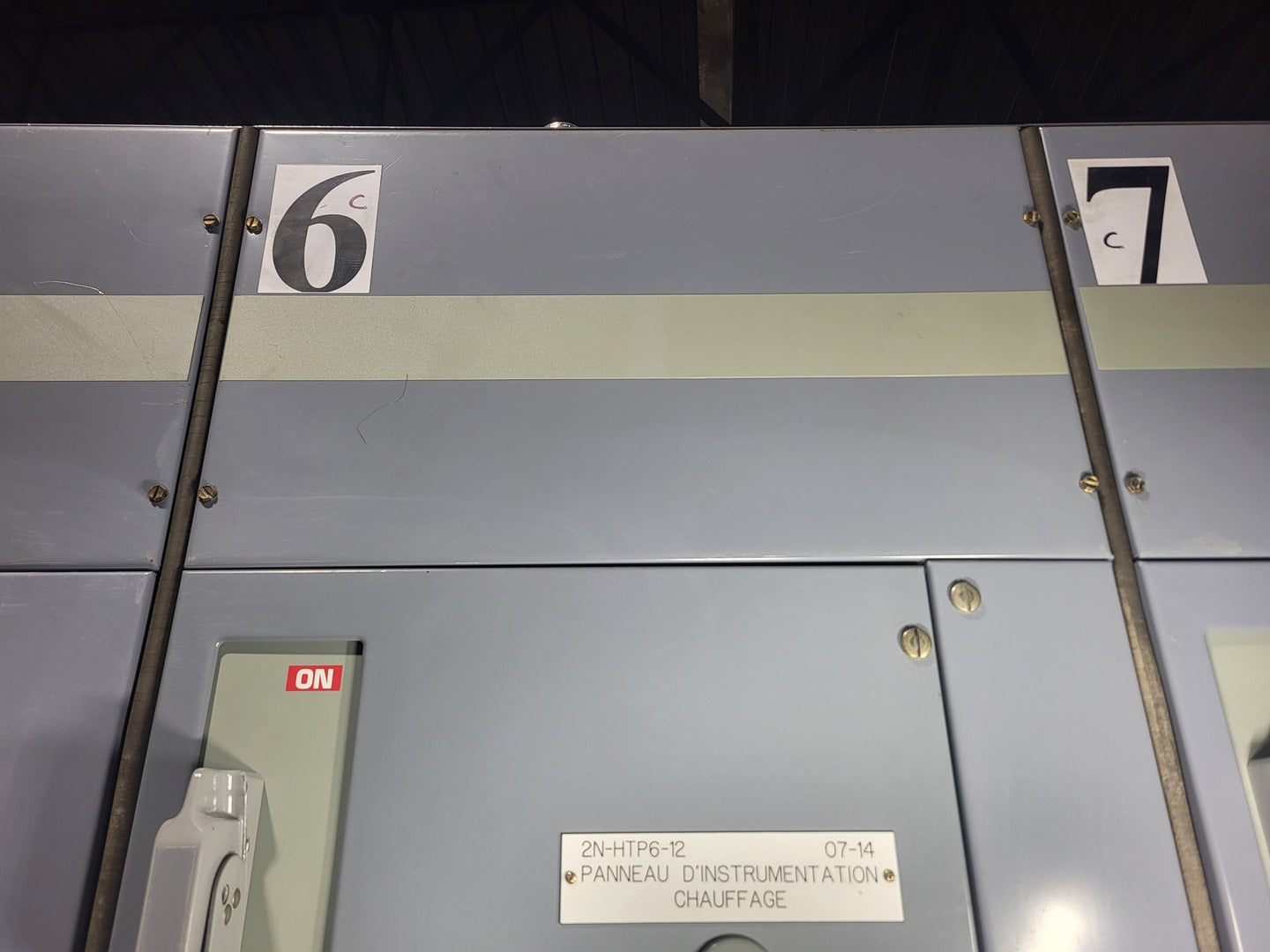

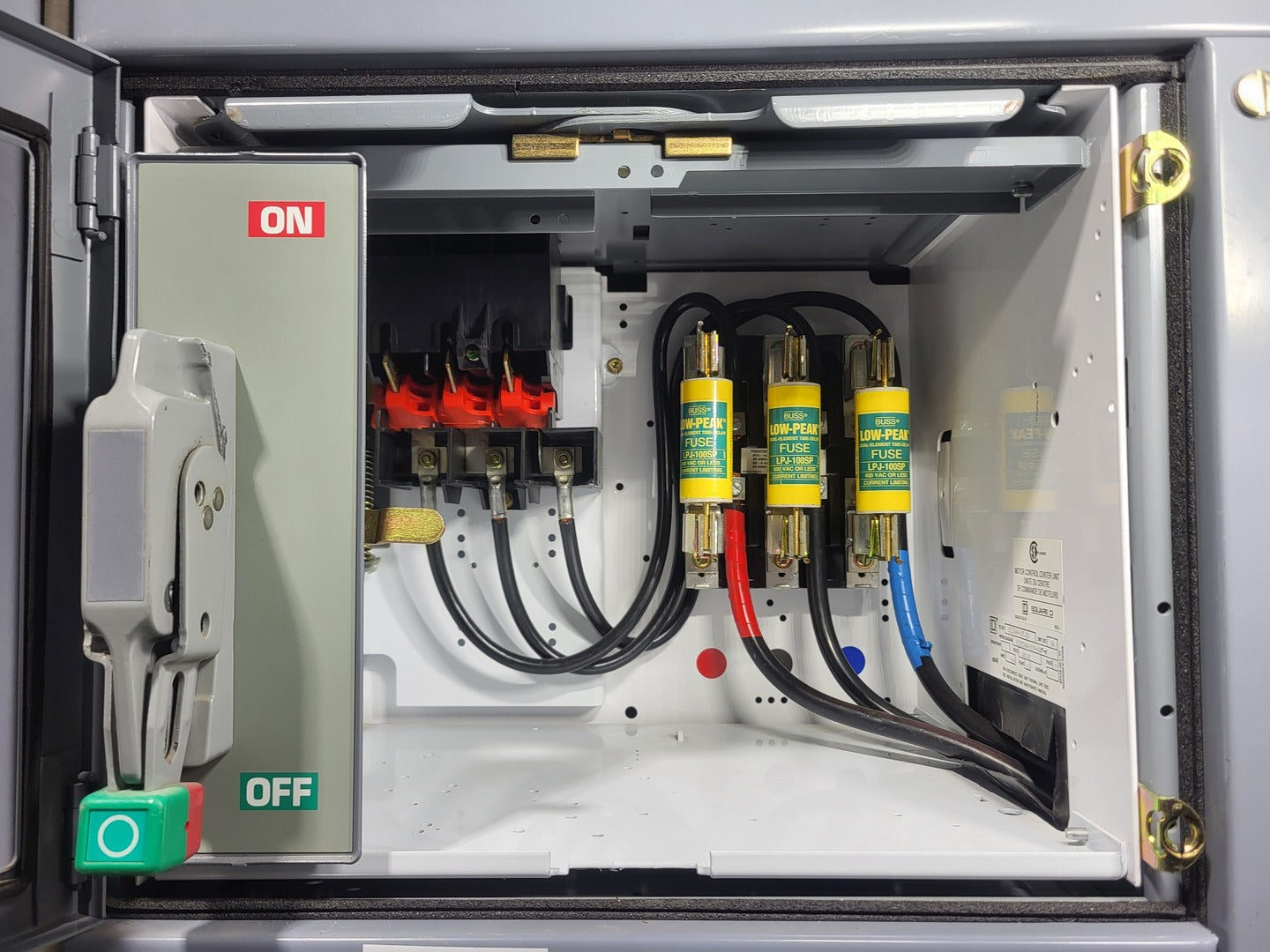

Bucket #1 2N-HTP6-12

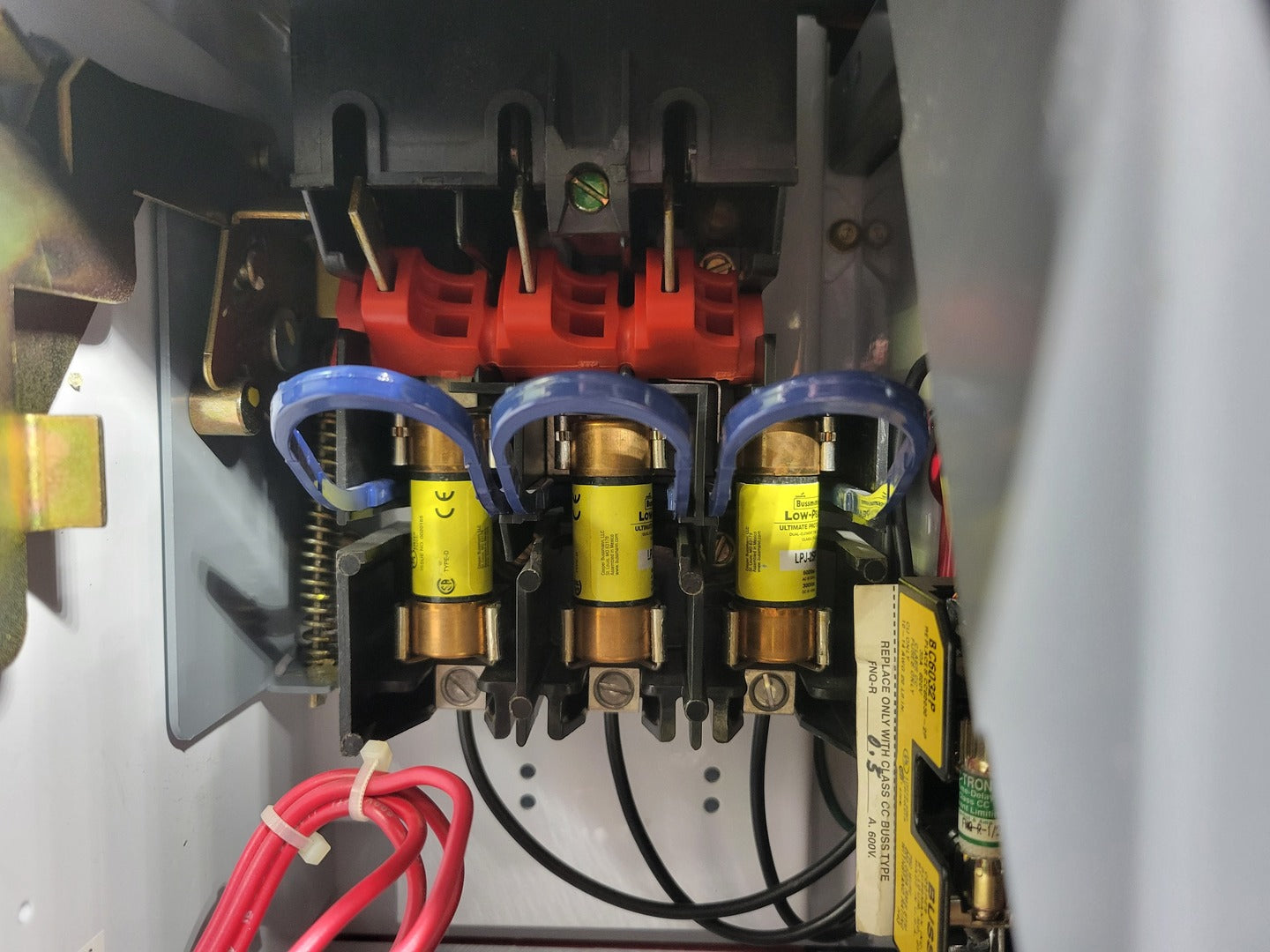

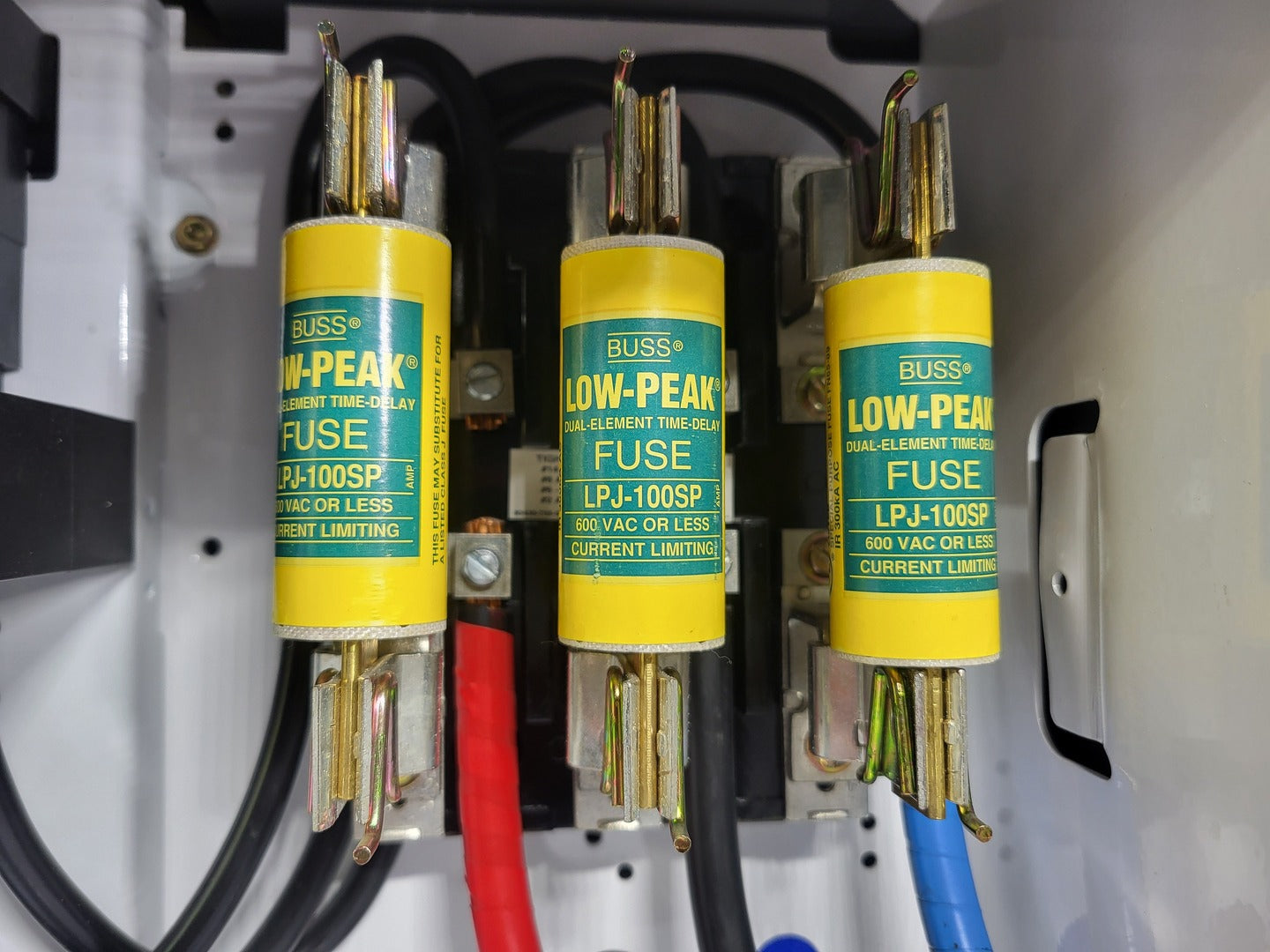

  1. 3 x Bussmann Low-Peak fuses LPJ-100SP, dual-element time-delay, 100A, 600VAC or less

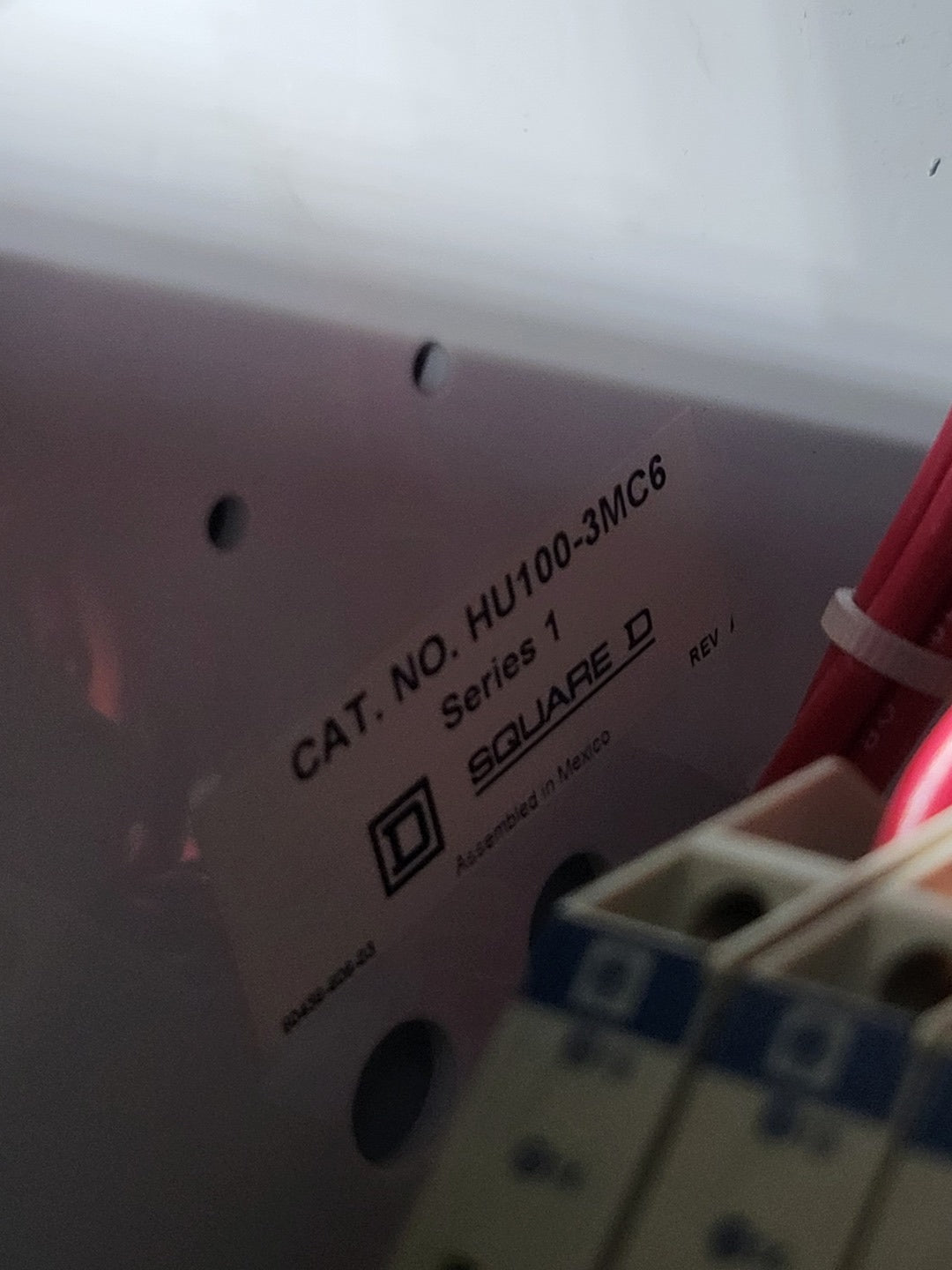

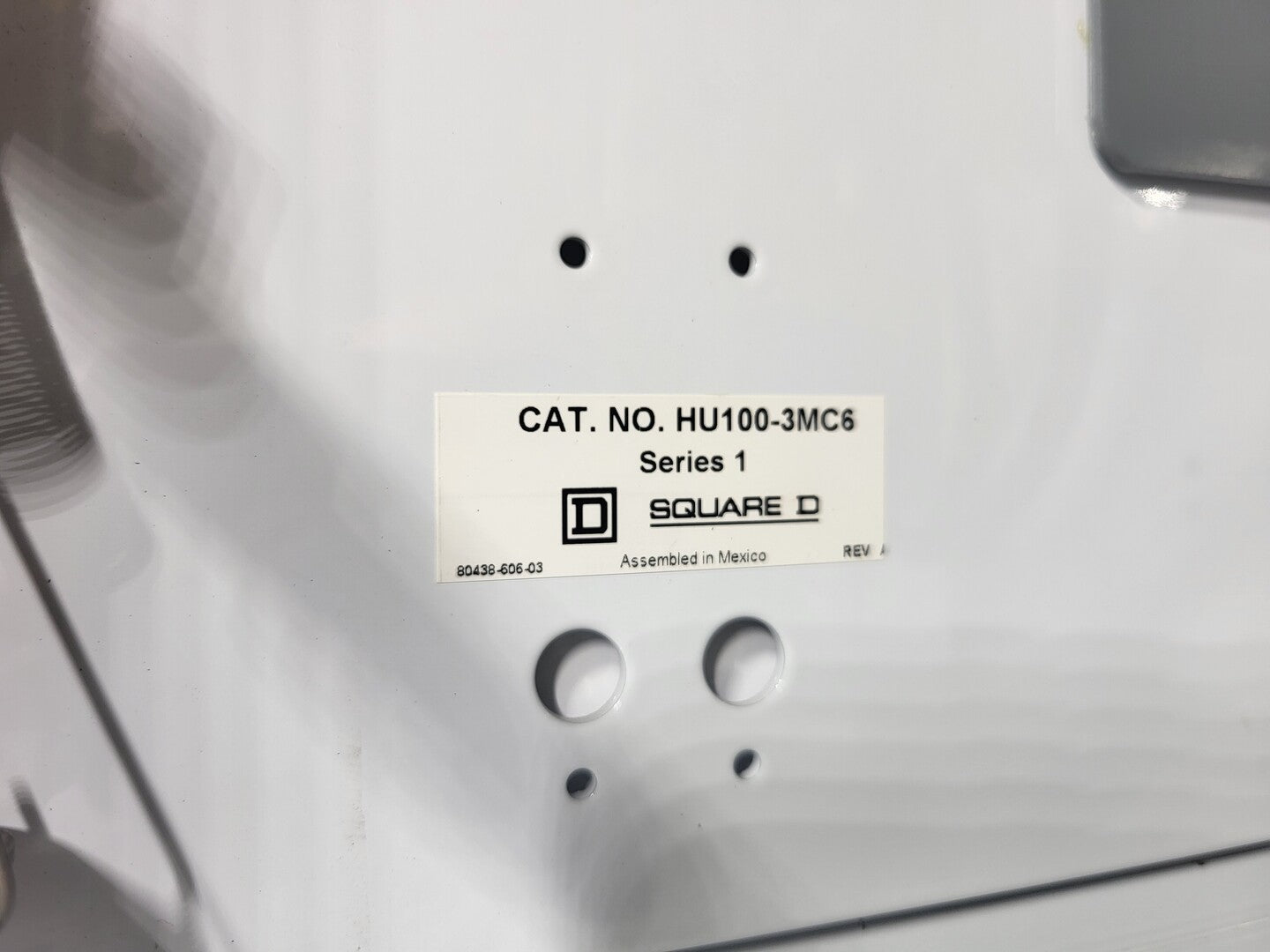

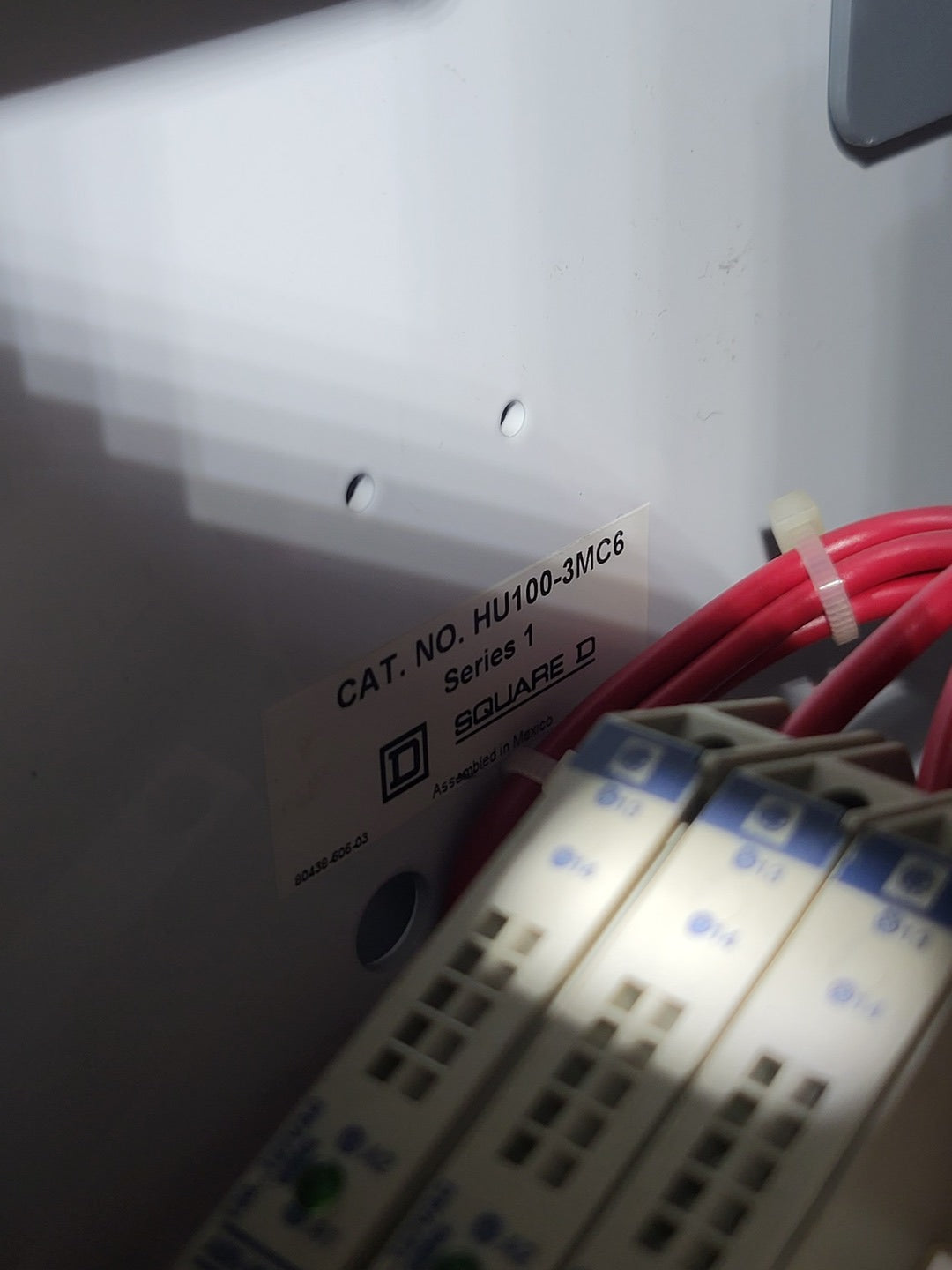

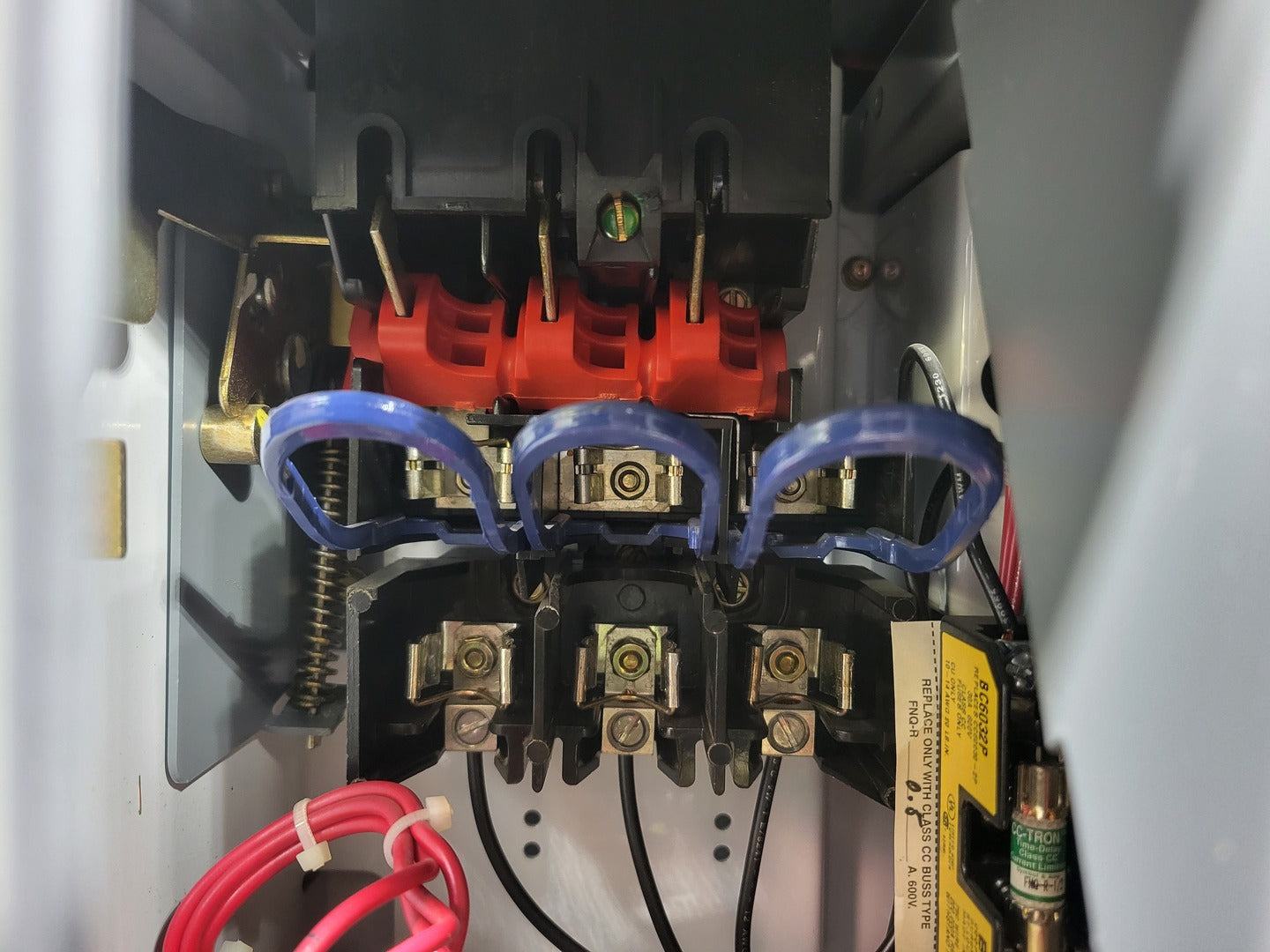

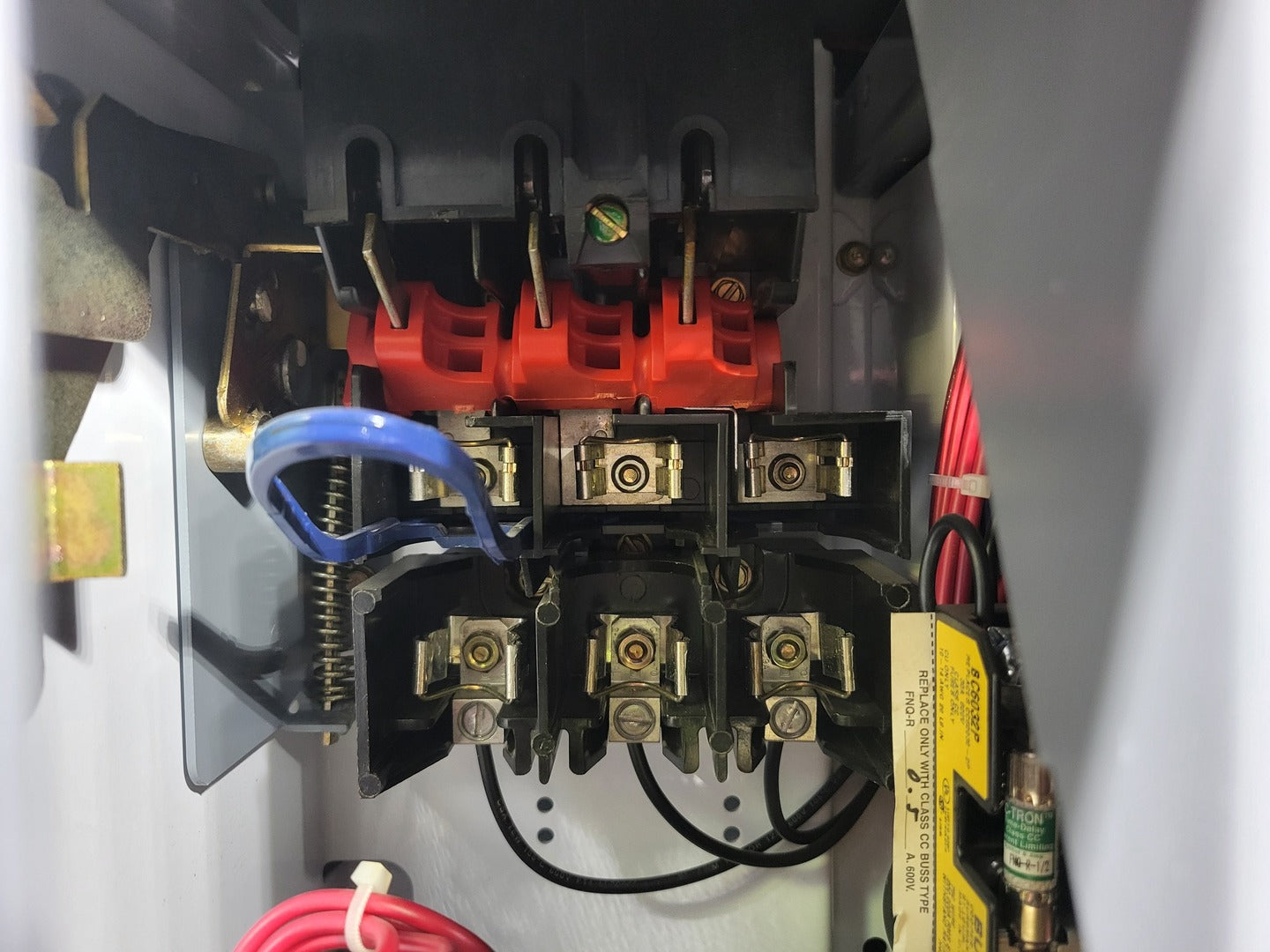

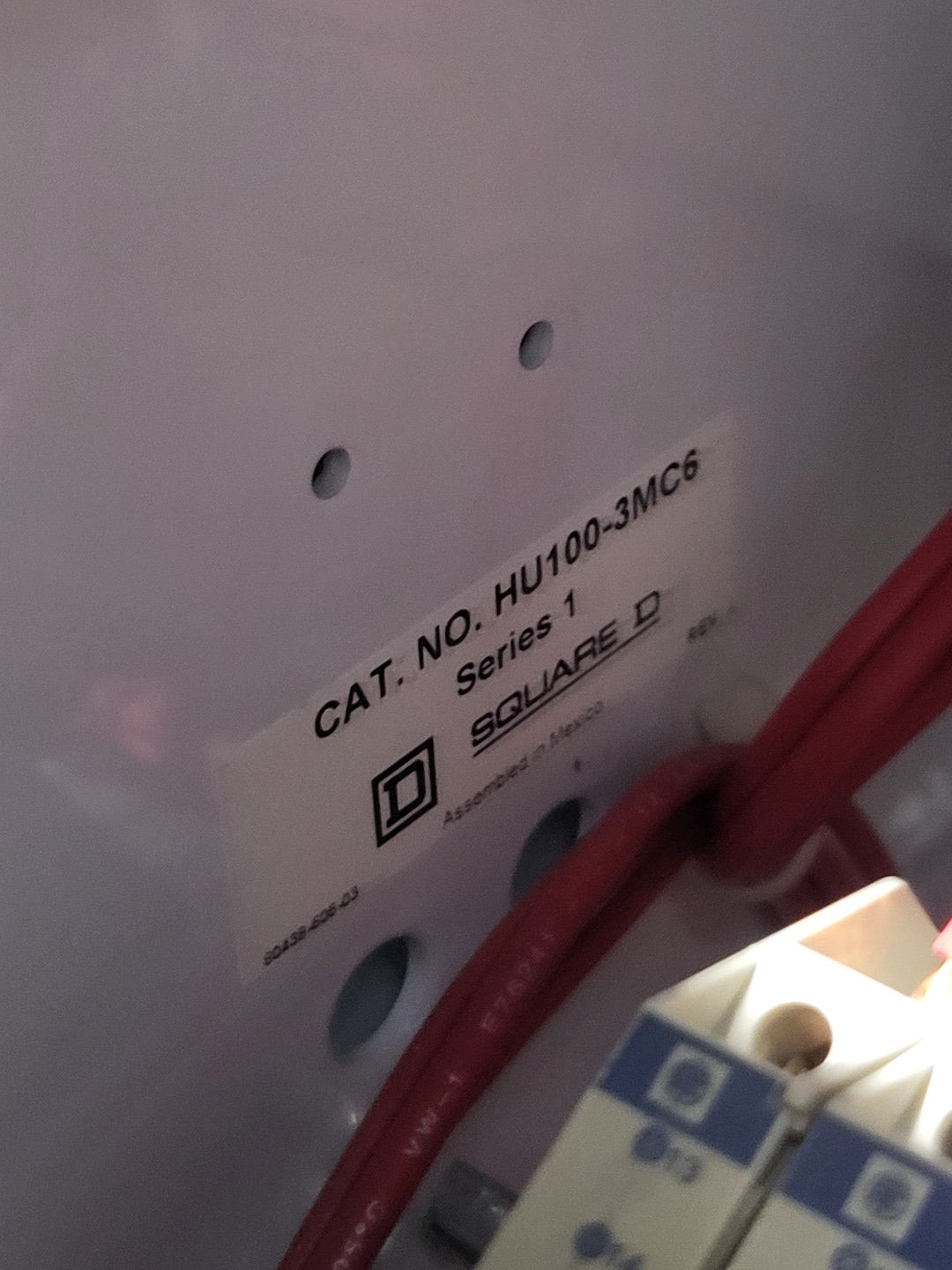

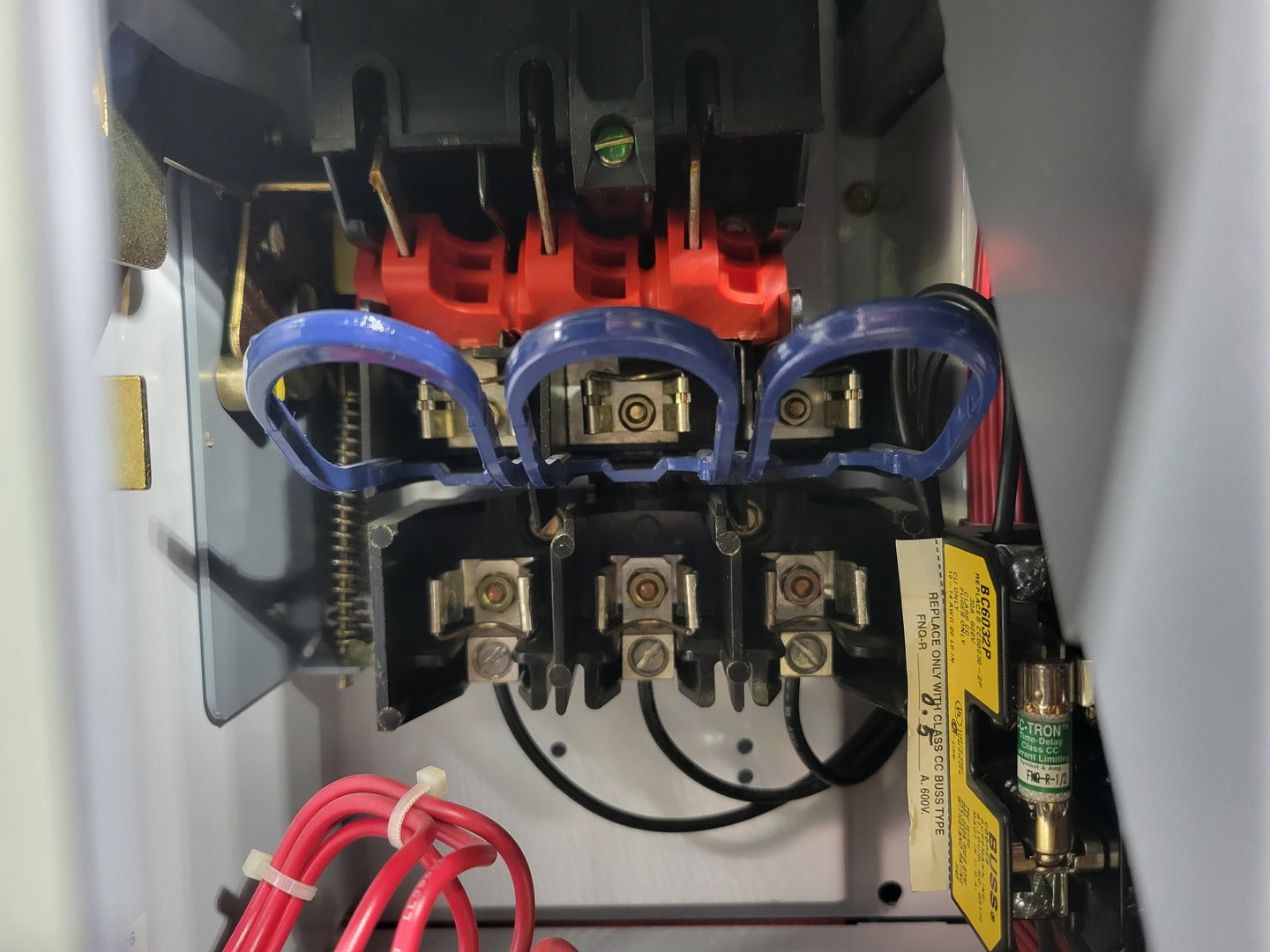

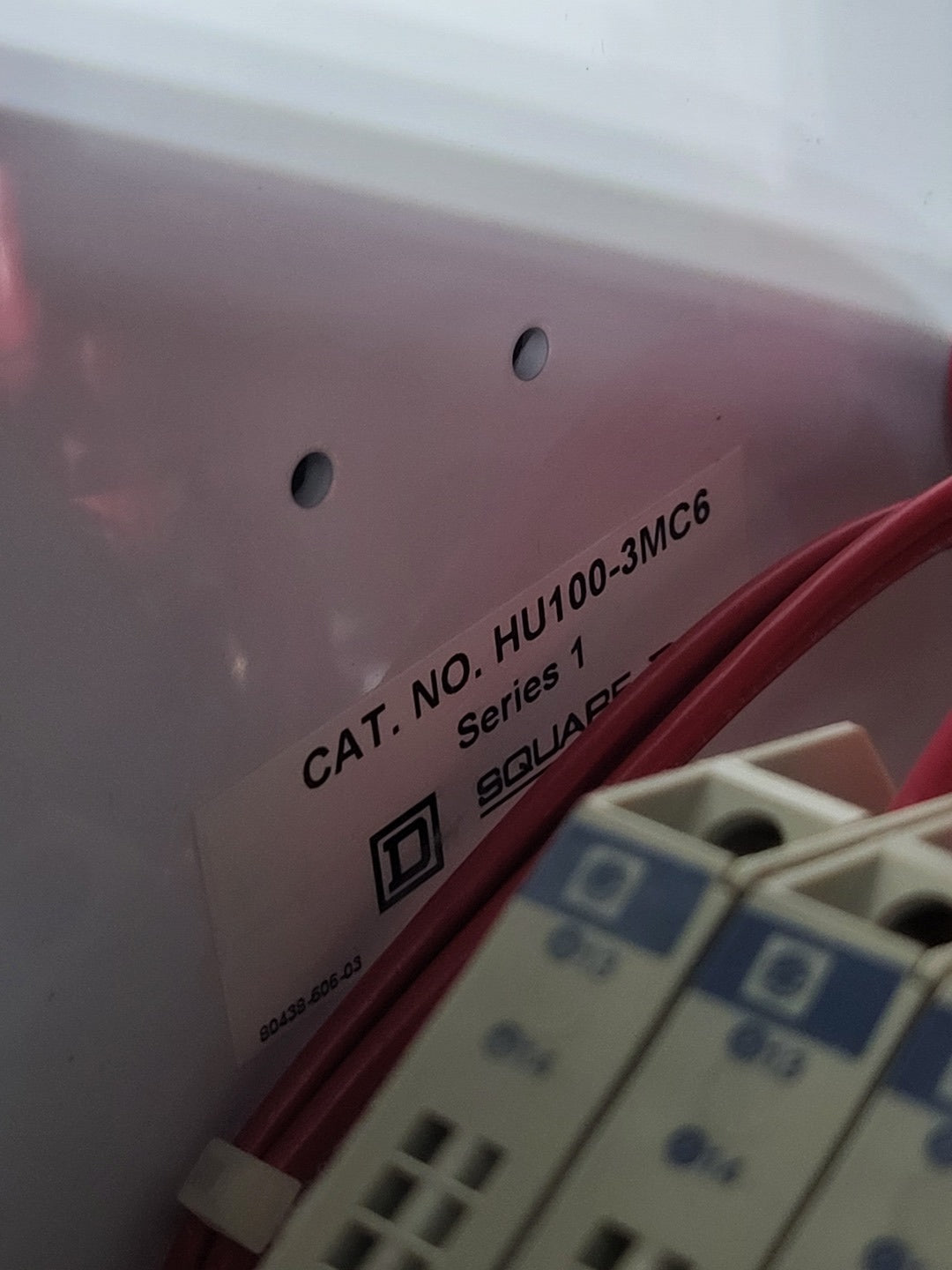

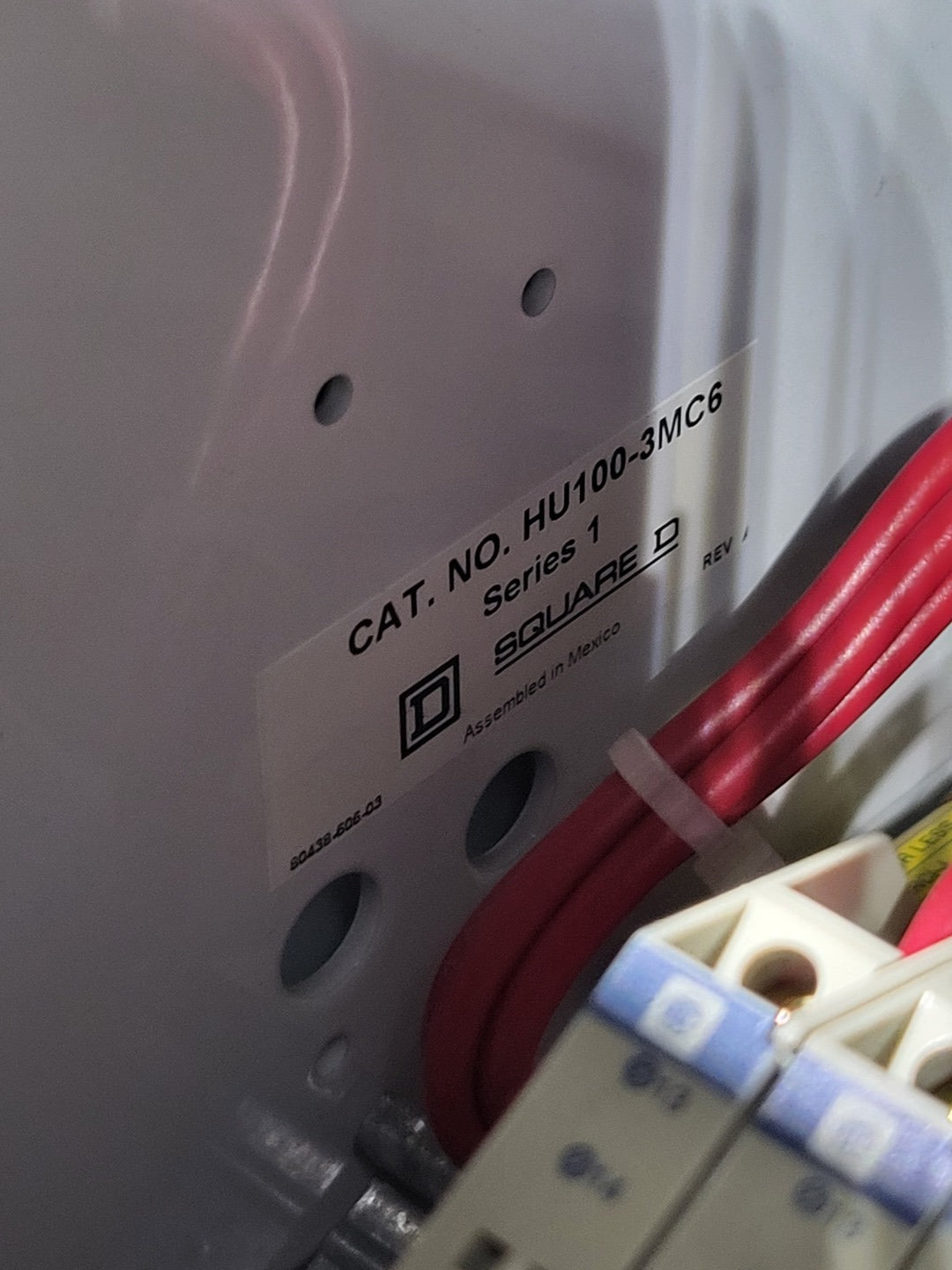

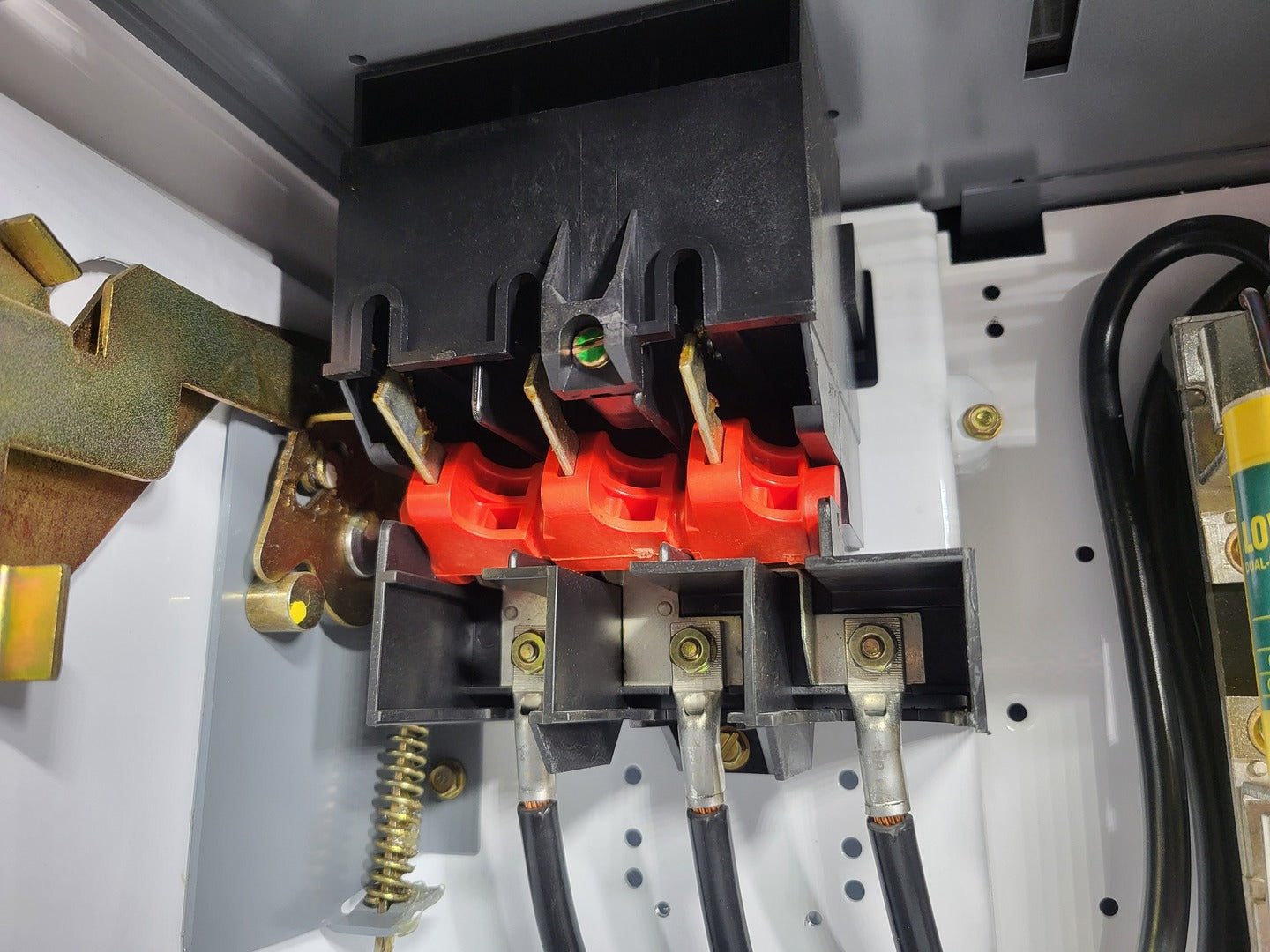

  2. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

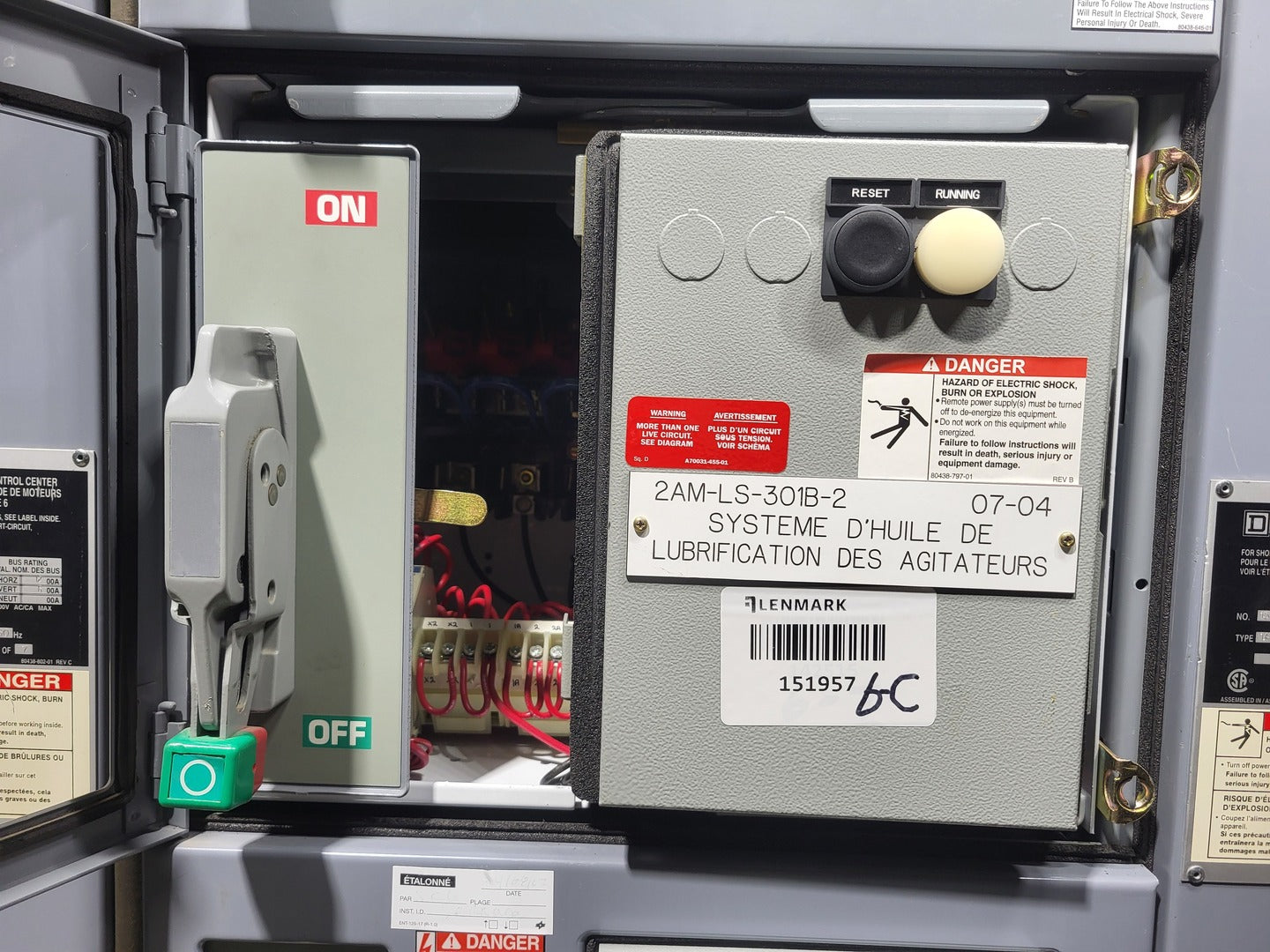

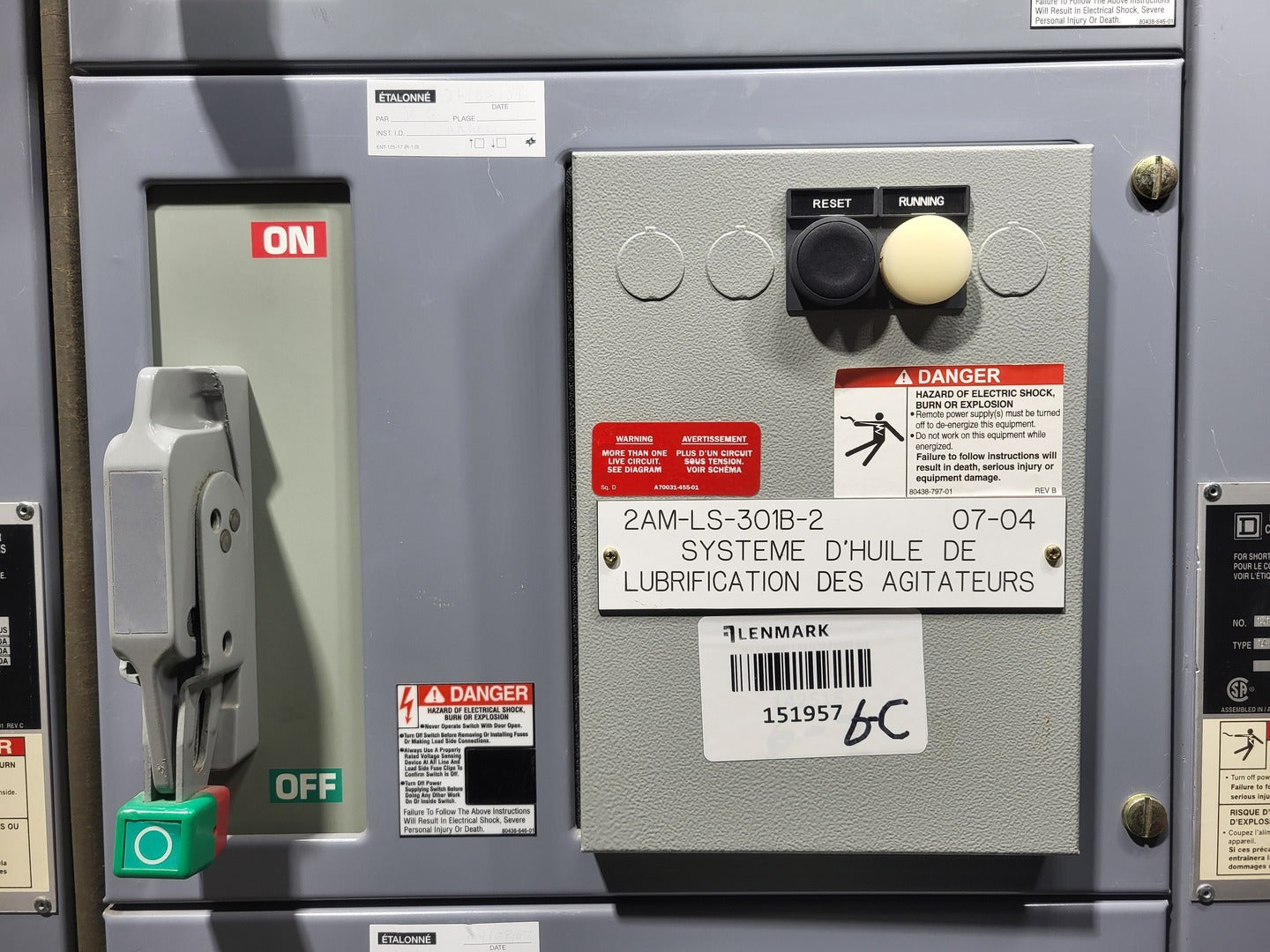

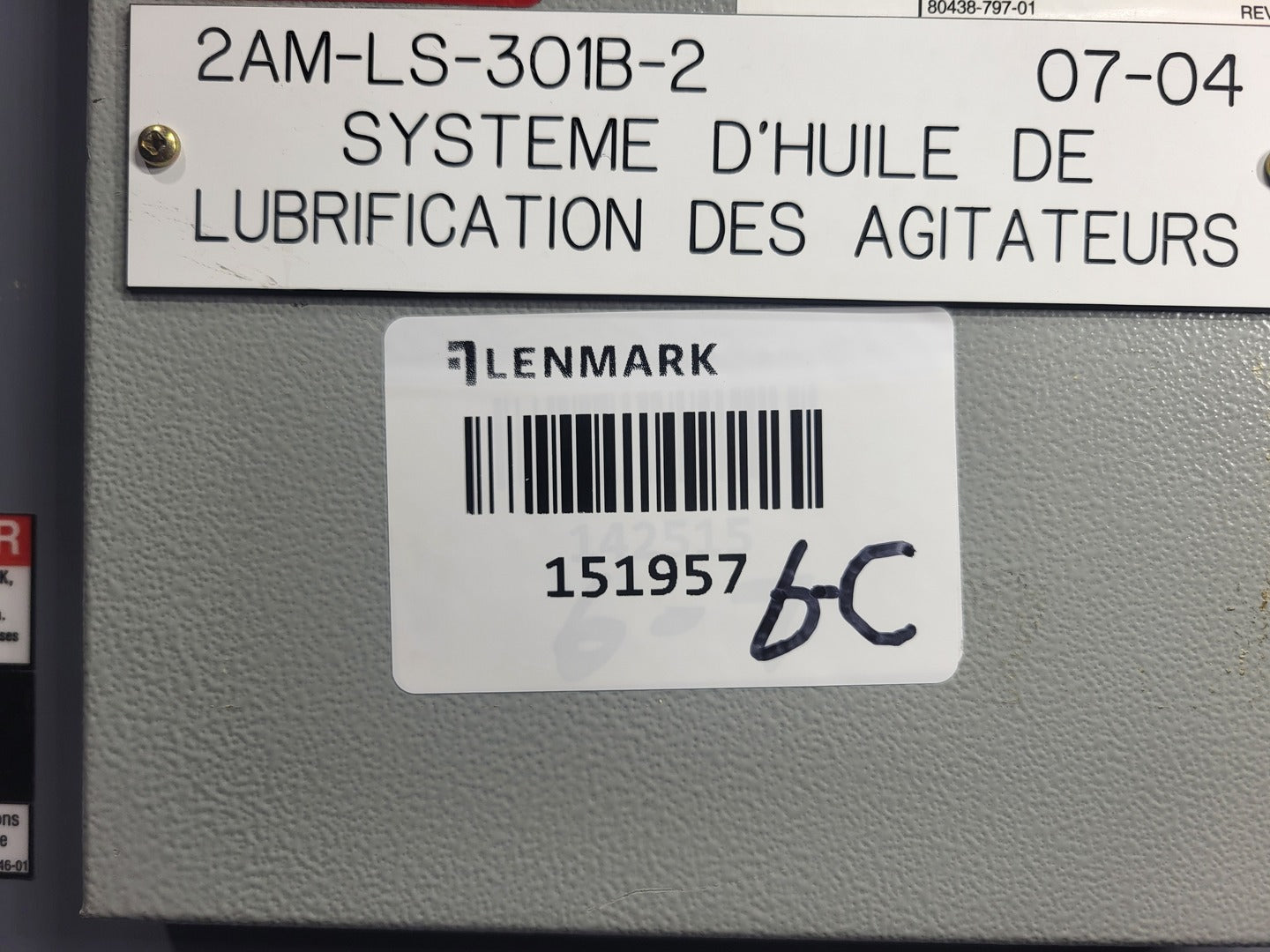

Bucket #2 2AM-LS-301B-2

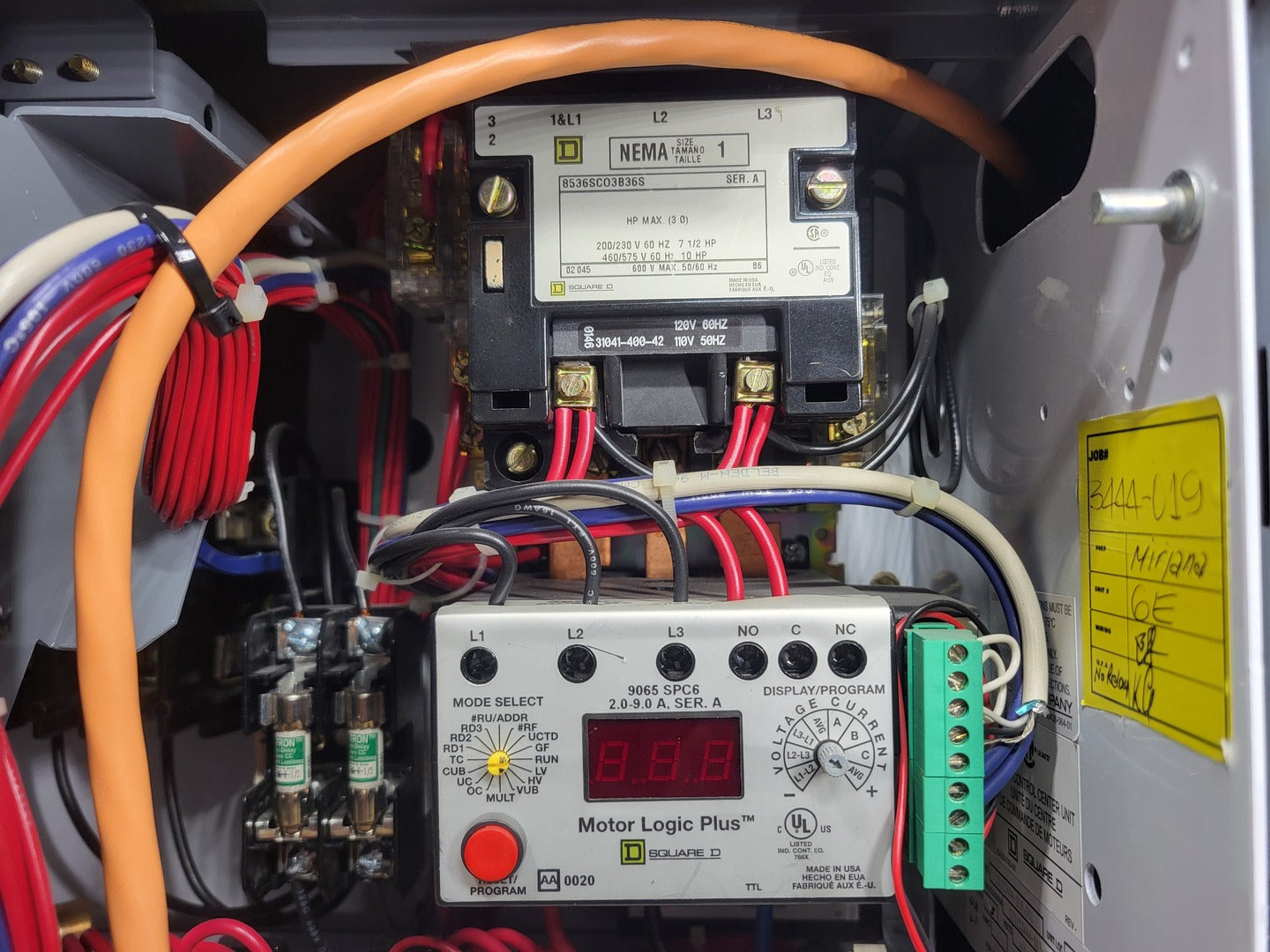

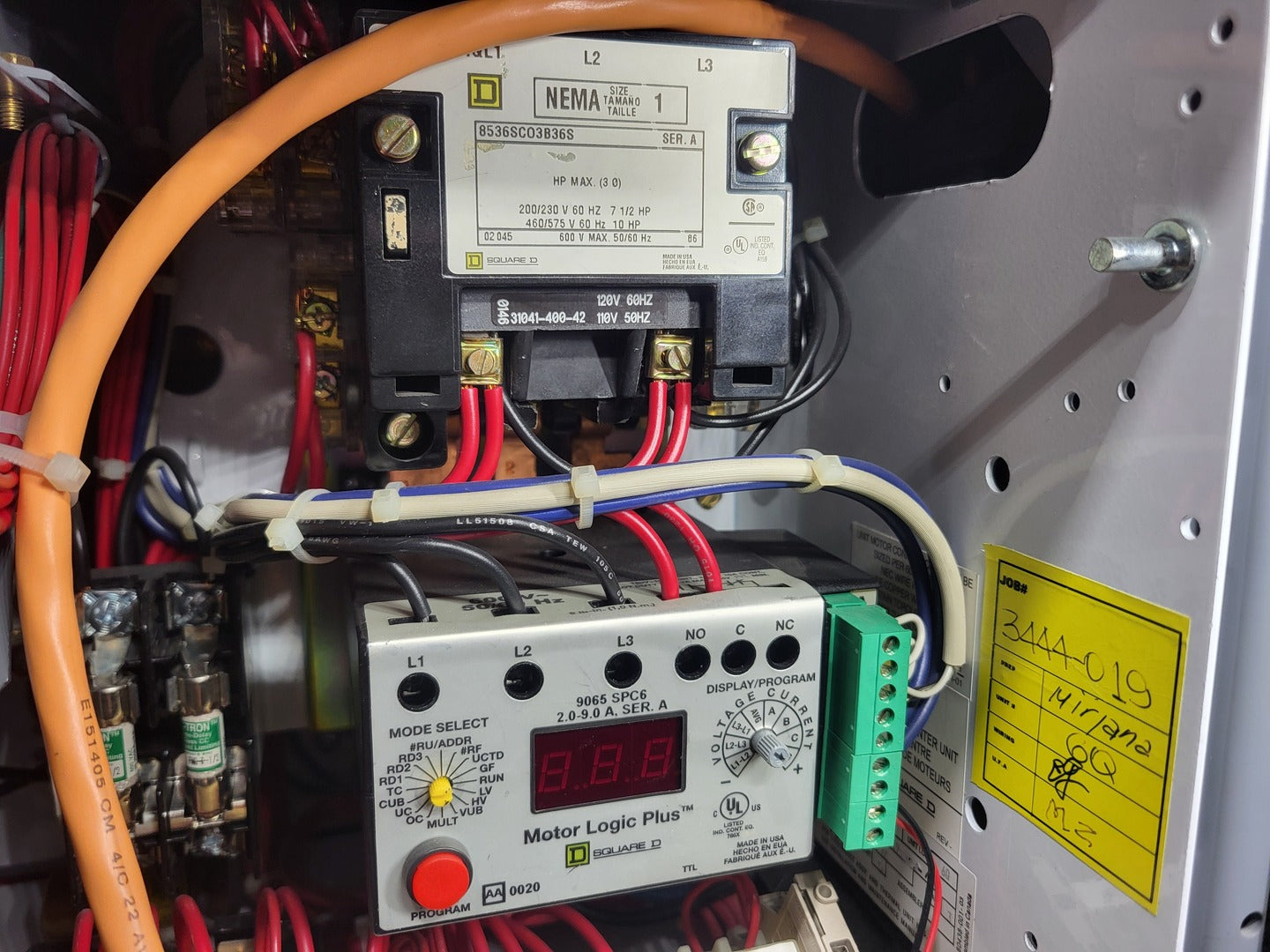

  1. Square D 8536SCO3B36S, NEMA Size 1 contactor, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SPC6, motor protection relay, 2.0-9.0A range, 600VAC max

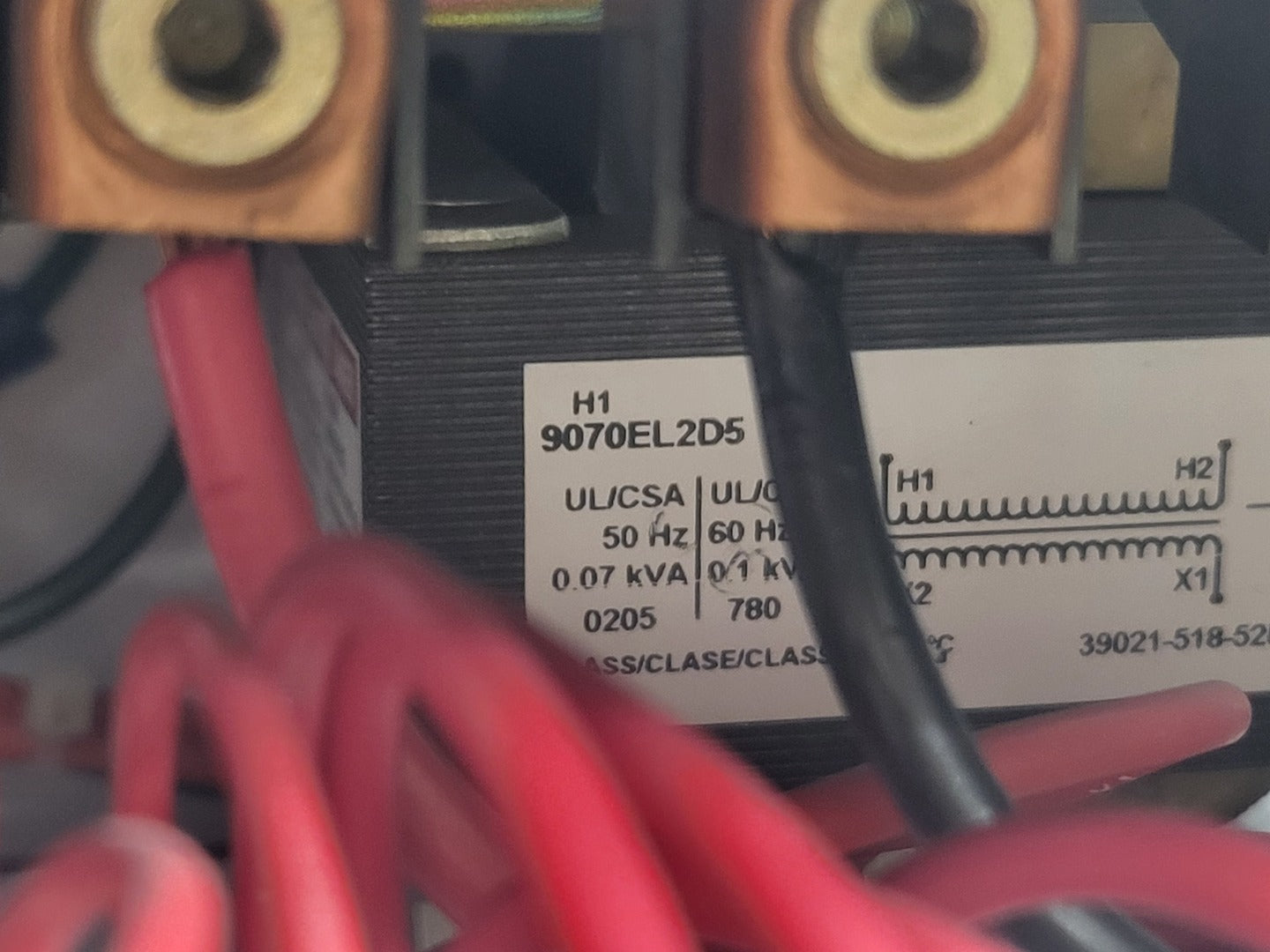

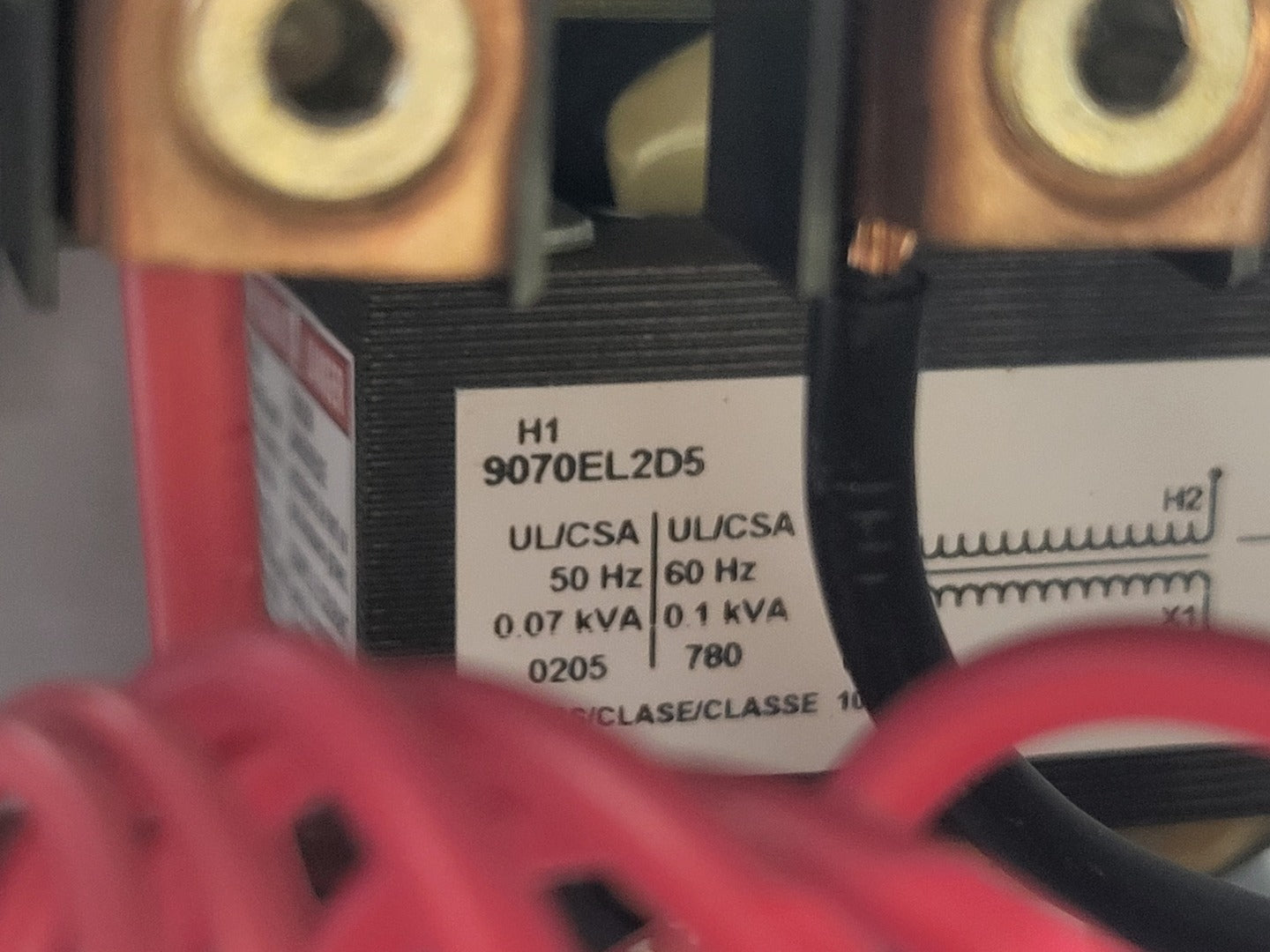

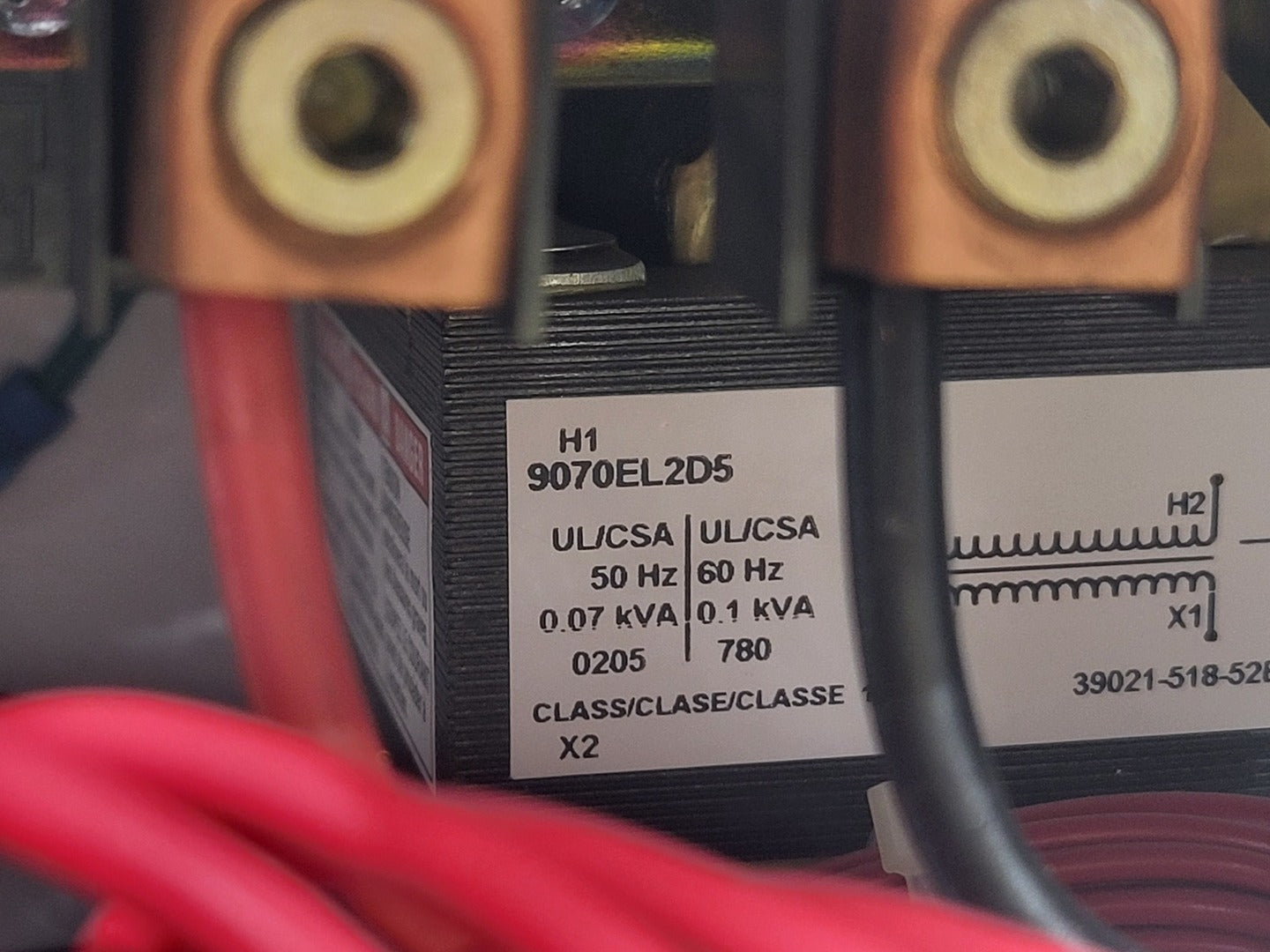

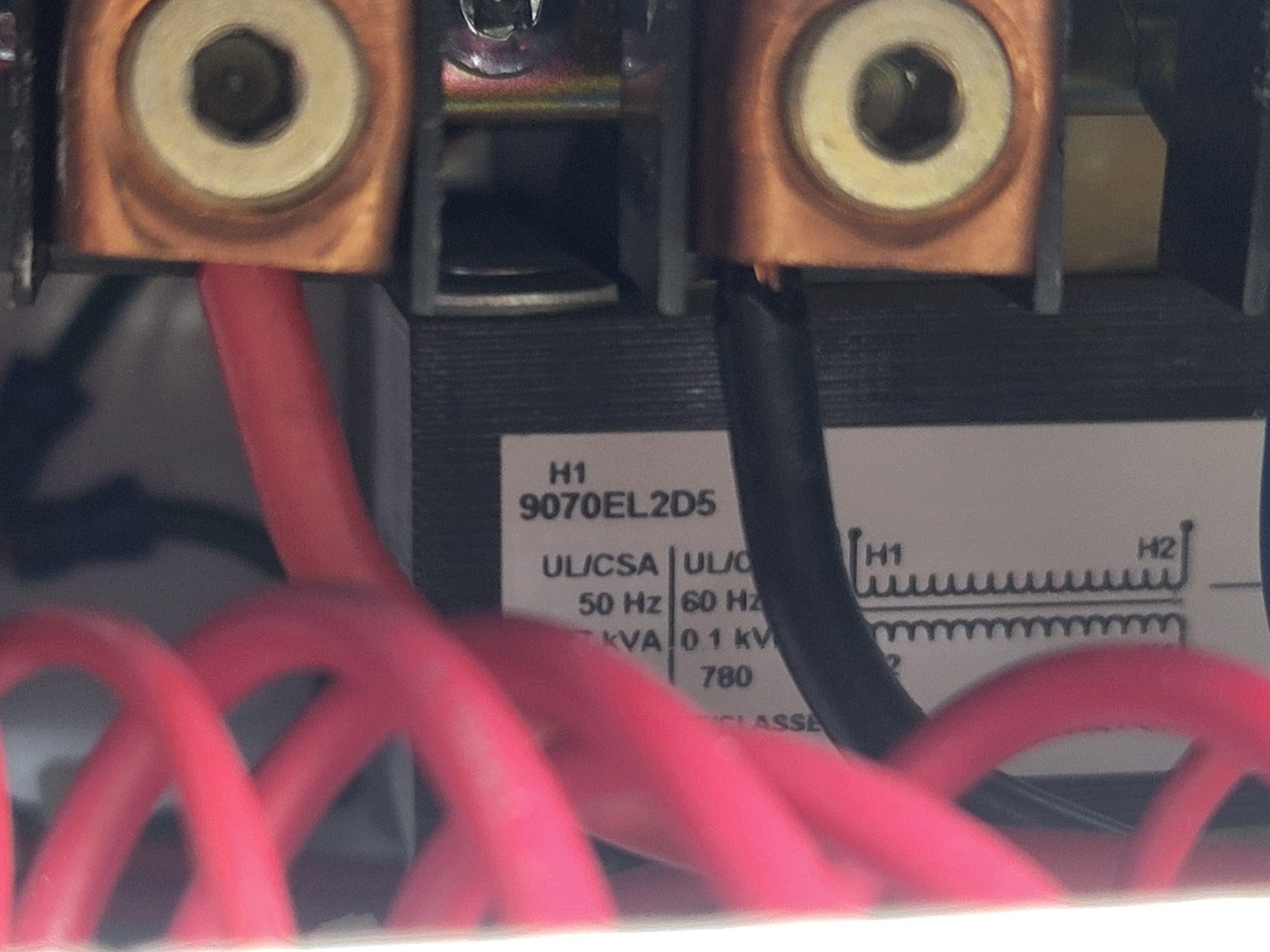

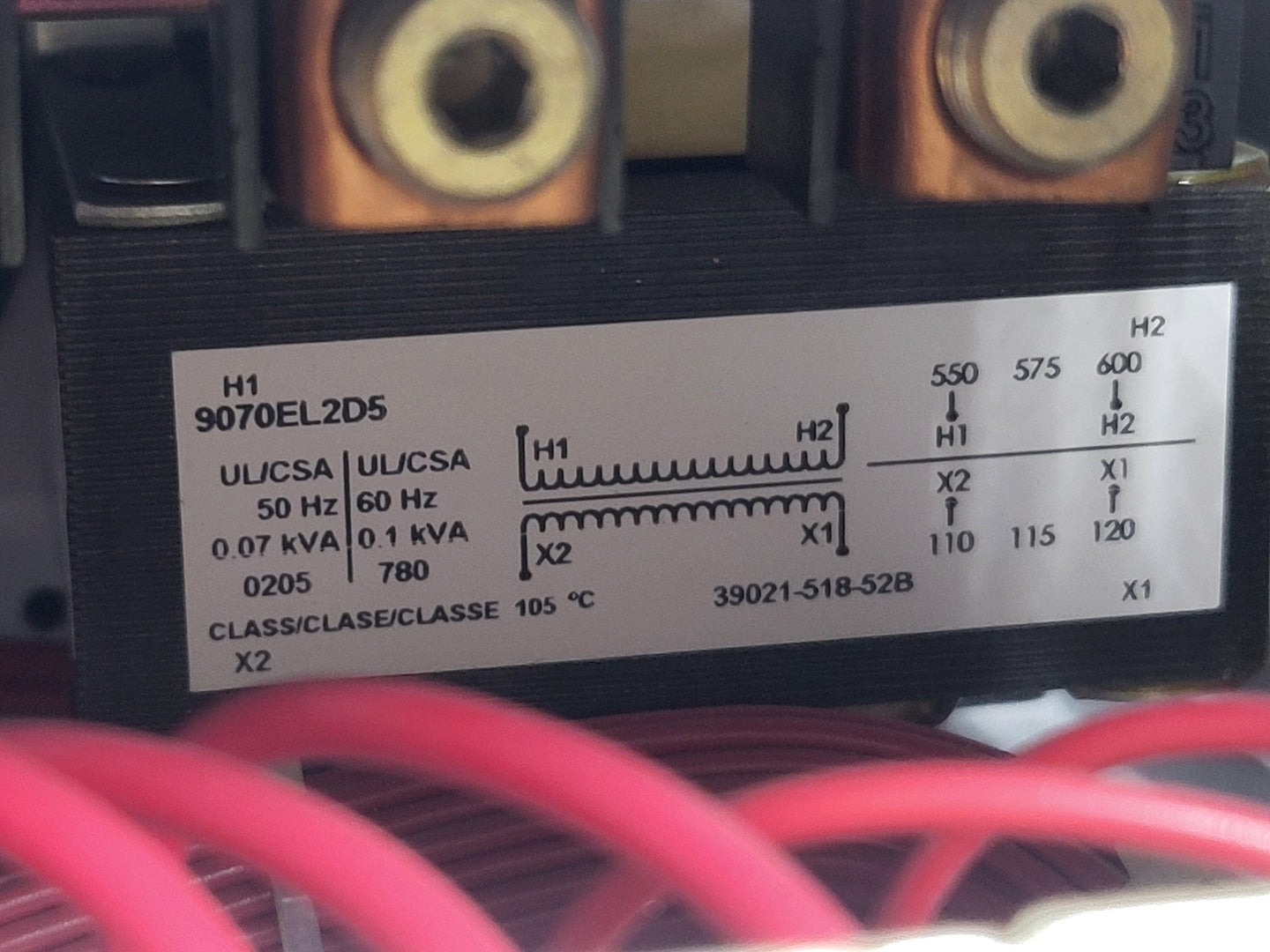

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

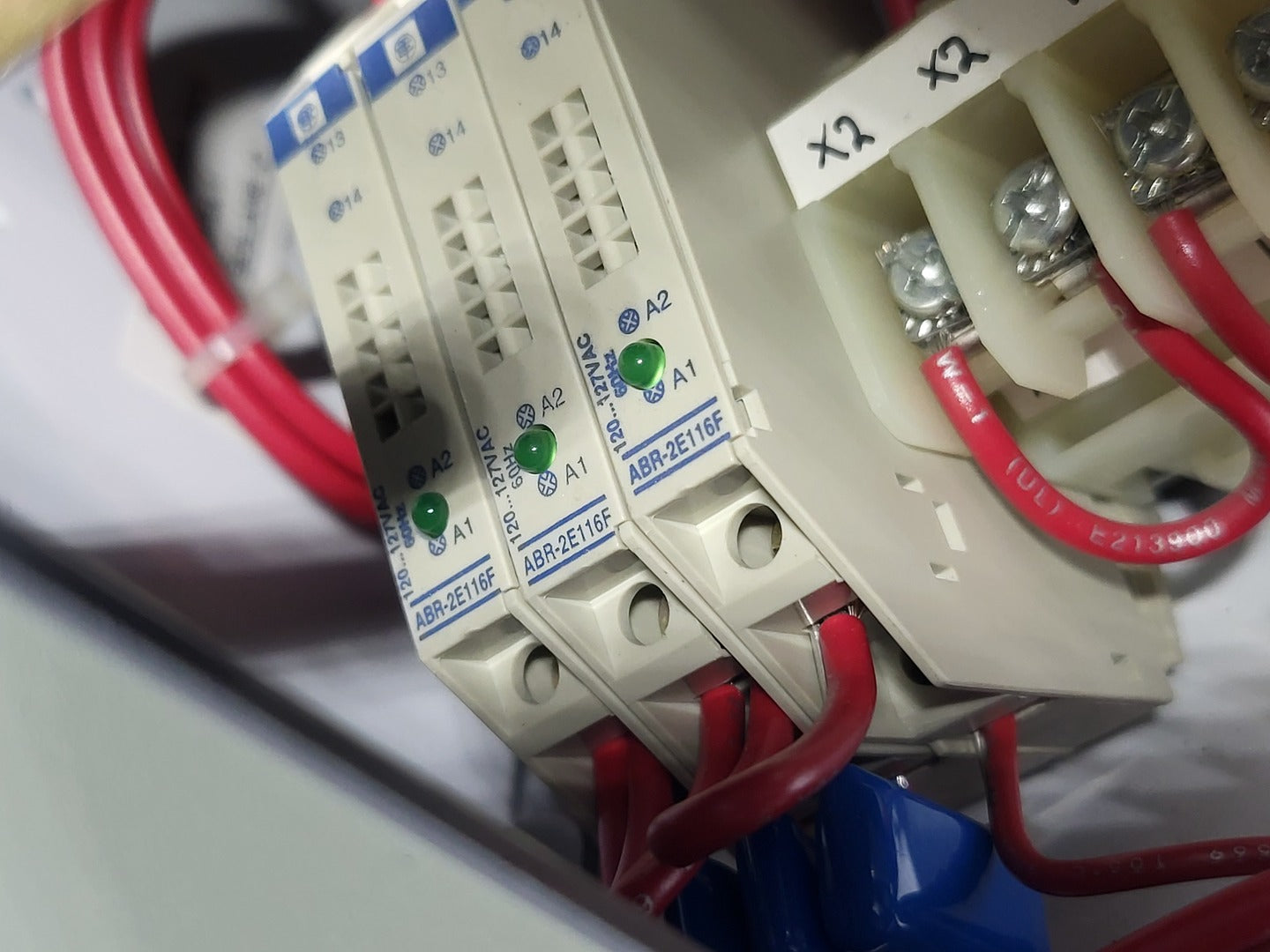

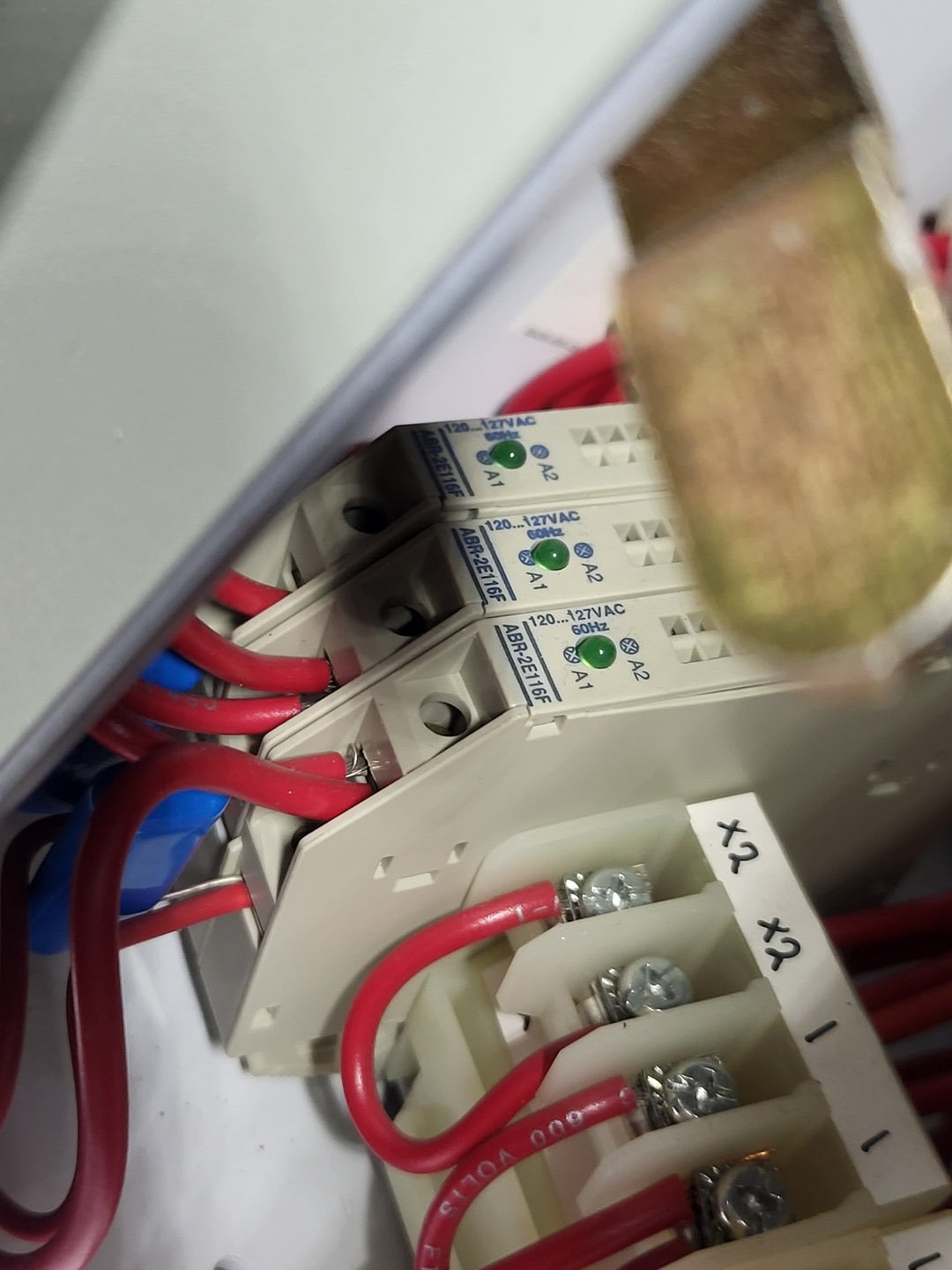

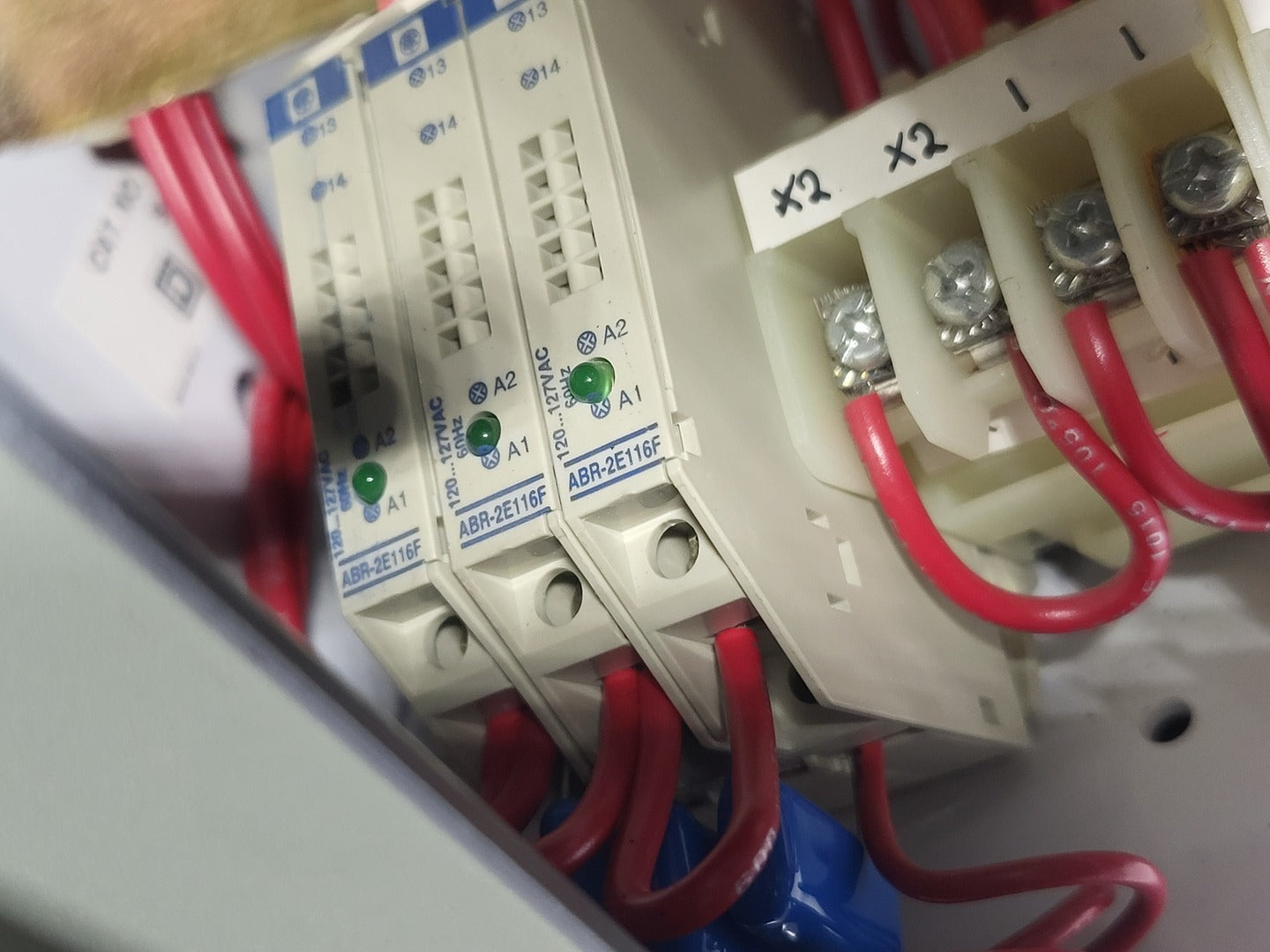

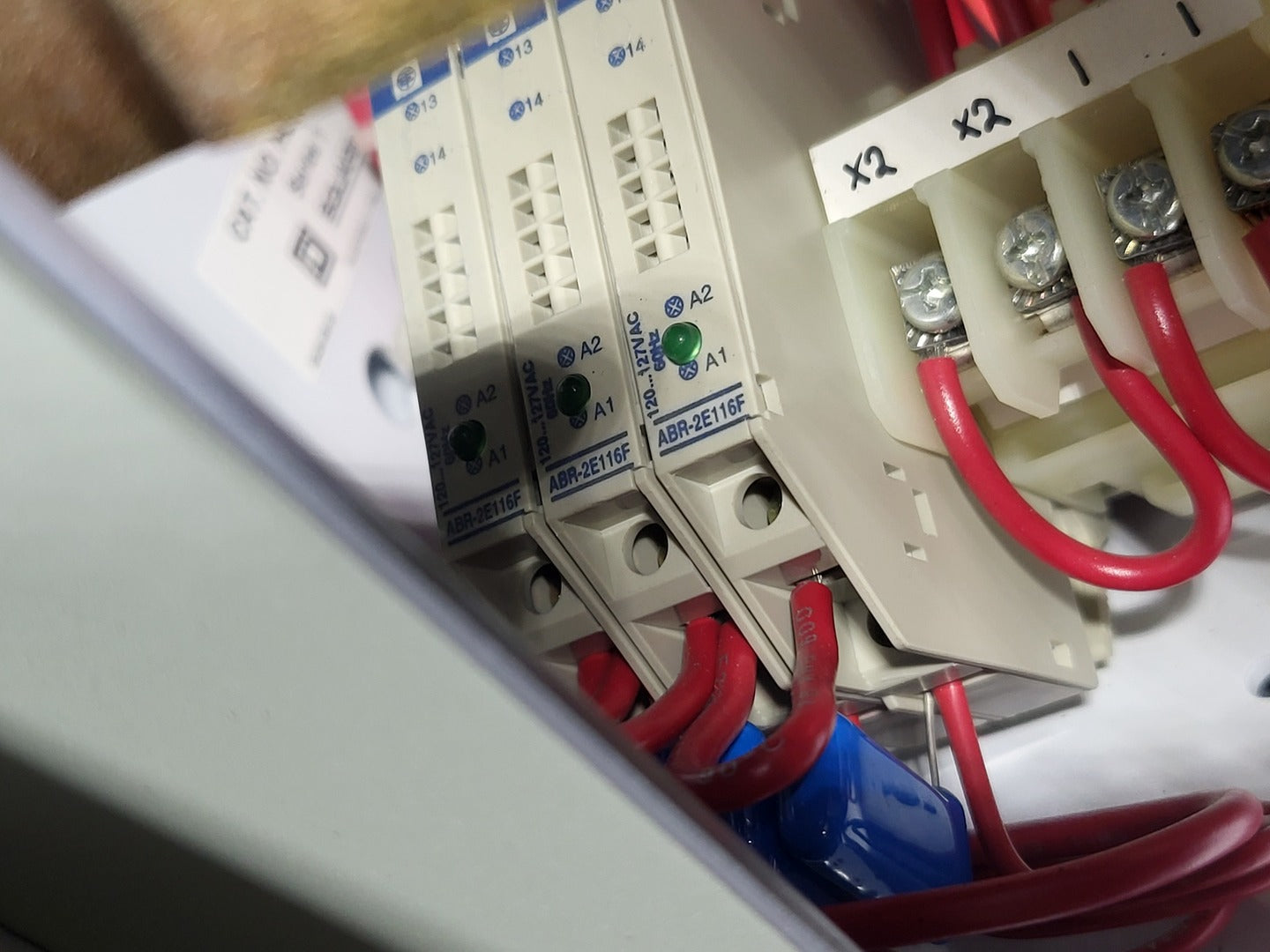

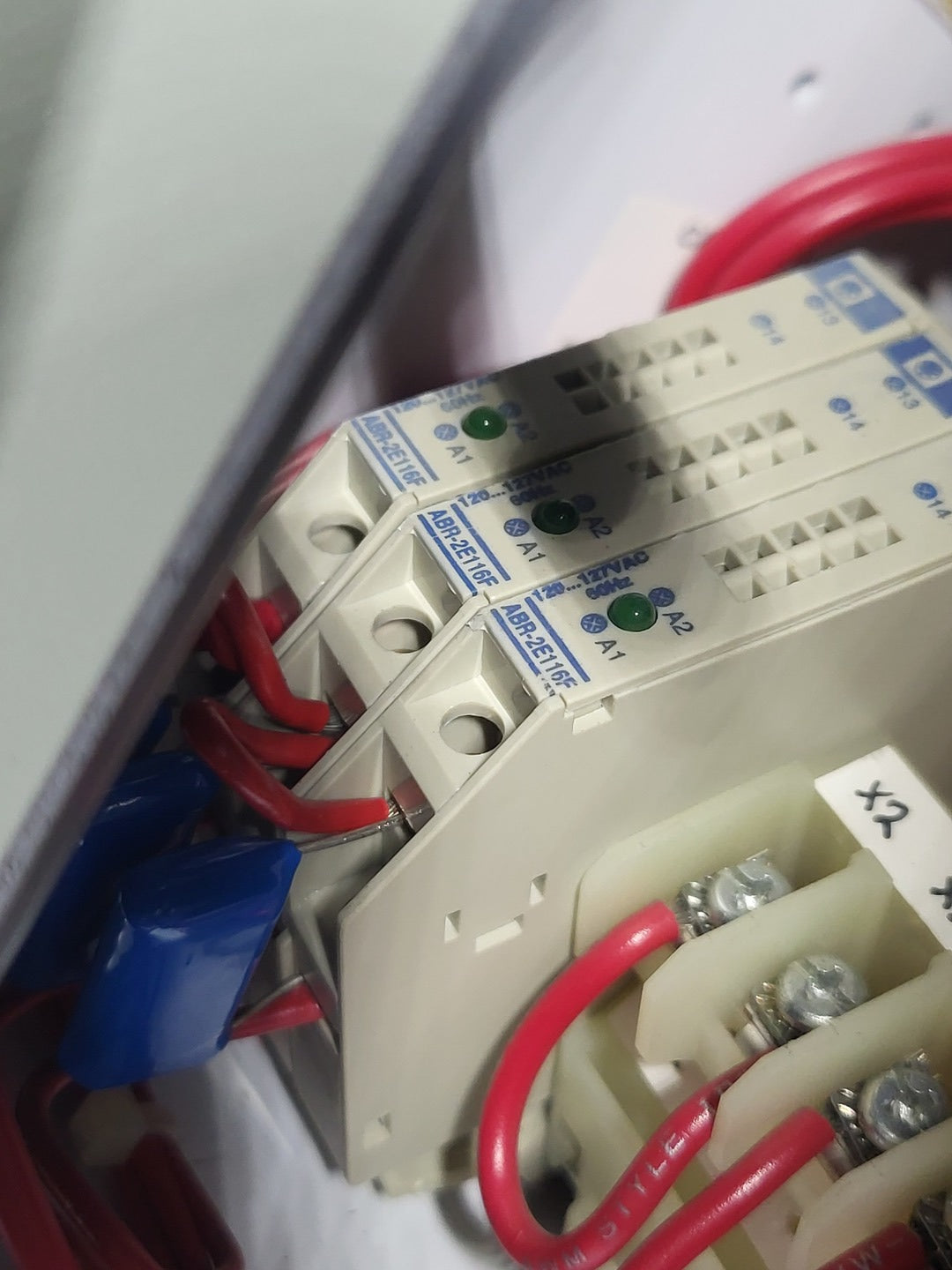

  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

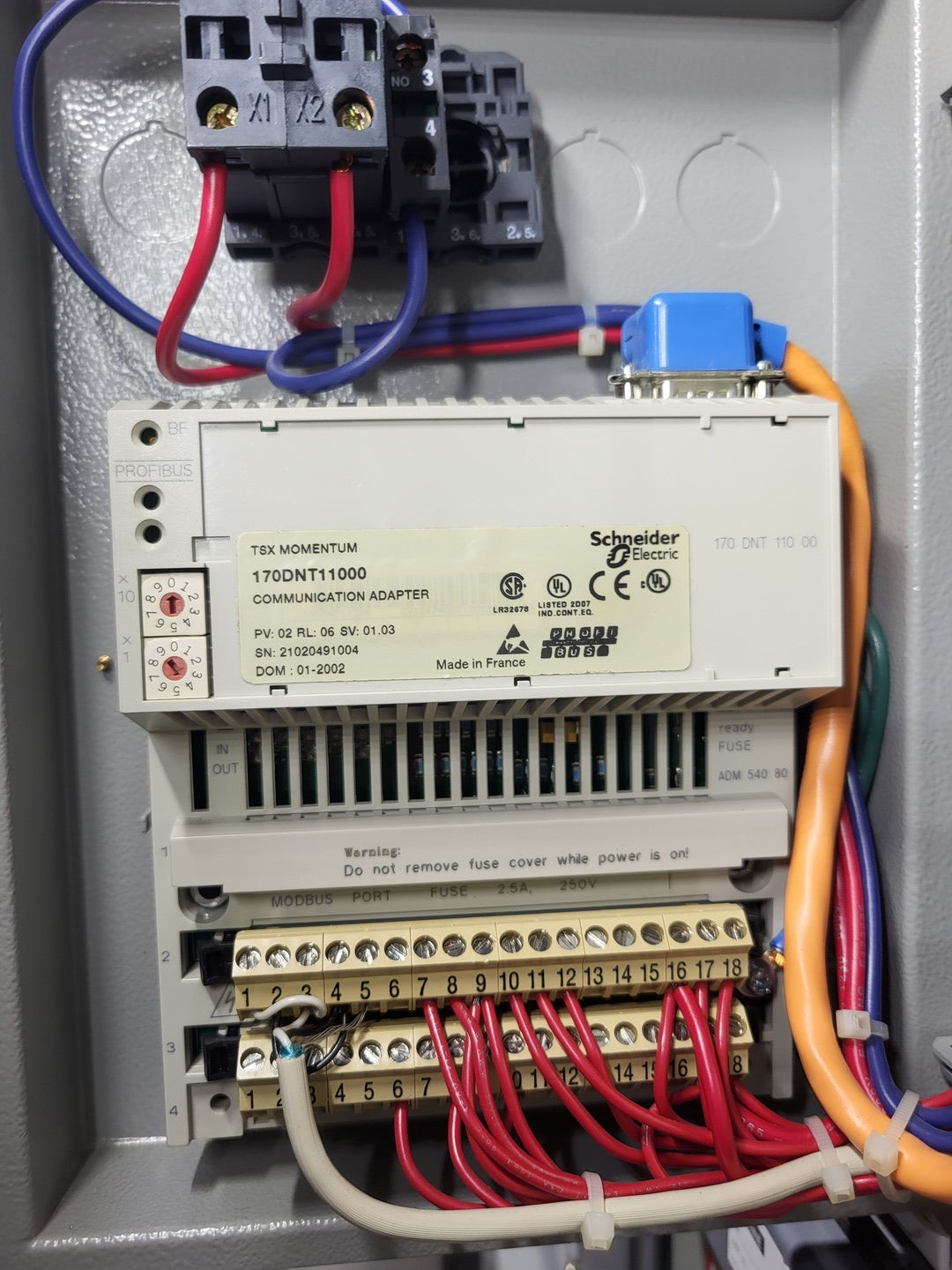

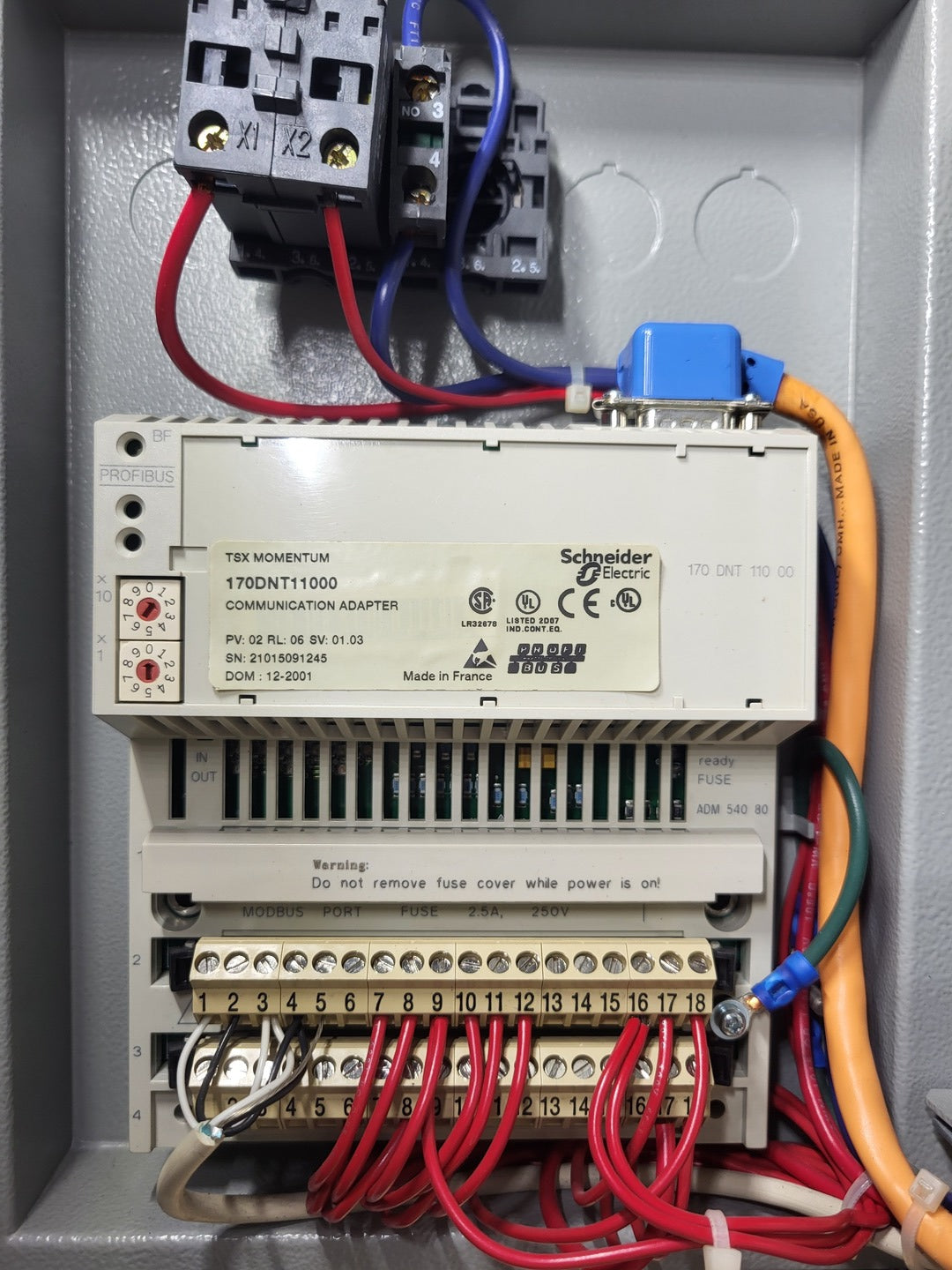

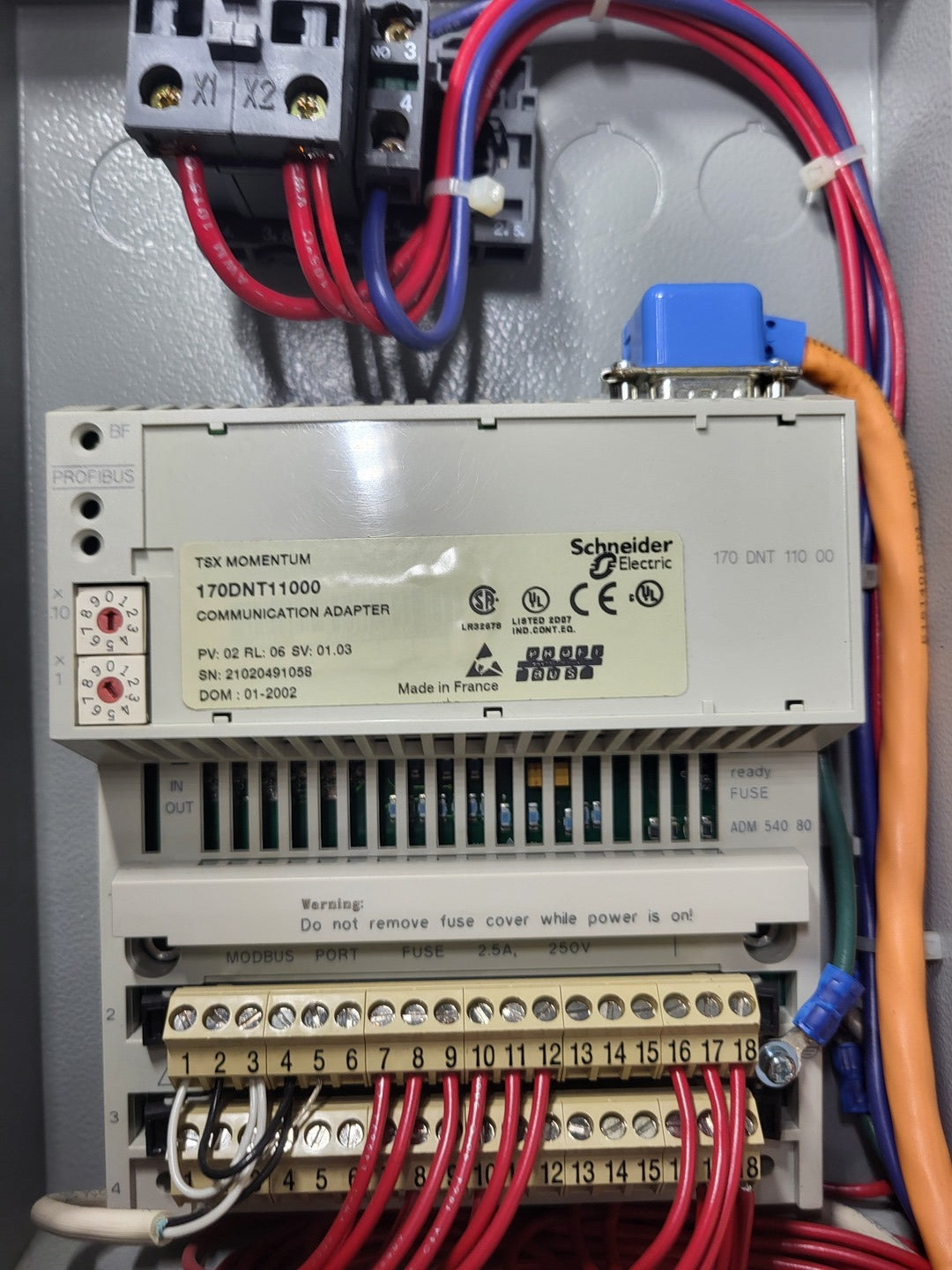

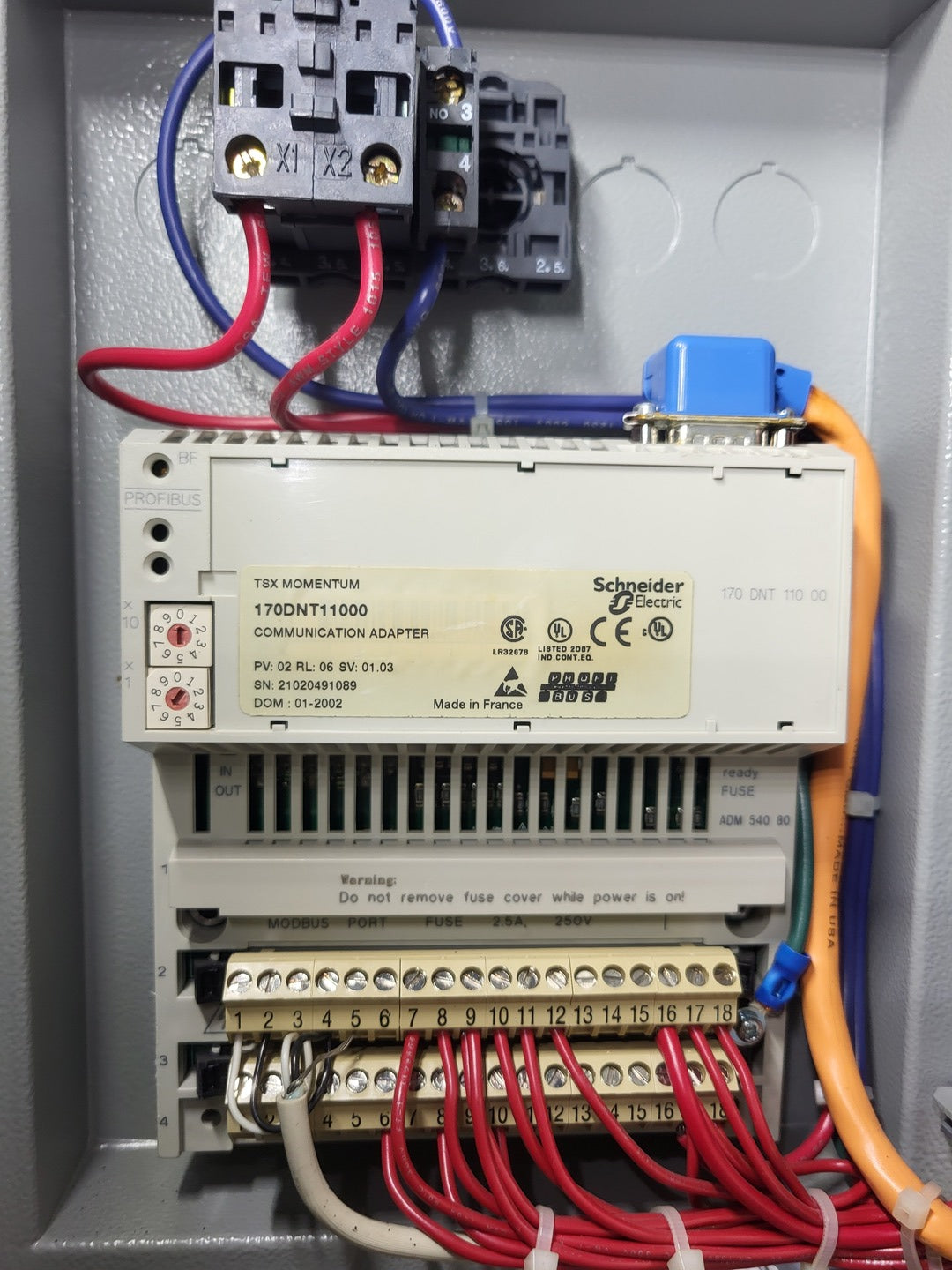

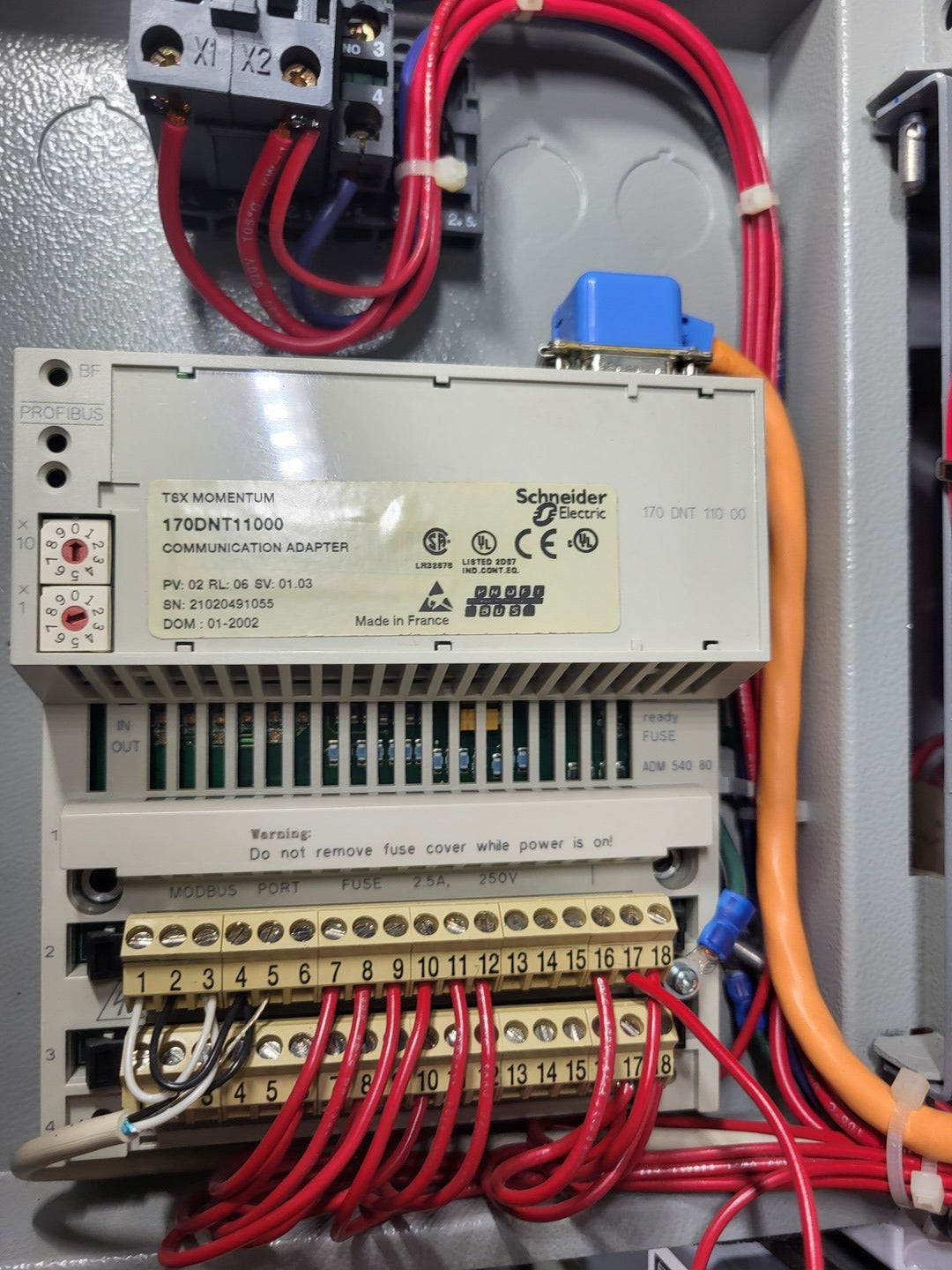

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

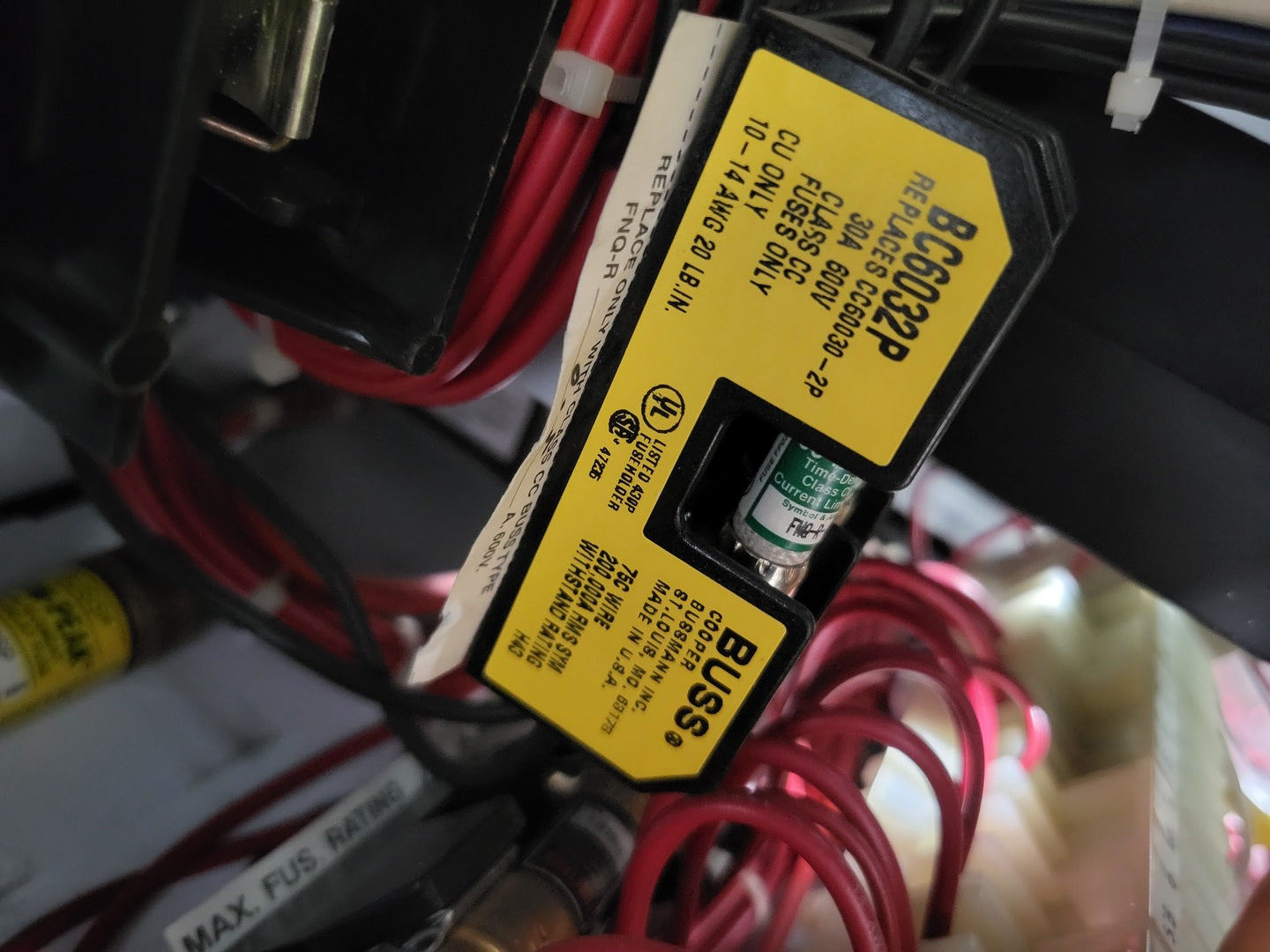

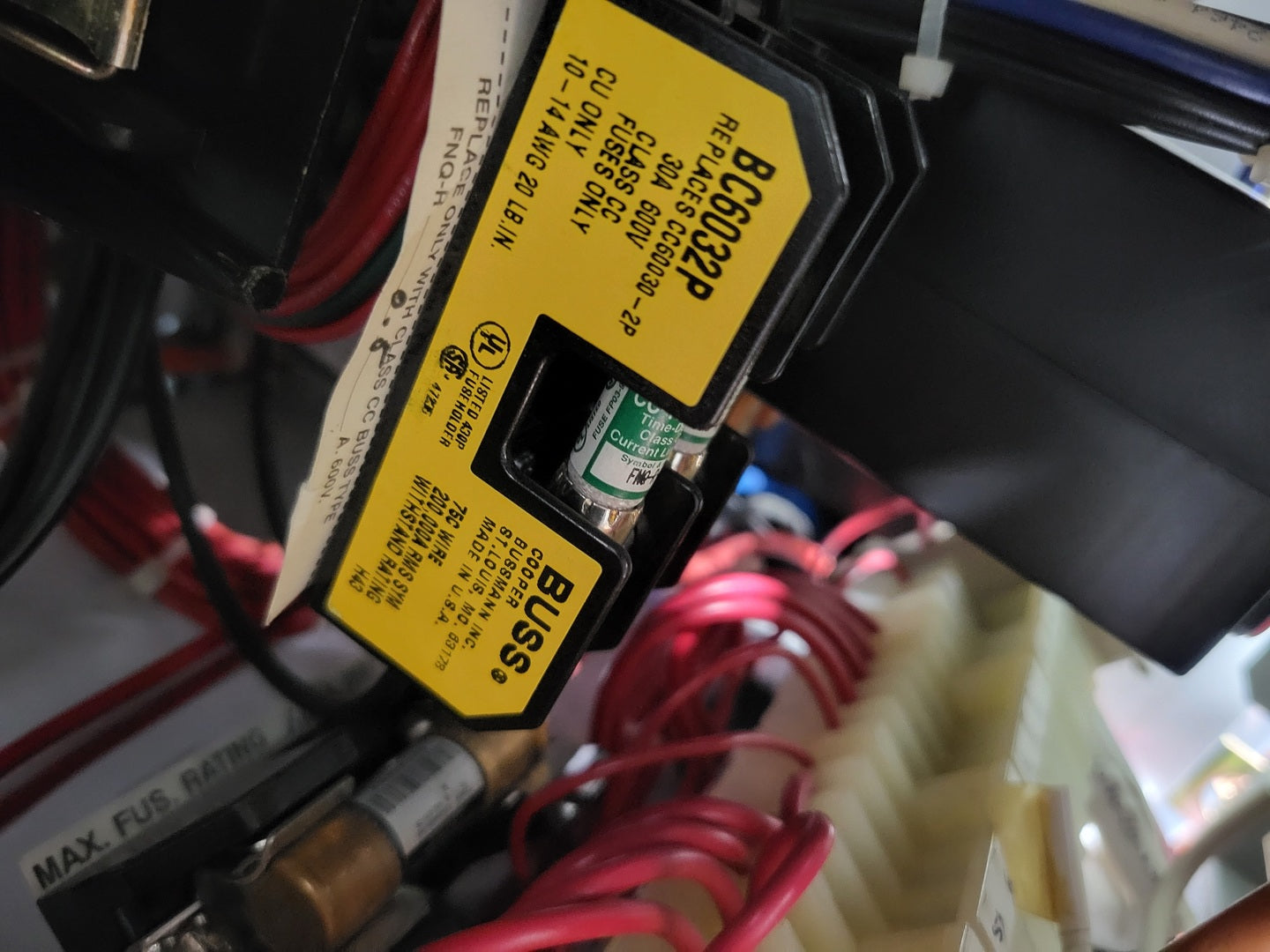

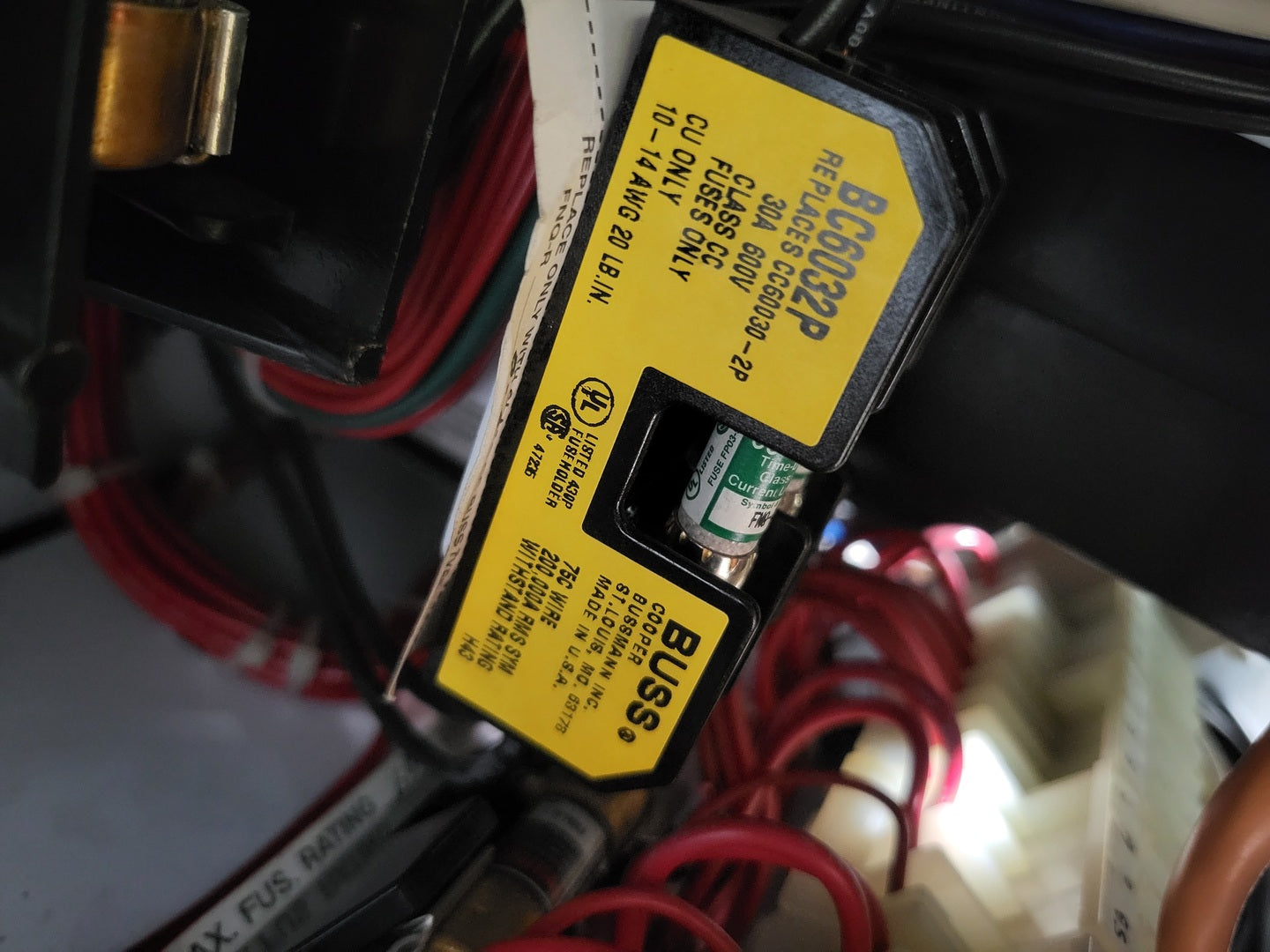

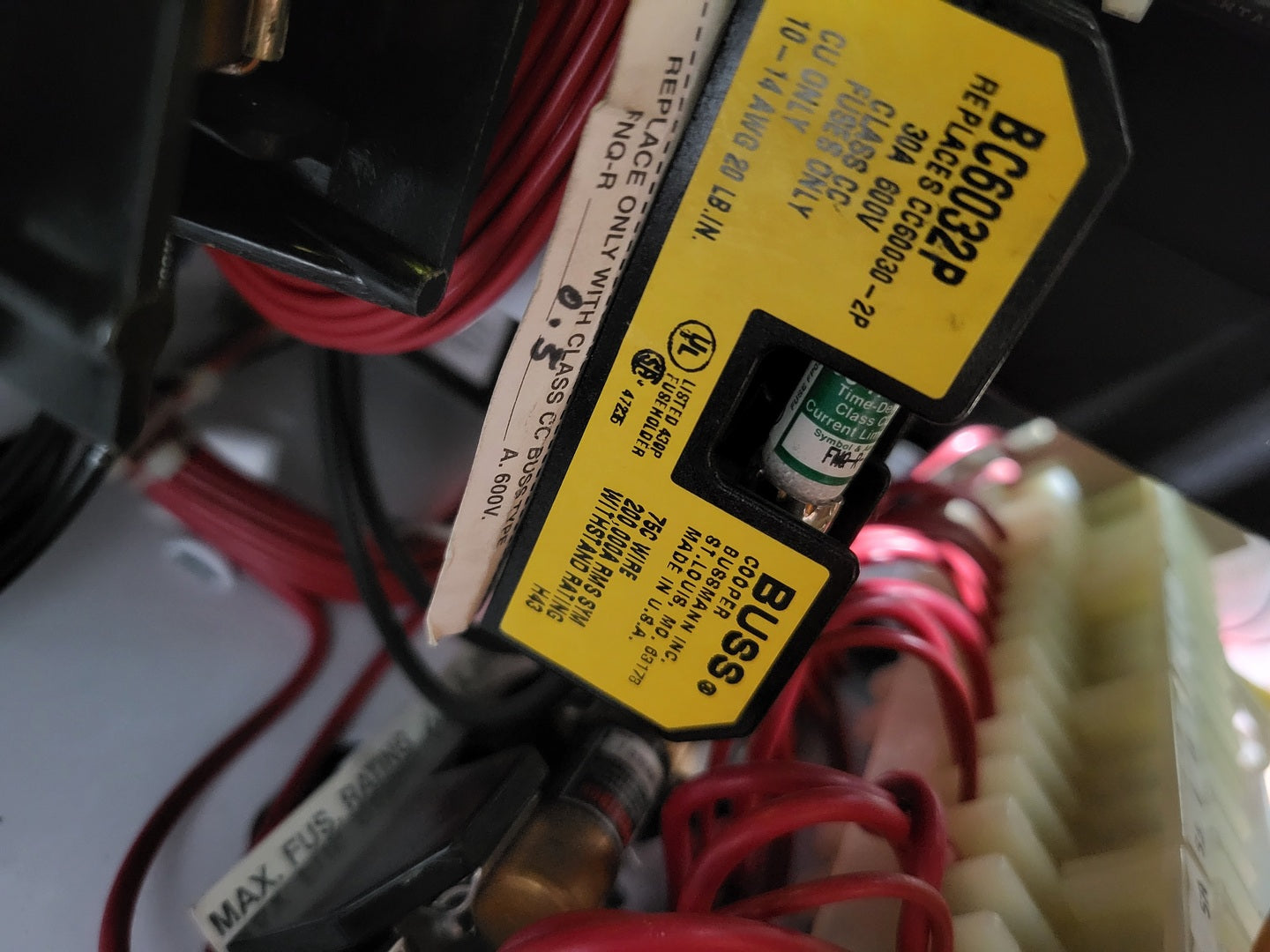

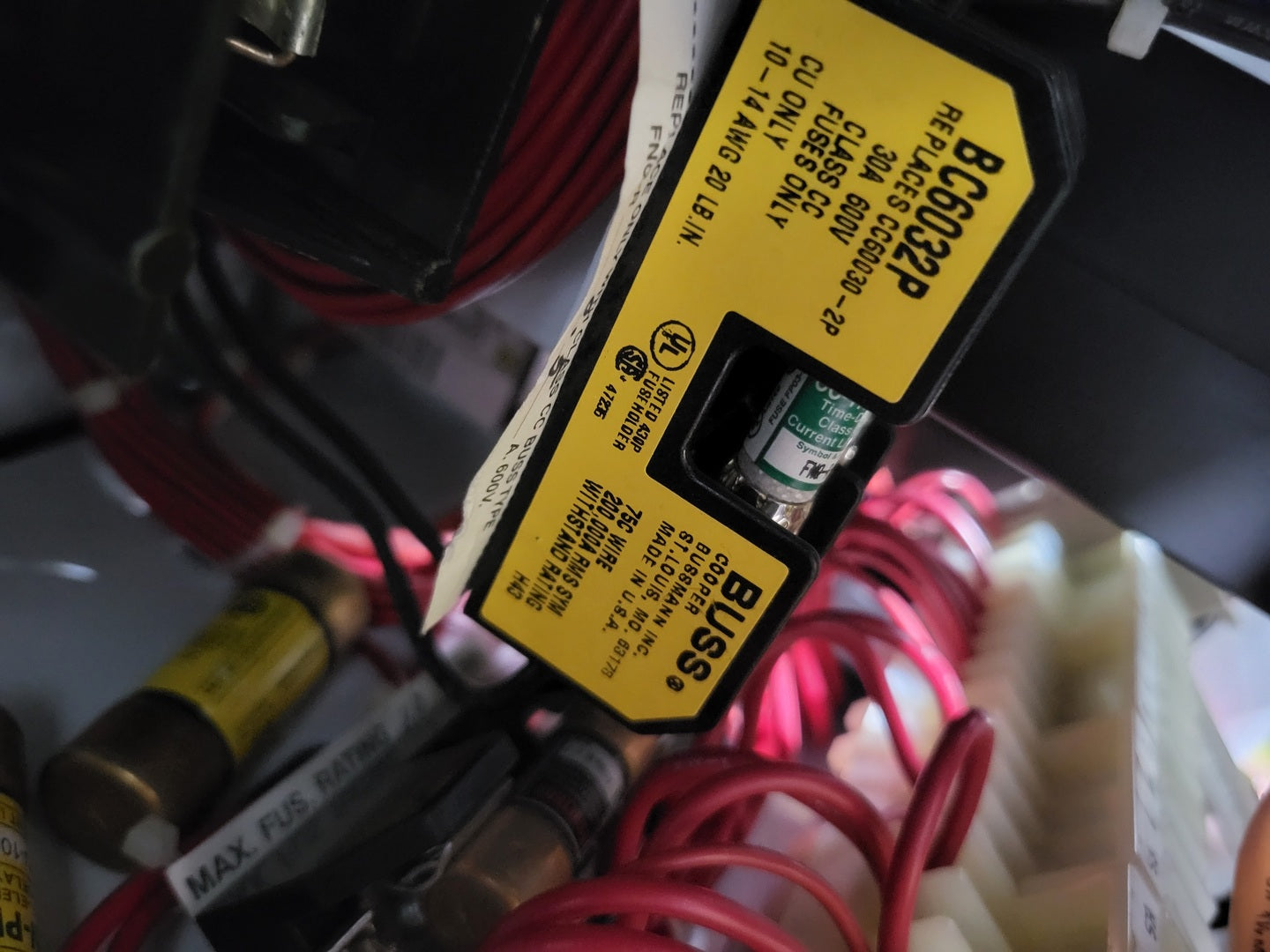

  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

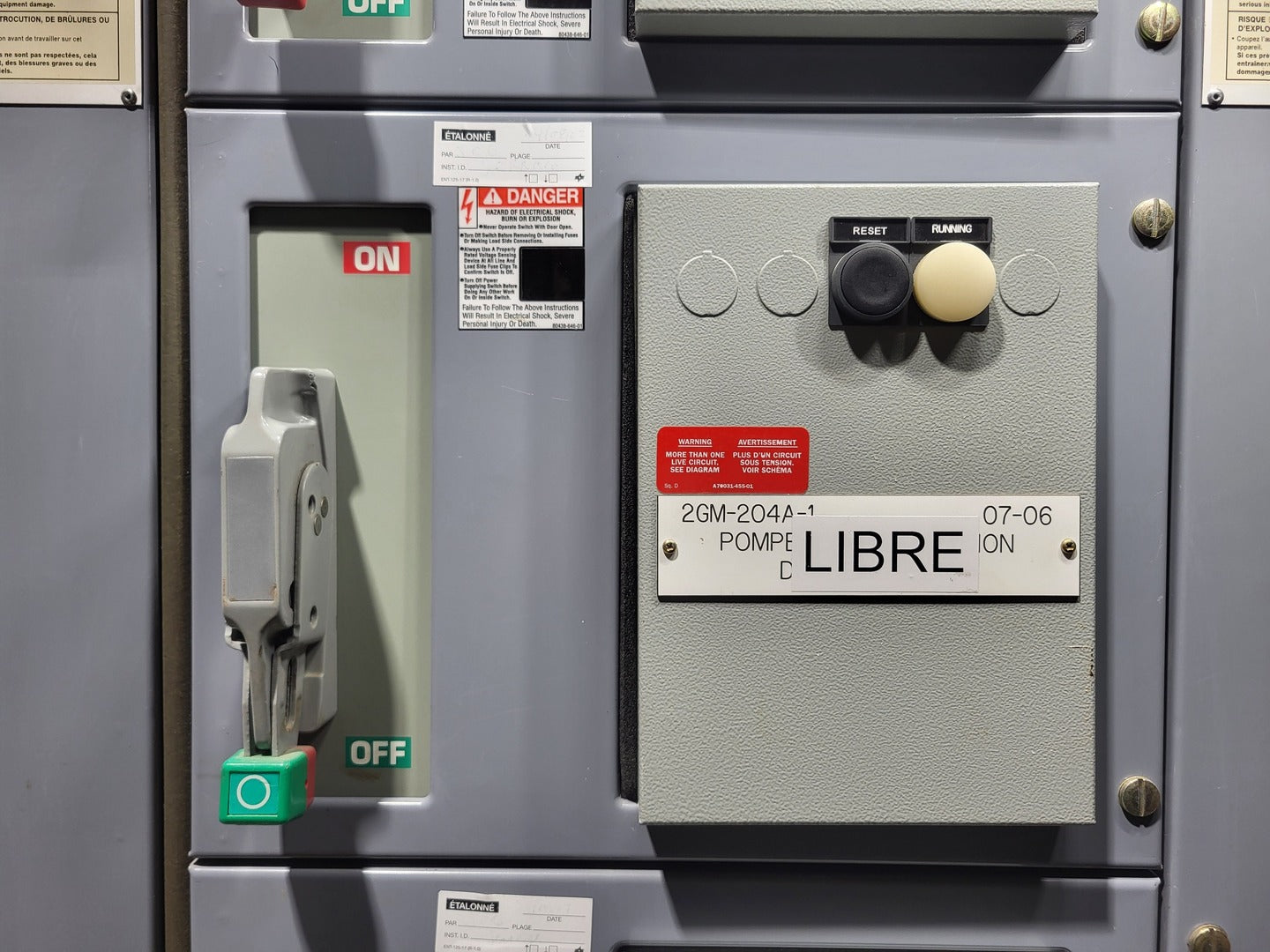

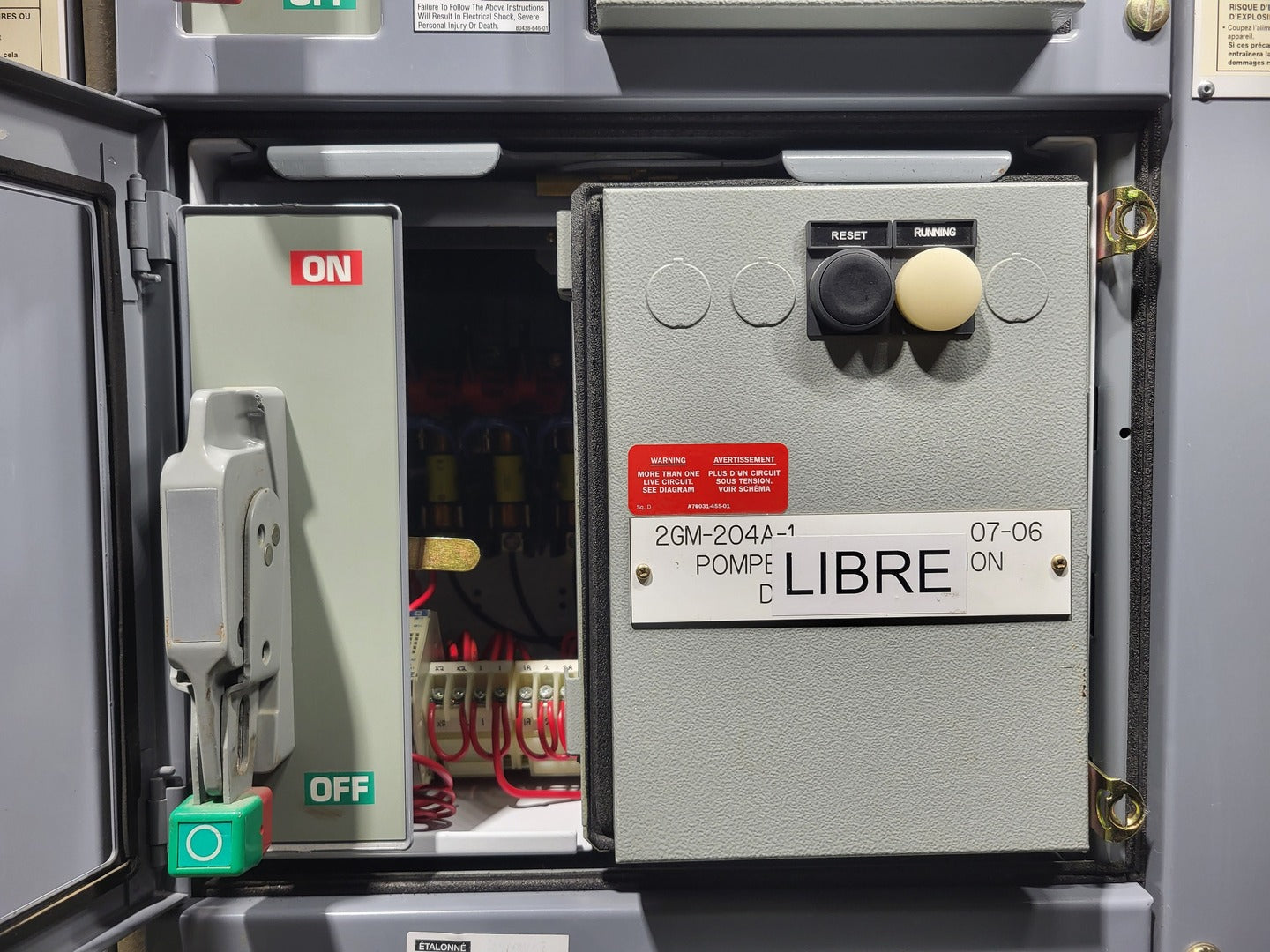

Bucket #3 2GM-204A-1

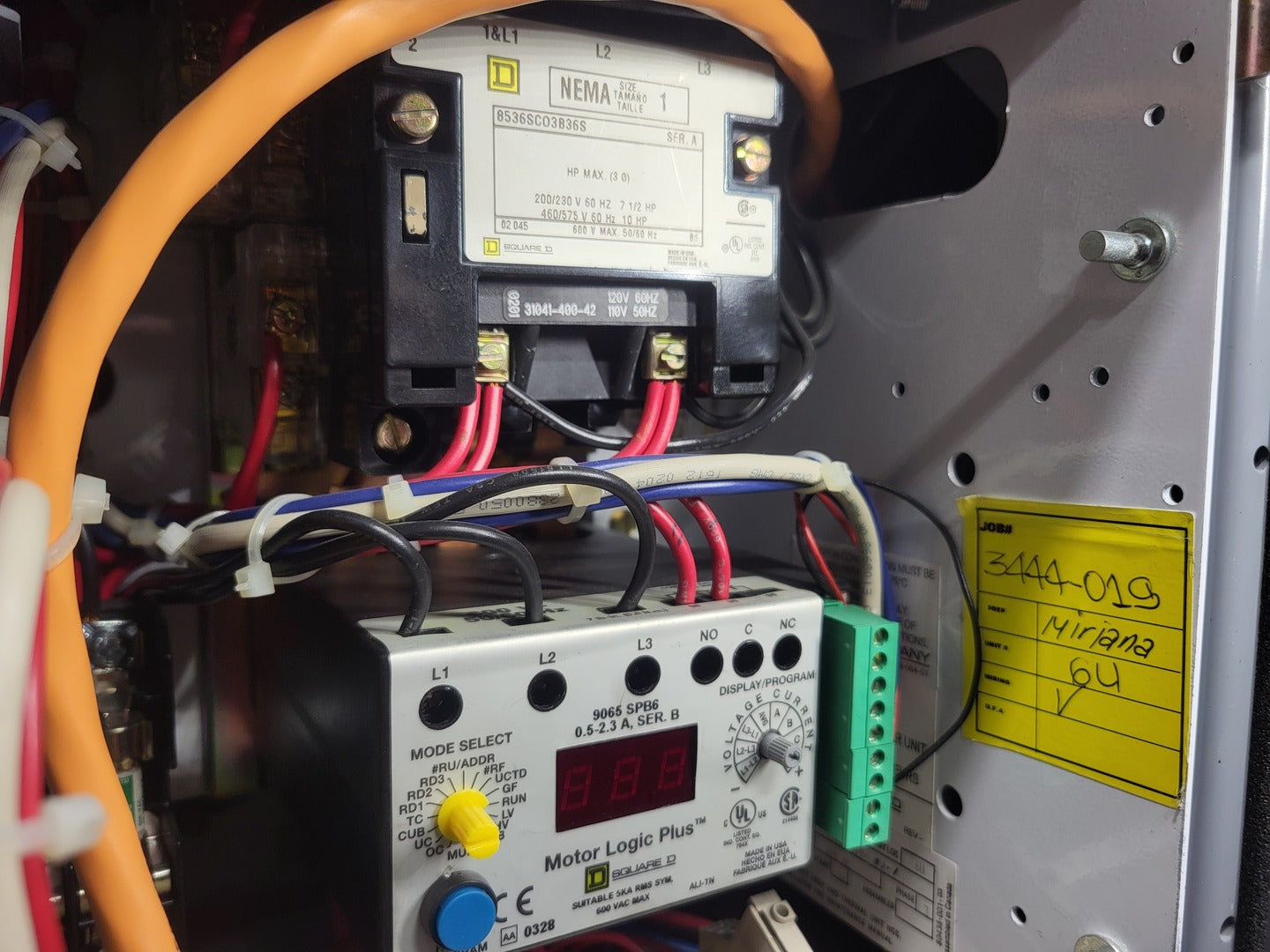

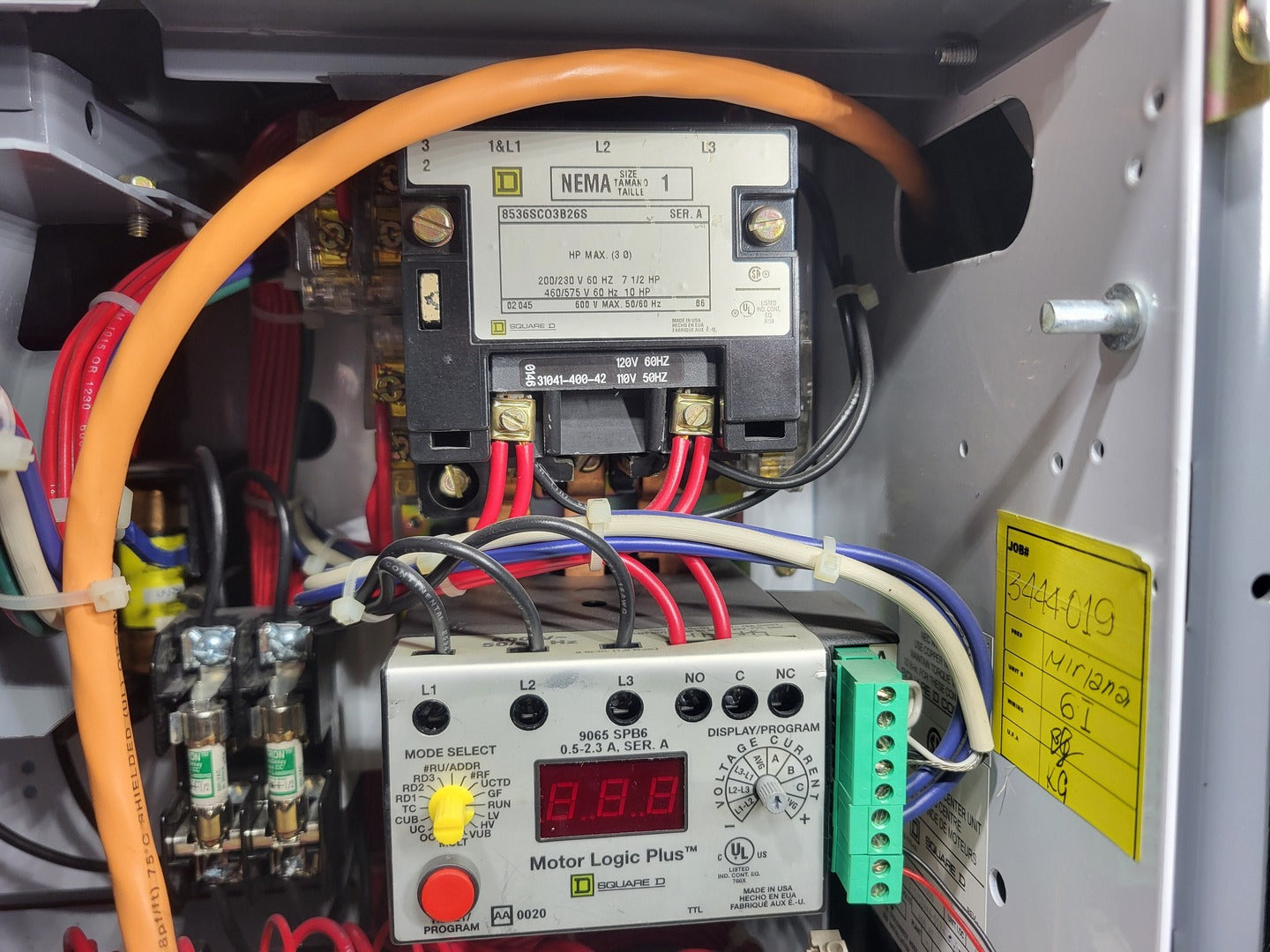

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V, 600V max, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  4. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  5. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  6. 3 x Bussmann Low-Peak fuses LPJ-2SP
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

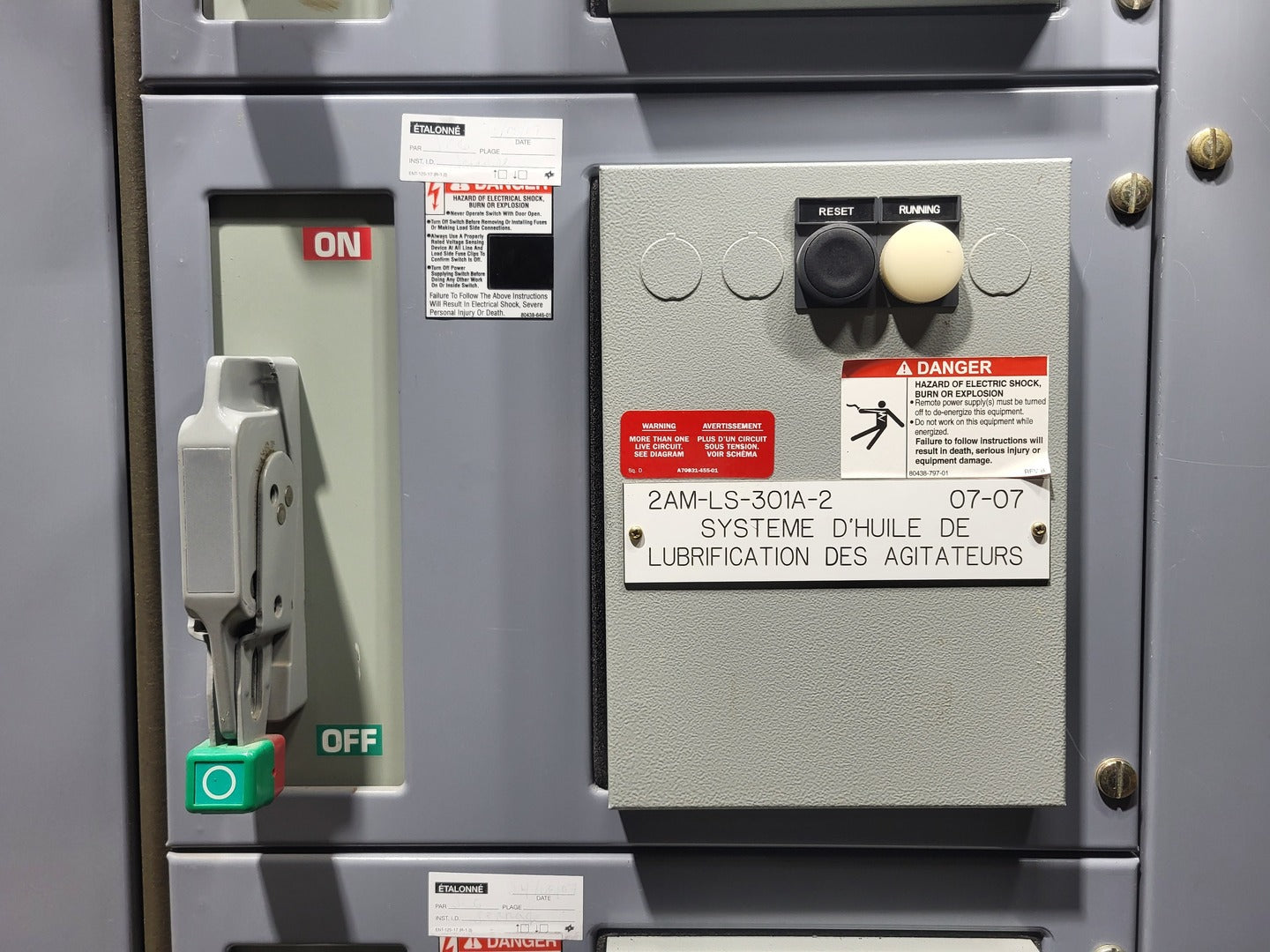

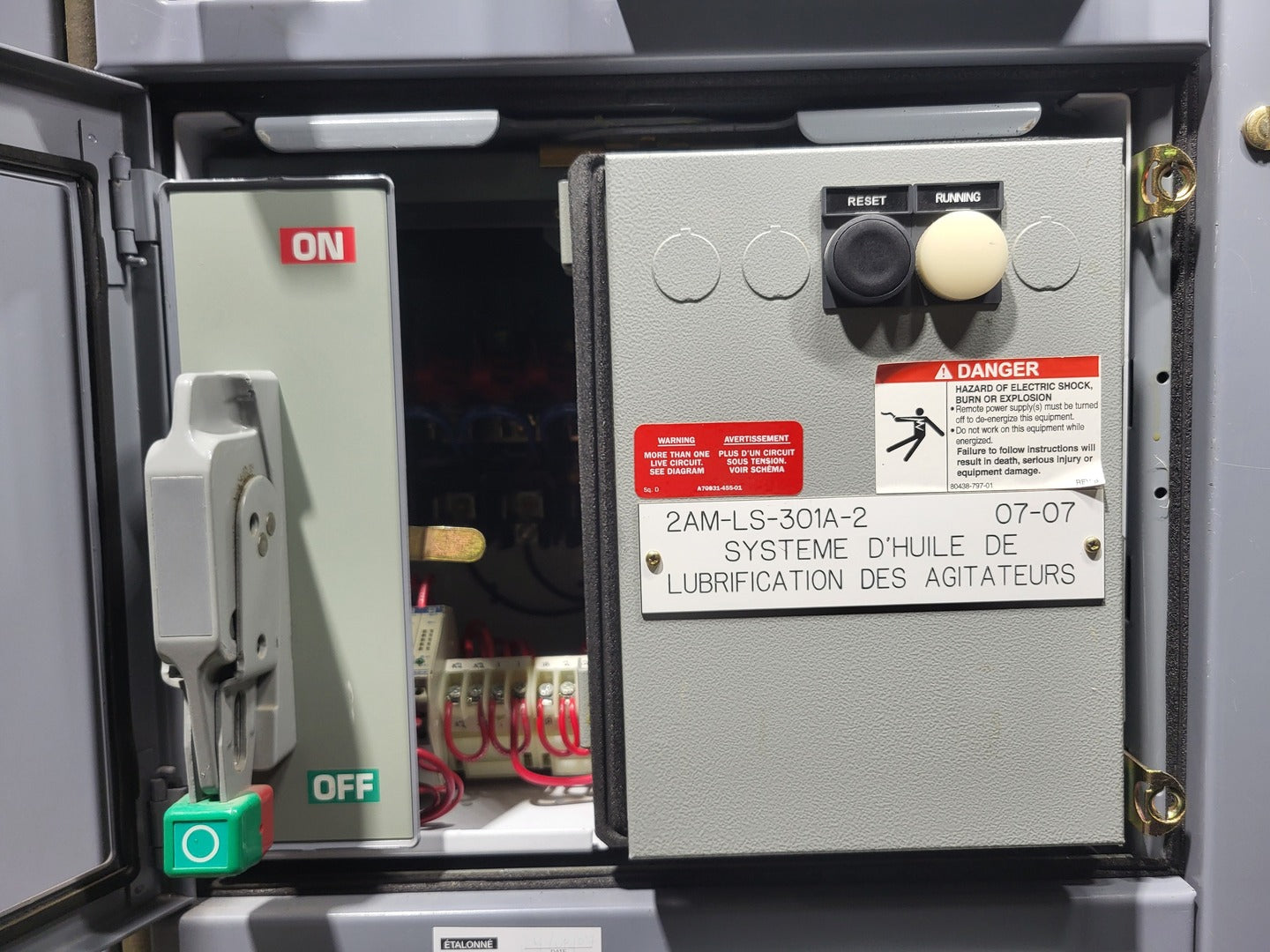

Bucket #4 2AM-LS-301A-2

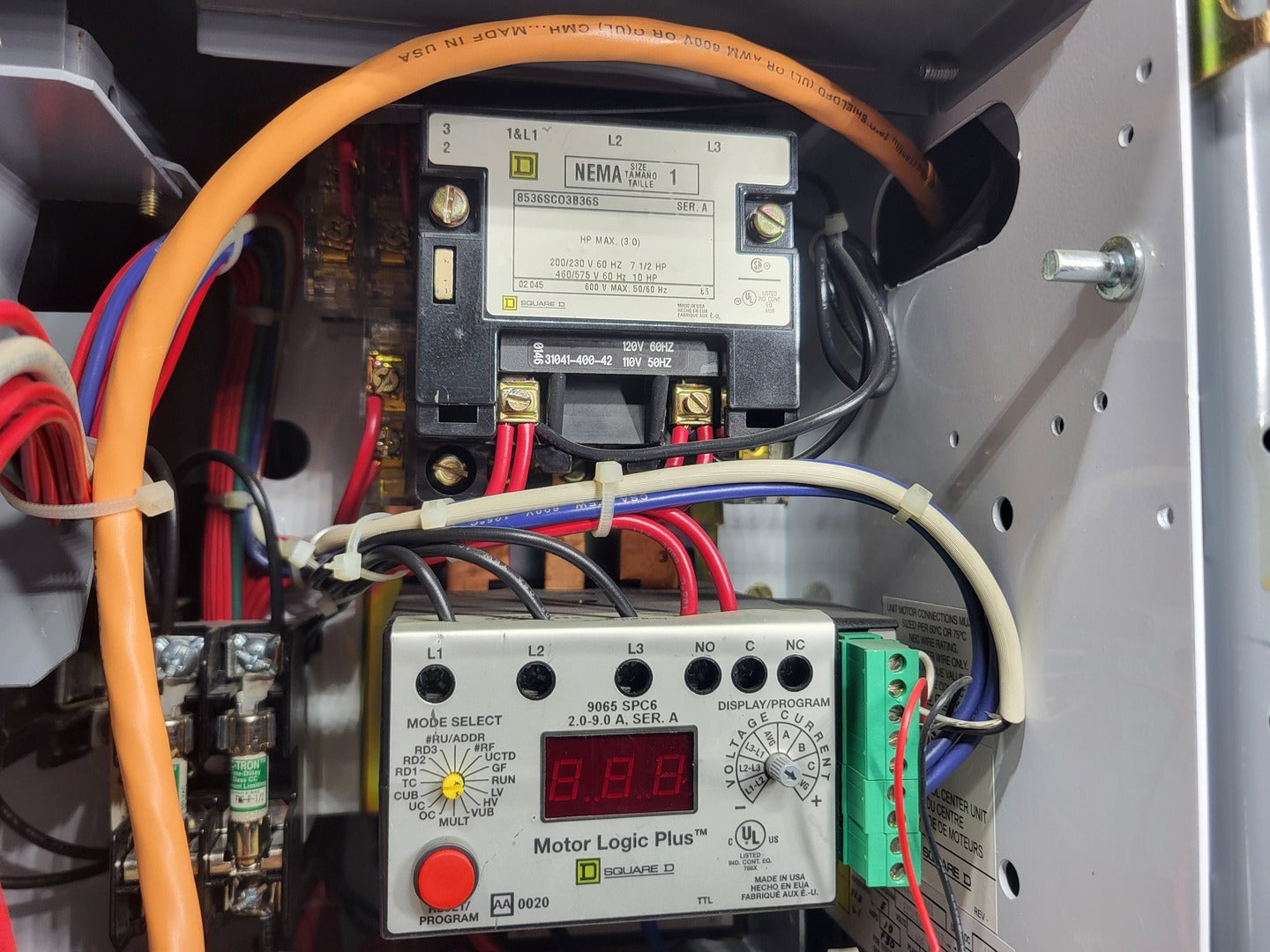

  1. Square D 8536SCO3B36S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V, 600V max, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SPC6, motor protection relay, 2.0-9.0A range, 600VAC max
  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  4. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  5. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  6. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  7. 3 x main power fuses, model not visible behind blue covers
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

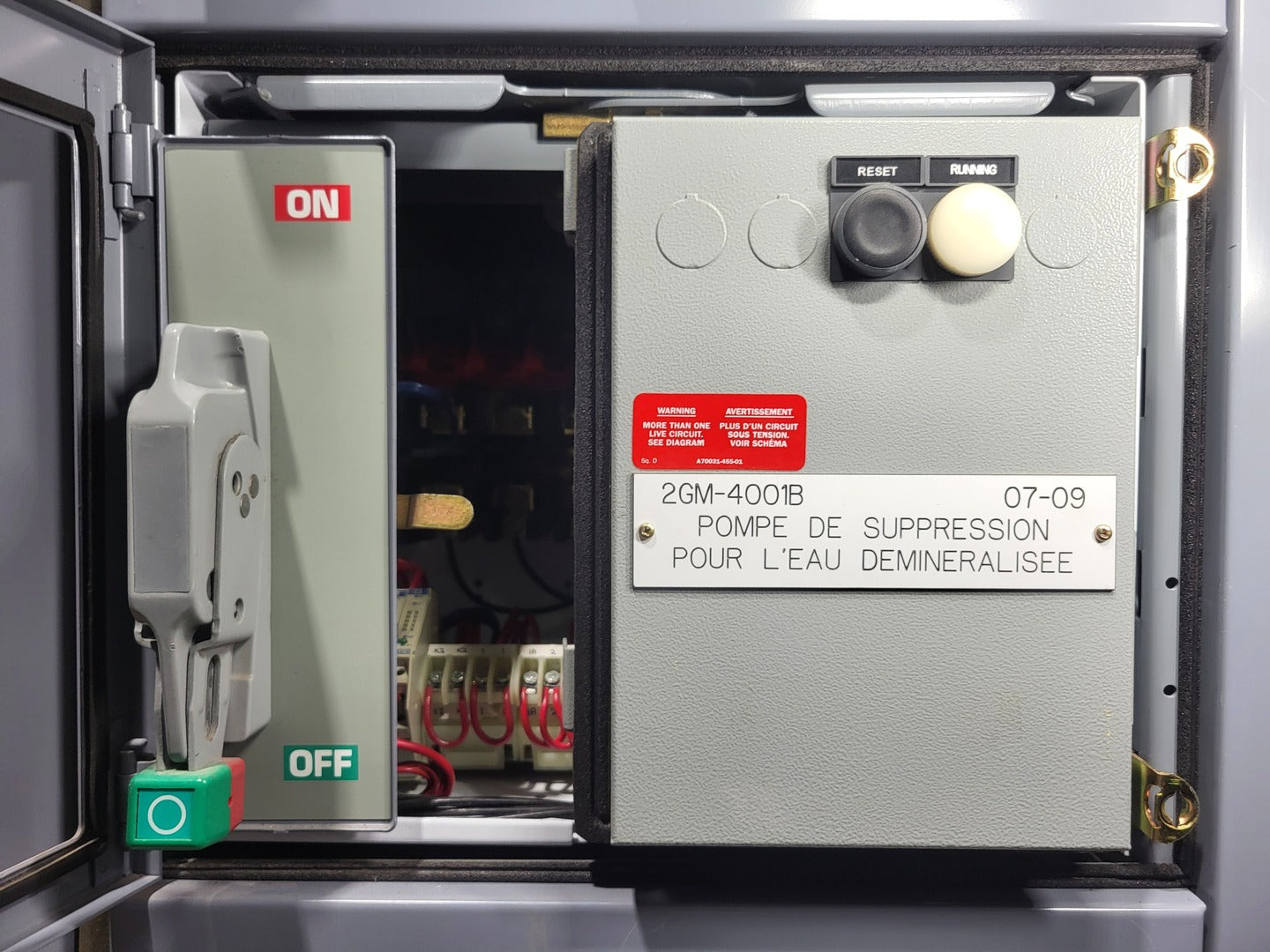

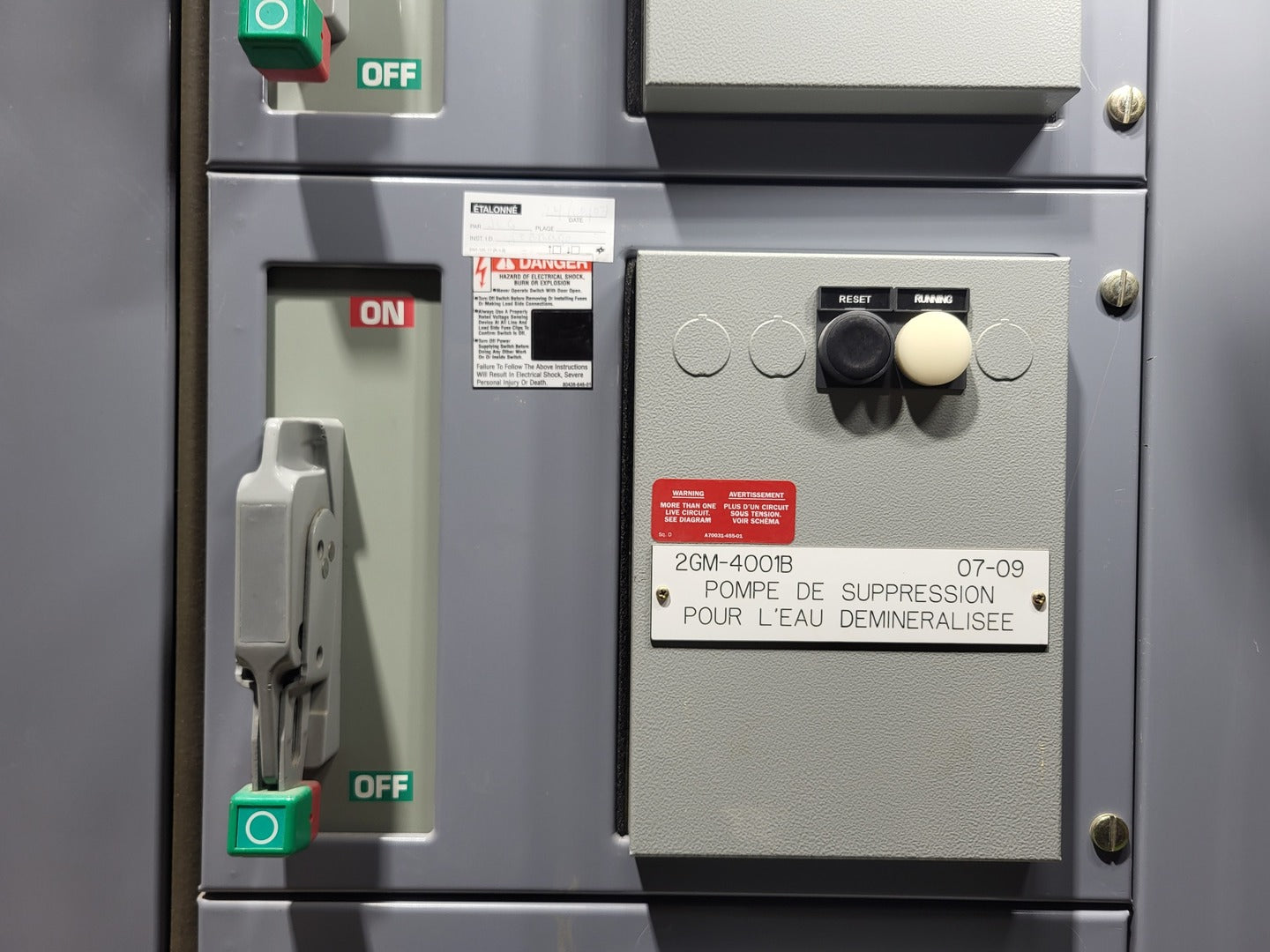

Bucket #5 2GM-4001B

  1. Square D 8536SCO3B36S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V, 600V max, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SPC6, motor protection relay, 2.0-9.0A range, 600VAC max
  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  4. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  5. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  6. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

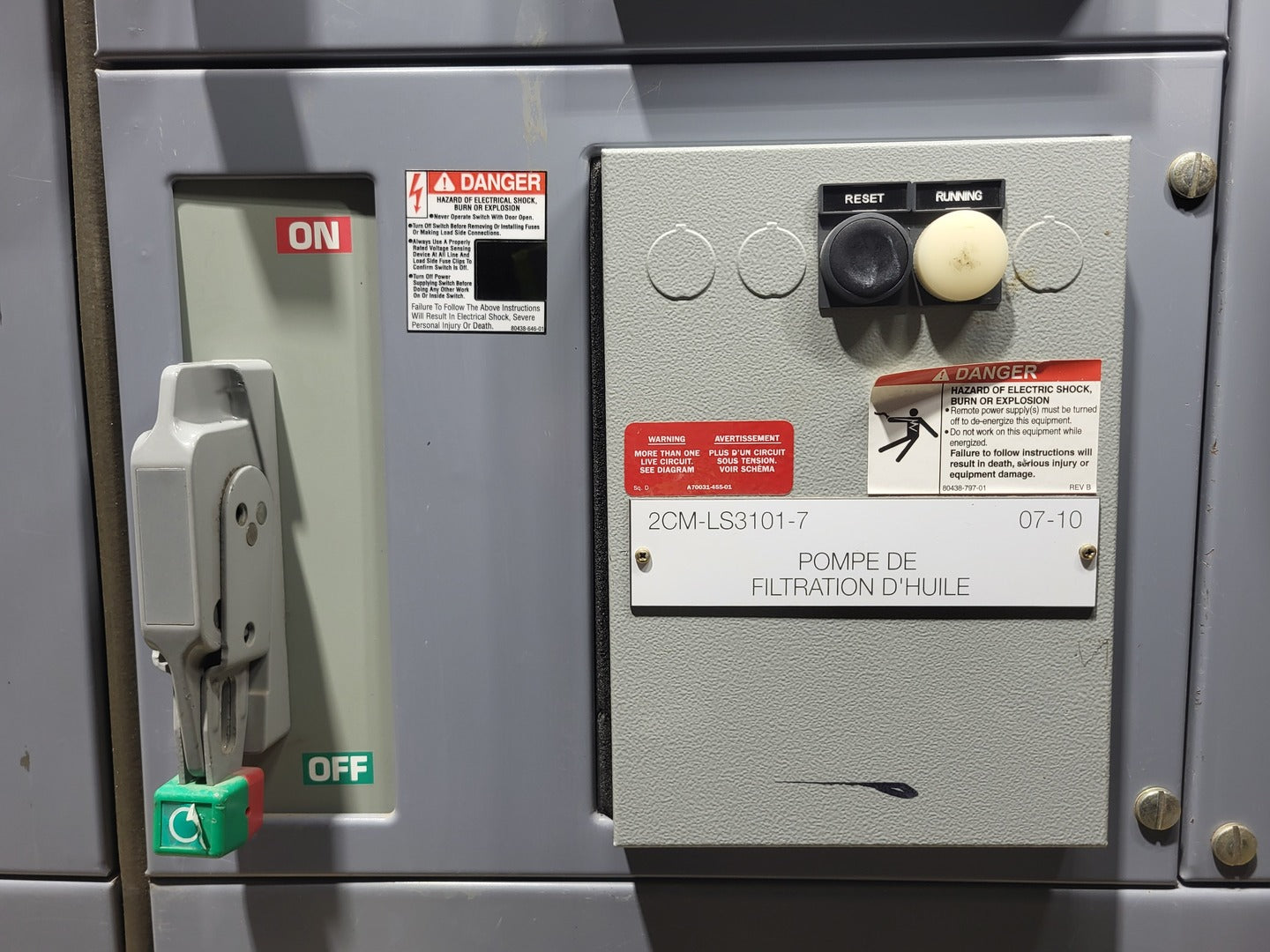

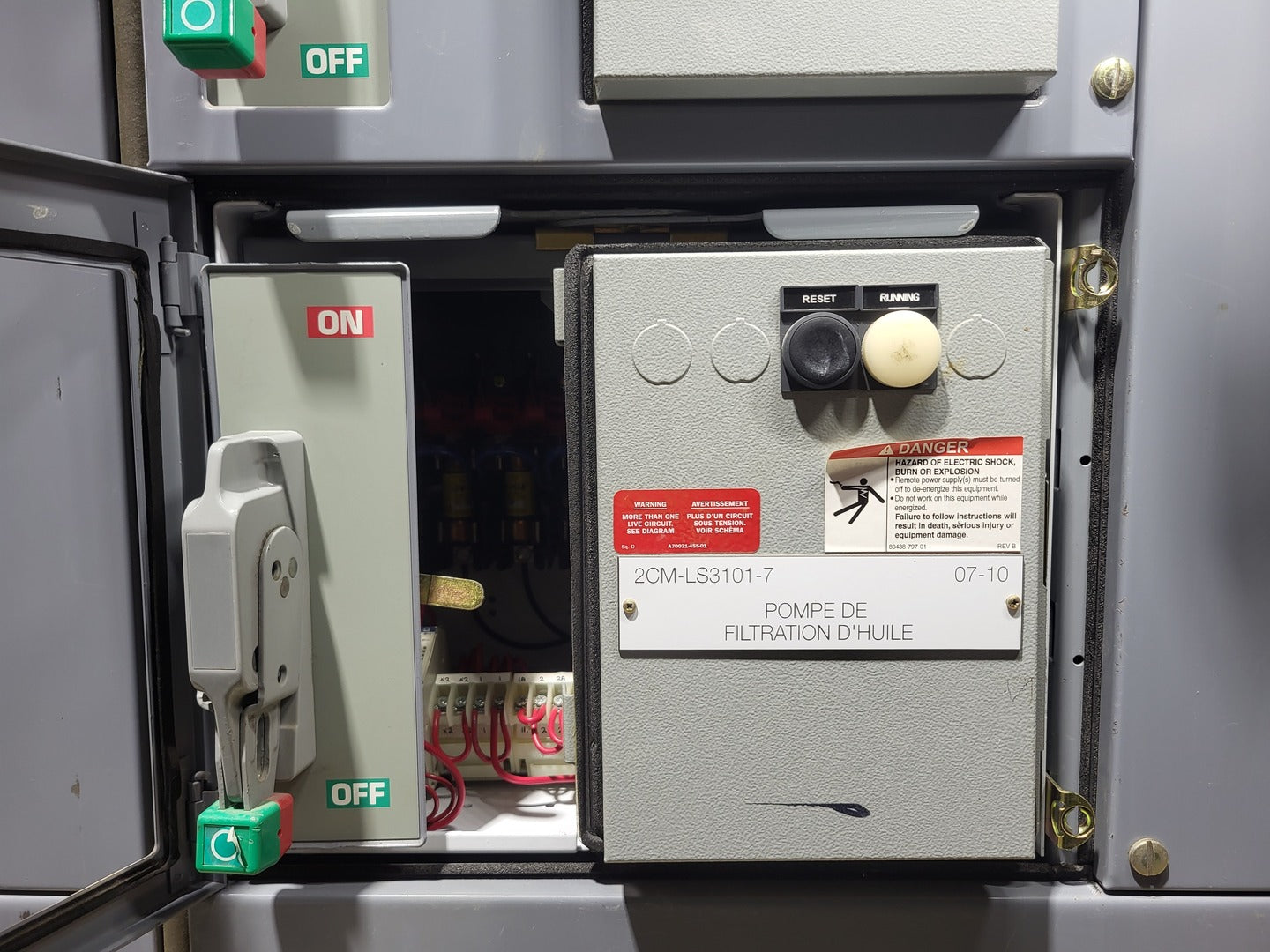

Bucket #6 2CM-LS3101-7

  1. Square D 8536SCO3B36S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V, 600V max, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  4. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  5. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  6. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

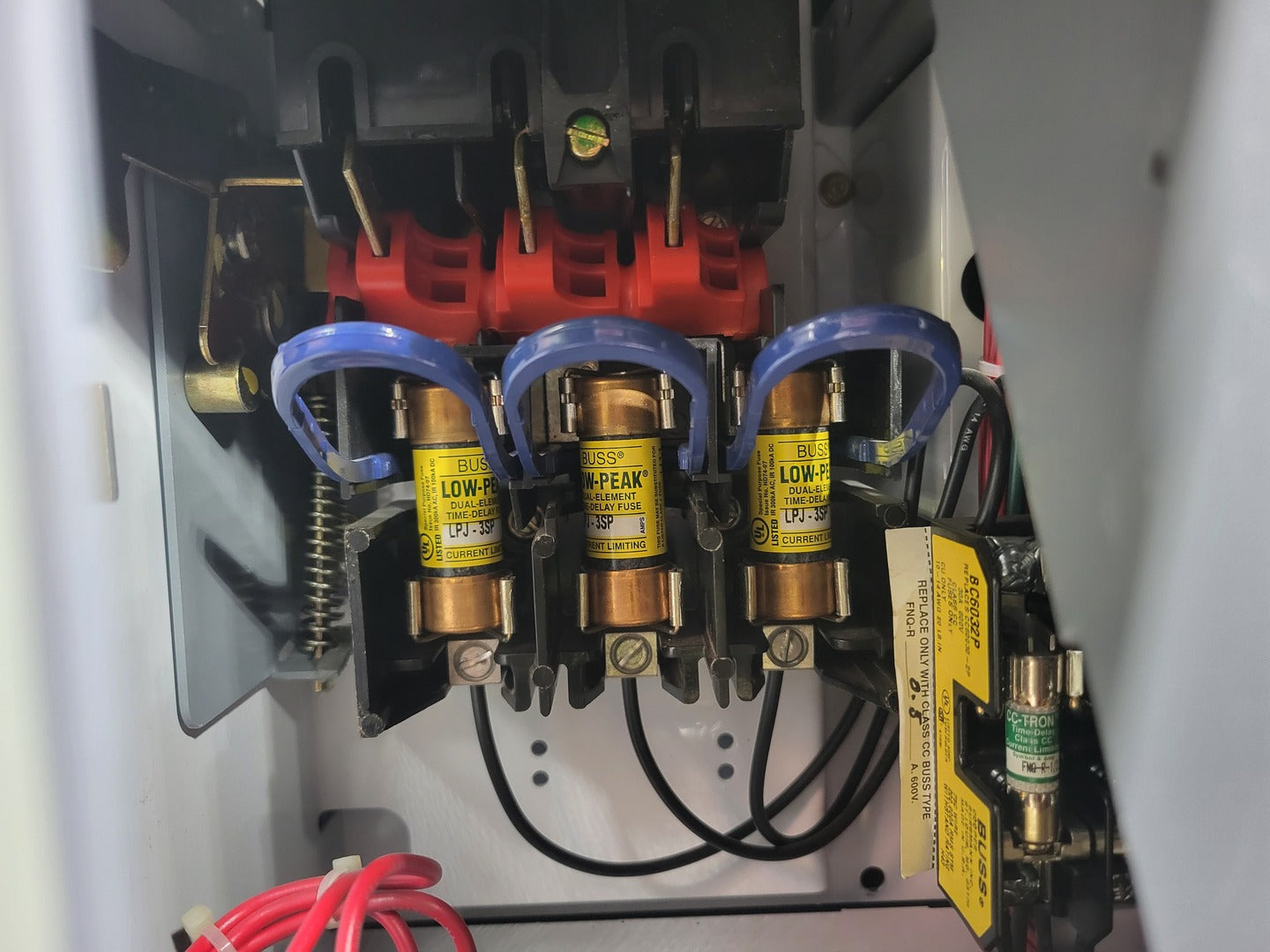

  7. 3 x Bussmann Low-Peak fuses LPJ-3SP
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
