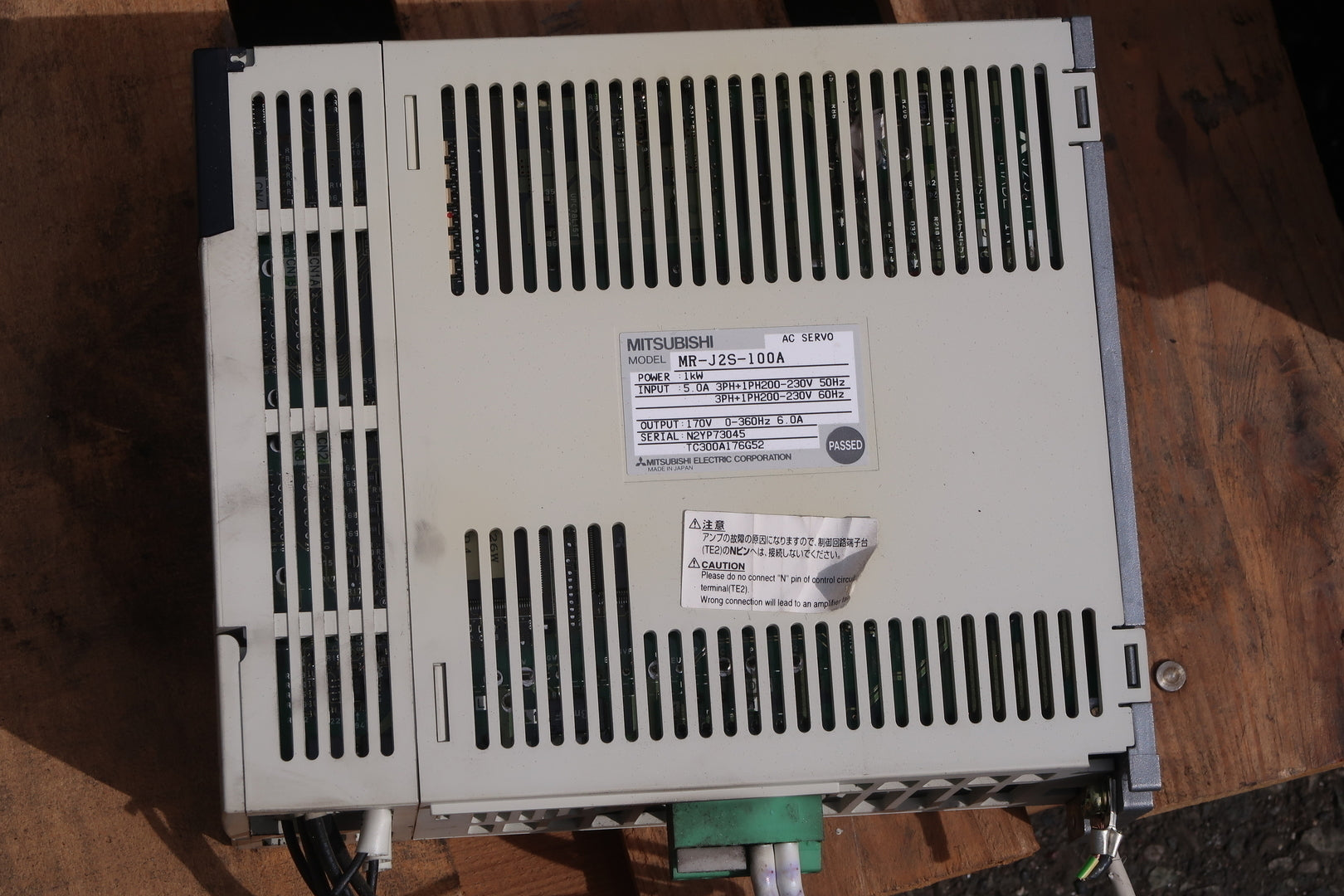

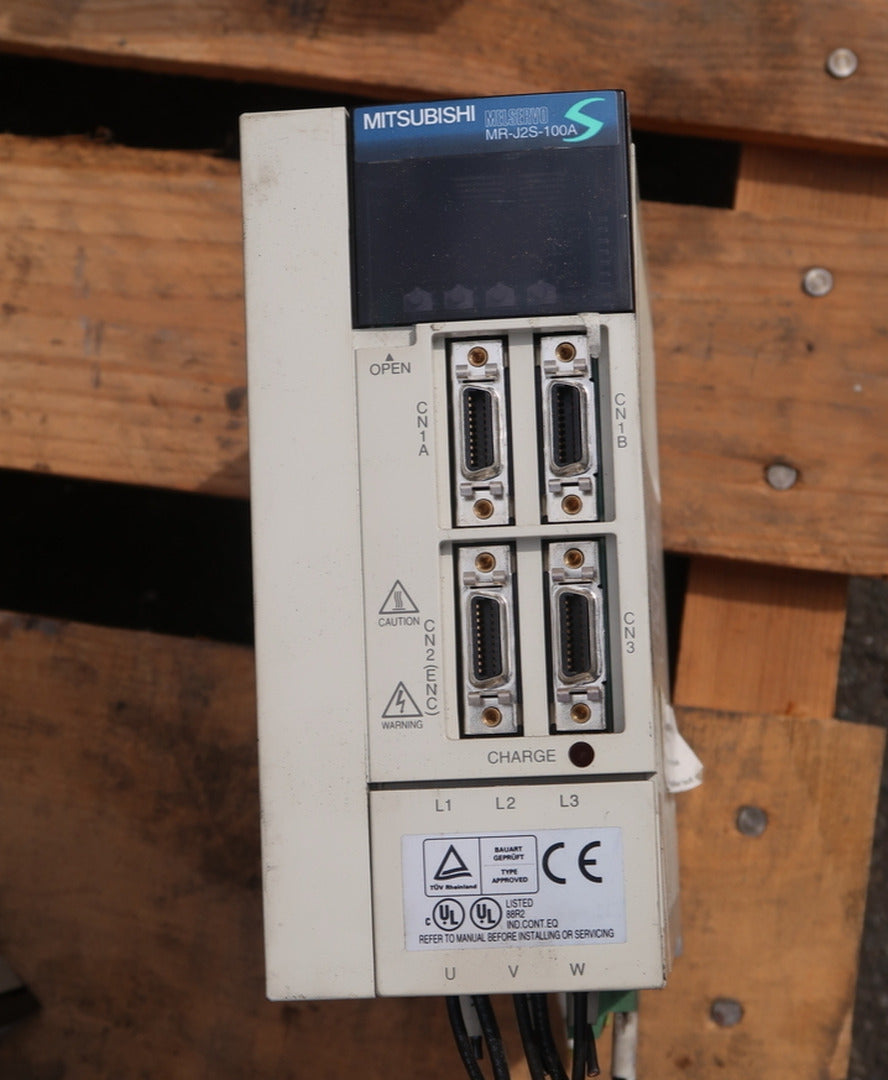

Servo Amplifier Drive MR-J2S-100A

Voltage / Frequency: 3-phase, 200 to 230 VAC, 50/60 Hz

Permissible Voltage Fluctuation: 3-phase, 170 to 253 VAC, 50/60 Hz

Permissible Frequency Fluctuation: Within +/-5%

Inrush Current: Main Circuit Power Supply: 120 A, Control Circuit Power Supply: 100 to 130 A

Control System: Sine-wave PWM control, current control system

Dynamic Brake: Built-in

Protective Functions: Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off, servo motor overheat protection, encoder error protection, regenerative error protection undervoltage, instantaneous power failure protection, overspeed protection, excessive error protection

Position Control Mode:-

• Max. Input Pulse Frequency: 500kpps (for differential receiver), 200kpps (for open collector)
• Command Pulse Multiplying Factor: Electronic gear A:1 to 65535, 131072 B:1 to 65535, 1/50<A/B<500
• In Position Range Setting: 0 to +/- 1000 pulse (command pulse unit)
• Error Excessive: +/-2.5 revolutions
• Torque Limit: set by parameter setting or external analog input (0 to +10 VDC/maximum torque)

Speed Control Mode:-

• Speed Control Range: Analog speed command 1:2000, internal speed command 1:5000
• Analog Speed Command Input: 0 to +/-10 VDC/ Rated Speed
• Speed Fluctuation Ratio: +/-0.01% or less (load fluctuation 0 to 100%), 0% (power fluctuation +/-10%), +/-0.2% or less (ambient temperature 25 deg. C +/- 10 deg. C (59 to 95 deg. F)), when using analog speed command
• Torque Limit: set by parameter setting or external analog unit (0 to + VDC/maximum torque)

Torque Control Mode:-

• Analog Torque Command Input: 0 to +/-8VDC / maximum torque (input impedance 10 to 12k ohm)
• Speed Limit: set by parameter setting or external analog input (0 to +/-10VDC rated speed)

Structure: Force-cooling, open IP00)

Ambient Temperature (Operation): 0 to 55 deg. C (non-freezing), 32 to 131 deg. F (non-freezing)

Ambient Temperature (Storage): -20 to +65 deg. C , -4 to +149 deg. F (non-freezing)

Ambient Humidity (Operation, Storage): 90% RH or less (non-condensing)

Ambient: Indoors (no direct sunlight), Free from Corrosive gas, flammable gas, oil mist, dust and dirt

Altitude: Max. 1000m (3280 ft) above sea level

Vibration: 5.9 (m/s2) or less, 19.4 (ft/s2) or less
