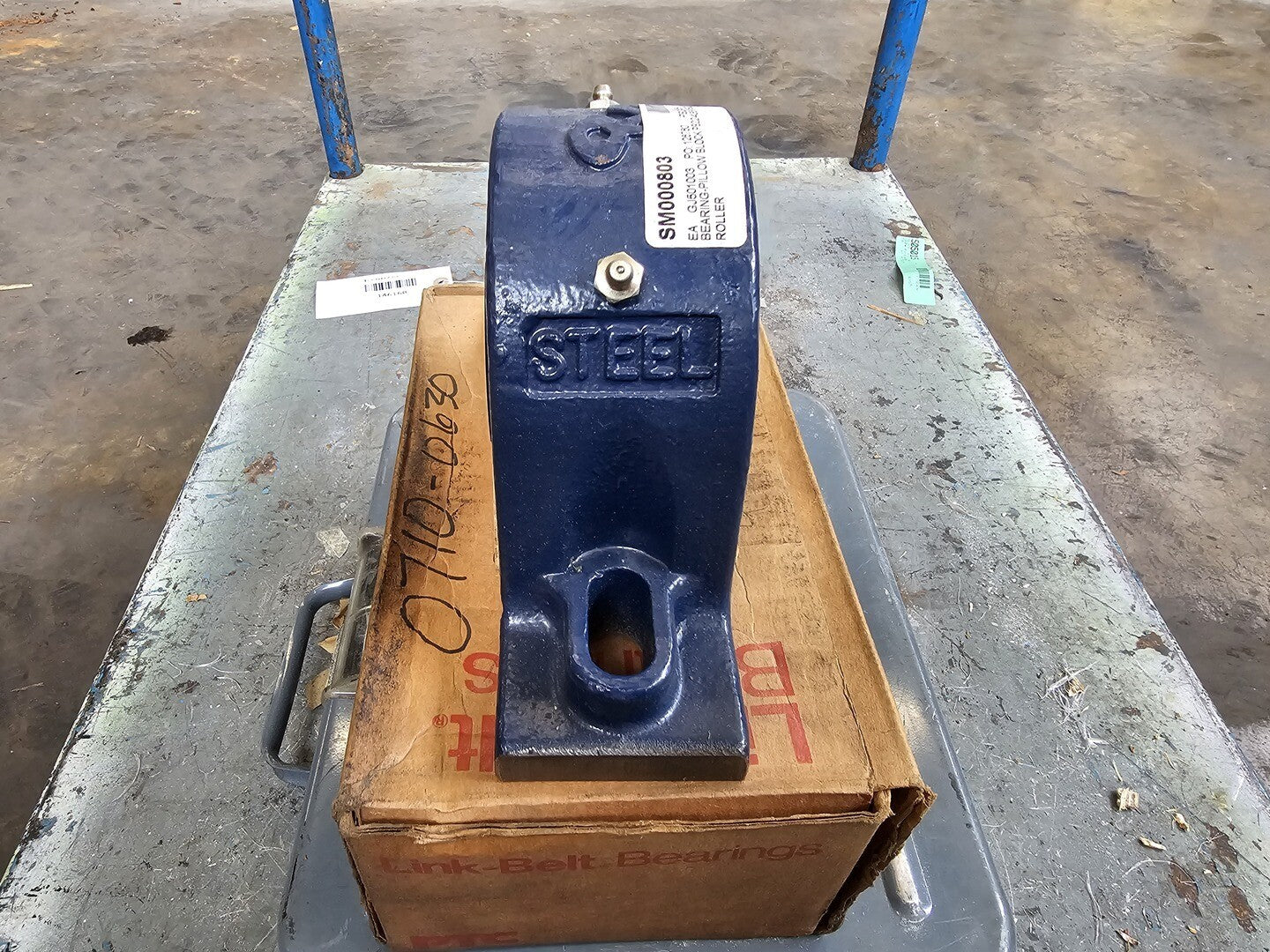

Link-Belt Pillow Block Bearing 2-3/16" Bore, PB22435H

SKU: 146160
Price:
$793

Shipping calculated at checkout

Stock:
Sold out
Make an Offer

Need An Answer Now?

Description

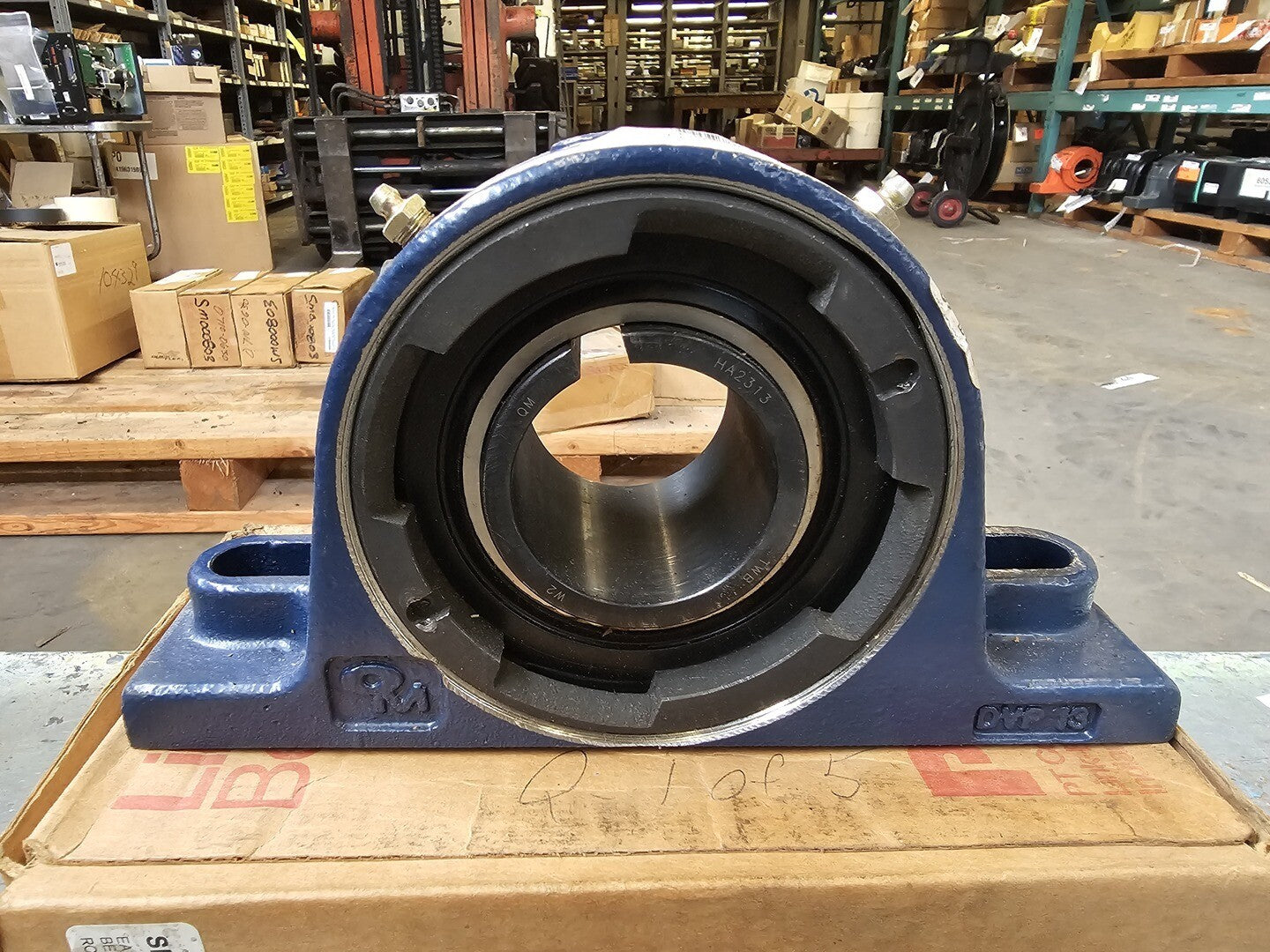

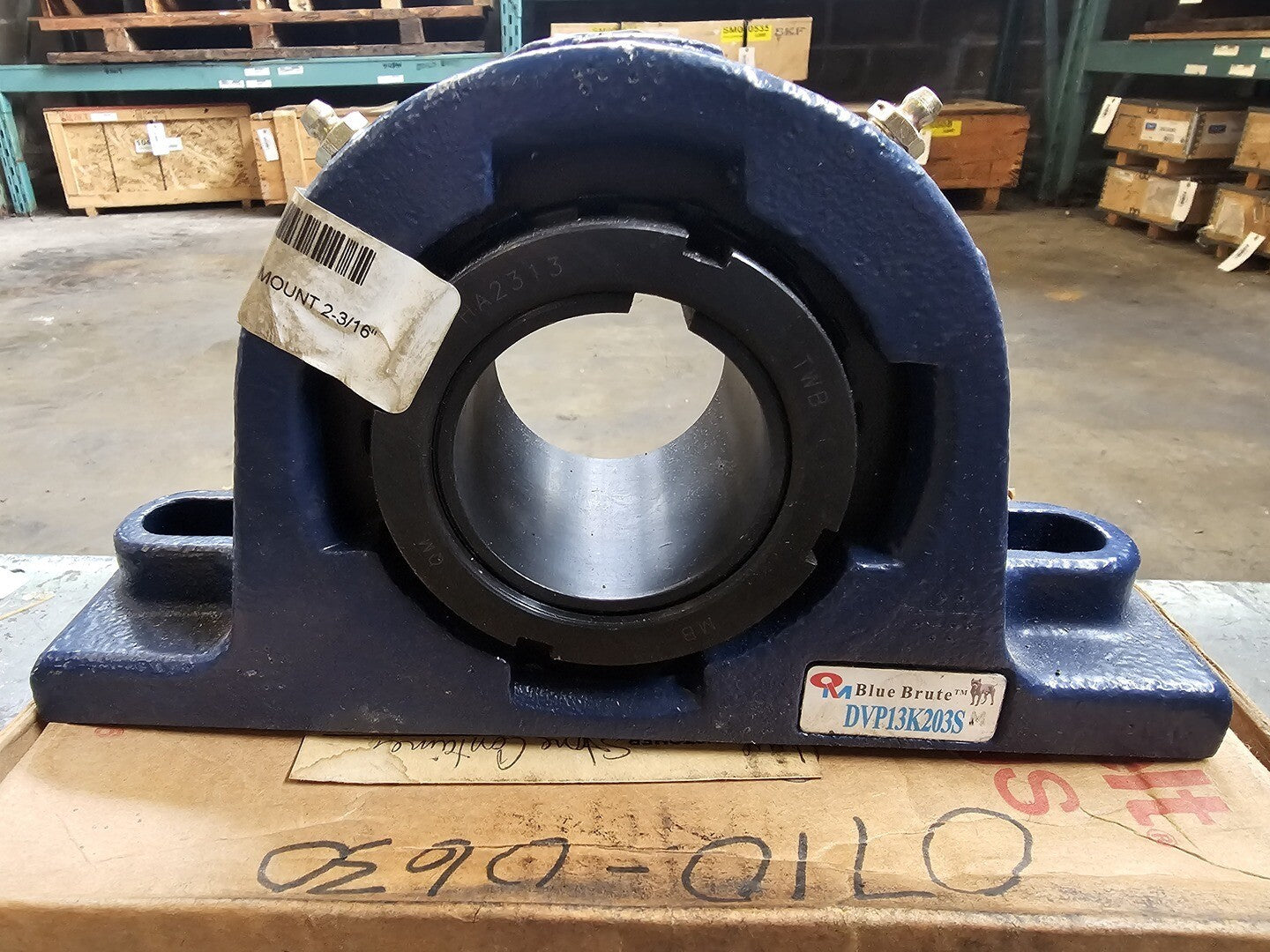

Pillow Block Roller Bearing - 2-3/16 in Bore Dia., Cast Iron Material, Standard Duty, Non-Expansion Bearing (Fixed)
Specifications
Model PB22435H
Condition Surplus New
General
Type Pillow Block
Height 5.00"
Base to Bore Centerline 2.50"
Distance Between Bolts 6.75"
Other Specifications

Overview:

  • Bore Diameter: 2-3/16 in
  • Bolt Center To Center Length: 6.7500 in
  • Bore: TypeRound
  • Base To Bore Centerline: 2.5000 in
  • Overall Length: 8.6250 in
  • Locking Device: Concentric Collar
  • Housing Material: Cast Iron
  • Housing Construction: Solid
  • Type Of BearingSpherical Roller
  • Overall Height: 5.0000 in
  • Duty Type: Standard Duty
  • Base Width: 2-9/16 in
  • Expansion Type: Non-Expansion Bearing (Fixed)
  • Finish Coating: Powder Coated
  • Overall Width: 3.3125 in
  • Seal Type: Labyrinth
  • Radial Dynamic Load Capacity: 26400 lbf
  • Radial Static Load Capacity: 44400 lbf
  • Lubrication Type: Lubrication Fitting
  • Series: 400
  • Standards Met: ANSI/ABMA STD 11-1990
  • Max Rpm: 2500 rpm
  • UPC_NO: 662327109882
  • Locking Type: Concentric Collar
  • Number Of Mounting Holes: 2
  • Mounting Type: 2-Bolt Base
