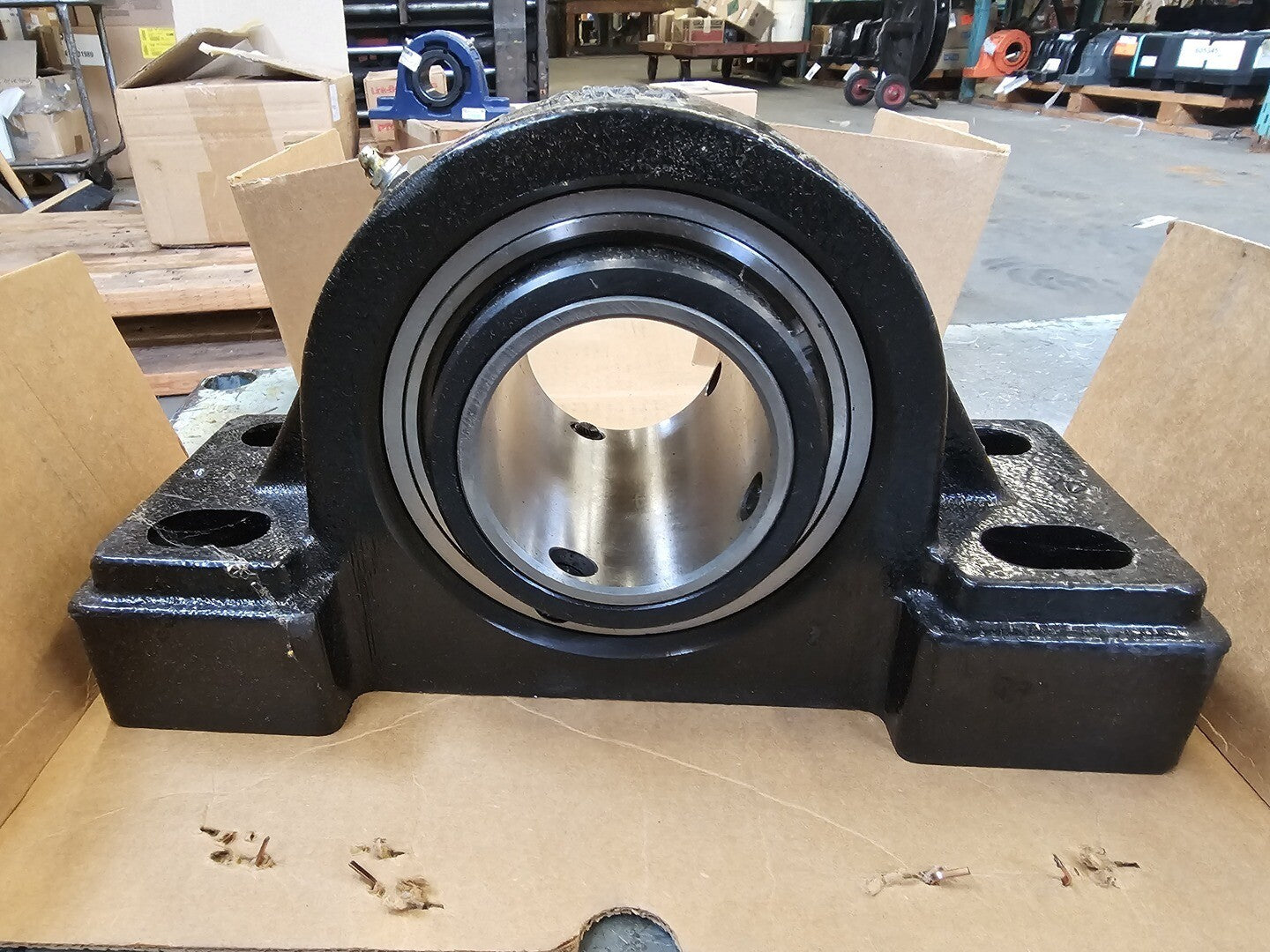

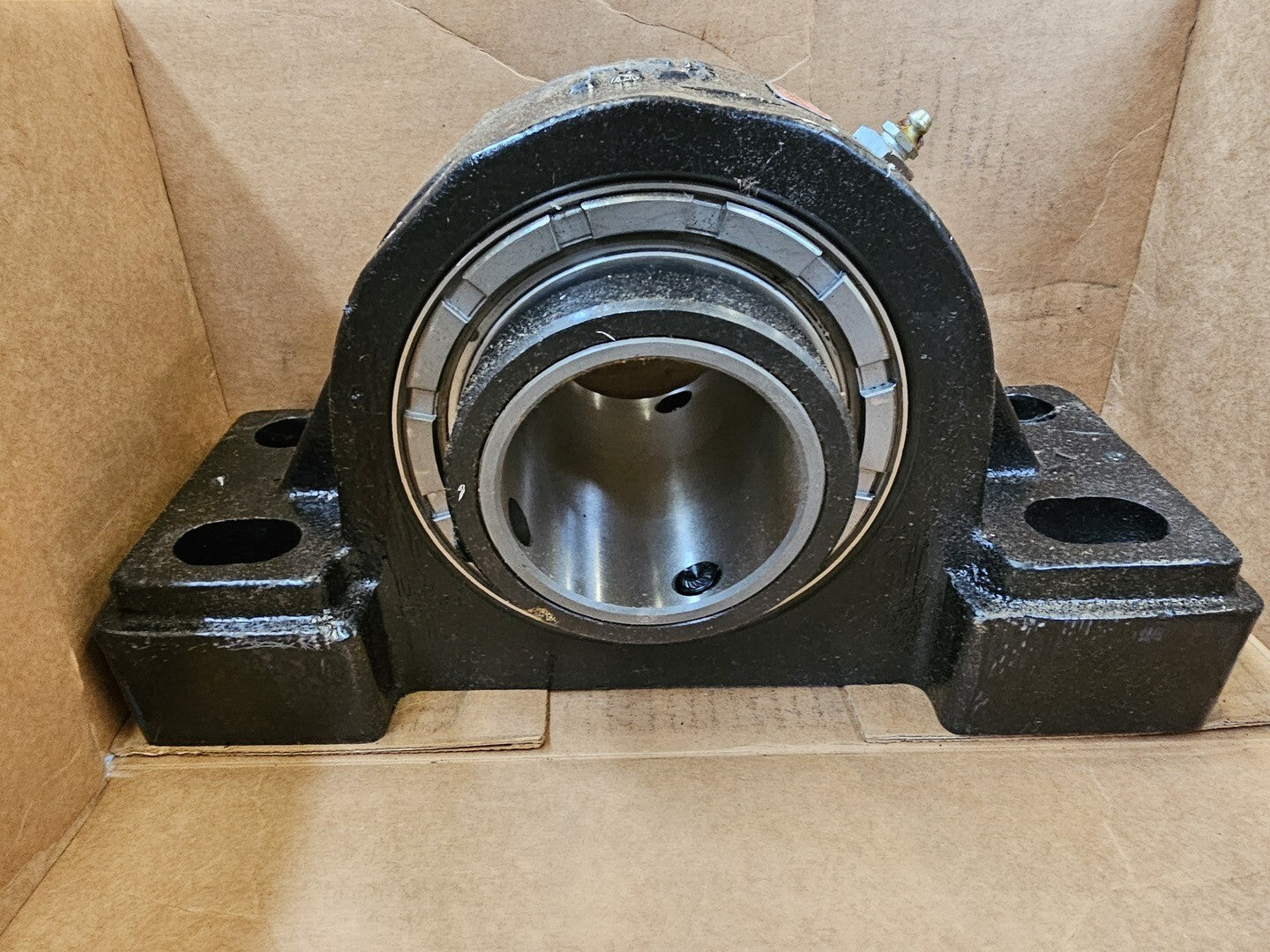

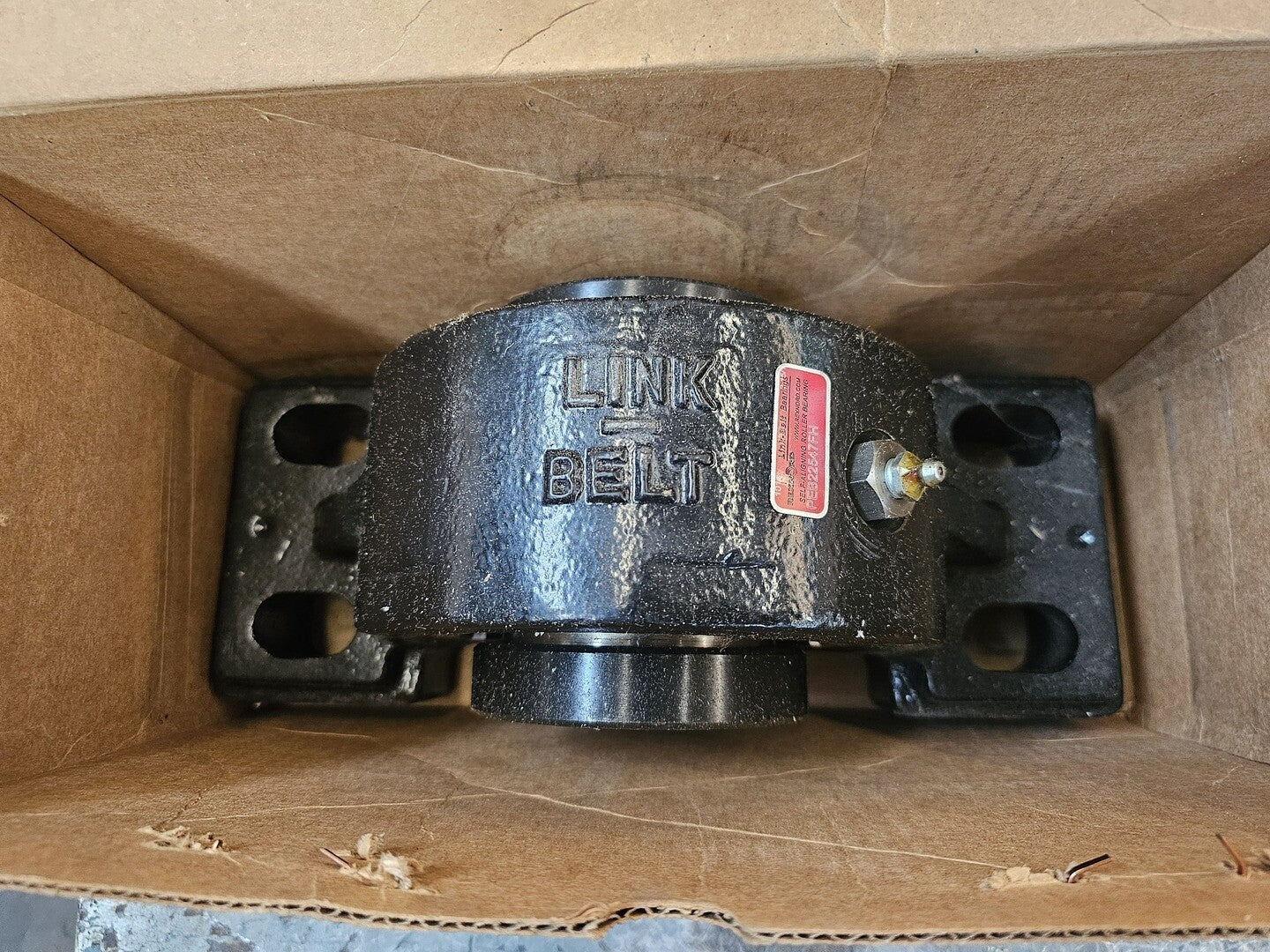

Pillow Block Bearing Link-Belt 2-15/16" Bore, PEB22547FH

SKU: 146158
Price:
$606

Shipping calculated at checkout

Stock:
Sold out
Make an Offer

Need An Answer Now?

Description

Pillow Block Roller Bearing - 2-15/16 in Bore Dia., Cast Iron Material, Expansion Bearing (Floating)
Specifications
Model PEB22547FH
Year: 2014
Condition Surplus New
General
Type Pillow Block
Height 7.3125"
Outside Length 13.00"
Base to Bore Centerline 3.50"
Distance Between Bolts 9.75"
Other Specifications

Overview:

  • Bore Diameter: 2-15/16 in
  • Bolt Center To Center Length: 9.7500 in
  • Bore Type: Straight
  • Base To Bore Centerline: 3.5000 in
  • Overall Length: 13.0000 in
  • Locking Device: Concentric Collar
  • Housing Material: Cast Iron
  • Housing Construction: Solid
  • Type Of Bearing: Spherical Roller
  • Overall Height: 7.3125 in
  • Base Width: 3-7/8 in
  • Expansion Type: Expansion Bearing (Floating)
  • Finish Coating: Powder Coated
  • Overall Width: 4.8750 in
  • Seal Type: Labyrinth
  • Radial Dynamic Load Capacity: 41800 lbf
  • Radial Static Load Capacity: 71500 lbf
  • Lubrication Type: Lubrication Fitting
  • Series: 500
  • Standards Met: ANSI/ABMA STD 11-1990
  • Max Rpm: 1500 rpm
  • UPC_NO: 662327430931
  • Locking Type: Double Concentric Collar
  • Number Of Mounting Holes: 4
  • Mounting Type: 4-Bolt Base
