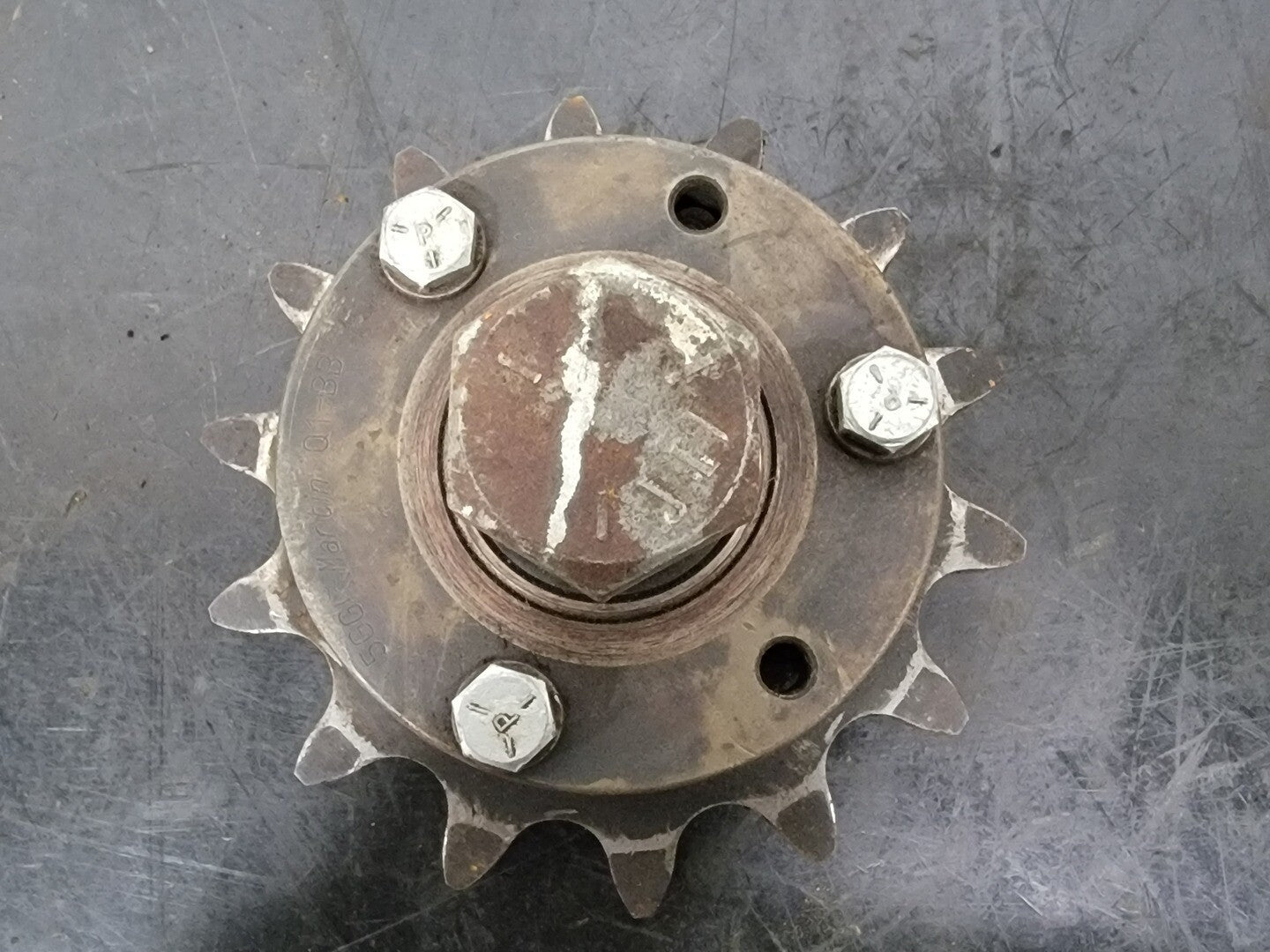

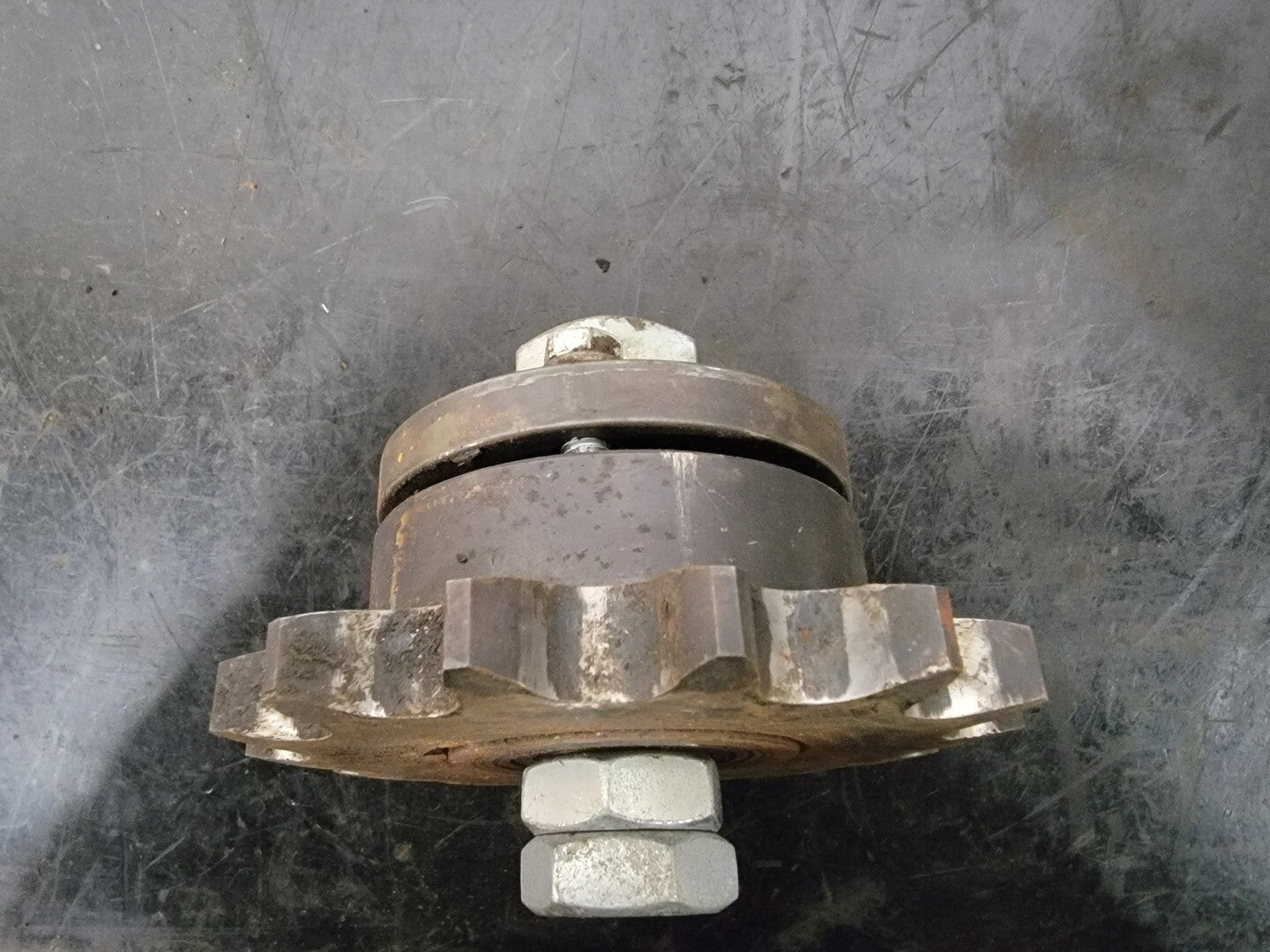

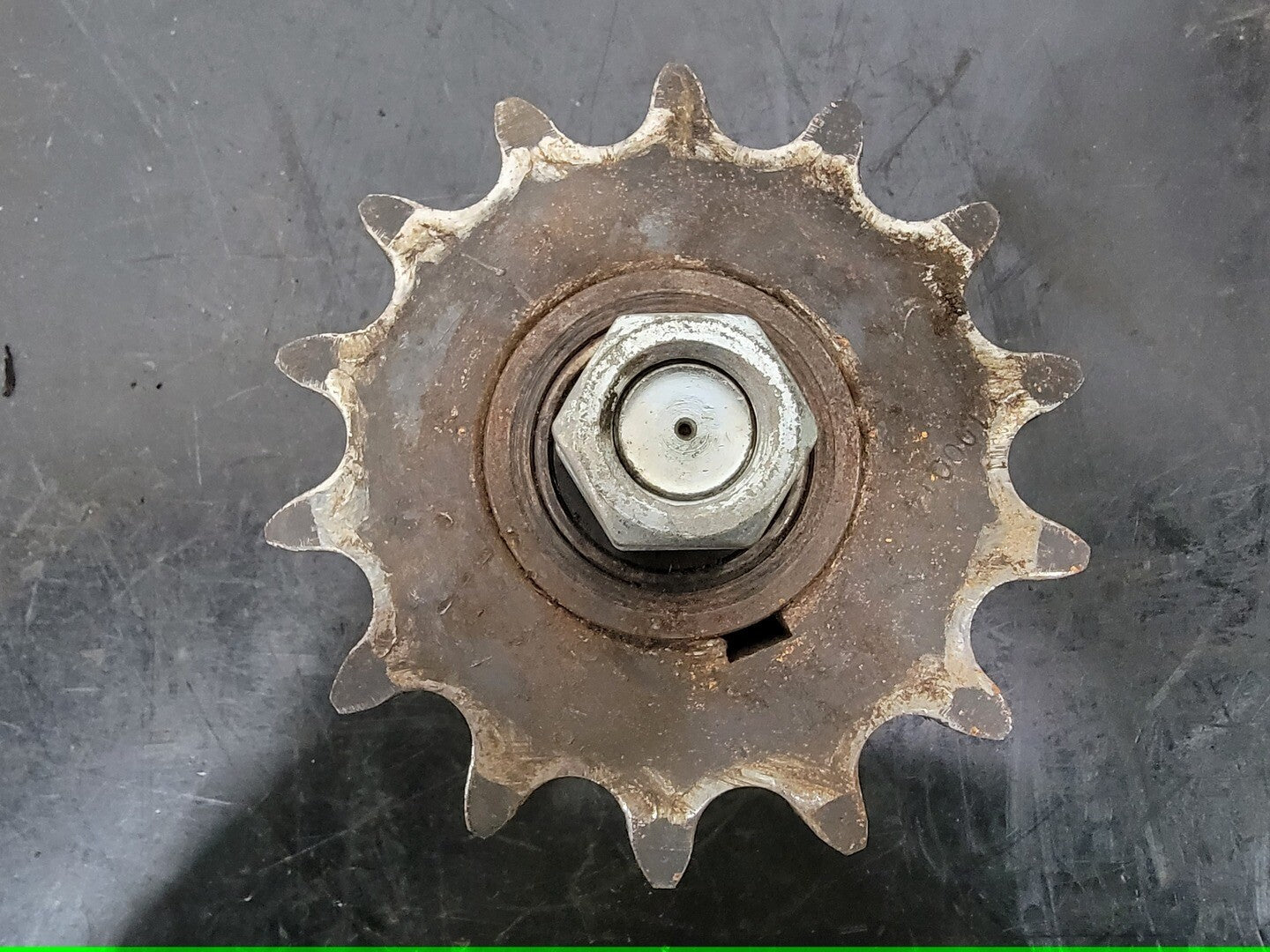

Split Taper Idler Shaft Bushing Q1-BB w/ Bushed Sprocket 100Q14

SKU: 27413
Price:
$52

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

Specifications
Model Q1-BB
Condition Used
General
Chain Size 100
No. of Strands 1
No. of Teeth 14
Bore Type Split Taper
Other Specifications

Bushing Size: Q1

Shaft Diameter: 1 in.

Flange Outside Diameter: 4.125 in.

Flange Thickness: 0531 in.

Length Through Bore: 2.5 in

Overall Length: 4-39/64 in.

Material: Ductile Iron

Type of Bearing: Ball

Radial Load Capacity: 1116 @ 1260 rpm lb, 1186 @ 1000 rpm lb, 1494 @ 500 rpm lb, 2555 @ 100 rpm lb, 975 @ 1800 rpm lb

Number of Bolt Holes: 4

Sprocket:- 100Q14

Material: Steel

Pitch Diameter: 5.618 in.

Sprocket Style: B
