Semi-Batch Concentrator SB400

SKU: 137921
Price:
$22,403

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model SB400
Condition Used
Other Specifications

PDF BROCHURE

PDF MANUAL

Recommended Solids Capacity: 1 - 15 t/h

Max. Slurry Capacity: 30 m3/hr

Concentrating Surface Area: 0.21 sq. m

G-Force Range: 50 - 200

Machine Weight: 485 kg

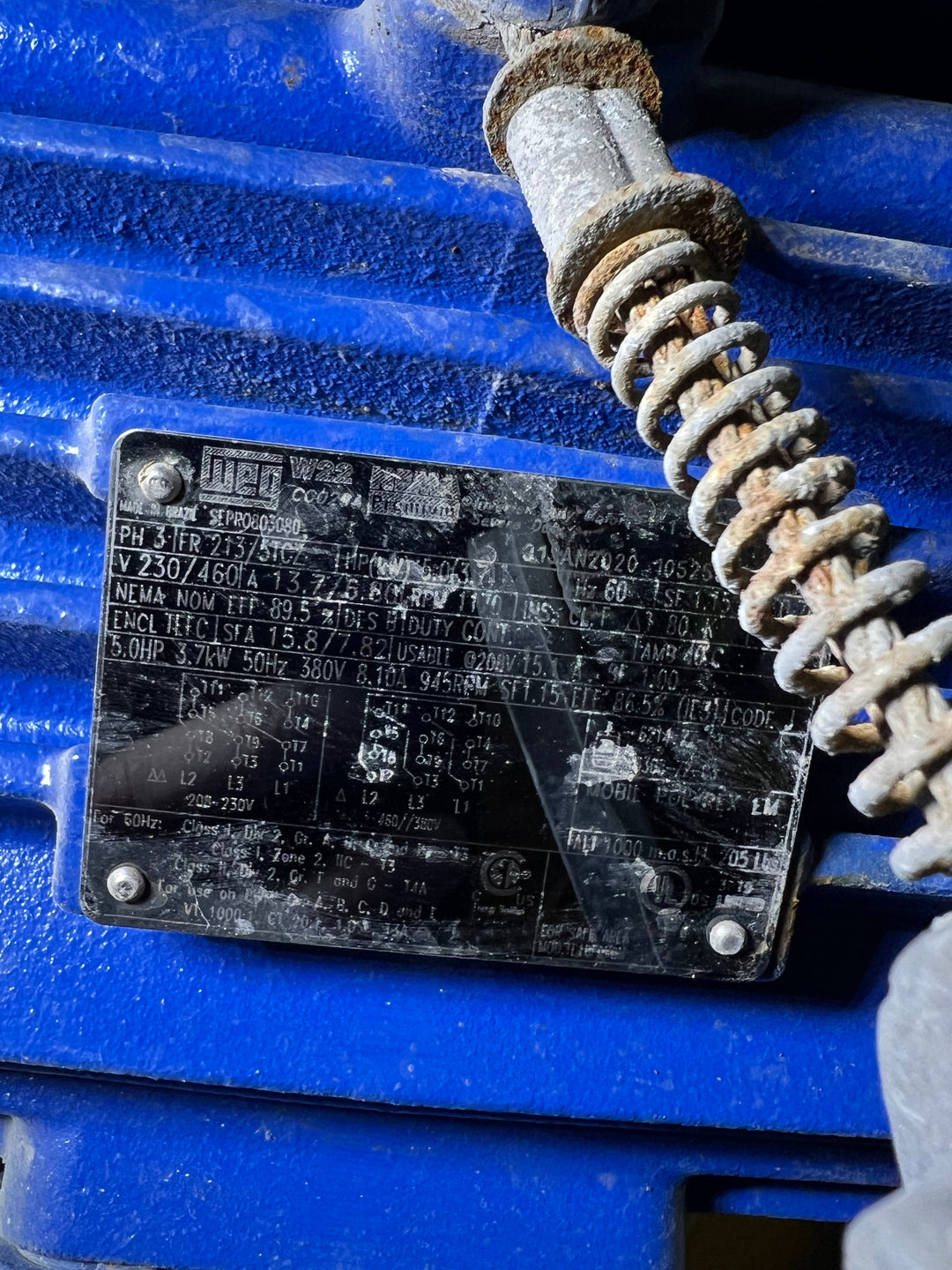

Motor Power: 5 hp

Max. Rotor RPM: 900 rom @ 47 Hz, 152 G's

Process Water Consumption: 3 - 5 m3/hr

Water Supply Pressure: 2 - 3 bar

Recommended Maxfeed Particle Size: 2.0 mm

Absolute Maximum Feed Particle Size: 2.5 mm

Maximum Feed Percent Solids: 65%

Concentrate Slurry Flush Volume: 25 L

Concentrate Solids Flush Volume: 1,230 cu. cm

Dimensions: 1.02 m width x 1.00 m length x 1.43 m height
