APPLIED MOTION PRODUCTS Si3540 3.5A/Phase 110/220VAC Programmable Step Motor Driver
APPLIED MOTION PRODUCTS

Si3540 3.5A/Phase 110/220VAC Programmable Step Motor Driver

SKU: 158445
Condition: Used
Price:
$312

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

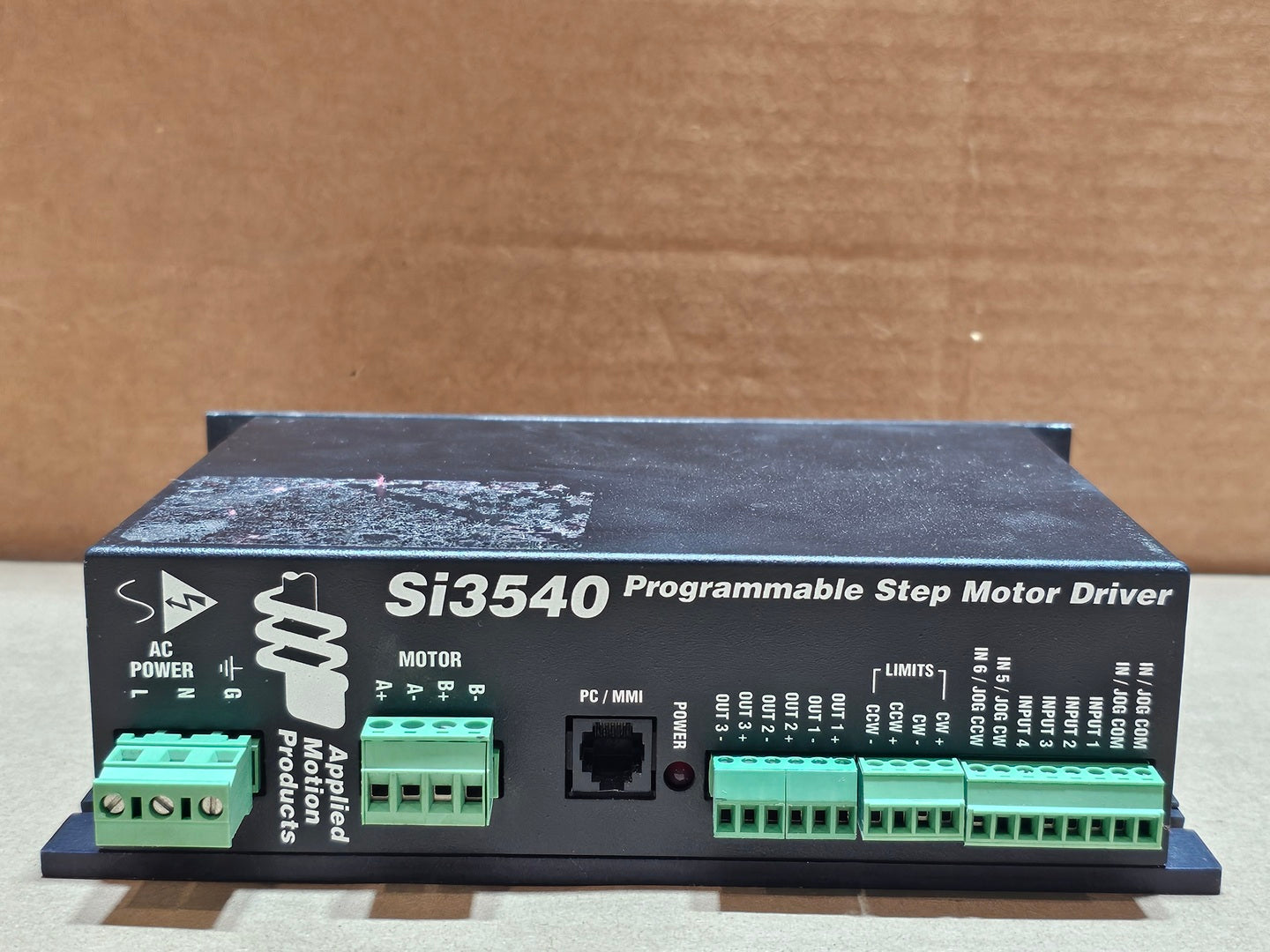

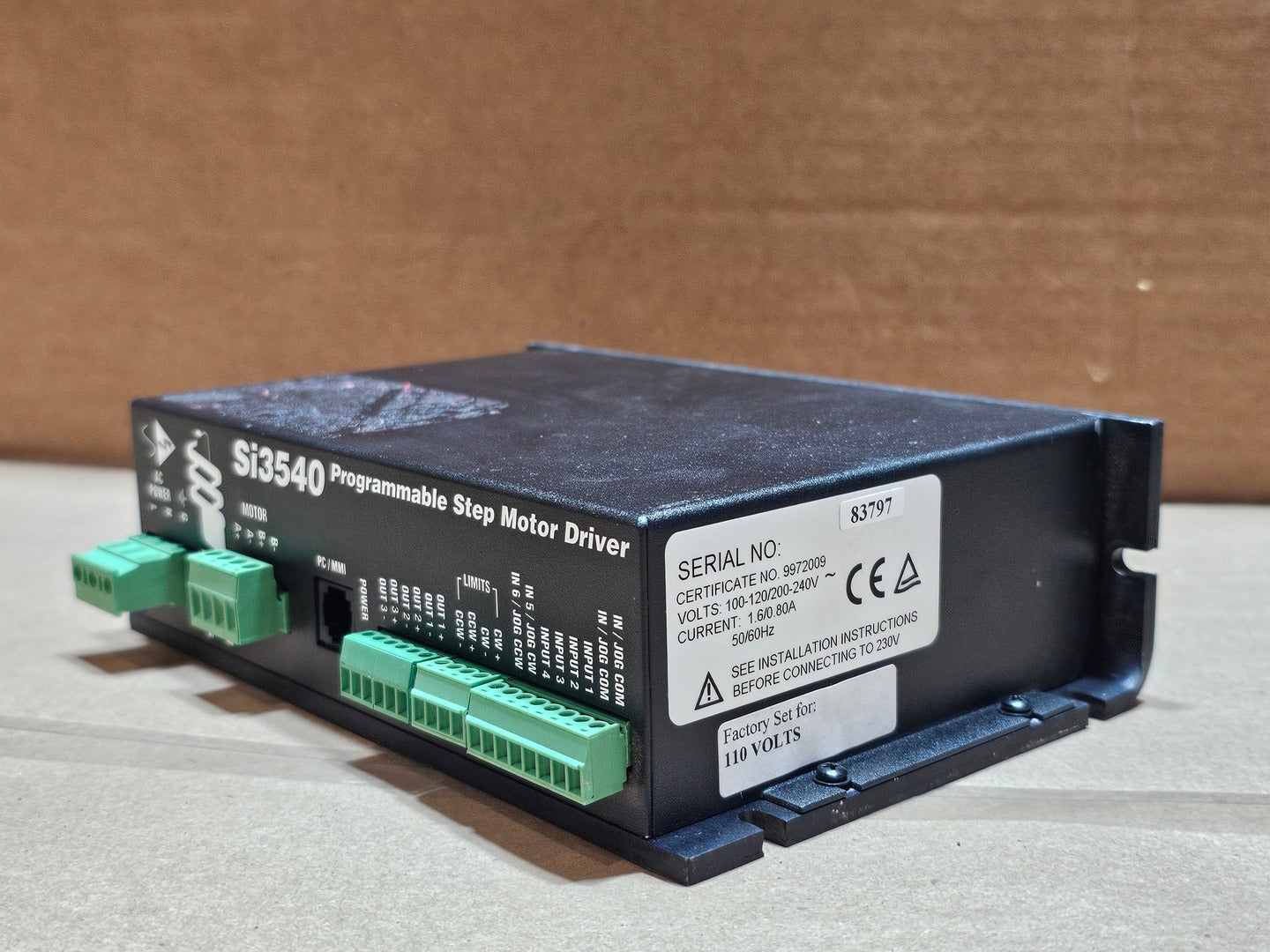

Applied Motion Products Si3540 programmable microstepping step motor driver with integrated AC power supply, RS-232 PC/MMI programming connection, programmable digital I/O, motor output terminals, limit inputs, and built-in indexer functionality. The Si3540 supports up to 3.5 A per motor phase and microstepping up to 50,800 steps/revolution. The manufacturer's manual specifies 8 inputs, 3 outputs, RS-232 communications, and 110/220 VAC operation.
Specifications
Model Si3540
Condition Used
Other Specifications

Type: Programmable Step Motor Driver / Indexer

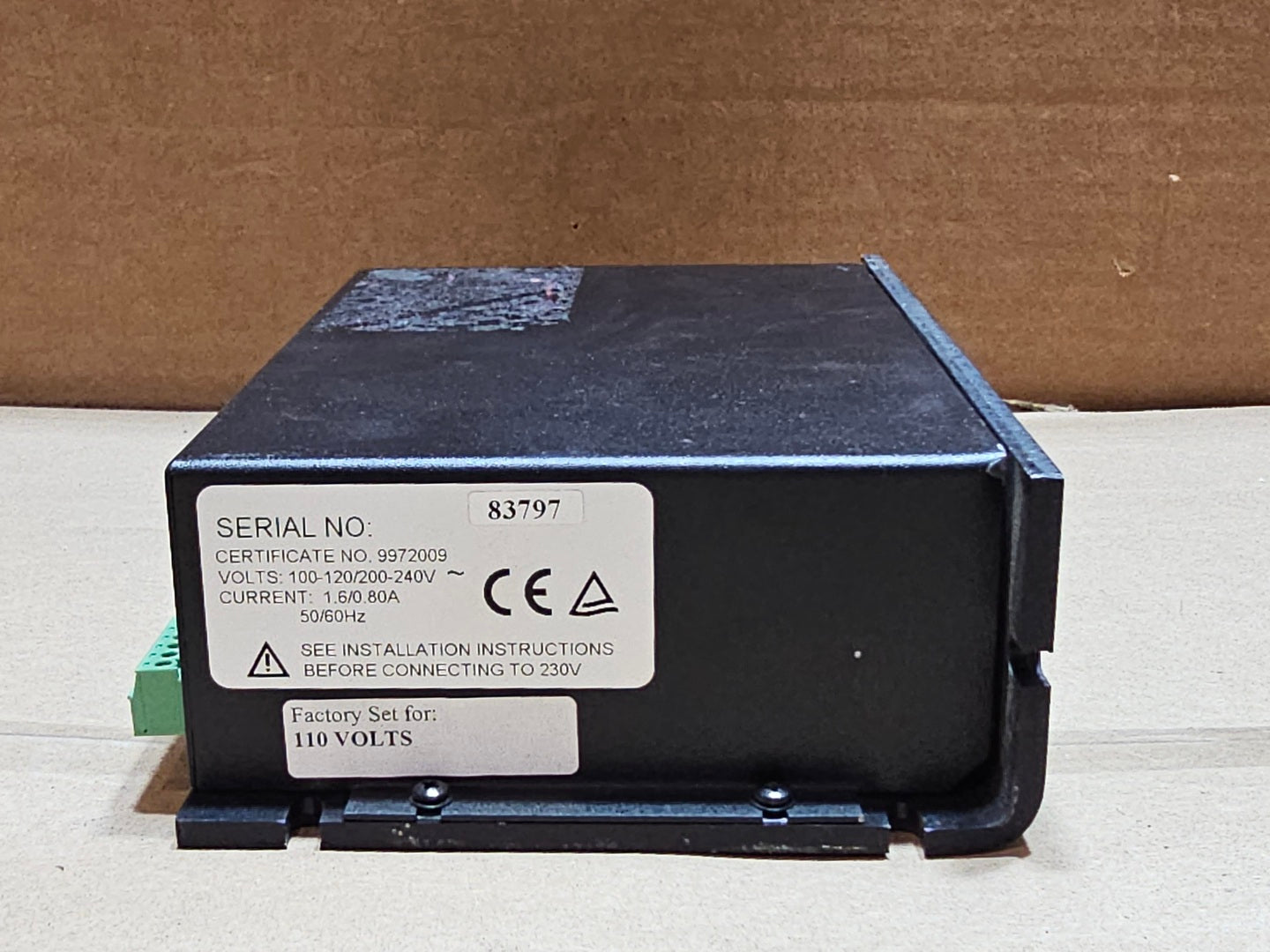

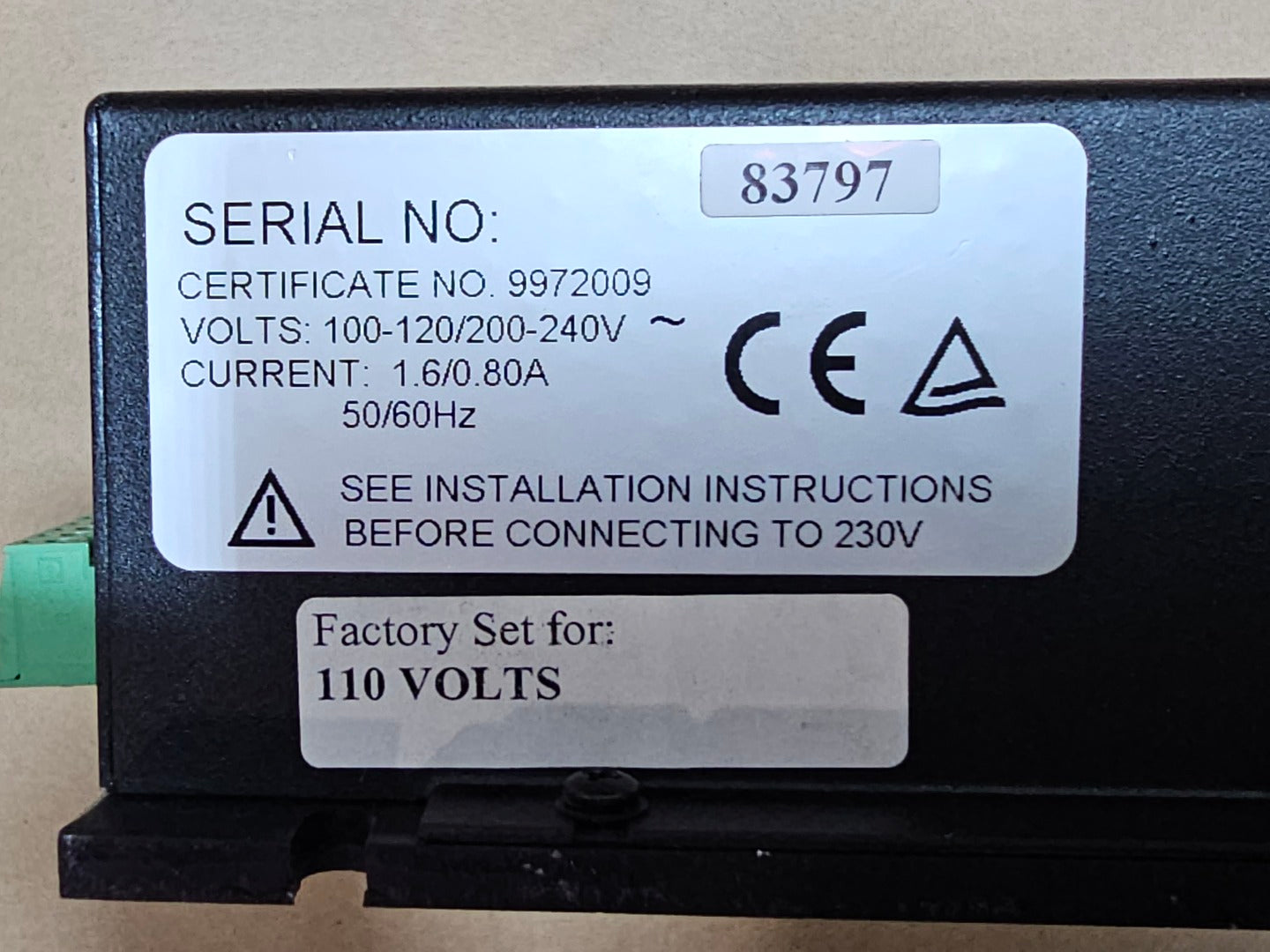

Input Voltage: 100-120 / 200-240 VAC, single-phase

Factory Voltage Setting: 110 VAC

Input Current: 1.6 A at lower-voltage input / 0.80 A at higher-voltage input,

Frequency: 50/60 Hz

Motor Output Current: Up to 3.5 A per phase

Internal DC Bus: 40 VDC

Step Resolution: Microstepping, up to 50,800 steps/revolution

Programmable Inputs: 8

Programmable Outputs: 3

Communication: RS-232

Programming Port: PC / MMI

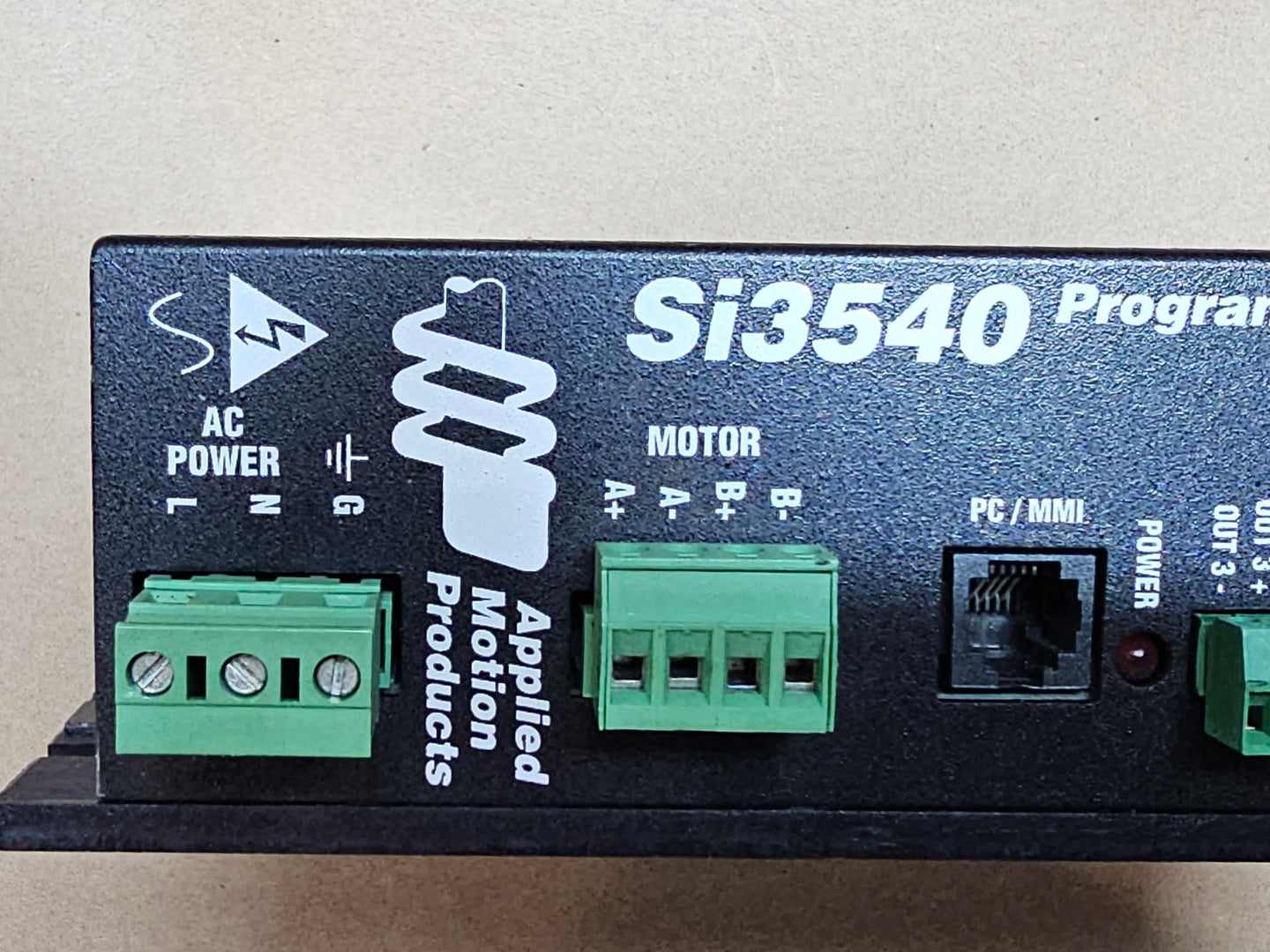

Motor Connections: A+, A-, B+, B-

AC Power Connections: L, N, G

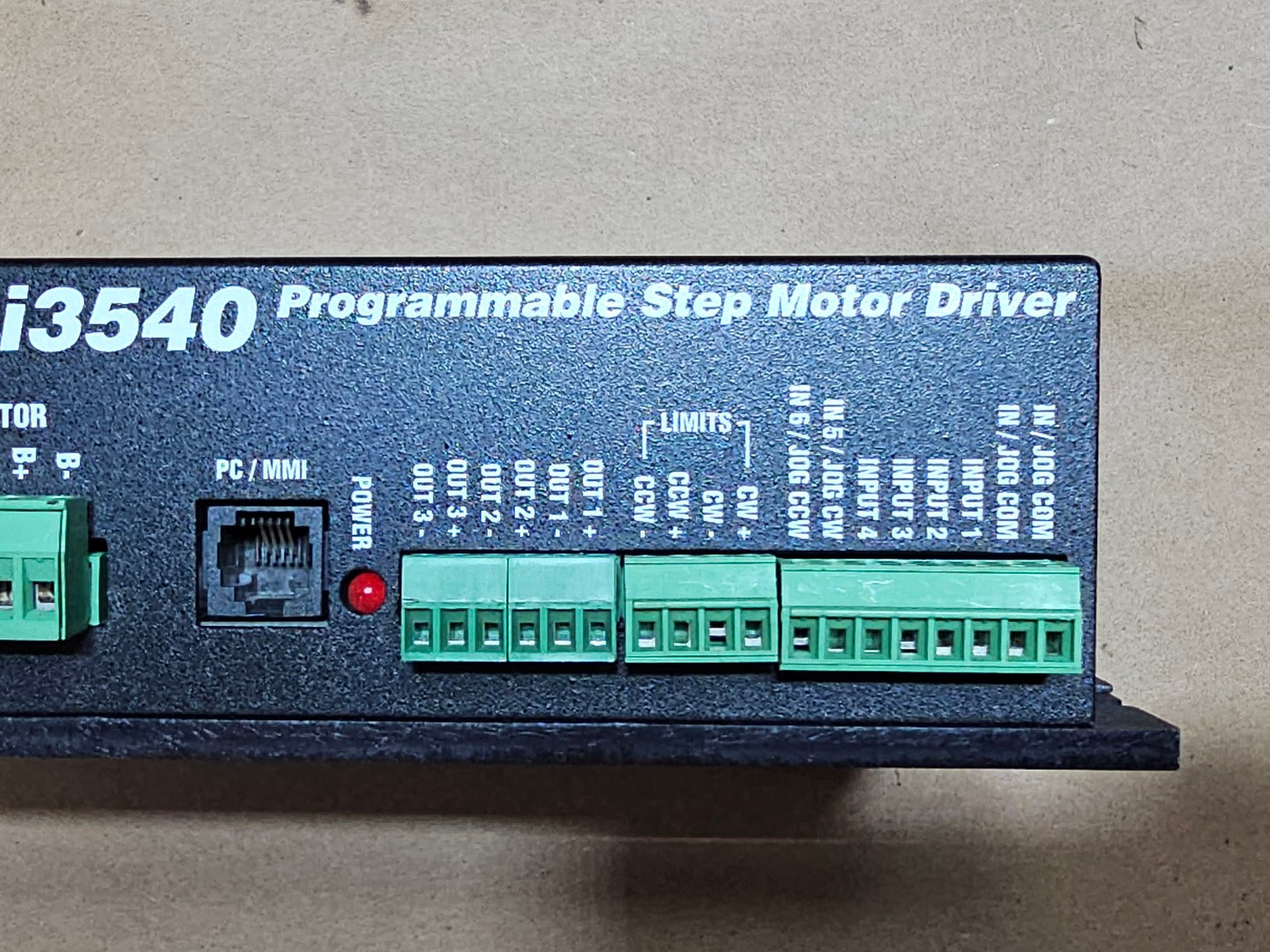

Limit Inputs: CW+, CW-, CCW+, CCW-

Input Functions Visible: Inputs 1-4; IN 5 / Jog CW; IN 6 / Jog CCW; additional limit/input functions

External Trigger I/O: Optically isolated, 5-24 V, sinking or sourcing

Idle Current Reduction: Programmable 0%, 25%, 50%, or 100%

Chassis Construction: Metal enclosure
