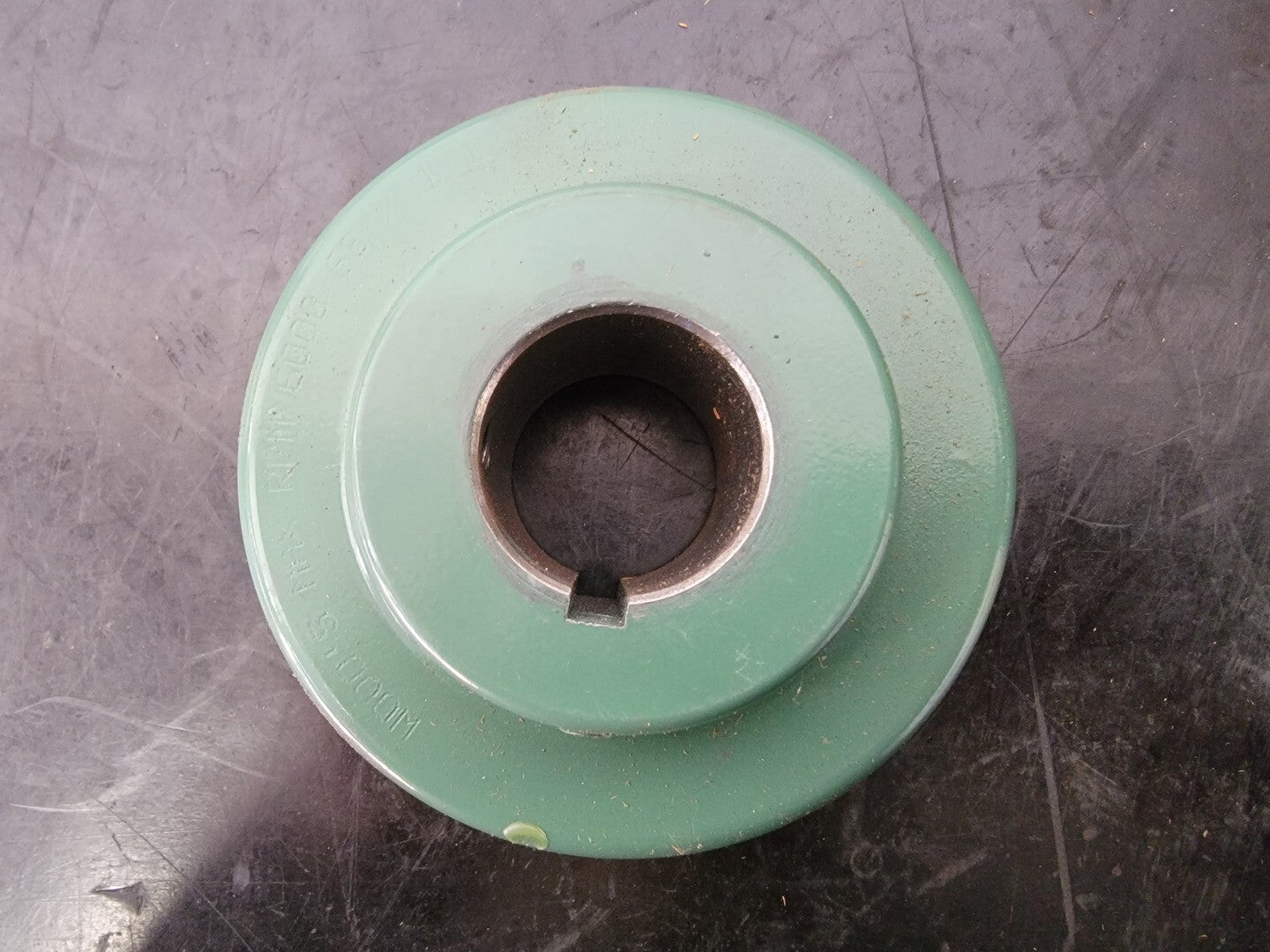

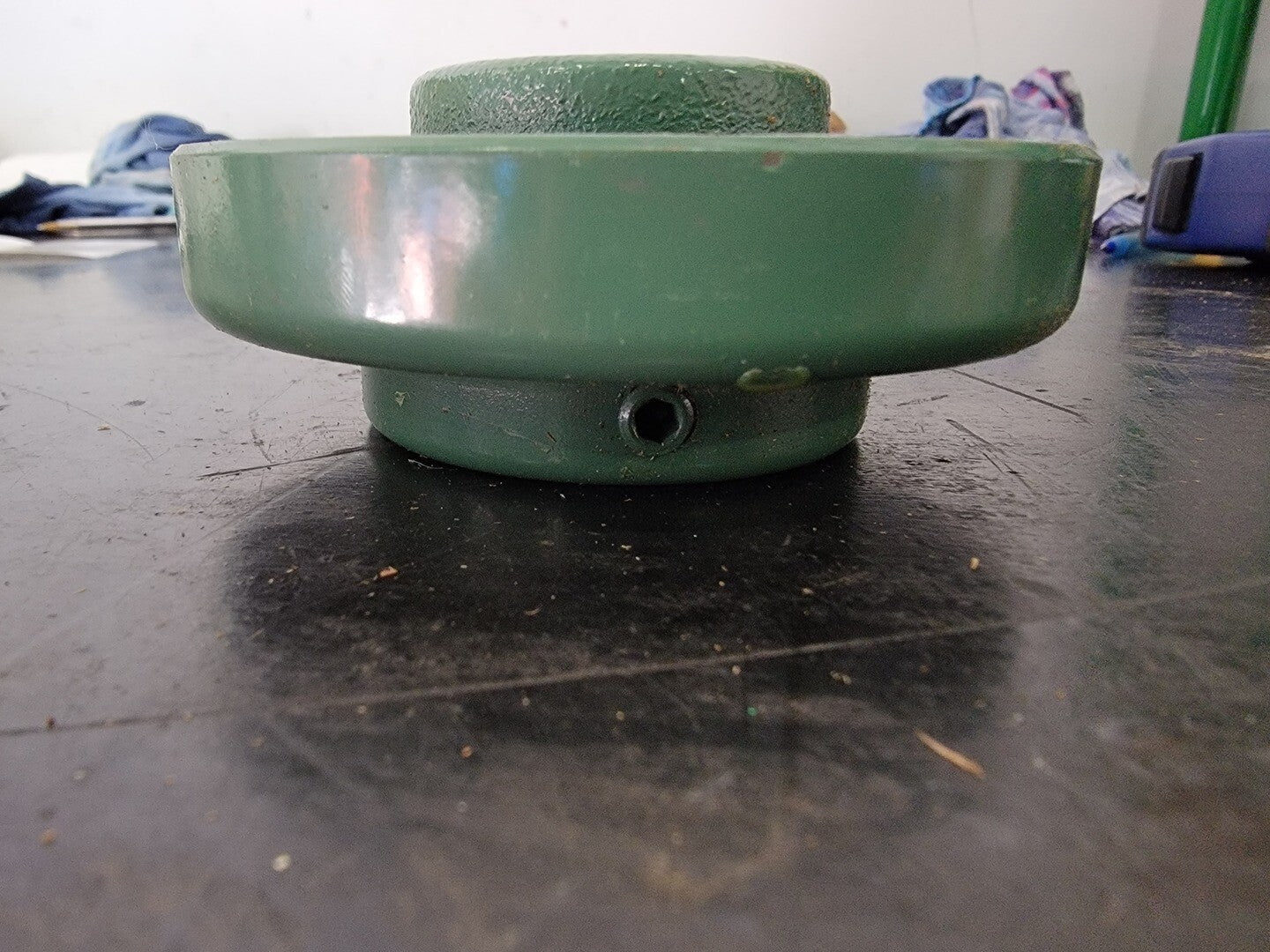

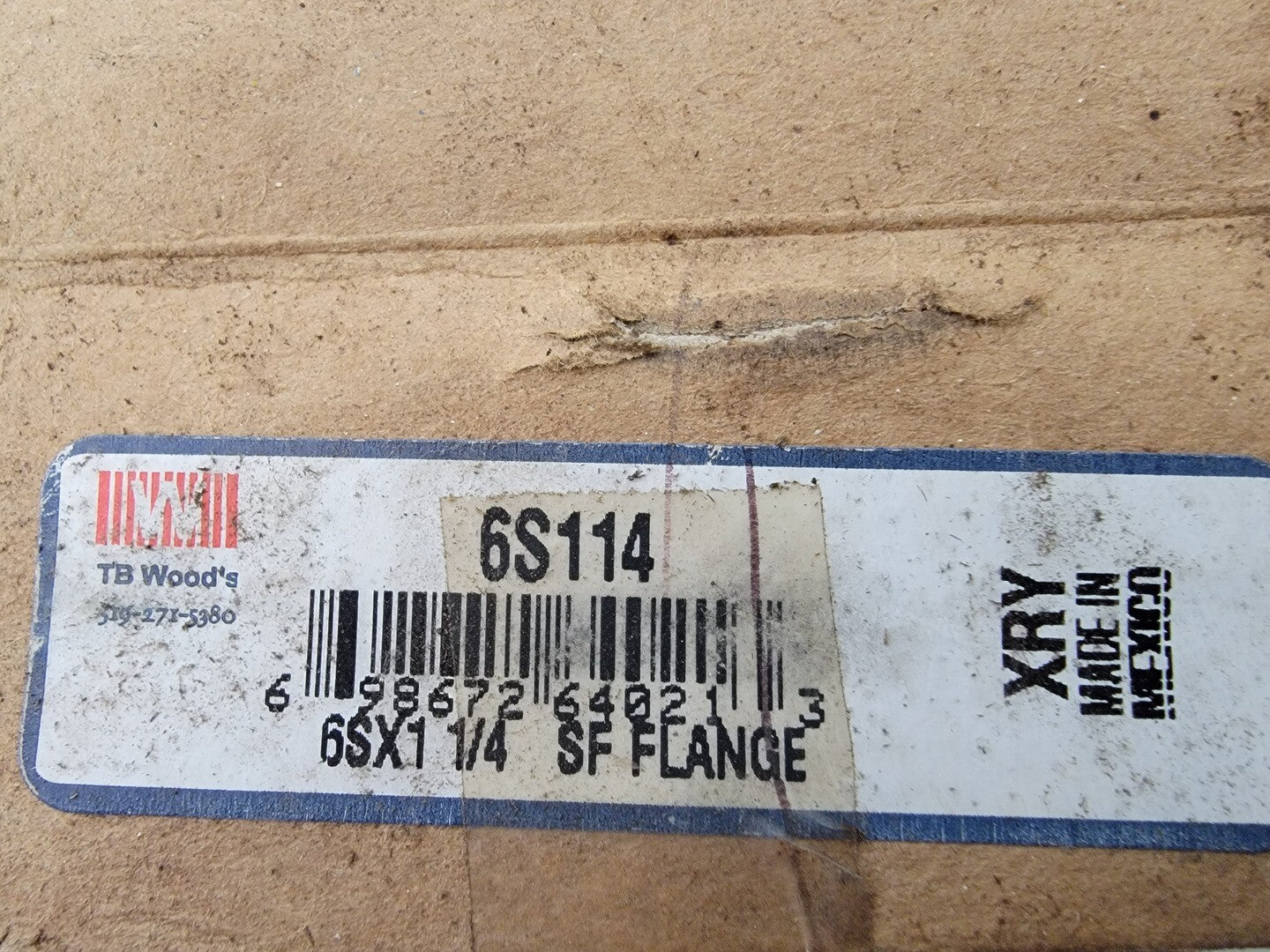

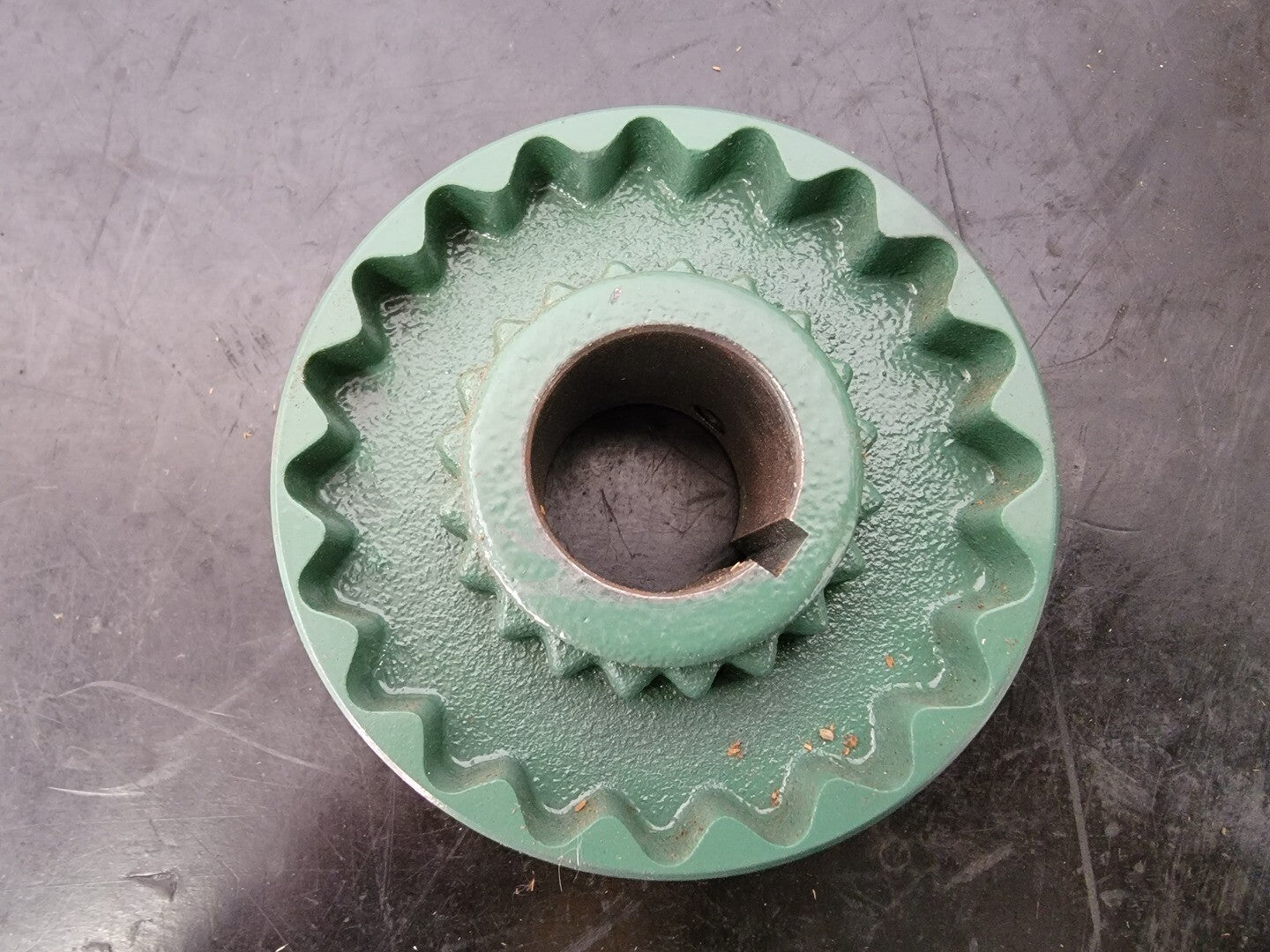

Sleeve Coupling Flange 6SX1-1/4 6S114

SKU: 27300
Price:
$41

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

Specifications
Model 6S114
Made In MEXICO
Condition Surplus New
Other Specifications
Size - Sleeve Couplings: 6
Flange Type - Sleeve Couplings:S
Bore Type - Couplings: Fixed Bore
Bore Diameter: 1-1/4 in
Outside Diameter: 4 in
Keyway Size Type: 1/4 in x 1/8 in
Length through Bore (In.): 1.63 in
Rated Torque (In.-Lb.): 1,800
Maximum RPM: 6,000 RPM
Width (In.): 1.625 in
Height (In.): 1.625 in
Hub Diameter (In.): 4.0 in
Material of Construction: Cast Iron
Setscrew Location: One Over the Key and One at 90 Degrees
Maximum Angular Misalignment: 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Ideal For: Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Bushing Required: None
