Description
| Specifications | |
|---|---|

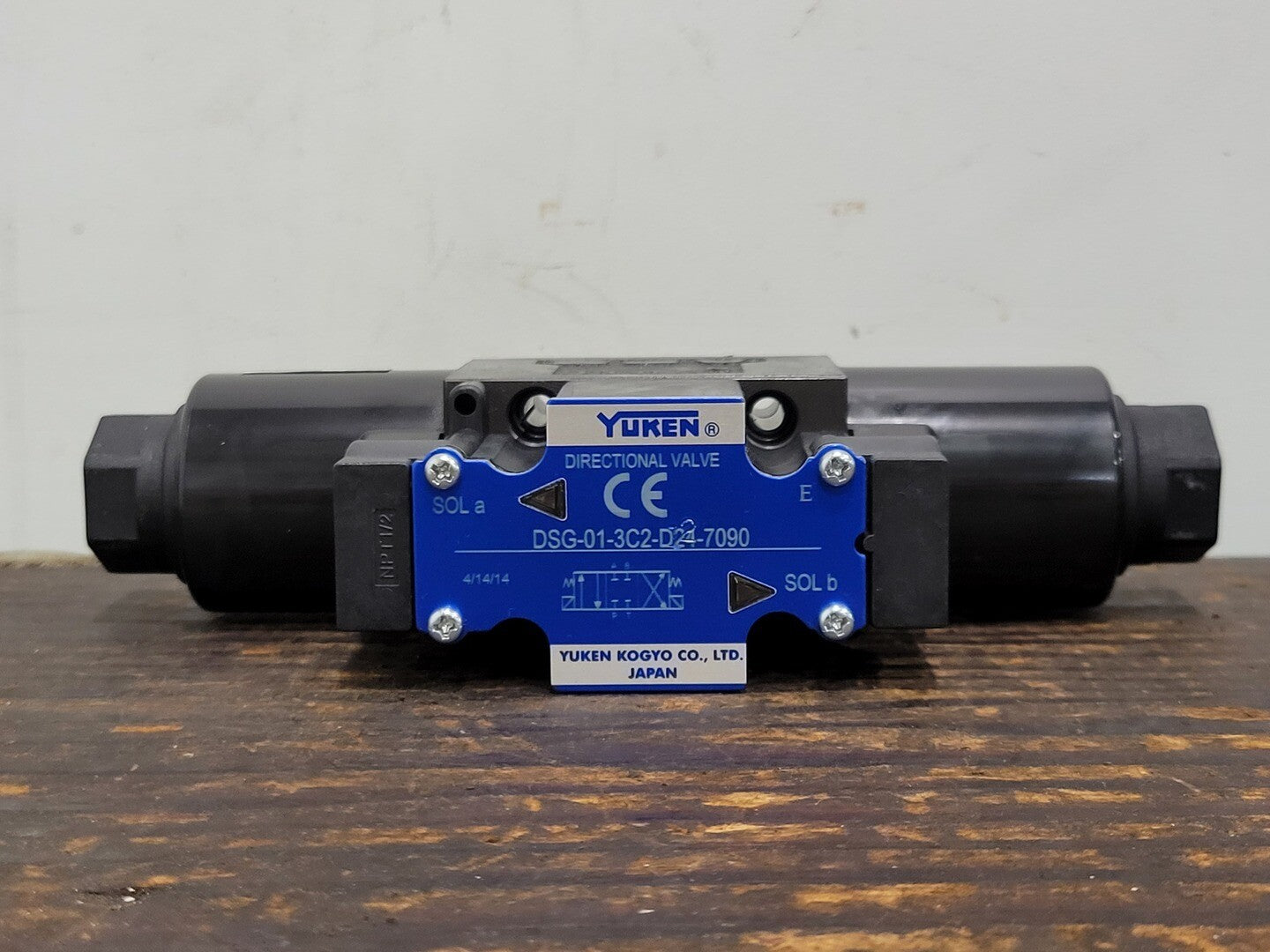

| Model | DSG-01-3C2-D24-7090 |
| Made In | JAPAN |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Series Number: DSG (Solenoid Operated Directional Valve)
Valve Size: 01
Number of Valve Positions: Three Positions
Spool-Spring Arrangement: Spring Centred
Spool Type: Closed Center All Ports
Coil Type: D24
Voltage: 24V
Manual Override: Manual Override Pin
Electrical Conduit Connection: Terminal Box Type
Design Number: 70
Design Standard: 90 N. American Design Std.
Maximum Flow: 100L/min (26.4 U.S. GPM)
Maximum Operating Pressure: 35Mpa (5080psi)
Maximum T-Line Back Pressure: 21Mpa (3050psi)
Maximum Changeover Frequency: 300 Cycle/min
|
