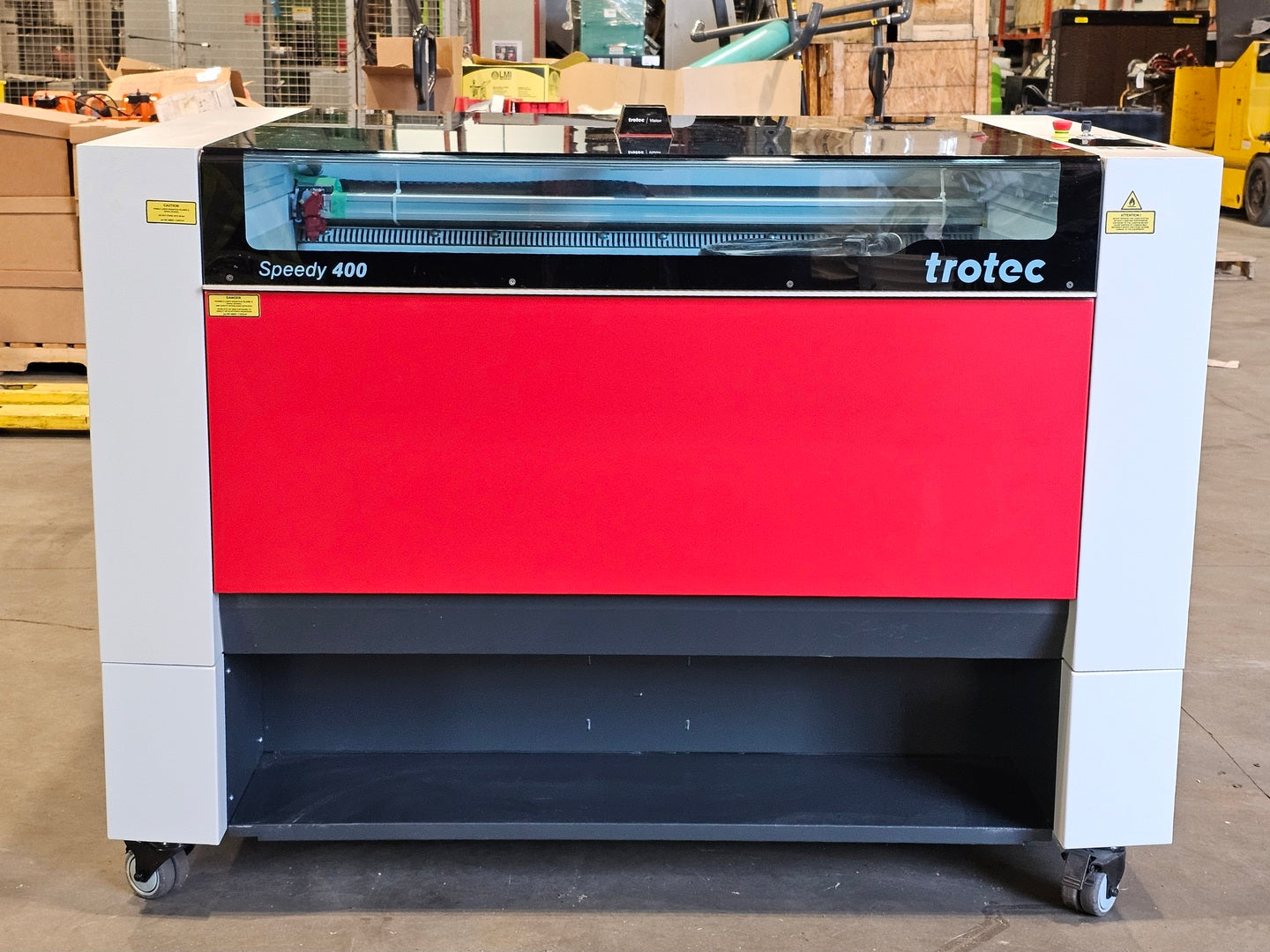

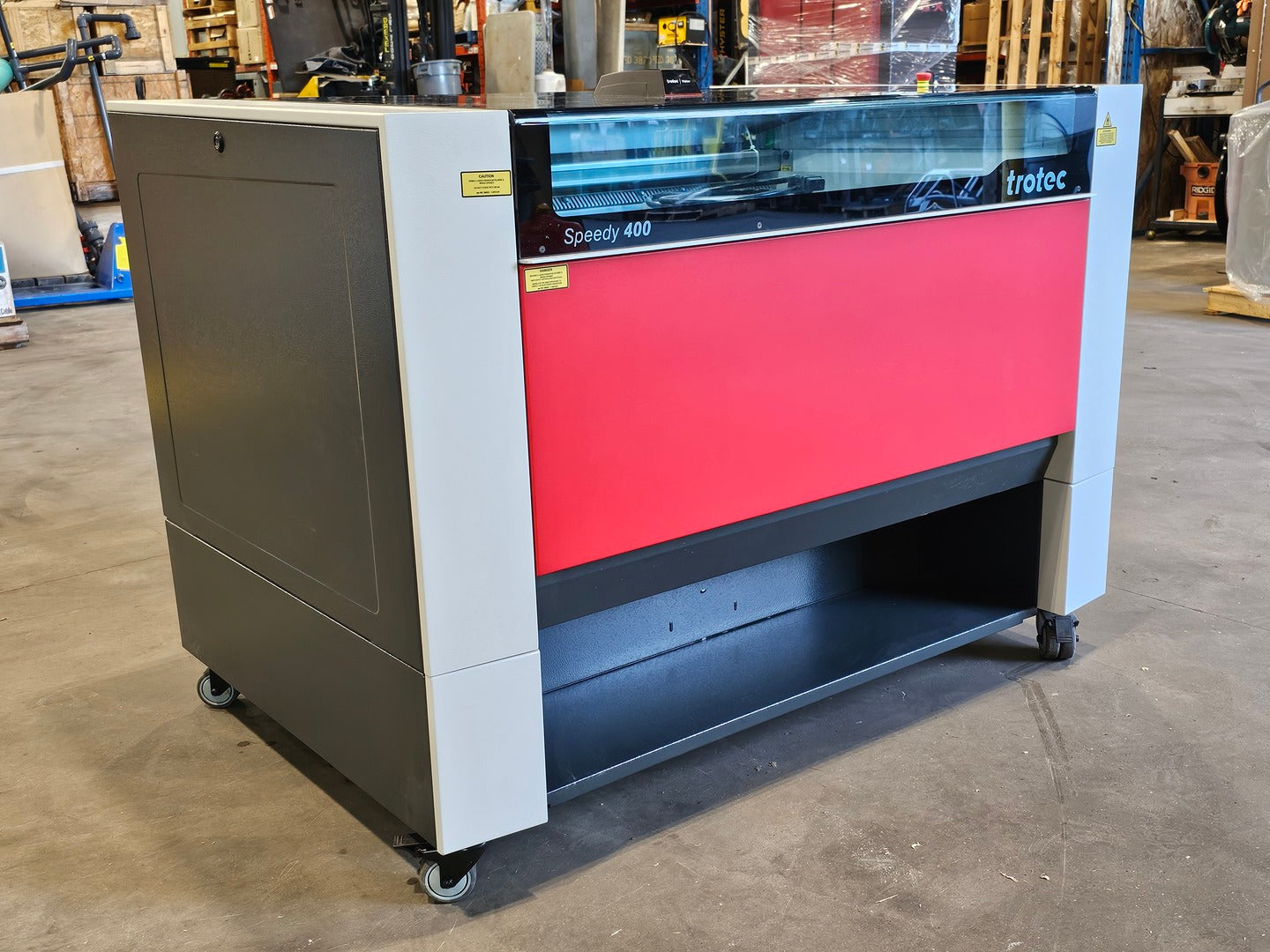

TROTEC Speedy 400 Laser Engraver & Cutter, 120W CO2, 230V, 1-Ph
TROTEC

Speedy 400 Laser Engraver & Cutter, 120W CO2, 230V, 1-Ph

SKU: 159500
Condition: Used
Year: 2023
Price:
$48,757

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Looking for more equipment like this?

All Plasma, Waterjet, & Laser Tables → All Metalworking → More from TROTEC →

Description

Specifications

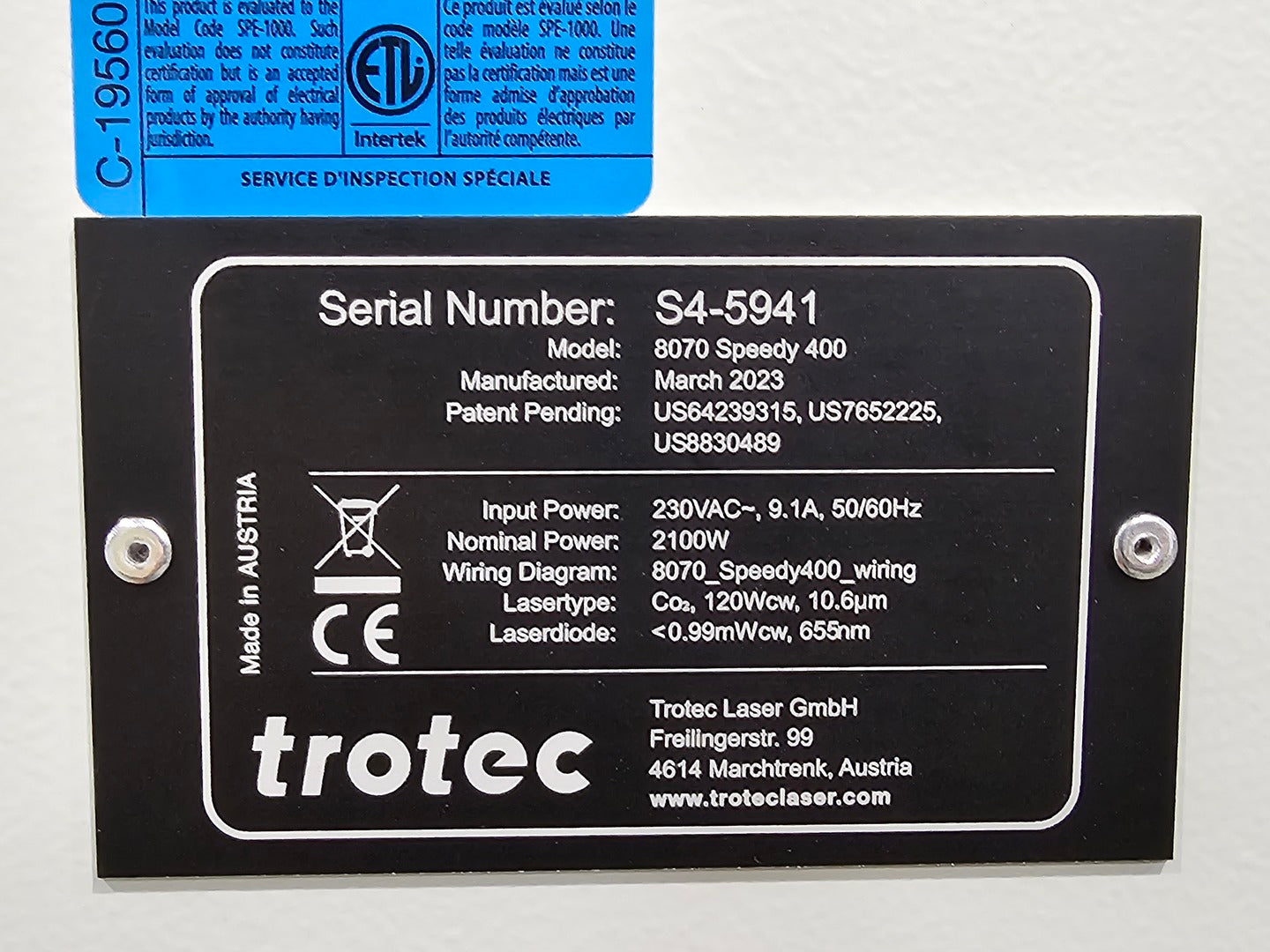

Model 8070 Speedy 400
Year: 2023
S/N: S4-5941
Made In AUSTRIA
Condition Used

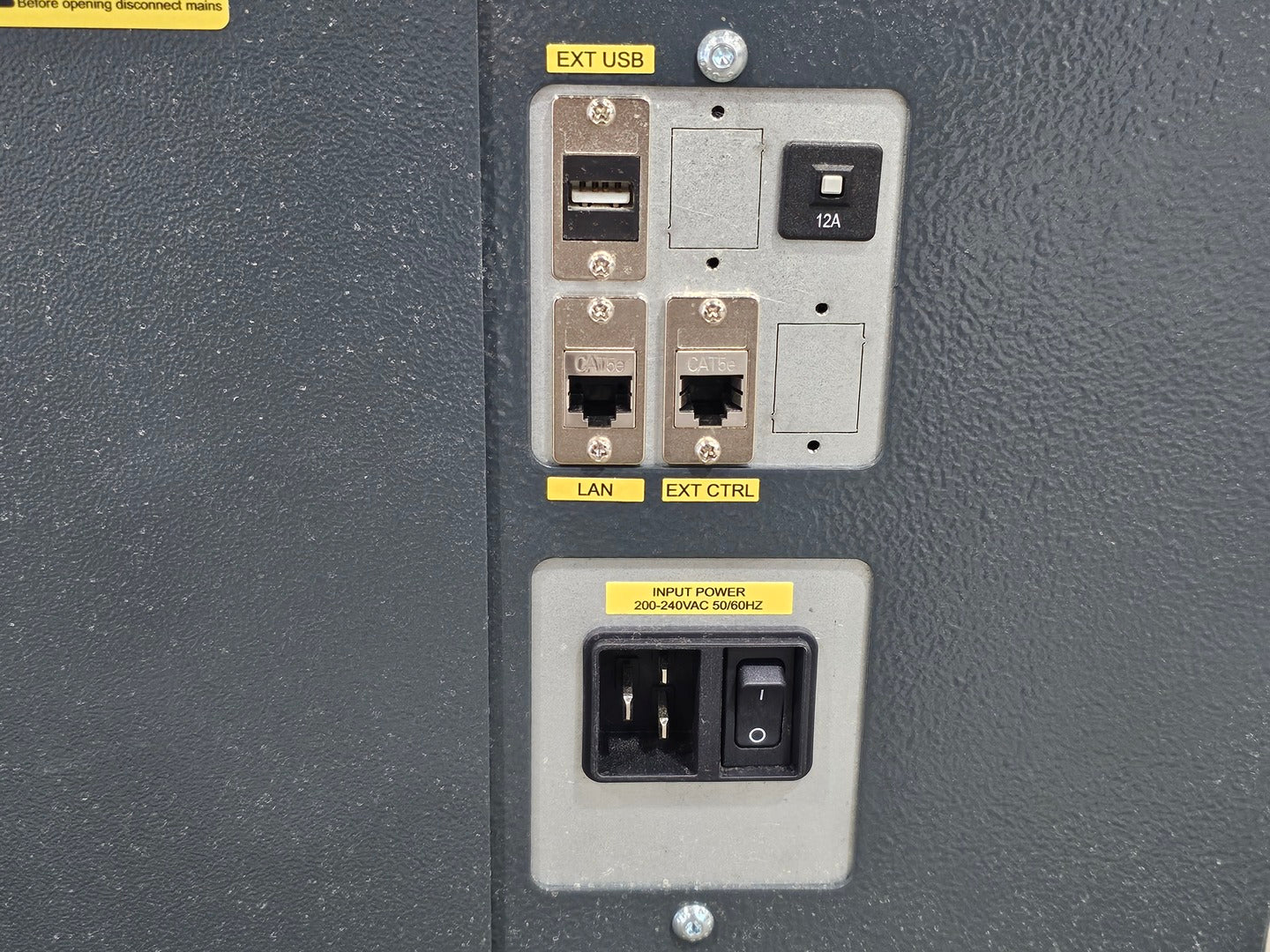

Electrical
Amps 9.1 amps
Voltage 230 volts
Phase Single-phase
General

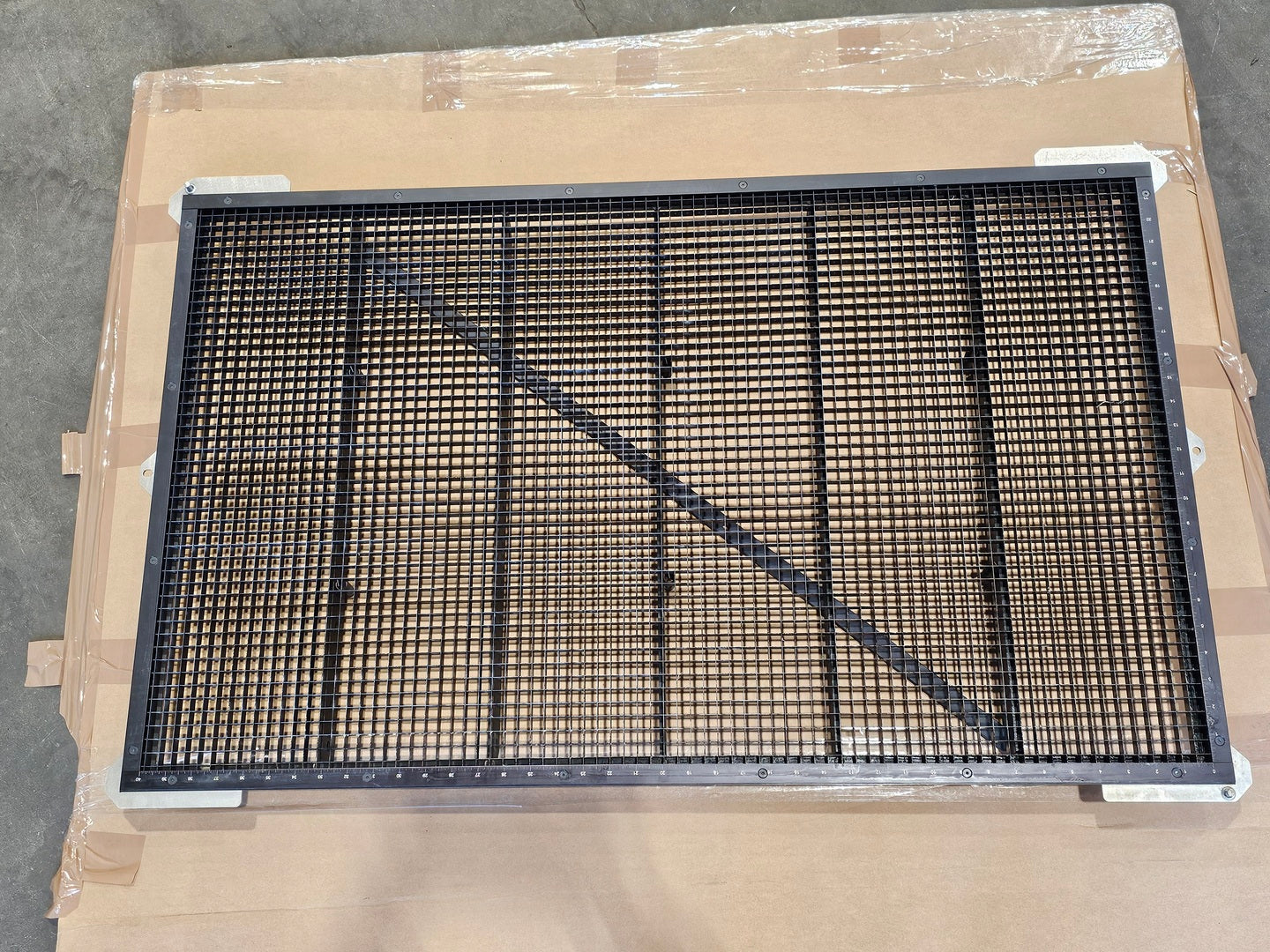

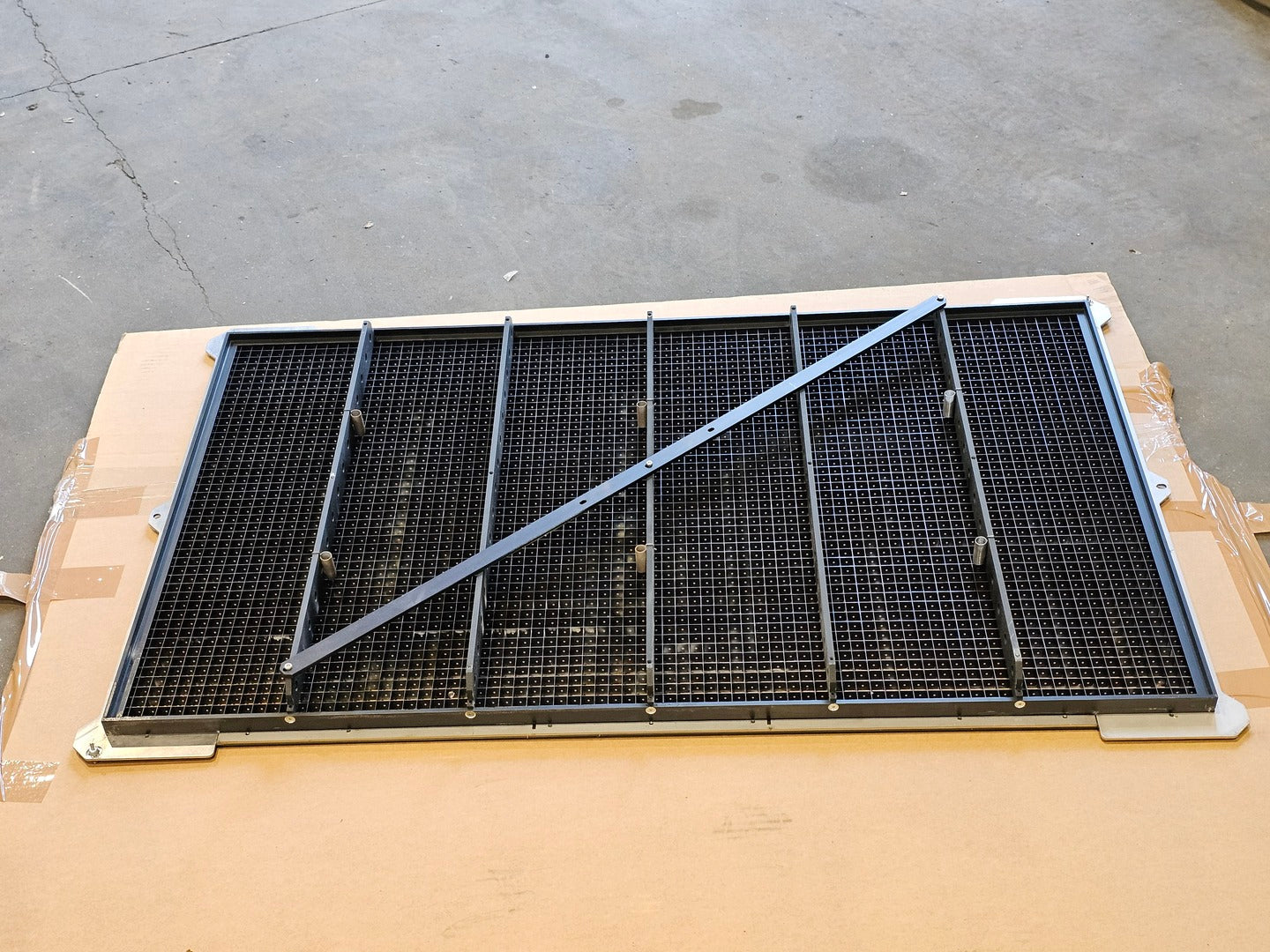

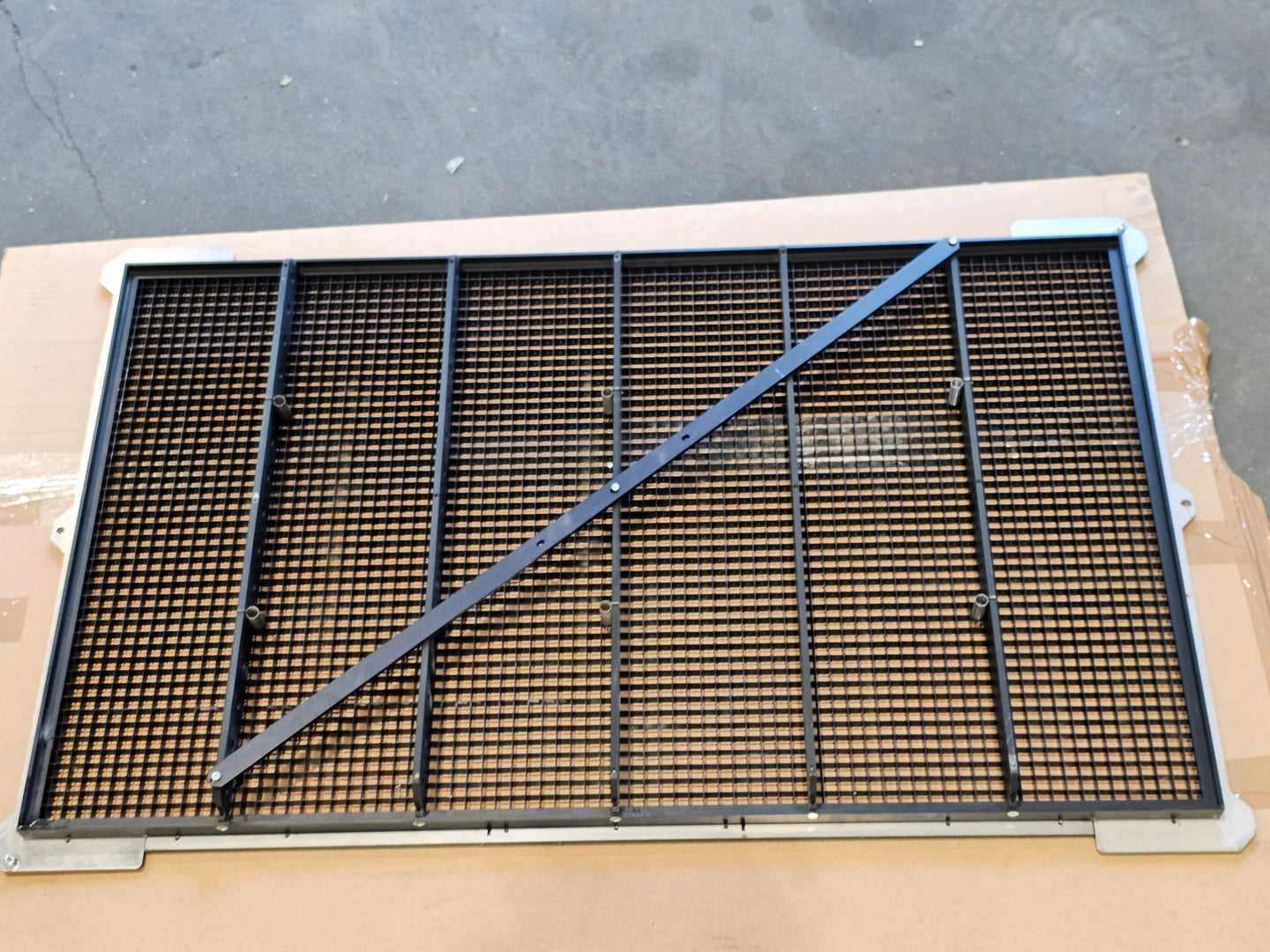

Table Size 1016 x 610 mm
Other Specifications

PDF Operator Manual


Nominal Power: 2100 W

Laser Type: CO2, 120 Wcw (Watts, continuous wave), 10.6 micrometer

Laser Diode: < 0.99 mWcw (Milliwatts, continuous wave), 655 nm

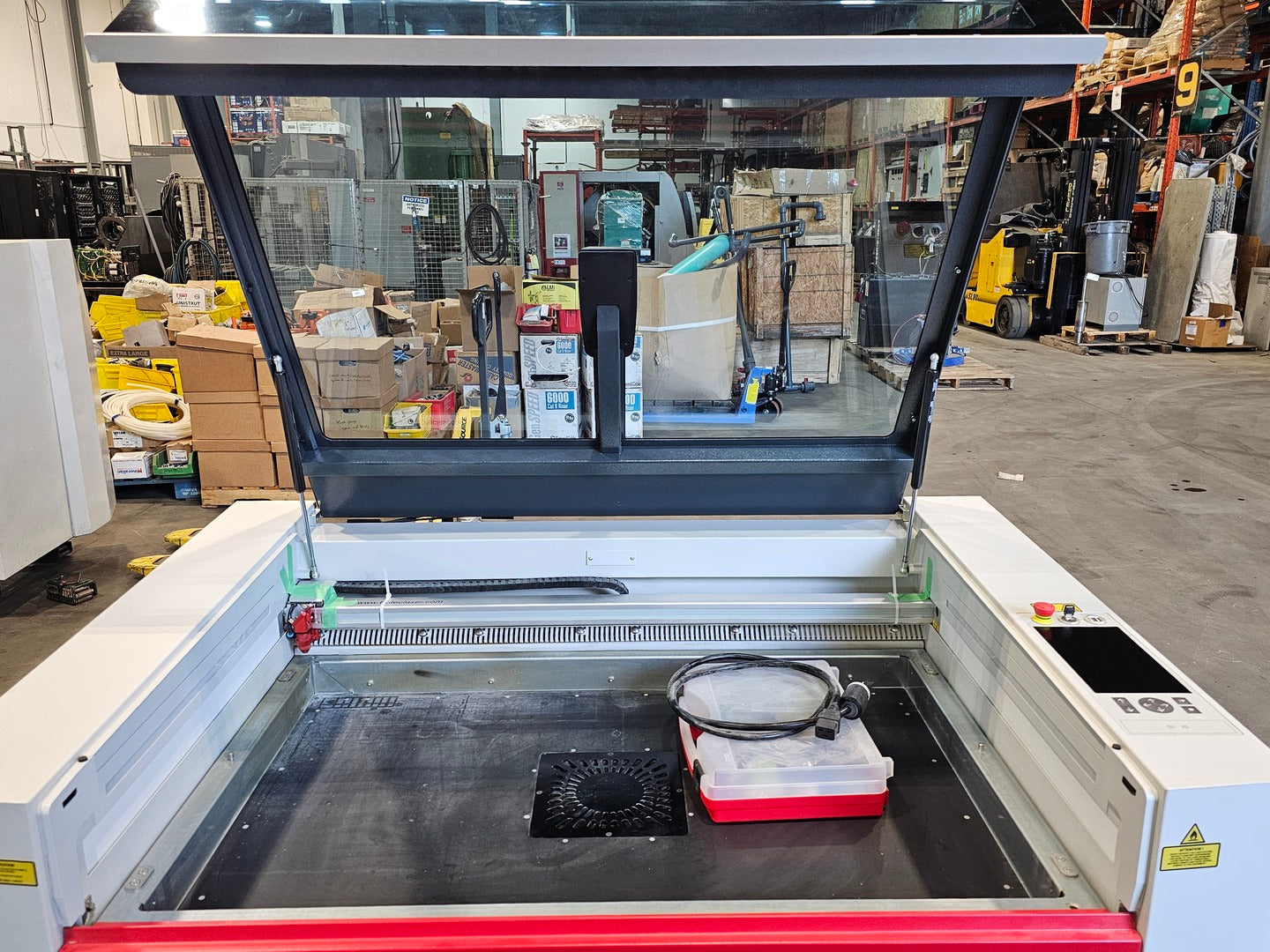

Loading Area Standard: 1096 x 698 mm

Max. Height of Workpiece:

  1. 305 mm with 1.5", 2.0" lens
  2. 292.5 mm with 2.0" clearance lens, 2.5" lens
  3. 255 mm with 4.0" lens
  4. 241.3 mm with 4.0" clearance lens

Max. Processing Speed: 4.32 m/s (170 ips)

Acceleration: 50 m/s2 (1969 ips2)

Motors: Brushless DC servo motors

Accuracy: +/- 0.015 mm (0.0006"), over the whole working area

Addressable Accuracy: 5 micrometer (0.0002")

Maximum Material Load (over the whole working area):

  1. Static: Up to 100 kg (220 lbs)
  2. Dynamic: Up to 30 kg (66 lbs)
