Description
| Specifications | |
|---|---|

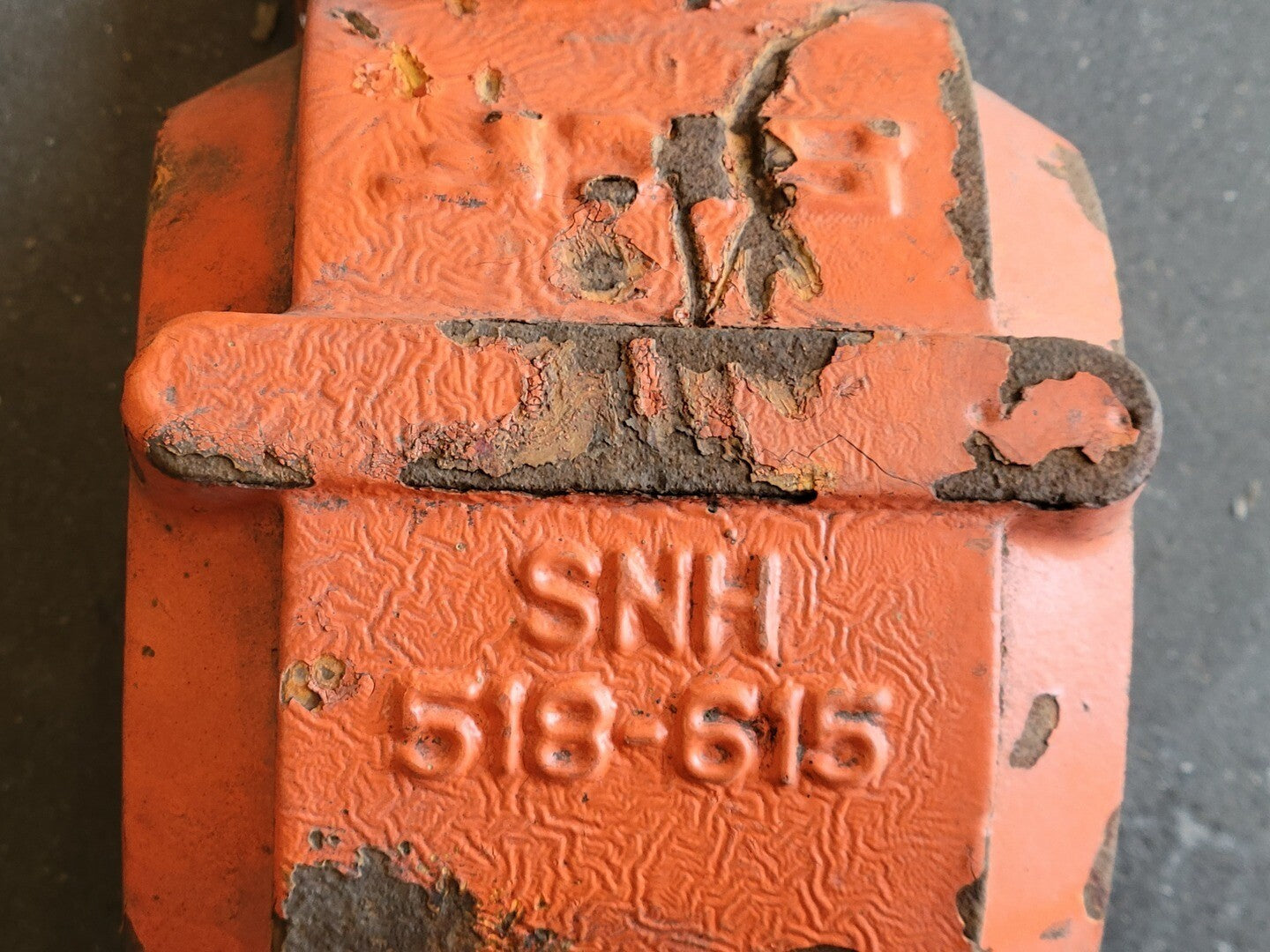

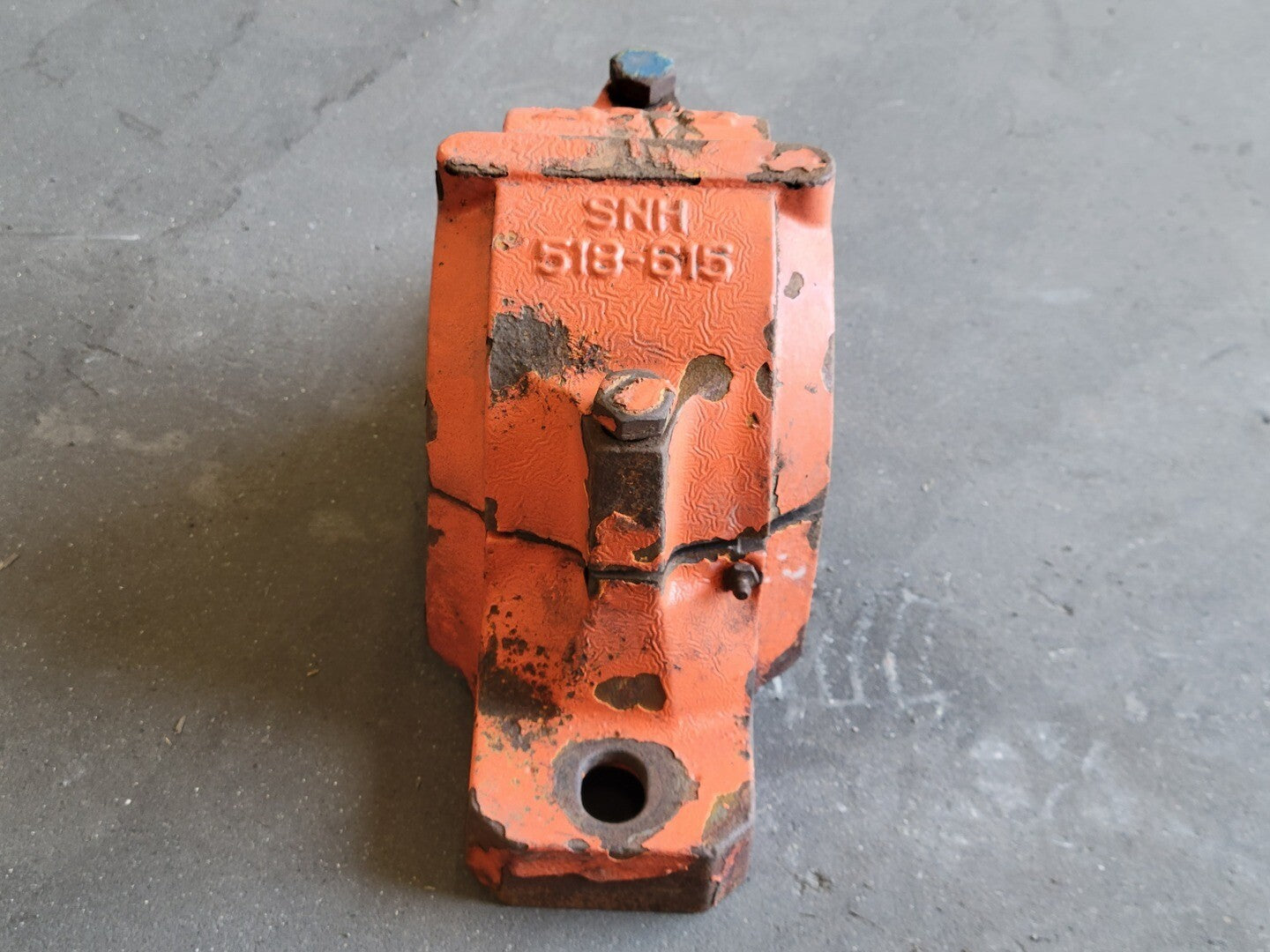

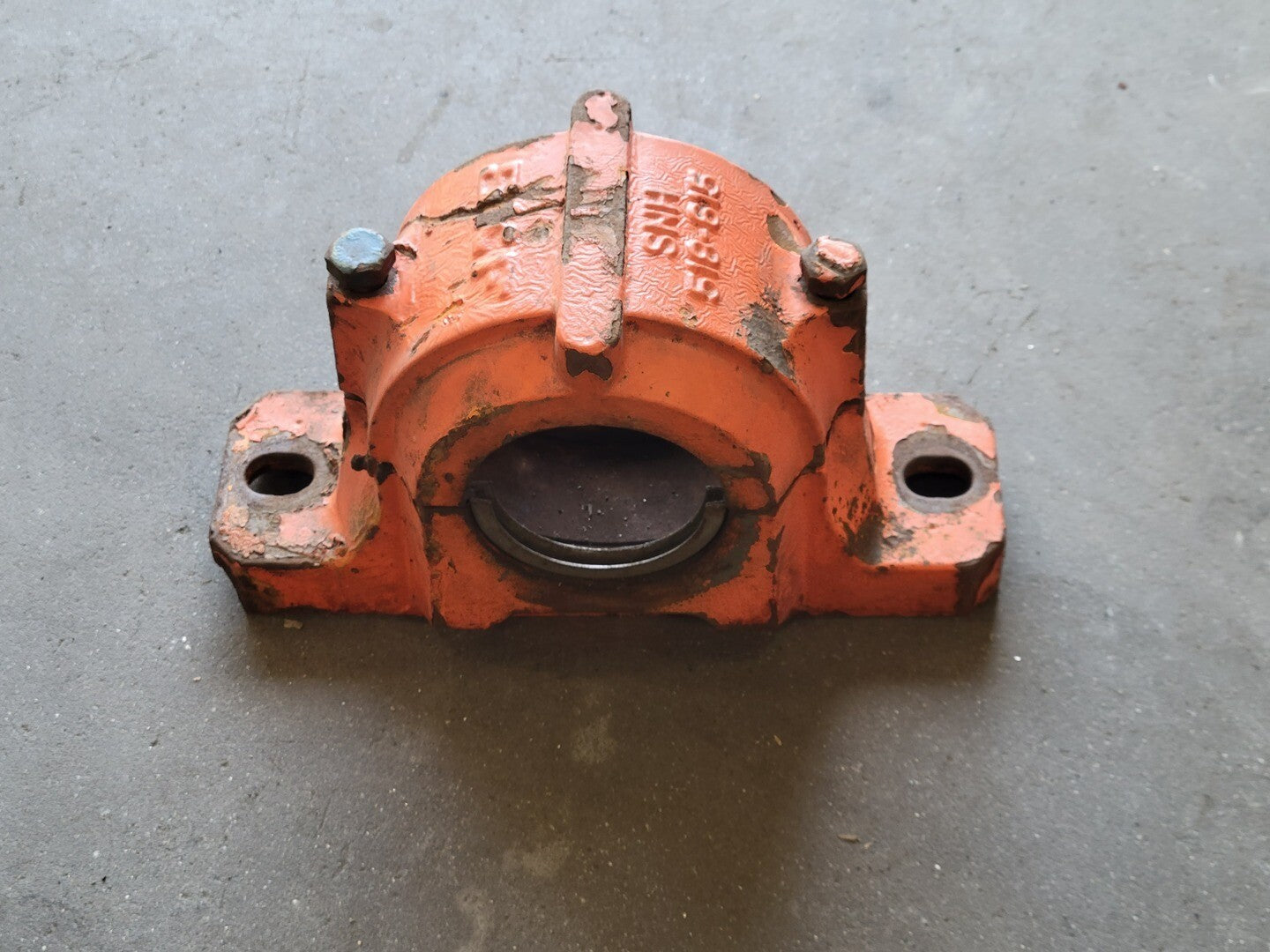

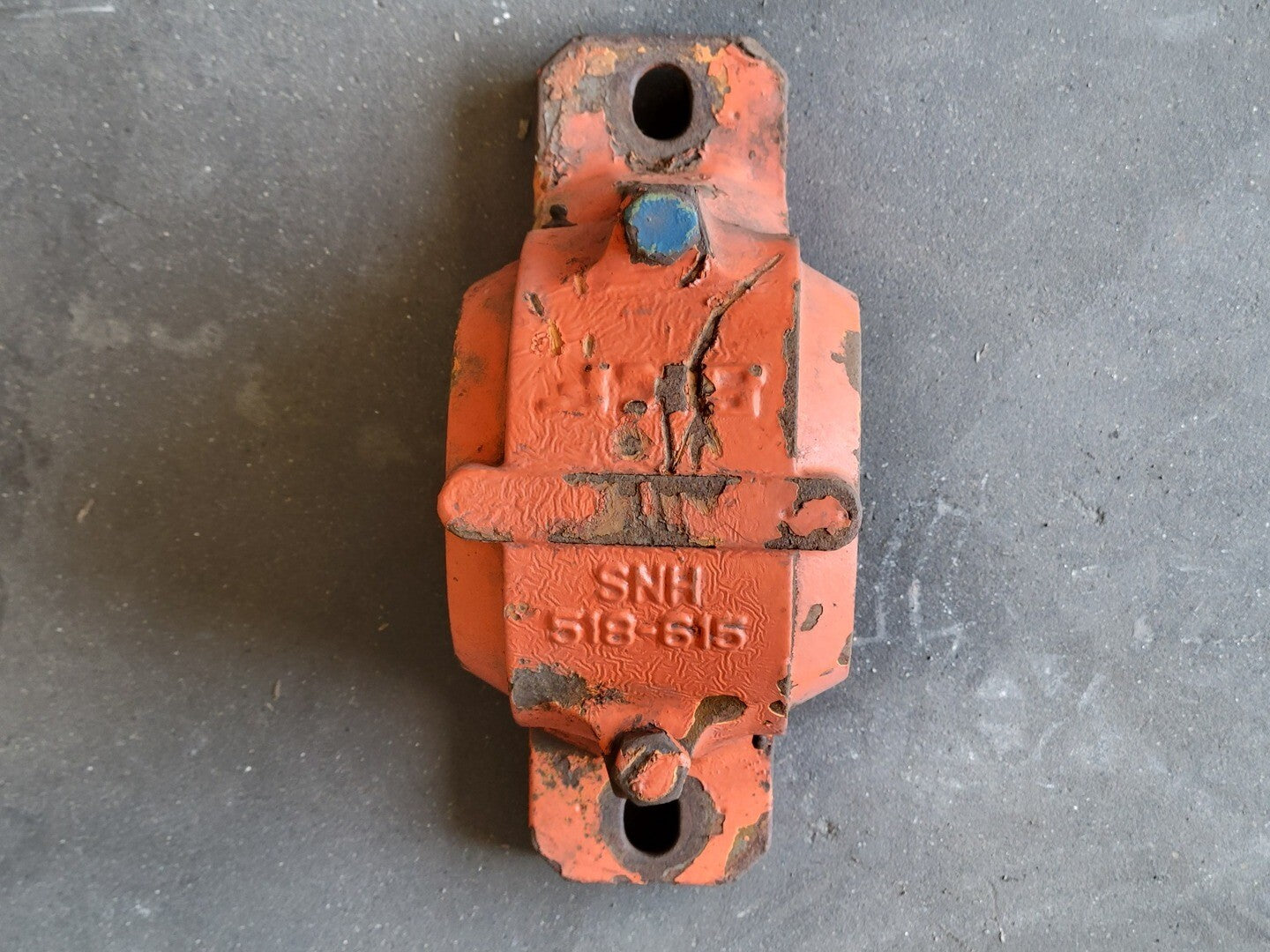

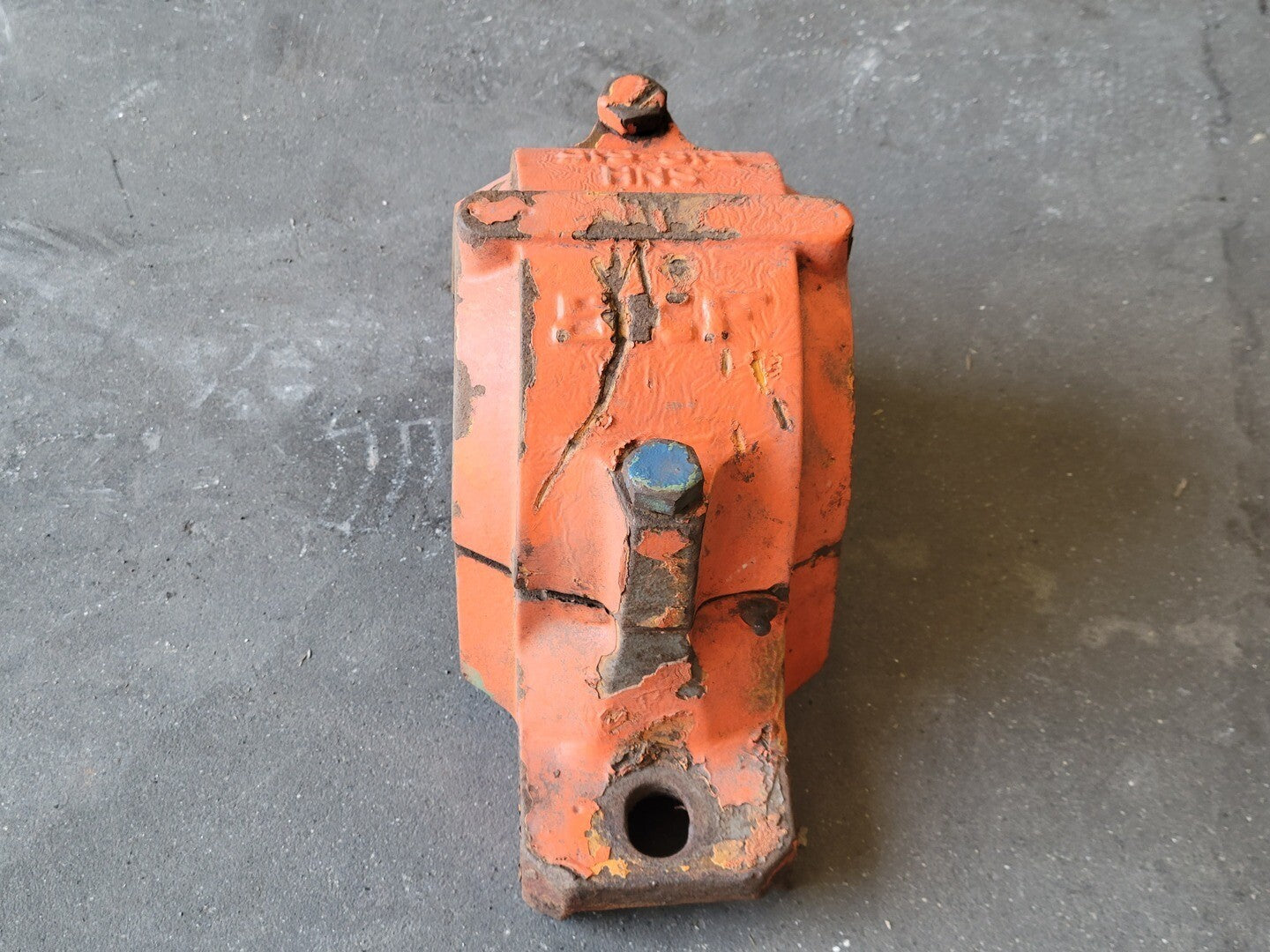

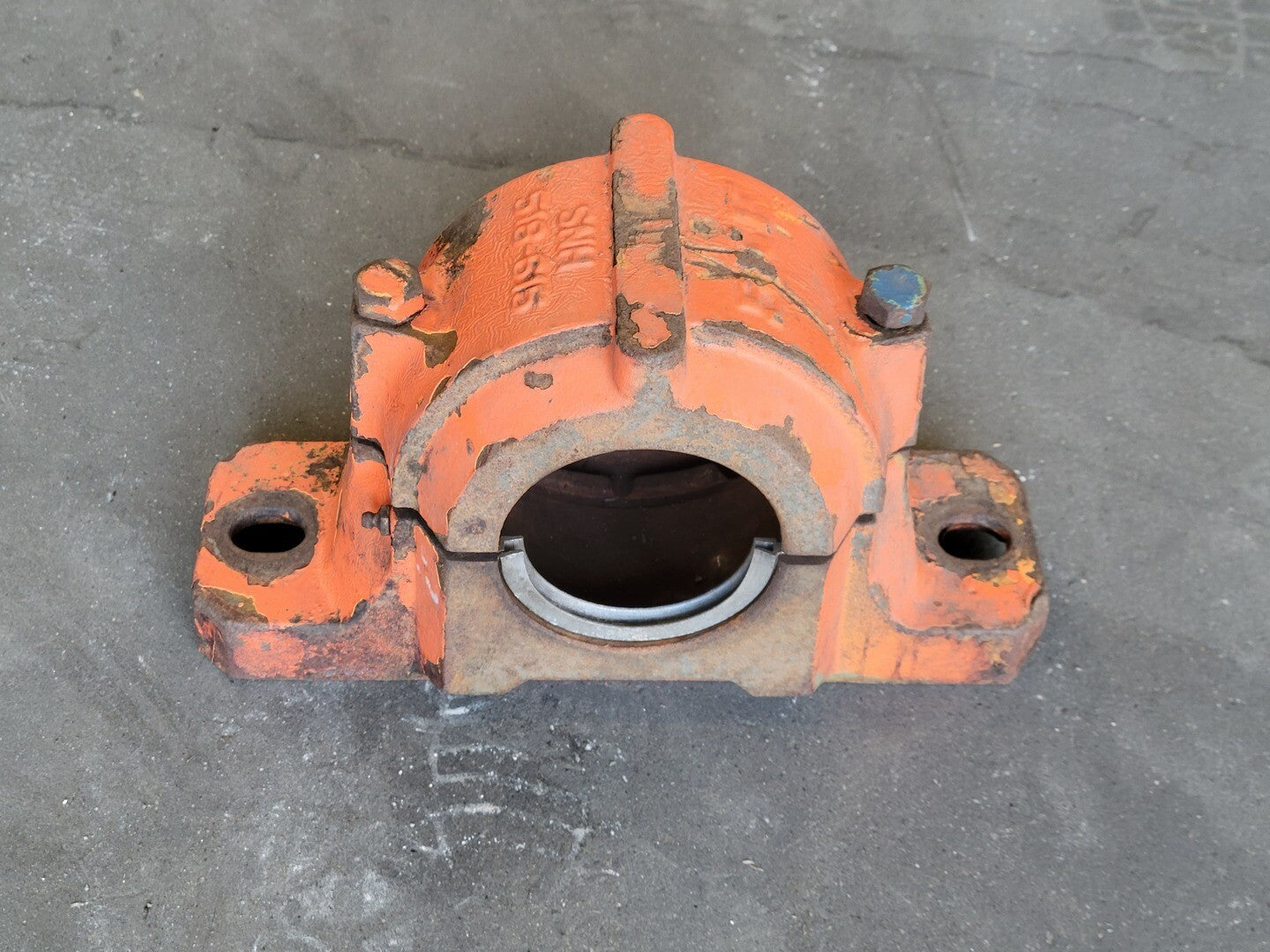

| Model | SNH 518-615 |
| Condition | Used | General |
| Type | Split Plummer Block |
| Height | 192 mm |
| Outside Length | 345 mm |
| Base to Bore Centerline | 100 mm |
| Distance Between Bolts | 290 mm |
| Housing Compatible Bore Diameter | 160 mm |
| Other Specifications |
|---|
|
Properties Housing type: Plummer/pillow block Housing configuration: Two-piece Mounting arrangement: Through shaft/Shaft end Number of bolt holes for fasteners: 2 Material, housing: Cast iron Bearing housing seal type: Without Housing lubrication feature/possibility: Grease Materials Housing material: Cast iron Corrosion protection: Paint - in accordance with ISO 12944-2, corrosivity category C2 Mounting information Recommended diameter of attachment bolts: 20 mm Recommended tightening torque for attachment bolts: 385 Nm Size of cap bolts: M16x90 Tightening torque for cap bolts: 150 Nm Initial grease fill, 20%: 260 g Initial grease fill, 40%: 430 g |
