BENCHMARK TDLAS Gas Analyzer for Moisture BM-SCS2000A
BENCHMARK

TDLAS Gas Analyzer for Moisture BM-SCS2000A

SKU: 127337
Price:
$3,328

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

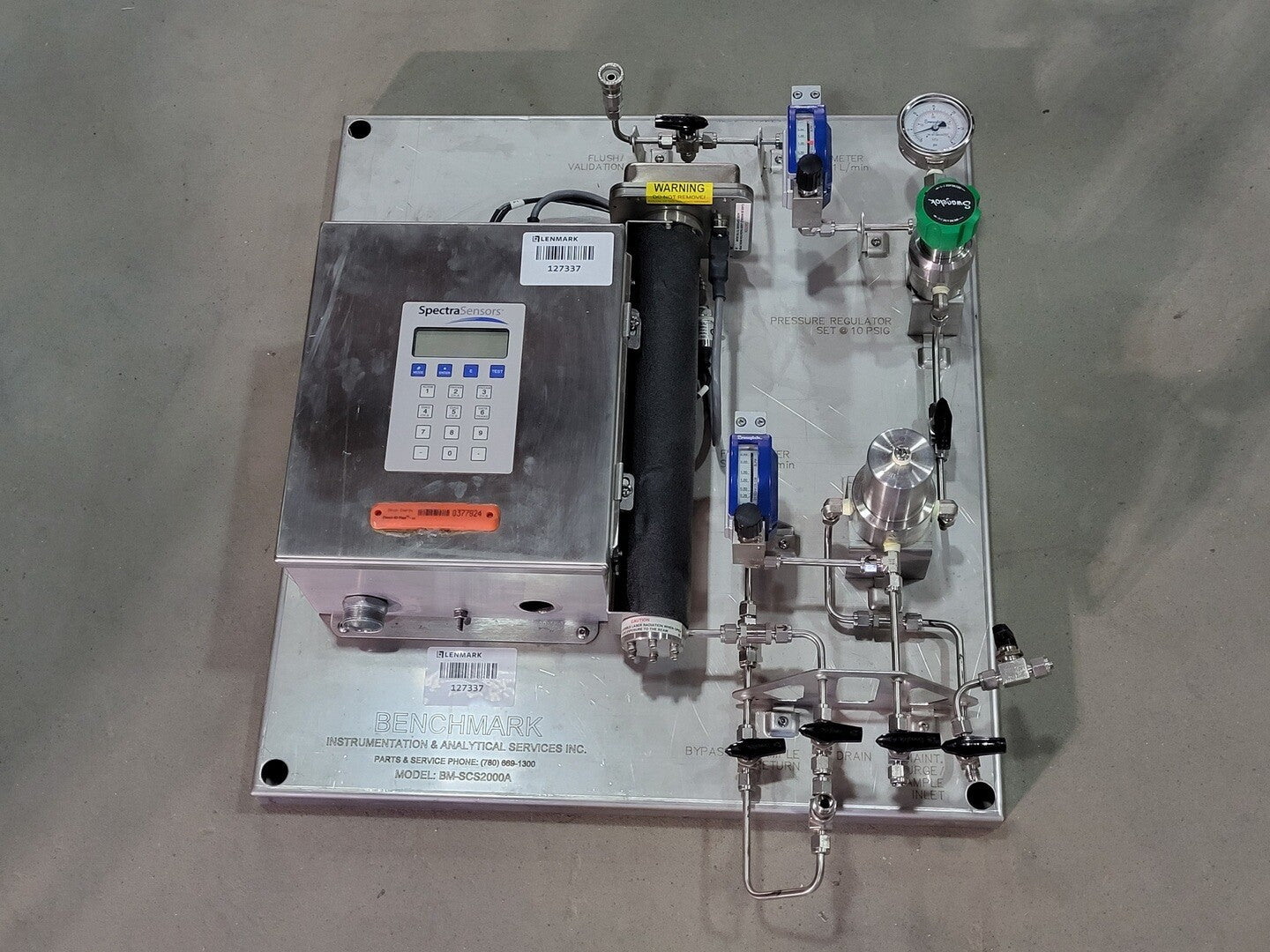

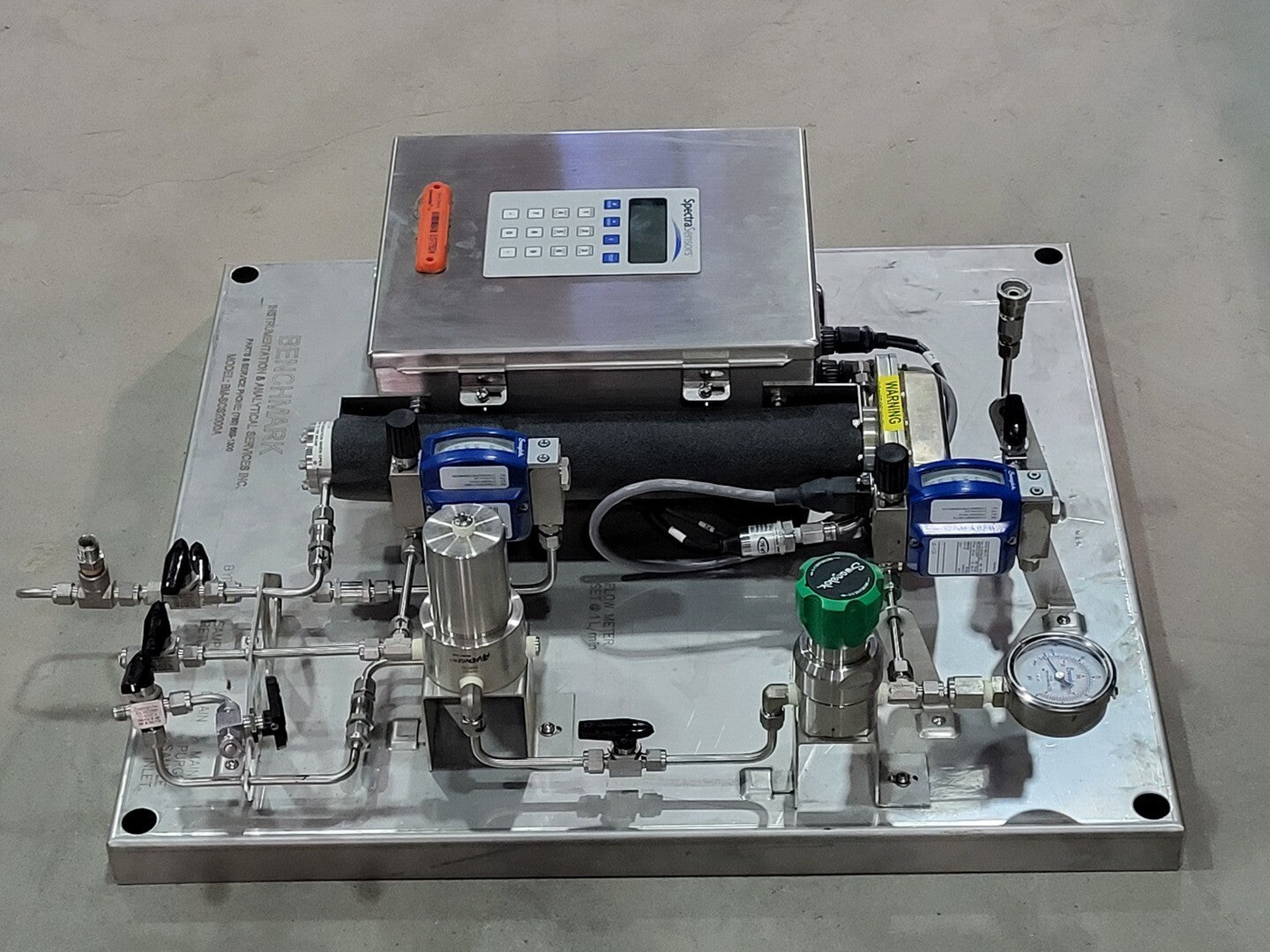

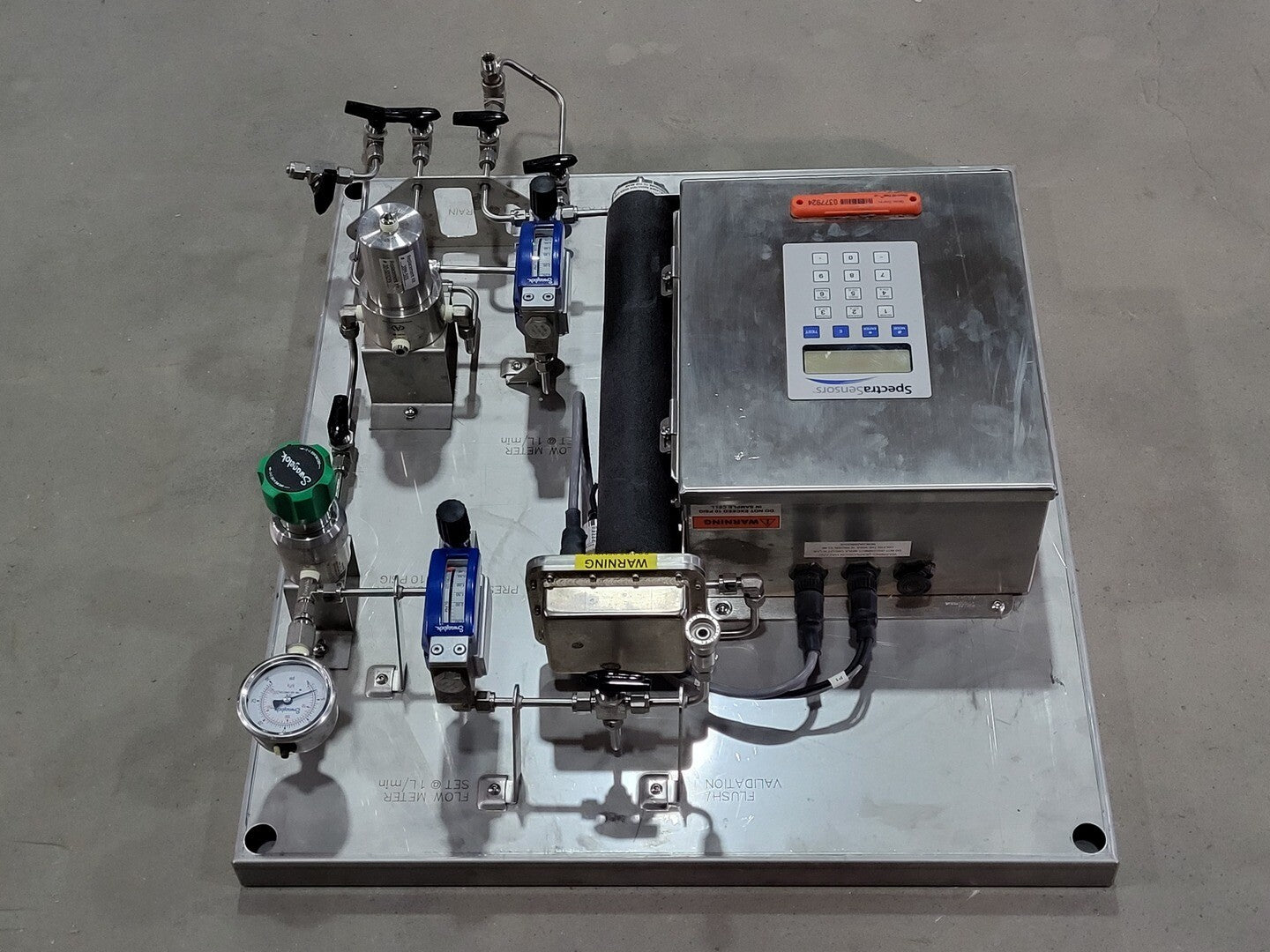

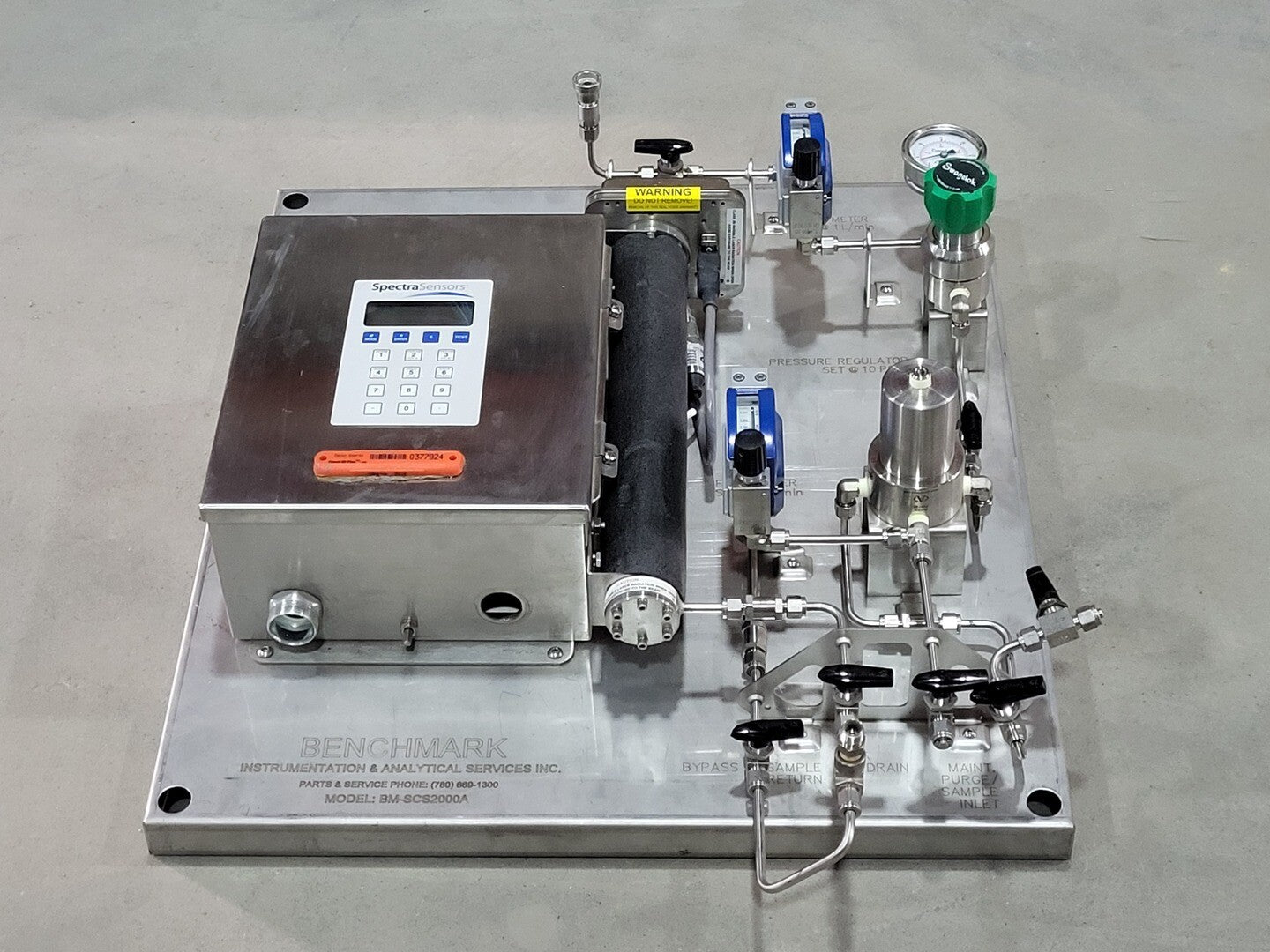

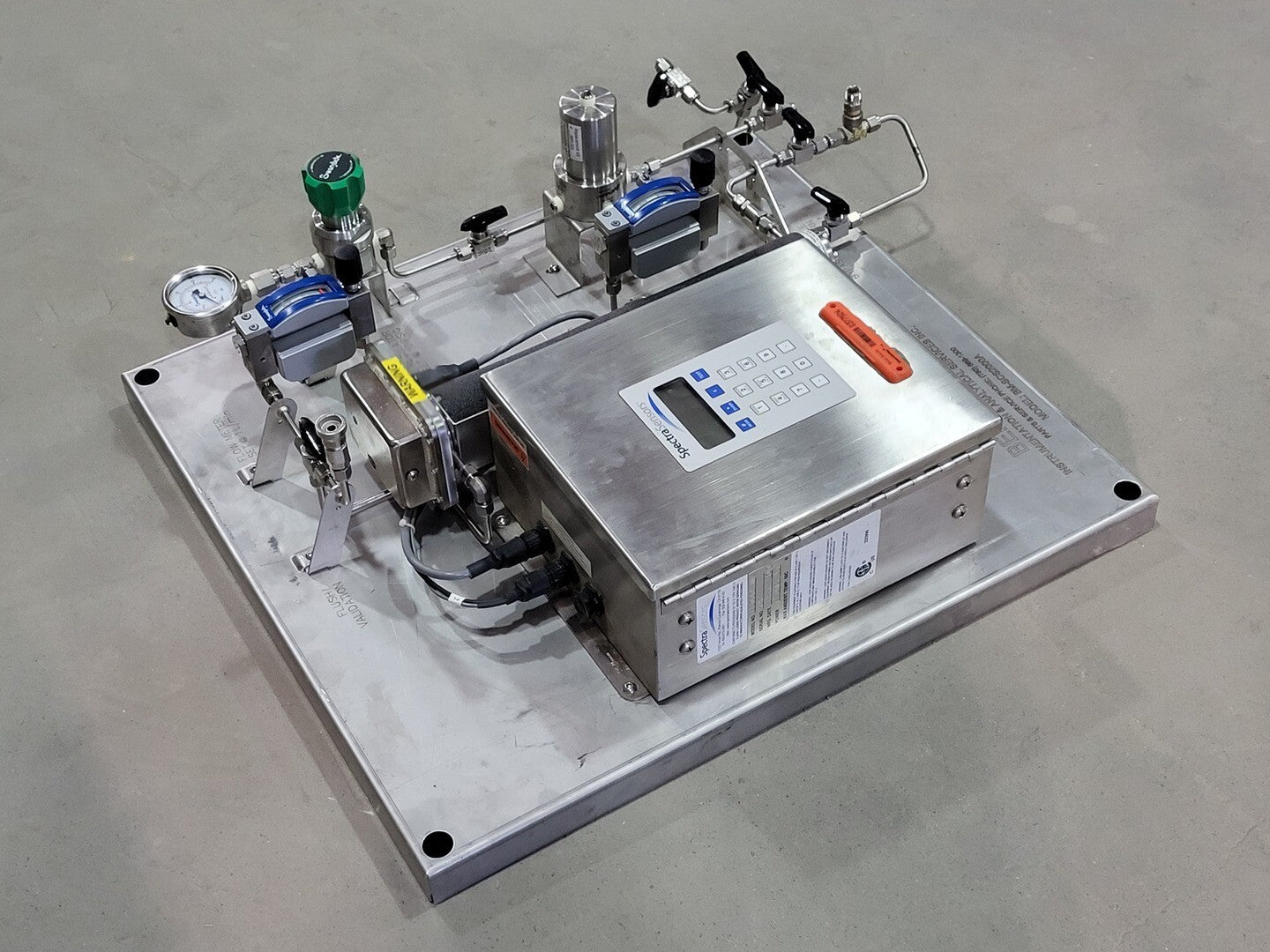

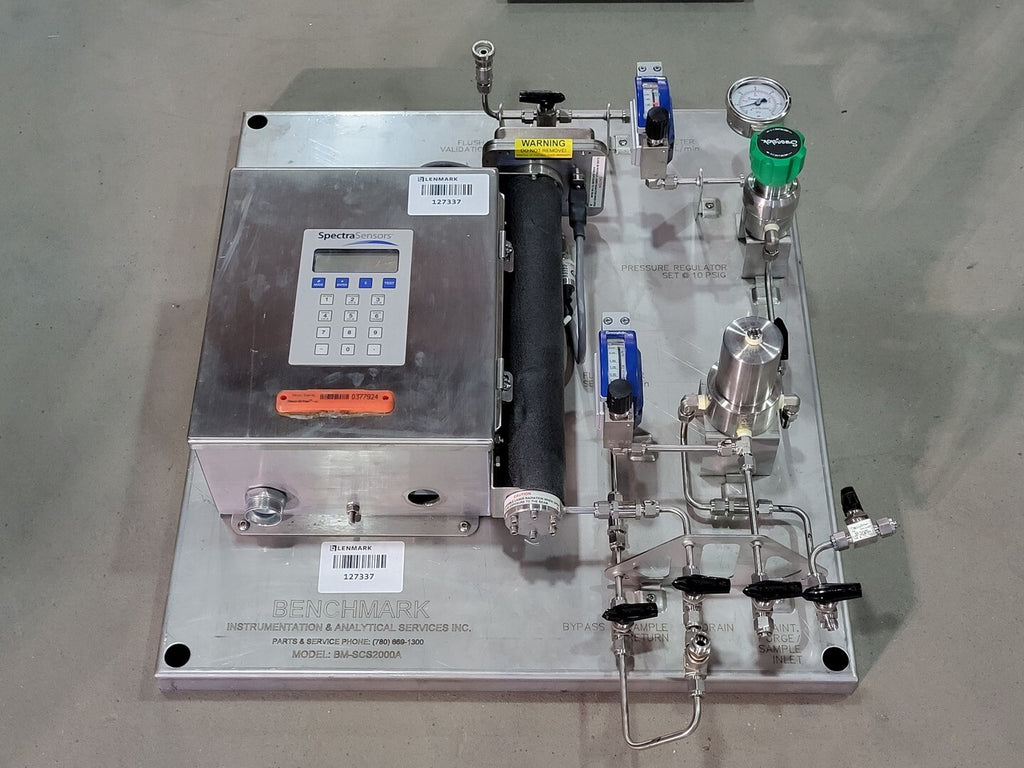

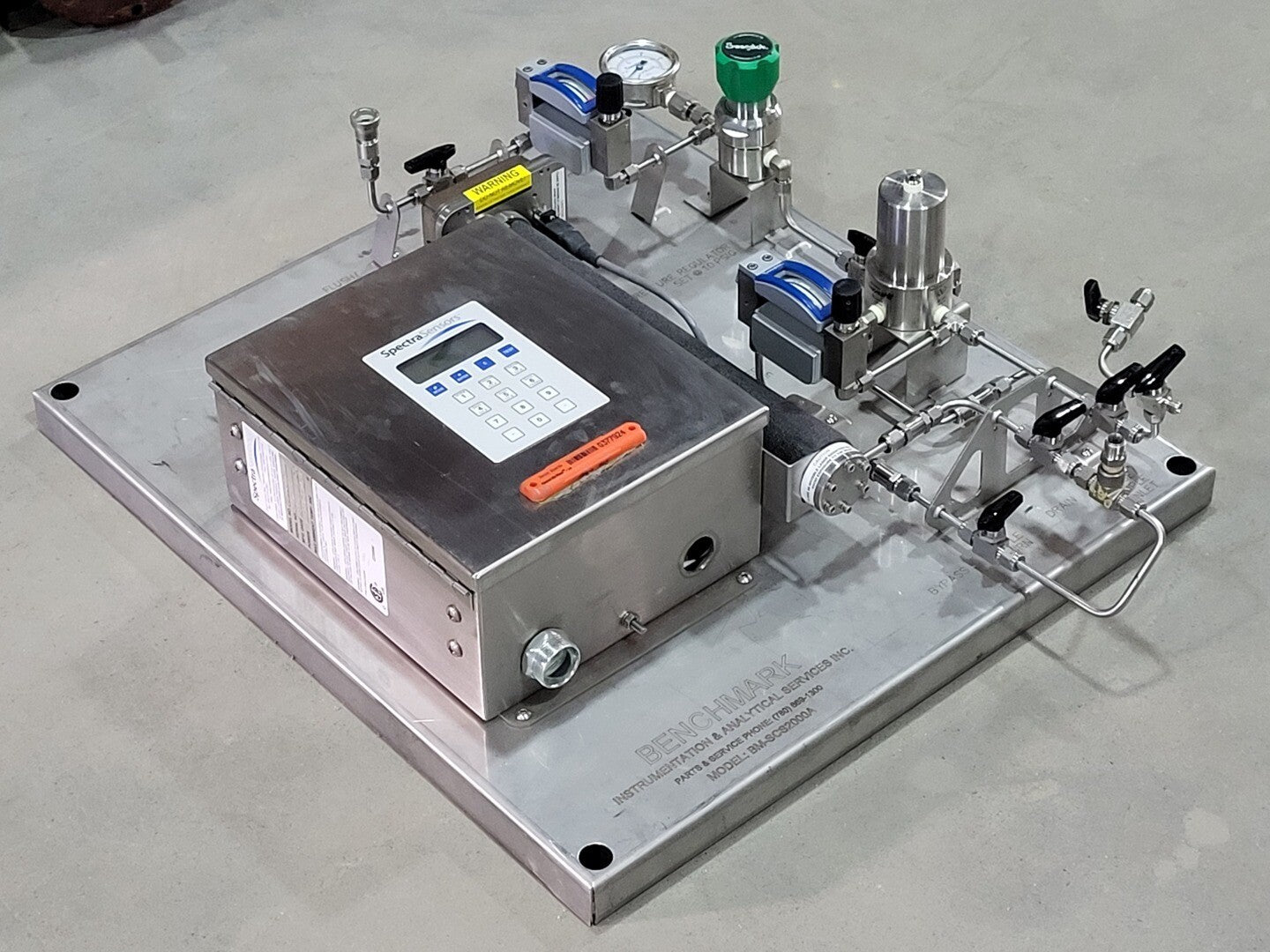

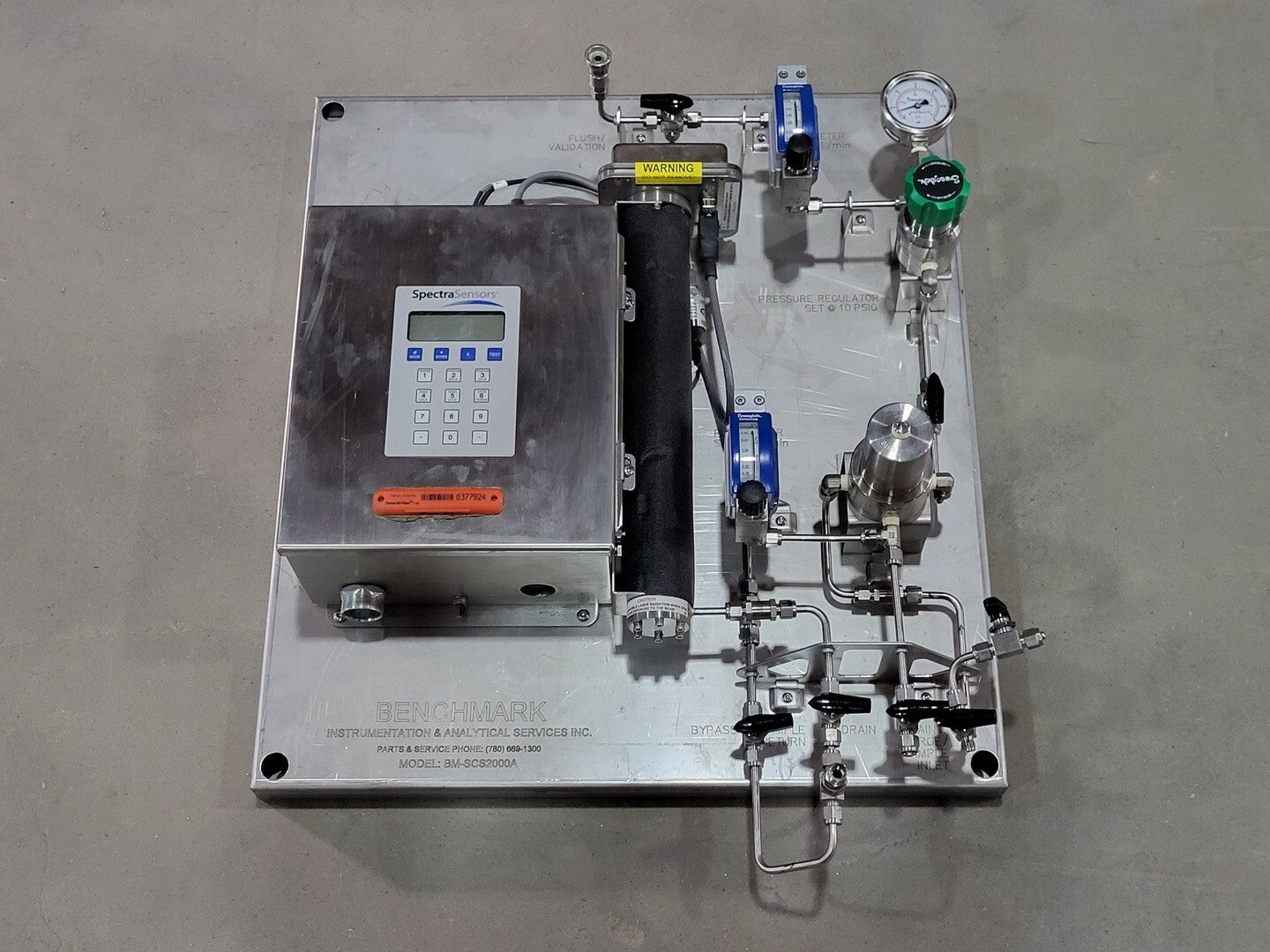

The SCS Gas Analyzer uses patented tunable diode laser absorption spectroscopy (TDLAS) technology to provide accurate measurement of H2O in natural gas. Featuring the reliable diagnostic capabilities of Heartbeat Technology, the SCS analyzer determines the concentration of a gas without coming into physical contact with streams. It allows pipeline operators and suppliers to meet quality specifications, prevent pipeline corrosion, and stop hydrate formation to ensure safety and asset integrity.
Specifications

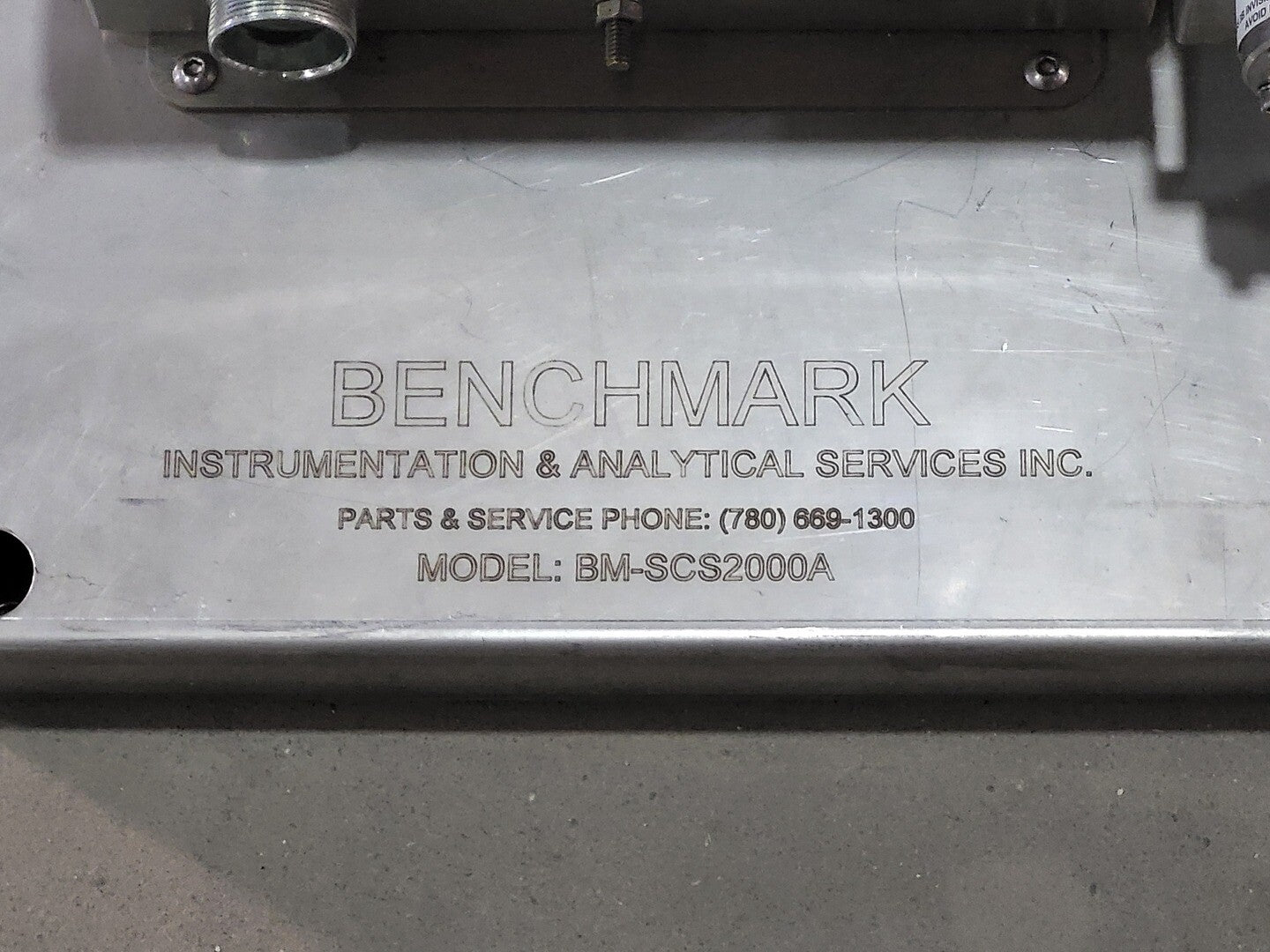

Model BM-SCS2000A
Condition Used
Other Specifications

Consisting Components:-

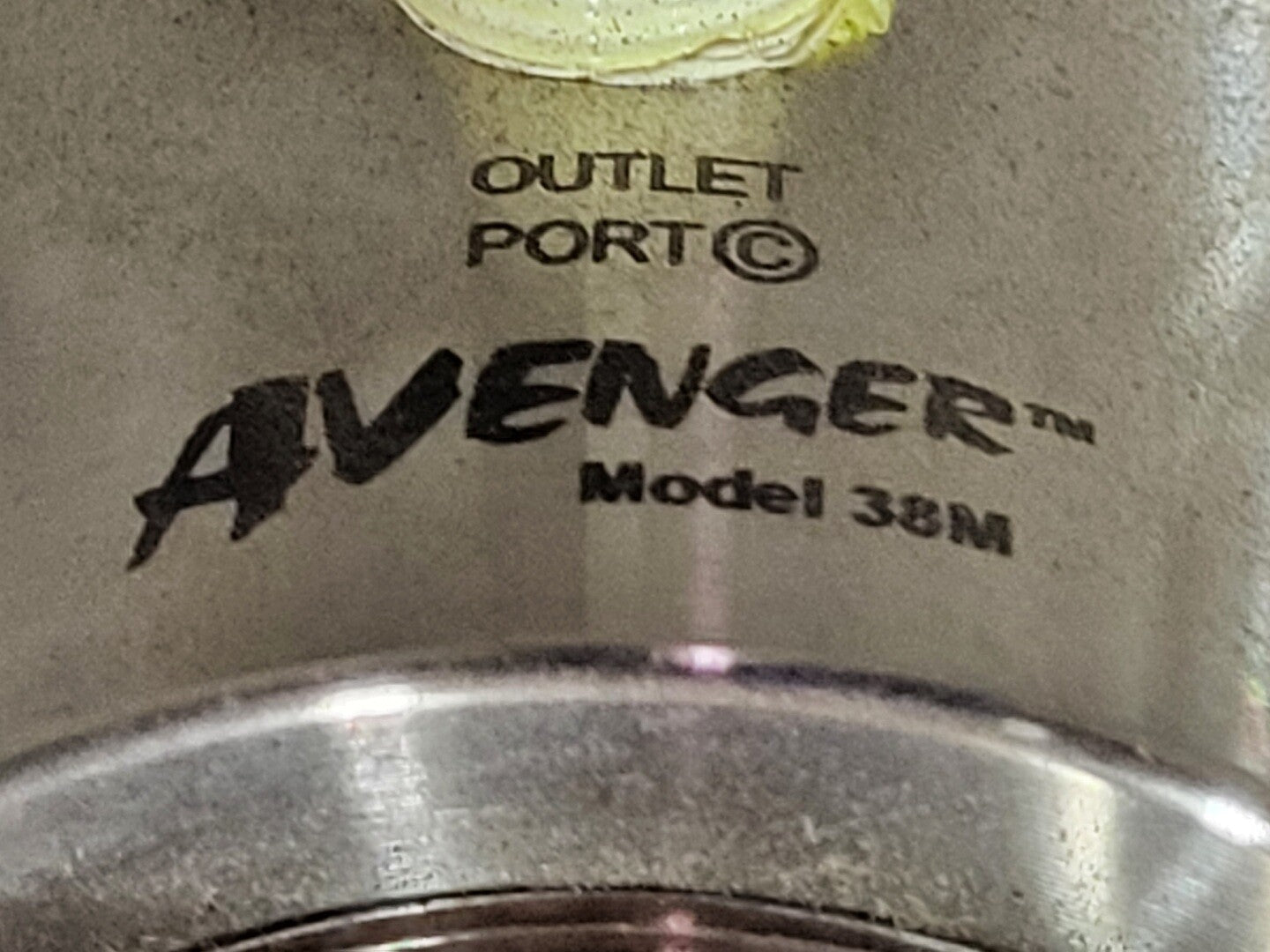

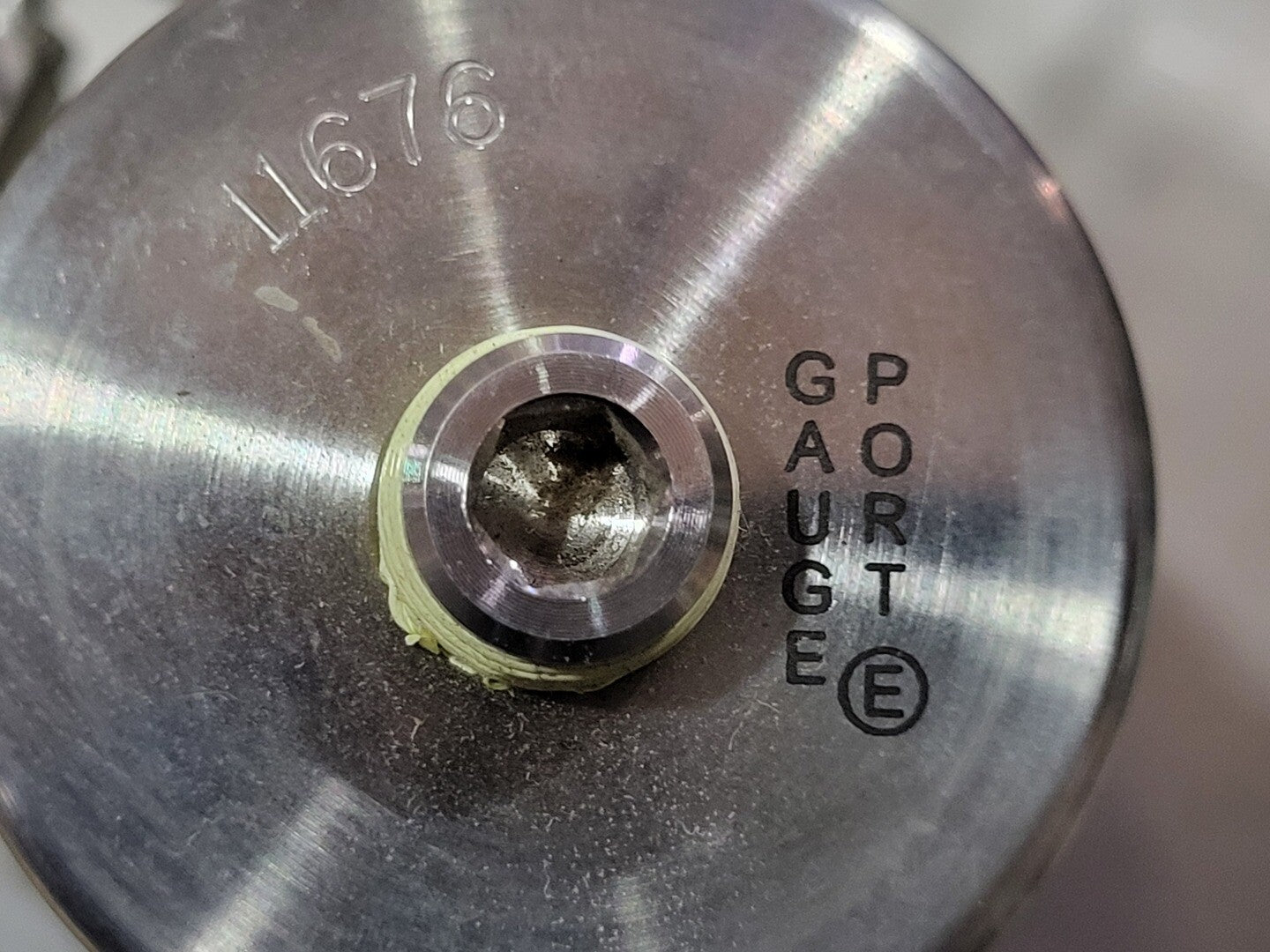

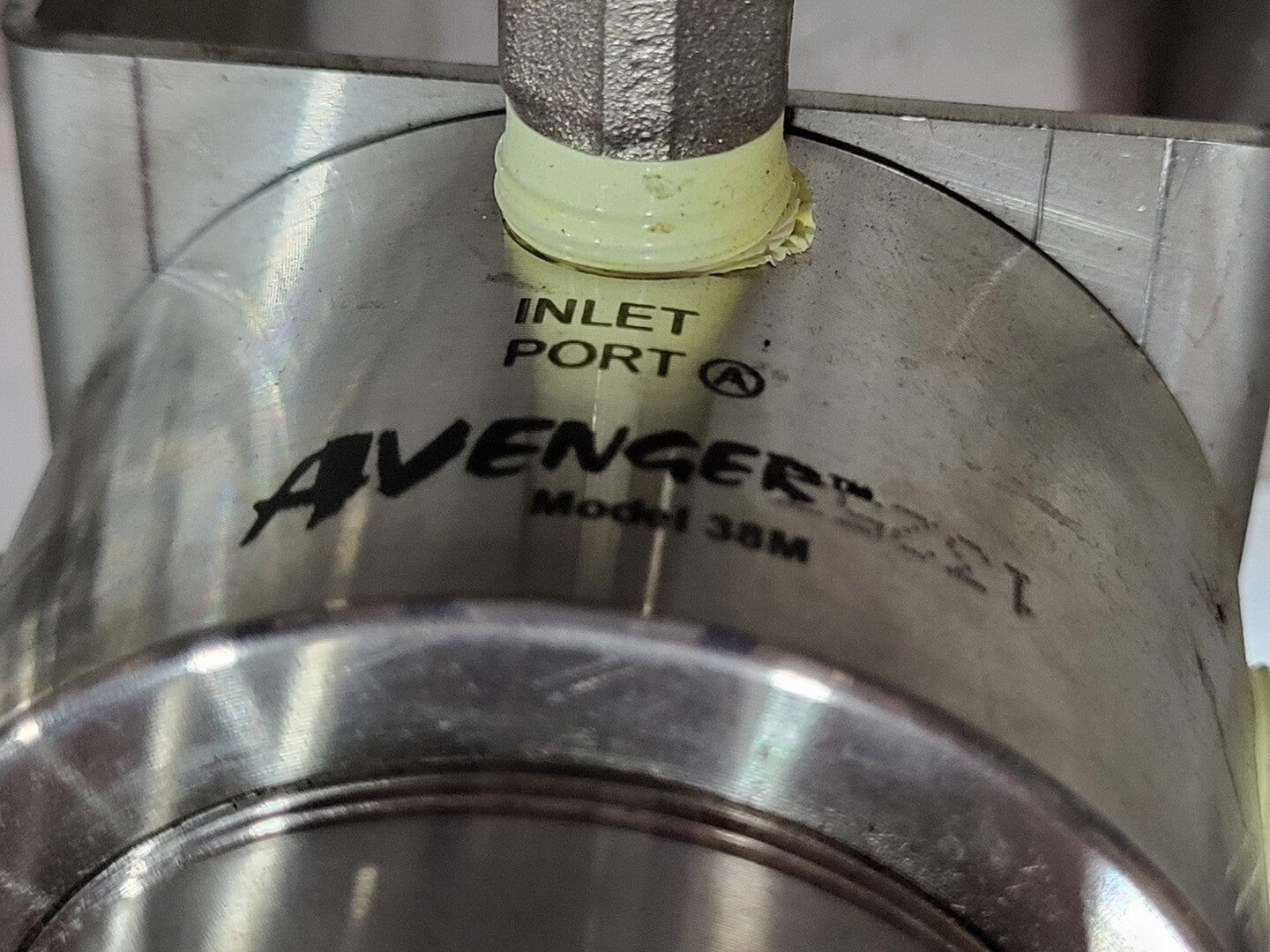

Particulate Coalescing Filter:

Make/Model: Avenger/ 38M

Maximum Pressure Rating: 2000 psig

Port Sizes: 1/4" female NPT

Number of Ports: 5

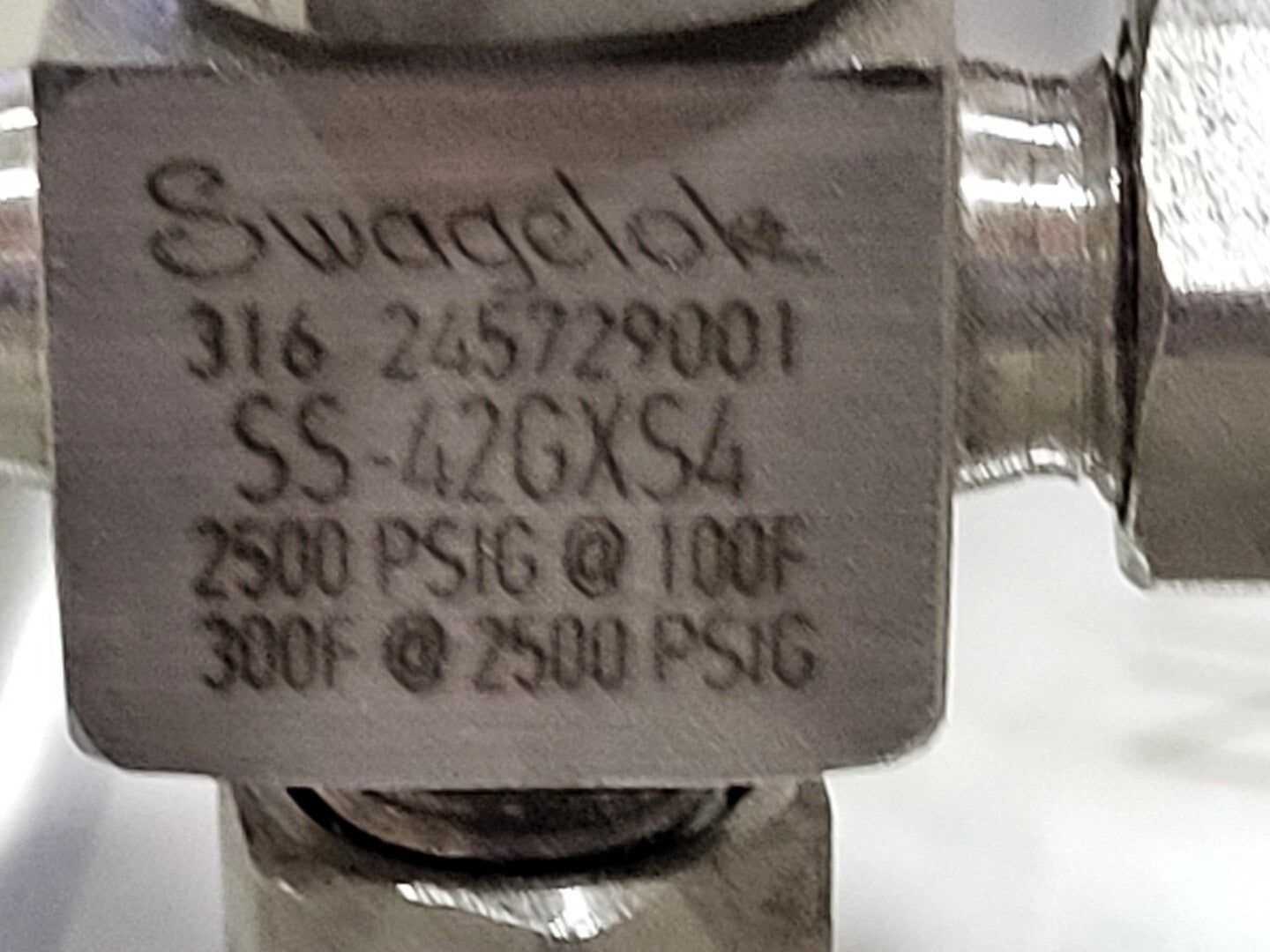

3-Way Ball Valve:-

Make/Model: Swagelok/ SS-42GXS4

Connection Size: 1/4 in.

Max Working Pressure: 2500 psig

Body Material: 316 Stainless Steel

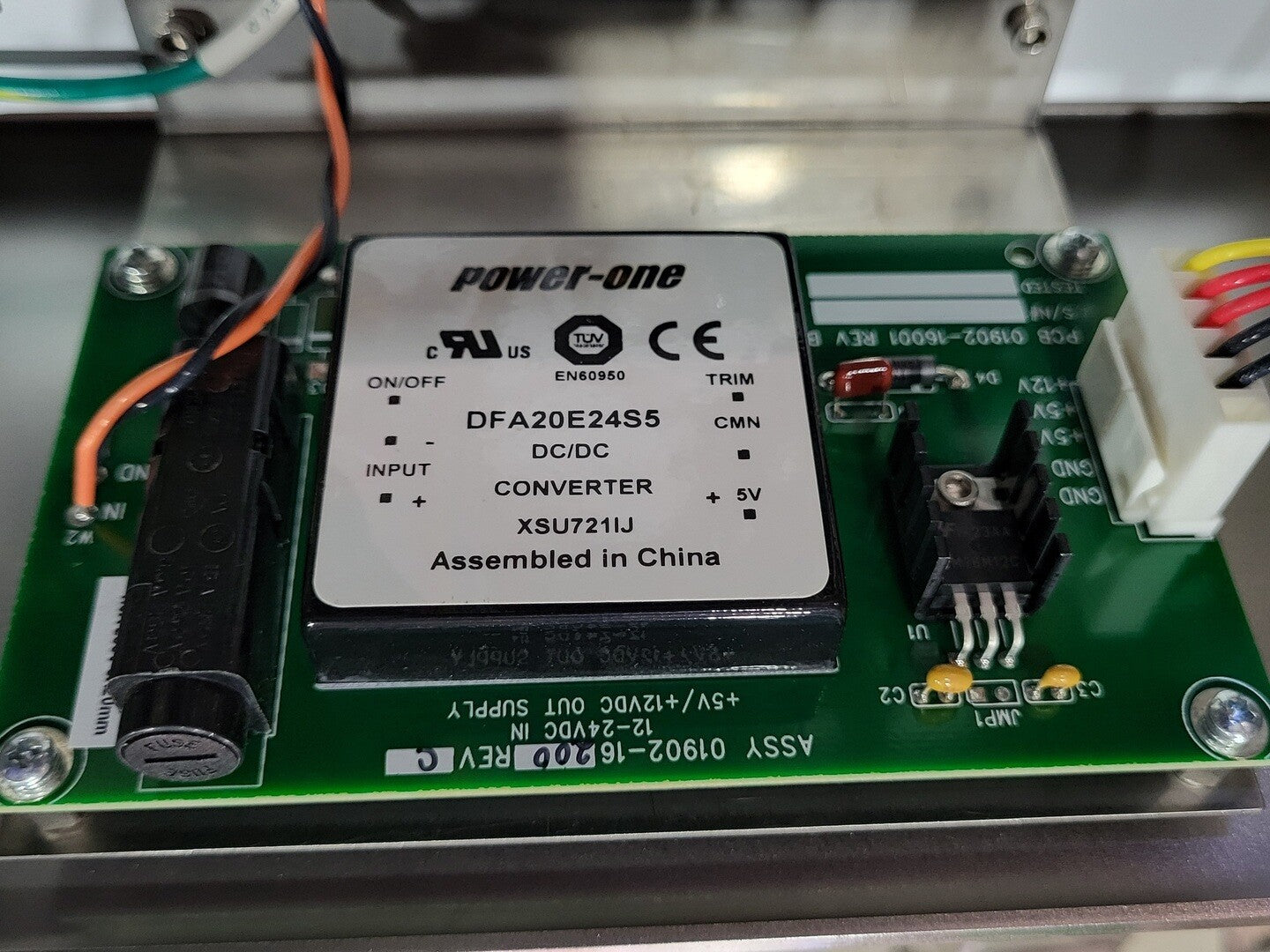

DC-DC Converter:-

Make/ Model: Power-One/ DFA20E24S5

Output Voltage: 5 VDC

Mounting Type: PCB, Thru-Hole

Output Current: 4000mA

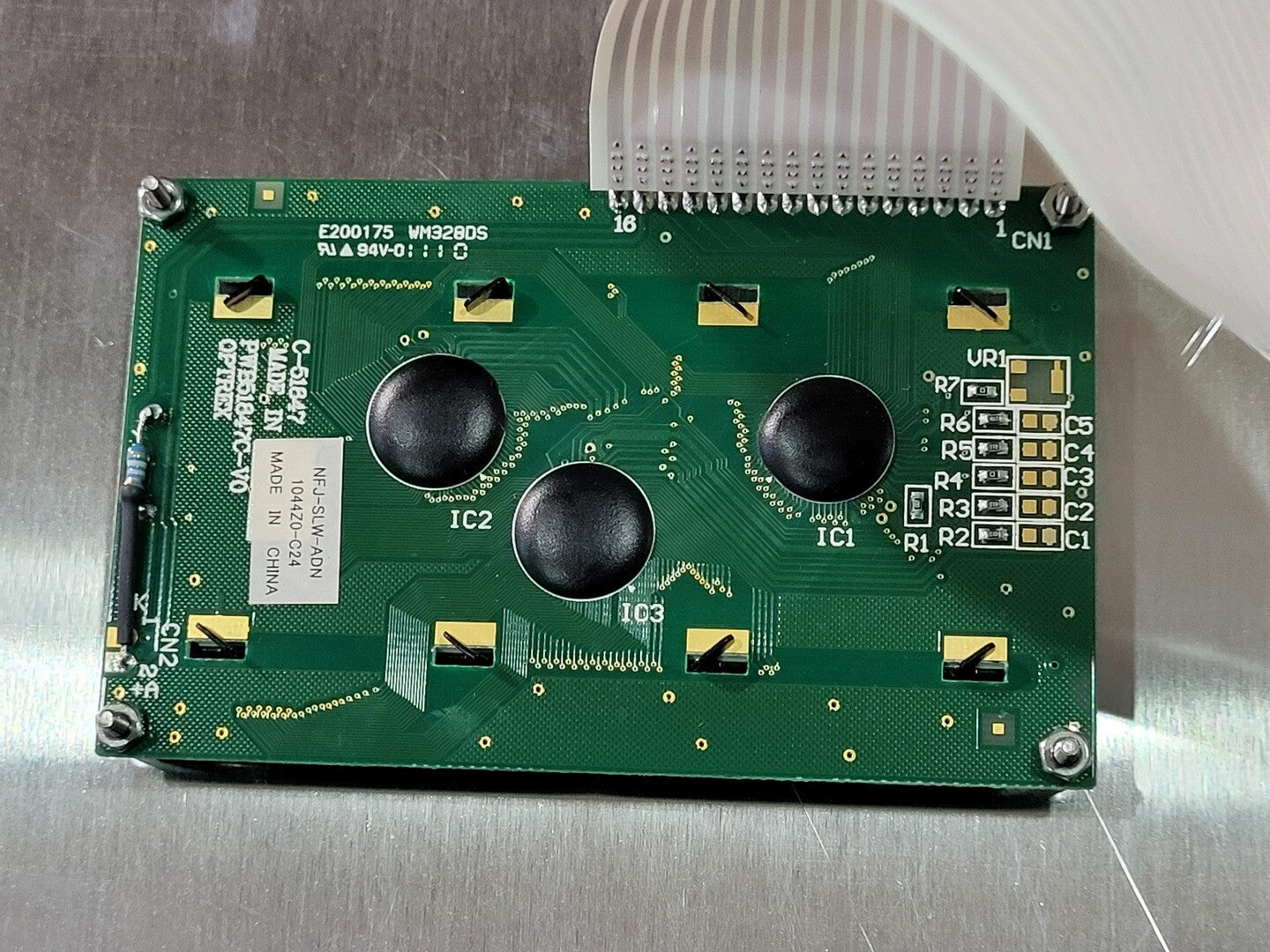

LCD Character Display Module:-

Make/ Model: Optrex/ C-51847

Dot Format: 20 character x 4 line

Dimensions: 98.5 x 61.0 x 15.6 mm

Interface: 8-bit parallel

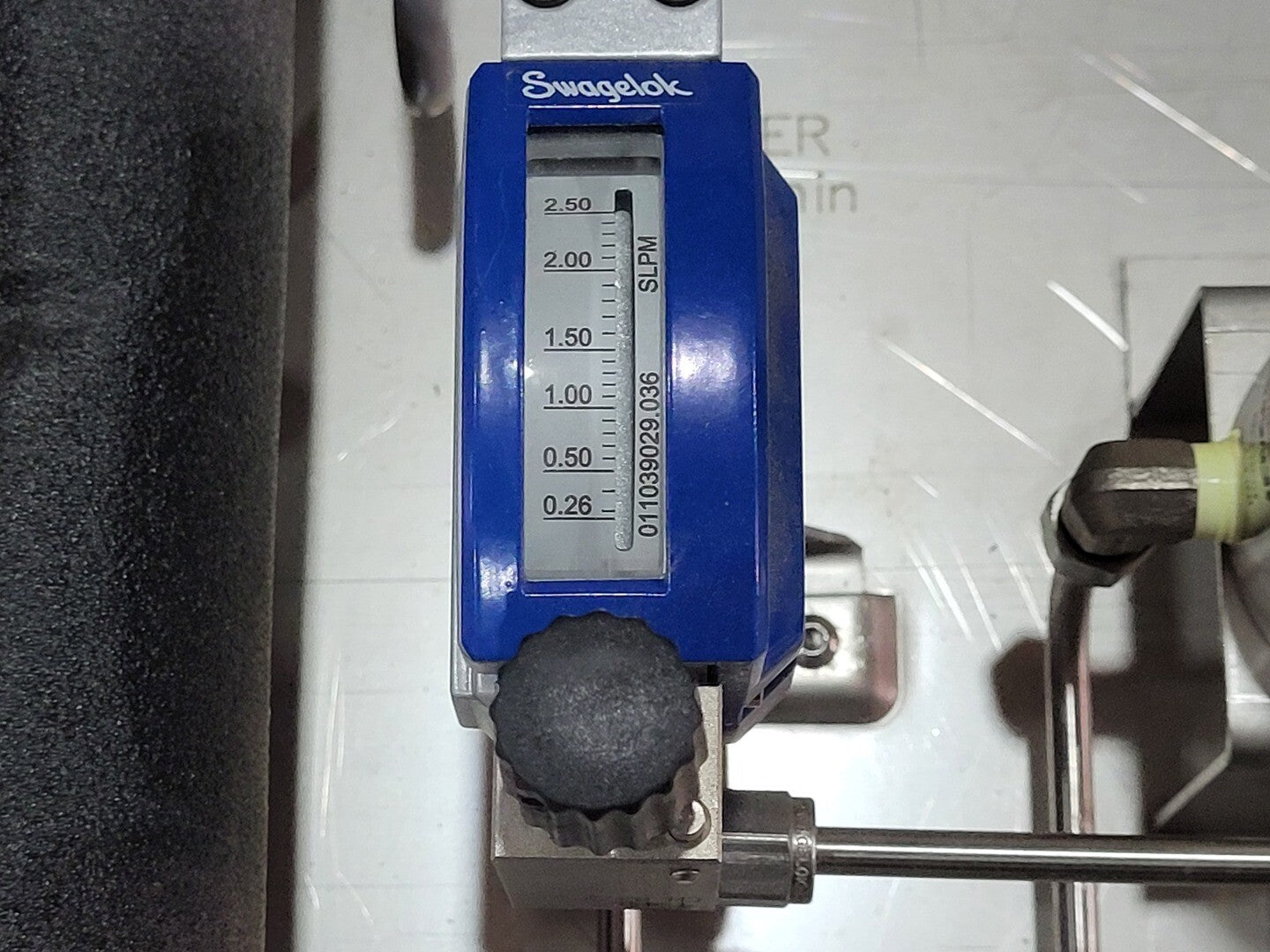

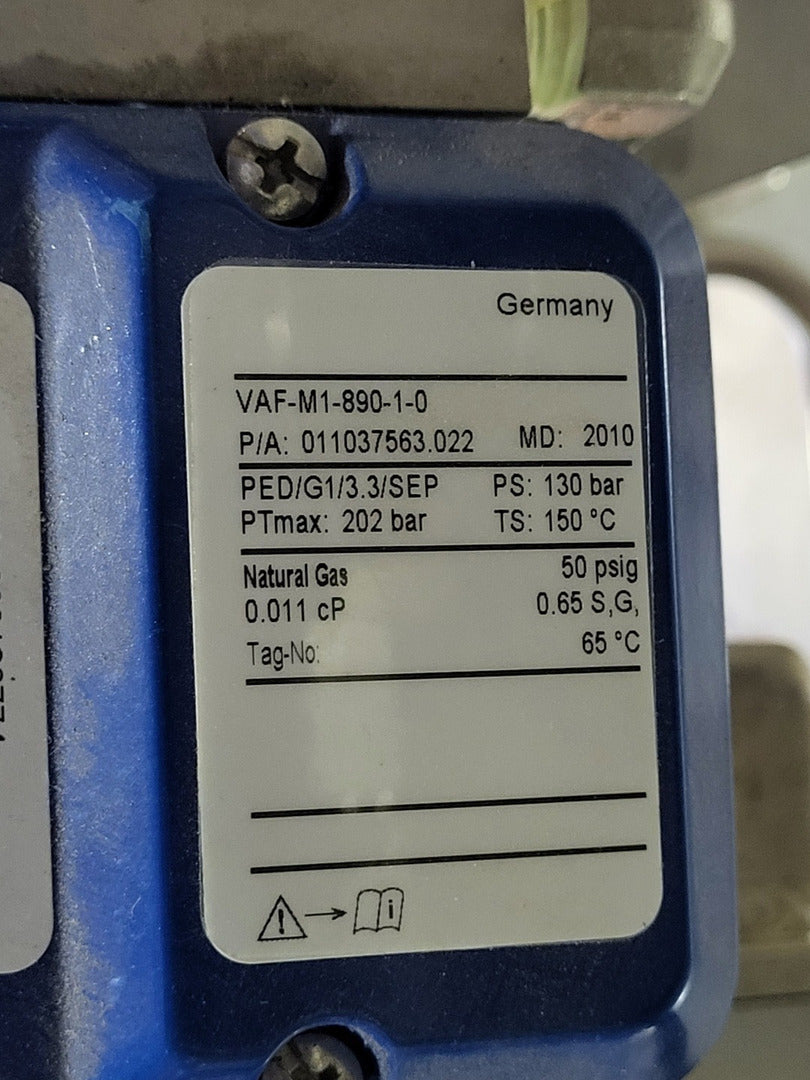

Variable Area Flowmeter:-

Make/Model: Swagelok/ VAF-M1-890-1-0

Process Temperature Rating: -40 to 150 deg. celsius

Maximum Inlet Pressure: 202 bar

Process Connections: 1/4 to 1-1/4 in. NPT; 1/2 to 1 in. ASME flange

Accuracy: 1.6, 2.5, 4.0
