Description
| Specifications | |
|---|---|

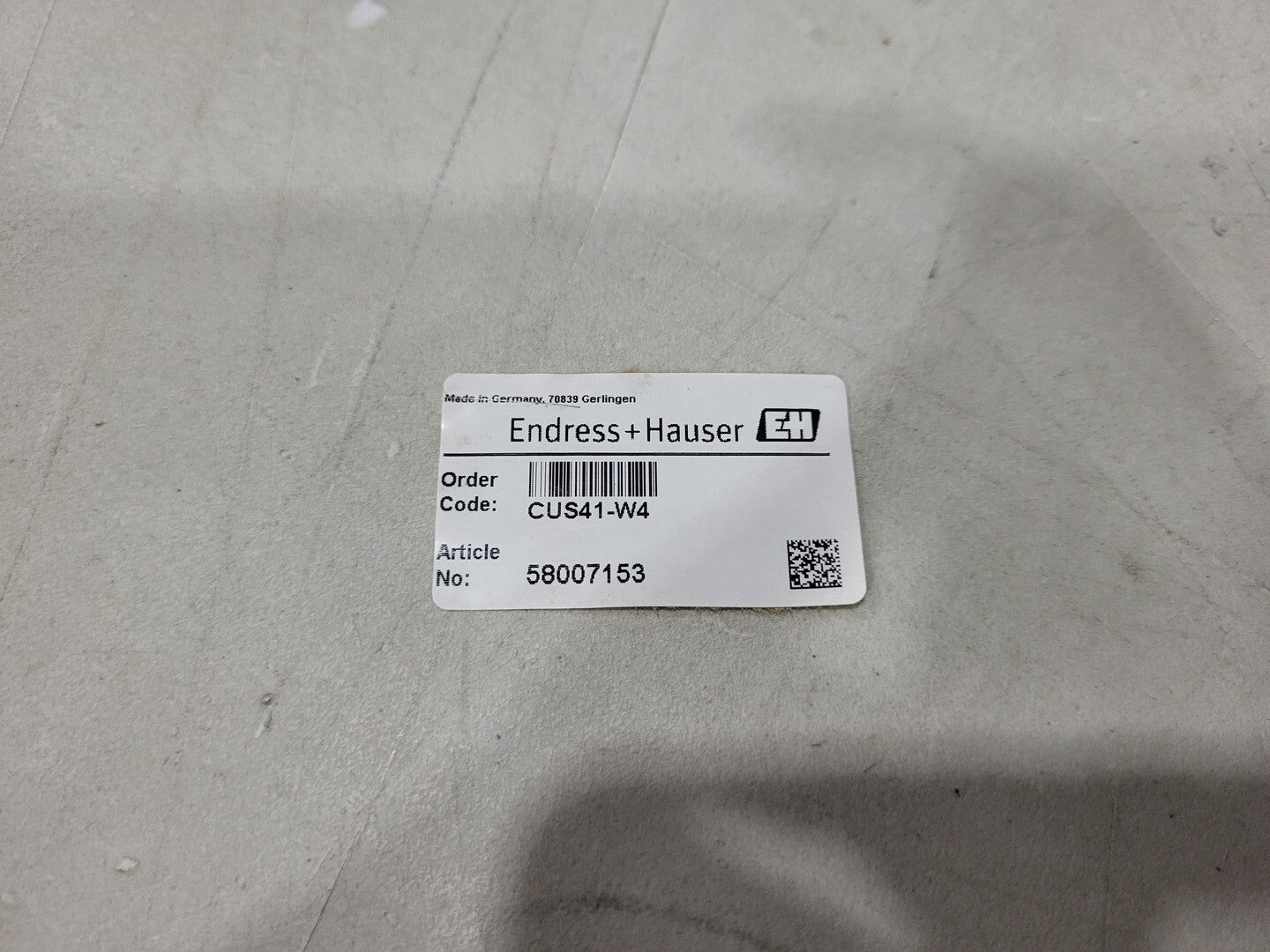

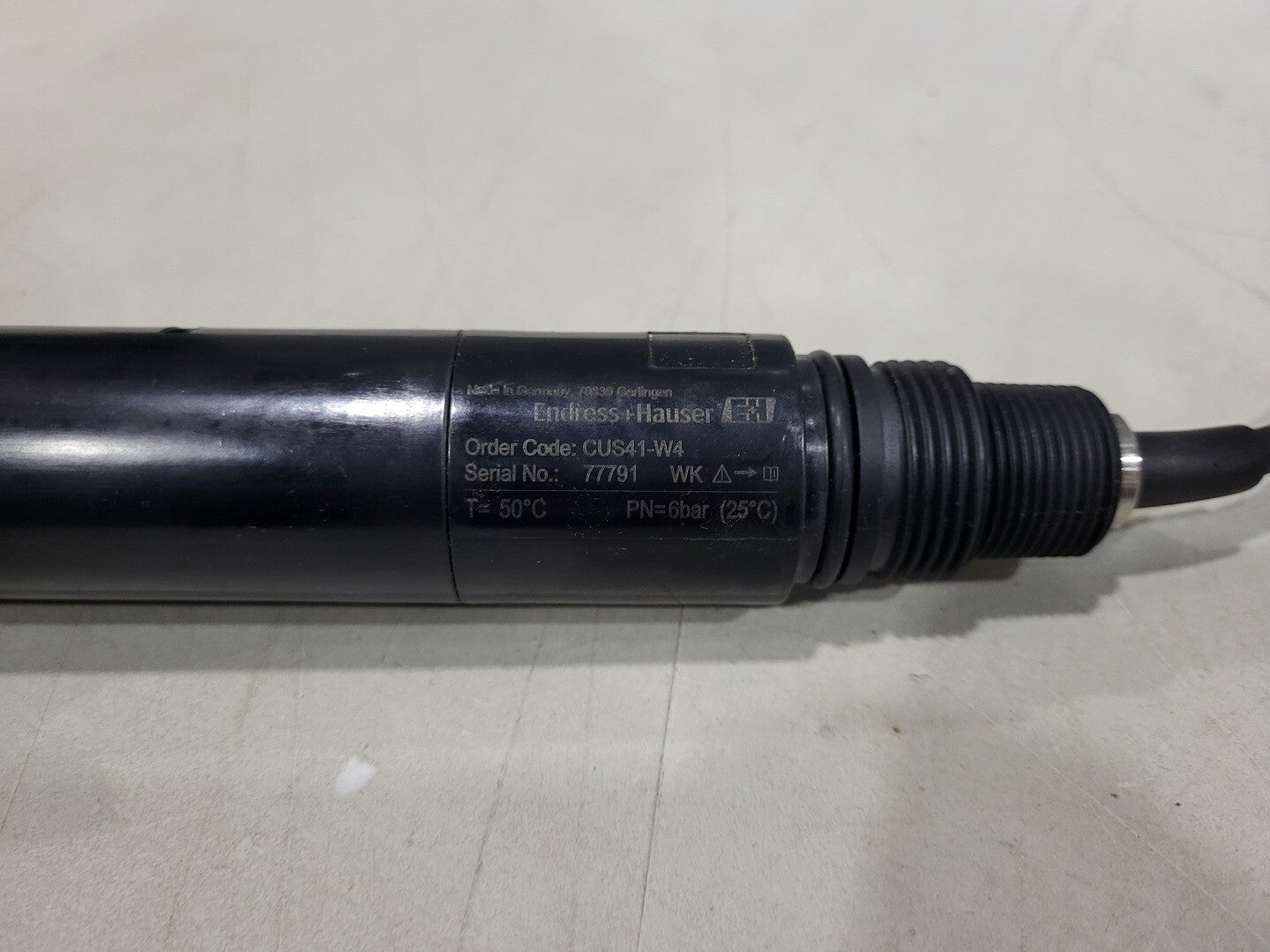

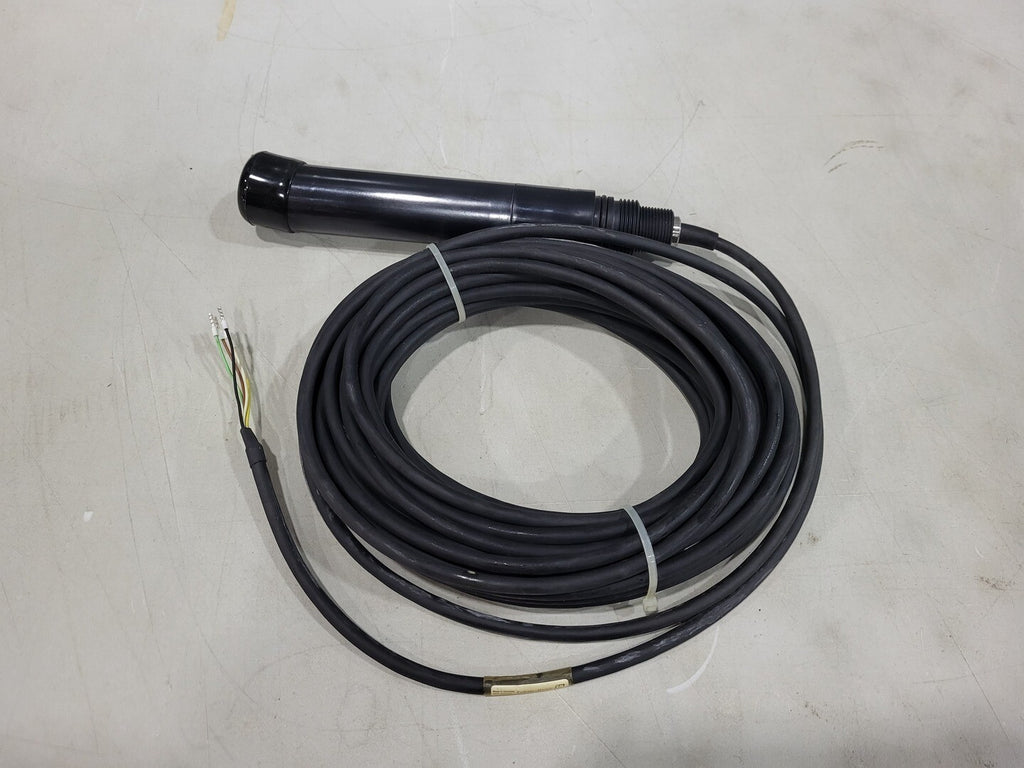

| Model | CUS41-W4 |
| Made In | GERMANY |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Application: Industrial water, solid content measurement
Characteristic: optical sensor for turbidity measurement acc. DIN EN ISO 7027.
Measurement range: 0,00 - 9999FNU0,00 - 9999ppm0,0 - 300g/L0,0 - 200,0%
Measuring principle: Optical turbidity measurement following the 90 deg scattered light method in the near infrared (880nm).

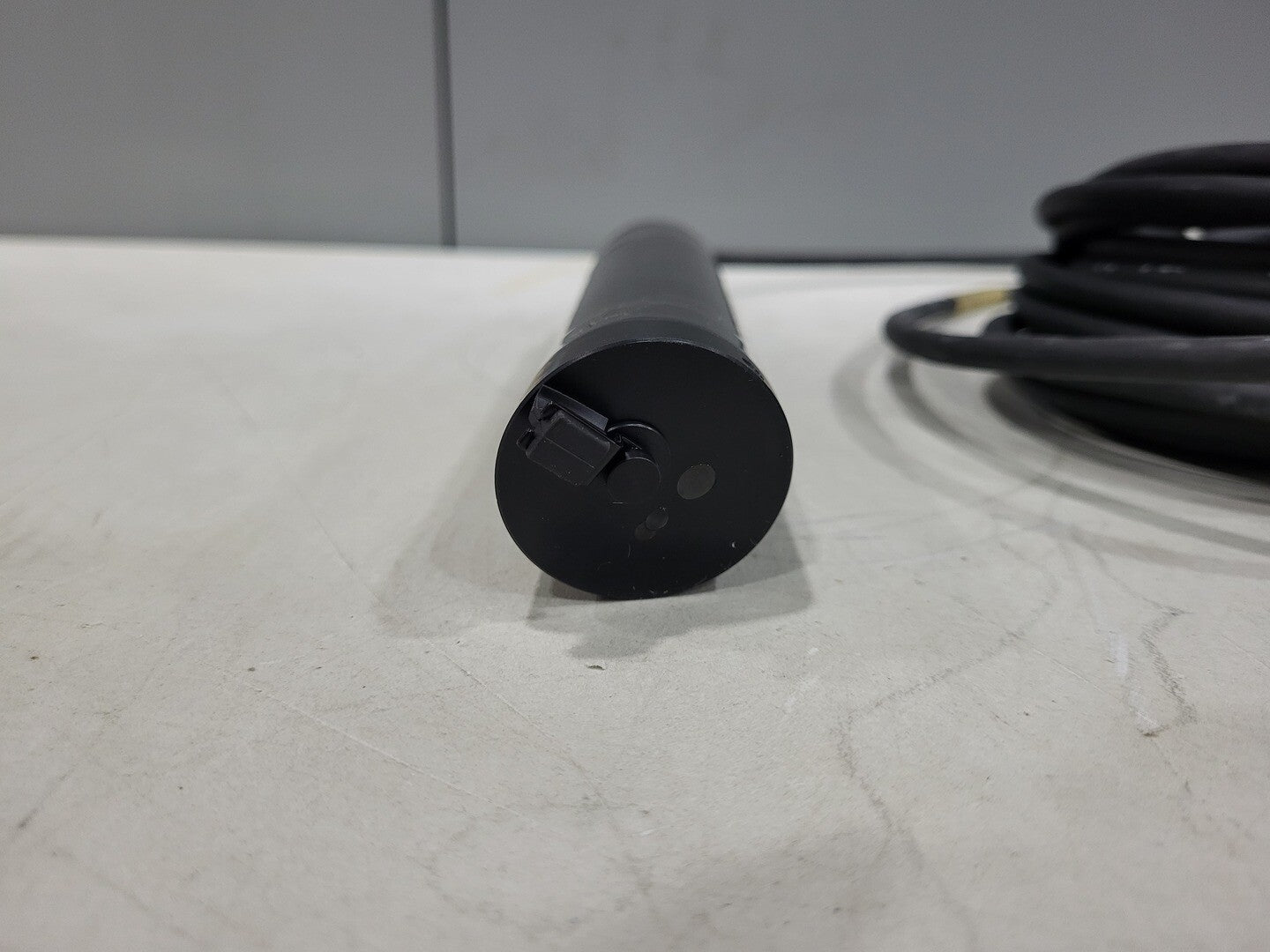

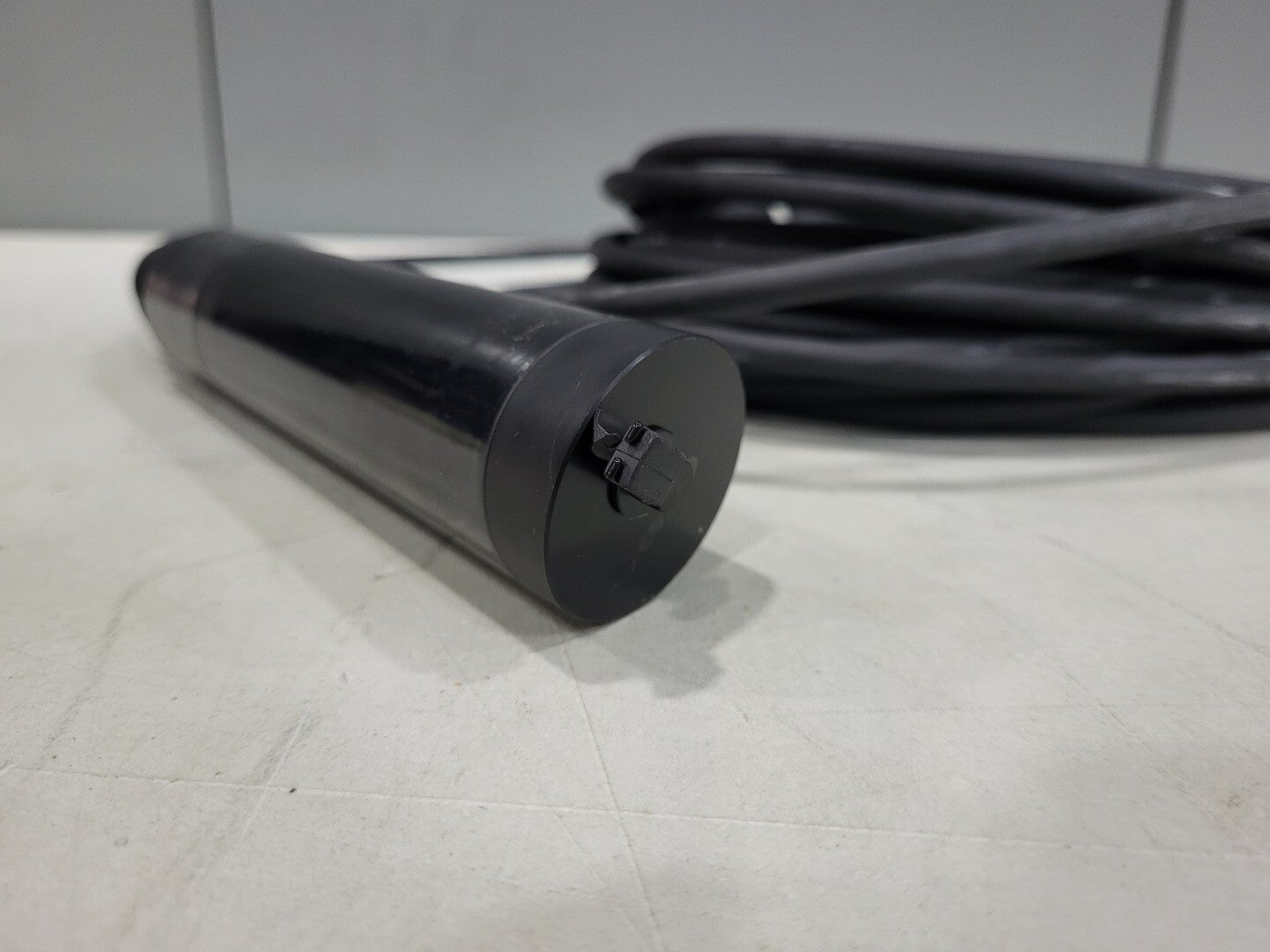

Design: Infrared sender with two receiver for low and higher range as well as a reference receiver. Chamfered sensor head to optimize the self-cleaning and additional with wiper to remove micro bubbles from the optical window.
Material: Sensor shaft: PVC / PPS GF40Optical window: saphire cable TPEO

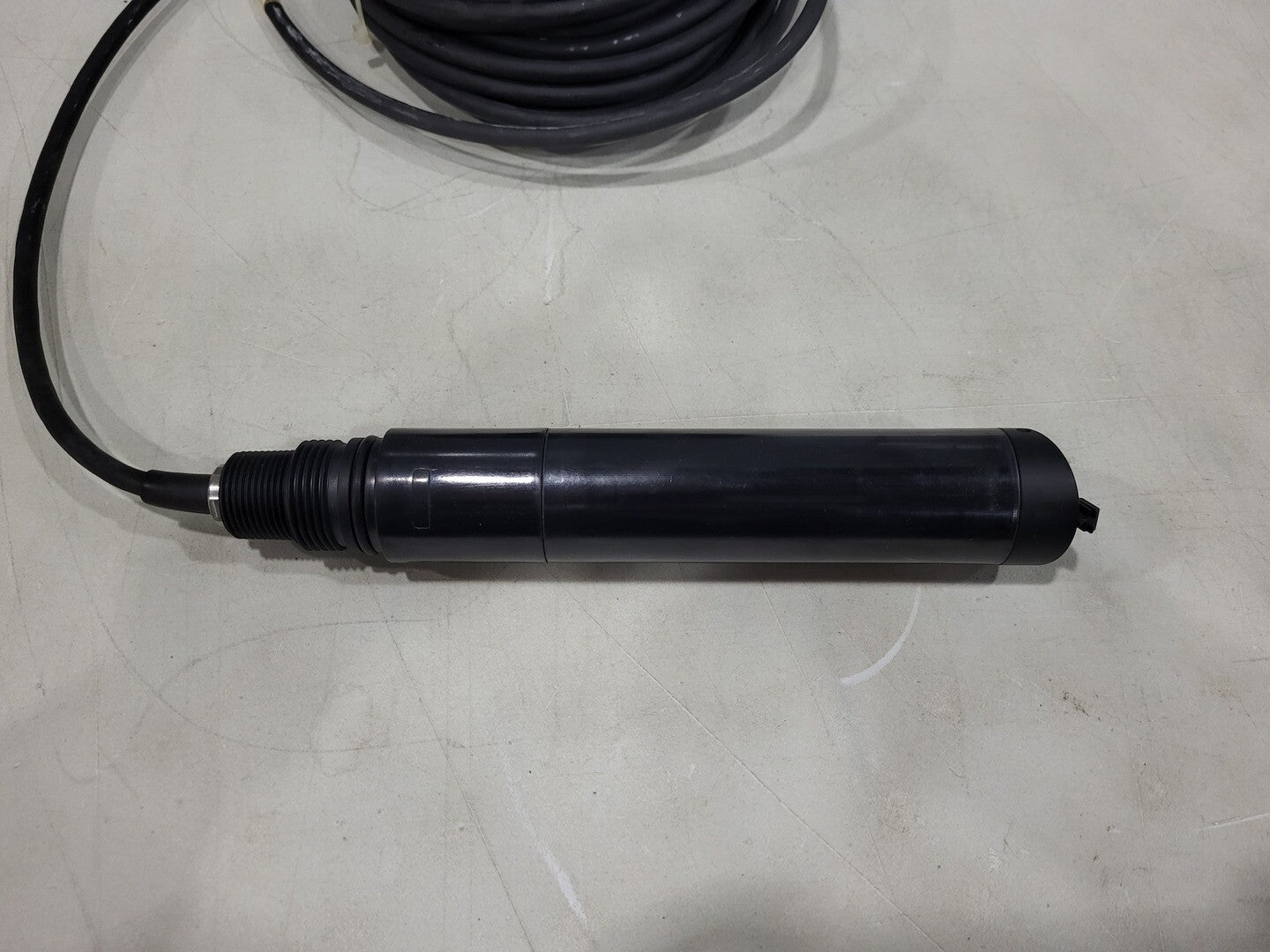

Dimension: Diameter: 40mm, 1.56 inch
Length: 191mm, 7.44 inch
Process temperature: max. 50 deg C, 122 deg F
Process pressure: max. 6 bar, 87 psi
Temperature sensor: Integrated NTC-temperature sensor

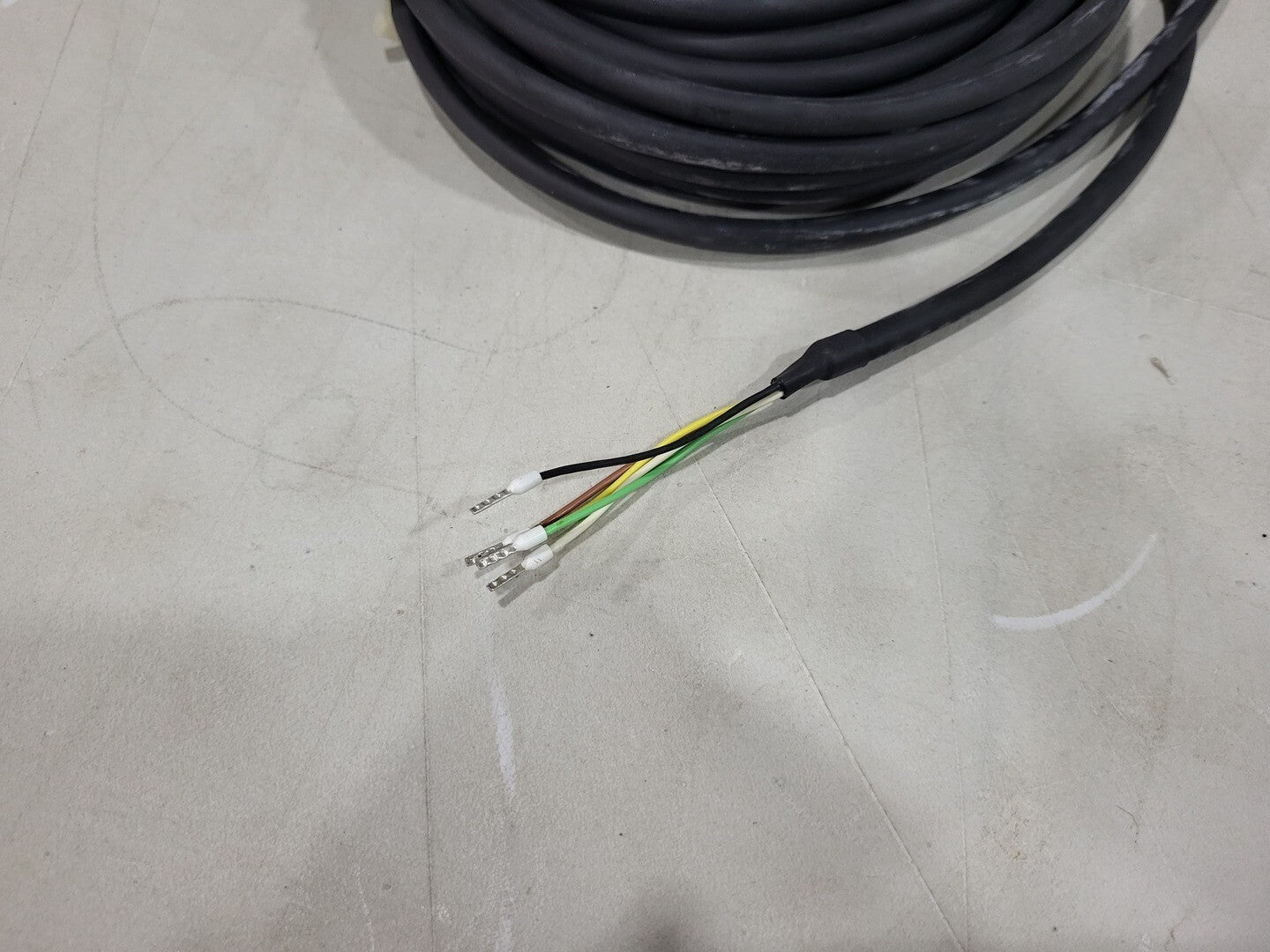

Connection: Fixed cable
|
