Description

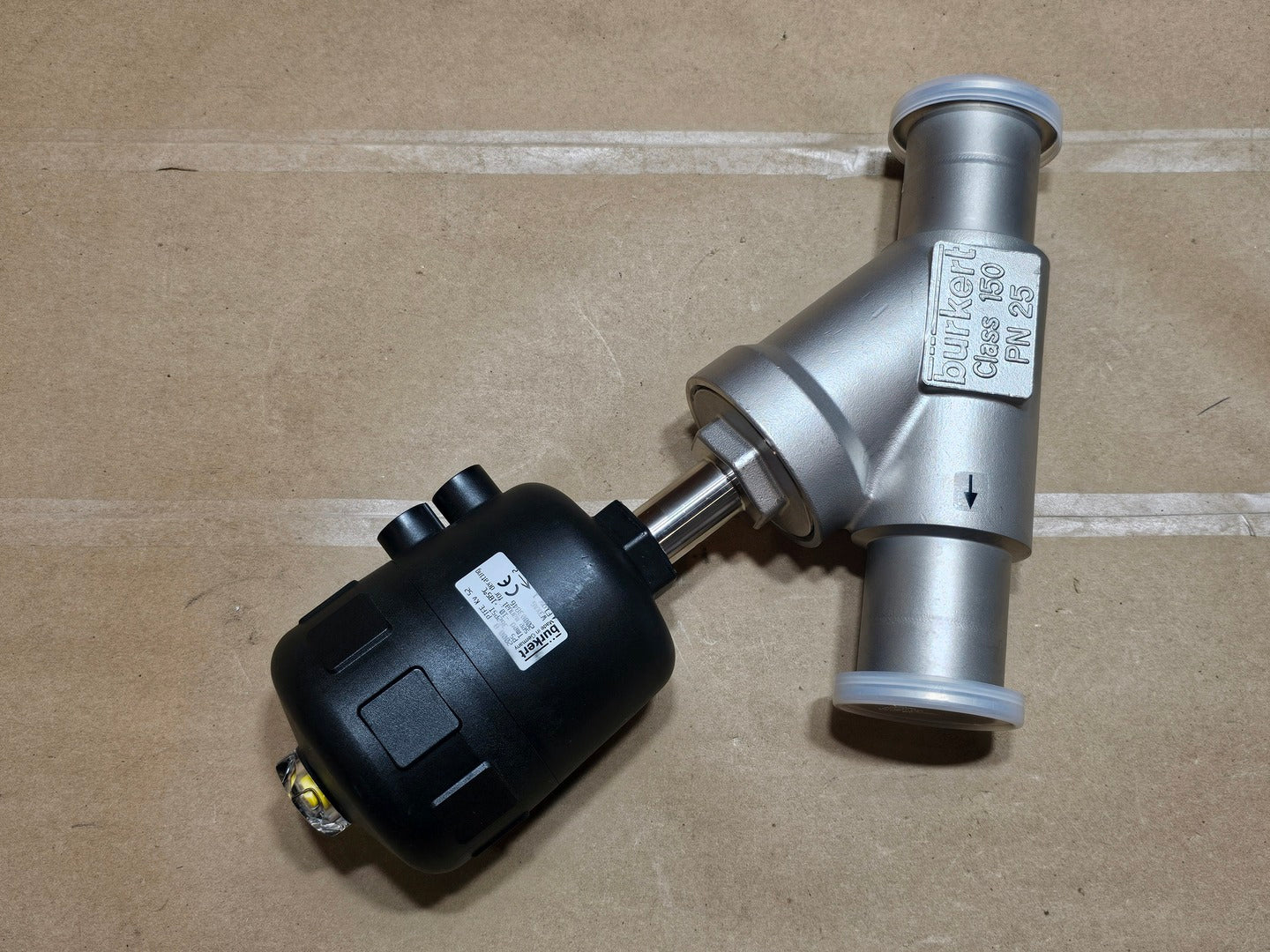

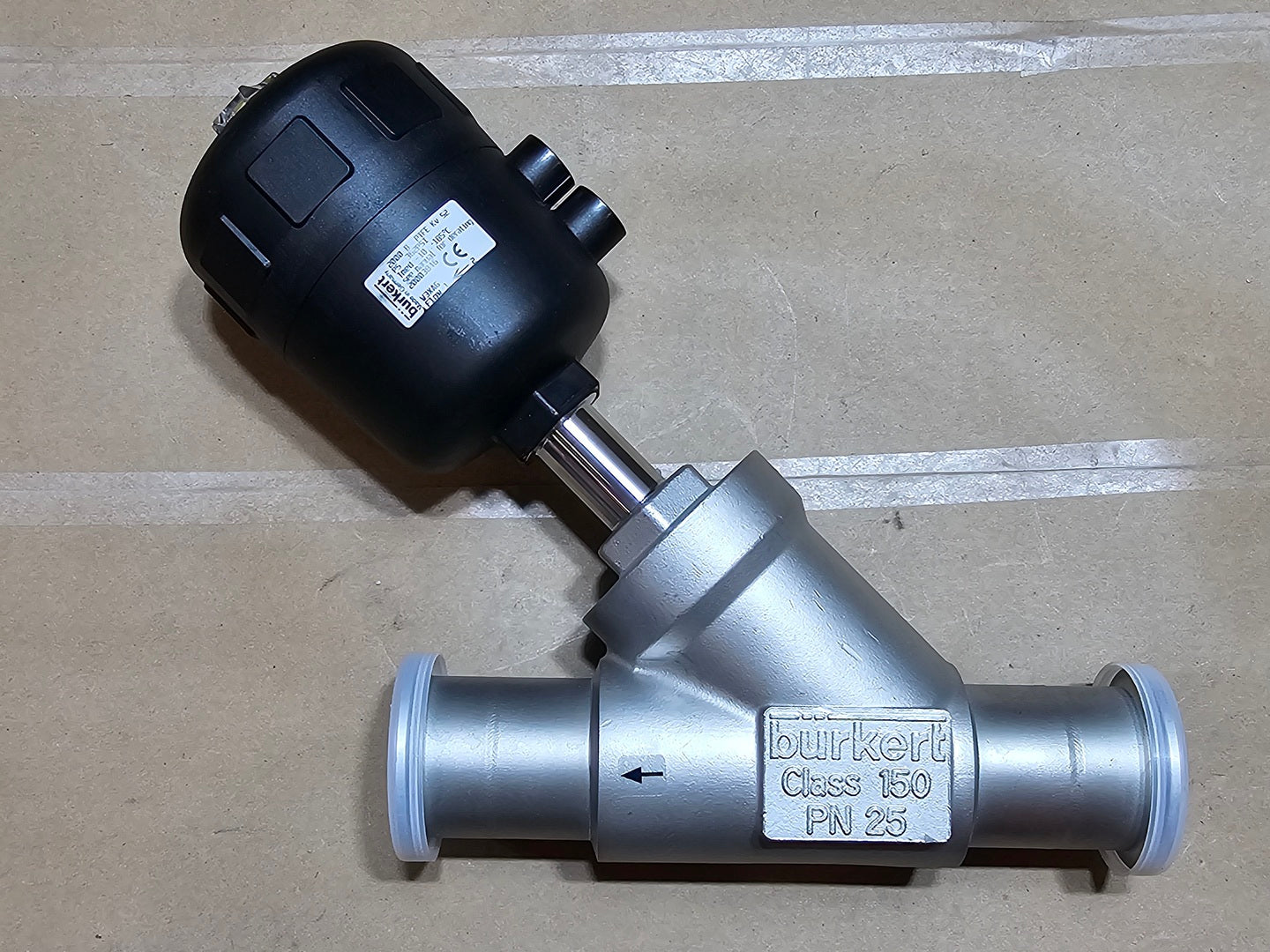

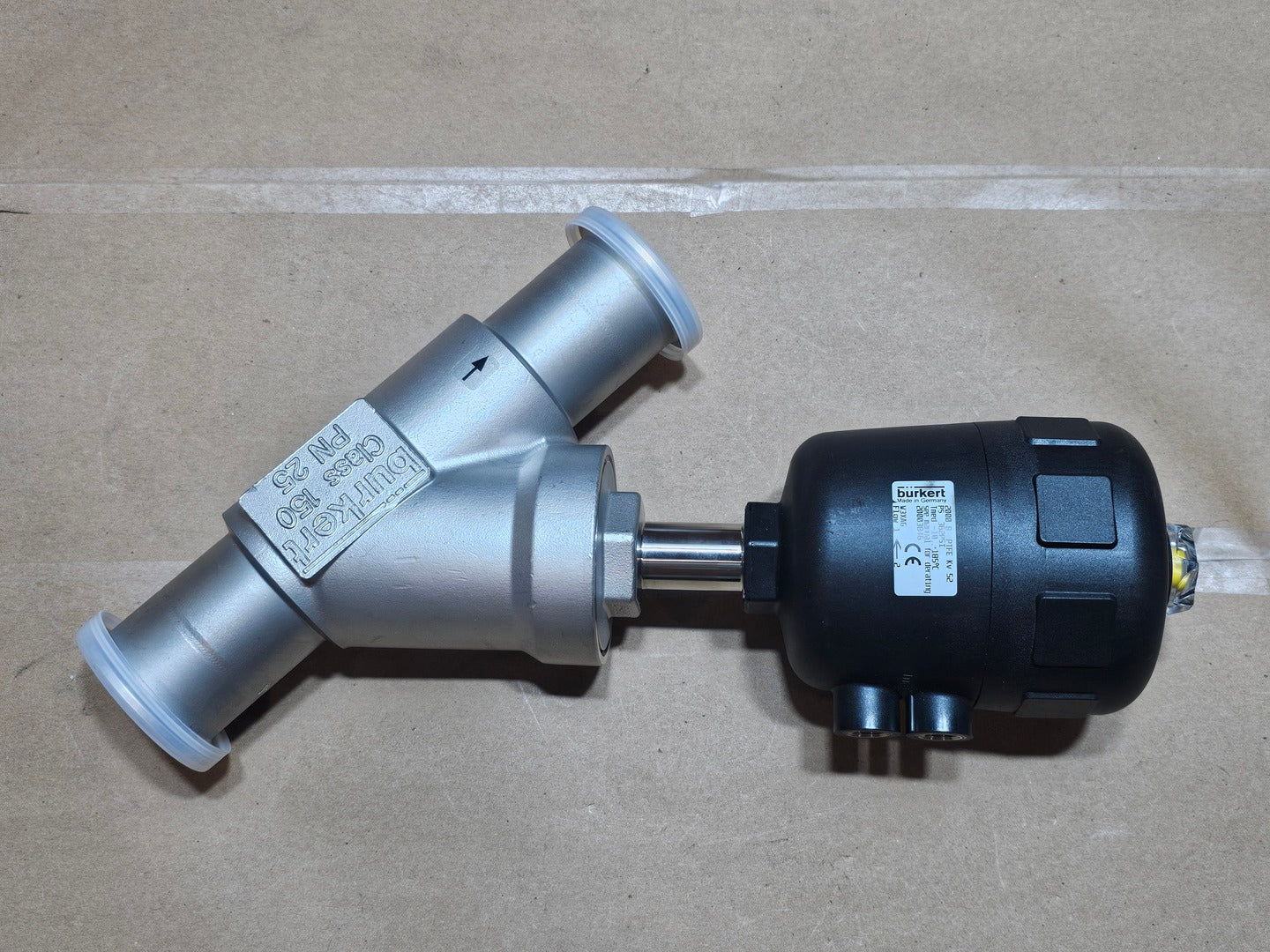

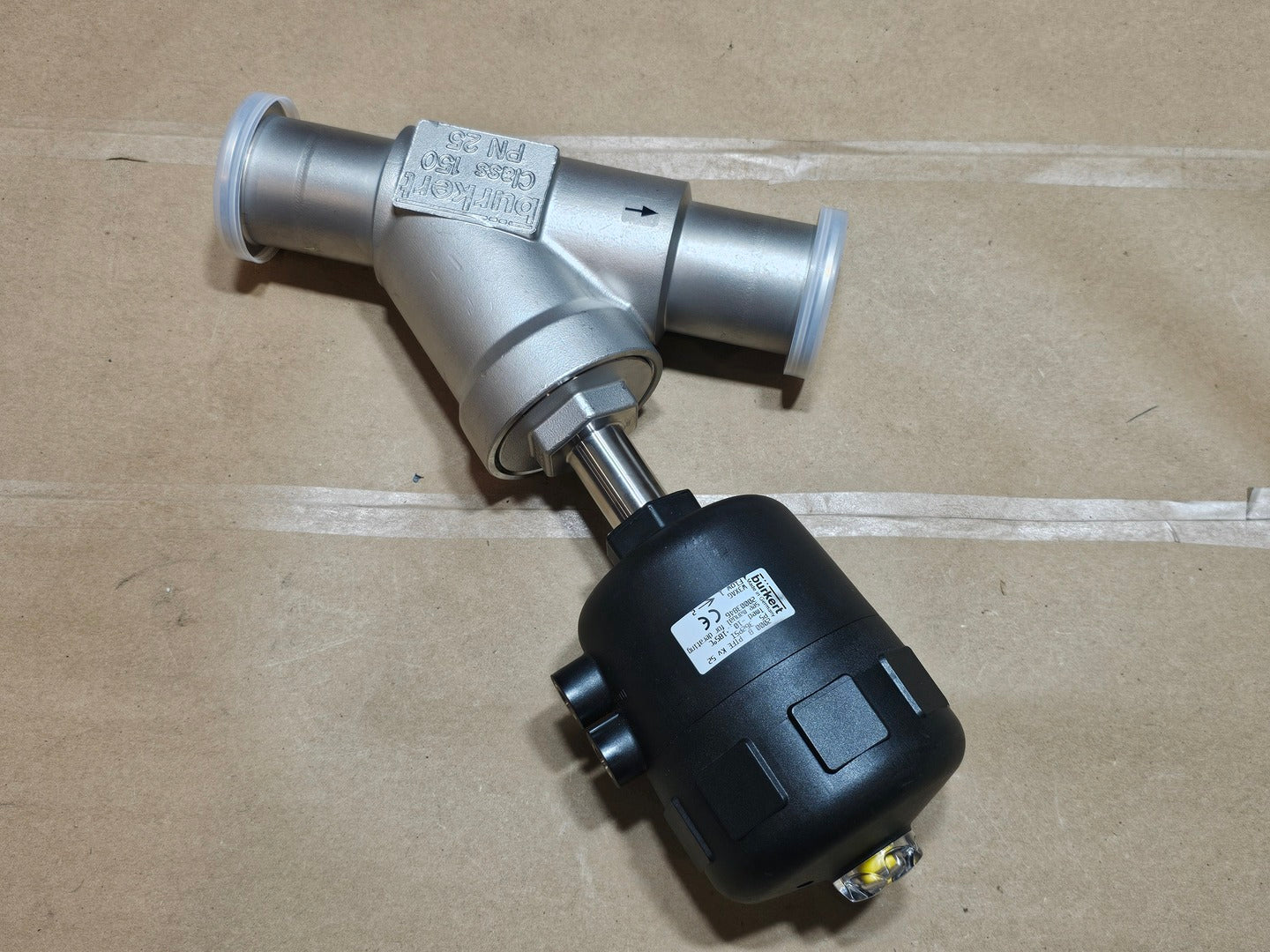

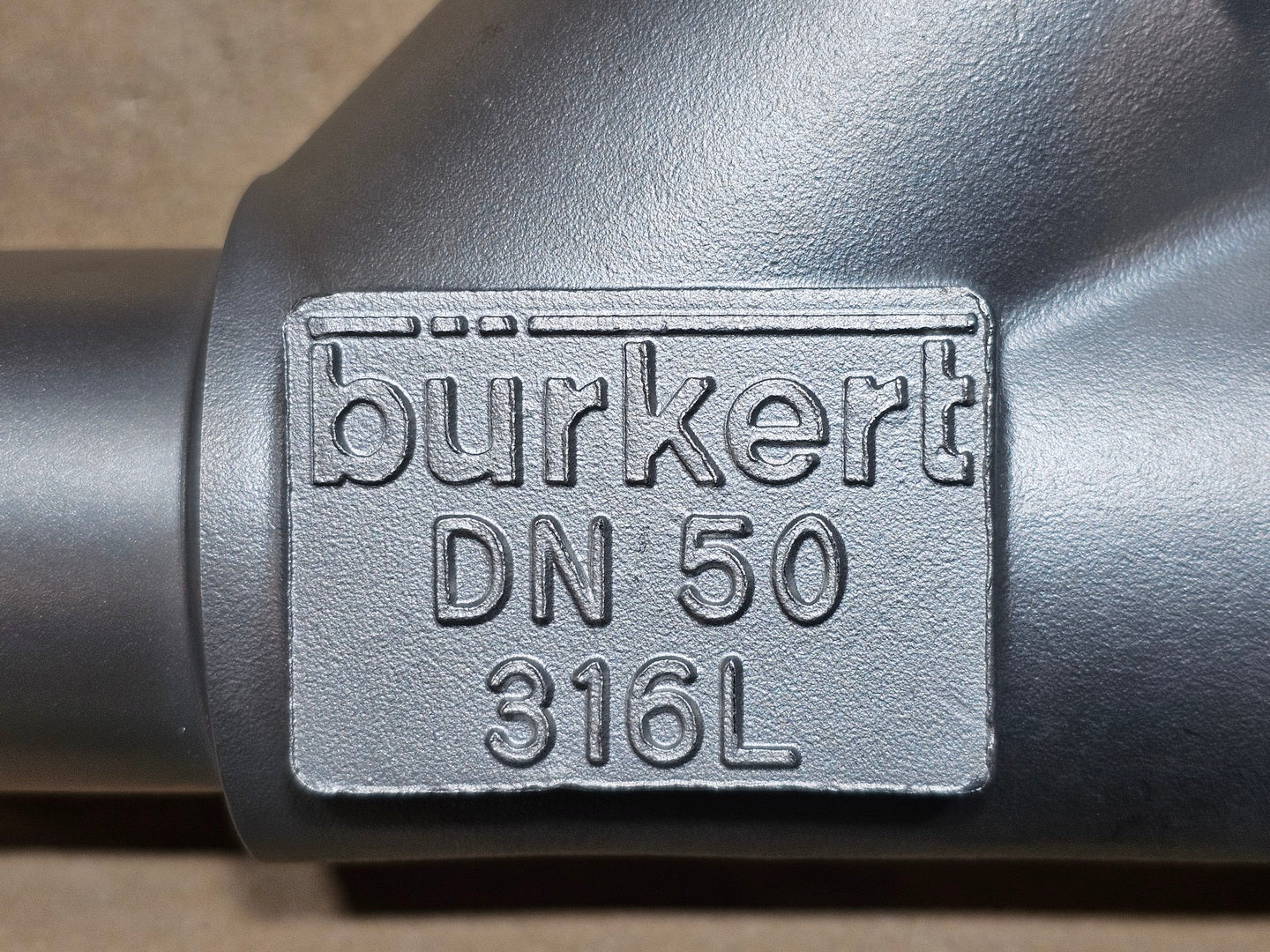

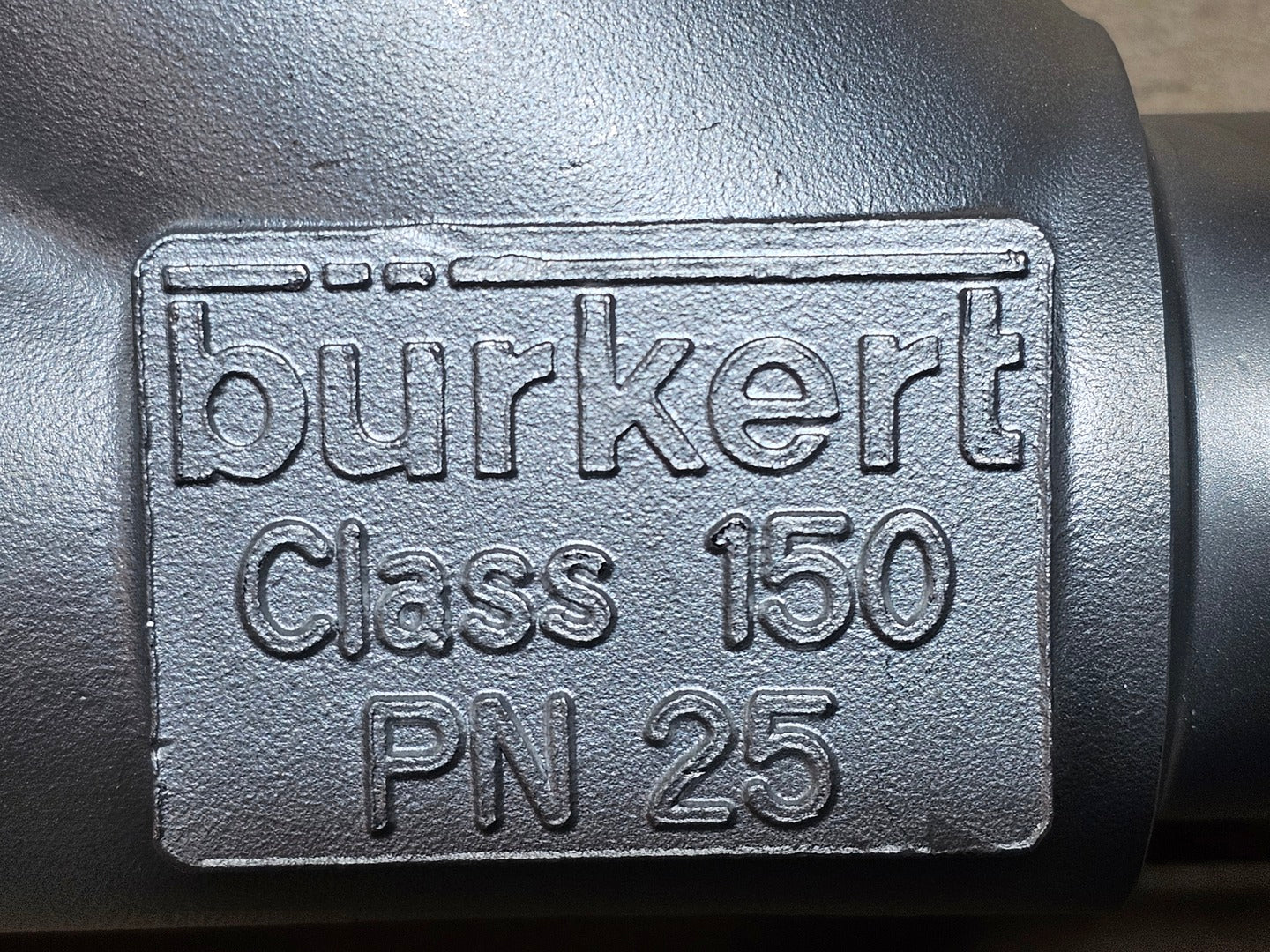

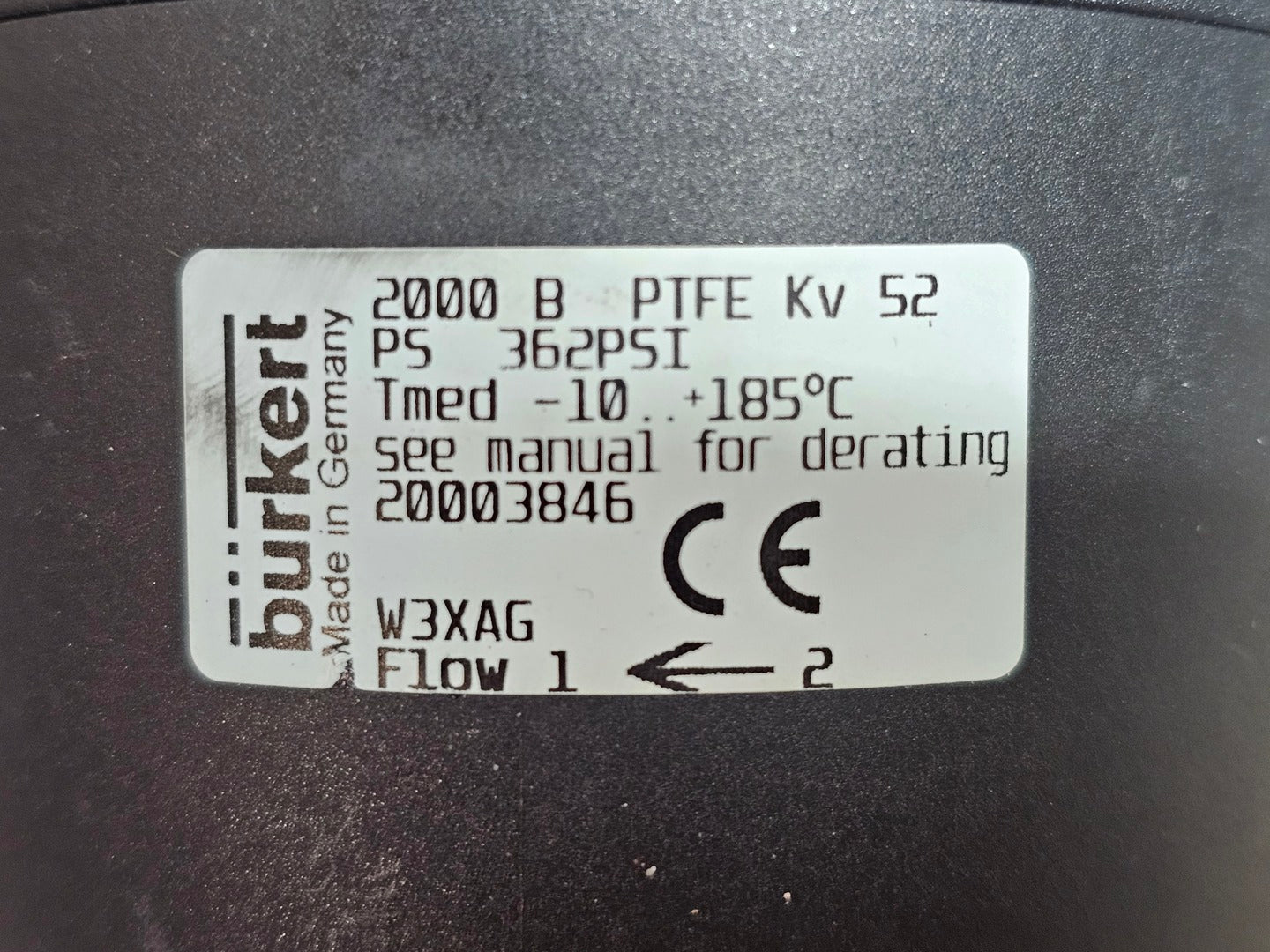

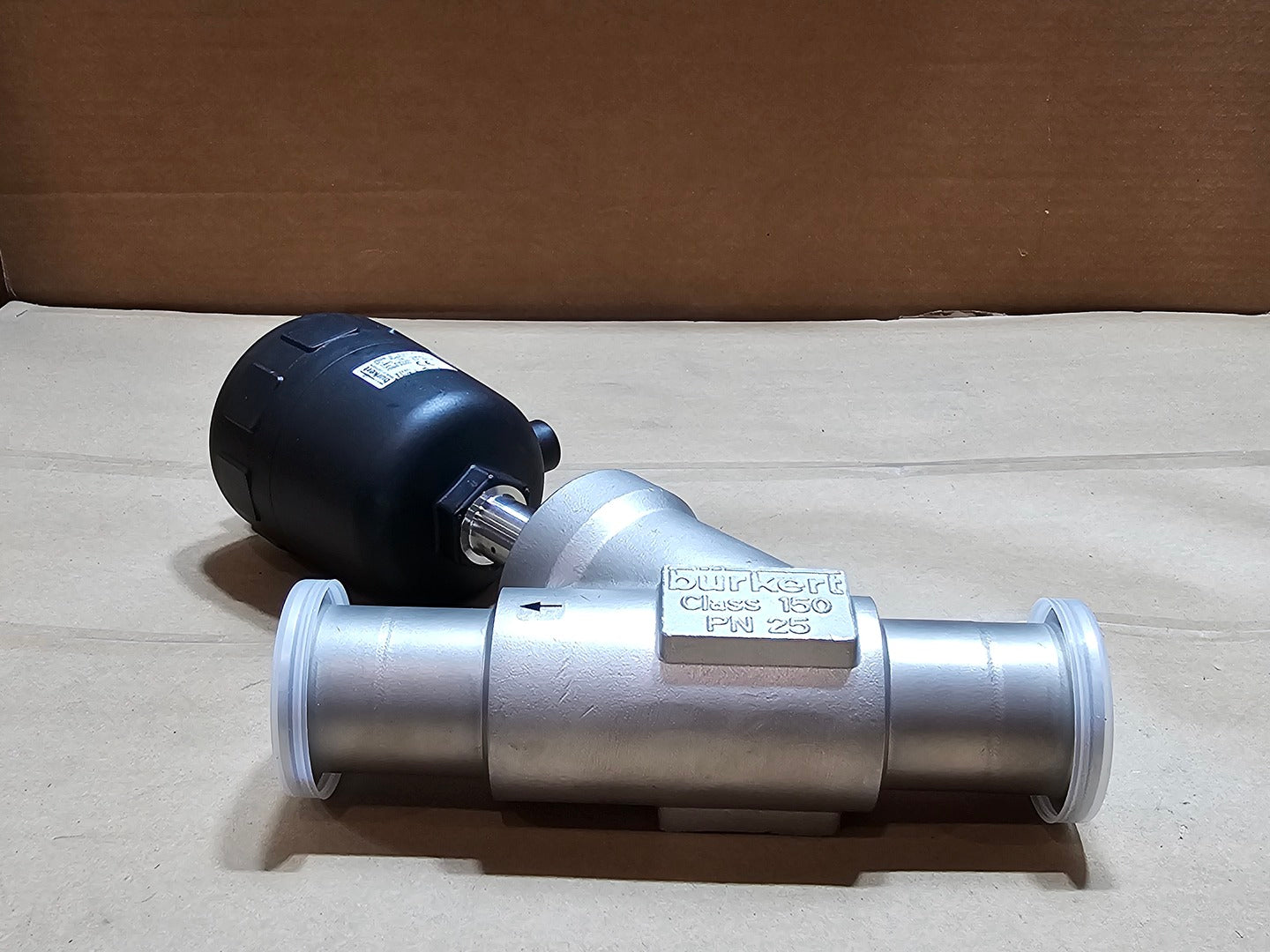

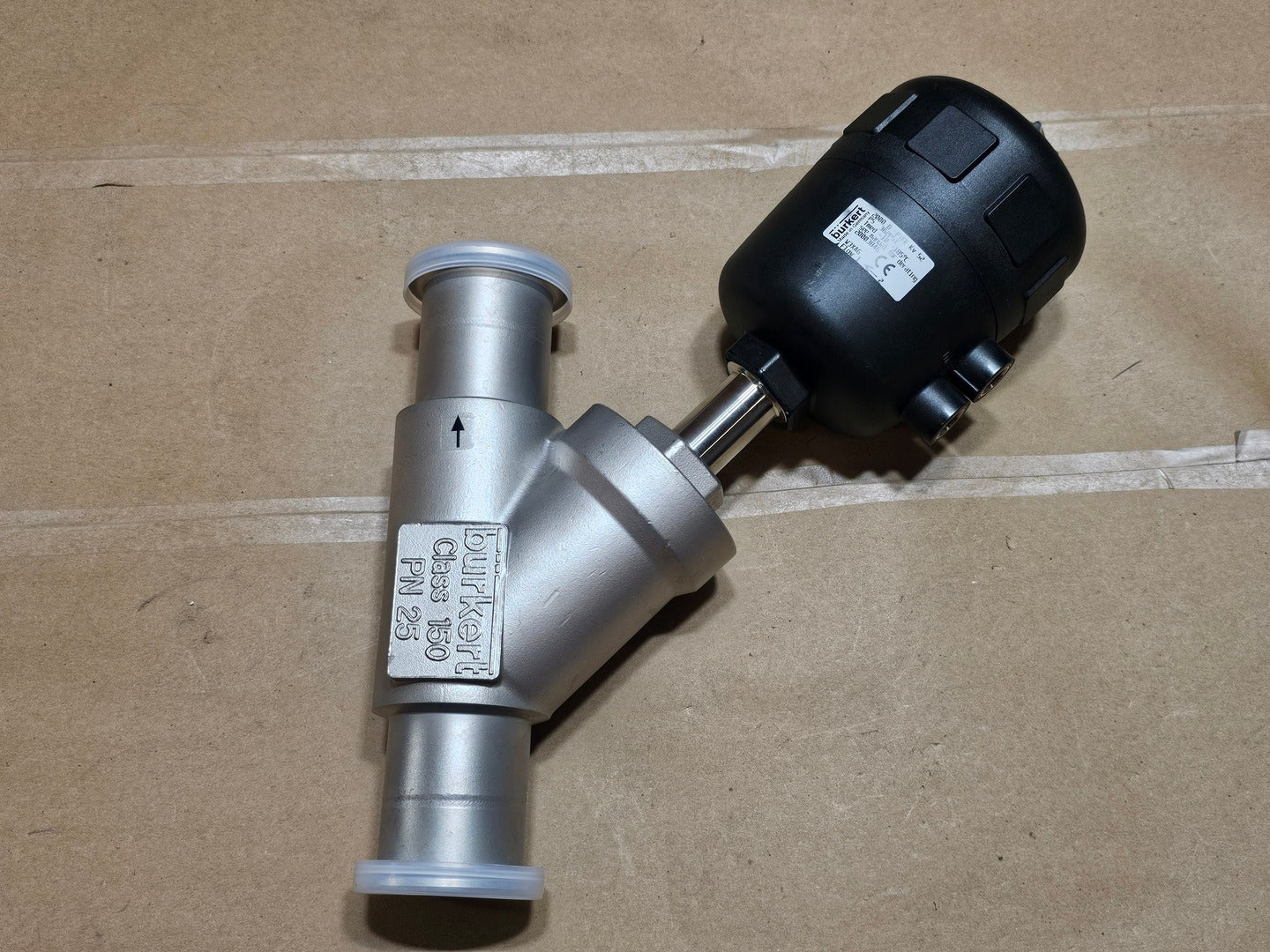

Burkert Type 2000 B pneumatically actuated 2/2-way angle-seat valve featuring a DN50 316L stainless-steel body, PTFE seat seal, sanitary clamp process connections, PN25 / Class 150 body rating, and Kv 52 flow coefficient. The actuator label identifies order/ID number 20003846 and a medium-temperature range of -10 to +185 °C. Control Function B provides a normally-open spring position. Burkert describes the Type 2000 as a high-flow, pneumatically actuated industrial process valve designed for liquid, gas, steam, and other compatible process-media applications.
| Made In | GERMANY |
| Condition | Surplus New | General |
|---|---|
| Valve Style | Other |
| Other Specifications |
|---|
|

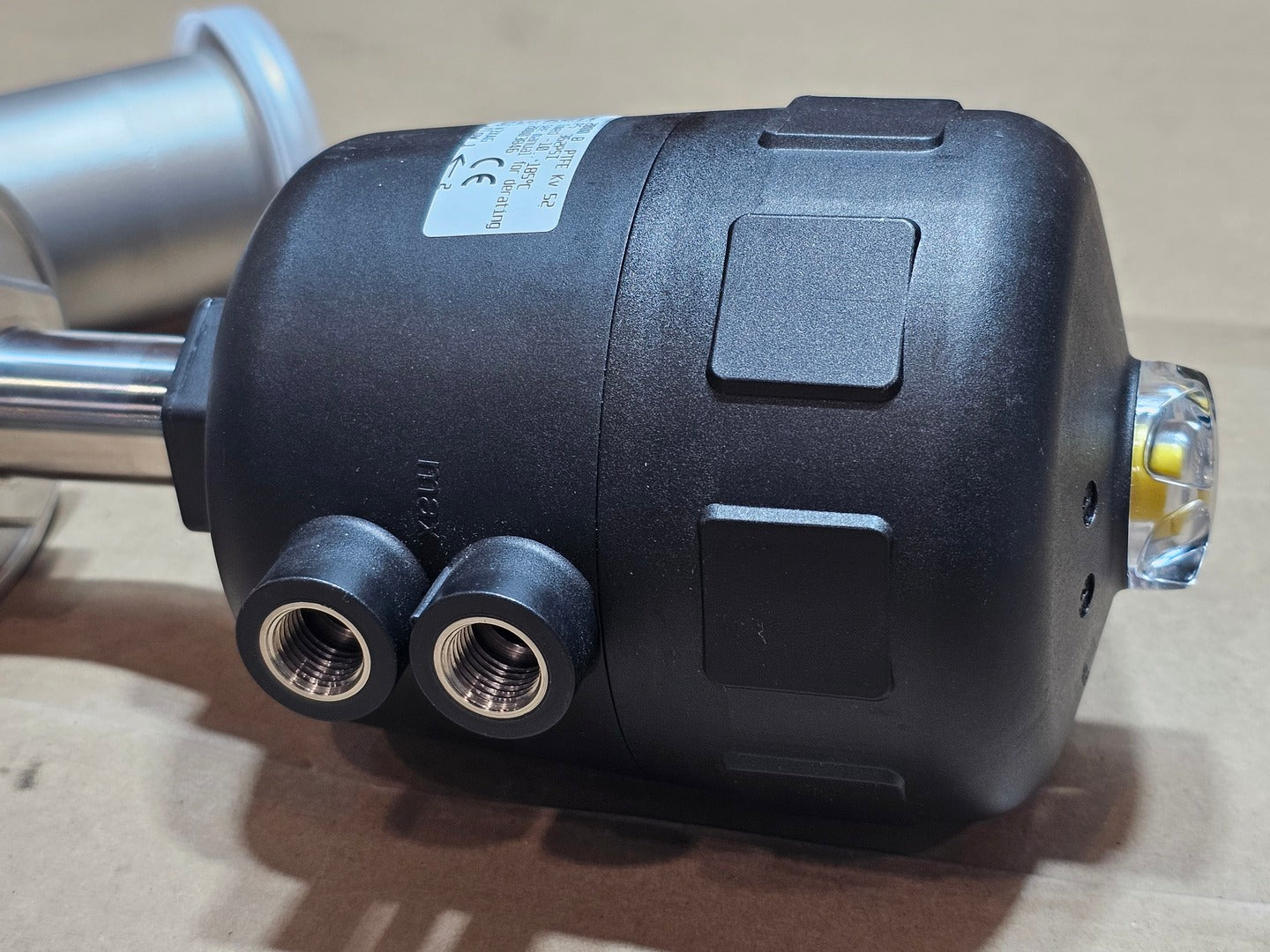

Type / Series: Type 2000 Configuration: 2000 B Product Type: Pneumatically Actuated Angle-Seat Valve Valve Function: 2/2-Way Control Function: B - Normally Open Identification / Order No.: 20003846 Manufacturing Code: W3XAG Nominal Size: DN50 Body Material: 316L Stainless Steel Process Connections: Sanitary Clamp Style Seat Seal: PTFE Flow Coefficient (Kv): 52 m3/h Nominal Pressure: PN25 Class Rating: Class 150 PS: 362 PSI Medium Temperature Range: -10 to +185 °C Flow Direction: Port 2 - Port 1 Actuation: Pneumatic Piston Pilot Connections: Two threaded pneumatic ports visible on actuator |
