Description
| Specifications | |
|---|---|
| Model | 60 Series |
| Condition | Used | General |

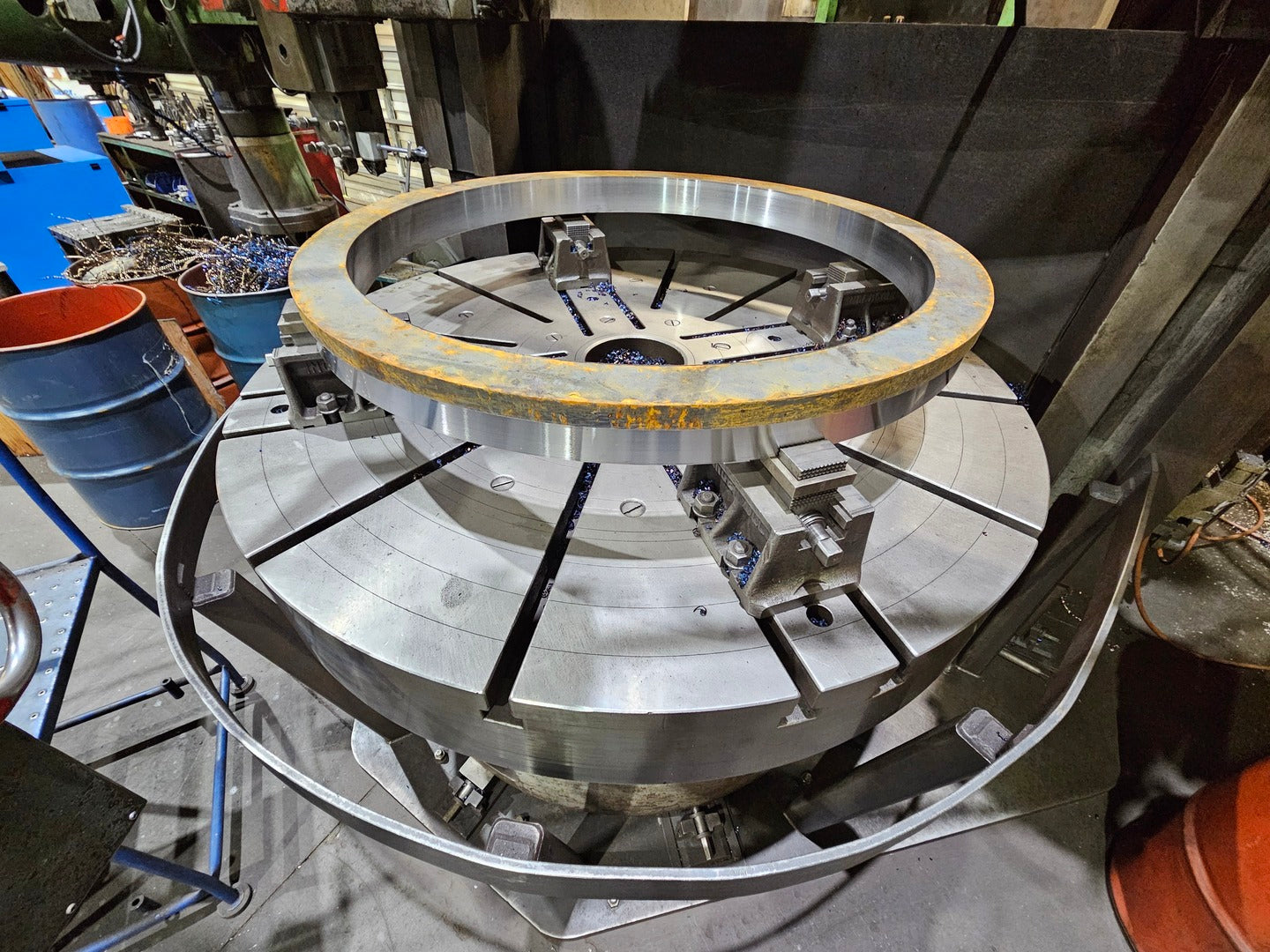

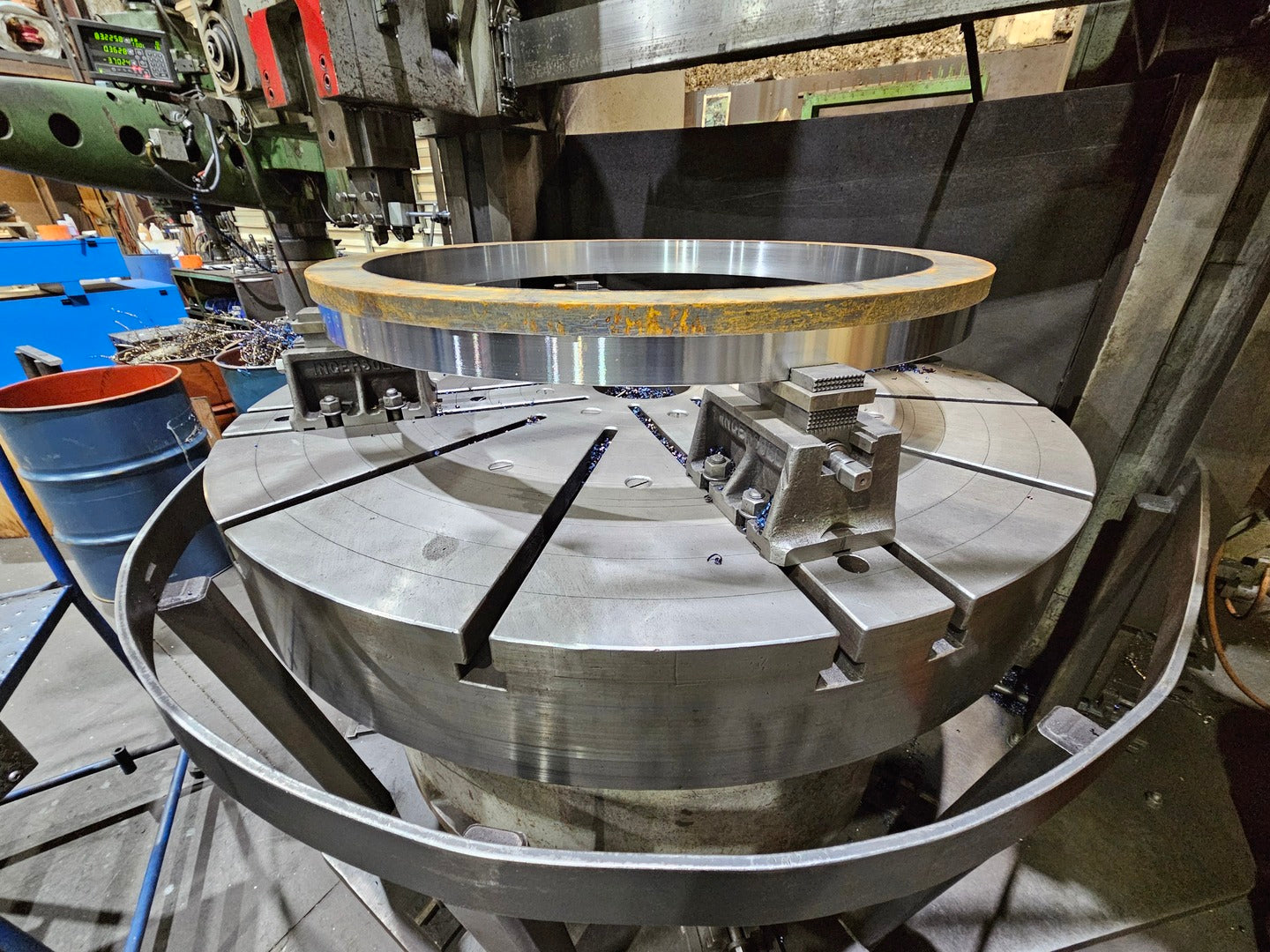

| Table Size | 60" dia. |
| Other Specifications |
|---|
|

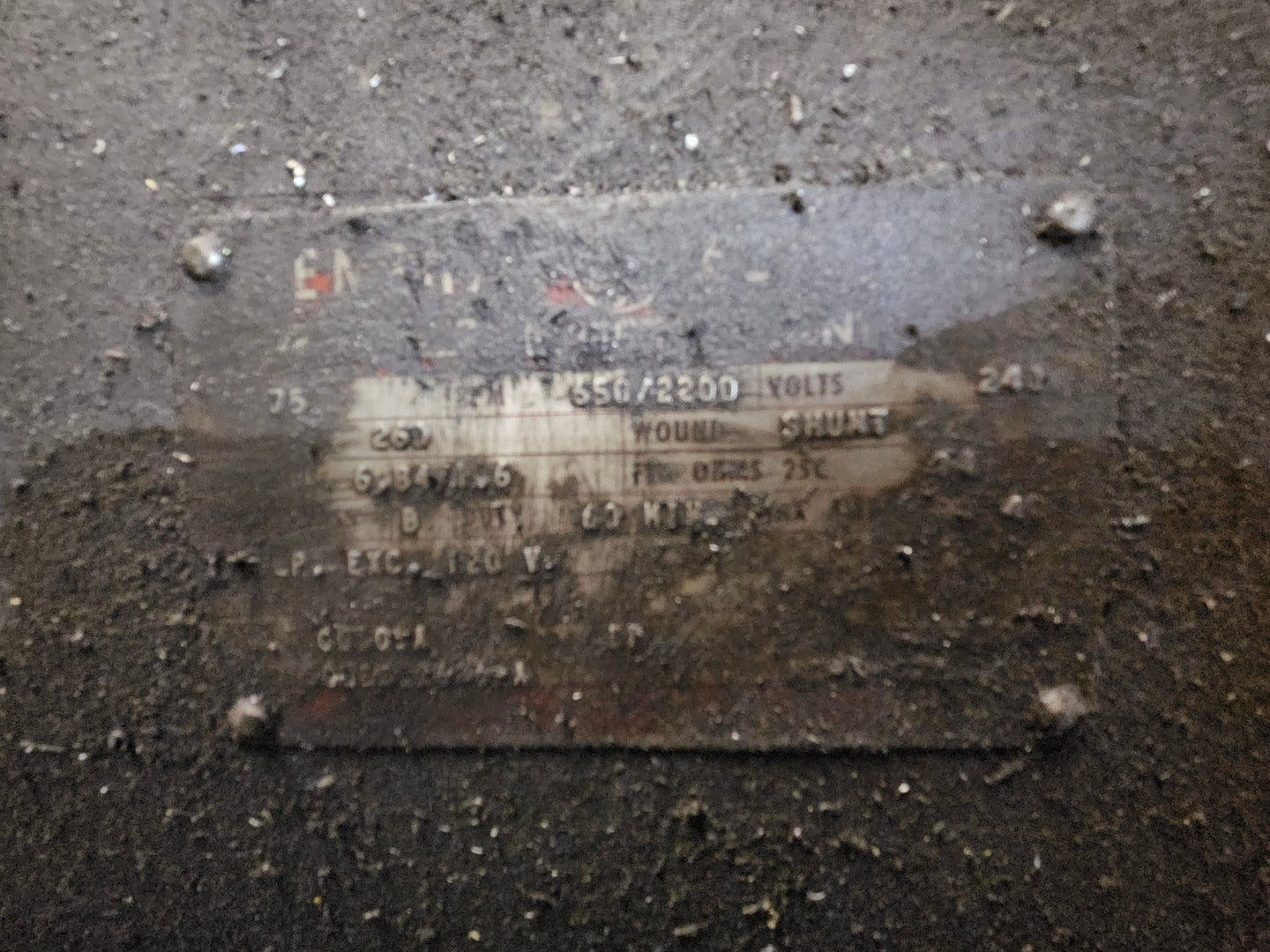

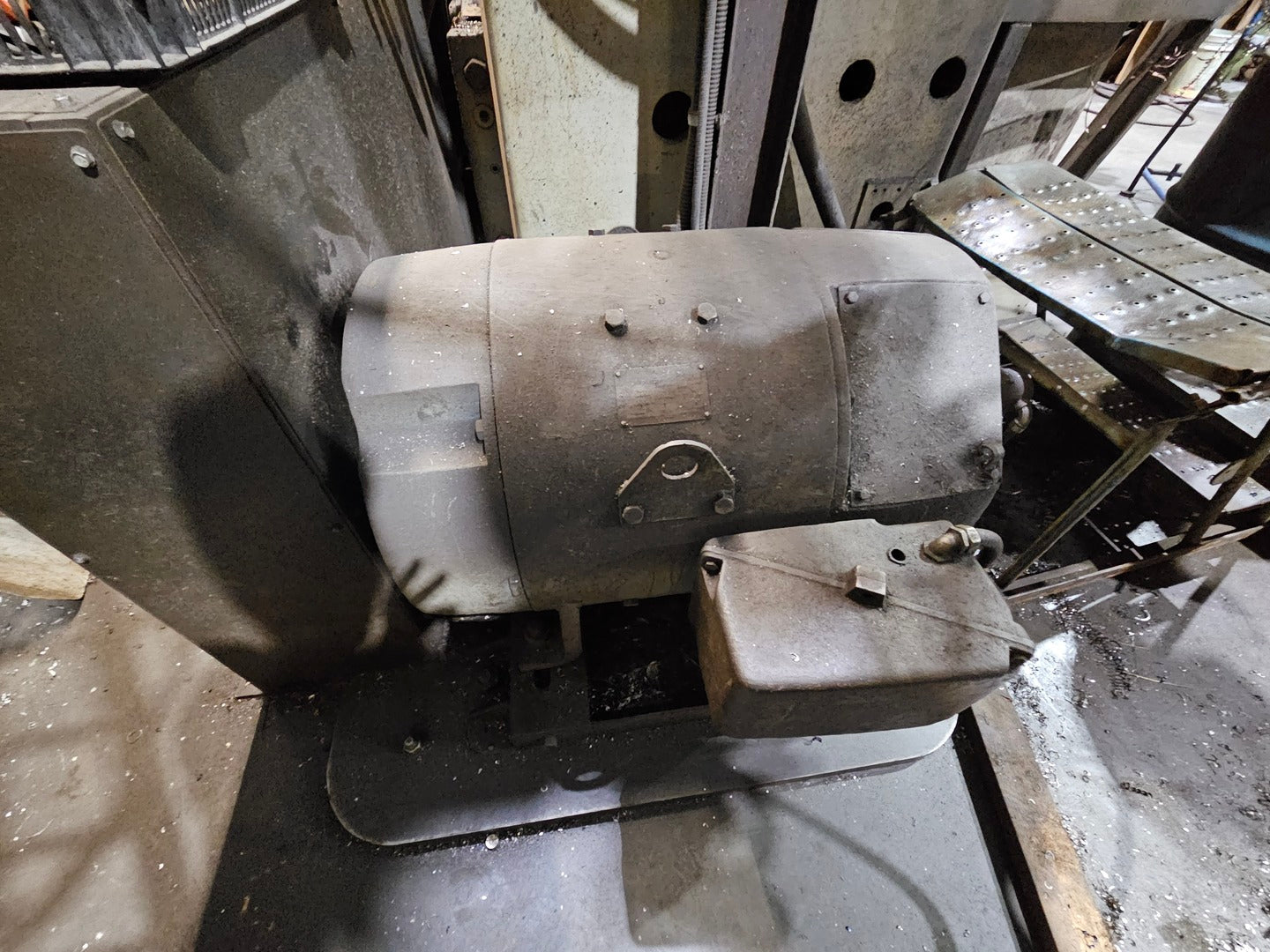

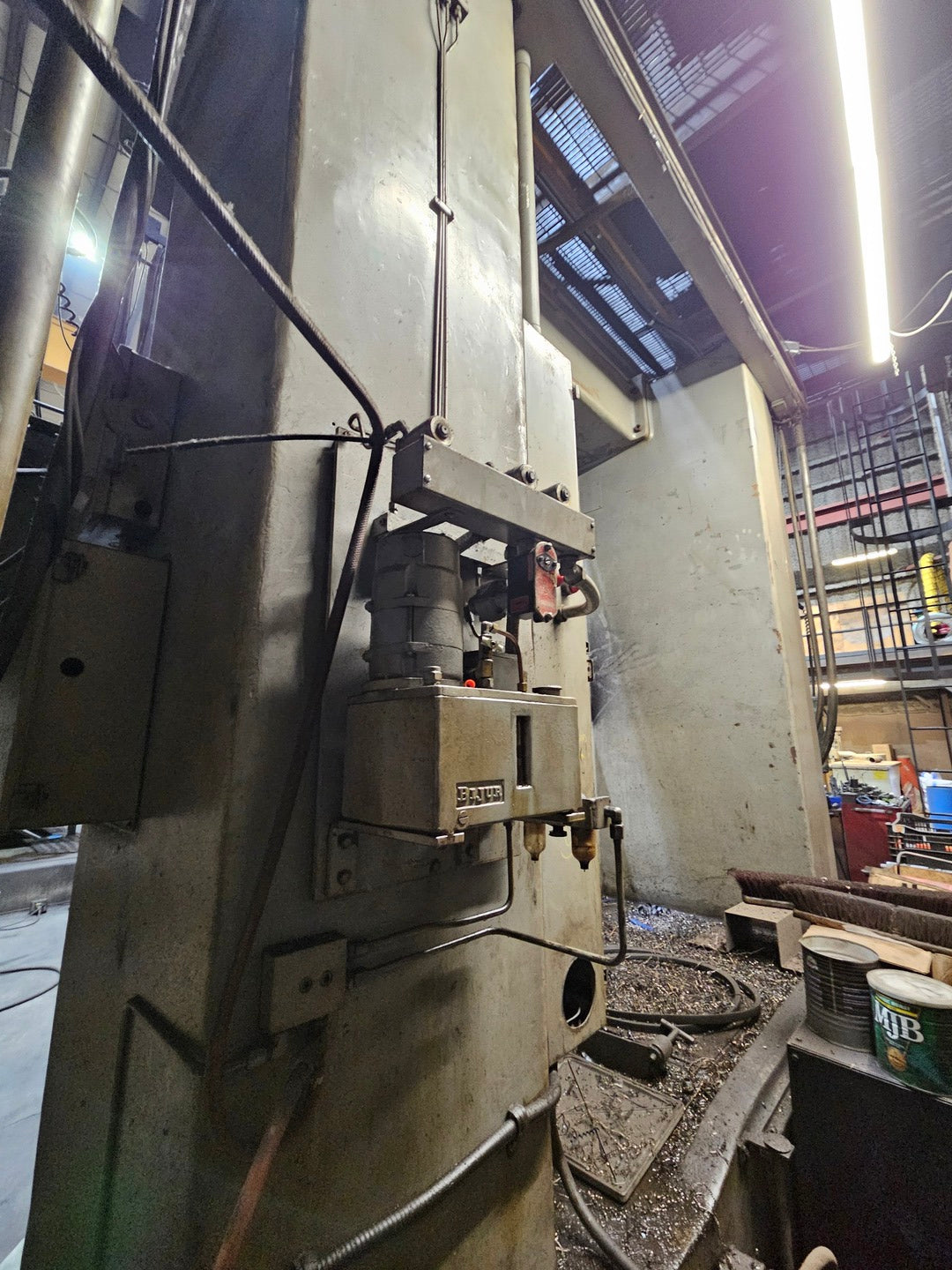

Drive motor was updated and a new digital drive was installed. Table diameter: 60" Height under saddle: 60" Height under ram face: 68" Height under turret face: 72" Vertical travel (below saddle) of ram heads (Std.): 48" Vertical travel (below saddle) of turret head (Std.): 30" Vertical travel of side head above table: 56" Horizontal travel of ram heads: 42" Horizontal travel of turret head: 45" Horizontal travel of side head ram: 32" Travel past center - ram heads: 1/2" Travel past center - turret heads: 1/2" Travel of rail: 50" Swivel of ram either side of vertical: 45° Size of bore in ram heads: 3" Size of bore in turret heads: 3" Maximum swing, with or without side head: 72" Feeds per rev. of table (infinitely variable): .0025" - .250" Table speed range rpm (infinitely variable): 1.3 - 272 Table top to floor: 36-1/4" Overall height machine top to floor: 12'2" Overall height pendant top to floor: 16' Overall height top of ram to floor: 16' |
