Description
| Condition | Used |
| Other Specifications |
|---|
|

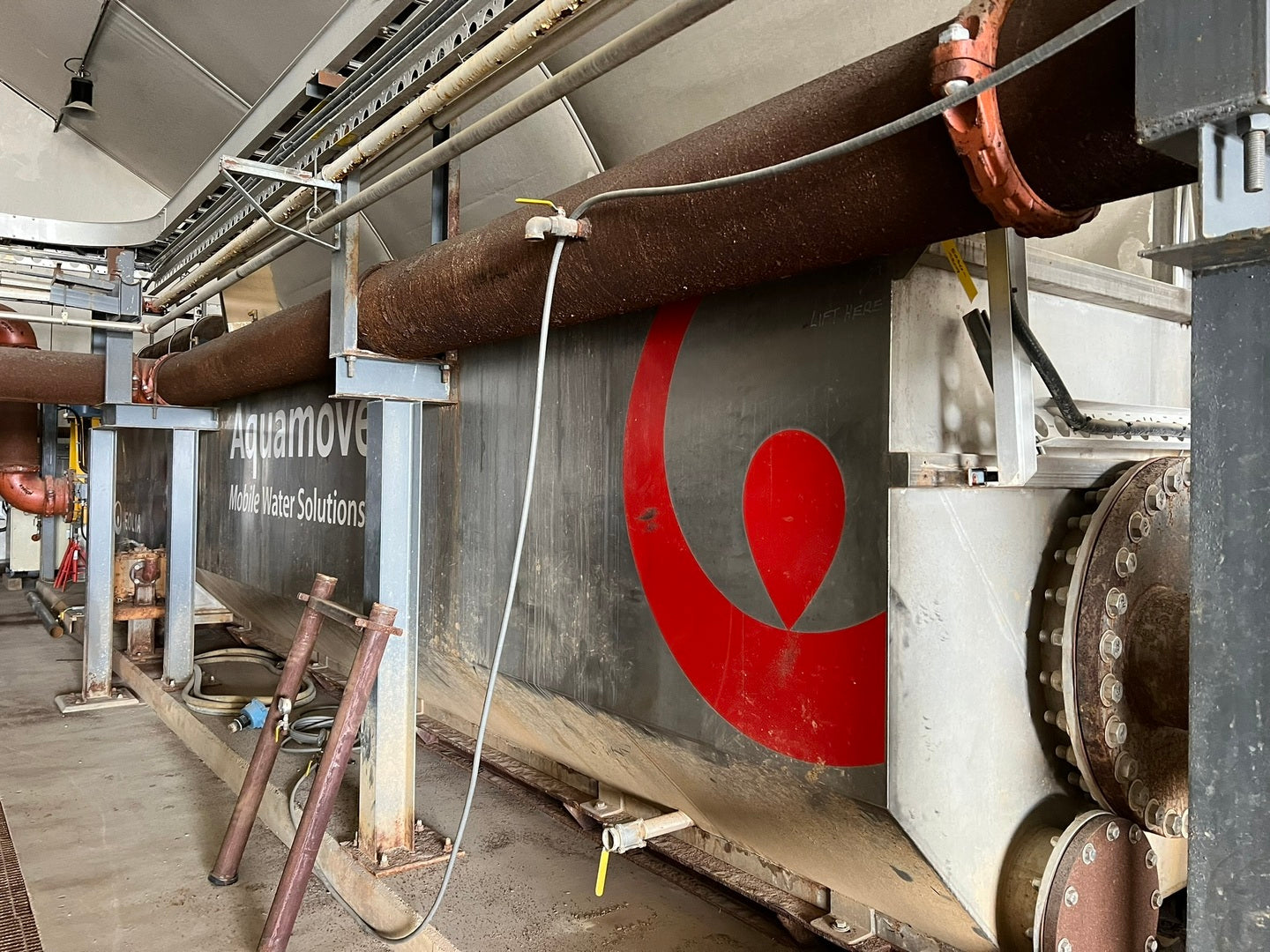

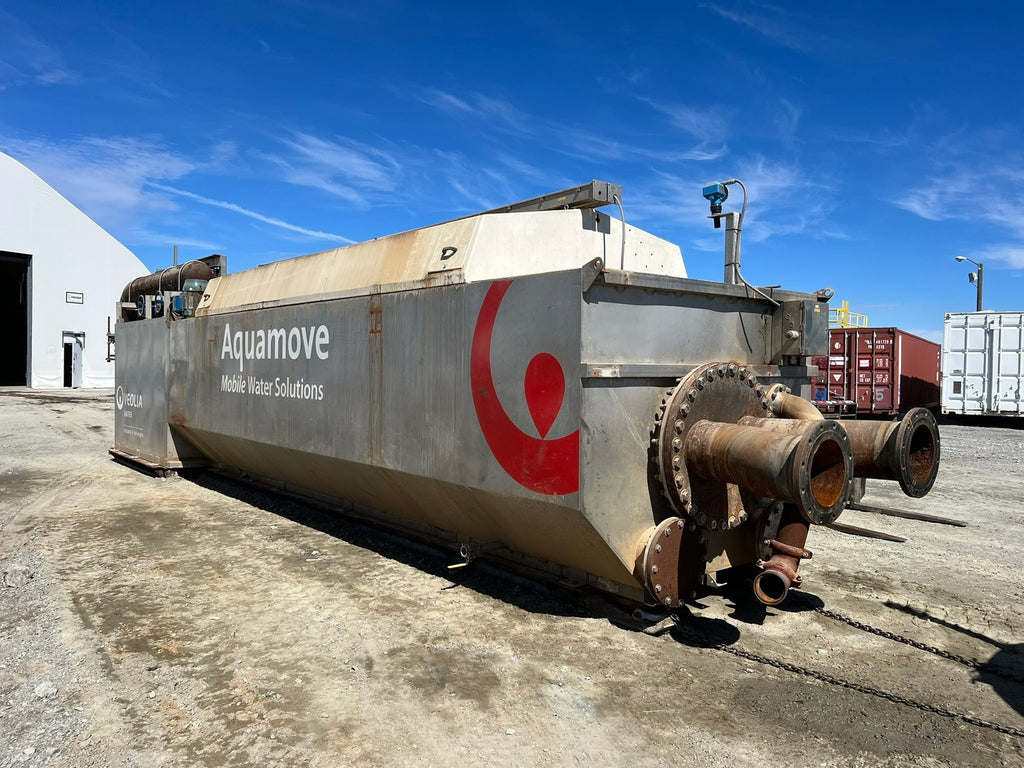

This Water Treatment System Includes: 2 x VEOLIA-JOHN MEUNIER Actiflo High-Performance Clarifiers Model: ACP2-40M Nominal Capacity: 1100 USGPM Required Capacity: 350 - 1500 USGPM Rise Rate @ Nominal Flow: 32 USGPM/Sq. Ft. Rise Rate @ Min. Required Flow: 10 USGPM/Sq. Ft. Rise Rate @ Max. Required Flow: 44 USGPM/Sq. Ft. Each Actiflo High-Perfomance Clarifier comes with the Actiflo Turbo Package, consisting of:
1 x KRUGER/HYDROTECH 2200 Series Disc Filter Model: HSF2224D-1FN Serial No.: 6757 Manufacture Year: 2010 Drum Diameter w/ Discs: 2200mm Max. Number of Discs: 24 Includes: Enclosed tank and control enclosure 2 x Chemical & Electrical Control Containers Each containing:
2 x BAKER 4-Pod Sand Filter Description: Skid-mounted, high-rate, automatic backwashing sand media filter with 4 pods, designed for general purpose water filtration of organic and inorganic solids. Model: IL 5424-4AS Serial No.: SFL22333 Min./Max. Pressure: 35/80 PSI Max. Flow: 1000 GPM B/W Flow: 80 GPM Supporting Documents Manual - Actiflo High-Performance Clarifier ACP2-40M and Turbo Package Manual - KRUGER/HYDROTECH 2200 Series Disc Filter HSF2224D-1FN Drawing - Disc Filter General Arrangement Drawing - Chemical Container General Arrangement Drawing - Clarifier Piping & Instrumentation Diagram (PID) Drawing - Disc Filter Piping & Instrumentation Diagram (PID) Drawing - Service Water Piping & Instrumentation Diagram (PID) Drawing - Coagulant Piping & Instrumentation Diagram (PID) Drawing - Polymer Piping & Instrumentation Diagram (PID) Drawing - Caustic Piping & Instrumentation Diagram (PID) Drawing - Process Flow Diagram Drawing - Possible Installation Layout This system is designed by Veolia's AQUAMOVE service, with each component designed with the ability to be mobile and easily transported. |
