| Specifications | |
|---|---|
| Model | 150VCP-W25 |
| S/N: | 141200446 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Amps | 1200 amps |
| # of Poles | 3 |
| Voltage | 15000 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

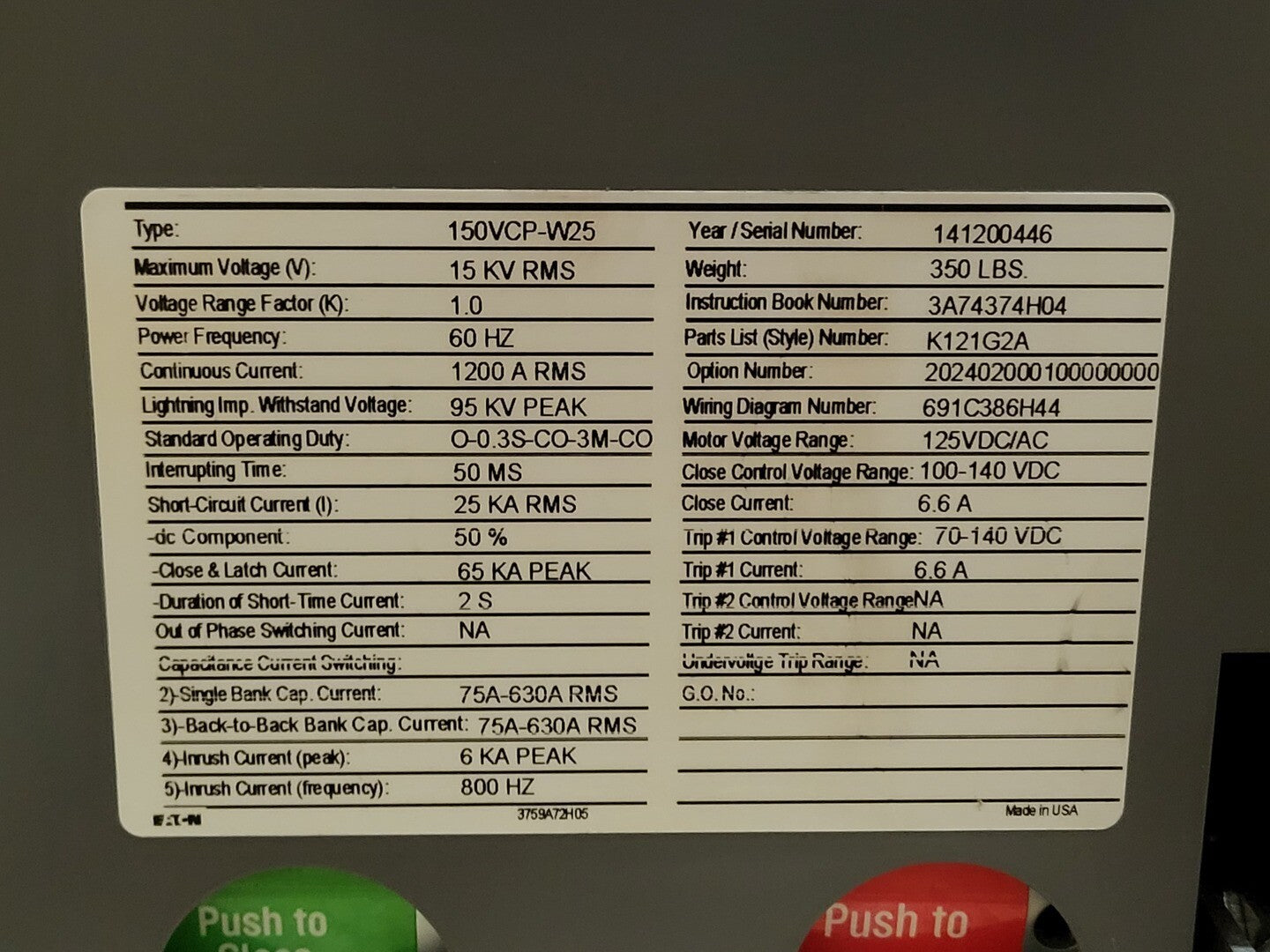

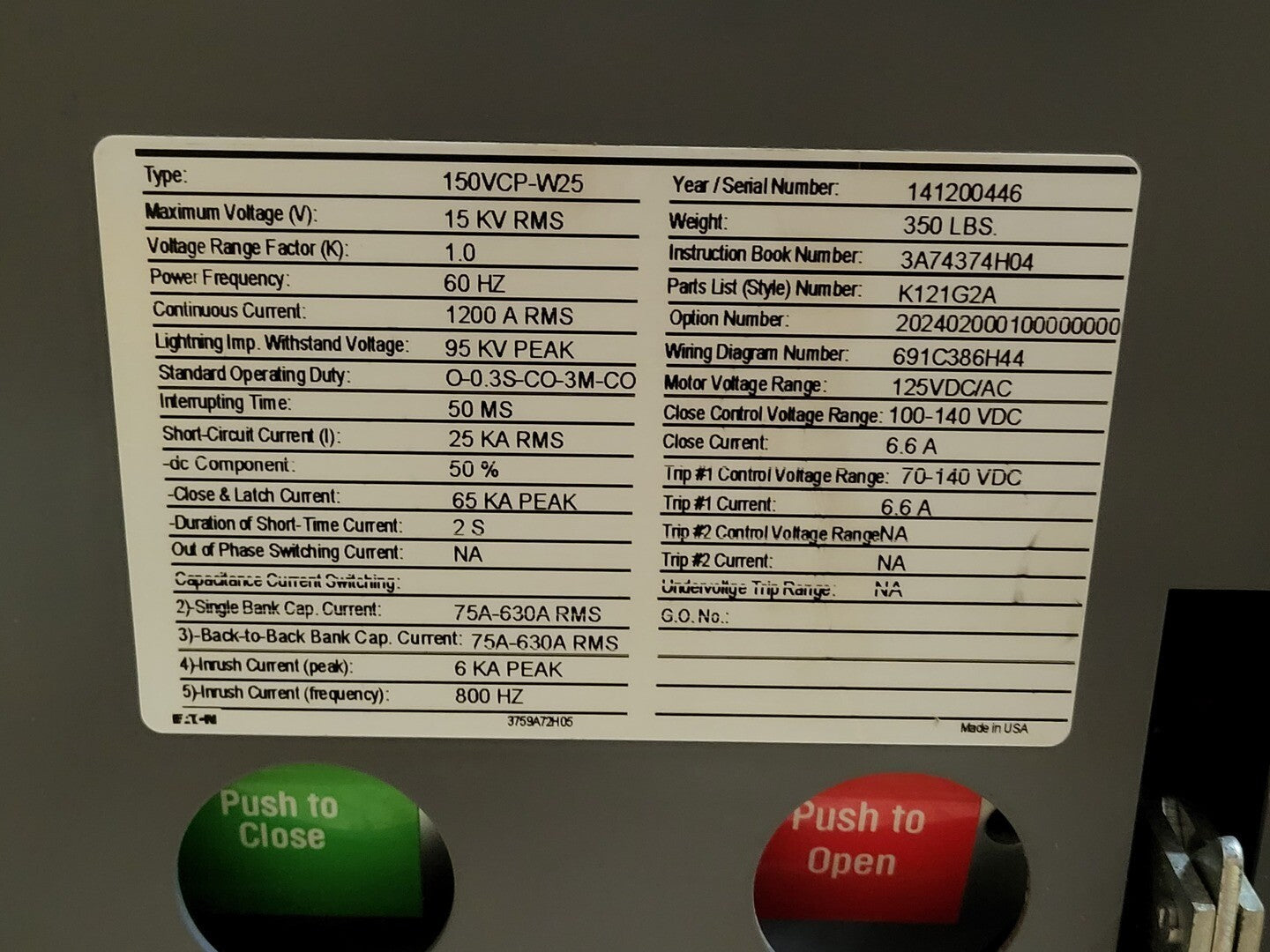

Max. Voltage: 15 kV RMS Lightning Imp. Withstand Voltage: 95 kV peak Standard Operating Duty: O-0.3S-CO-3M-CO Interrupting Time: 50 ms Short Circuit Current: 25 kA RMS Close & Latch Current: 65 kA peak Duration of Short-Time Current: 2 s Single Bank Cap. Current: 75A-630A RMS Back to Back Bank Cap. Current: 75A-630A RMS Inrush Current Peak: 6 kA Inrush Current Frequency: 800 Hz Motor Voltage Range: 125 VDC/AC Close Control Voltage Range: 100-140 VDC Close Current: 6.6 A Trip #1 Control Voltage Range: 70-140 VDC Trip #1 Current: 6.6 A Mount: Draw-out |
