Descripción

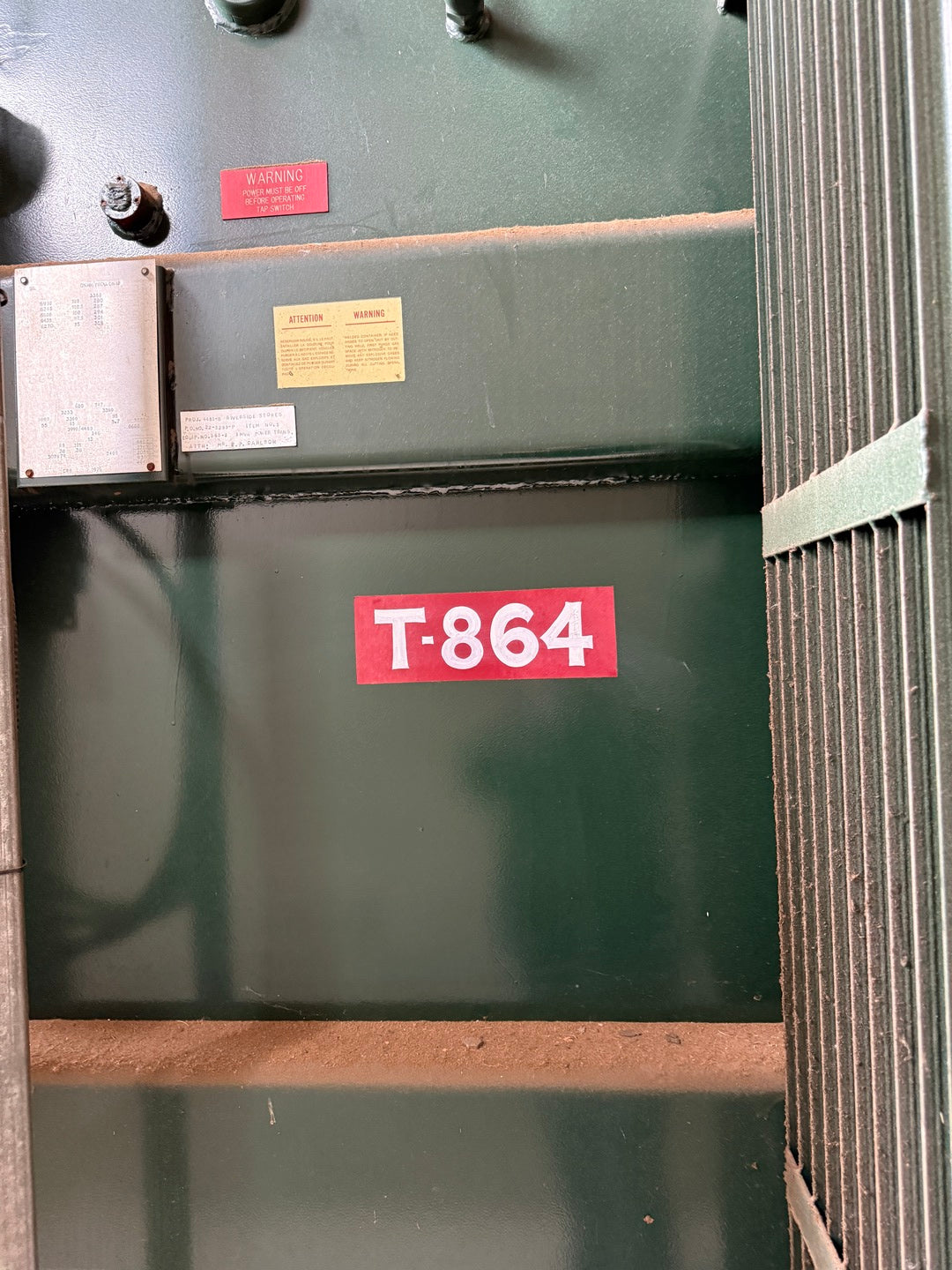

3000/3360 kVA 3-phase oil-filled isolation transformer, 6600 V primary, 600Y/347 V secondary, ONAN/ONAF cooling, ideal for industrial and substation distribution.
| Year: | 1979 |
| S/N: | 2-307880 |
| Made In | CANADA |
| Condition | Used | Electrical |
|---|---|
| kVA | 3000 kVA |
| Primary Voltage | 6600 volts |
| Secondary Voltage | 600/347 volts |
| Phase | 3-phase | General |
| Transformer Type | Substation Transformer |
| Auto VS Isolation | Isolation |
| Oil vs Dry | Oil |
| Enclosure Type | Nema 3R |
| Other Specifications |
|---|
|

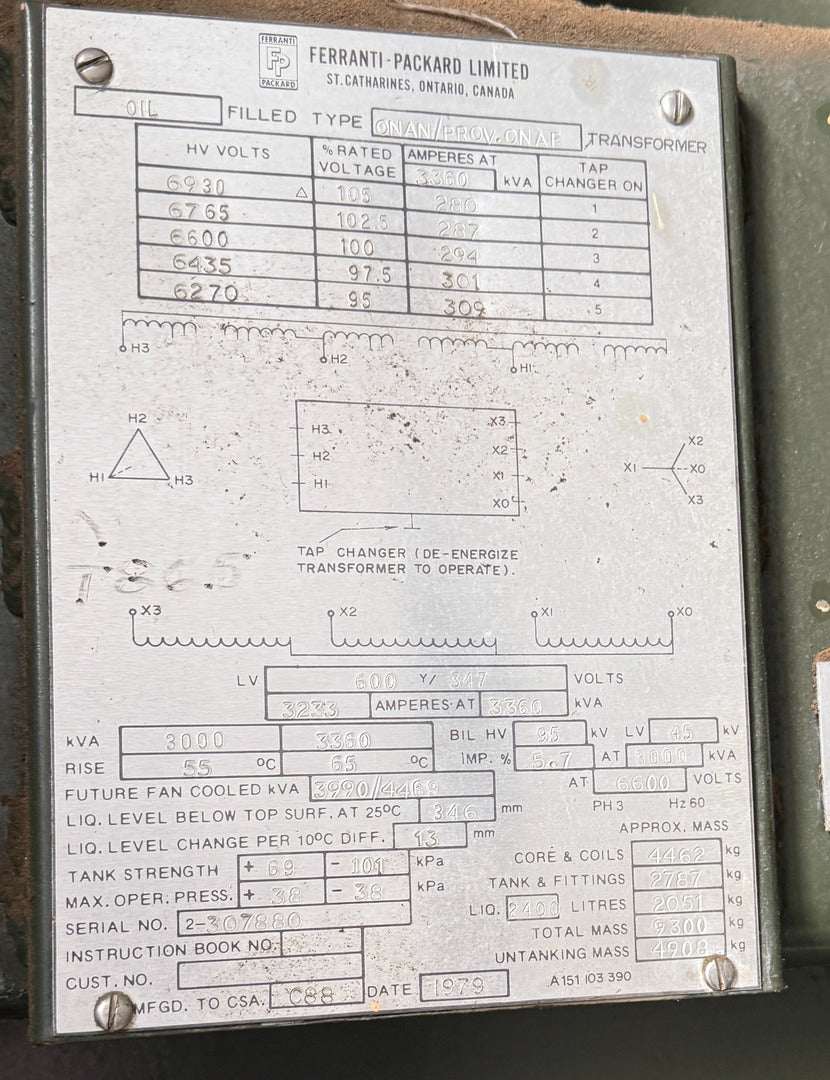

Overview: Type: 3-phase, oil-filled isolation transformer Power Rating: 3000 kVA (ONAN), 3360 kVA (ONAF) Primary Voltage (HV): 6600 V Secondary Voltage (LV): 600Y/347 V Frequency: 60 Hz Rated Current: 3233 A Cooling: ONAN (natural oil-air), ONAF (forced air with fans) Temperature Rise: 55 °C / 65 °C Impedance: 5.8% at 3000 kVA BIL: HV 95 kV, LV 45 kV Phase: 3-phase Application: Industrial power distribution, substation transformer |
