Description
| Specifications | |
|---|---|

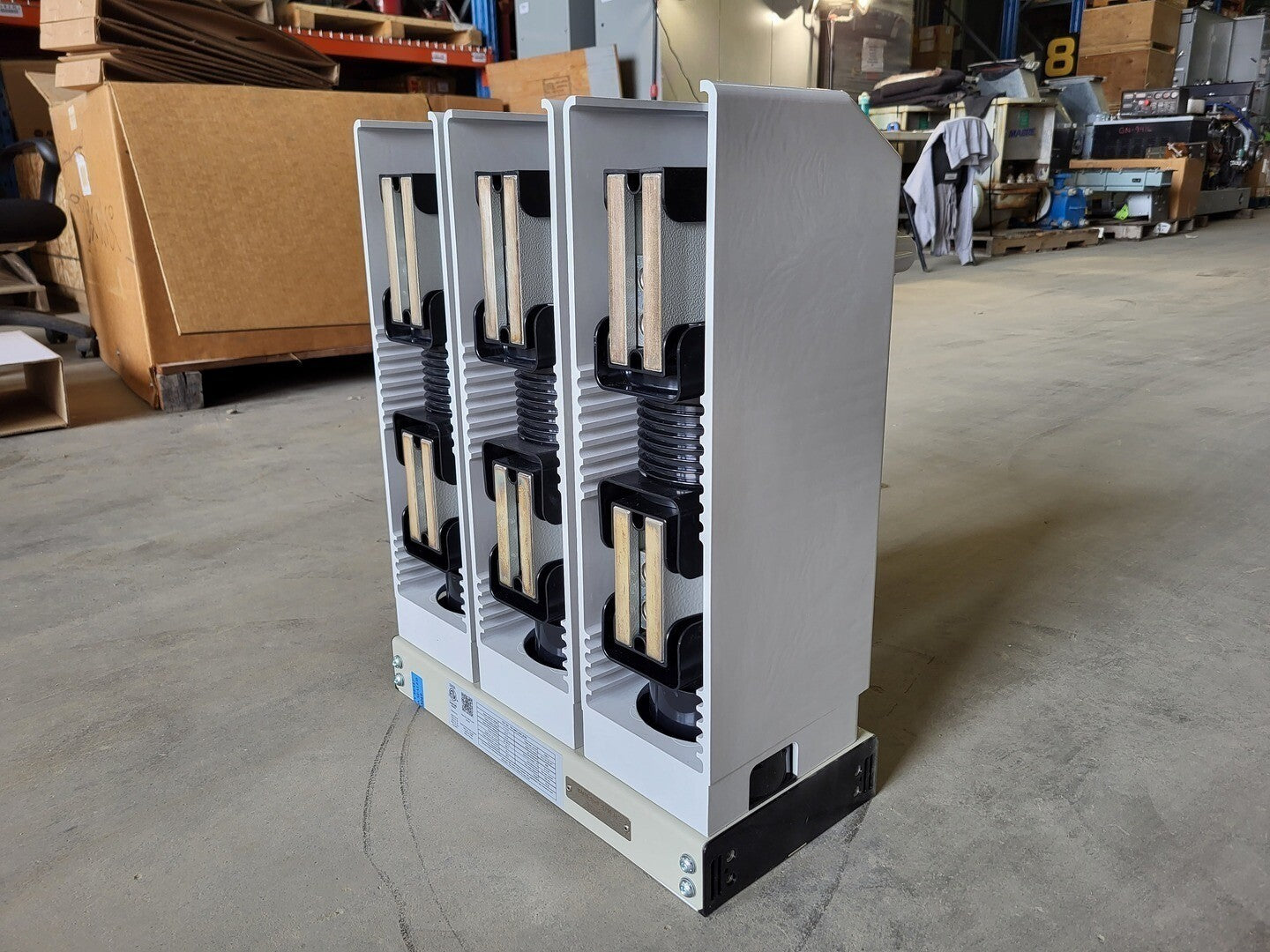

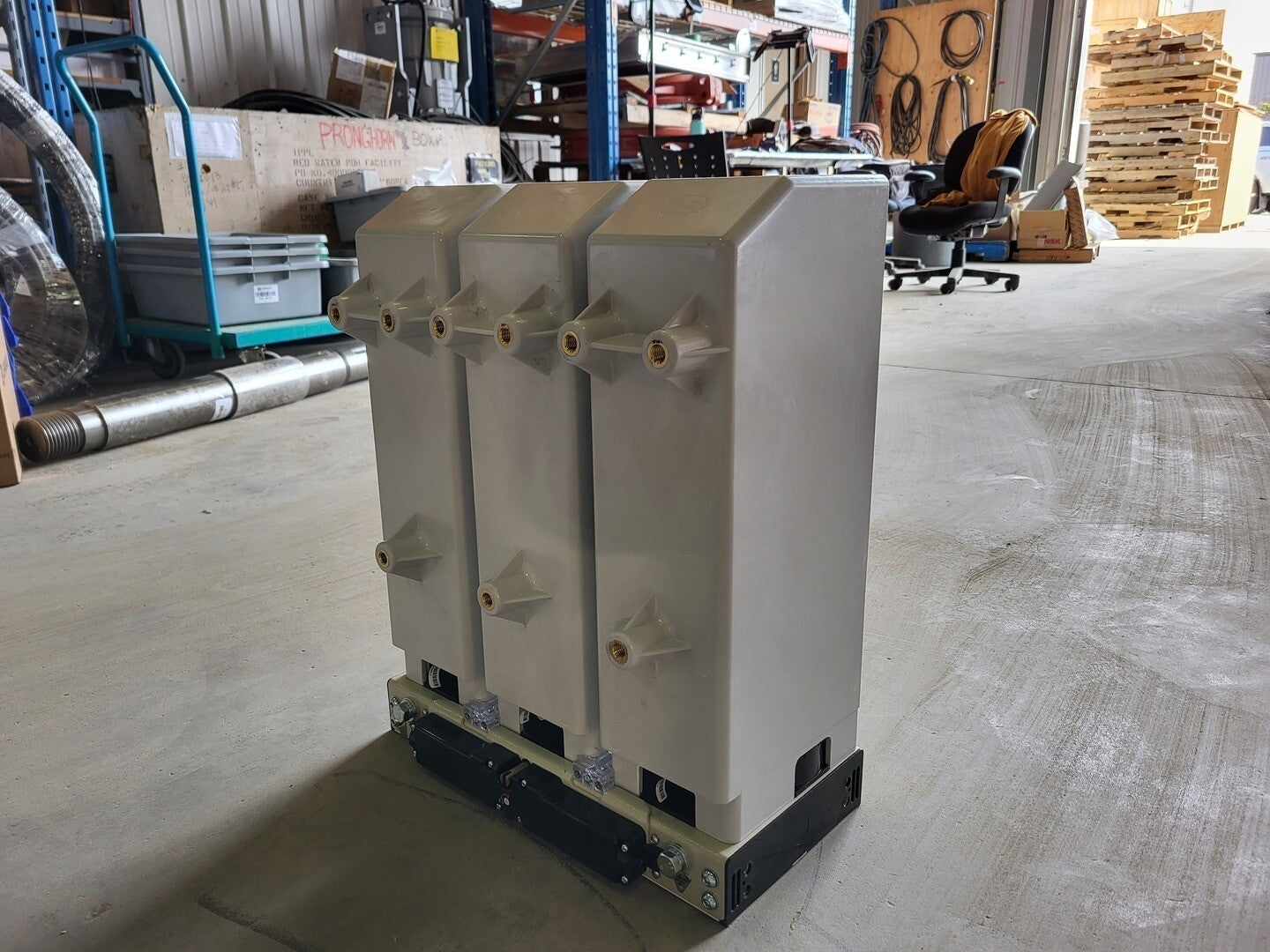

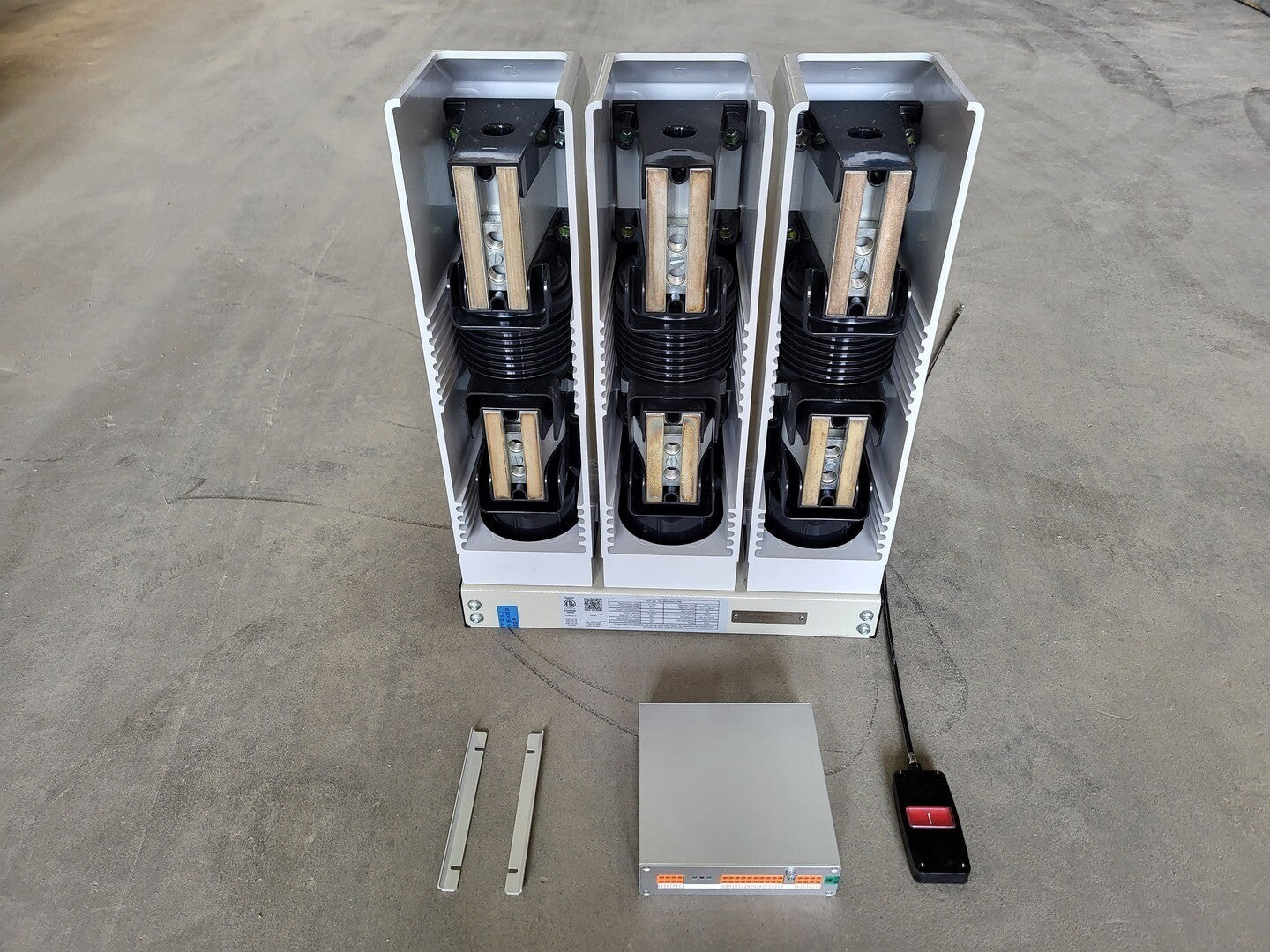

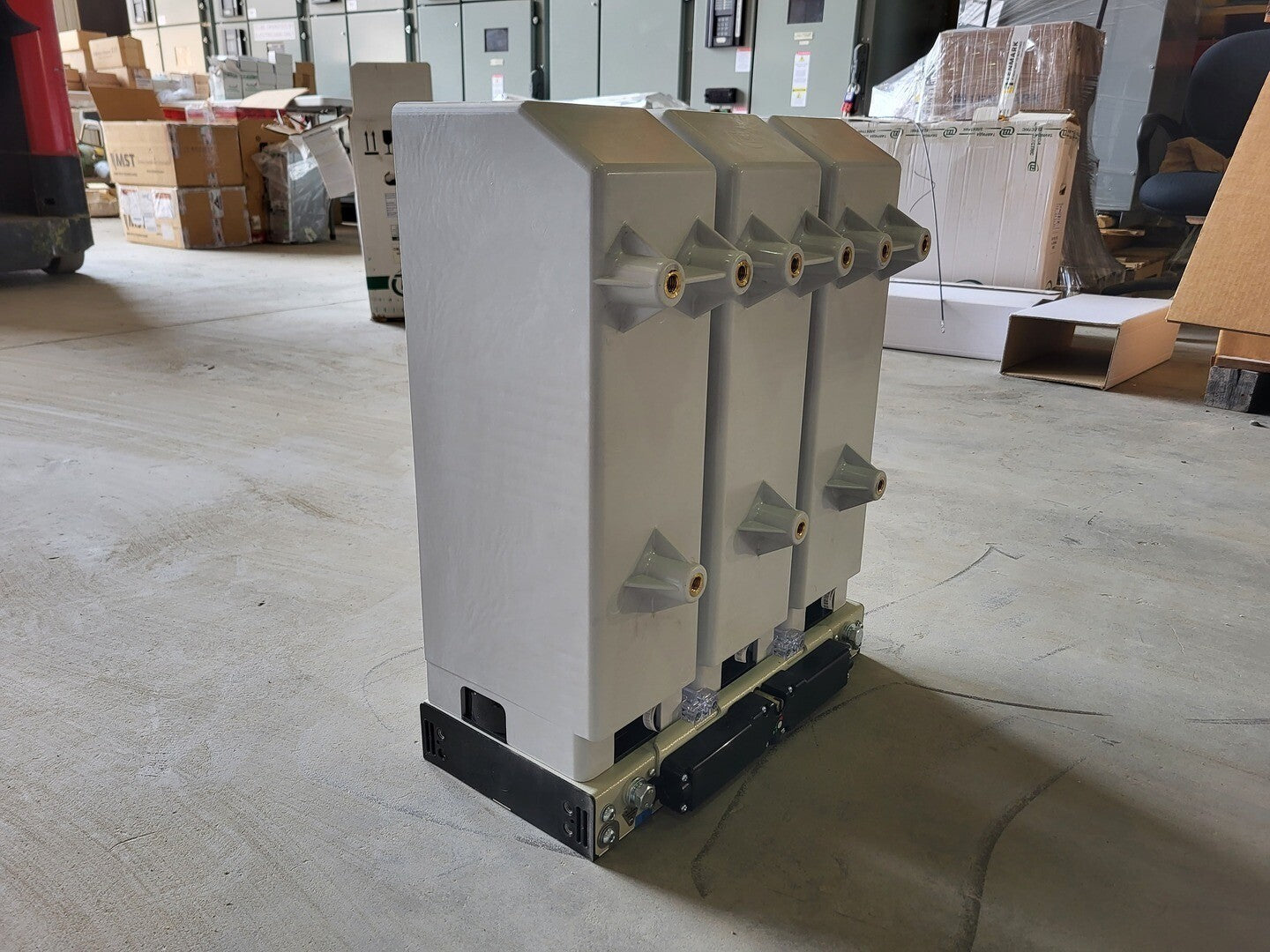

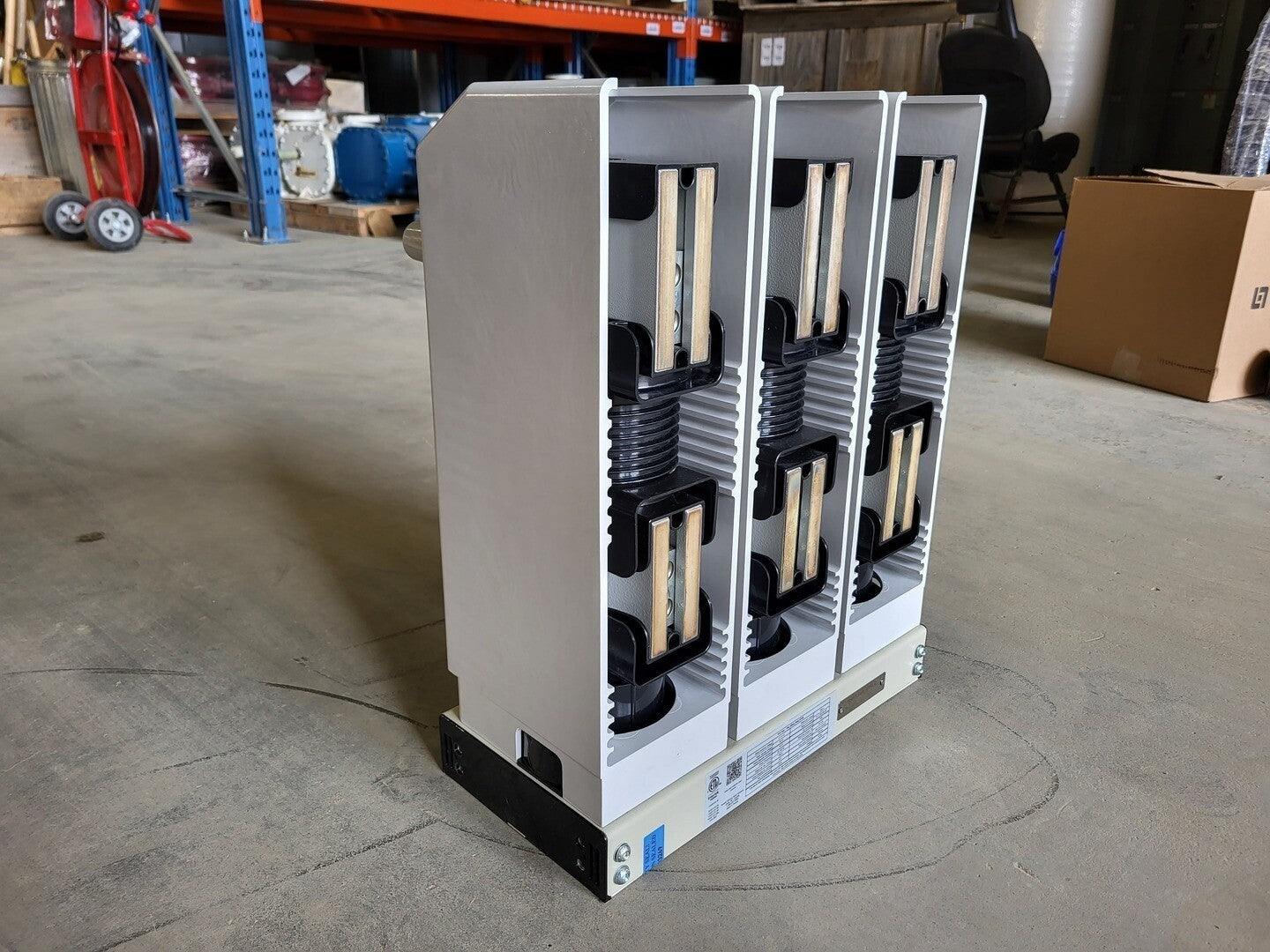

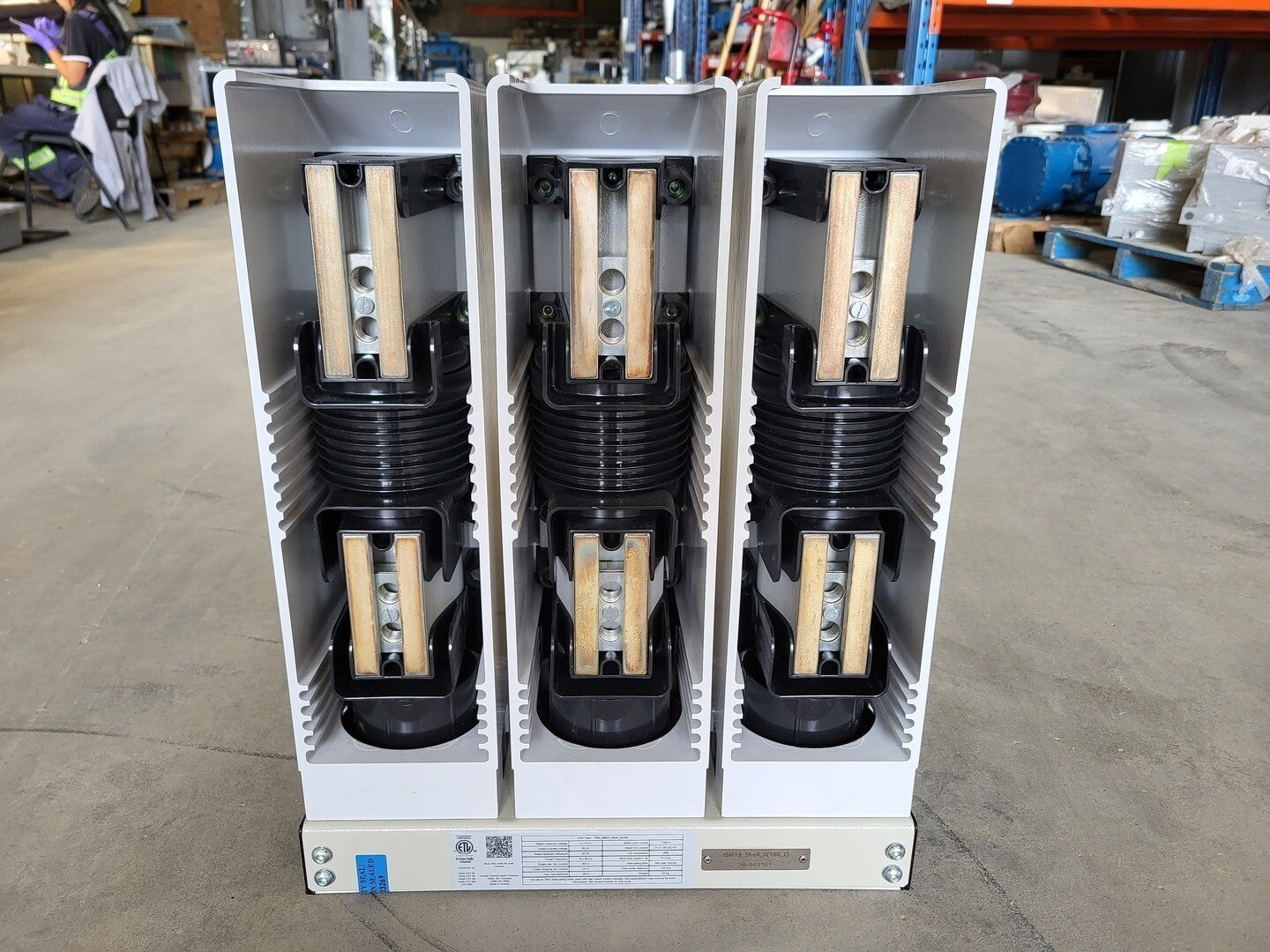

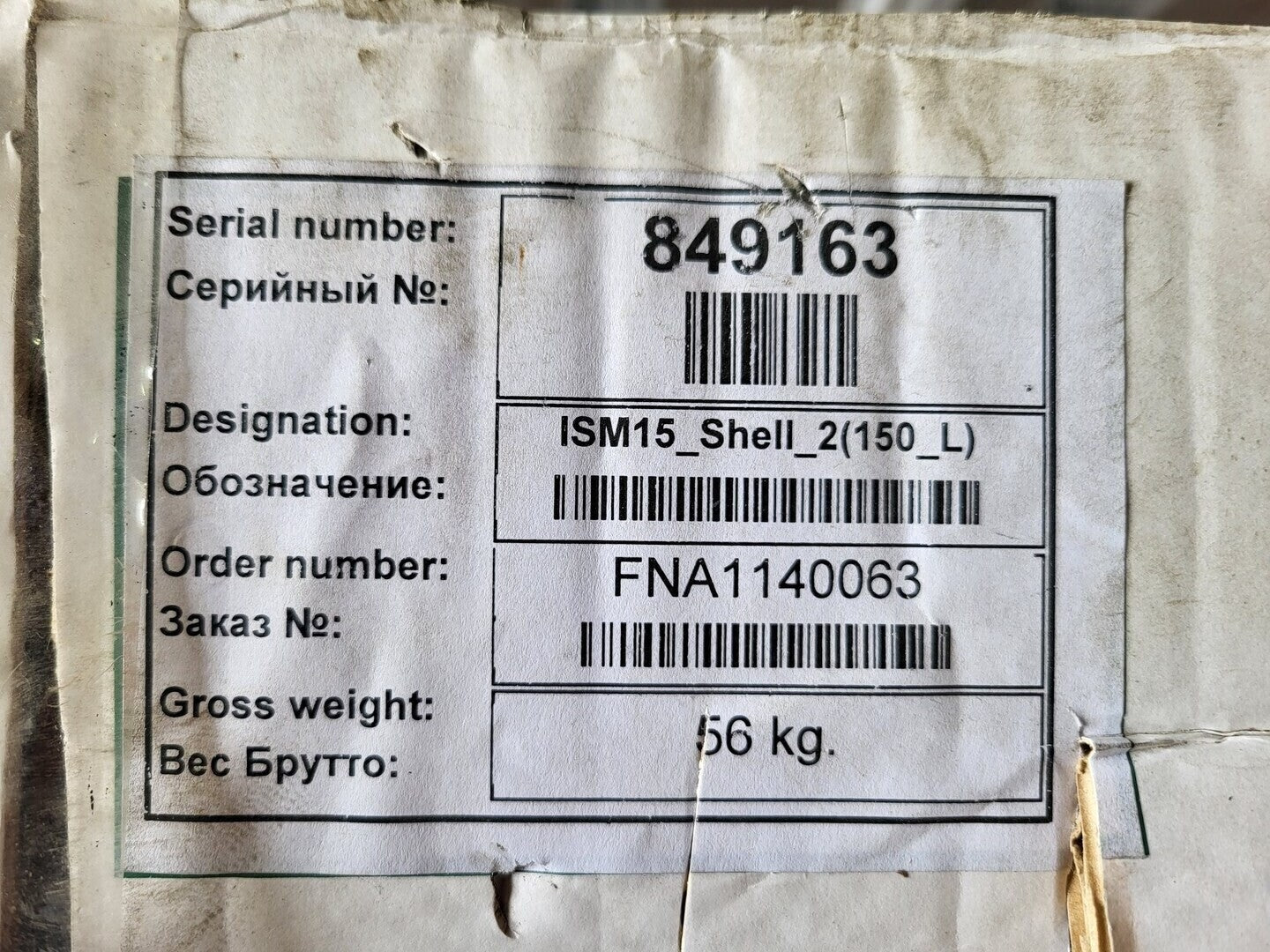

| Model | TNA_ISM15_Shell_2(150) |
| Year: | 2014 |
| Condition | Surplus New | General |
| Amps | 1200 amps |
| Other Specifications |
|---|
|

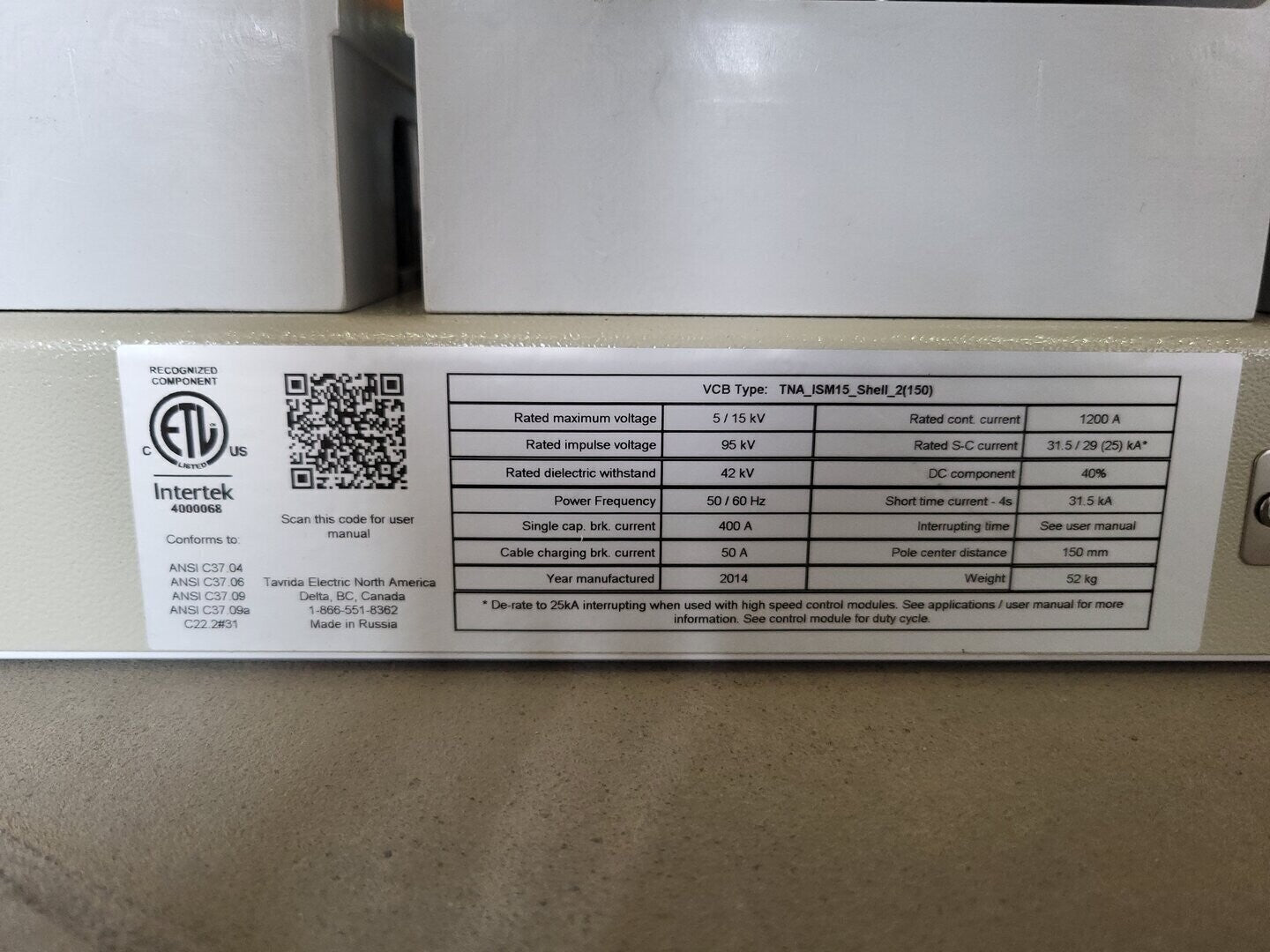

Rated Voltage: 15 kV Rated continuous Current: 1250 A (2000A) Rated Power Frequency Withstand Voltage: 36 kV Rated Lighting Impulse Withstand Voltage: 95 kV Rated Short-Circuit Breaking Current: 31.5 kA Rated Peak Withstand Current: 82 kA Rated Short-Time Withstand Current: 31.5 kA Single Capacity Break Current: 400 A Cable Charging Break Current: 50 A Rated Frequency: 50/60 Hz Mechanical Life: 30,000 Operating Cycles, Rated Current: 30,000 Electrical Endurance, Breaking Current: 50 Closing Time: 20ms2 Opening Time: 8ms2 Type of Driving Mechanism: Monostable Magnetic Actuator Pole Center Distance: 150 mm Number of Available Auxiliary Contacts: 6NO + 6NC Rated Power Frequency Test Voltage: 2 kV Other Accessories Include:
|
