Description
| Specifications | |
|---|---|

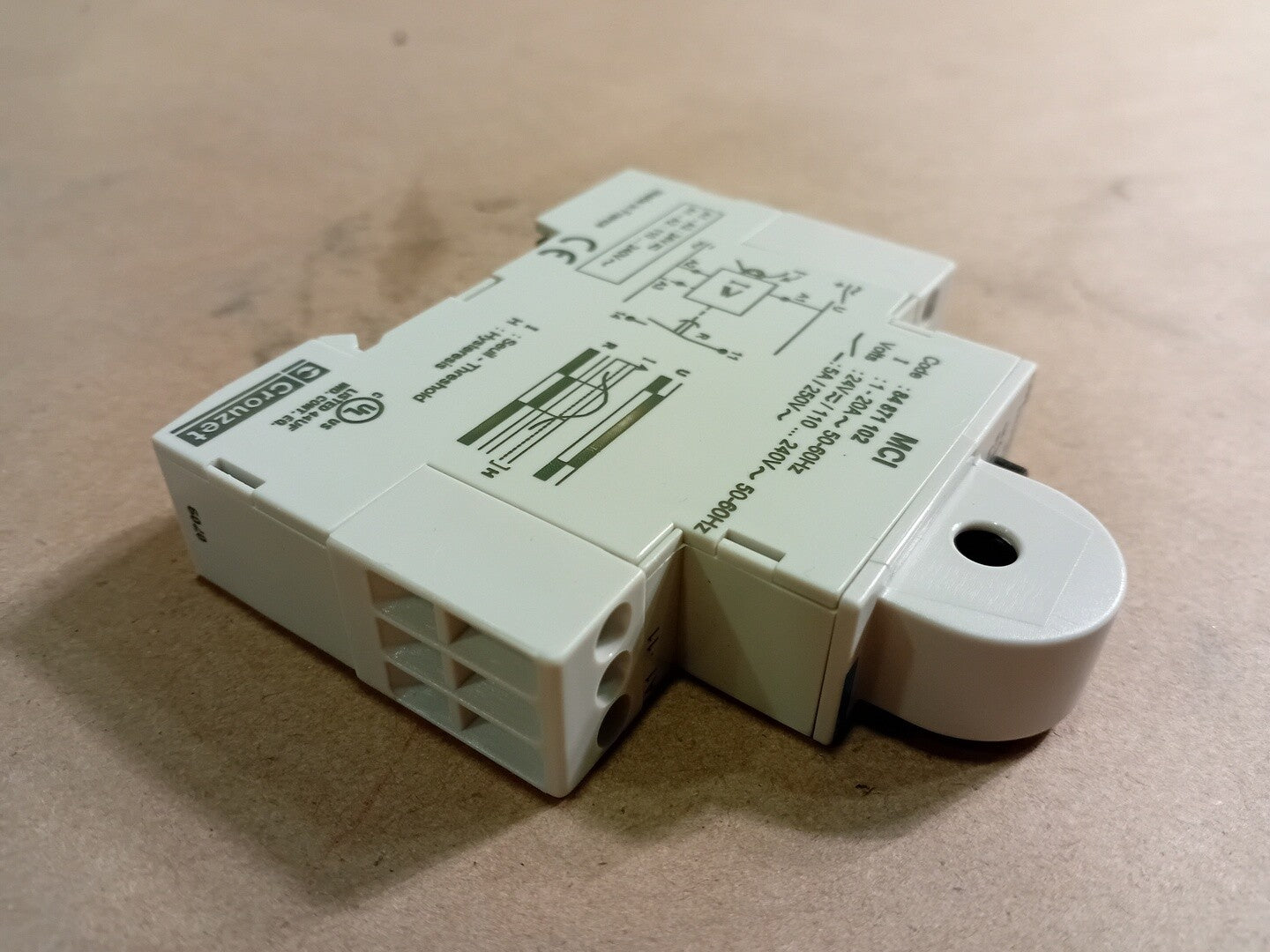

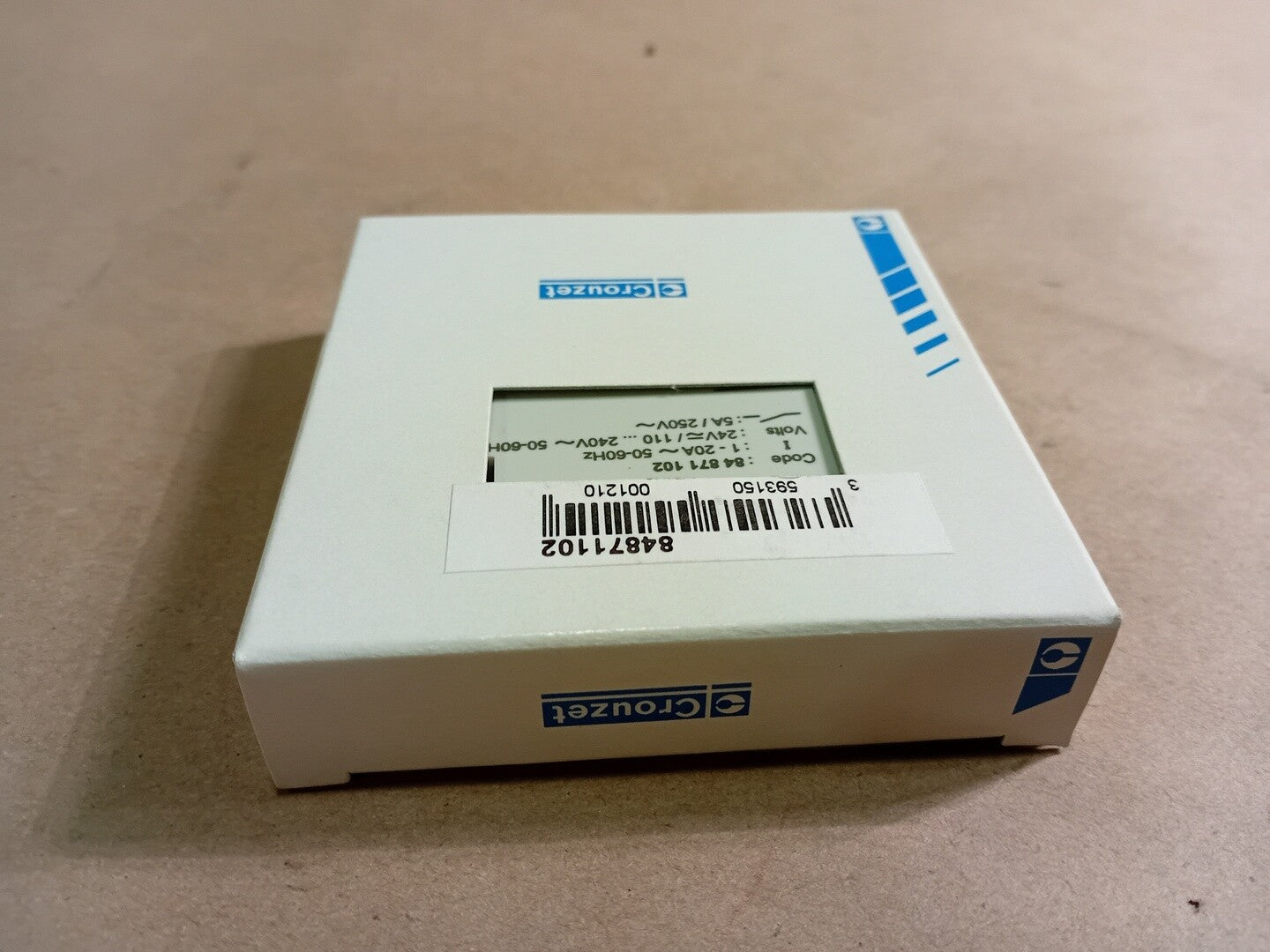

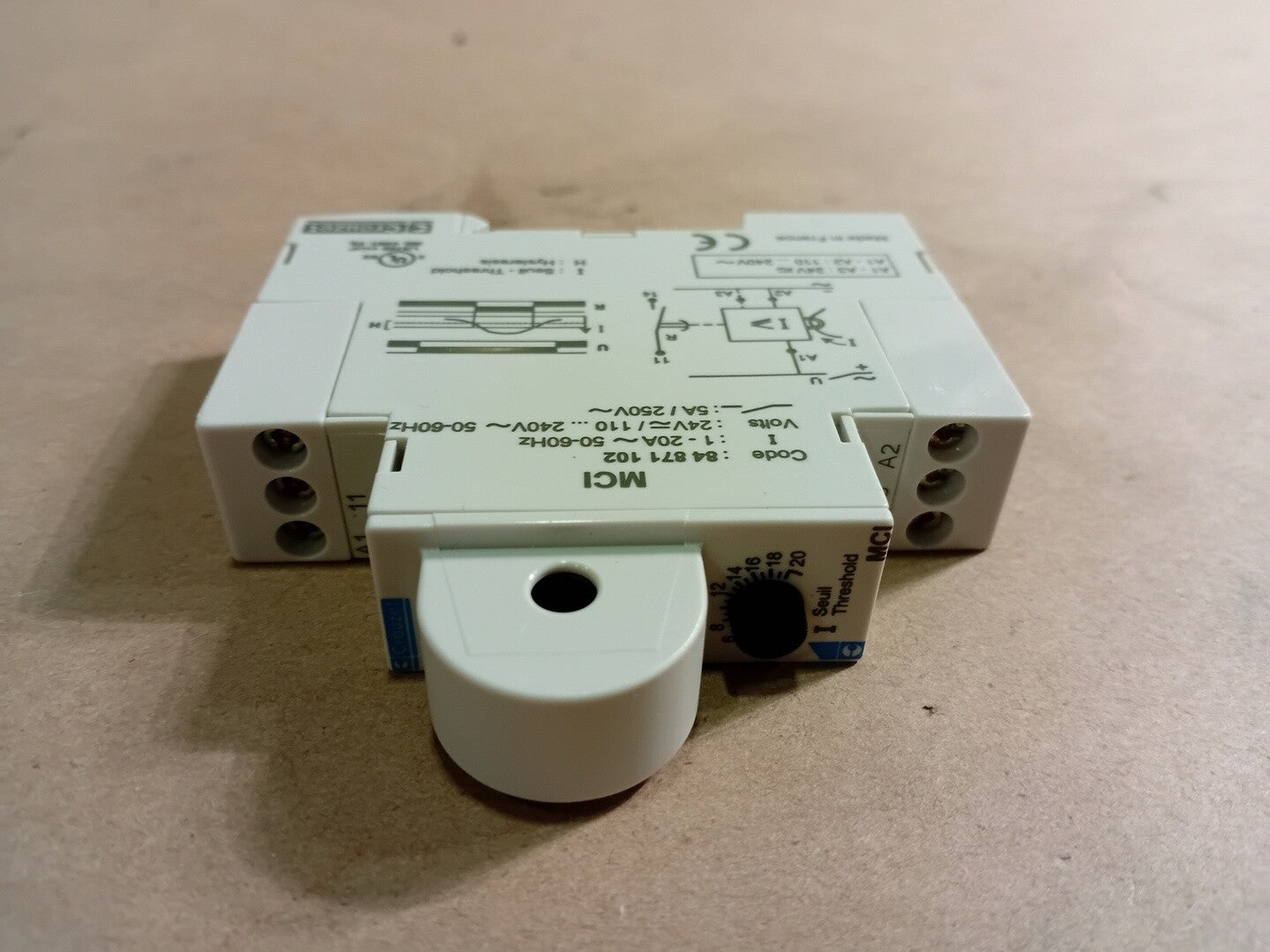

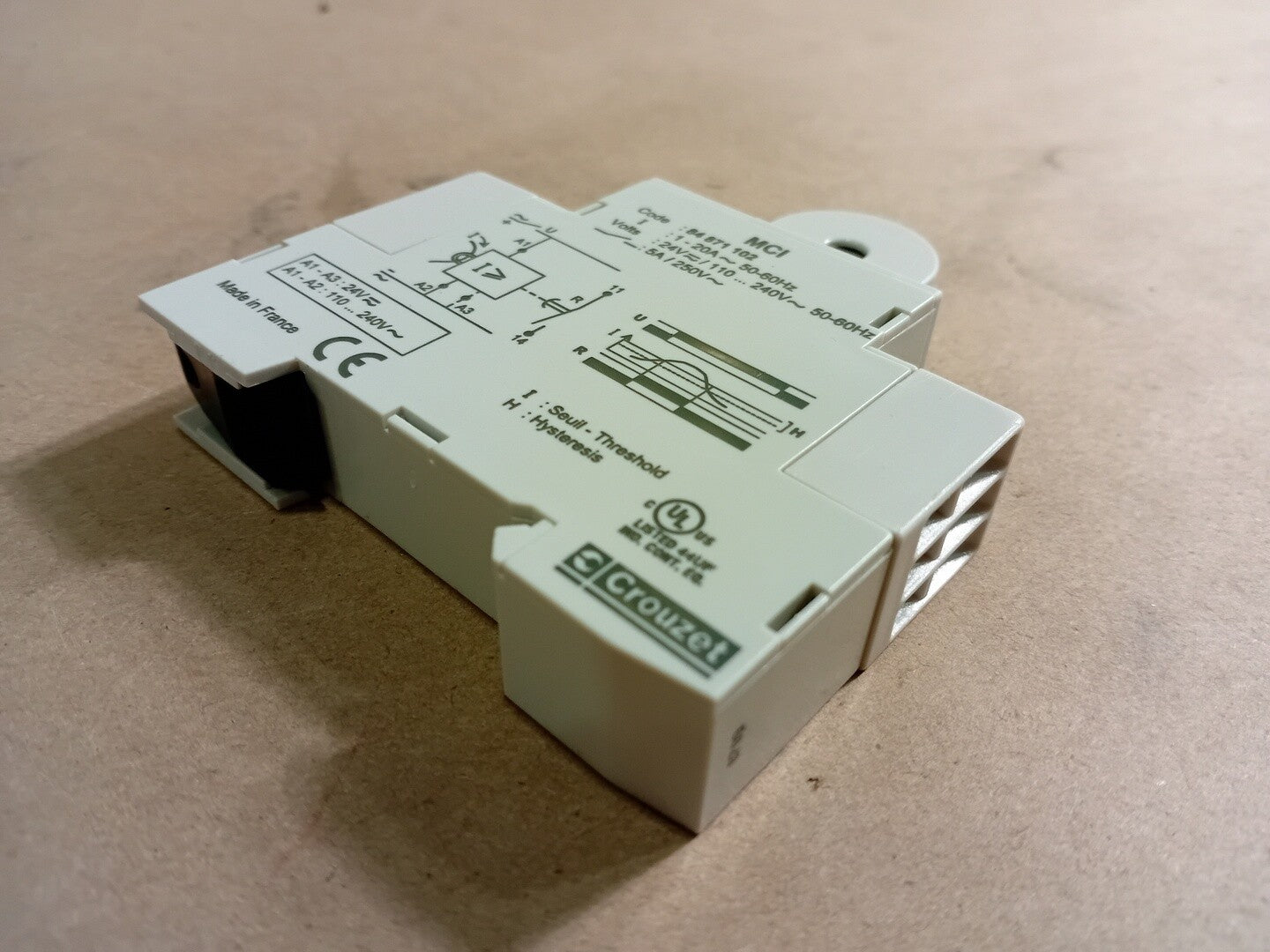

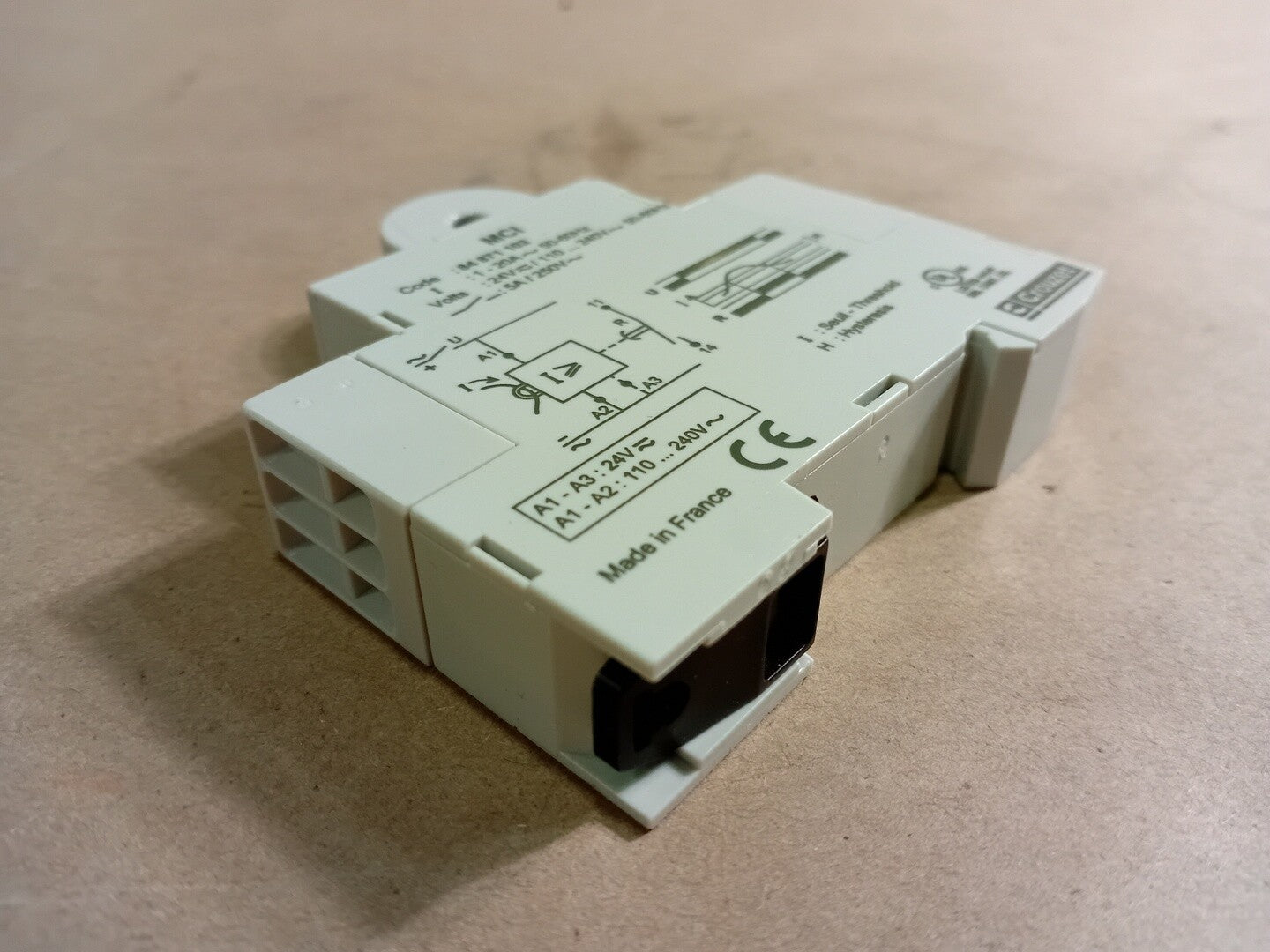

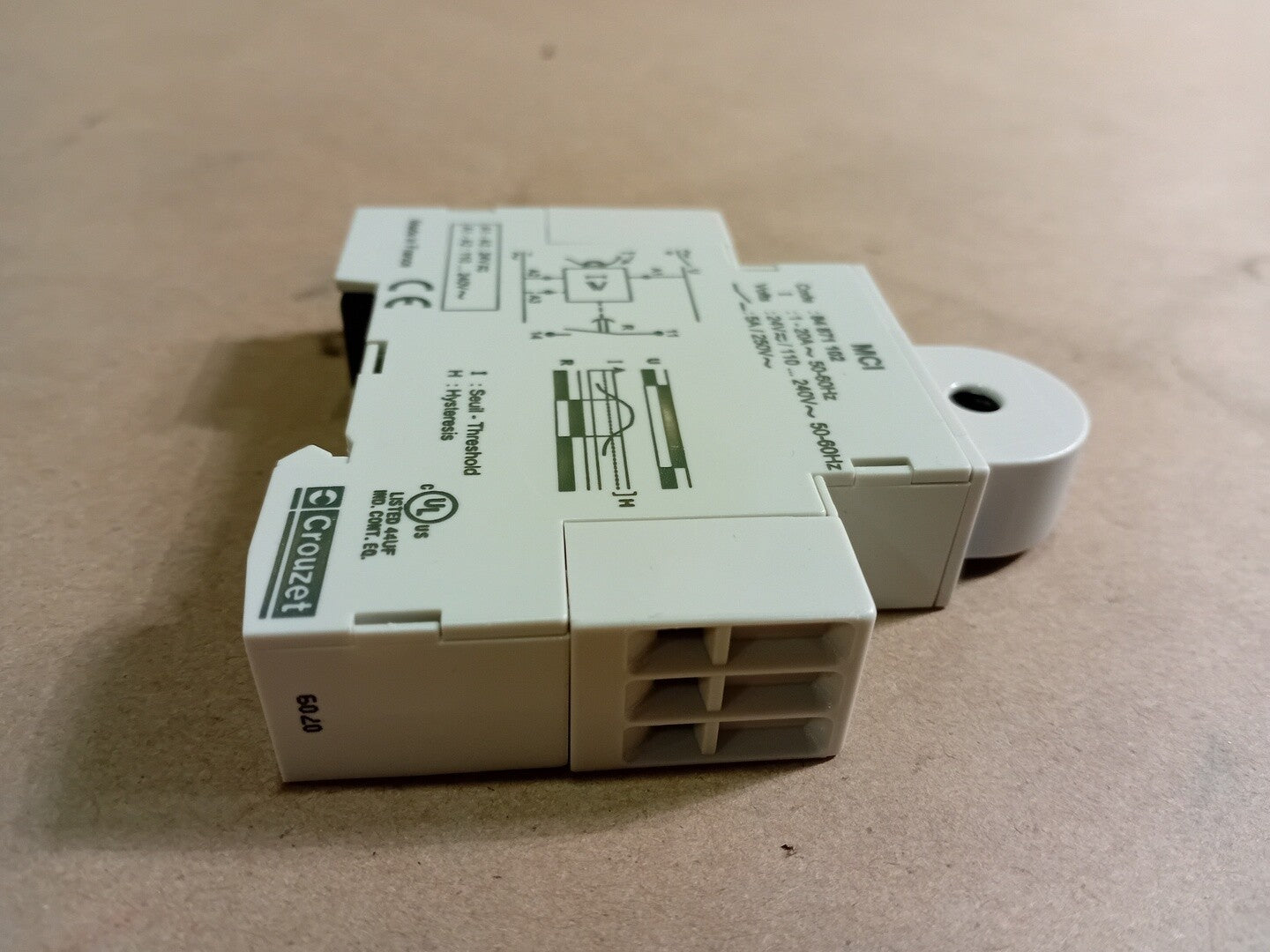

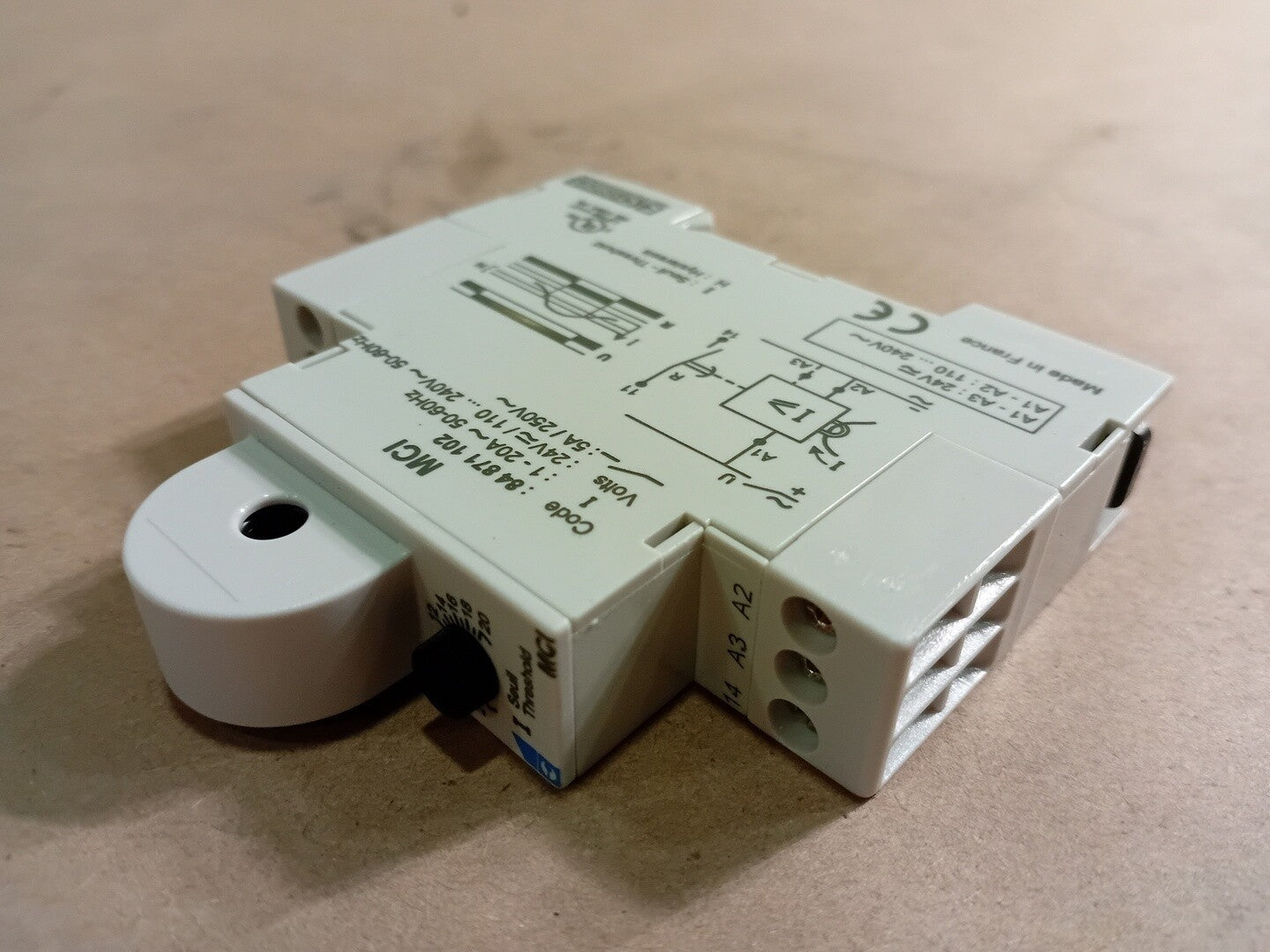

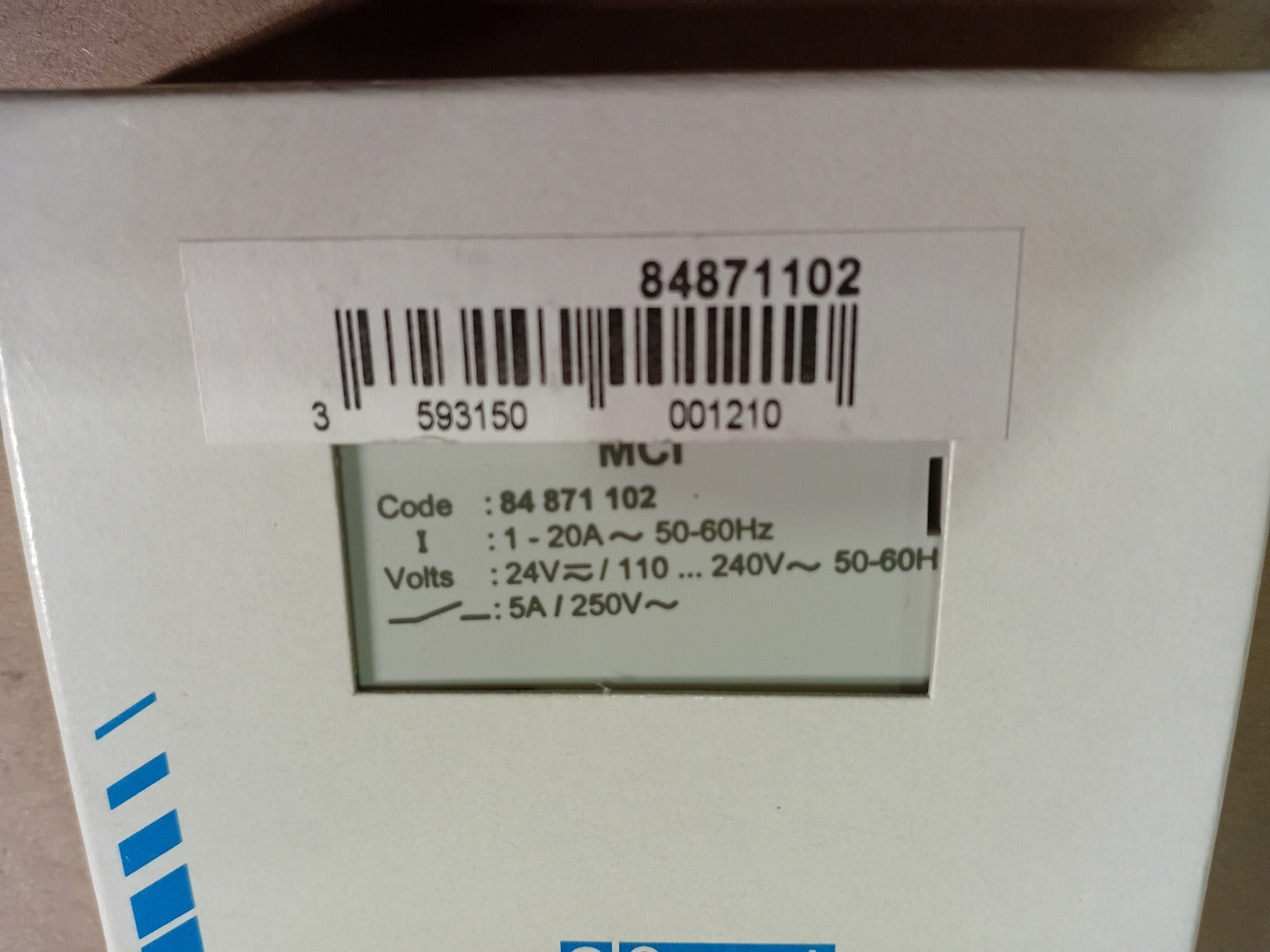

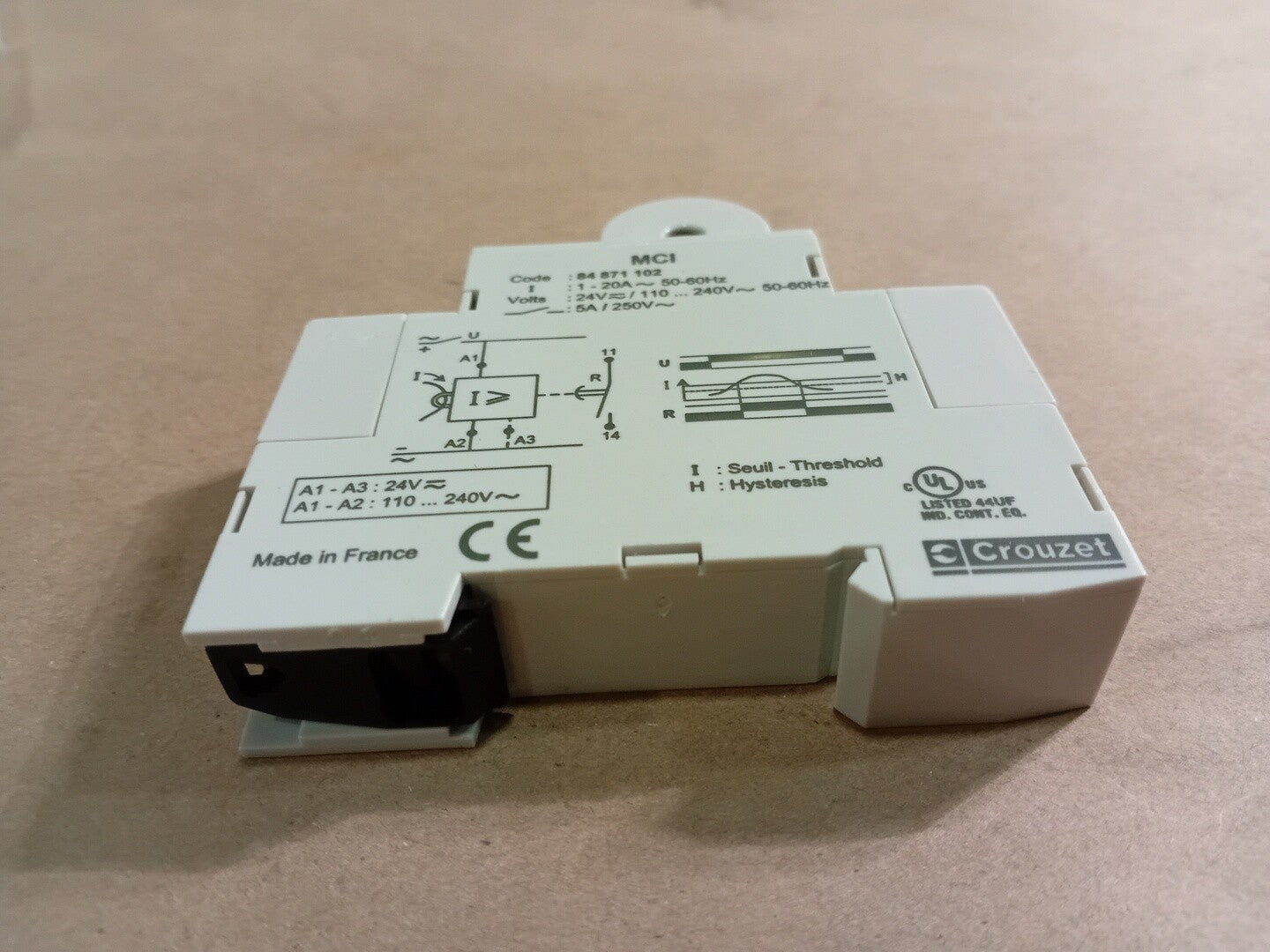

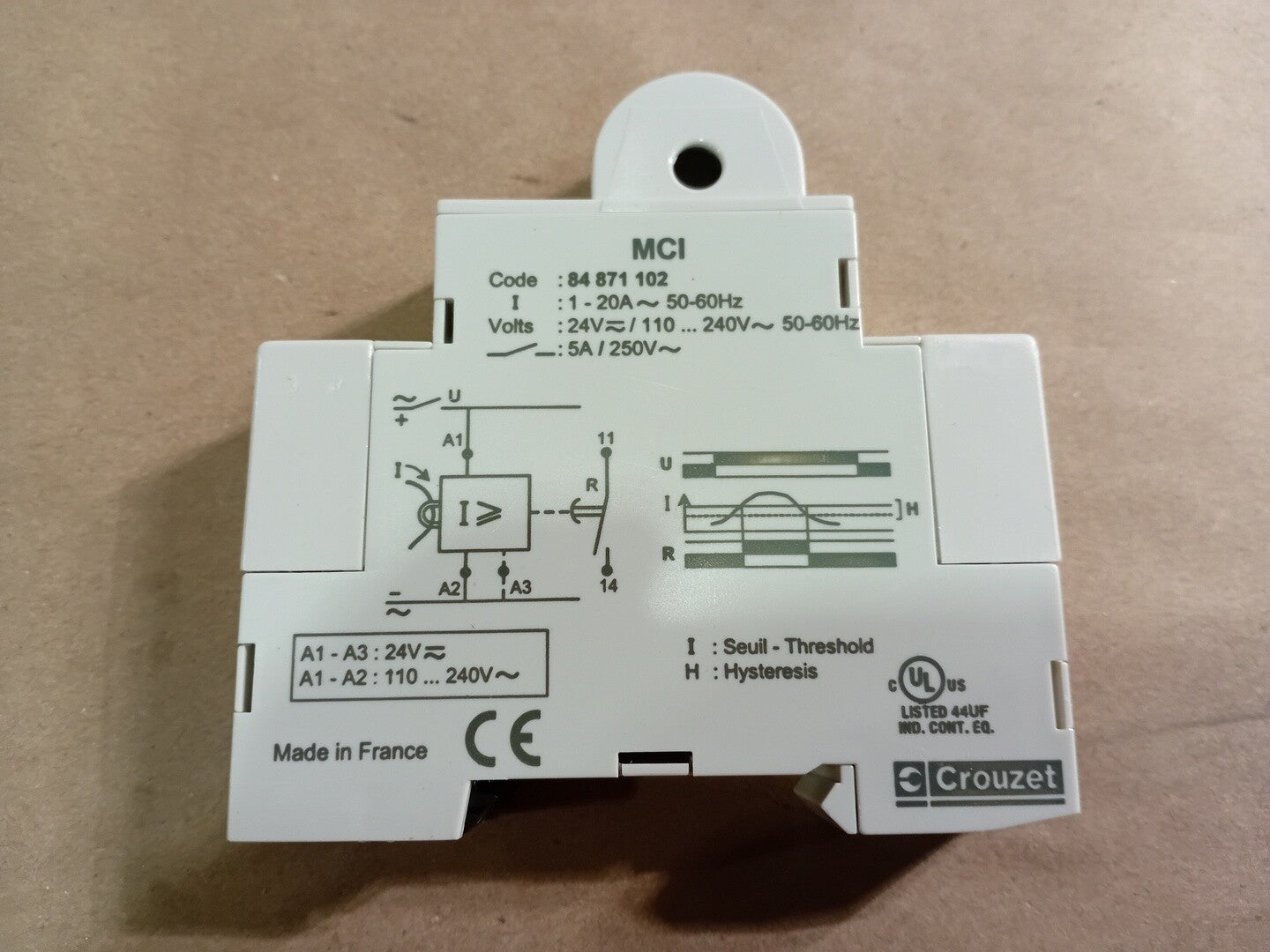

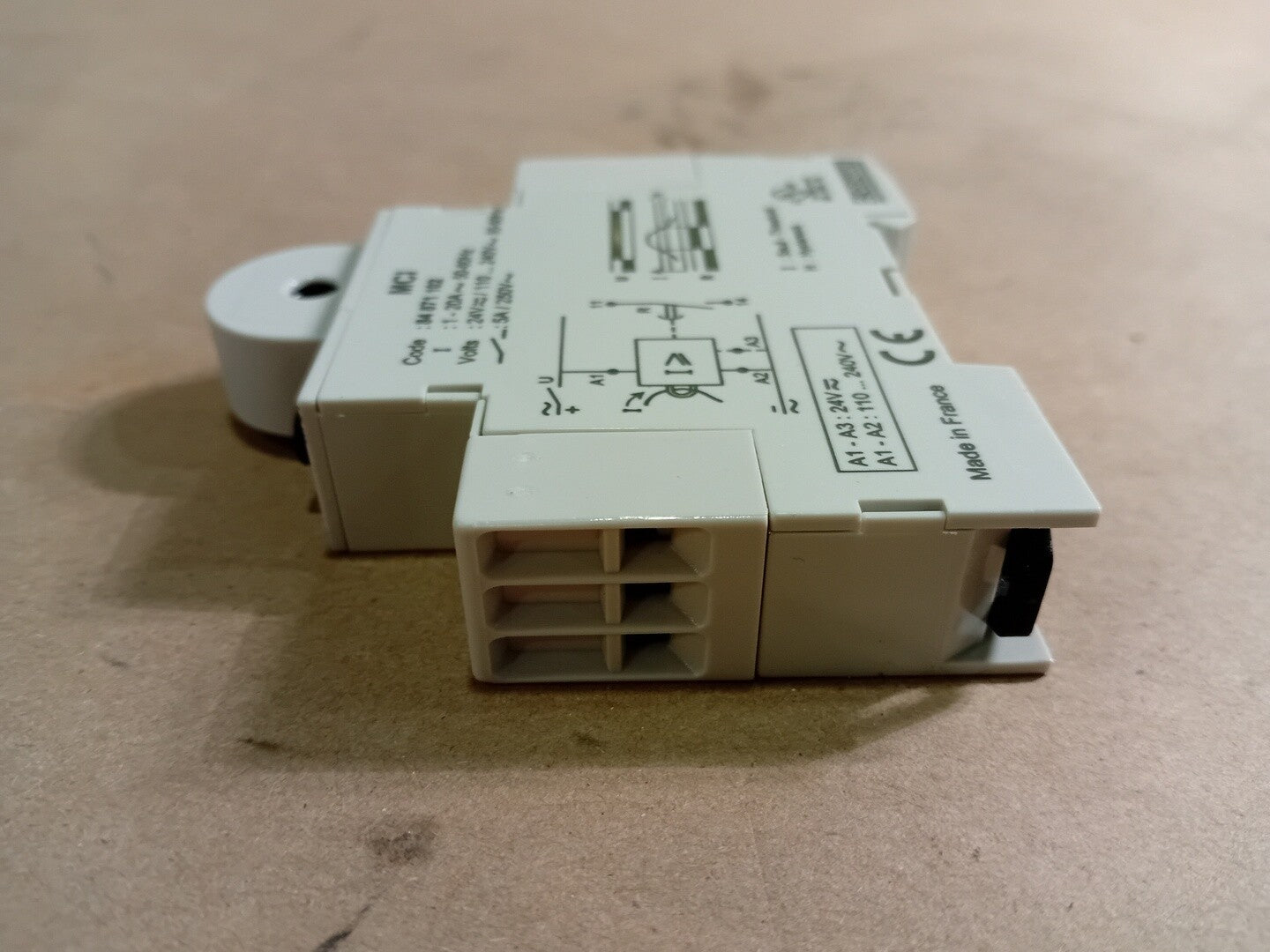

| Model | 84871102 |
| Made In | FRANCE |
| Condition | New | General |
| Amps | 1-20 amps |
| Other Specifications |
|---|
|
Input power: 24 VAC/VDC, 110 to 240 VAC, 50/60 Hz Input power operating range: 24 VAC/VDC +-15% 90 to 260 VAC Maximum power consumption: 10 VA Hysteresis: Fixed at -15% Threshold Display accuracy of preset threshold: +-10% of full scale Repetition accuracy with constant parameters: +-.5% Temperature drift: 0.08% Voltage drift: 0.01%/degree C Power up delay: 150 ms max. Delay on threshold overrun T1: 400 ms Delay on downward crossing on threshold T2: 150 ms Output relay: SPST NO Maximum output rating: 5 Amp Operating relay: +14 to +140F (-10C to 60C) Storage temperature: -22 to +150F (-30C to 70C) Weight: 3 oz. (85g) |
