Description
| Specifications | |
|---|---|

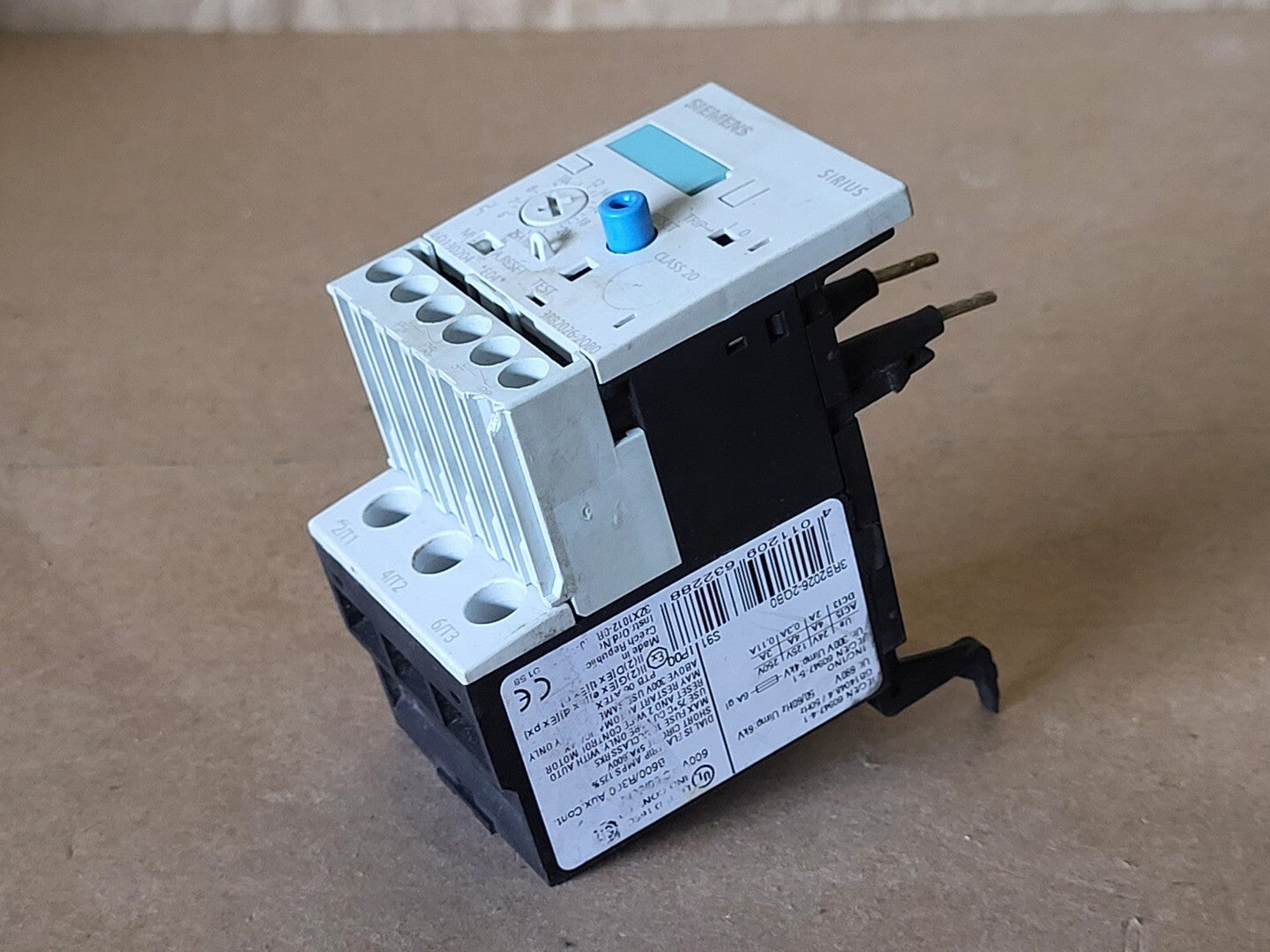

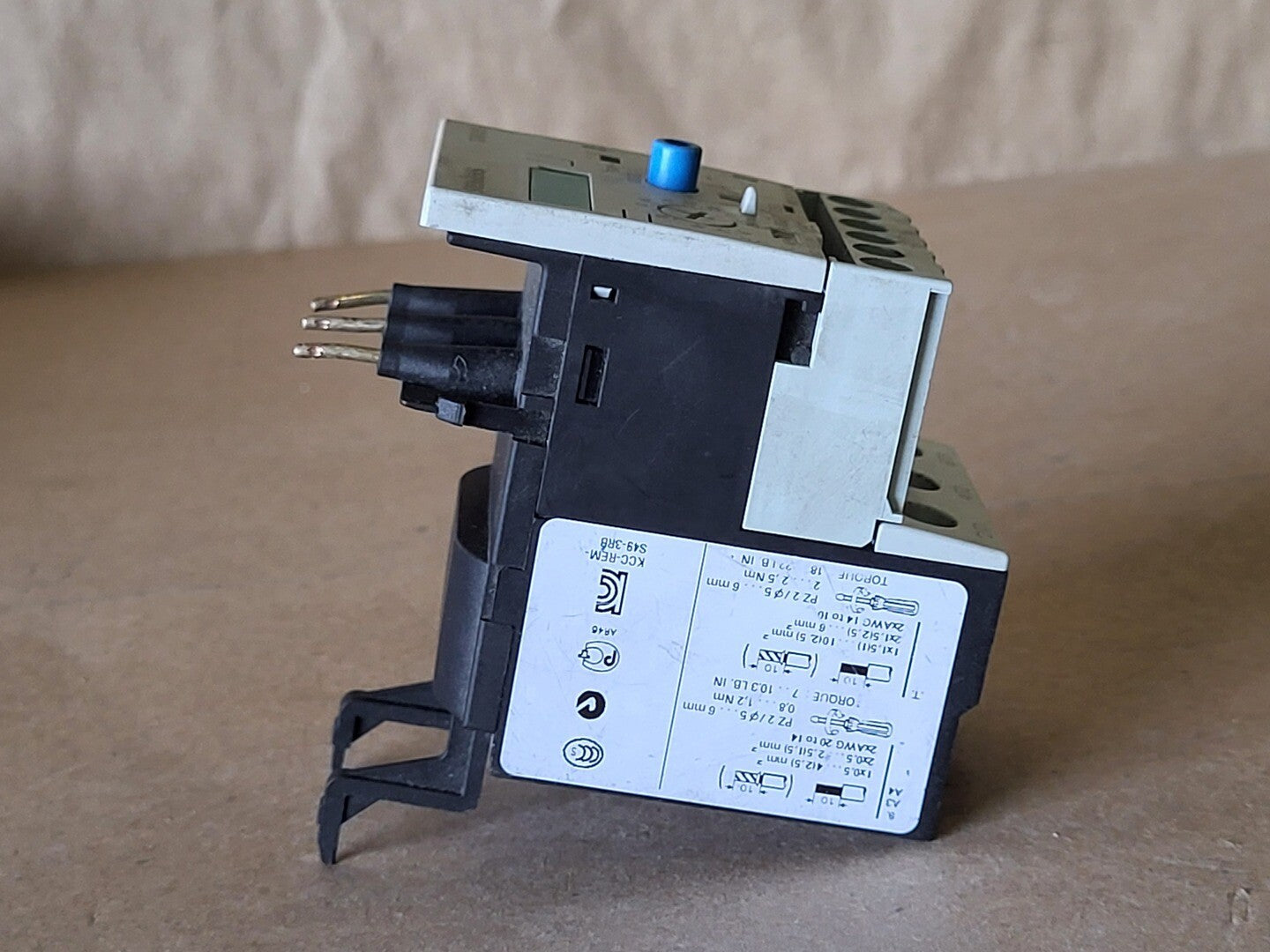

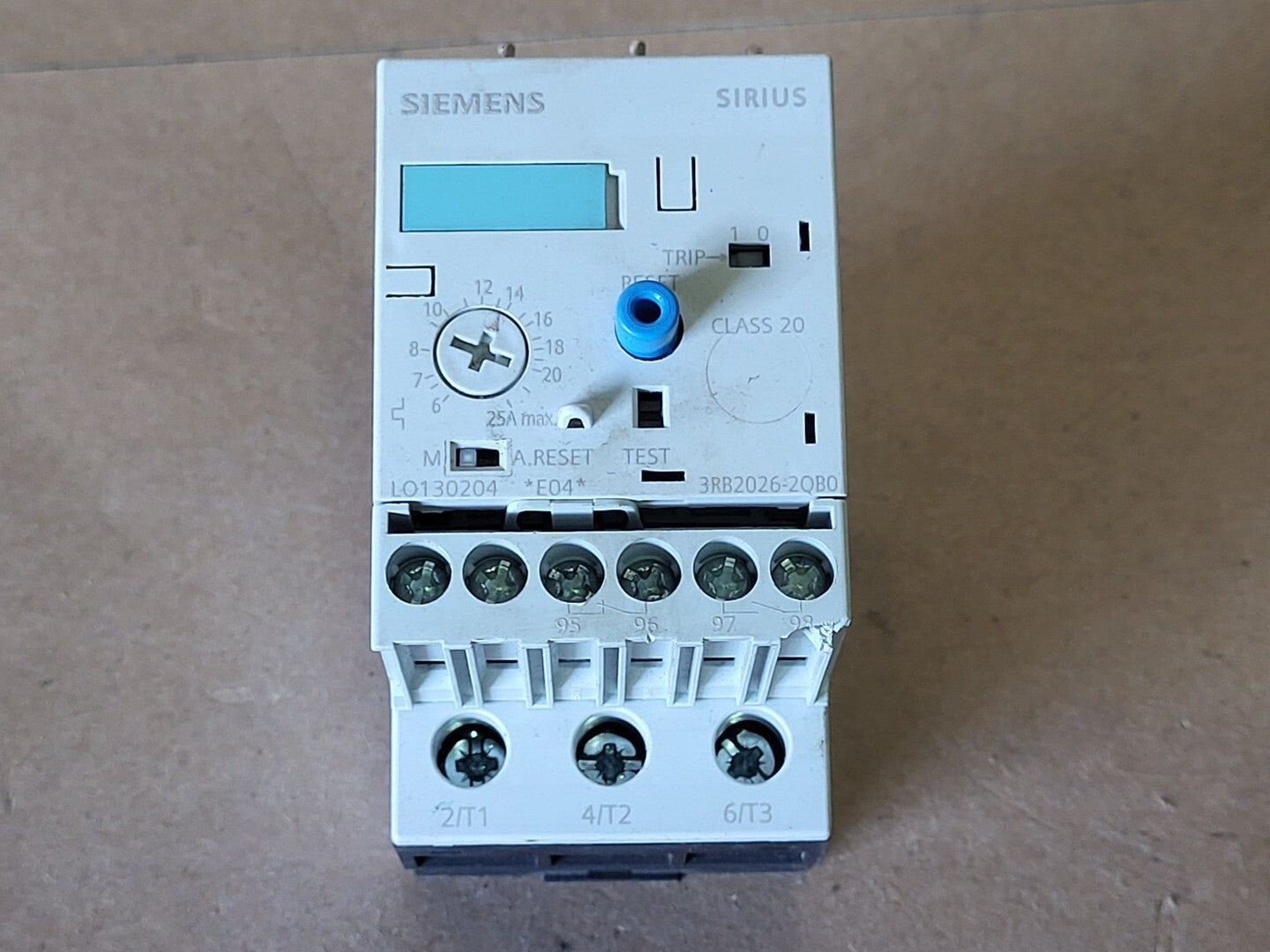

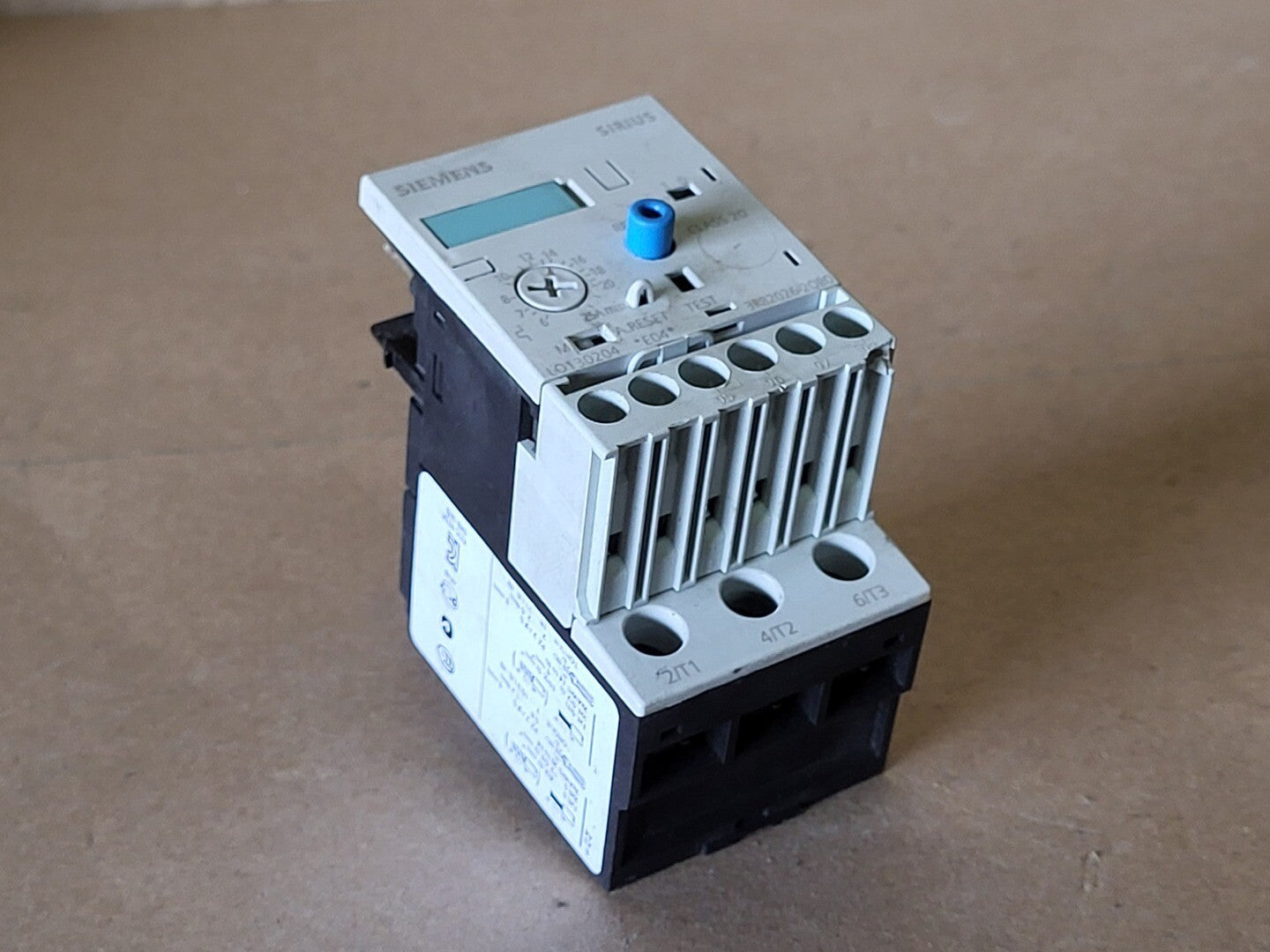

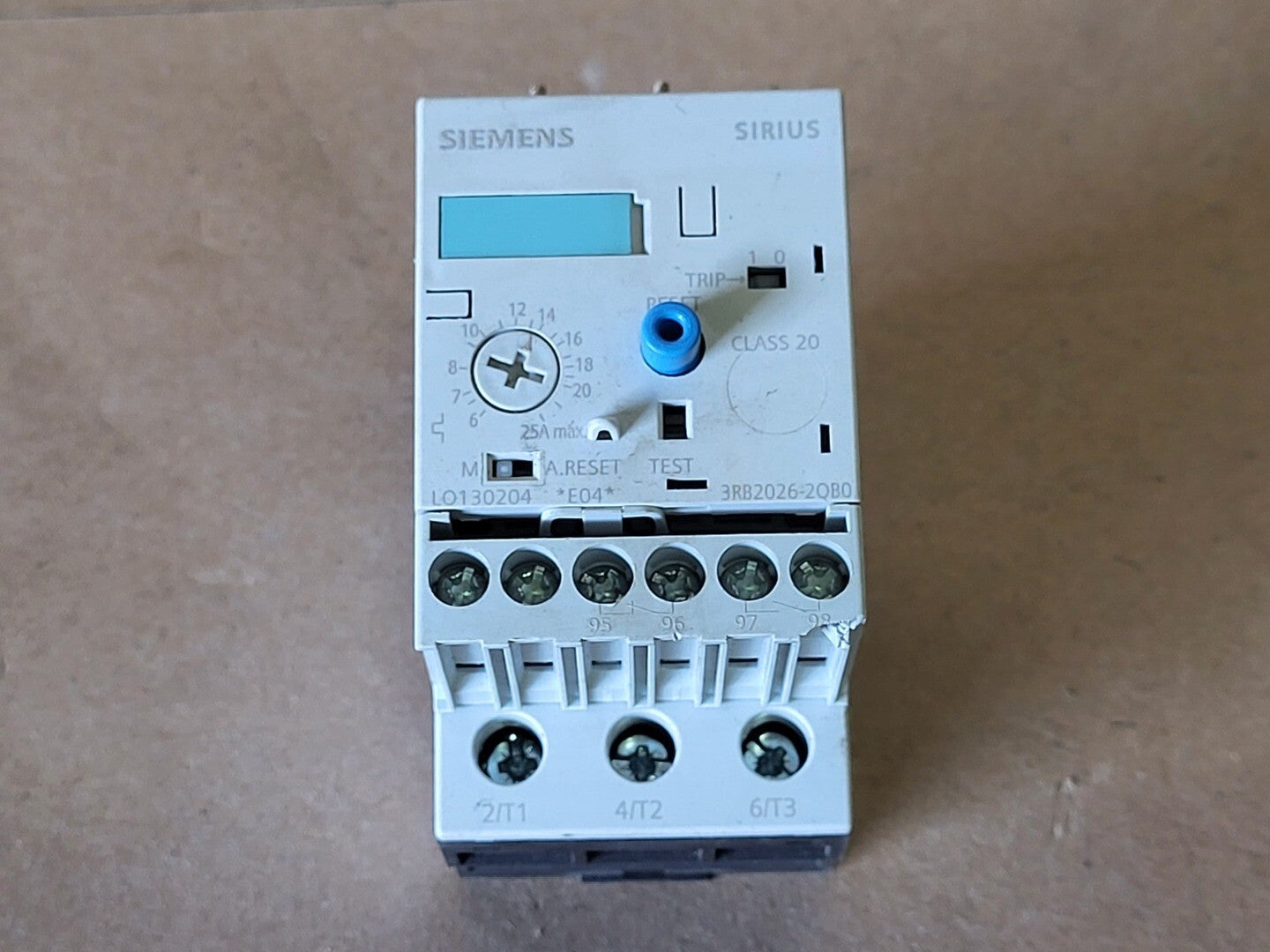

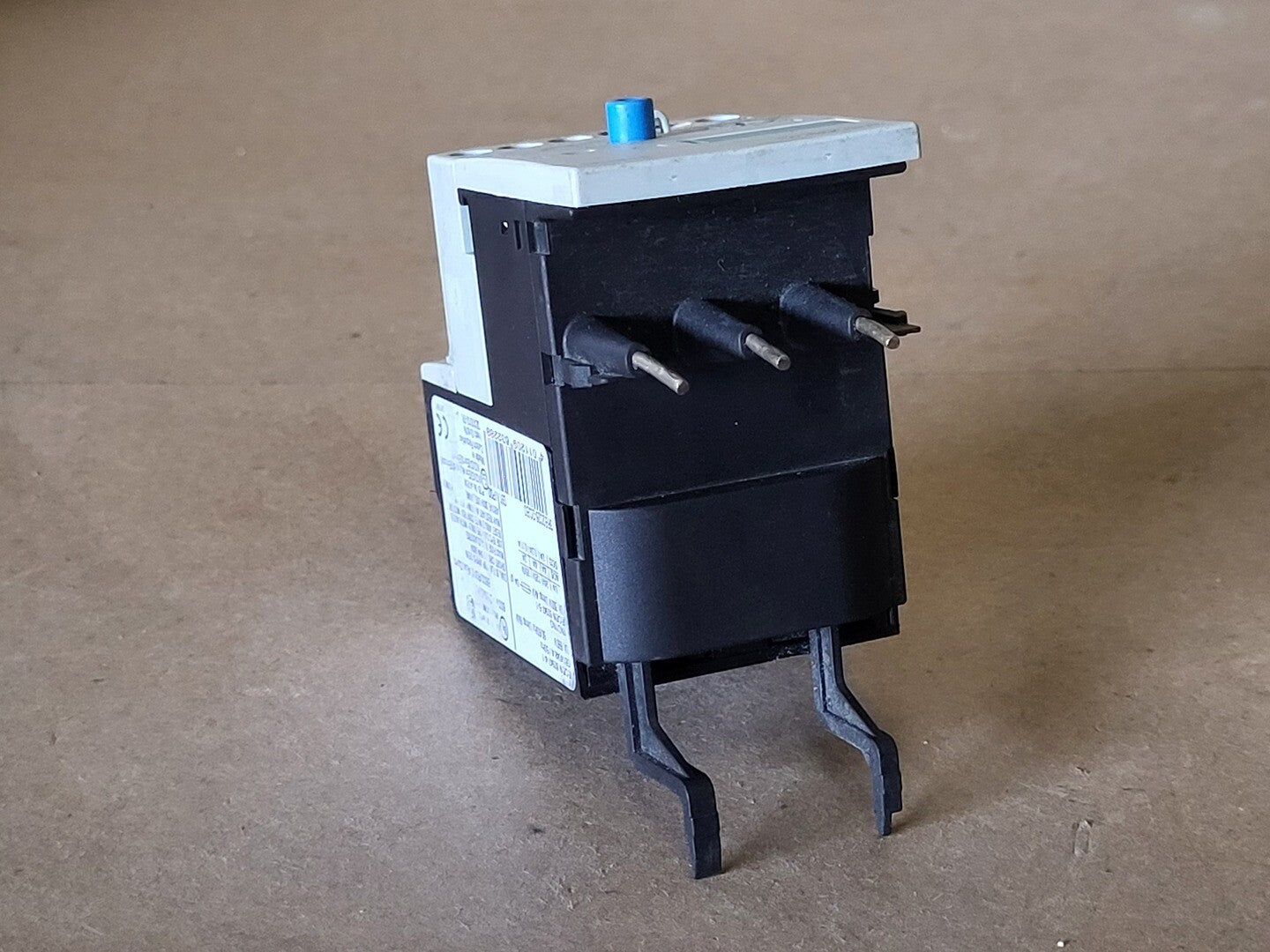

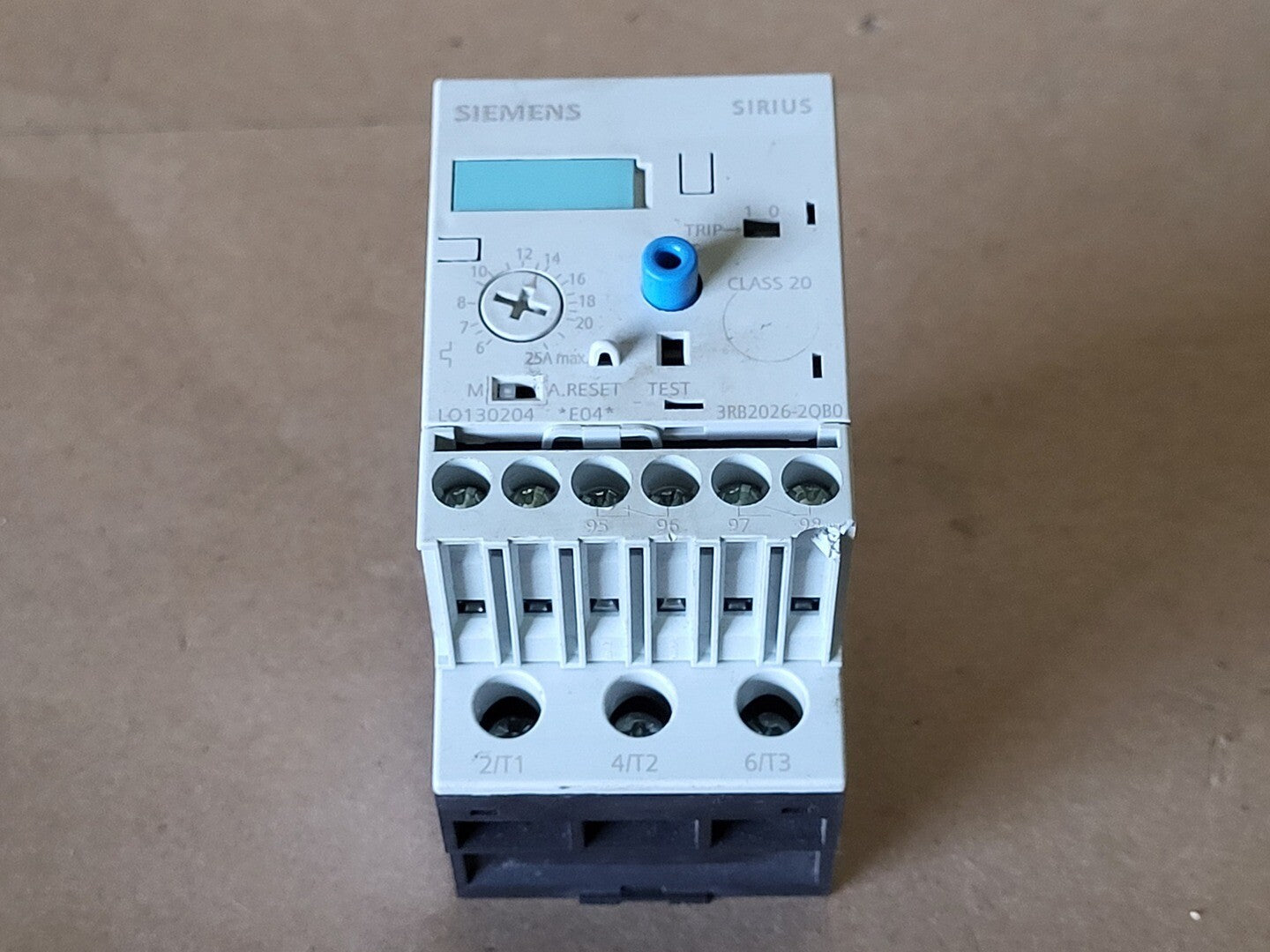

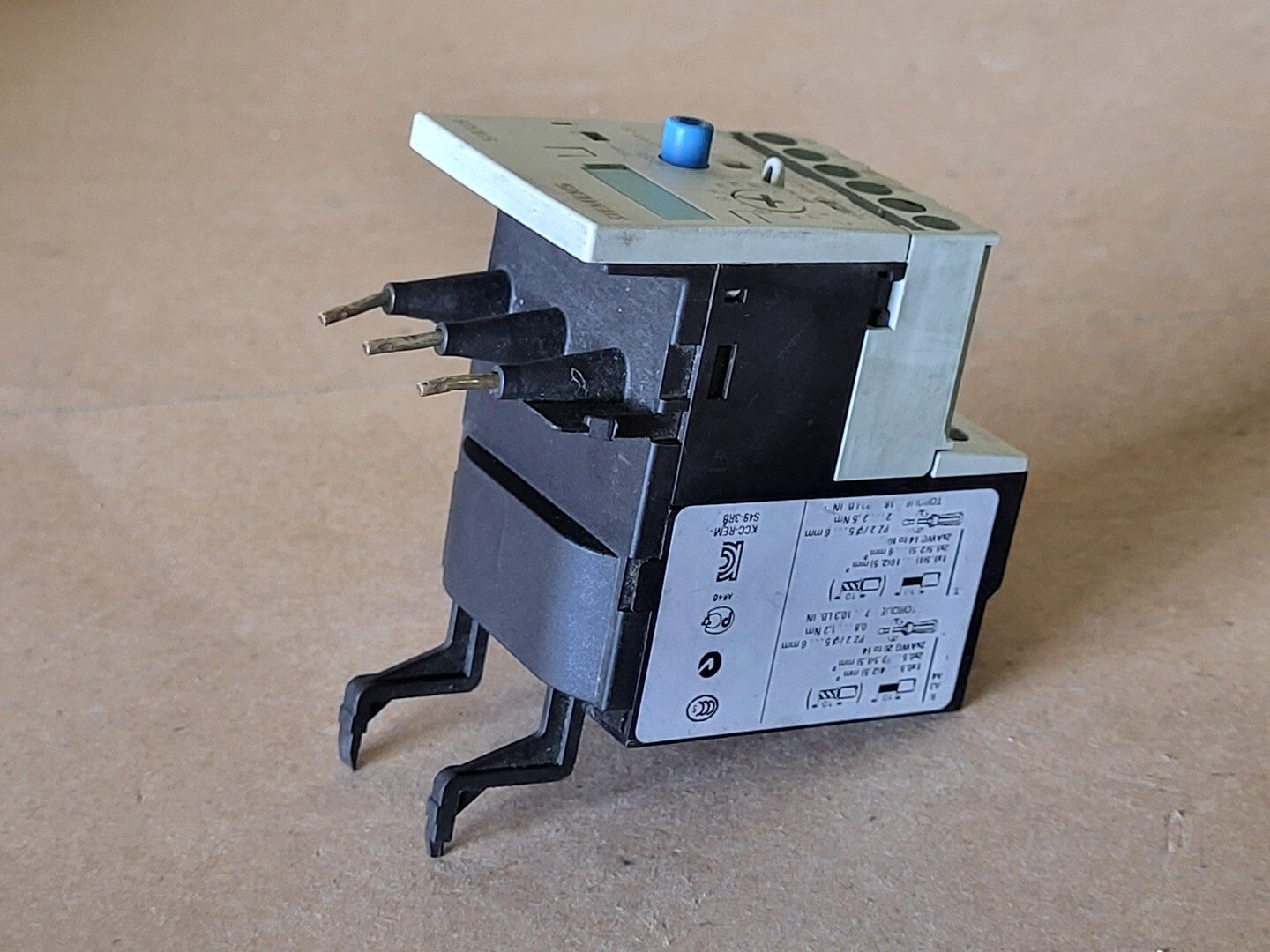

| Model | 3RB2026-2QB0 |
| Condition | Used | General |
| Amps | 25 amps |
| Other Specifications |
|---|
|

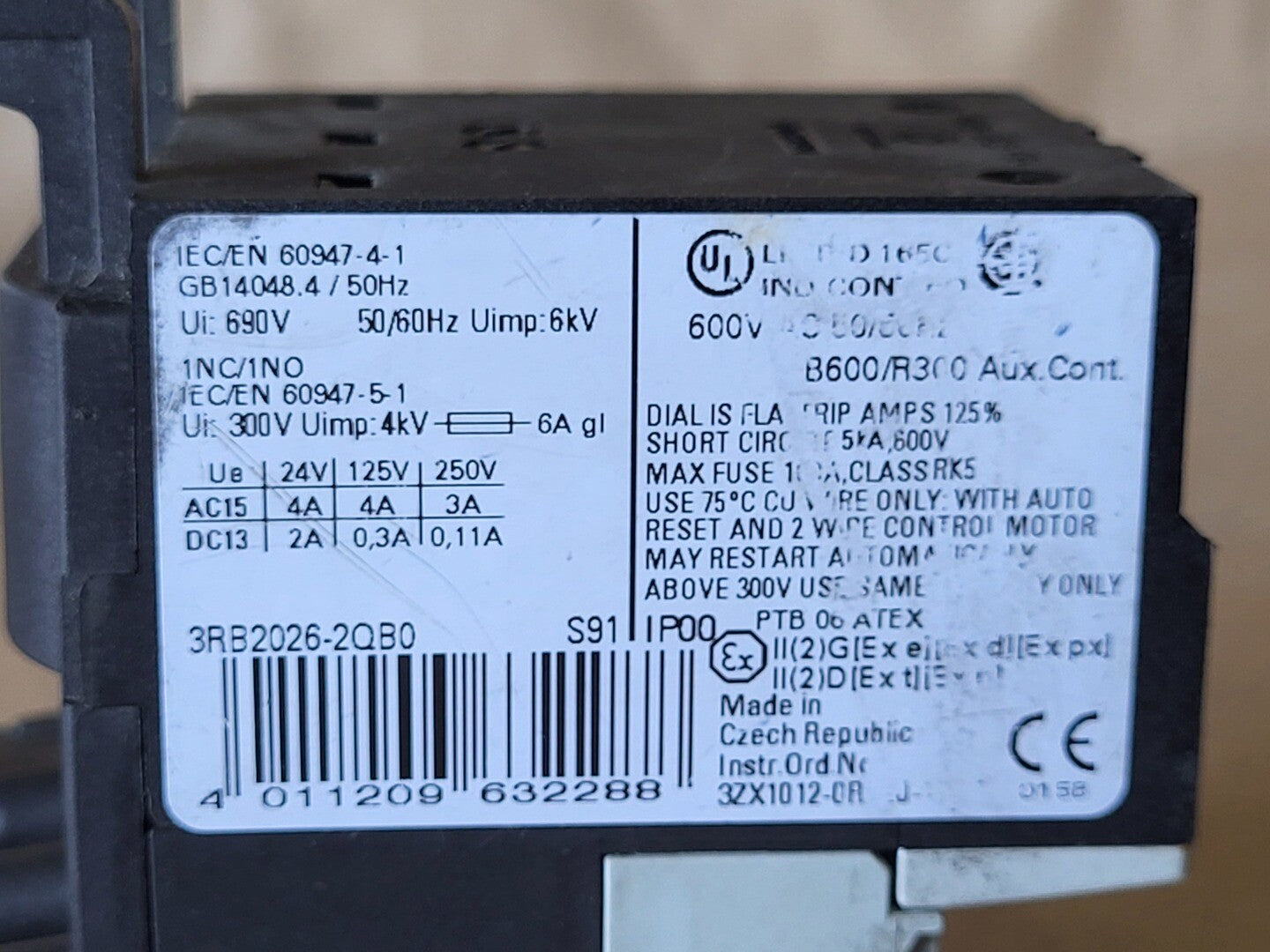

Application: Motor Protection Current Adjustment Range: 8 to 20 Amps Maximum Current: 25 Amps Trip Class: Class 20 Reset Options: Manual / Automatic Control Voltage (Ue): 24V, 125V, 250V AC-15 Rating: 4A at 24V/125V, 3A at 250V DC-13 Rating: 2A at 24V, 0.3A at 125V, 0.11A at 250V Rated Insulation Voltage (Ui): 690V Impulse Withstand Voltage (Uimp): 6kV Auxiliary Contacts: 1 Normally Open (NO) and 1 Normally Closed (NC) Short Circuit Protection Requirement: 25A fuse (gL/gG type) Mounting: Contactor mountable Trip Indicator: Yes (mechanical trip window) |
