Description
| Specifications | |
|---|---|

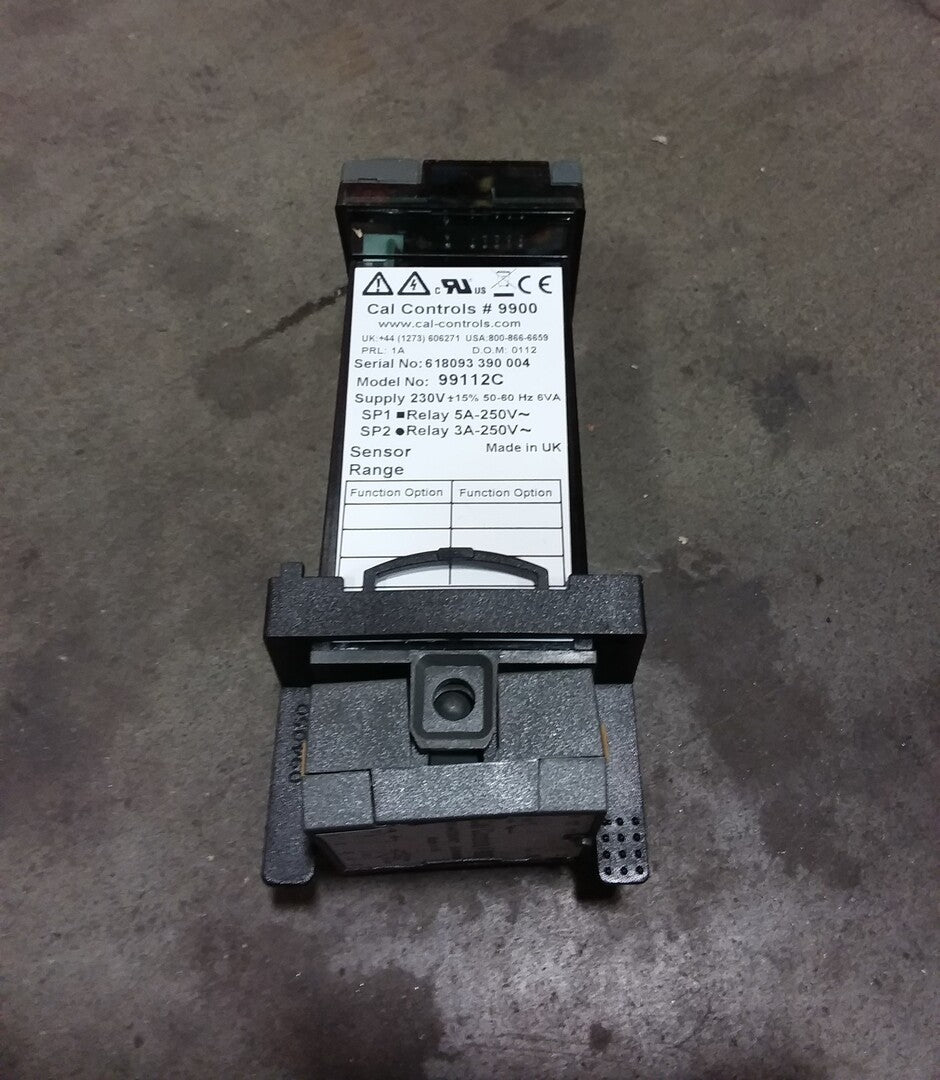

| Model | 99112C |
| Condition | Used |
| Other Specifications |
|---|
|

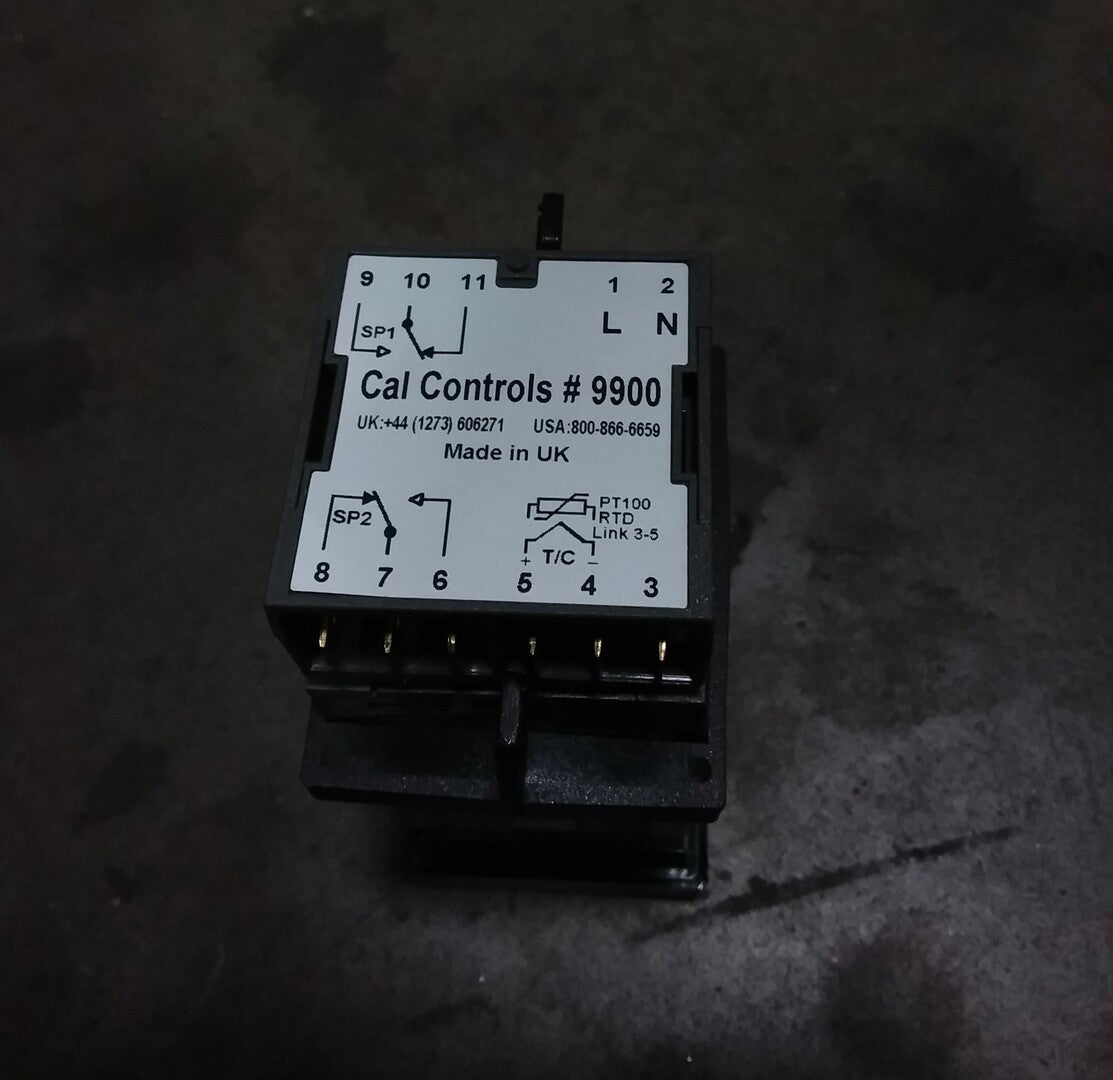

Dimensions and Size: 48mm x 48mm x 114mm (H x W xD), 1/16 DIN Type: Single Loop Controller Terminal Type: 11 Pins Base (only for 2 outputs version) Primary Input Type: Thermocouple: B, E, J, K, L, N, R, S, T, PT300: 2/3 wire. Linear: 0 to 50 mV, 0/4 to 20 mV Output Function: Heat, Cool, Alarm Output Type: Relay (SP1 5A SPDT, SP2 3A SPDT), SSd (5V, 25 mA) Max. Number of Outputs: 2 Control Type: PID heat only, PID heat cool, ON/OFF Power Supply: 24 or 115/230Vac, 50-60 Hz +/-15% maximum permitted fluctuation Communications: None Panel Sealing: IP54 |
