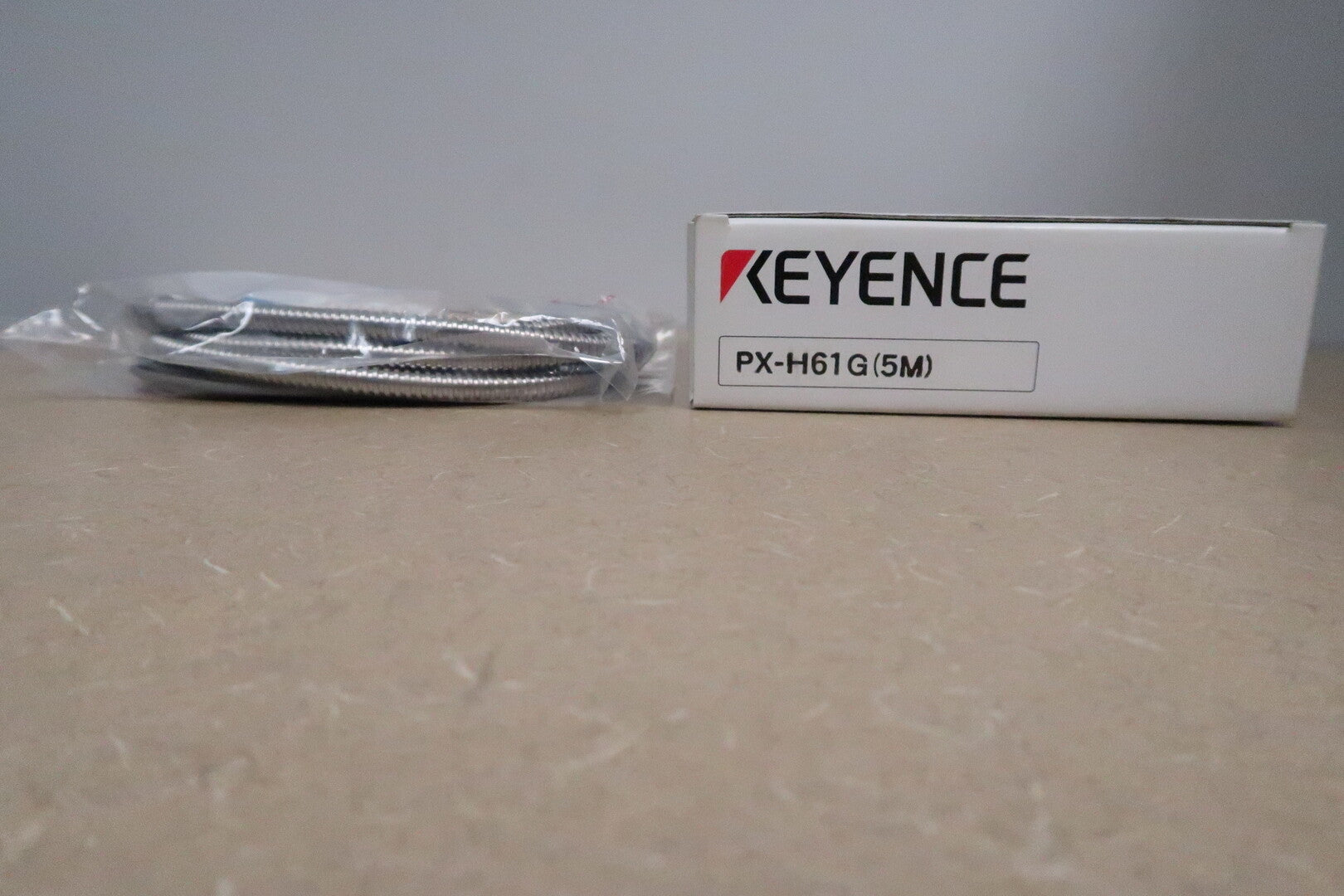

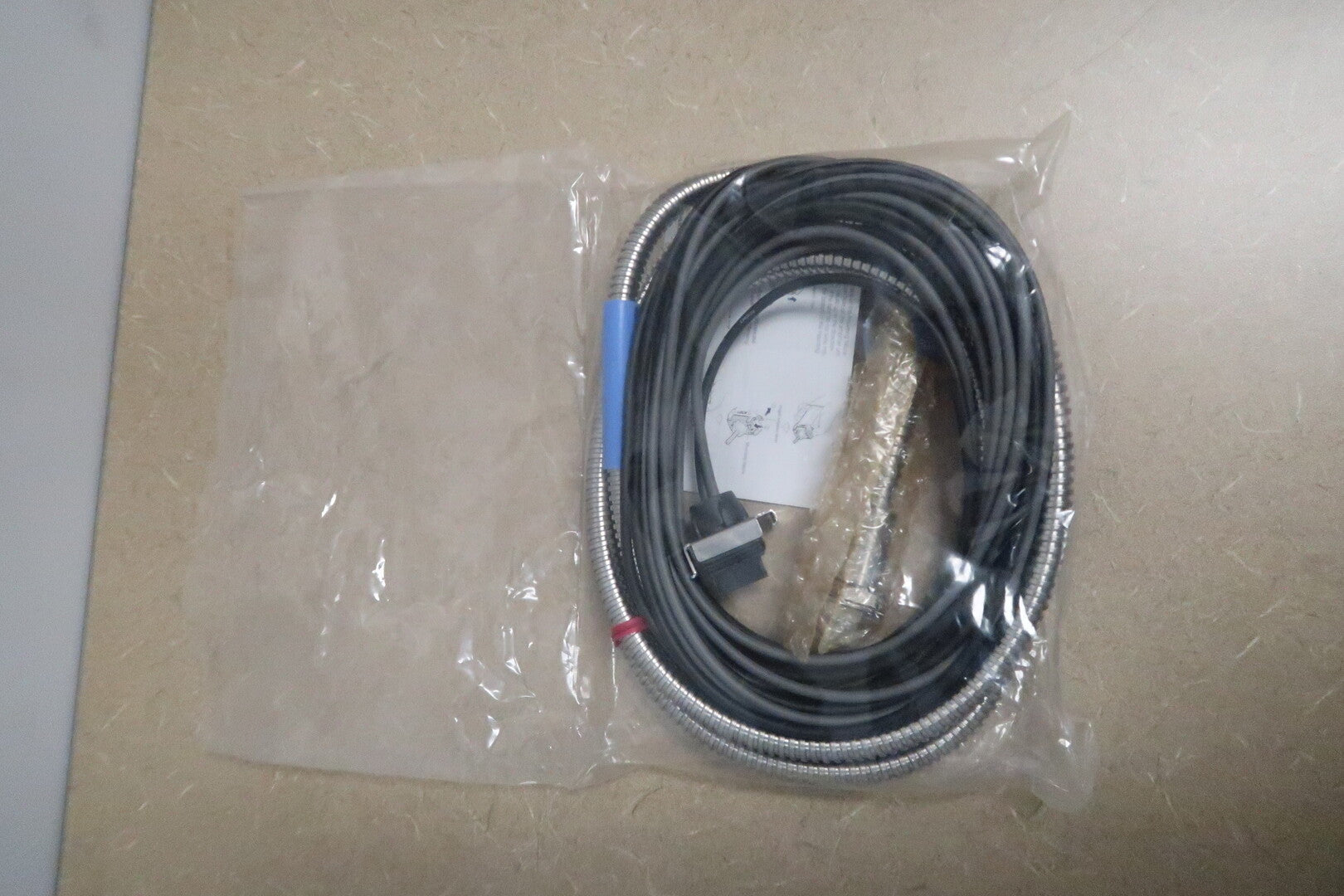

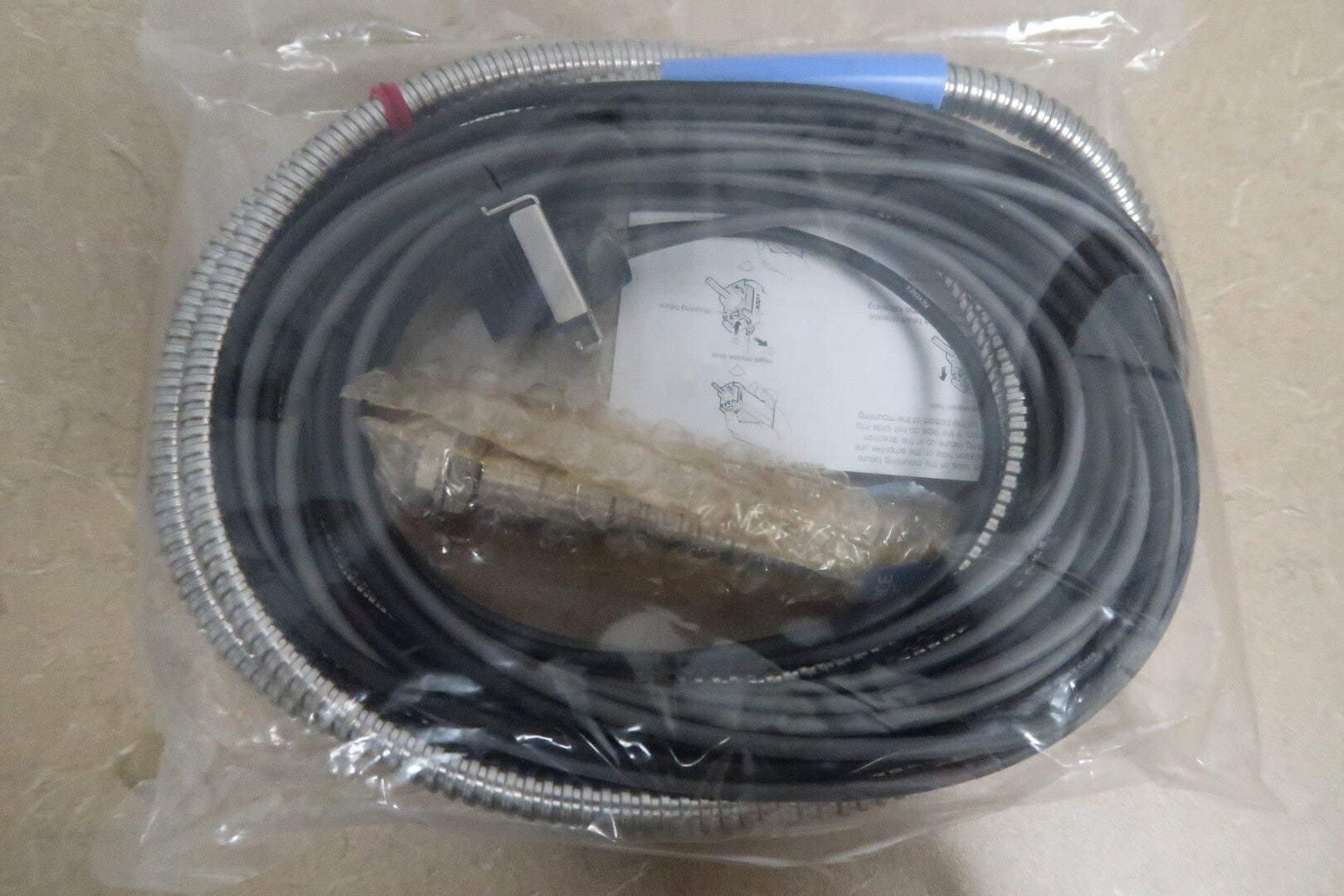

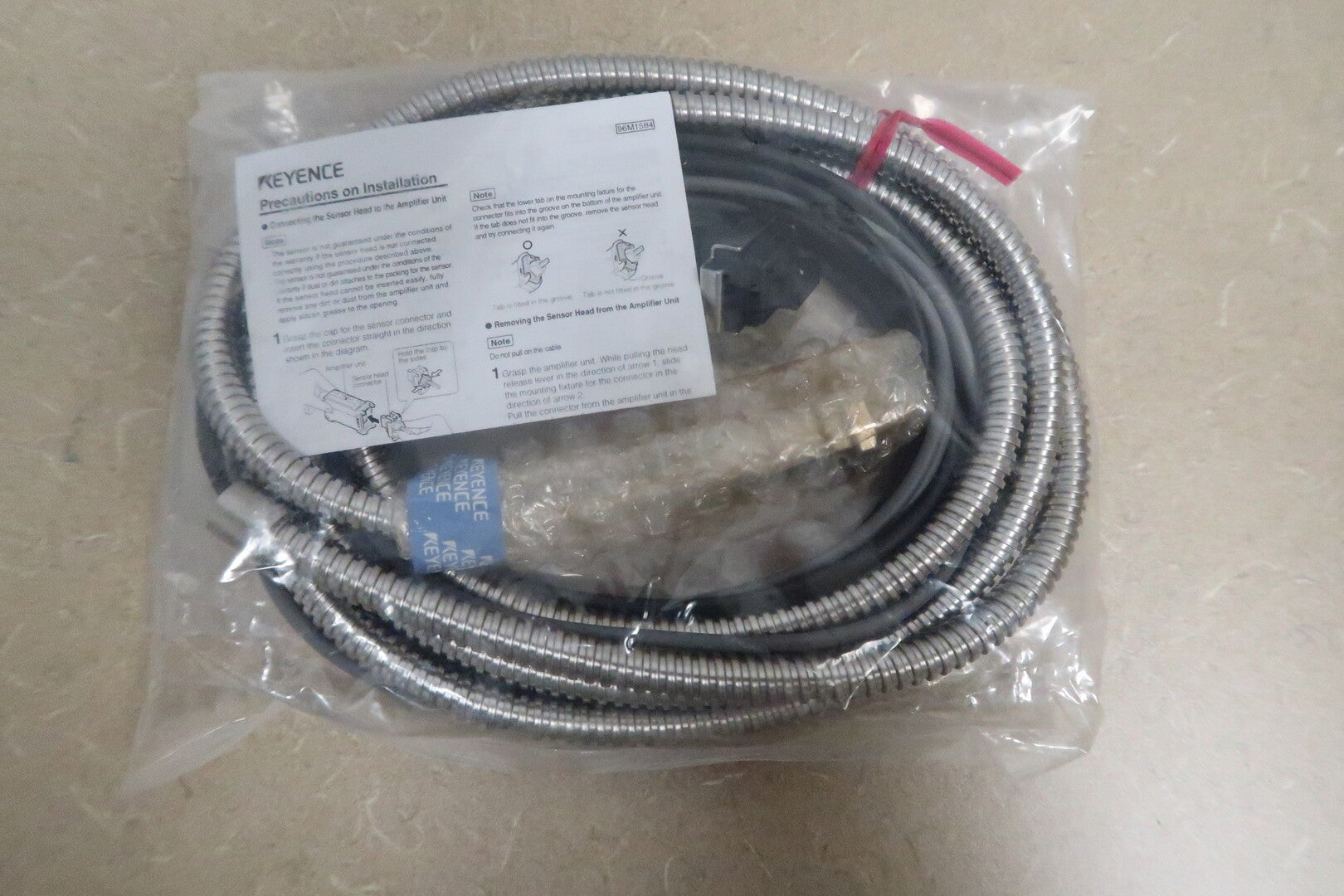

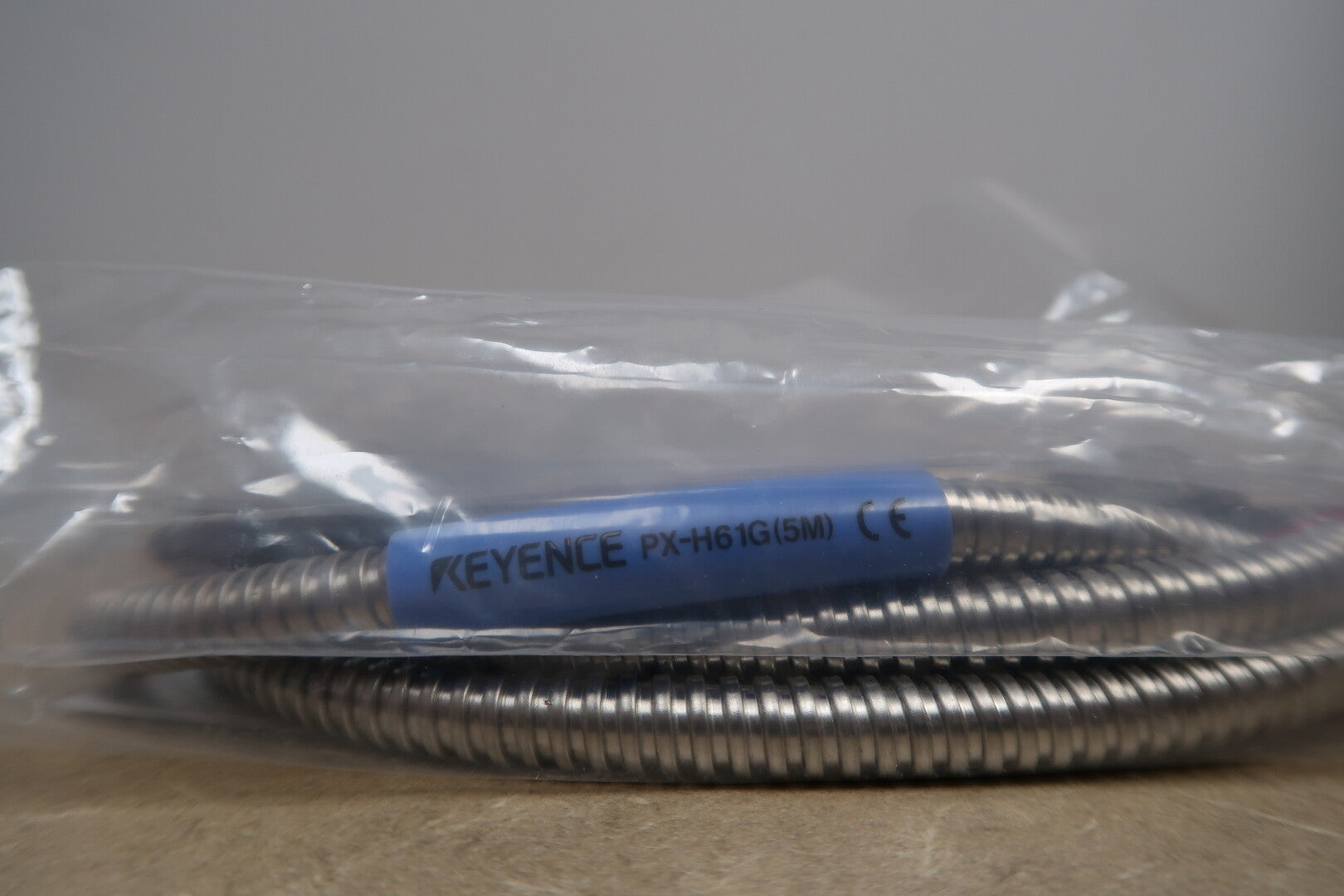

Photoelectric Reflective Sensor Head PX-H61G (5M)

SKU: 10711
Price:
$90 CAD

Shipping calculated at checkout

Stock:
2 in Stock
Make an Offer

Need An Answer Now?

Description

Specifications
Model PX-H61G(5M)
Condition Surplus New
Other Specifications

Type: M12 Reflective Armored

Light source LED: Red 4-element LED (wavelength: 635 nm)

Detecting distance:

  • Turbo: 400 mm
  • Super: 600 mm
  • Ultra: 1200 mm
  • Mega: 2000 mm

Spot Diameter: Approx. 15 x 15 mm @ 100 mm; Approx. 65 x 65 mm @ 500 mm

Enclosure Rating: IEC:Ip68/JEM:IP68g/NEMA:4X,6P,13/DIN:IP69K

Ambient Light: Incandescent Lamp: 20,000 lux max., Sunlight: 30,000 lux max.

Ambient Temperature: -10 to 55 deg. C (No Freezing)

Relative Humidity: 35 to 85% RH (No Condensation)

Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

Case Material: Housing: SUS303 (Plastic parts: PMP, POM) Lens: BK7

Accessories: Screw Nut x 2, Toothed Washer x 1
