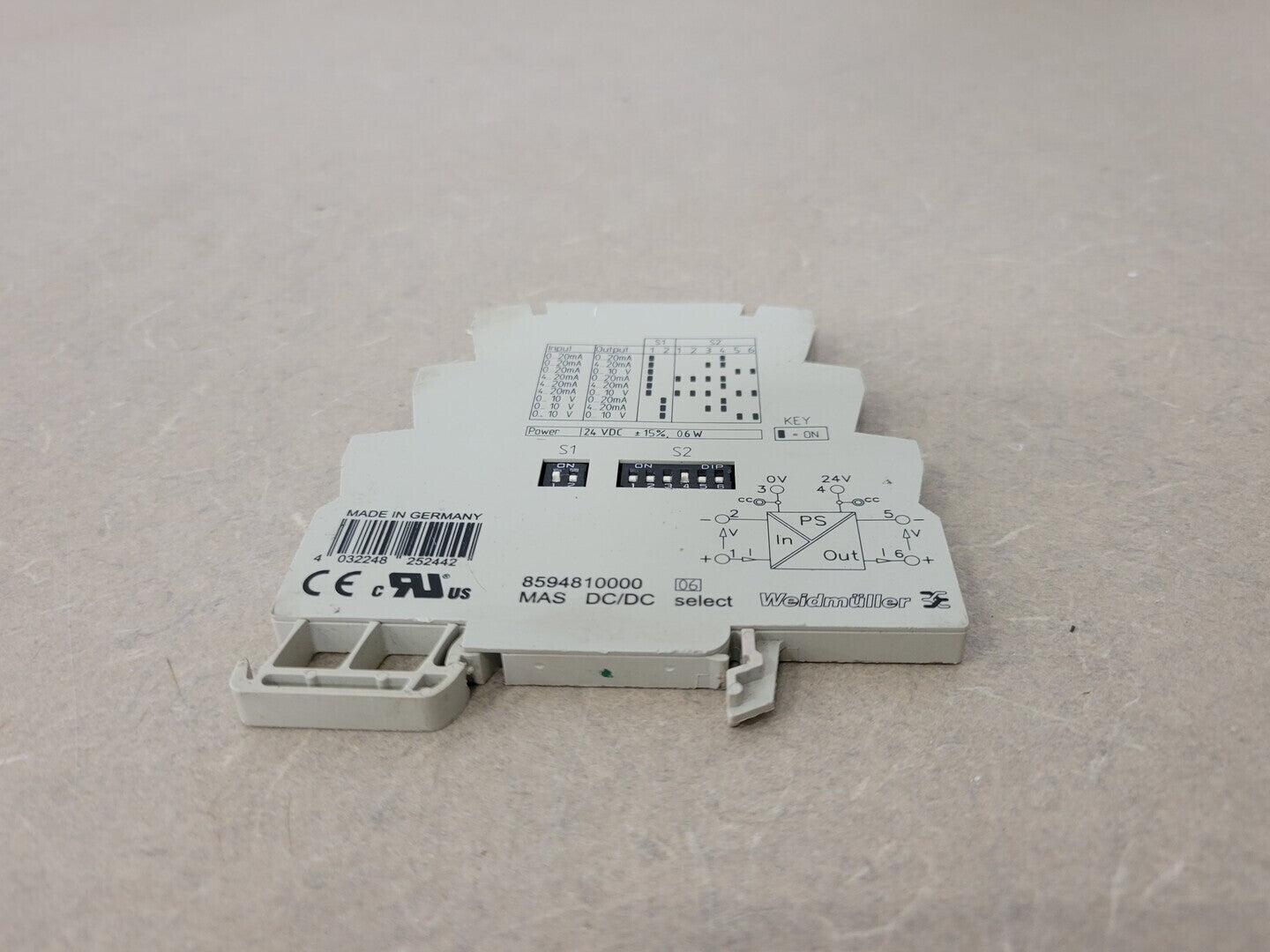

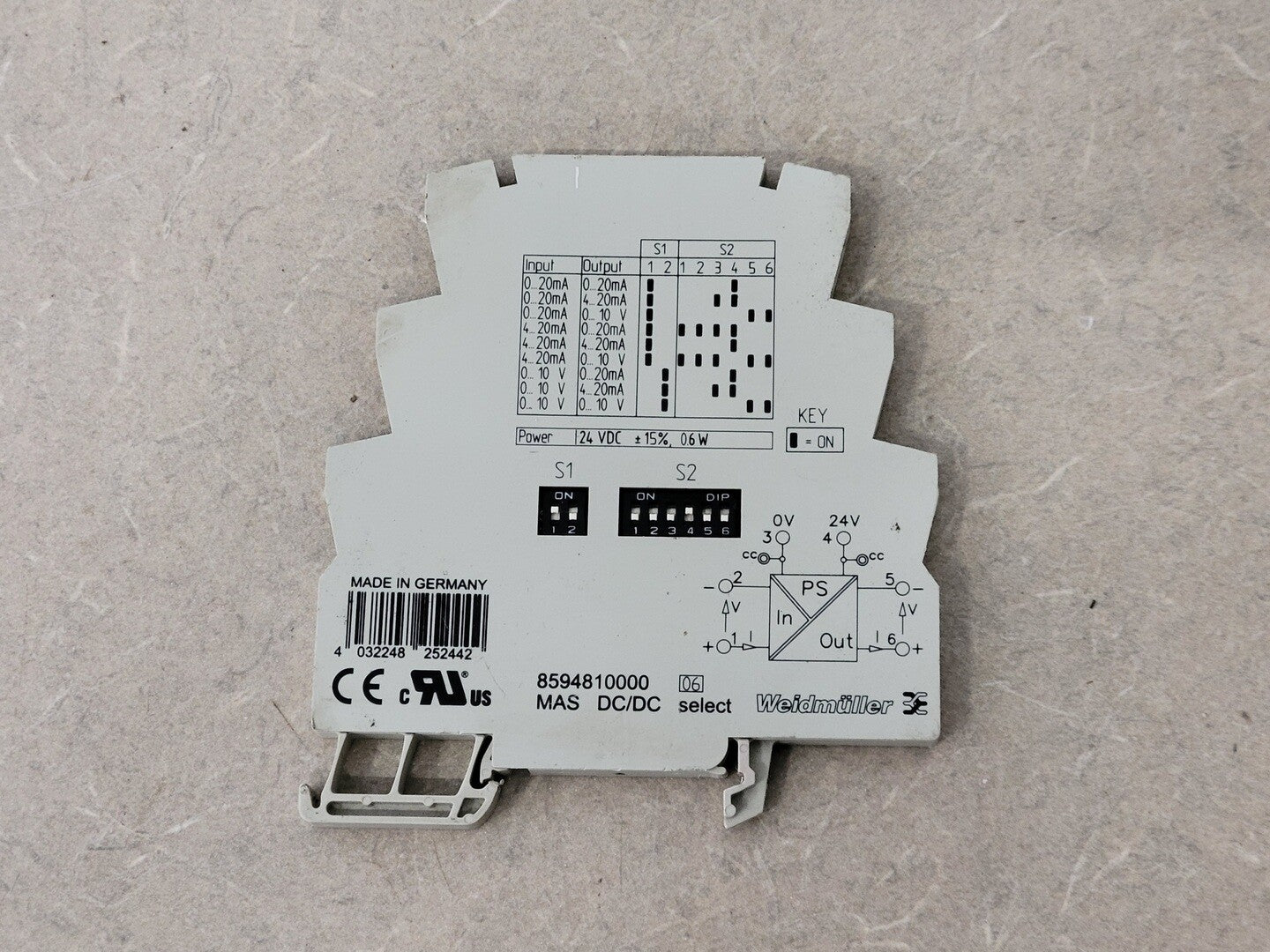

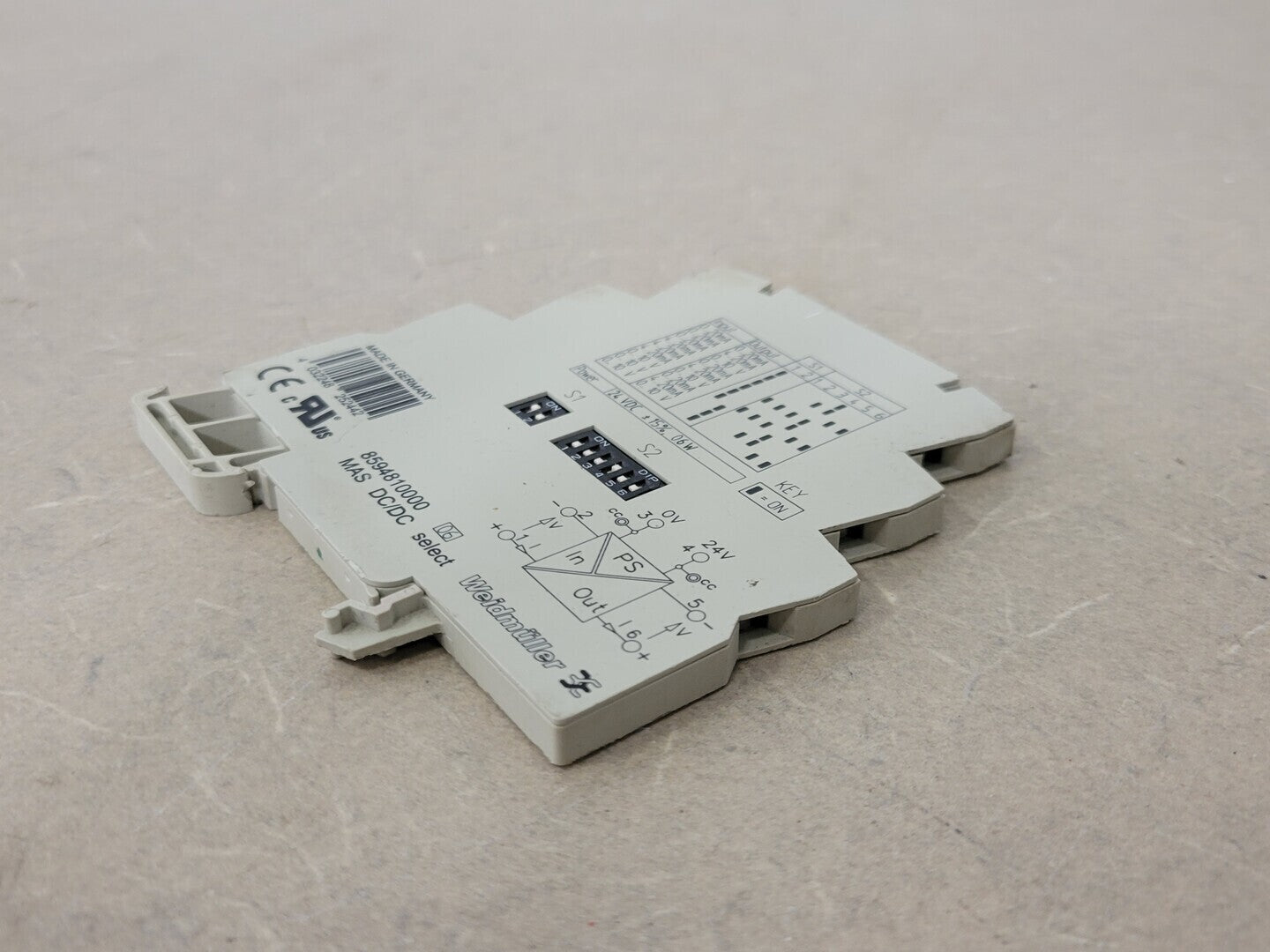

MAS DC/DC Signal Converter 8594810000

SKU: 137079
Price:
$50 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

Specifications
Model 8594810000
Made In GERMANY
Condition Used
Other Specifications

Power: 24 VDC +/- 15%, 0.6 W

Input Data

Voltage: 0 to 10 V

Current: 4 to 20 mA, 0 to 20 mA (Factory setting)

Resistance, Current: Voltage Drop less than or equal to 0.1 V at 20 mA

Resistance, Voltage: 100 Kilo Ohms

Output Data

Voltage: 0 to 10 V

Current: 4 to 20 mA, 0 to 20 mA (Factory setting)

Load, Current: Less than or equal to 10 V (Less than or equal to 500 ohms at 20 mA)

Load, Voltage: Less than or equal to 1 mA (Greater than or equal to 10 Kilo Ohms at 10 V)

Residual Ripple: < 10 mVrms

Bandwidth: > 100 Hz

Insulation Coordination

Rated Voltage: 50 V

Test Voltage: 500 VAC input against output against power supply
