Description

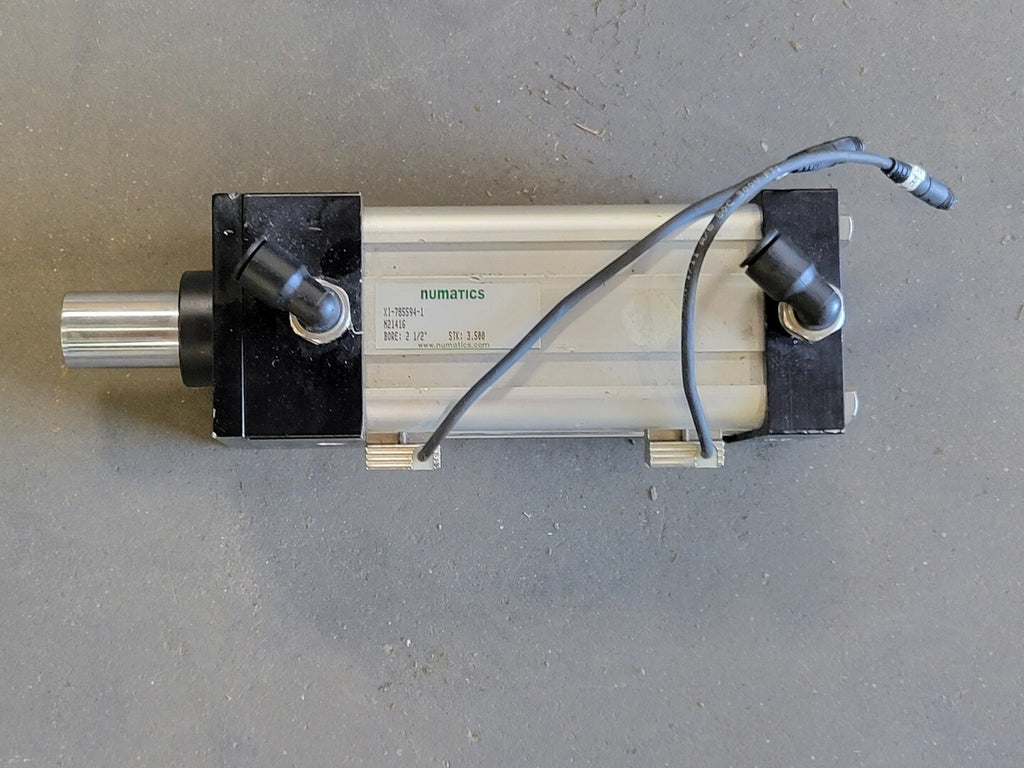

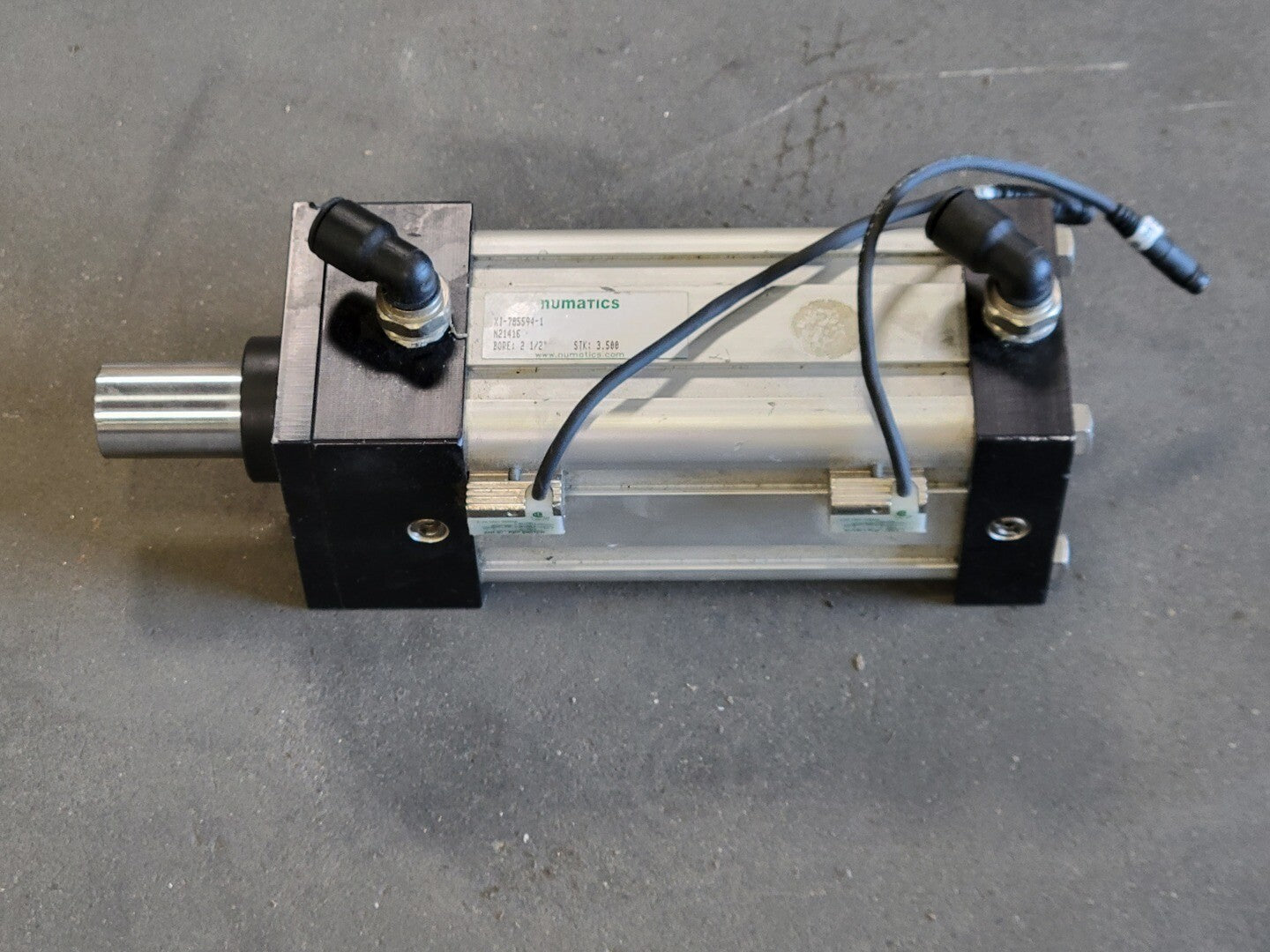

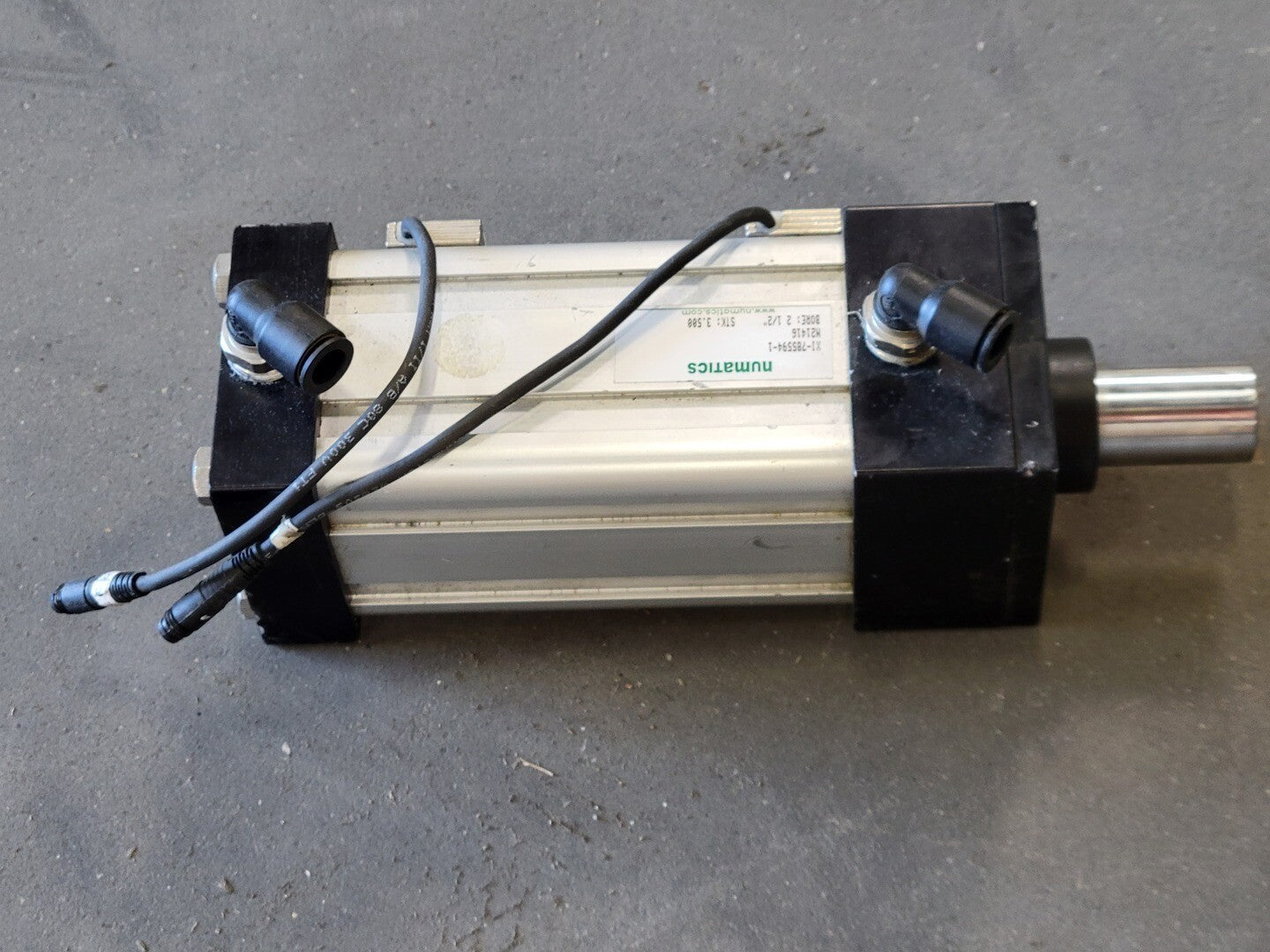

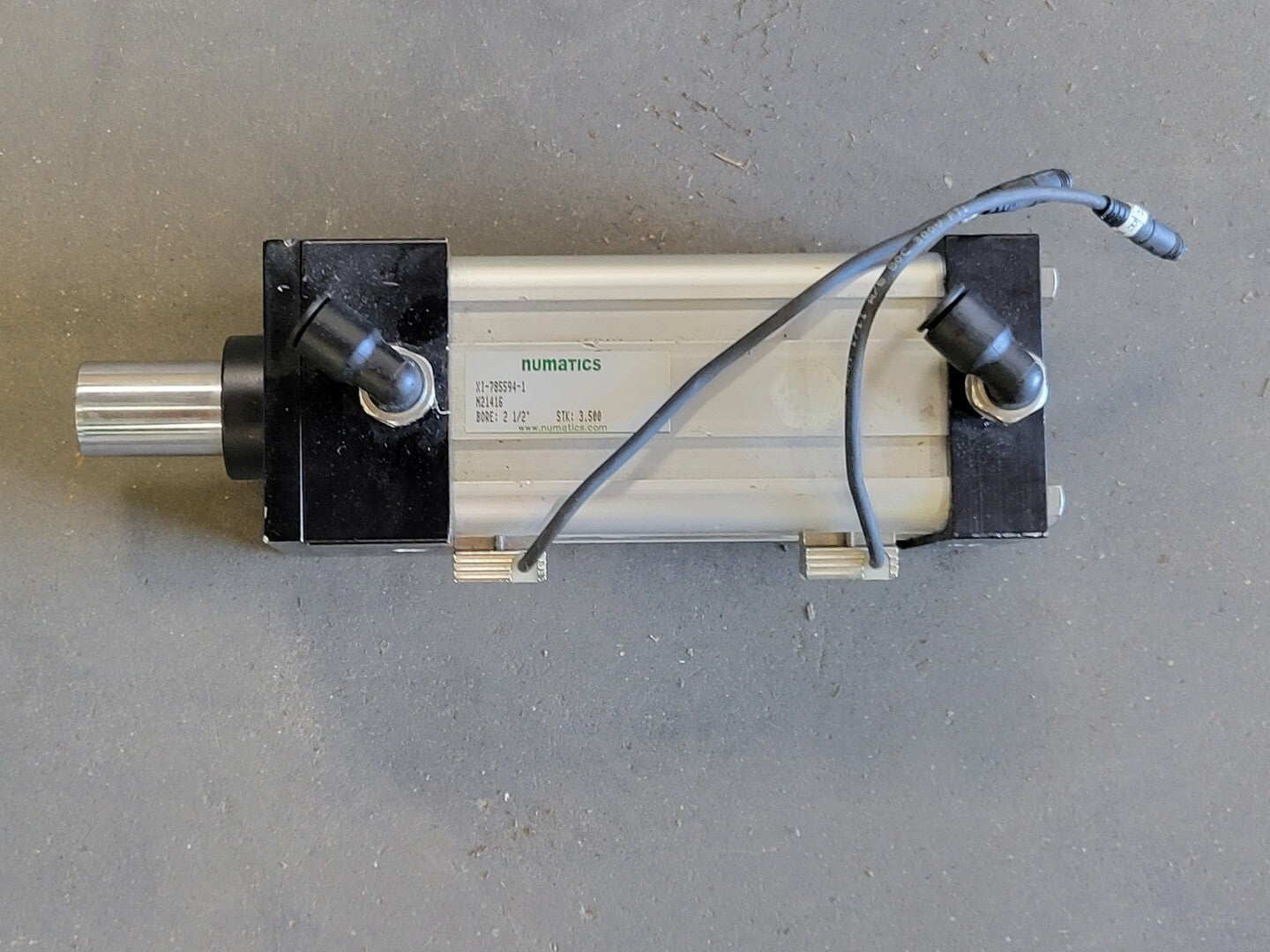

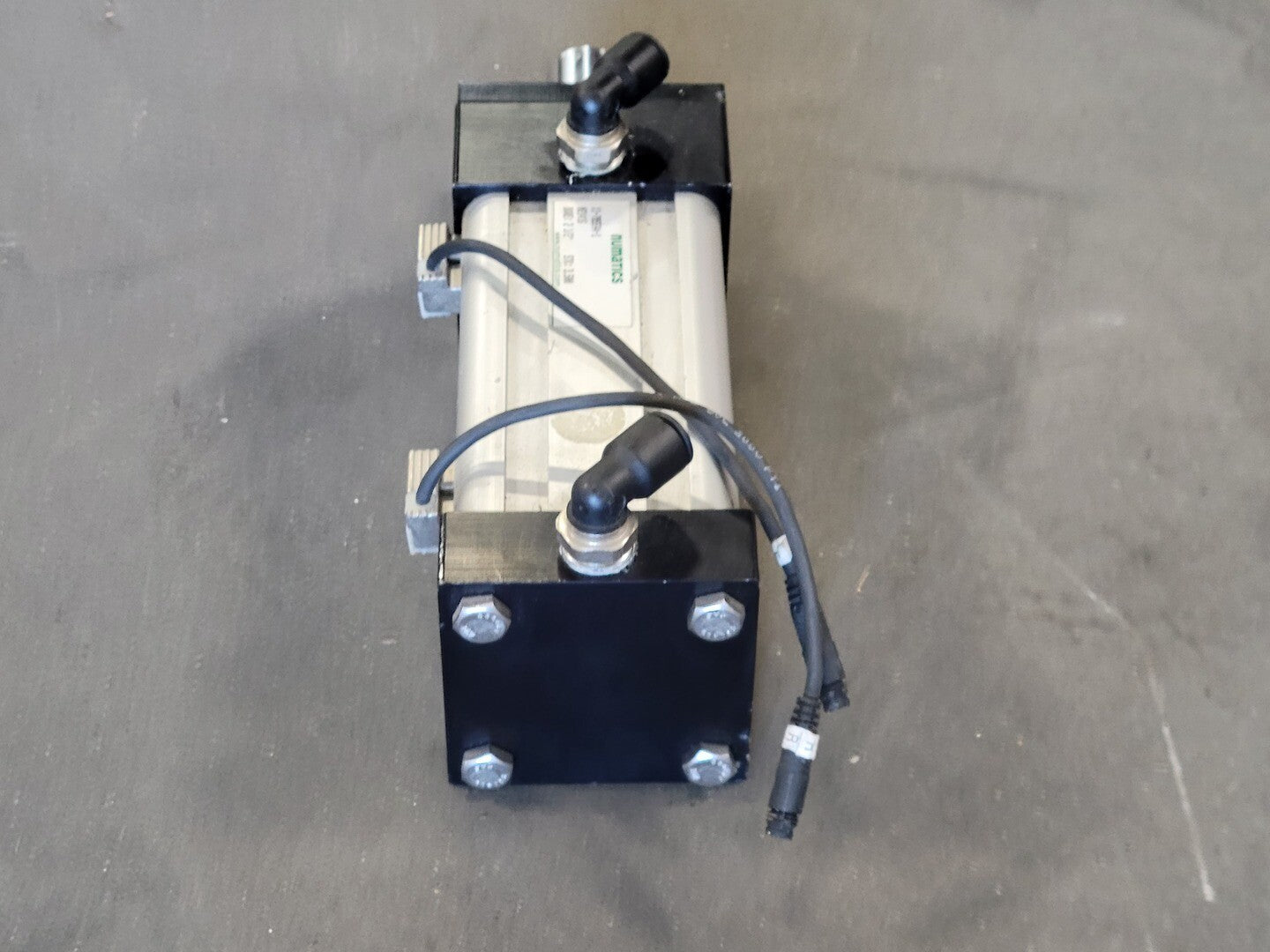

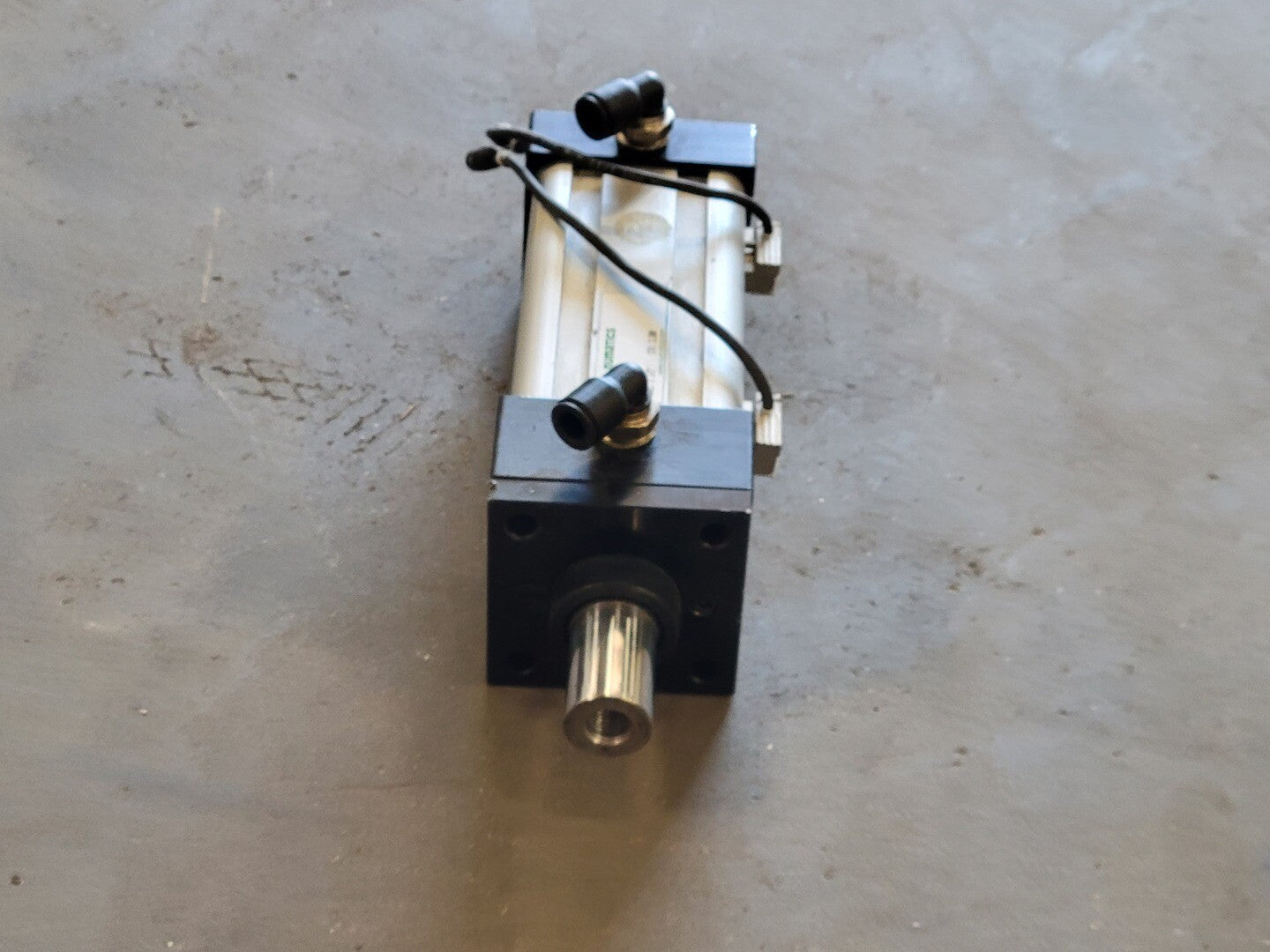

This is a 2 1/2" bore air cylinder with the model number XI-785594-1 from NUMATICS. The dimensions of this cylinder are 3.50 x 3.50 x 10.00, and it weighs 8.40 lbs. It is a double-acting cylinder with a side tapped/sleeve nut mount and a 1/4" NPT port size. The temperature range for this cylinder is -20 degrees to 200 degrees Fahrenheit. The overall length is 7.875" and the maximum load capacity is 785 lbs. The piston and end cap are made of aluminum, and the tube is also made of aluminum. The rod thread size is 1/2"-20, and it conforms to NFPAt standards. The maximum pressure for this cylinder is 250 psi. This cylinder is suitable for use in pneumatic applications. It features a square head, piston magnet, and cushioned design.
| Specifications | |
|---|---|

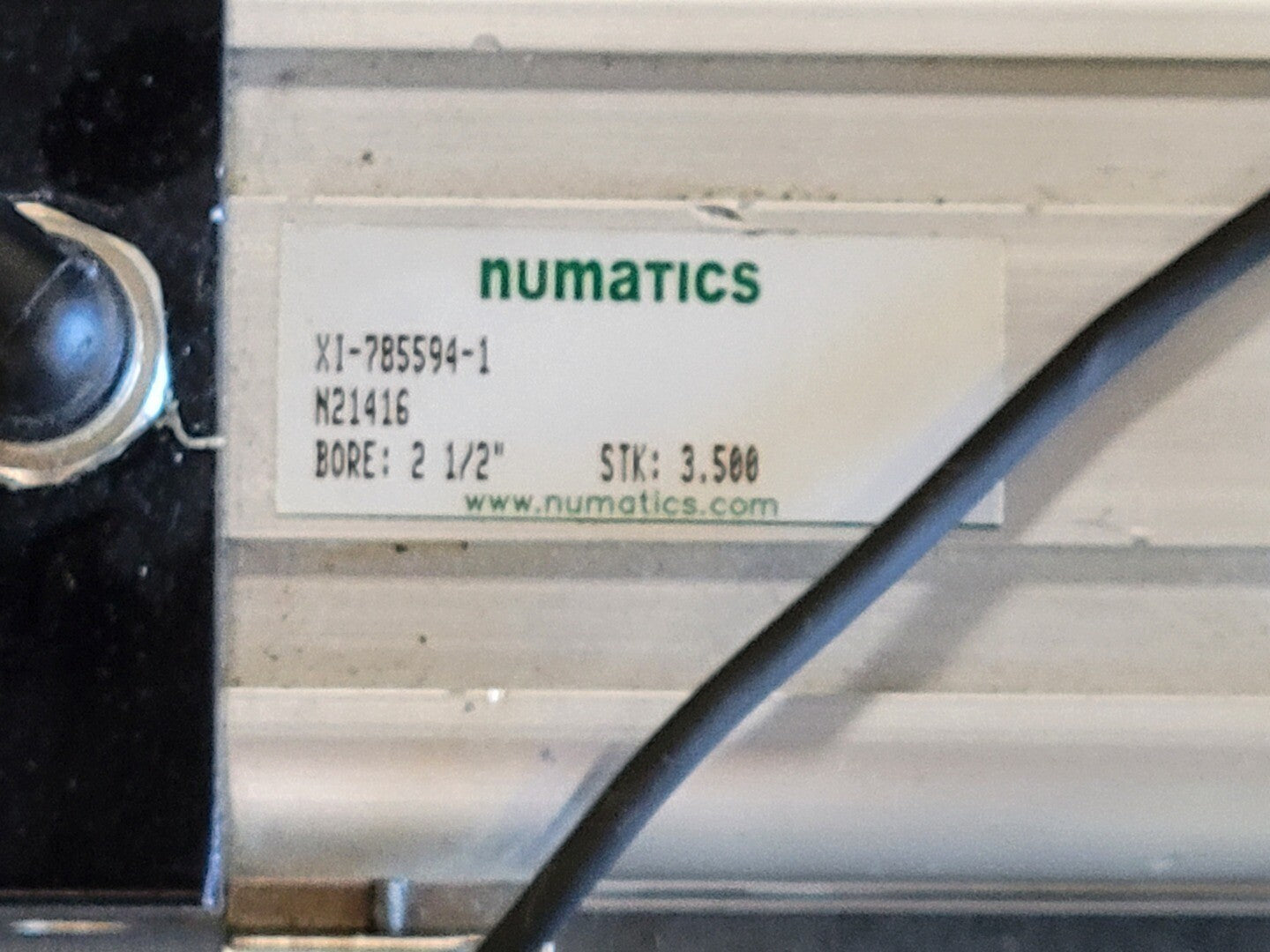

| Model | XI-785594-1 |
| Condition | Used | General |
| Bore | 2-1/2" |
| Stroke | 3.50" |
| Other Specifications |
|---|
|
Bore Diameter: 2 1/2"
Item: Air Cylinder
Cylinder Action: Double Acting
Air Cylinder Mount: Side Tapped/Sleeve Nut
Port Size: 1/4" NPT
Temp. Range: -20 Degrees to 200 Degrees F
Overall Length: 7.875"
Max. Load: 785 lb.
Piston Material: Aluminum
End Cap Material: Aluminum
Magnetic Piston: No
Tube Material: Aluminum
Rod Thread Size: 1/2"-20
Standards: NFPA
Max. Pressure: 250 psi
Air Cylinder Product Group: Air Cylinder
Air Cylinder Bore Dia.: 2 in
Air Cylinder Type: NFPA
Body Material: Aluminum
Single Acting/Double Acting: Double Acting
Cylinder Type: NFPA
Mount: Side Tapped/Sleeve Nut
Finish: Silver and Black
Piston Rod Material: Chrome Plated Steel
Tie Rod Material: Steel
Rod Dia.: 5/8"
Rod Thread Length: 3/4"
Features: Square Head, Piston magnet, Cushioned
|
