Description

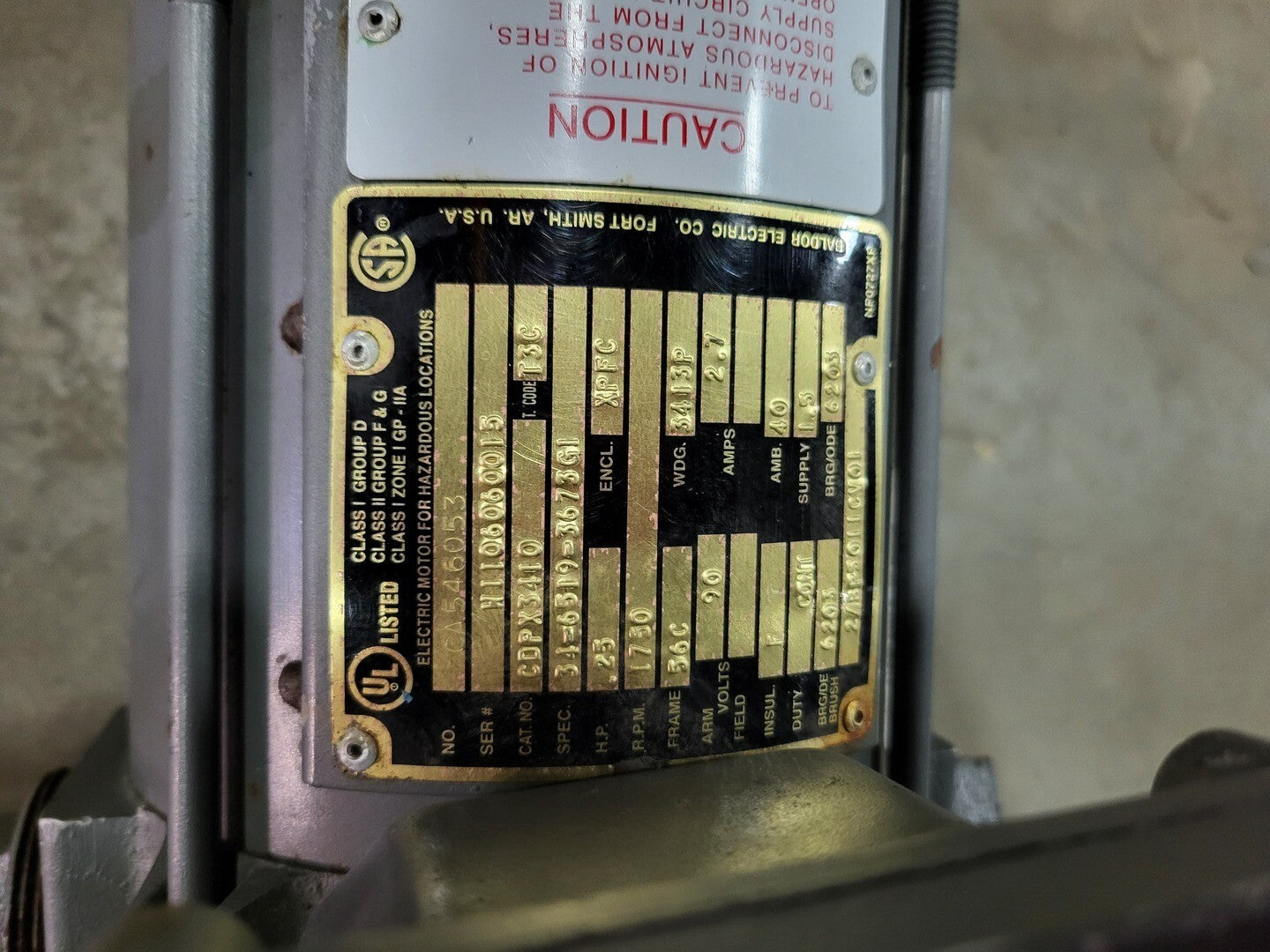

| Specifications | |
|---|---|
| Model | CDPX3410 |
| S/N: | H1106060015 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Horsepower | 0.25 hp |
| Voltage | 90 volts |
| RPM | 1750 rpm |
| Frame | 56C | Additional Data |
| Duty | Continuous |
| Other Specifications |
|---|
|
Armature Voltage: 90 V
Base Speed: 1750 rpm
Enclosure: XPFC
Frame: 56C
Frame Material: Steel
Output Power: 0.250 HP

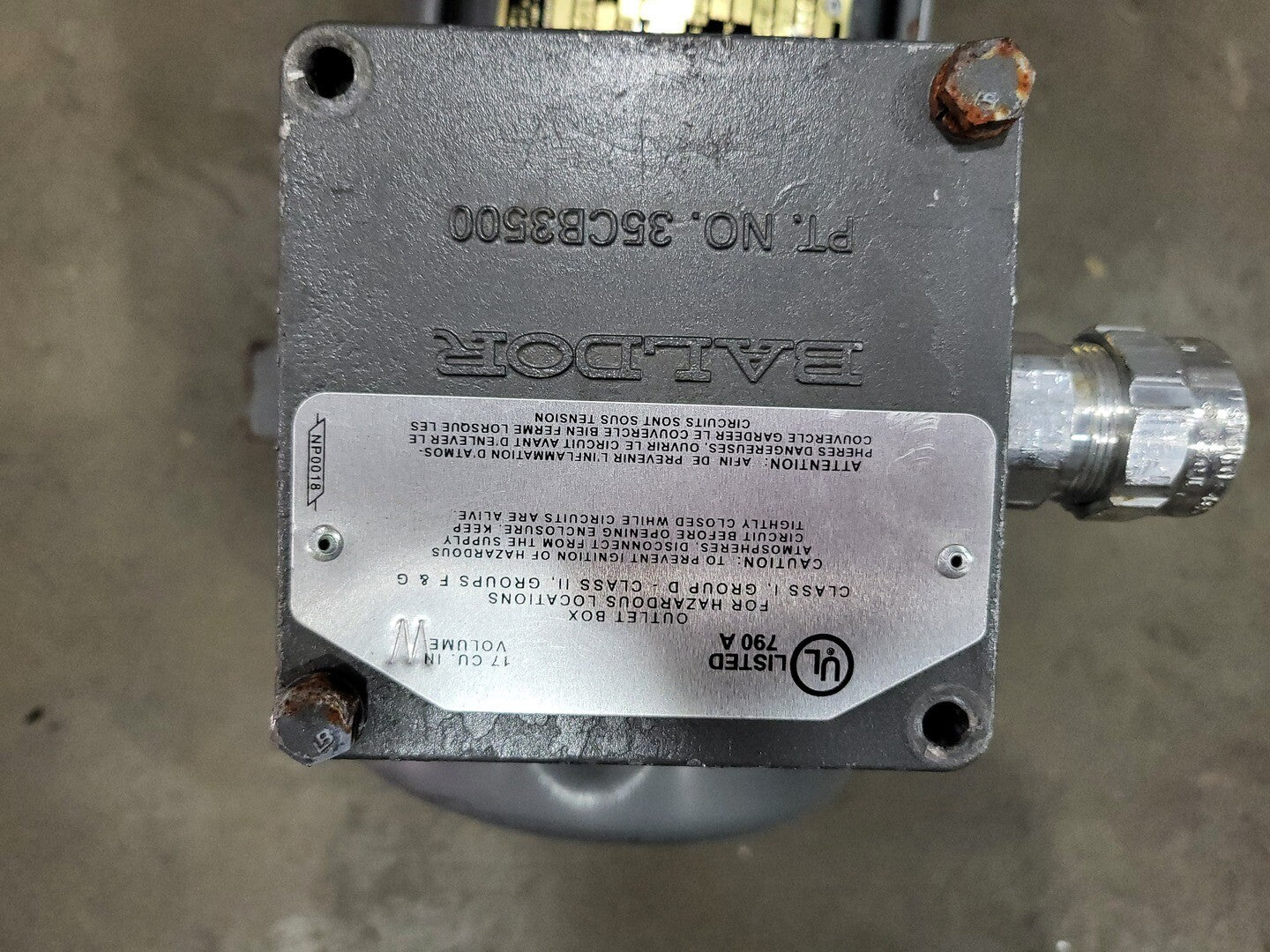

XP Class and Group: CLI GP D; CLII GP F,G
Agency Approvals: CSA / UL / UR
Ambient Temperature: 40 °C
Armature Current: 2.7 a
Armature Inertia: 5.073 lb-ft2
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Duty Rating: CONT
Insulation Class: F
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Lead Quantity/Wire Size: 2 @ 14 AWG, A
Mounting Arrangement: F1
Overall Length: 13.87 IN
Product Family: General Purpose
Pulley End Bearing Type: Sealed Bearing
Service Factor: 1.00
Shaft Diameter: 0.625 IN
Shaft Extension Location: Pulley End
Shaft Rotation: Reversible
Motor Standards: NEMA
XP Division: Division I
XP Temp Code: T3C
|
