Description
| Specifications | |
|---|---|

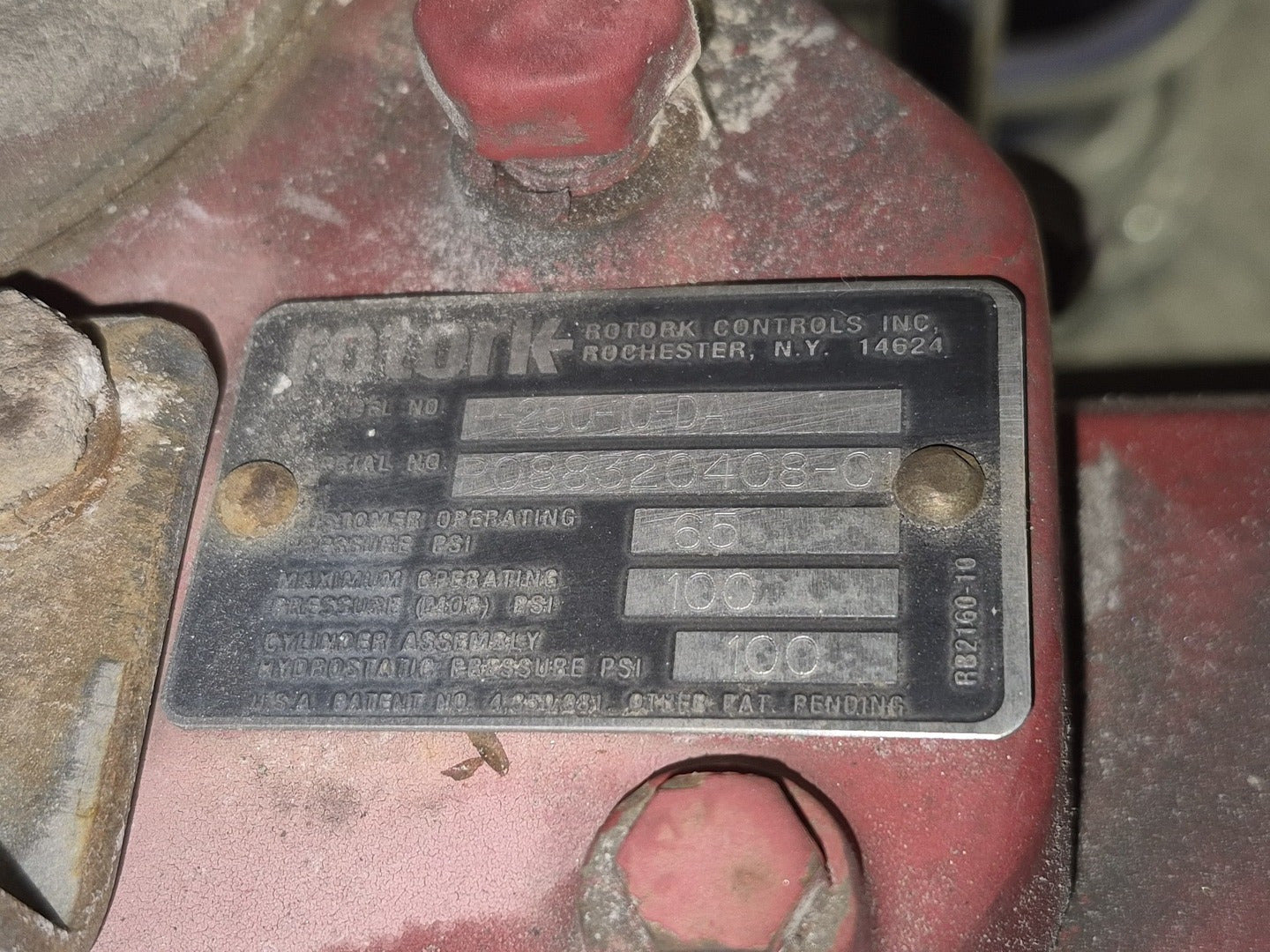

| Model | P-250-10-DA |
| S/N: | O088320408-01 |
| Condition | Used | General |
| Diameter | 10" |
| Class | 150 |
| Valve Style | Ball |
| Connection Ends | Flange |

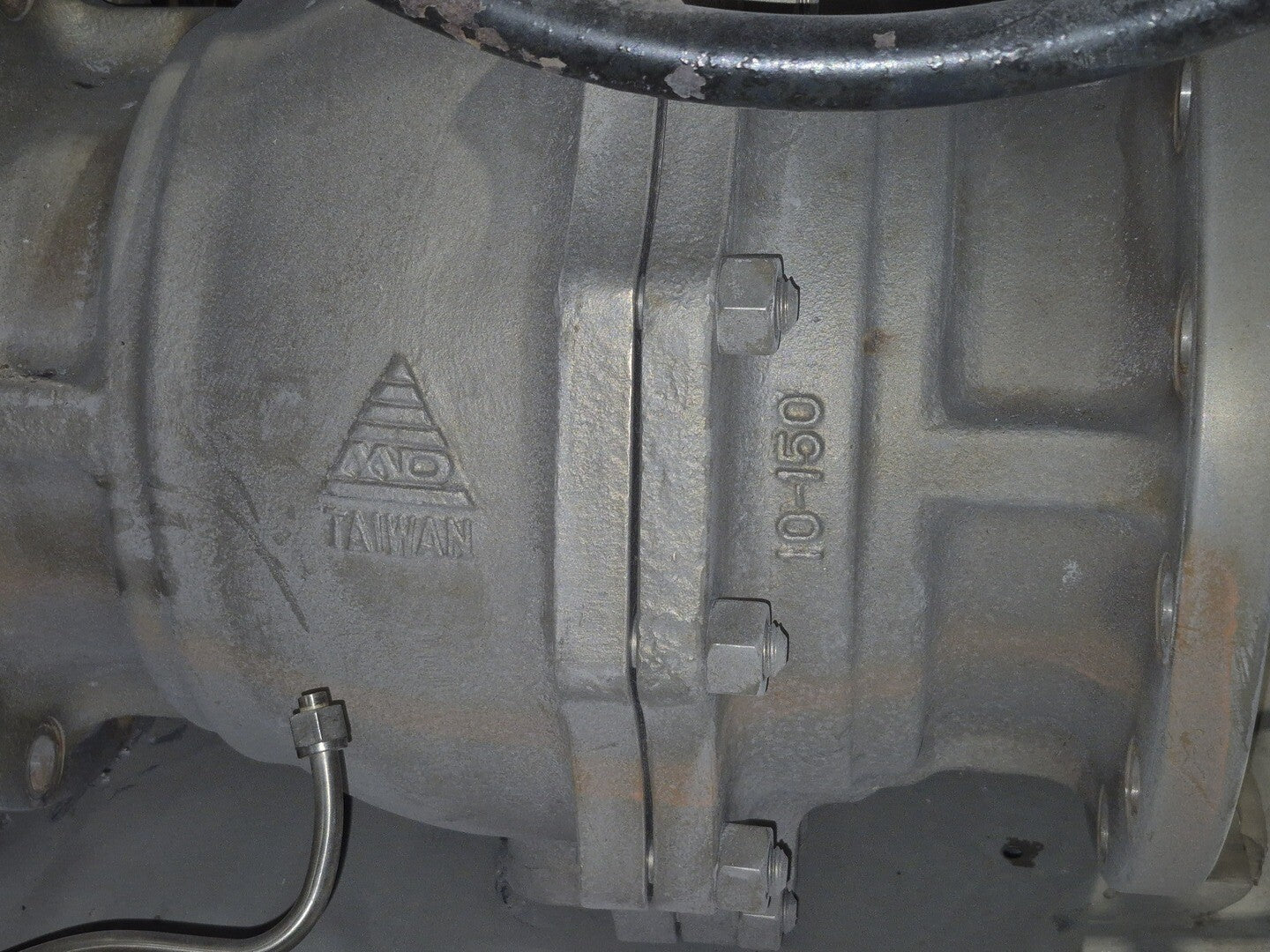

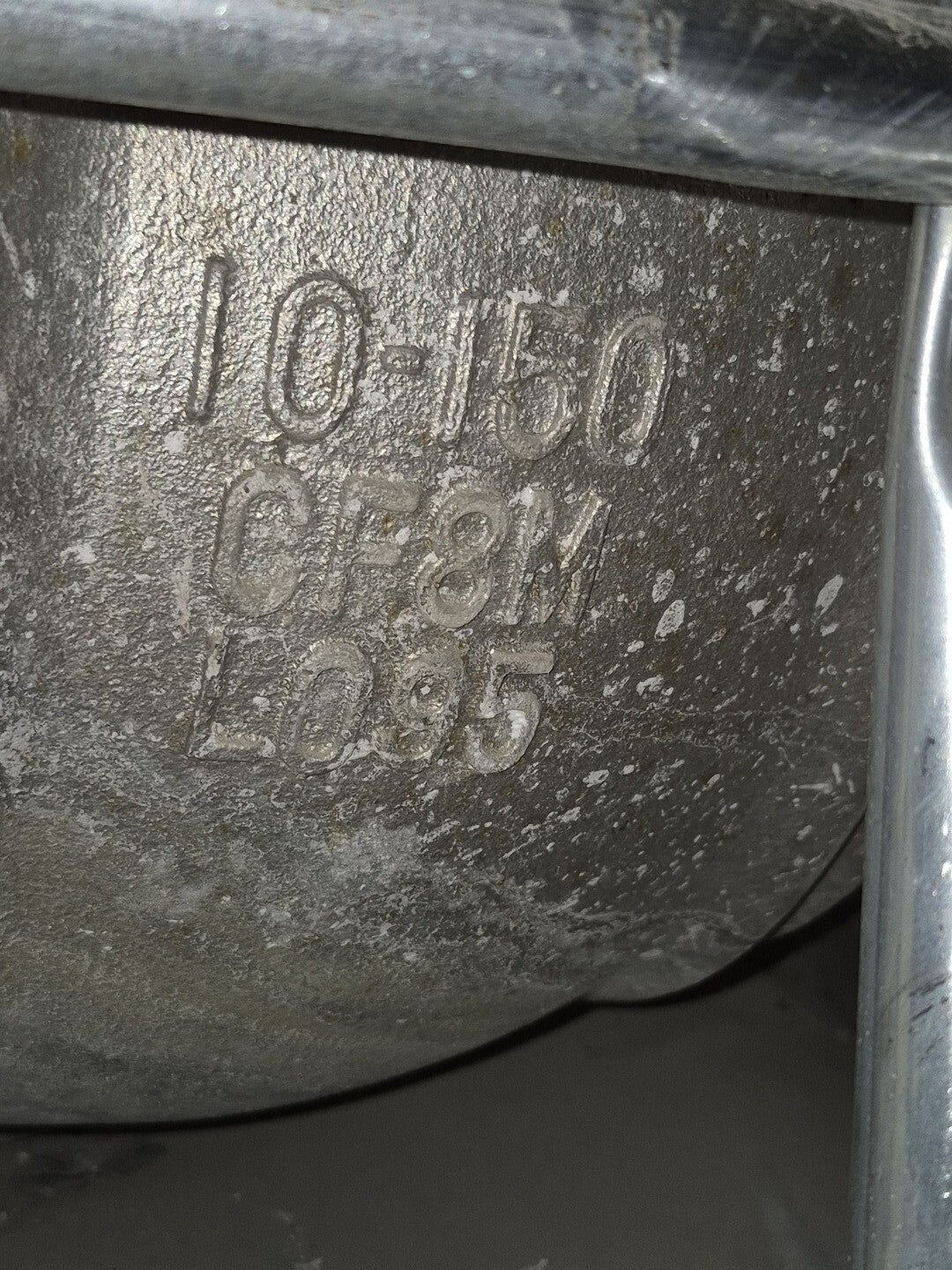

| Body | CF8M Stainless Steel |
| Other Specifications |
|---|

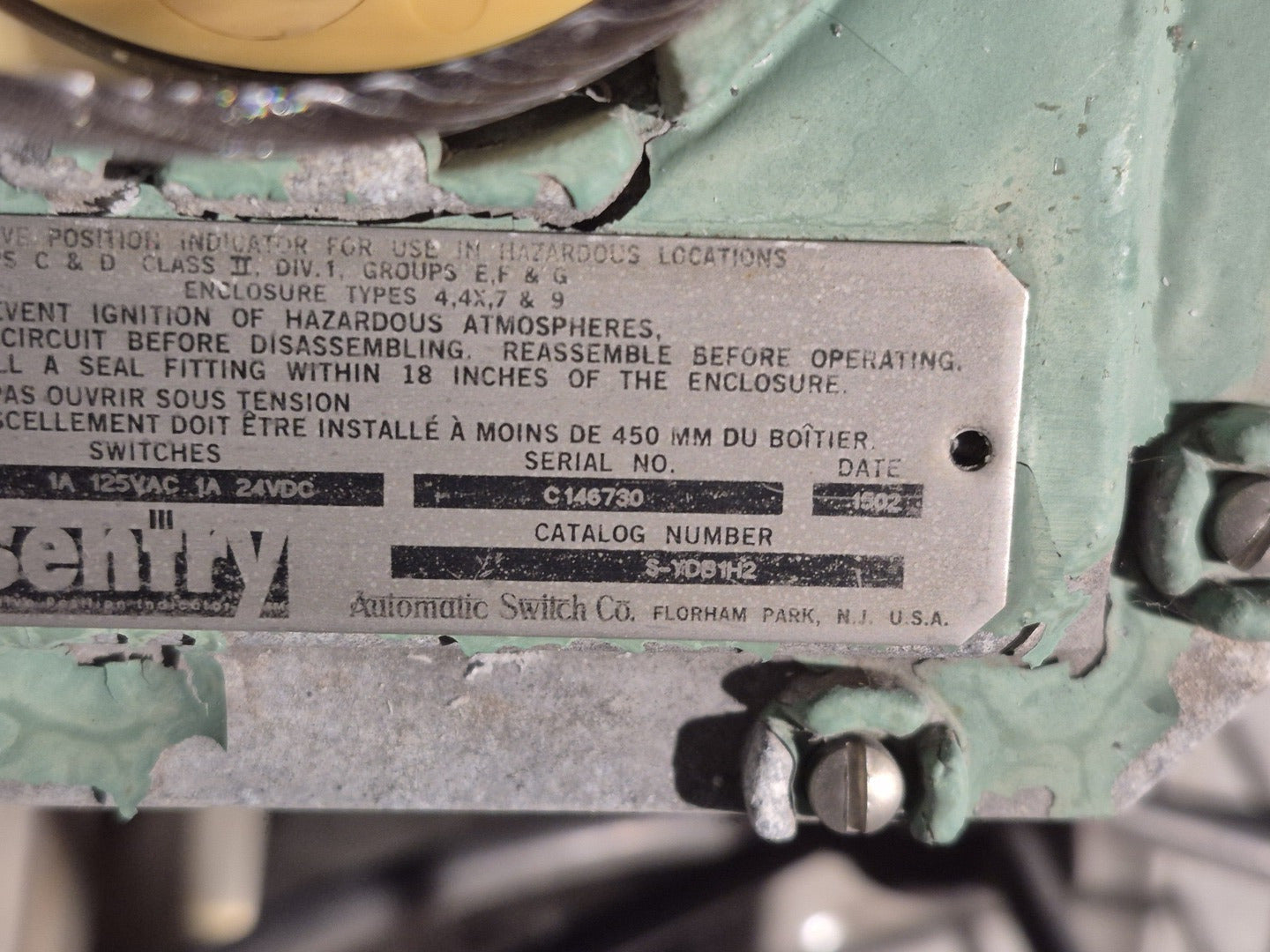

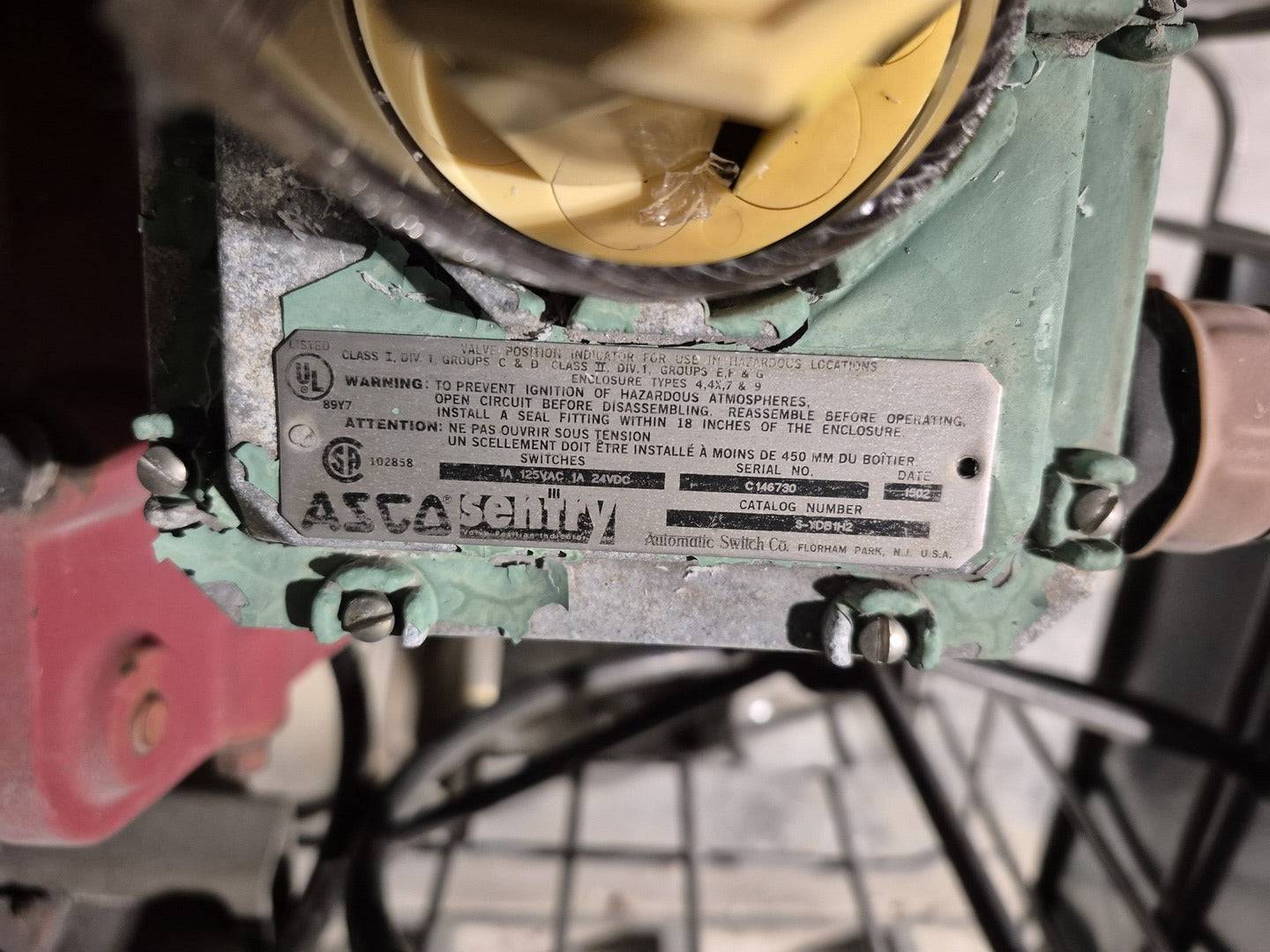

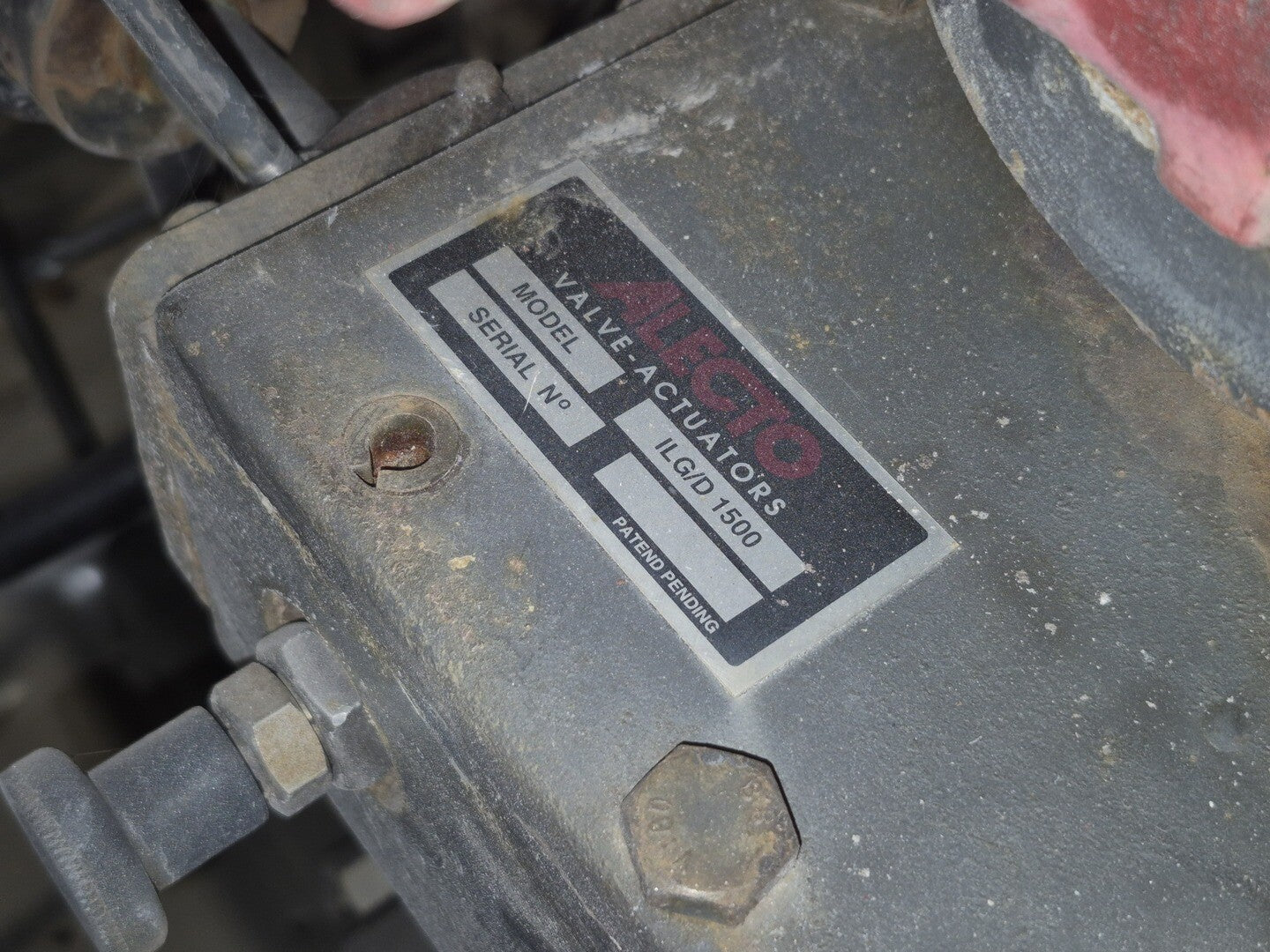

PDF Actuator Dimension DataPDF ILG-D 1500 Gear Operator DataActuator Action: Double acting Operating Air Pressure: 65 PSI Max. Operating Pressure: 100 PSI Cylinder Assembly Hydrostatic Pressure: 100 PSI Swept Volume (Displacement): 6.12 Litres Air Inlet/Exhaust Ports: 1/2" NPT End-to-End Length: 34" Gear Operator Brand: Alecto (Rotork) Model No.: ILG/D 1500 Ratio: 57:1 Output Torque: 2485 Nm Input Torque: 160 Nm Body: Cast iron Position Indicator Brand: ASCO Catalog No.: S-YDB1H2 Switches: 1 A, 125 VAC / 1 A, 24 VDC |
