Description

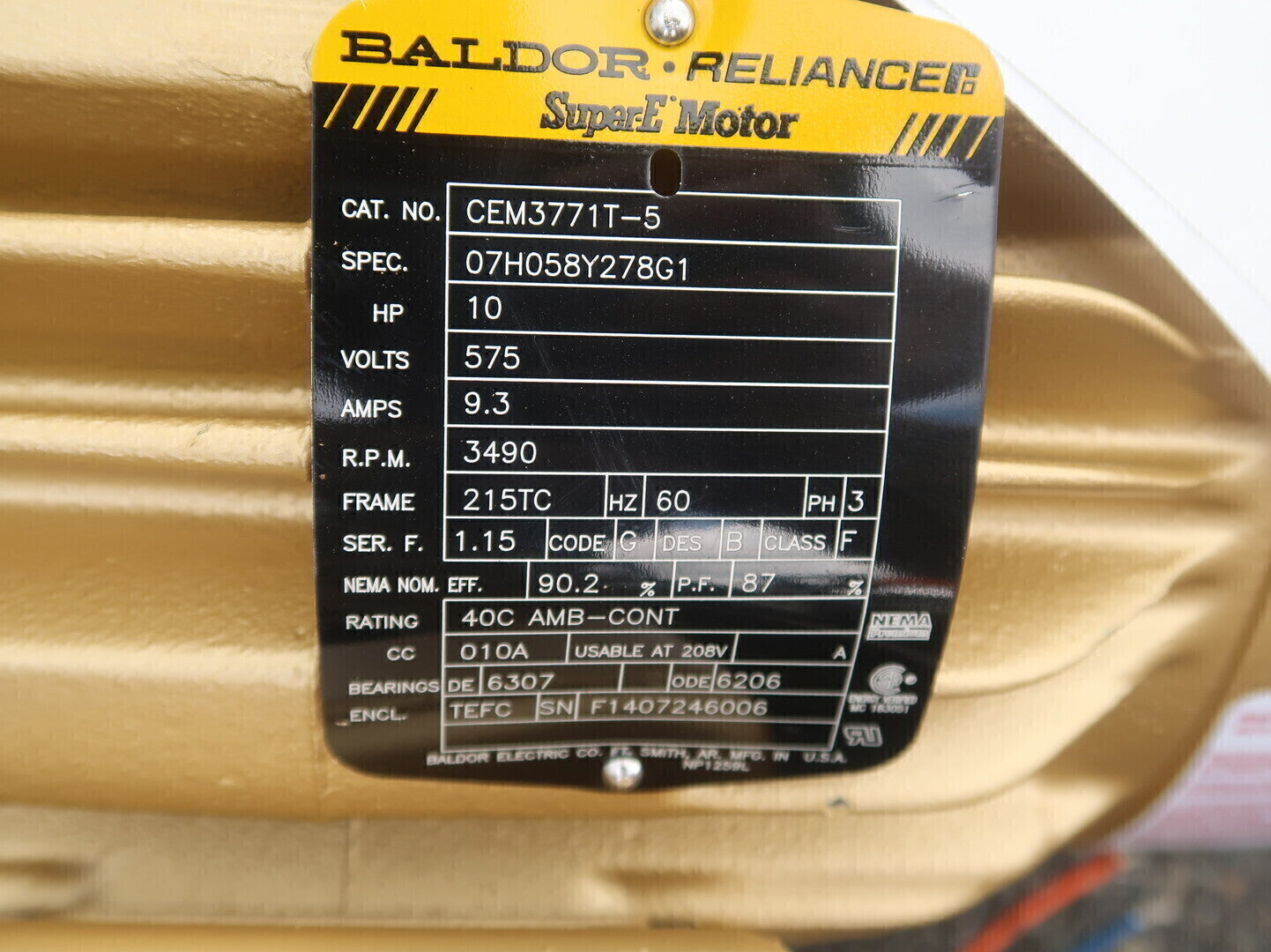

| Specifications | |
|---|---|

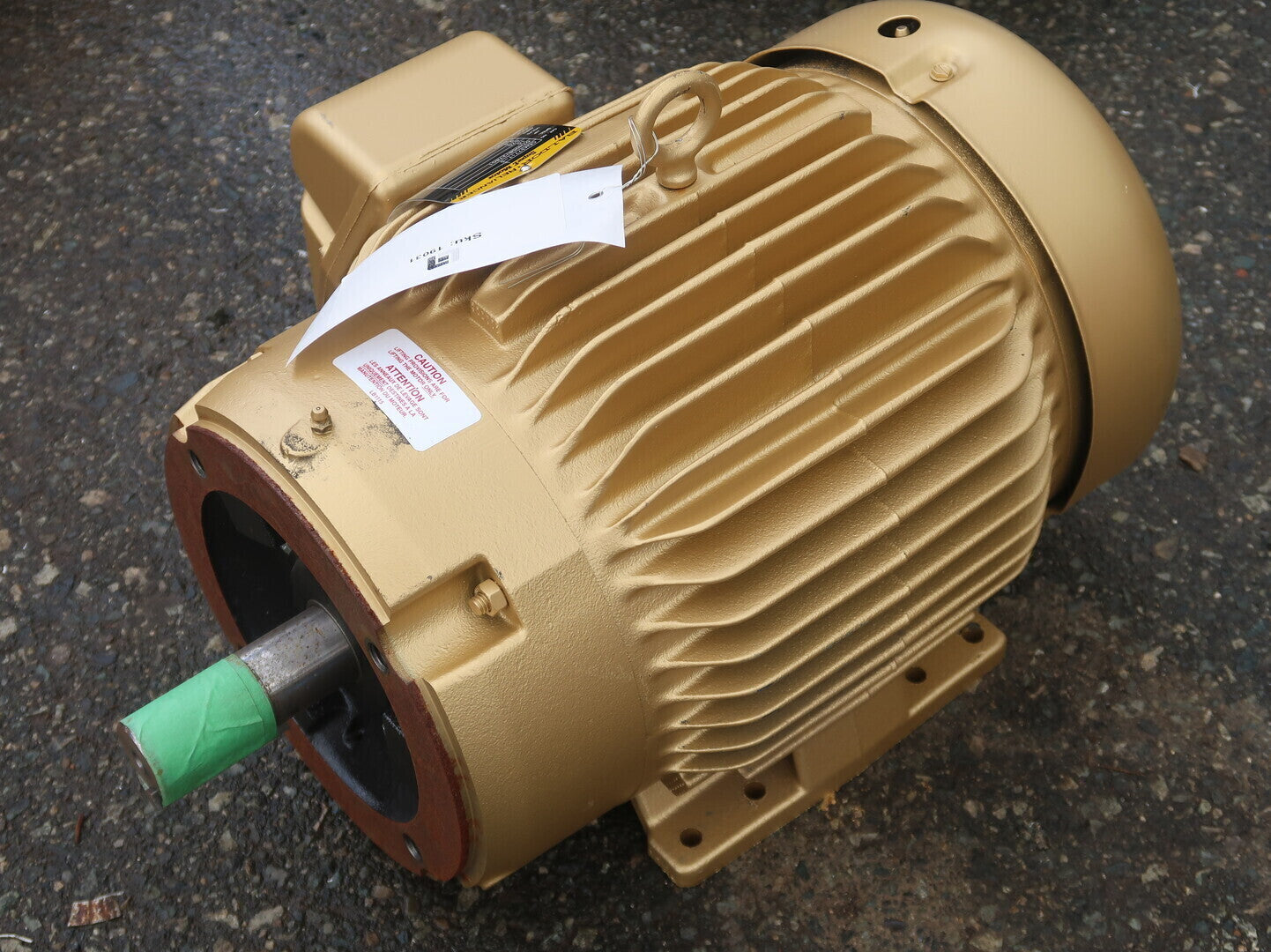

| Model | CEM3771T-5 |
| S/N: | F1407246006 |
| Made In | UNITED STATES |
| Condition | Surplus New | General |
| Current Type | AC |
| Horsepower | 10 hp |
| Voltage | 575 volts |
| Phase | 3-phase |
| RPM | 3600 rpm |
| Frame | 215TC | Additional Data |
| Duty | Continuous |
| Other Specifications |
|---|
|
Enclosure: TEFC
Frame Material: Iron
Motor Letter Type: Three Phase
Output @ Frequency: 10.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
XP Class and Group: None
Ambient Temperature: 40 °C
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 9.300 A @ 575.0 V
Design Code: B
Drip Cover: No Drip Cover
Efficiency @ 100% Load: 90.2 %
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
High Voltage Full Load Amps: 9.3 a
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Lead Quantity/Wire Size: 3 @ 14 AWG
Motor Type: 0730M
Mounting Arrangement: F1
Number of Poles: 2
Overall Length: 19.20 IN
Power Factor: 87
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Service Factor: 1.15
Shaft Diameter: 1.375 IN
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed: 3490 rpm
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
|
