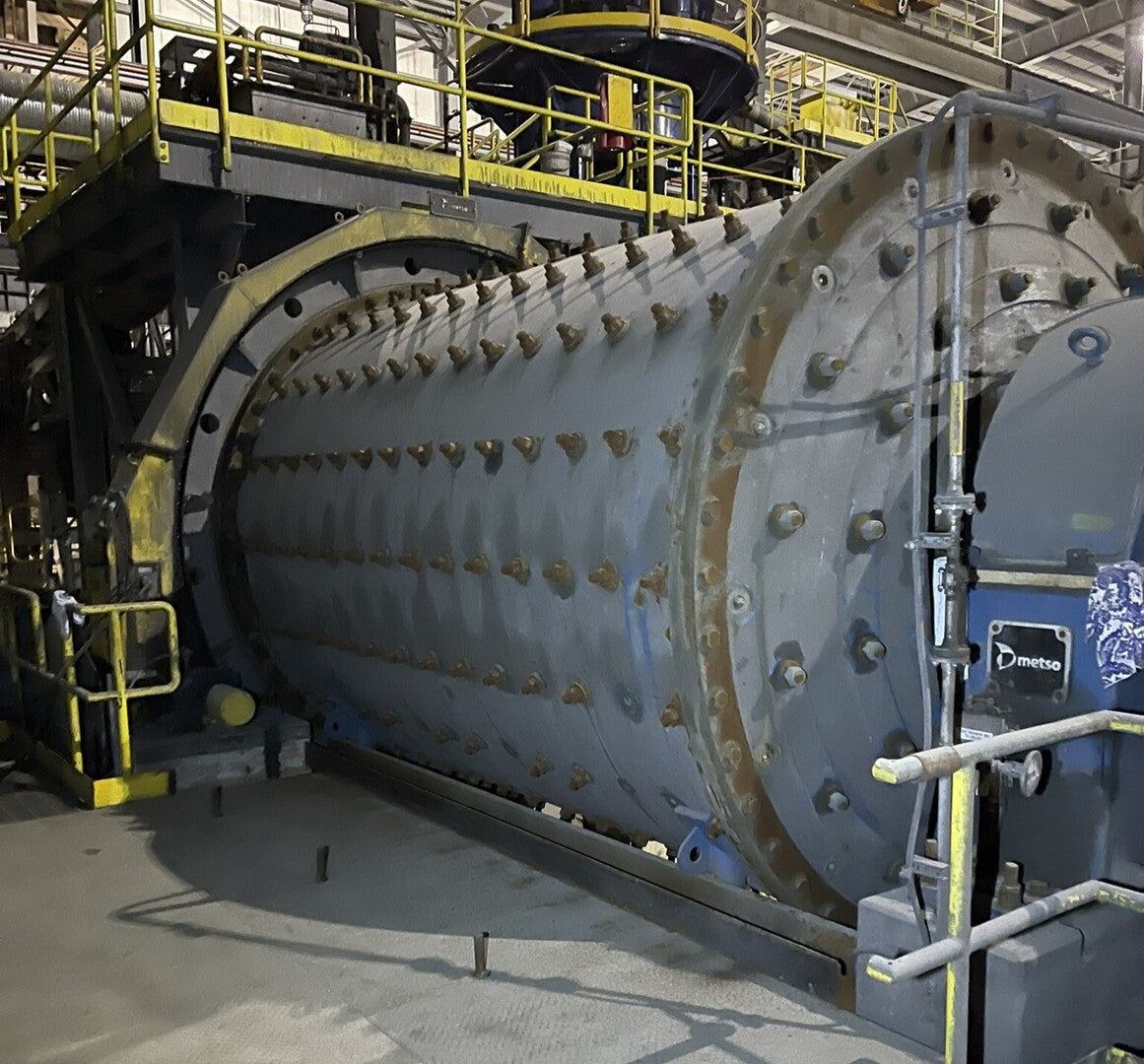

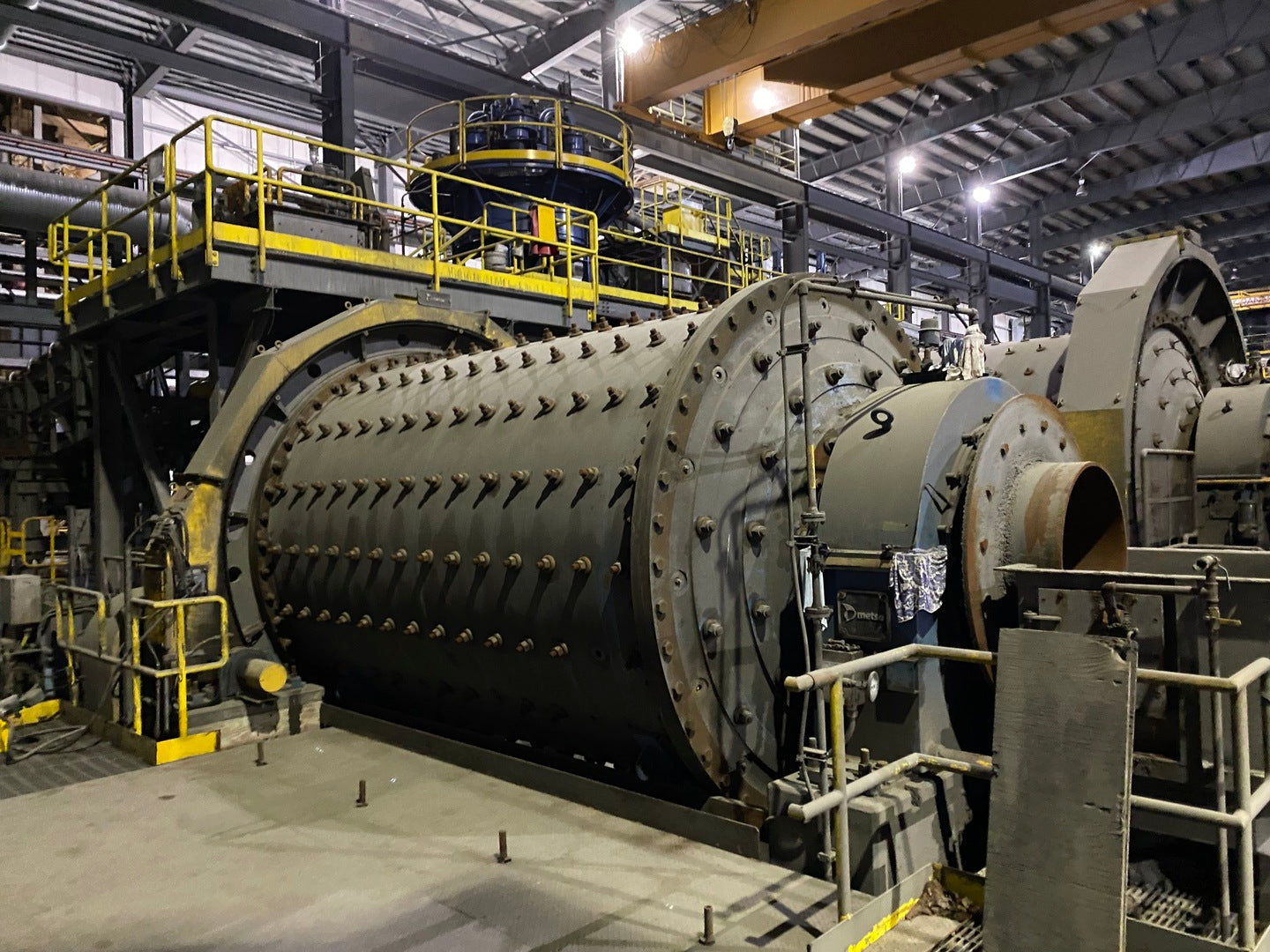

METSO 10' x 14' Rod Mill, 400kW (536HP)
METSO

10' x 14' Rod Mill, 400kW (536HP)

SKU: 123730
Price:
$500,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Year: 2008
S/N: 75806
Condition Used
General
Horsepower 536 hp
Phase 3-phase
RPM 1187 rpm
Electrical
Voltage 4000 volts
Other Specifications

General Specifications

Mill Size: 10ft. x 14ft.

Type: Rod Mill

Serial: 75806 (Asset#: E2-MIL-001)

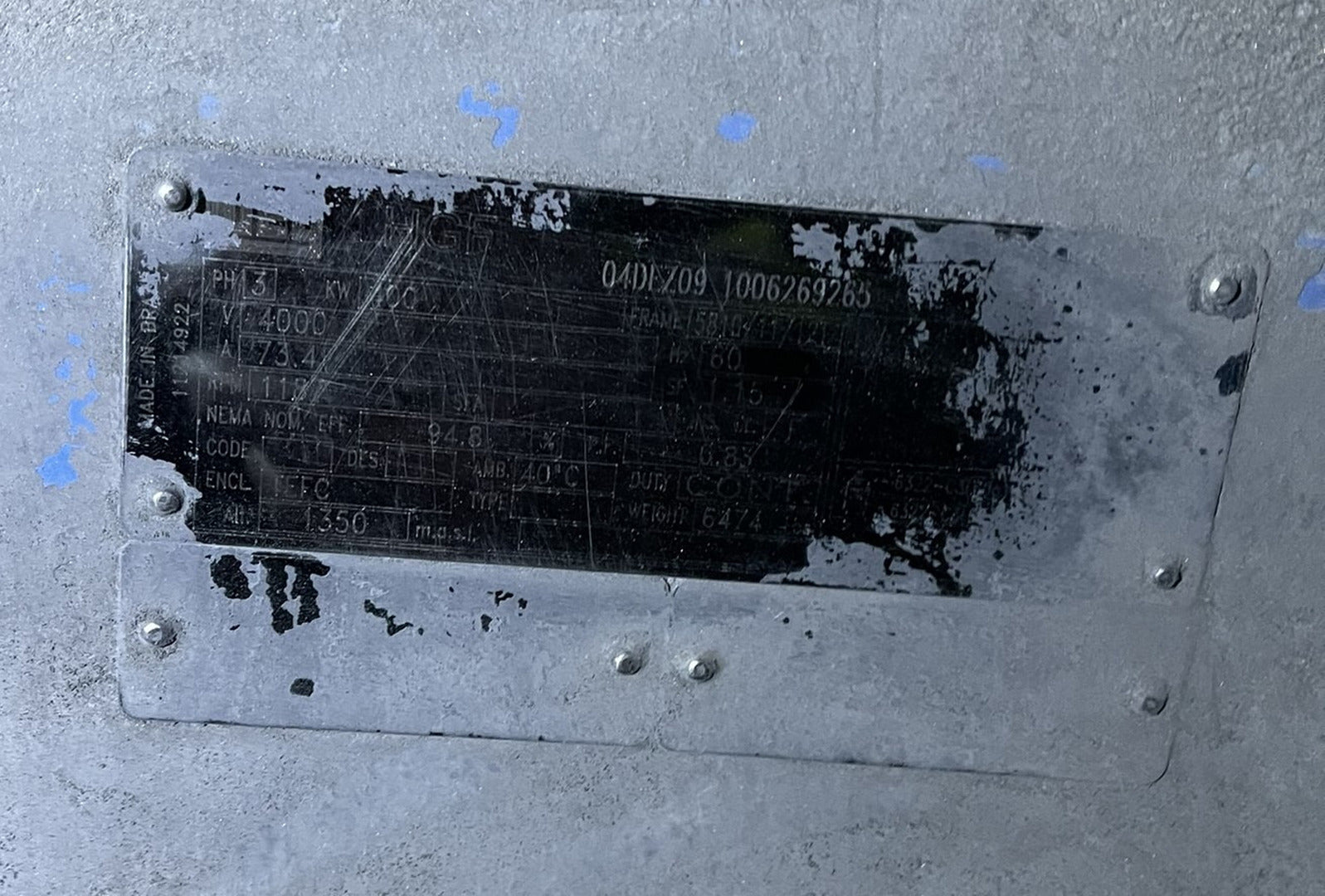

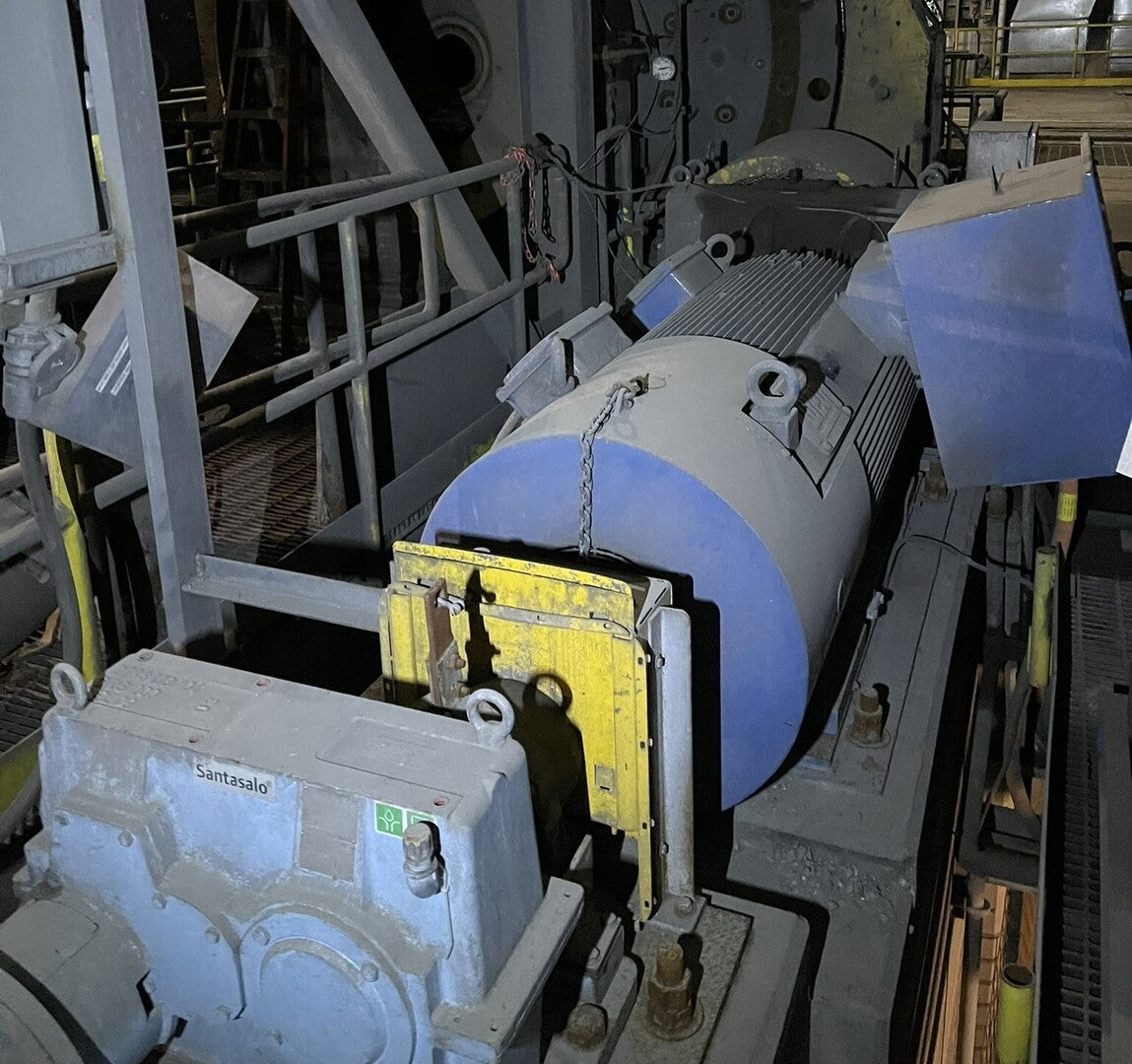

Drive Motor: WEG 400kW (536HP) Electric Motor, 1187rpm, 4000V, 3-Ph, 60hz

Clutch: EATON 28VC1200 SW

Speed Reducer: MOVENTAS D4PSF70, 4.9412:1 Ratio

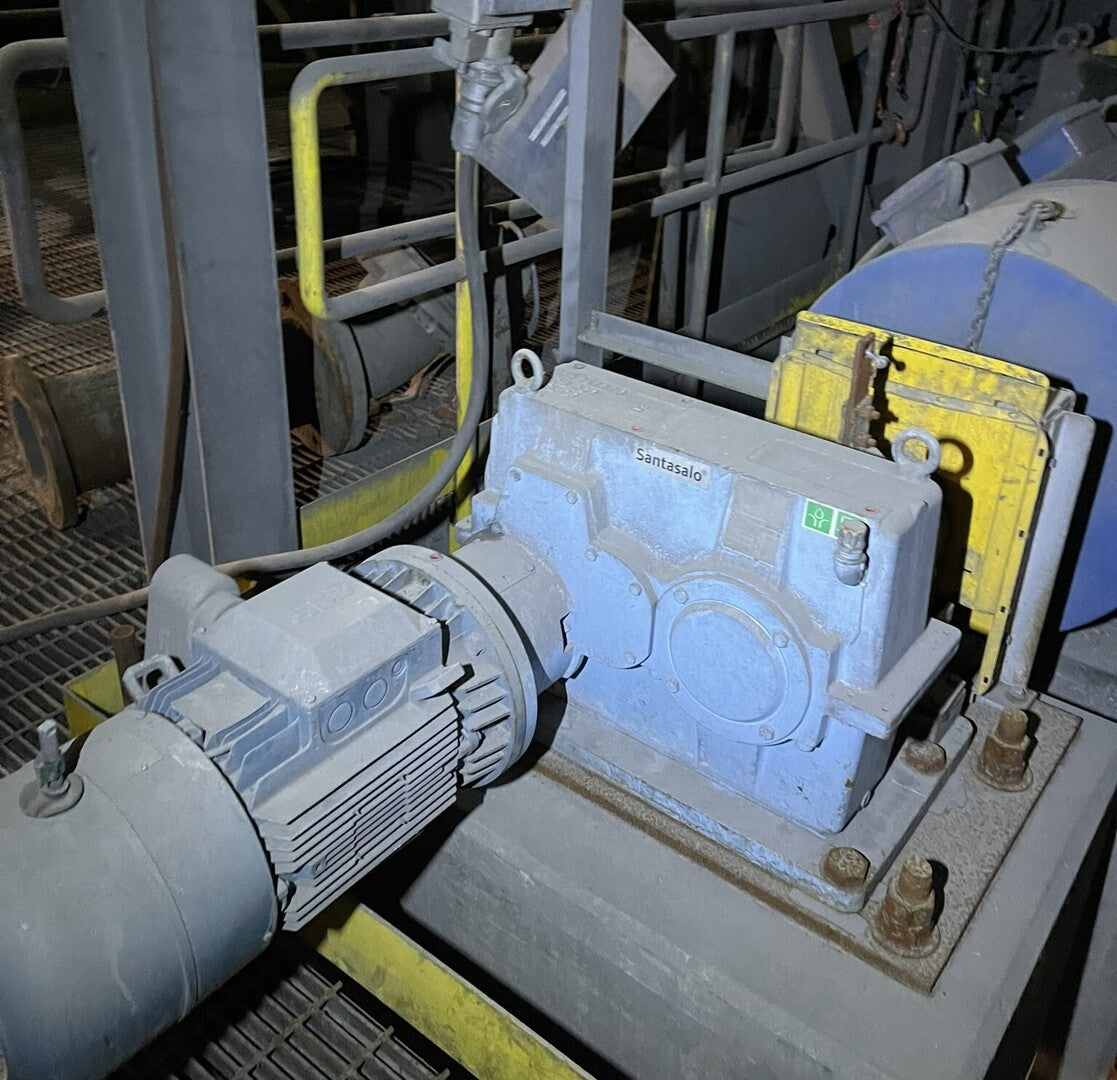

Inching Drive: MOVENTAS 4C200N Inching Drive w/ Brake (connected to extended motor shaft)

Gear Set Information: Teeth: 270 (Gear), 19 (Pinion), 14.2:1 Ratio

  • DP: 1.75
  • Centers: 83.533in. (2121.7mm)

Mill Speed: 16.9rpm

% Critical Speed: 68.4%

Trunnion Bearing Lube System: 650AL-Duplex Lubrication System

  • Trunnion Bearings Size: 48in. x 16in.
  • Type: Hydrodynamic Sleeve Bearings

Mill Lining: Metal Liner Assembly

Feed Arrangement: Lined Spout Feeder w/ Seal Assembly

Discharge Arrangement: Discharge Trunnion Liner

Grinding Media: Steel Grinding Rods

Rod Specifications

Rod Charge Size & Weight Distribution:

  • Total Rod Charge Weight: 110,000lbs (49,895kg)
  • Rod Length: 13ft.

Rod Diameter (3.0in.): 55% Initial Charge, 60,000lbs (27,215kg)

Rod Diameter (2.5in.): 45% Initial Charge, 50,000lbs (22,680kg)
