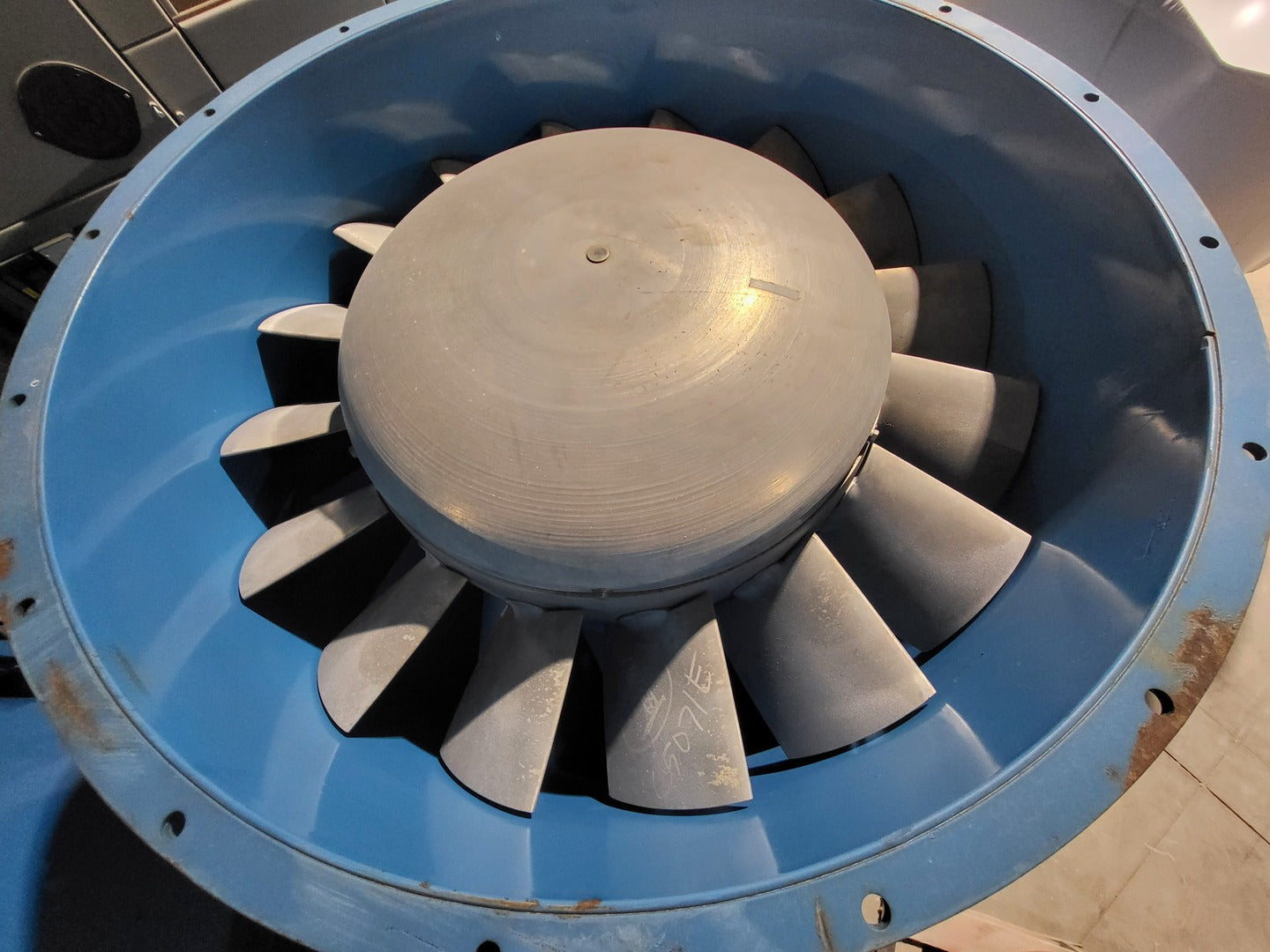

Description
| Specifications | |
|---|---|
| Model | 4200VAX2700 |
| Condition | Surplus New | General |
| Type | Axial |
| RPM | 1800 rpm |
| Horsepower | 100 hp |
| CFM | 50,000 cfm | Electrical |
| Voltage | 575 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

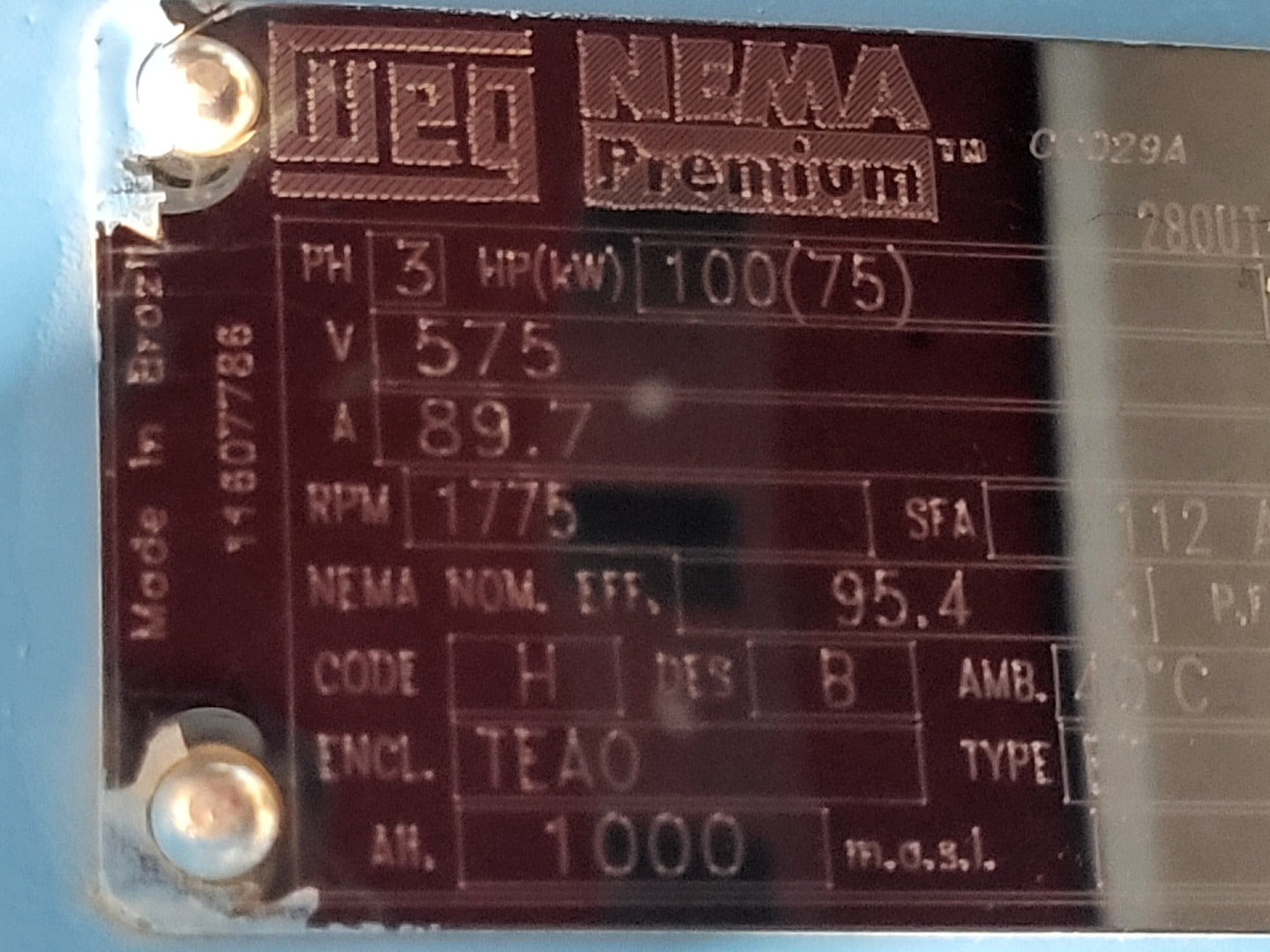

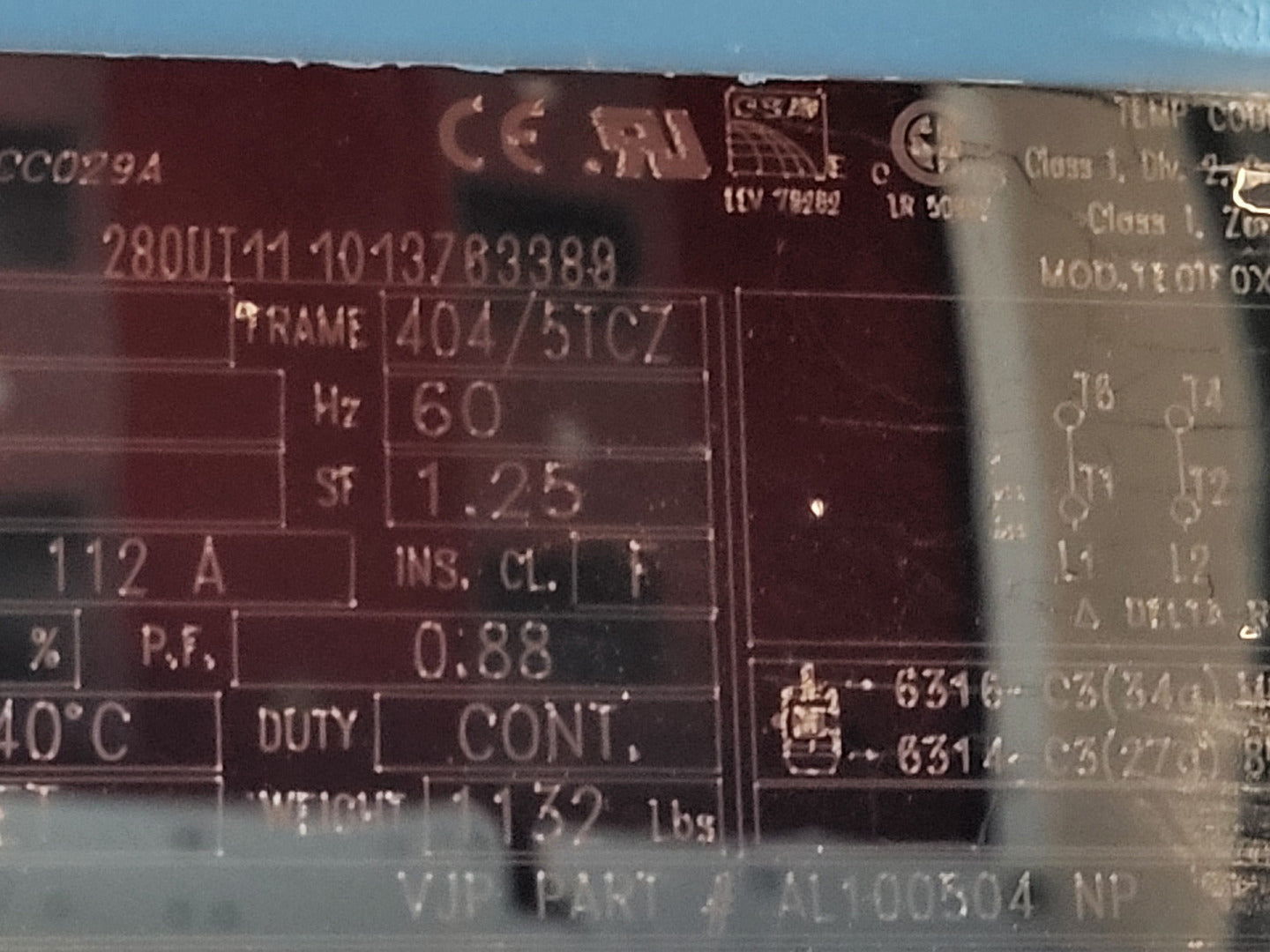

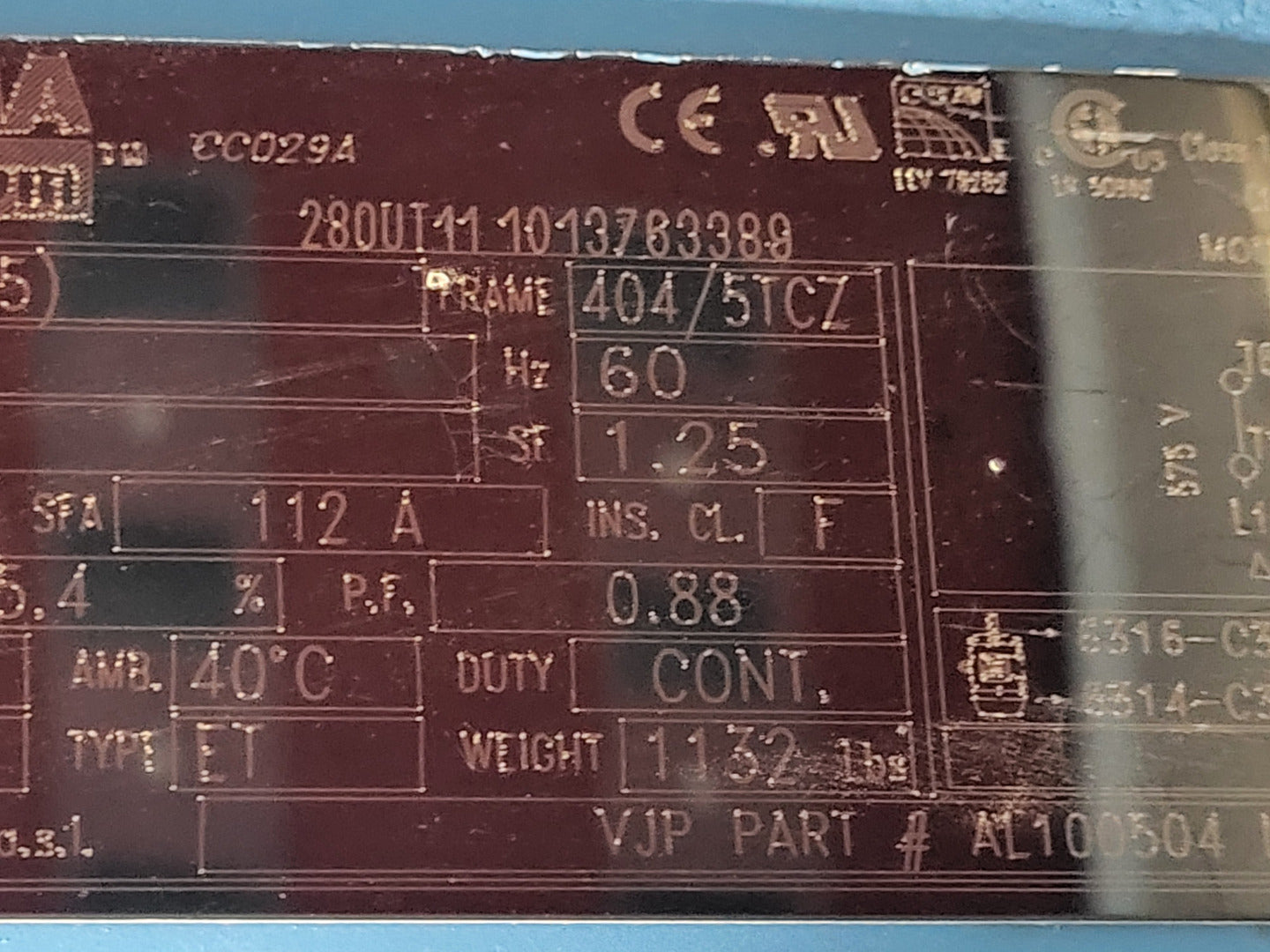

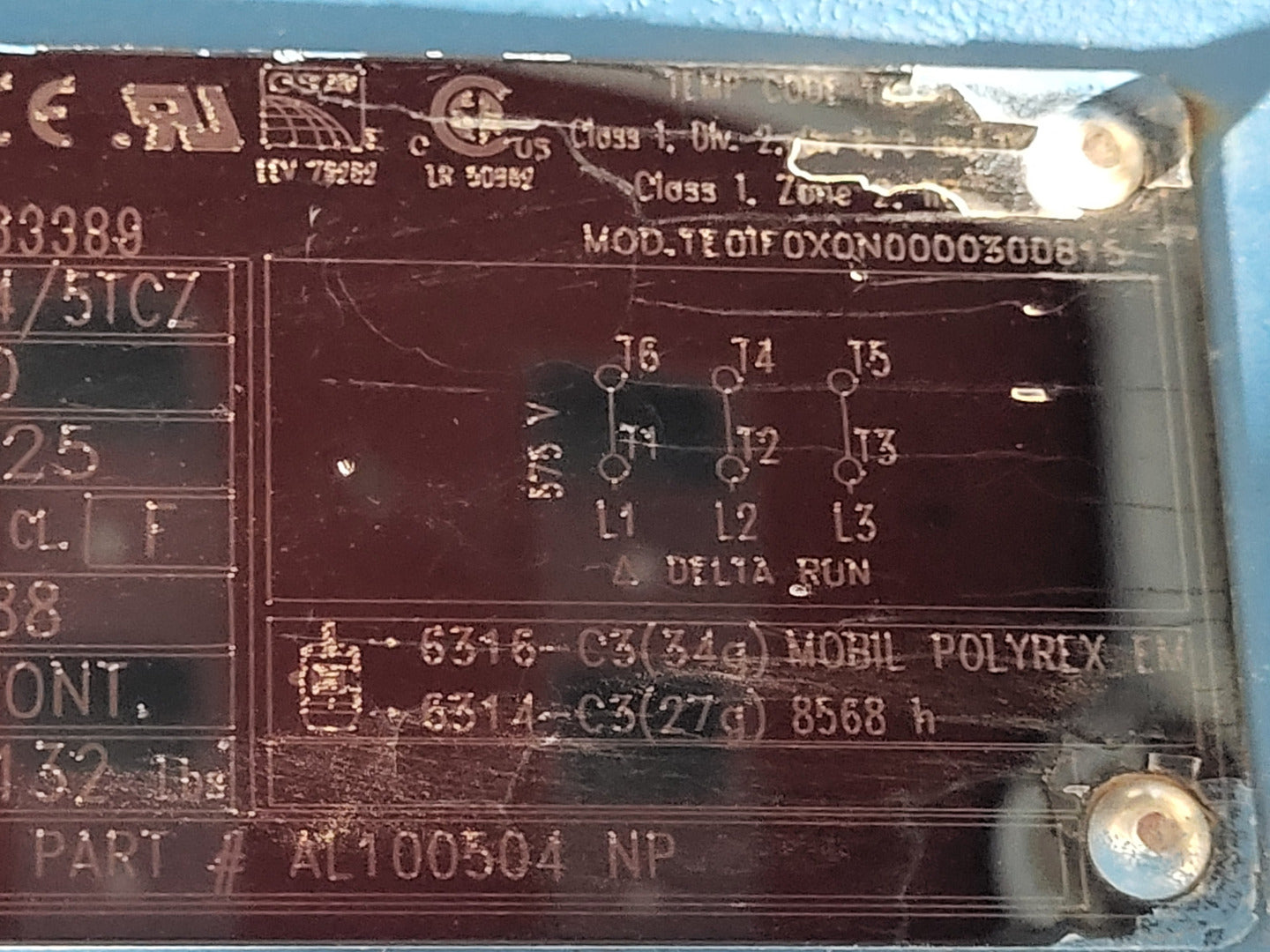

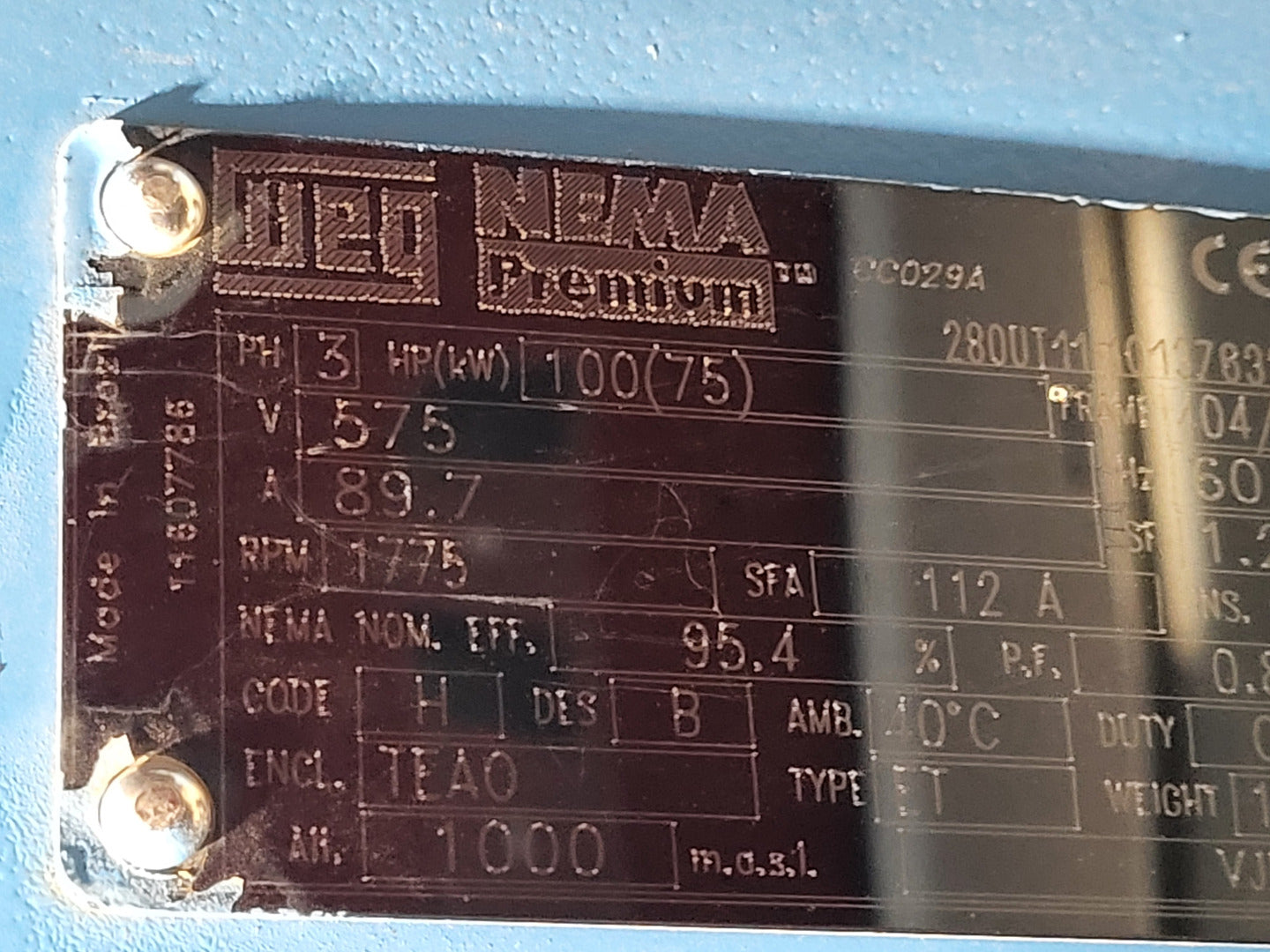

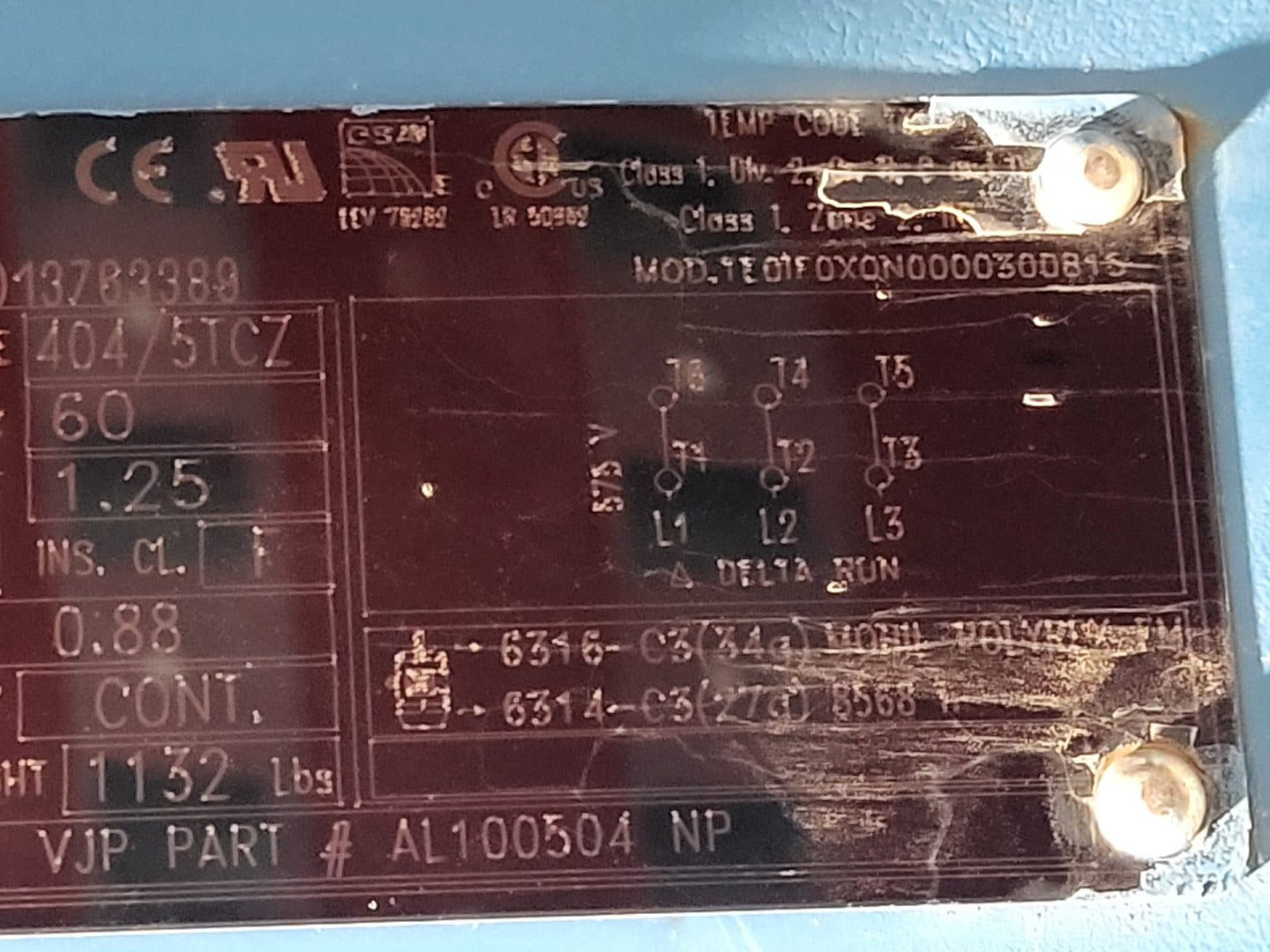

Fan: Capacity: 50,000 CFM Total pressure: 8.96 in. Wg Fan RPM: 1780 RPM Motor: Manufacturer: WEG NEMA Premium Horsepower: 100 HP / 75 kW Voltage: 575V Amperage: 89.7 A Phase: 3 phase Frequency: 60 Hz Motor RPM: 1775 RPM Frame: 404/5TCZ Service factor: 1.25 NEMA nominal efficiency: 95.4% Power factor: 0.88 Design: B Code: H Insulation class: F Enclosure: TEAO Duty: Continuous Ambient rating: 40°C |
