Description

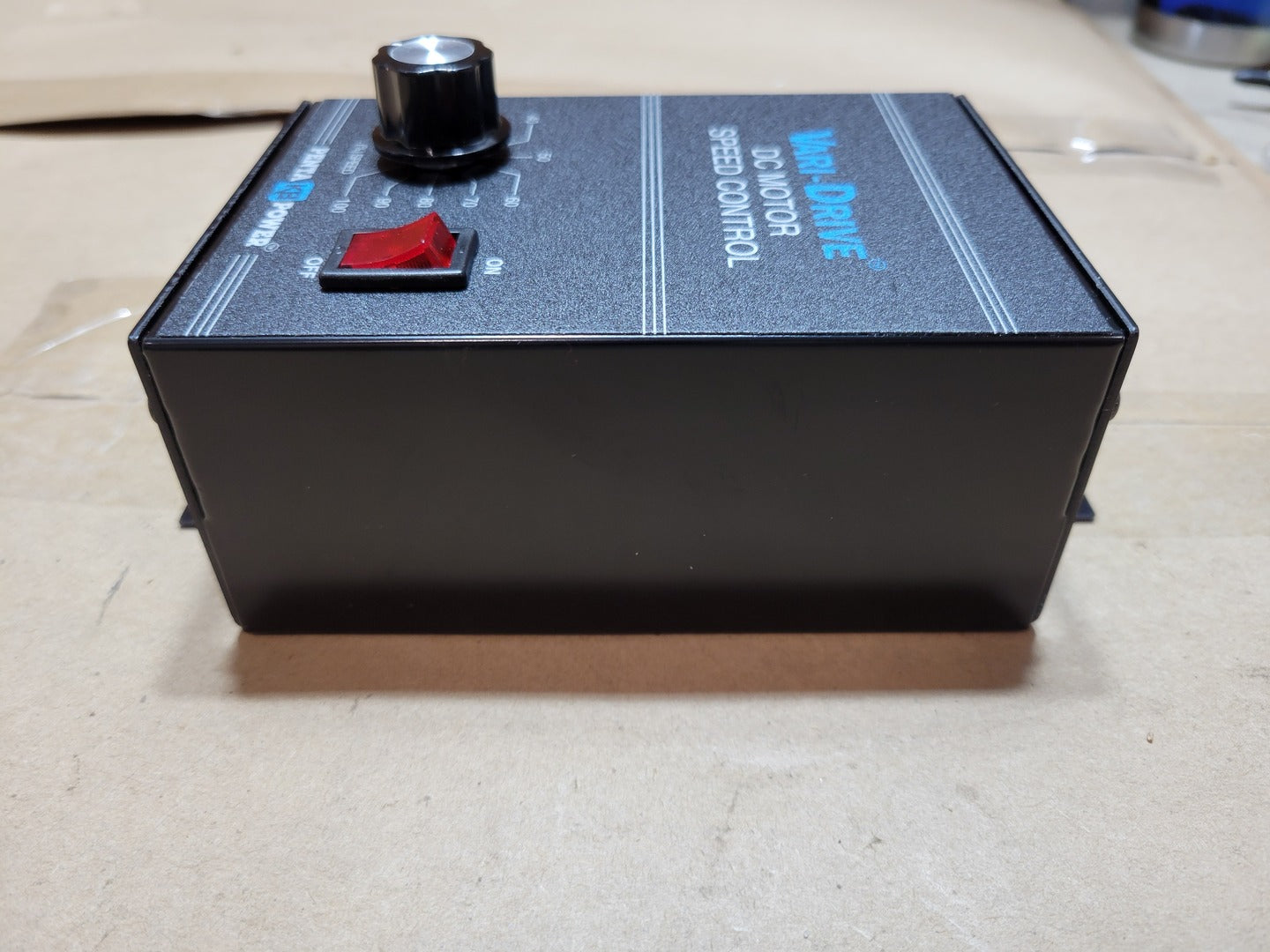

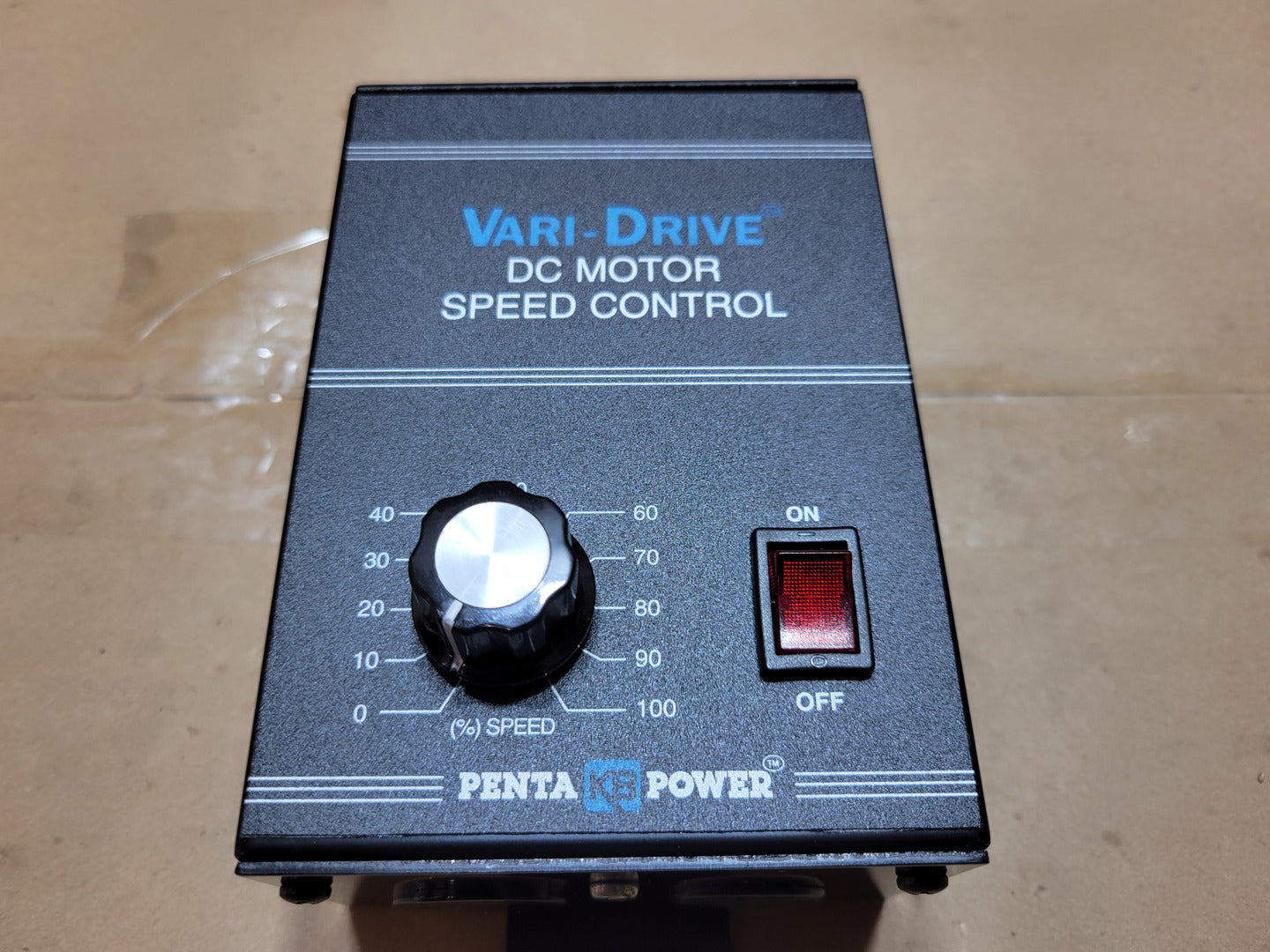

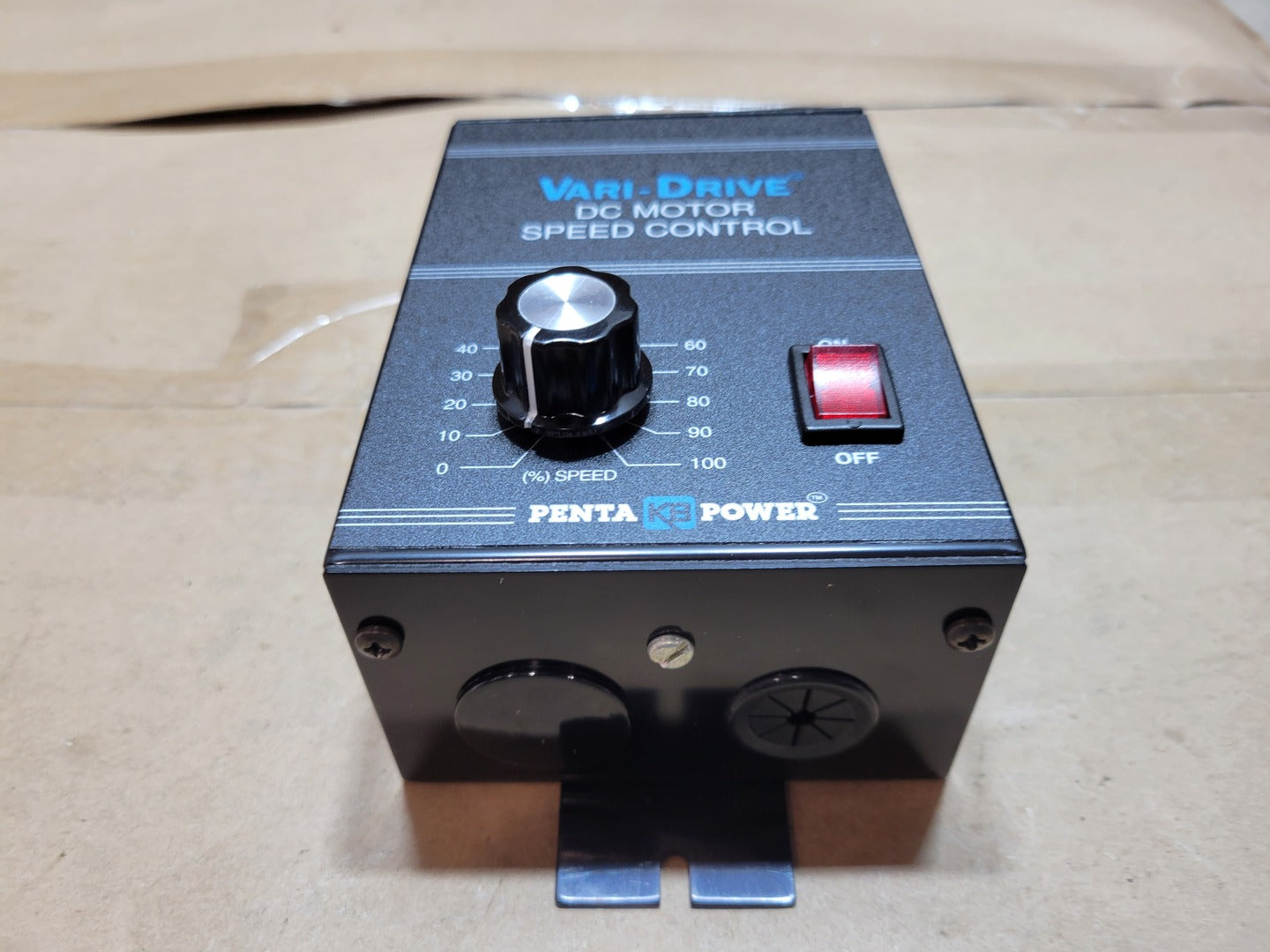

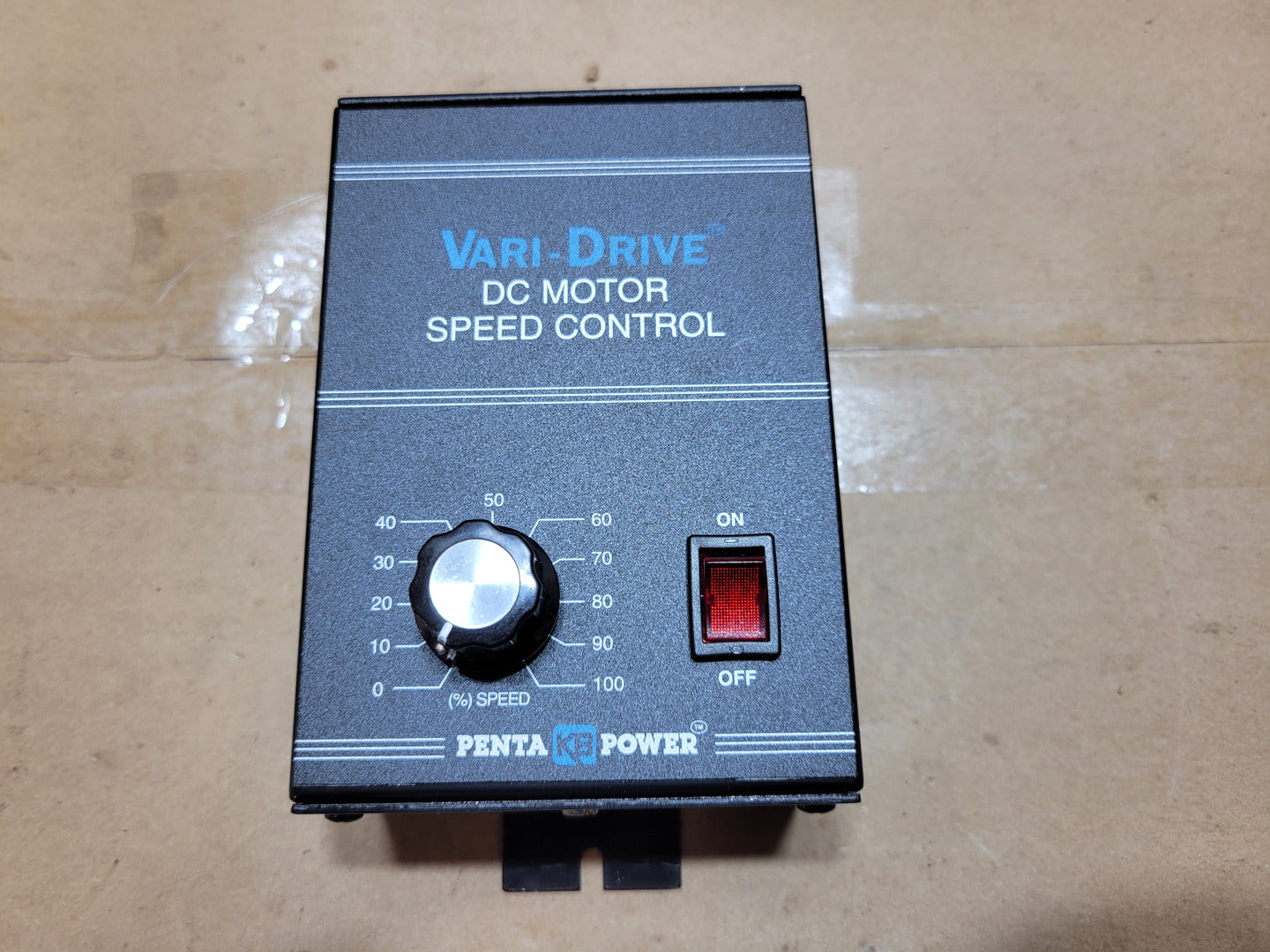

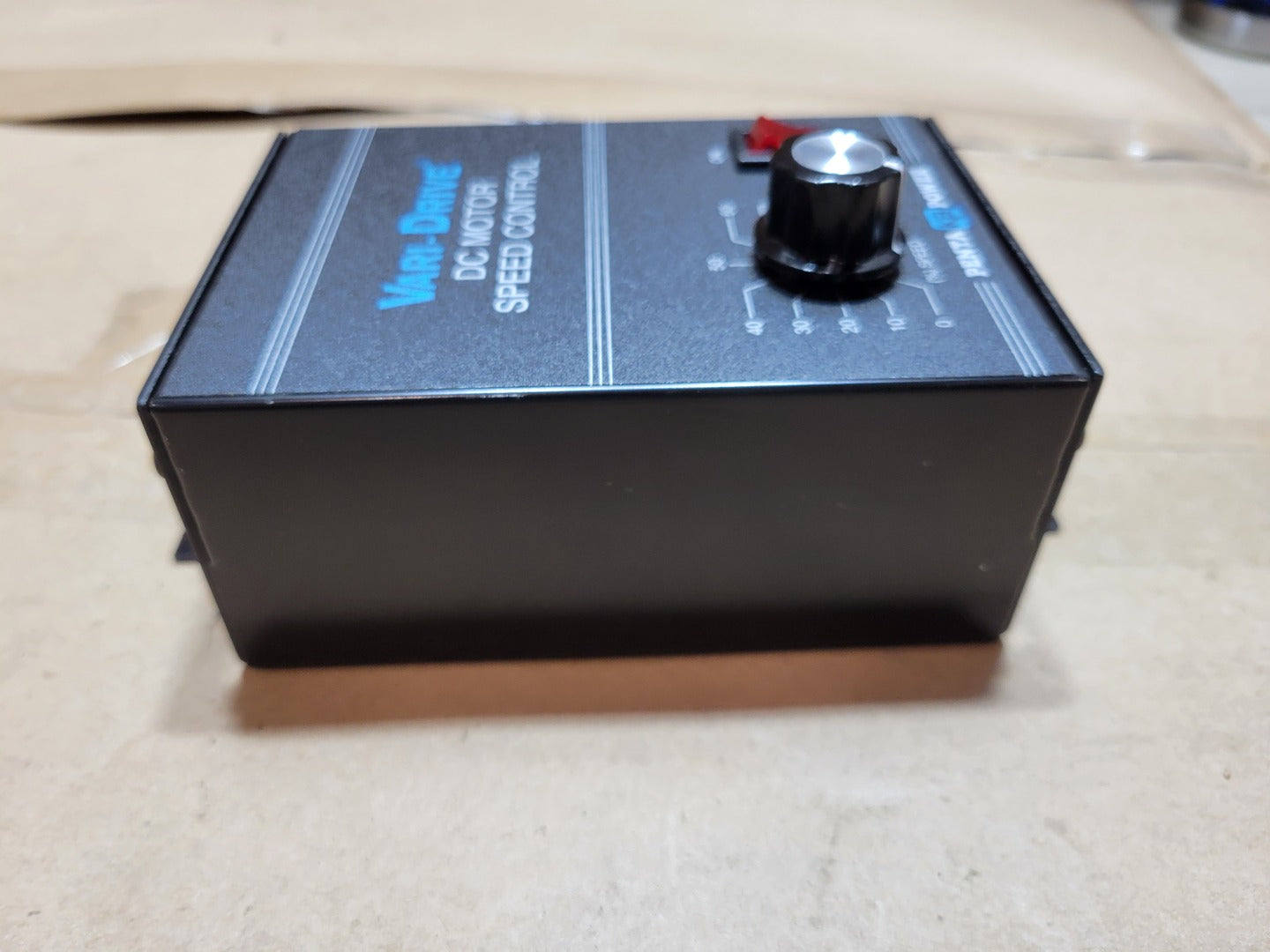

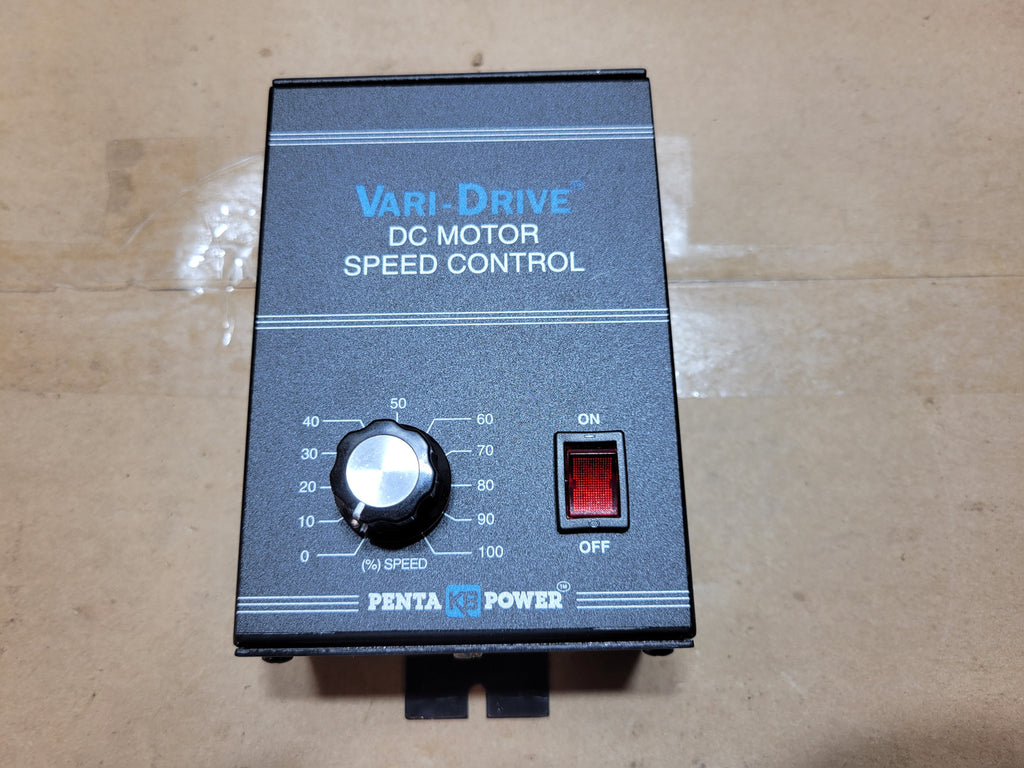

The KB Electronics KBWM-120 Vari-Drive is a compact industrial DC motor speed controller for applications requiring manual adjustable speed control of small permanent-magnet DC motors. Its front-panel potentiometer provides 0-100% speed adjustment, while the enclosed NEMA 1 construction makes it suitable for indoor industrial equipment and machinery installations.
| Specifications | |
|---|---|
| Model | KBWM-120 |
| Condition | Surplus New |
| Other Specifications |
|---|
|

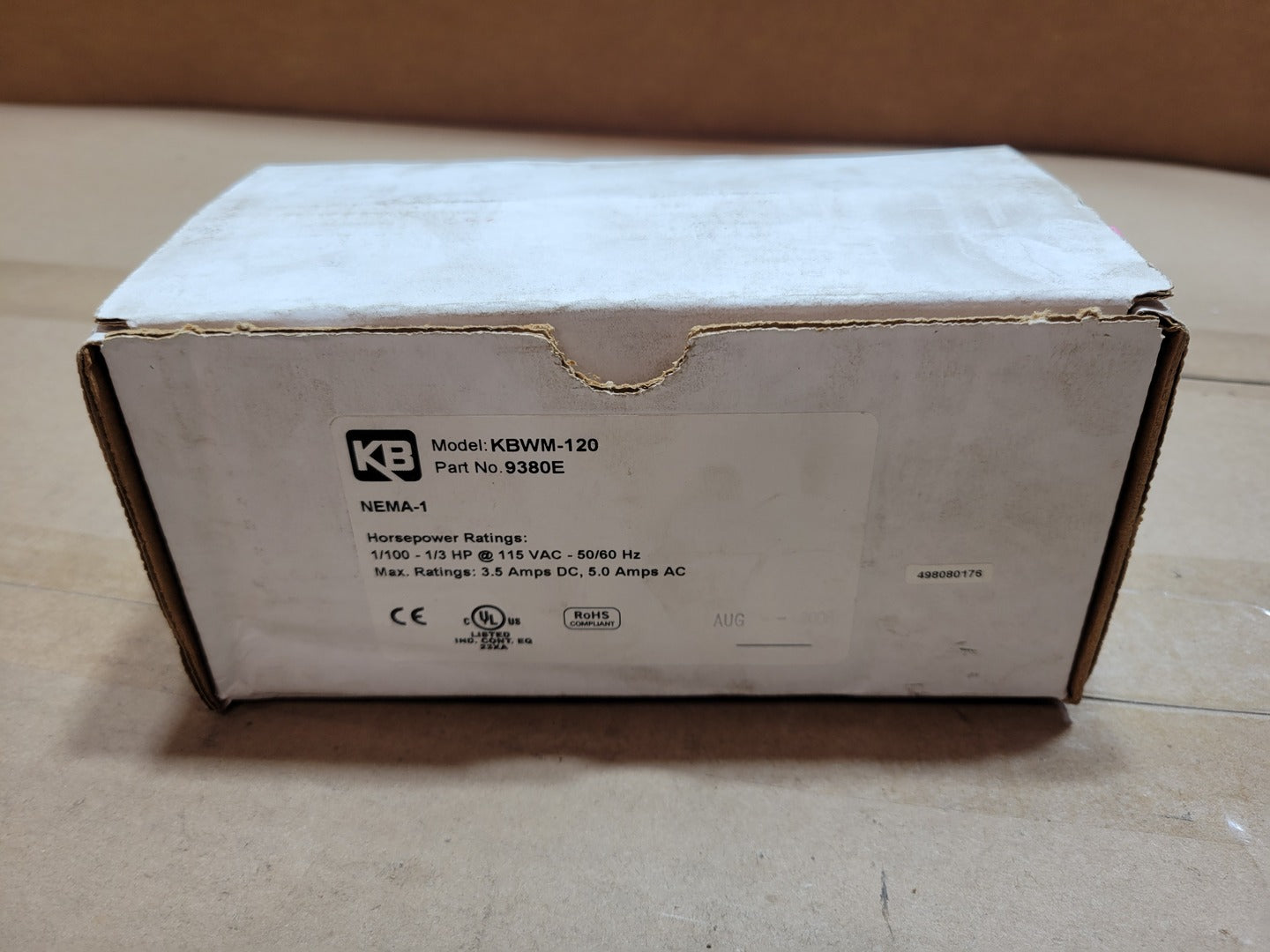

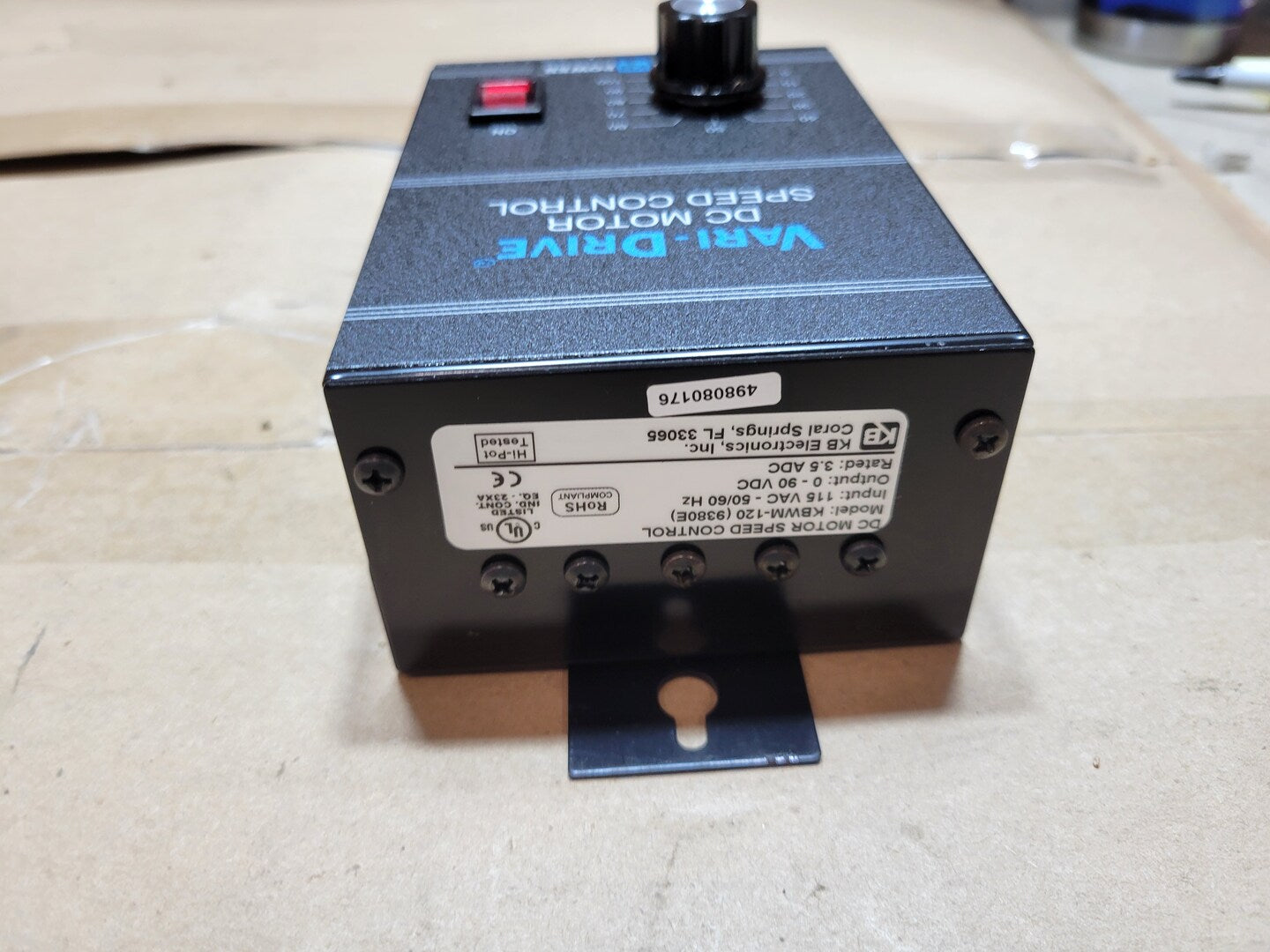

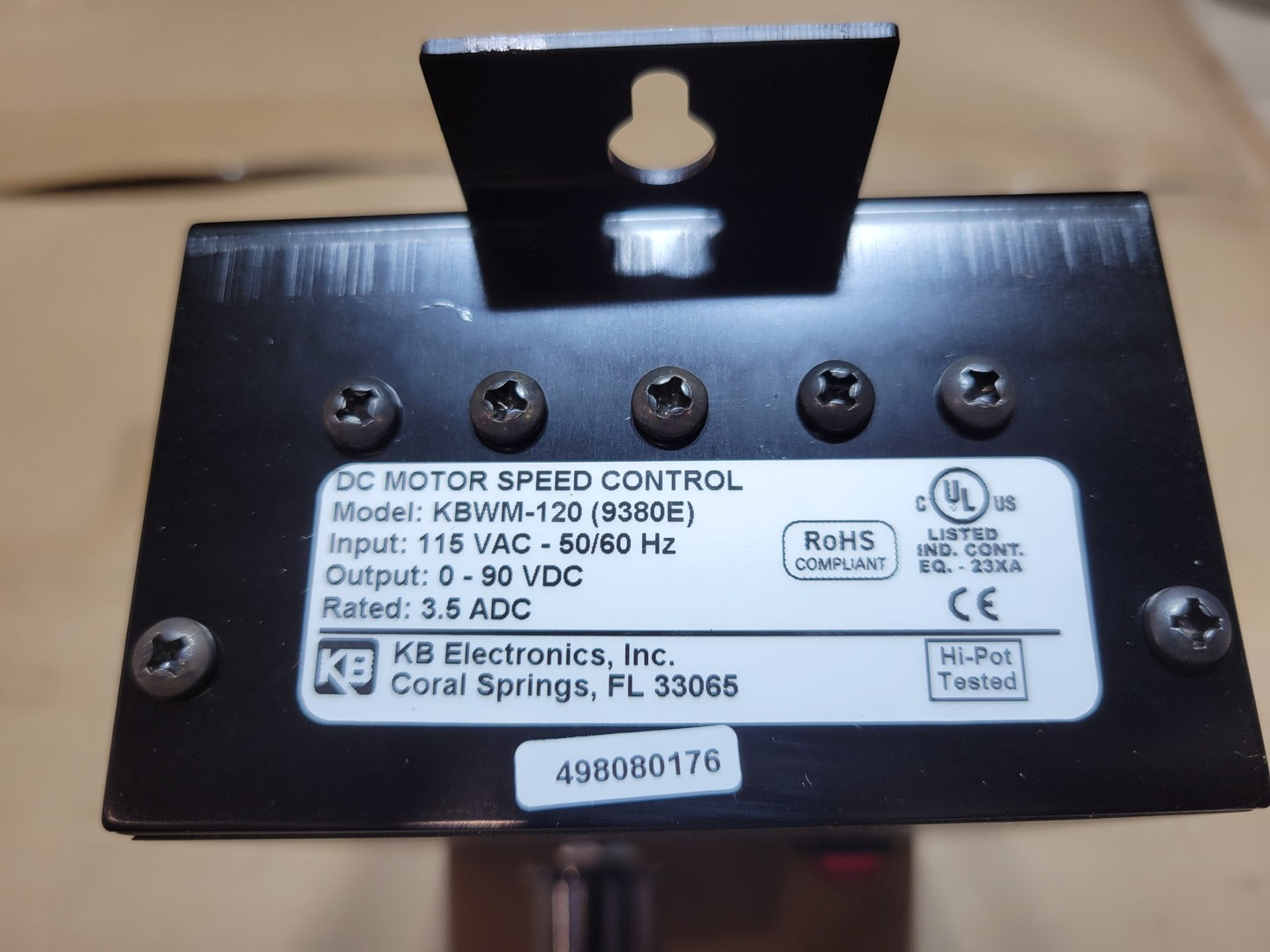

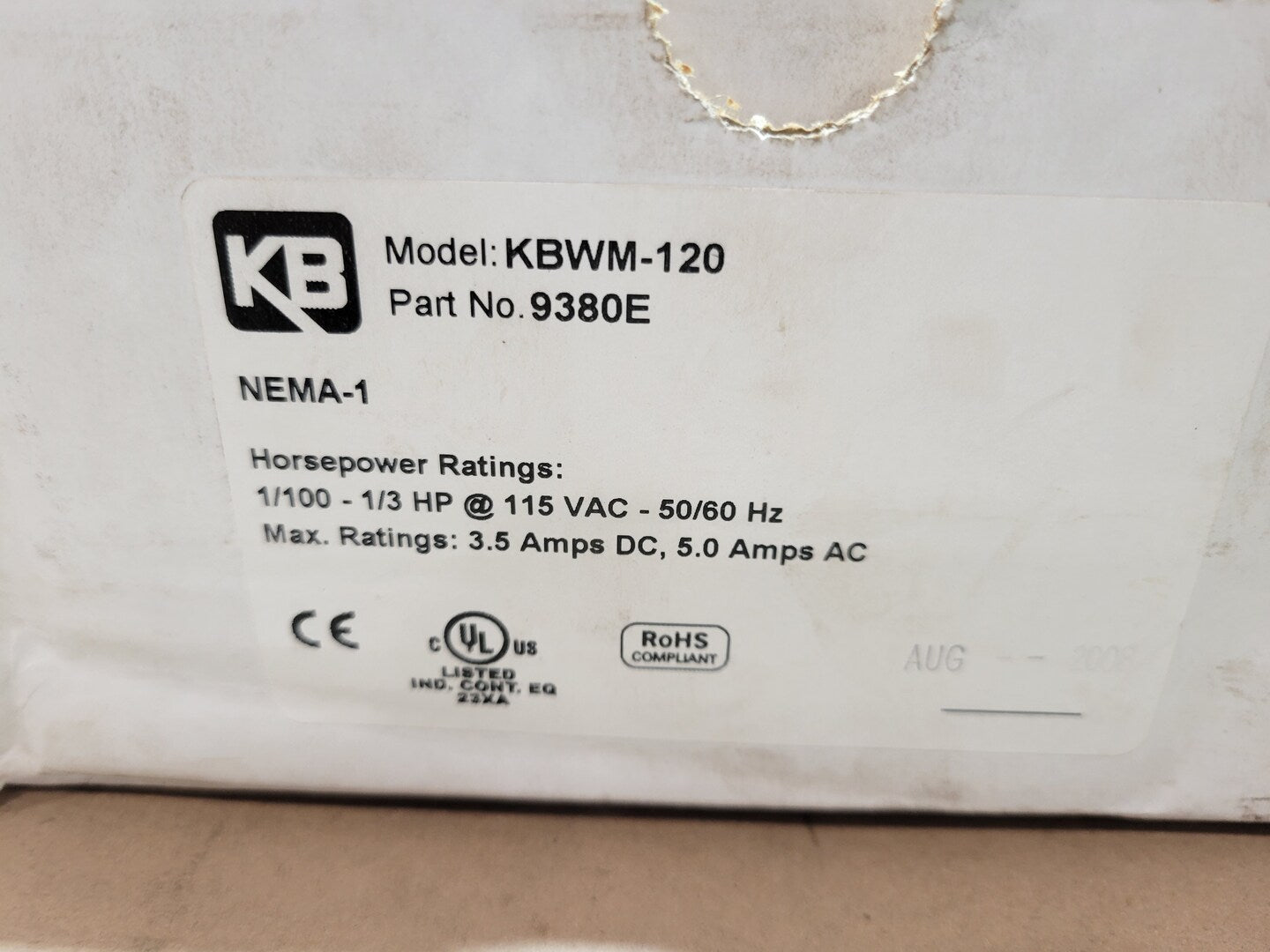

Series: Vari-Drive Model: KBWM-120 Part Number: 9380E Type: DC Motor Speed Controller / SCR Drive Input Voltage: 115 VAC Input Frequency: 50/60 Hz Output Voltage: 0-90 VDC Rated Output Current: 3.5 A DC Maximum AC Current: 5.0 A AC Horsepower Range: 1/100-1/3 HP Motor Type: Permanent-magnet DC motors Speed Adjustment: 0-100% front-panel potentiometer Controls: On/Off rocker switch and adjustable speed knob Enclosure: NEMA 1 Mounting: Wall / panel mounting bracket Certifications: UL Listed, CE, RoHS compliant |
