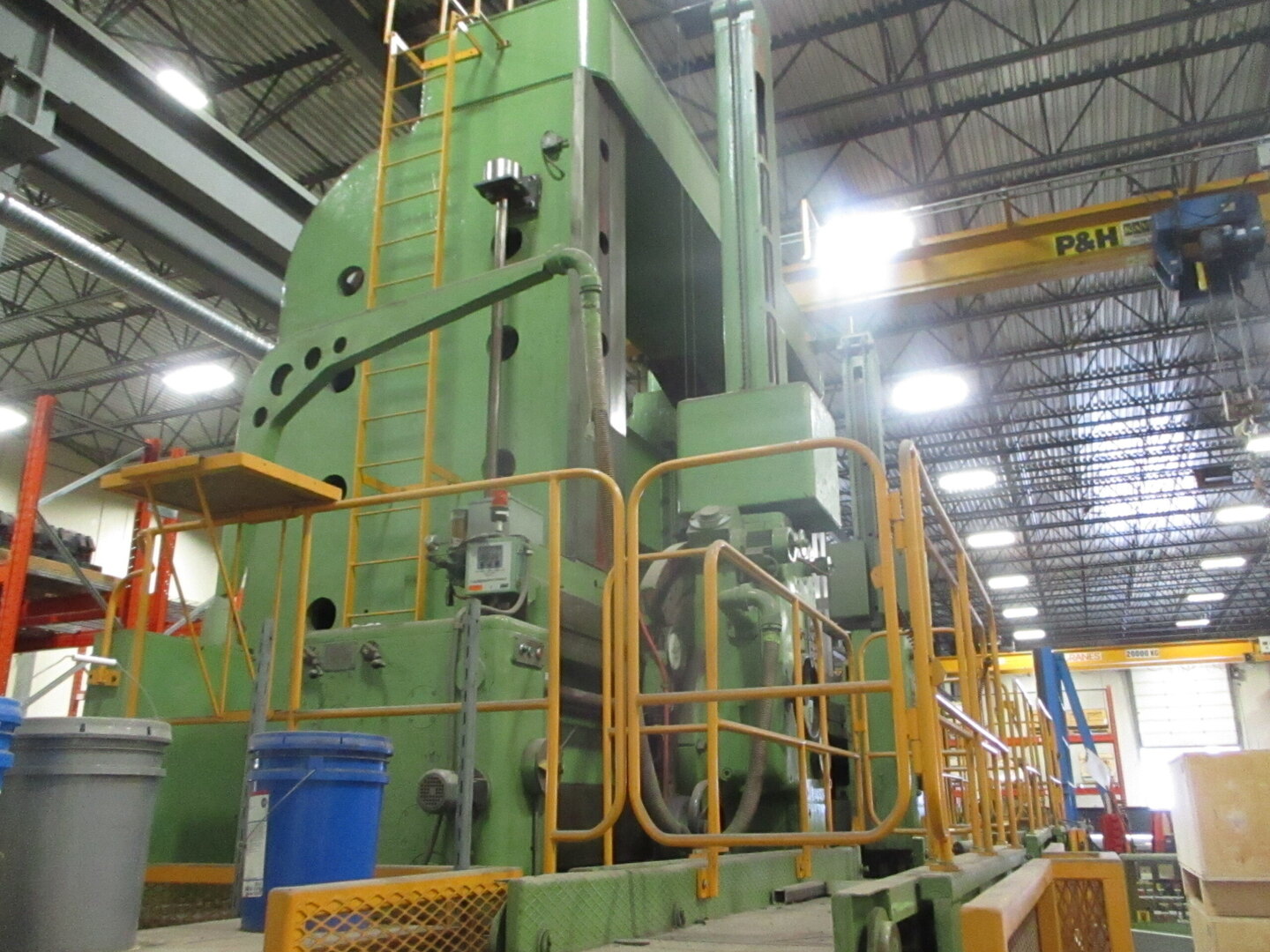

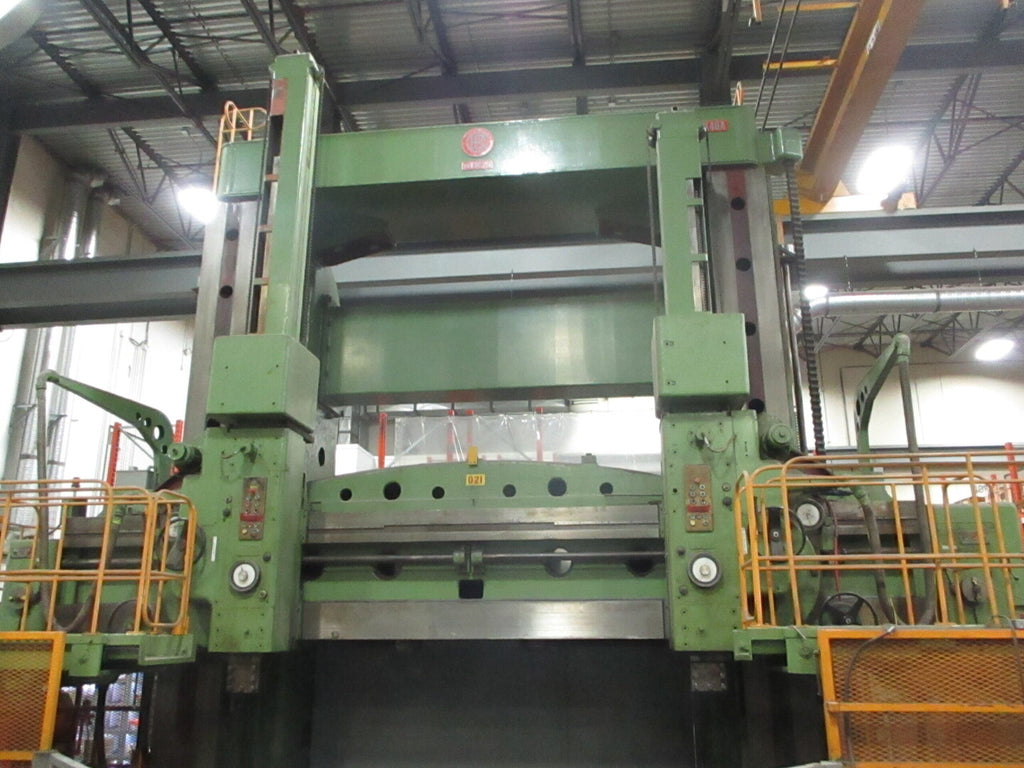

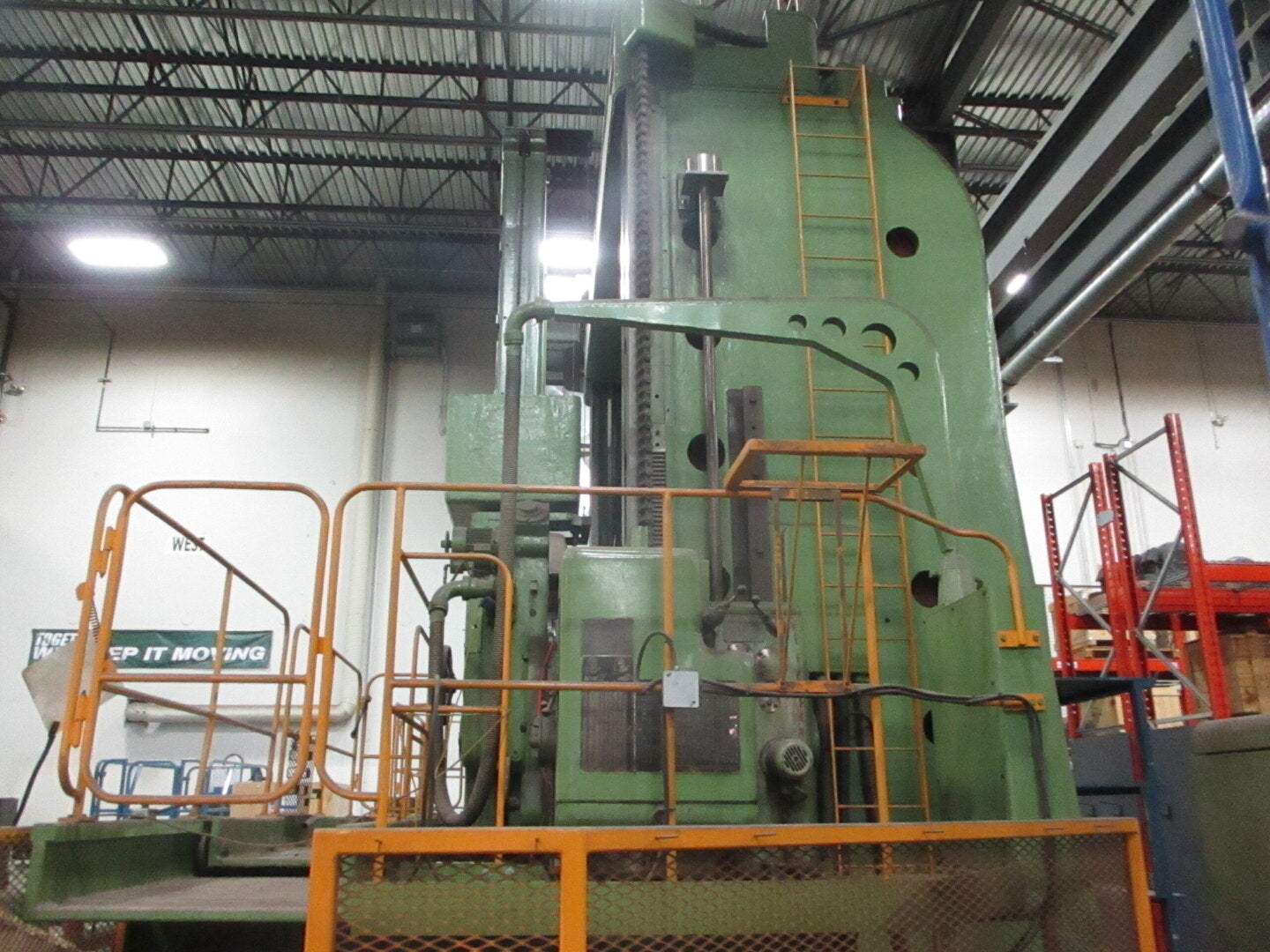

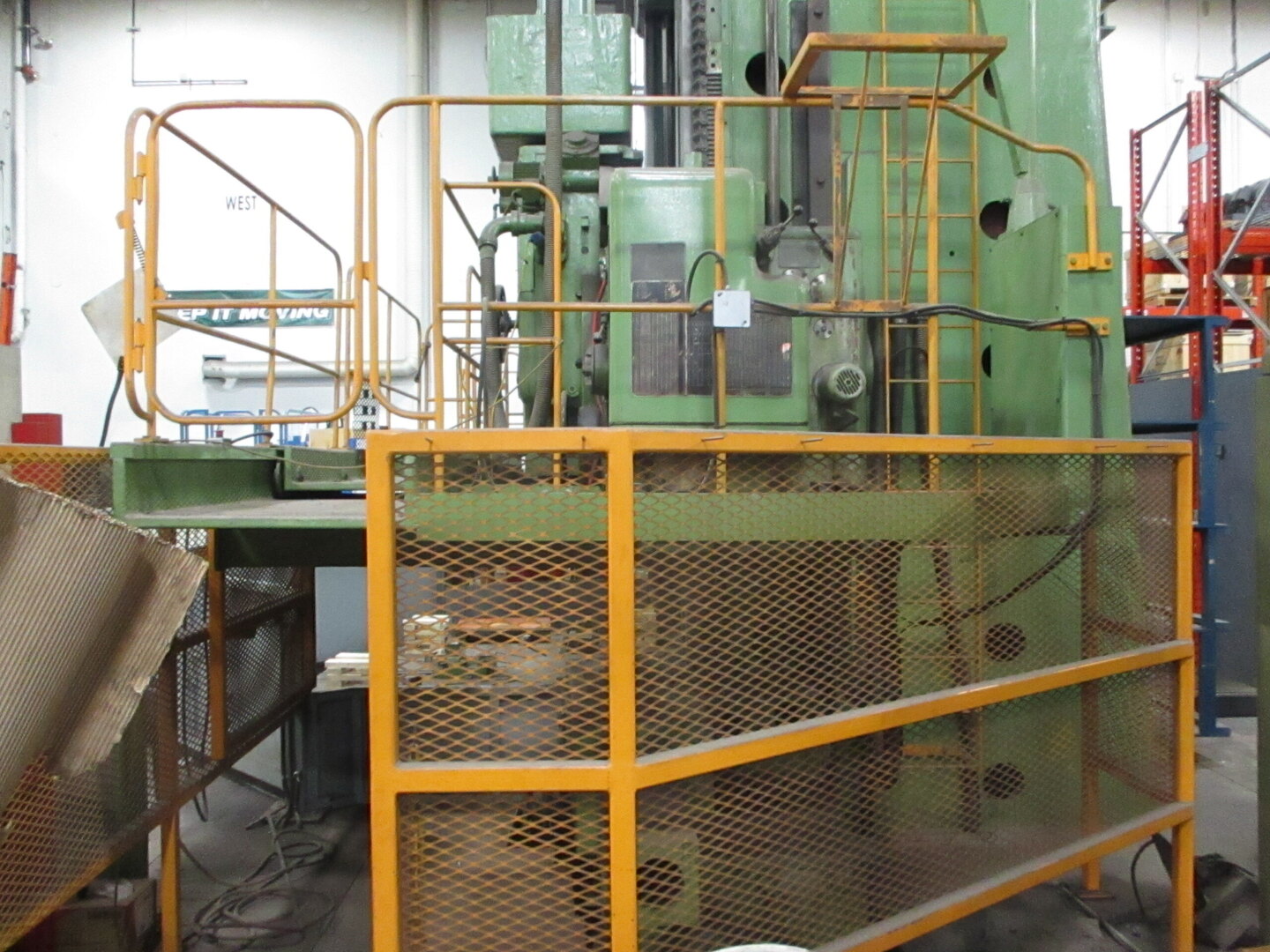

148" Vertical Boring Mill SK40A

SKU: 130450
Price:
$210,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model SK40A
Condition Used
General
Horsepower 100 hp
Other Specifications

Electric Motors:

  • Main motor: 100 hp
  • Rapid motors: 3 hp
  • Cross rail lift motor: 22 hp

Turning Capacity:

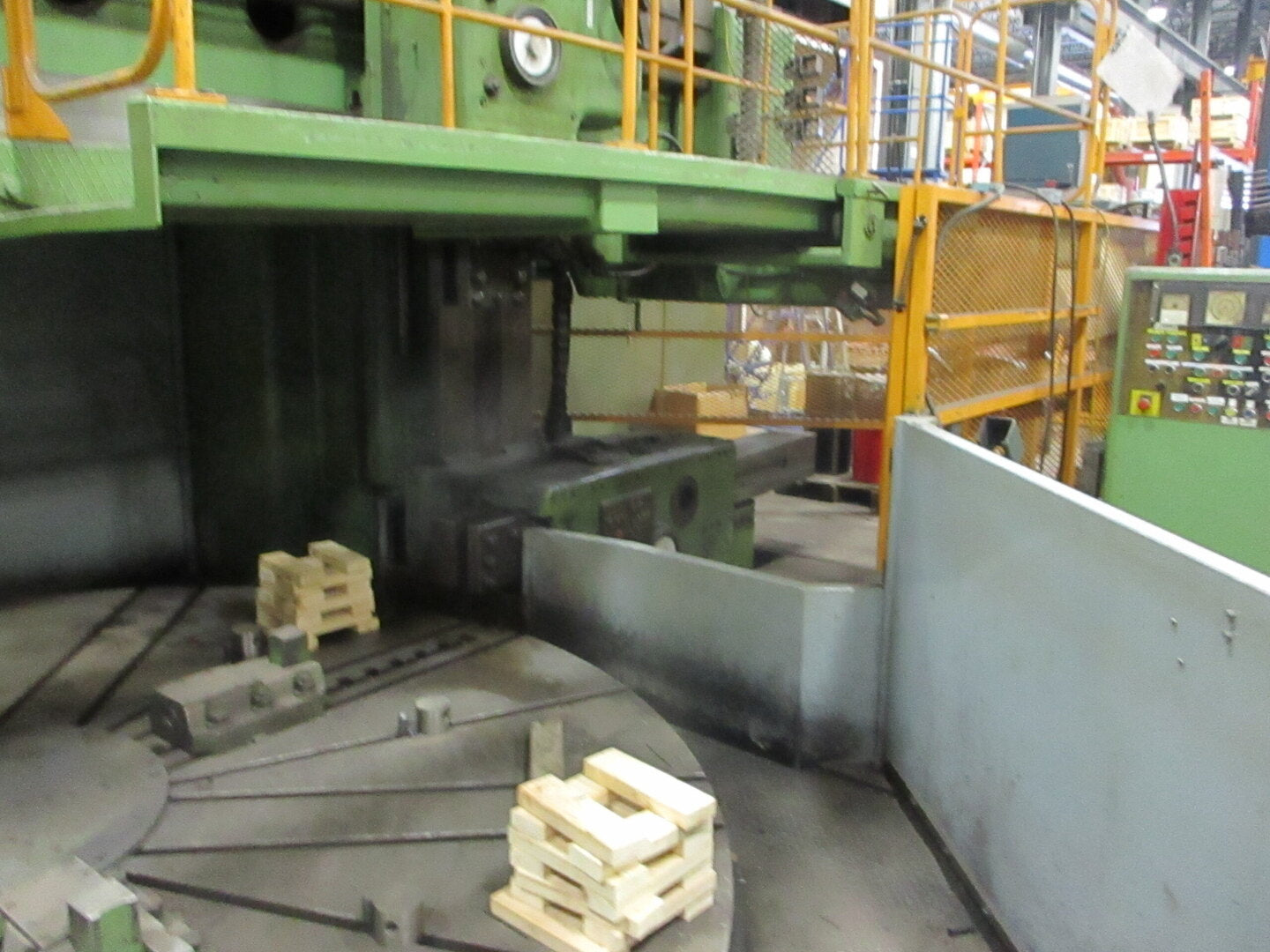

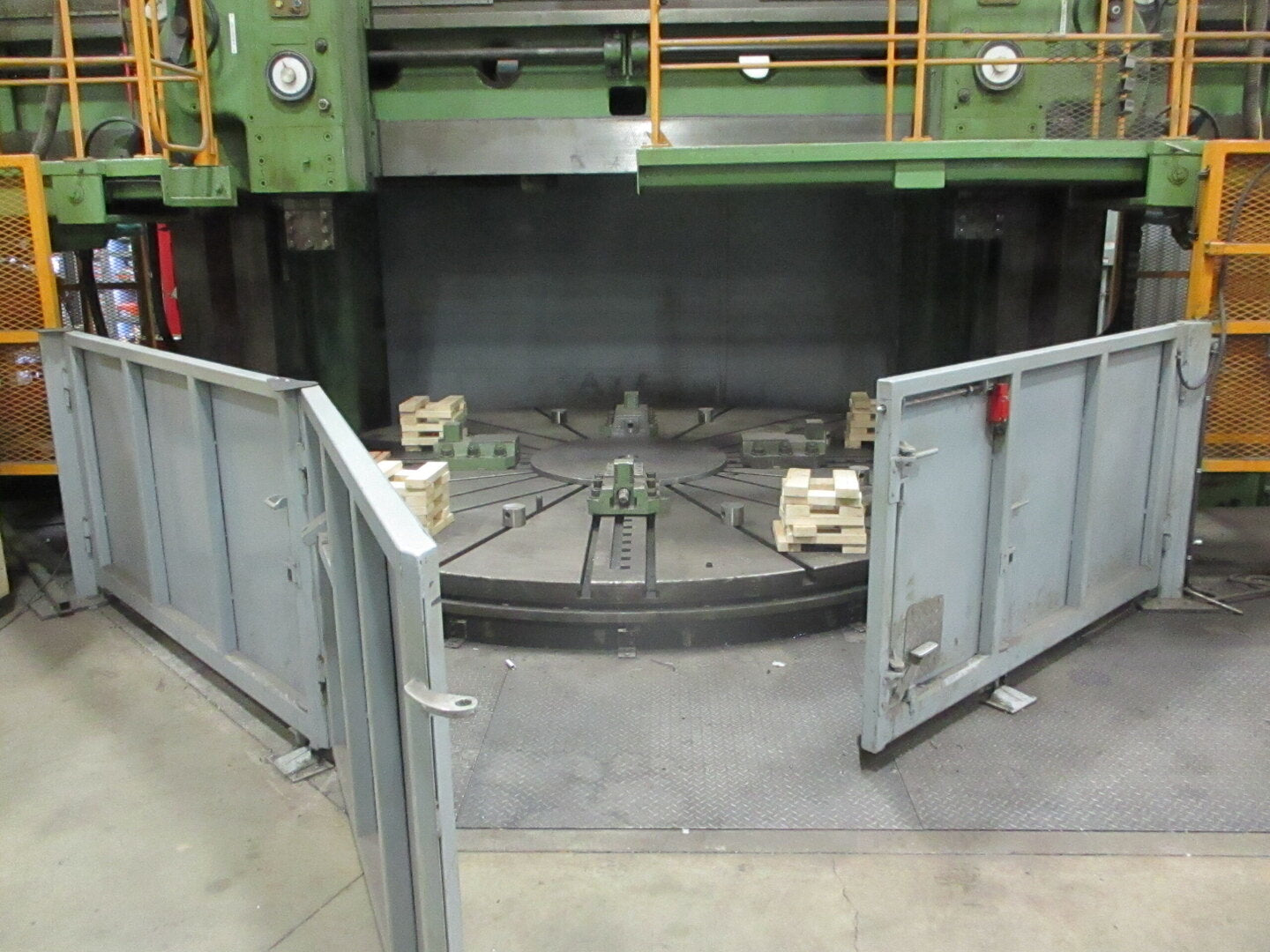

  • 4-jaw chuck diameter: 148.5"
  • Max diameter turned with side head: 157.5"
  • Max swing: 169.3"
  • Max workpiece weight: 139,000 lbs
  • Side head max tool working height: 127.95"
  • Left ram stroke: 100"
  • Right ram stroke: 96"
  • Cross rail travel: 135.8"
  • RPM with load: 0.4-11 RPM

Machine Weight and Component Weights:

  • Net weight of machine with standard components: 253,460 lbs

Basic Component Weights:

  • Drive gearbox and rails: 6,500 lbs
  • Bed and gearbox: 29,000 lbs
  • Chuck: 27,000 lbs
  • Columns (each): 33,000 lbs x 2
  • Cross slide with feed boxes: 38,000 lbs
  • Tool heads (each with counterweight): 29,000 lbs x 2
  • Side head: 22,000 lbs
  • Connecting beam: 14,000 lbs

Improvements:

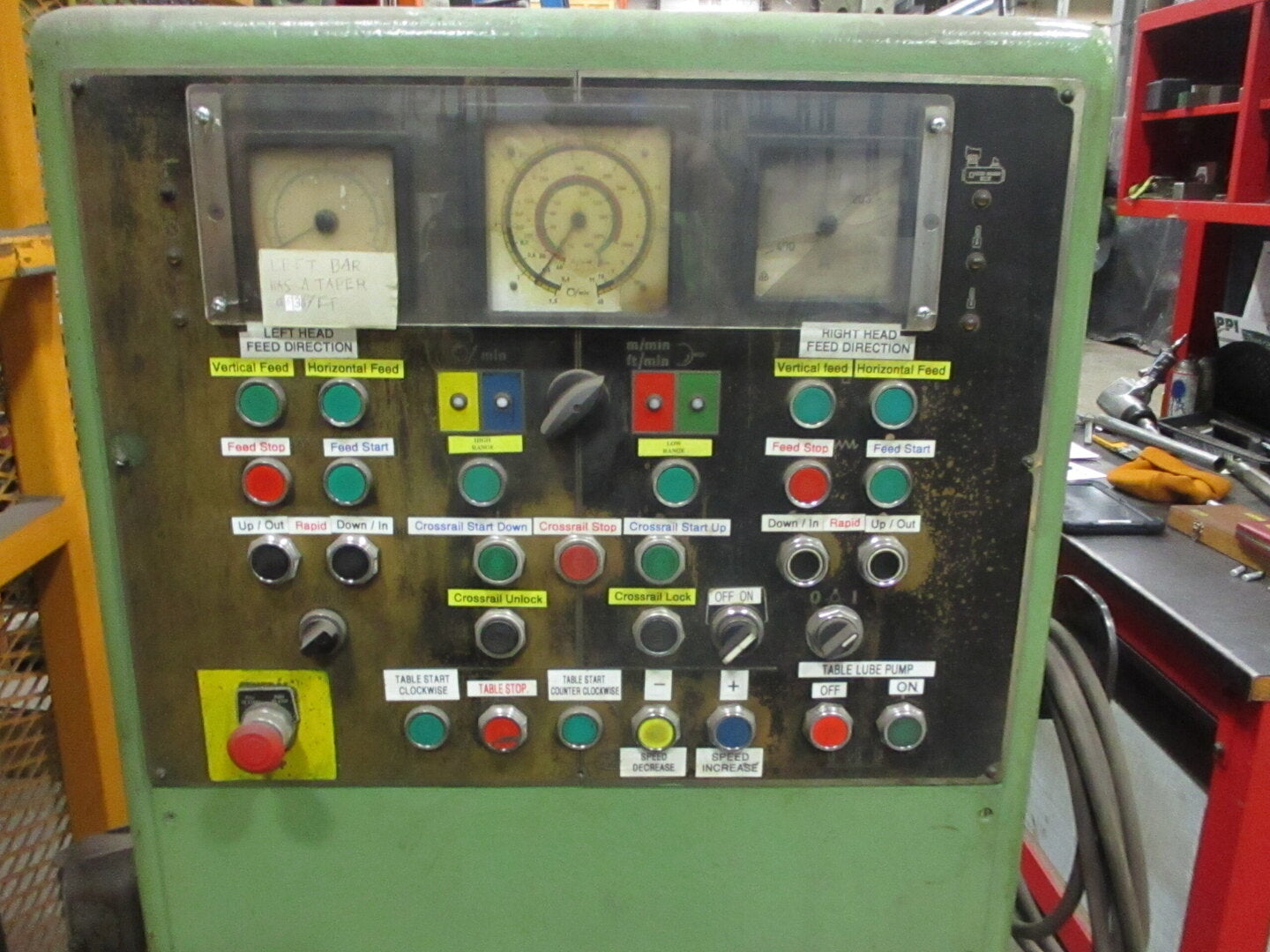

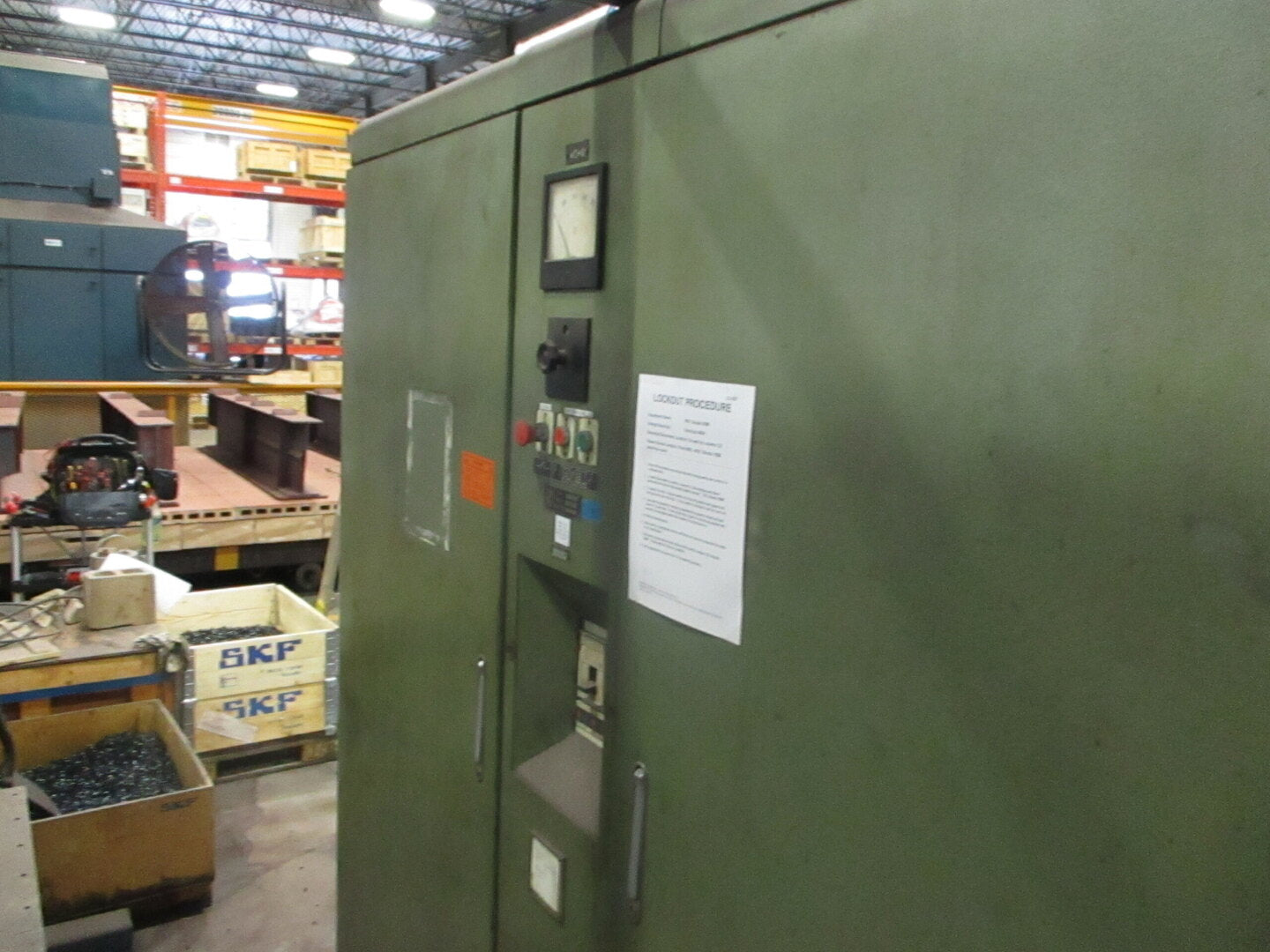

  • CSA certified electrical cabinet and control components
  • Replacement of all rotating bearings upon startup and commissioning
  • Fresh paint job
