Description
| Specifications | |
|---|---|
| Model | C125 |
| Made In | GERMANY |
| Condition | Used |
| Other Specifications |
|---|
|

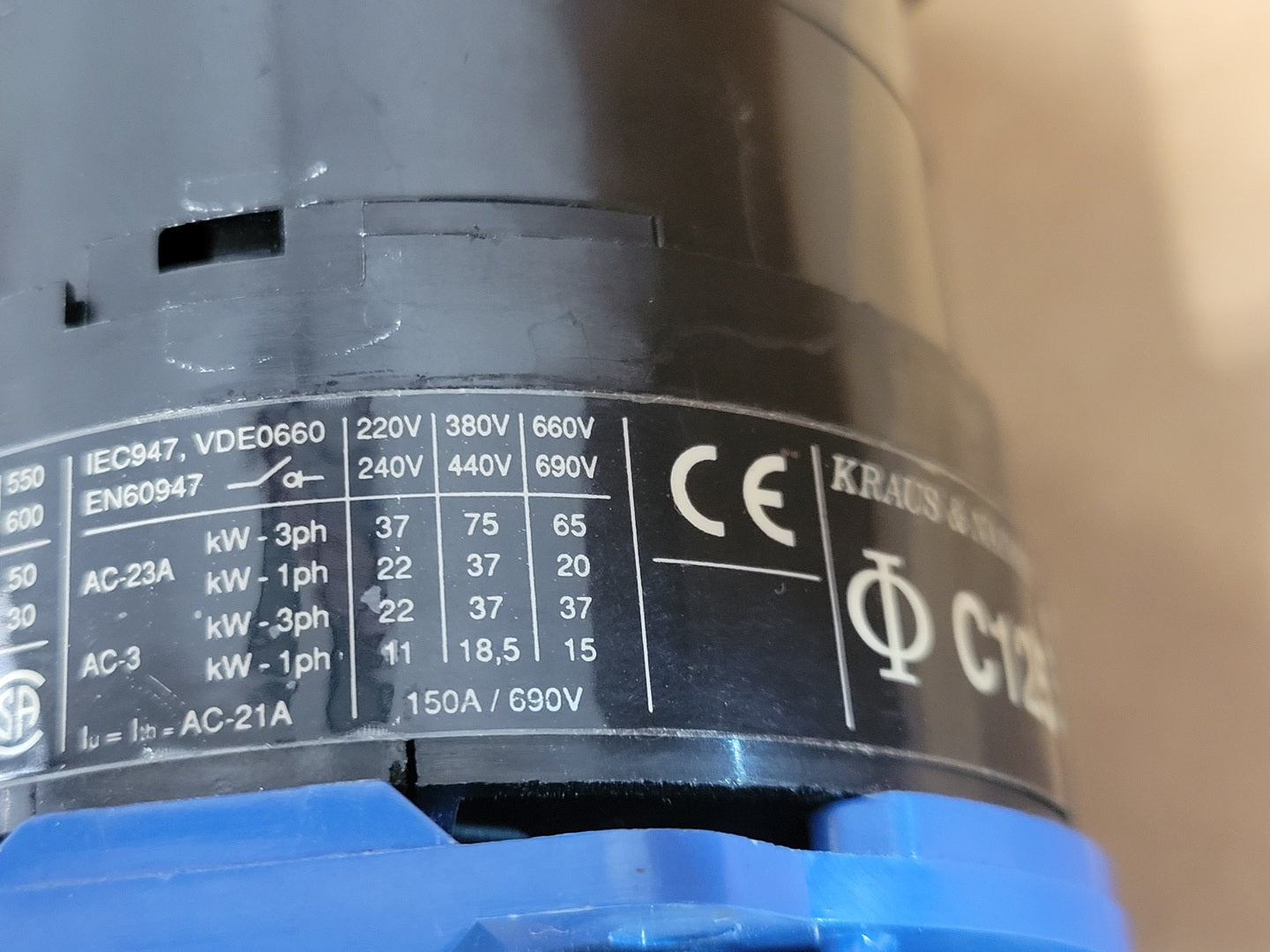

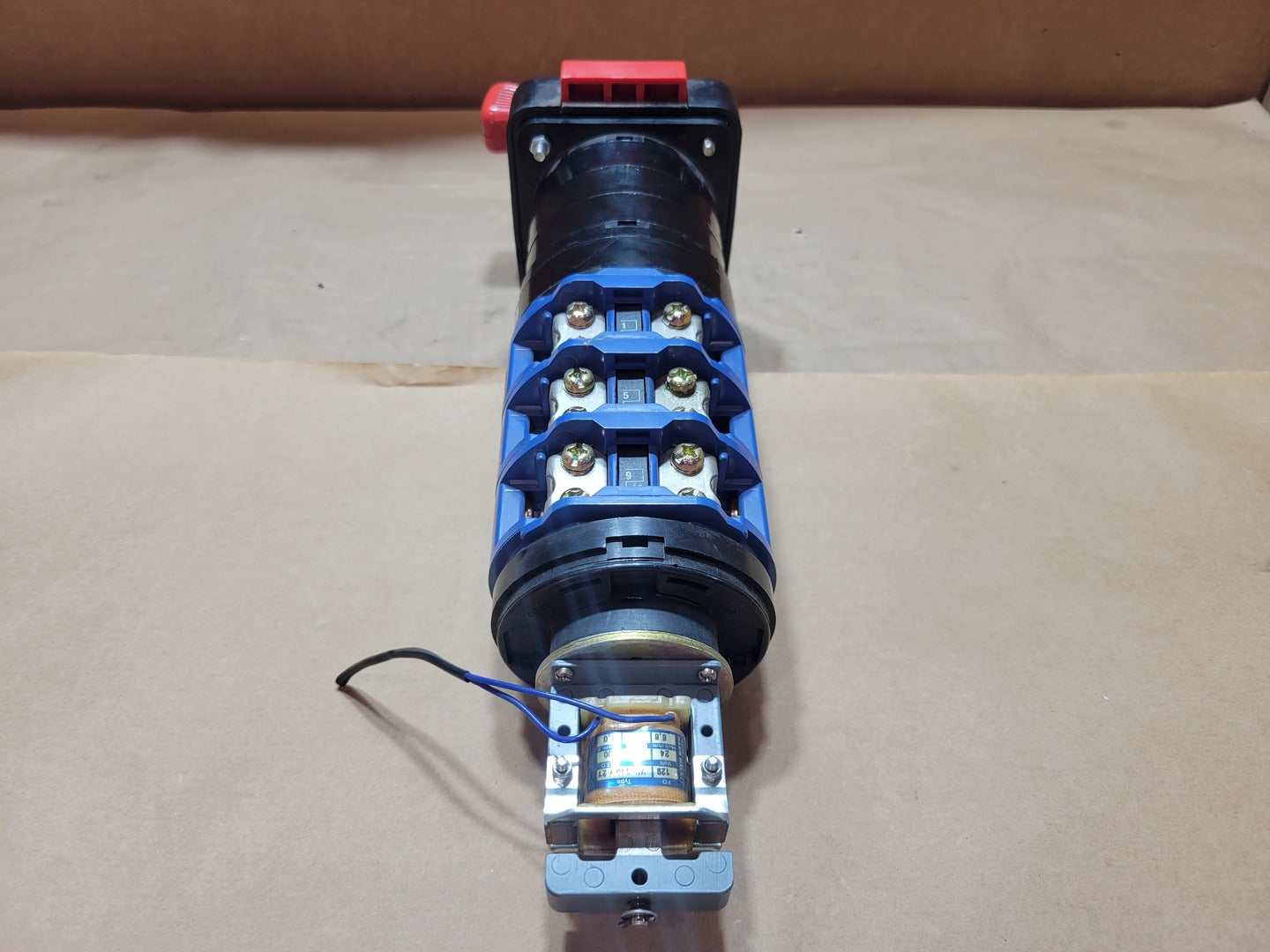

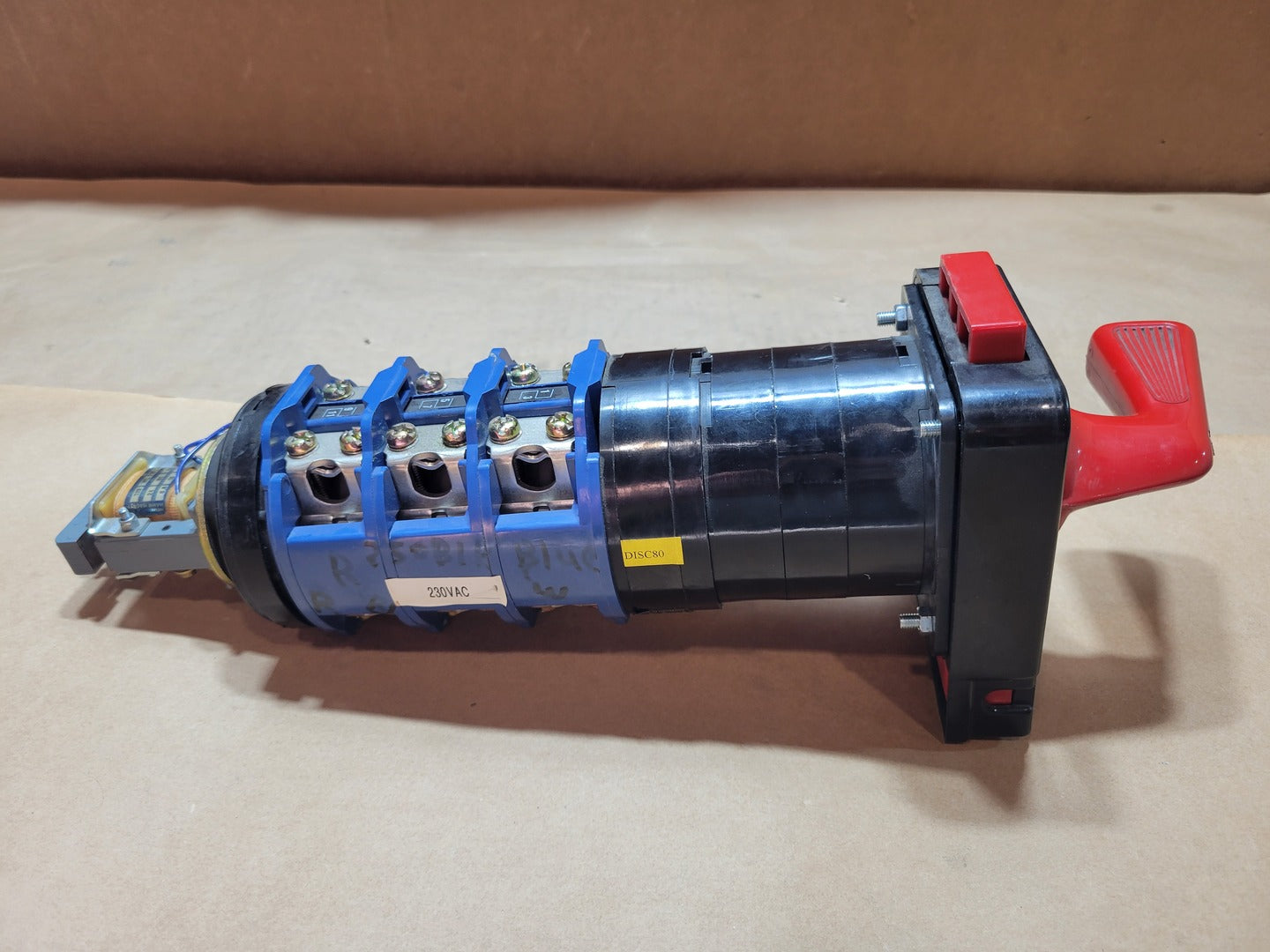

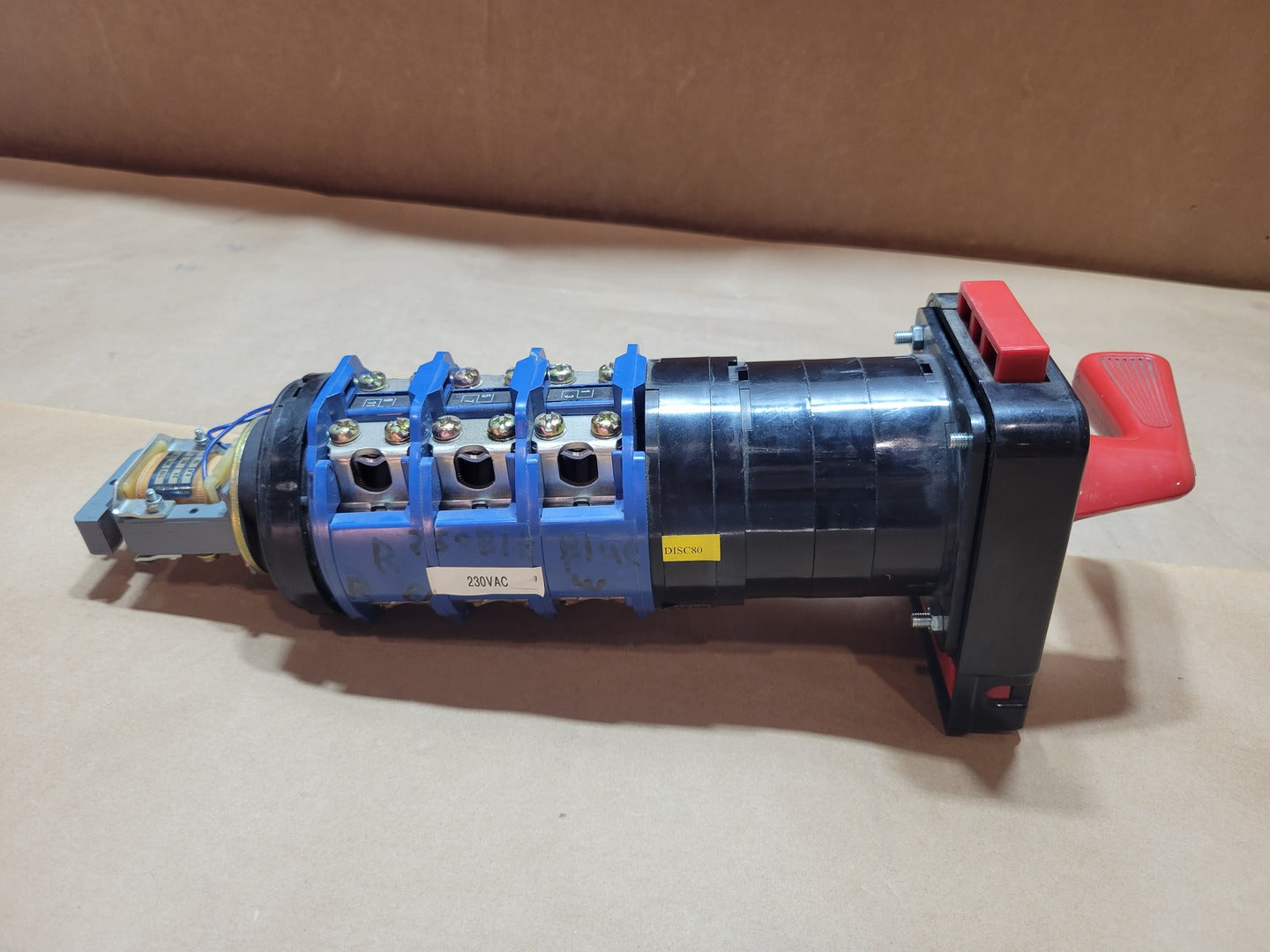

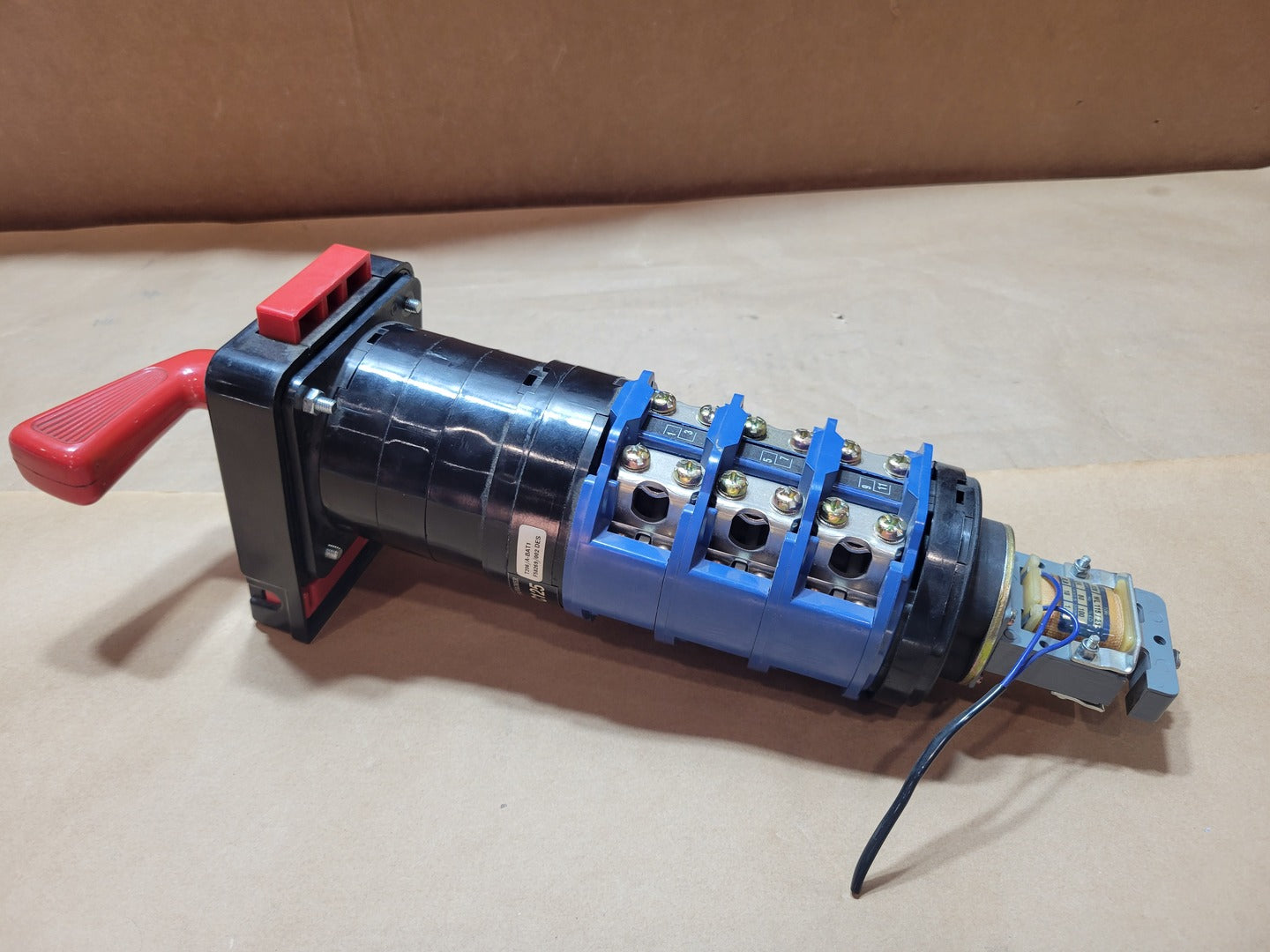

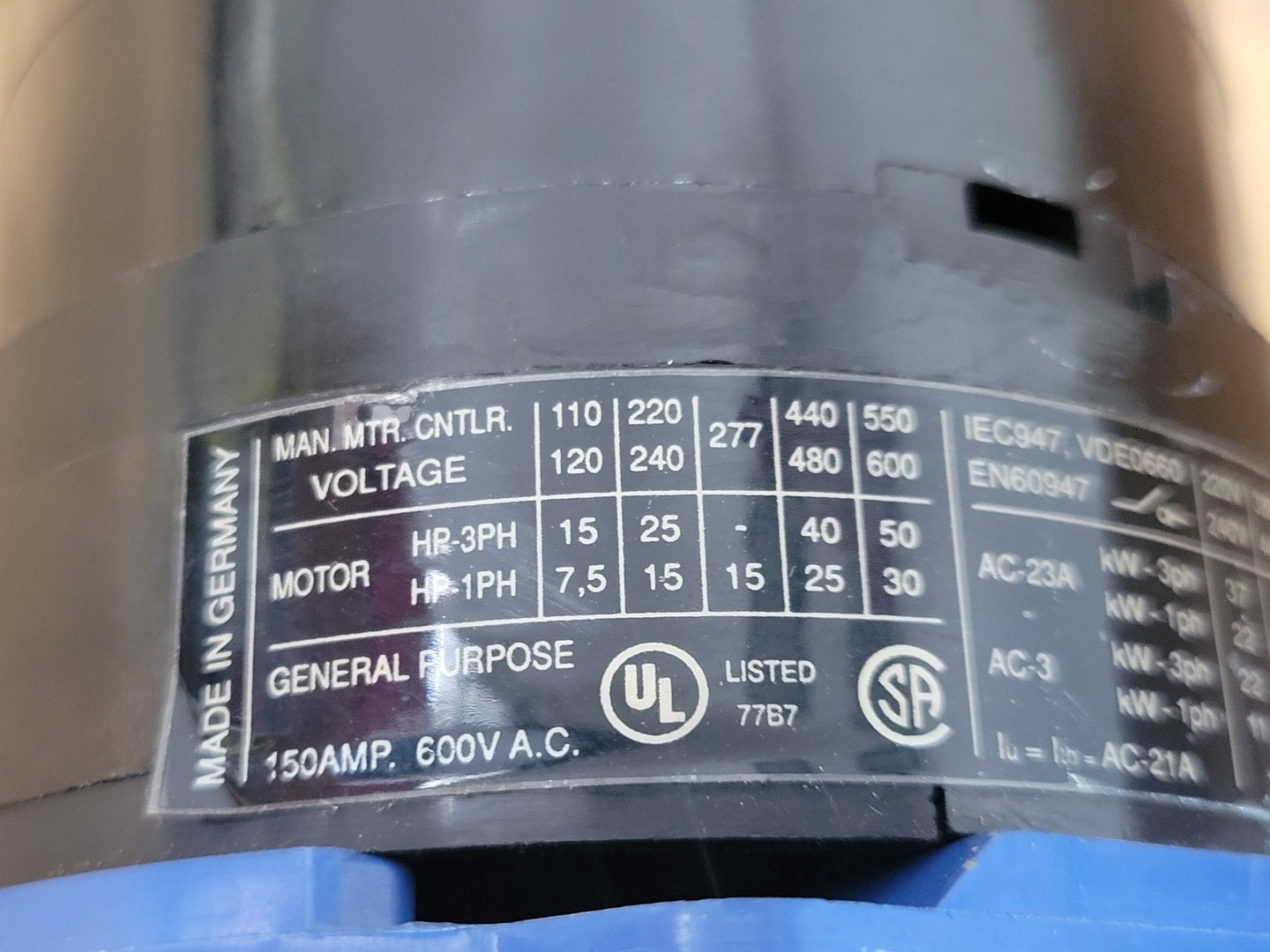

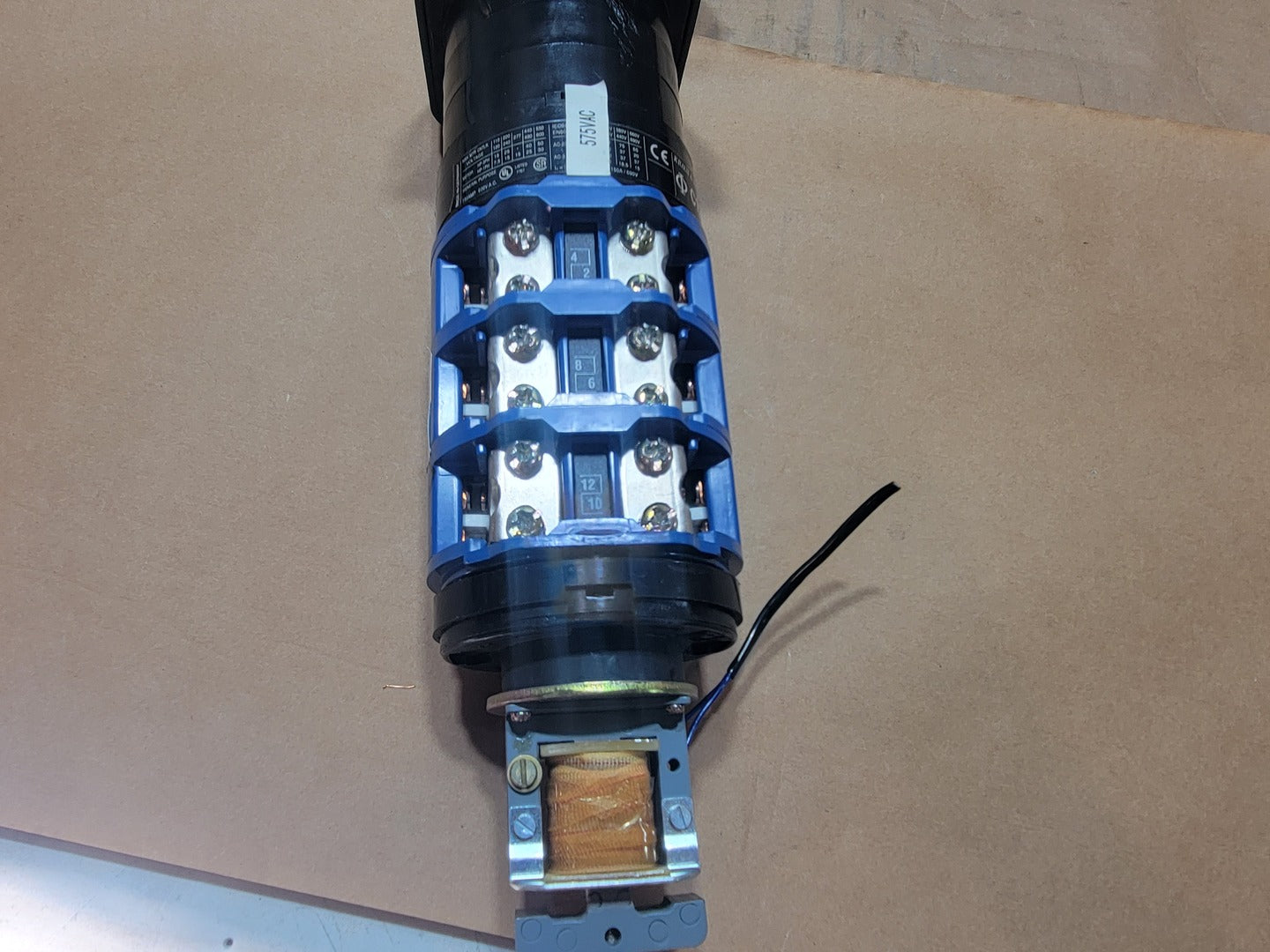

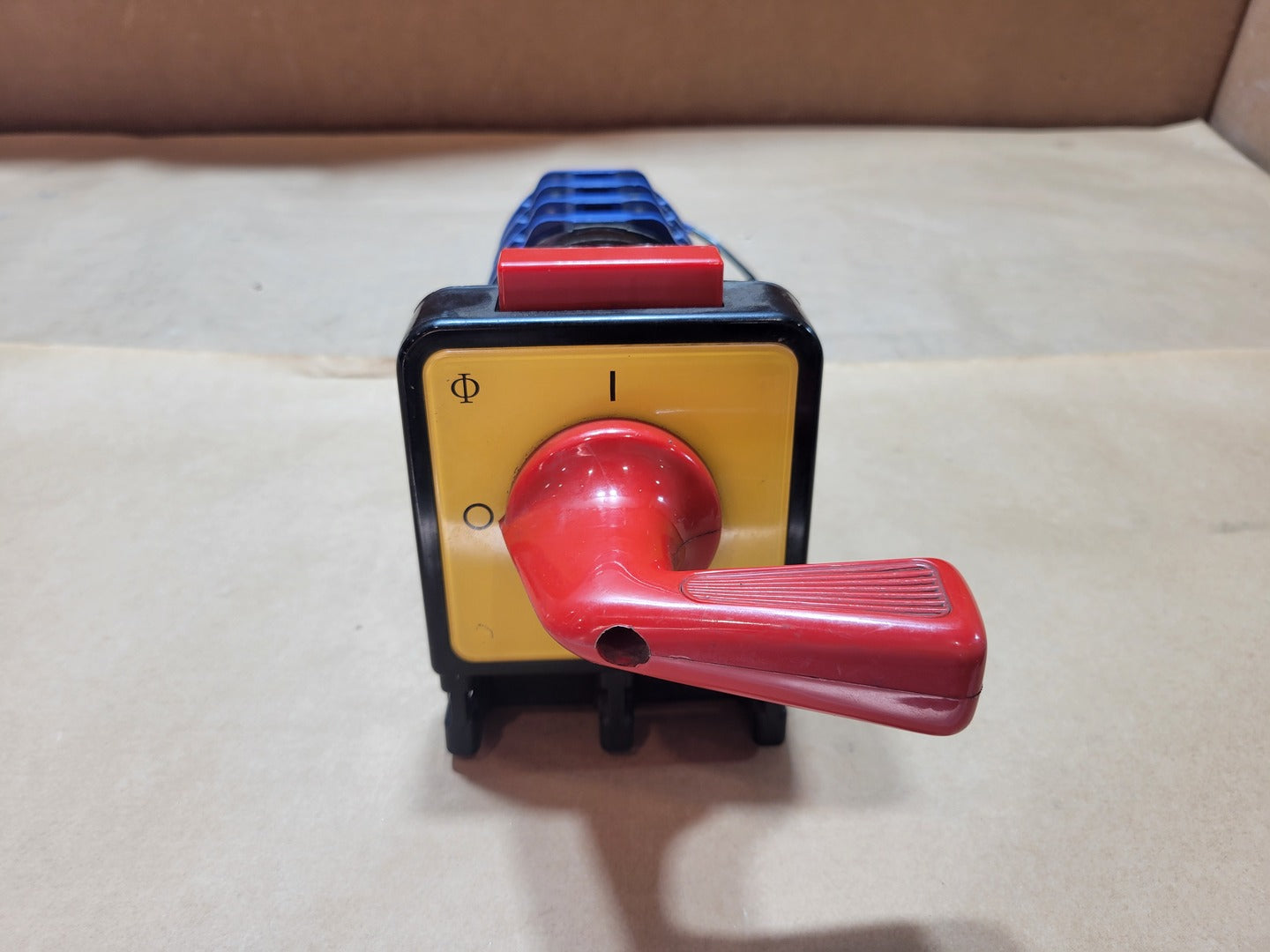

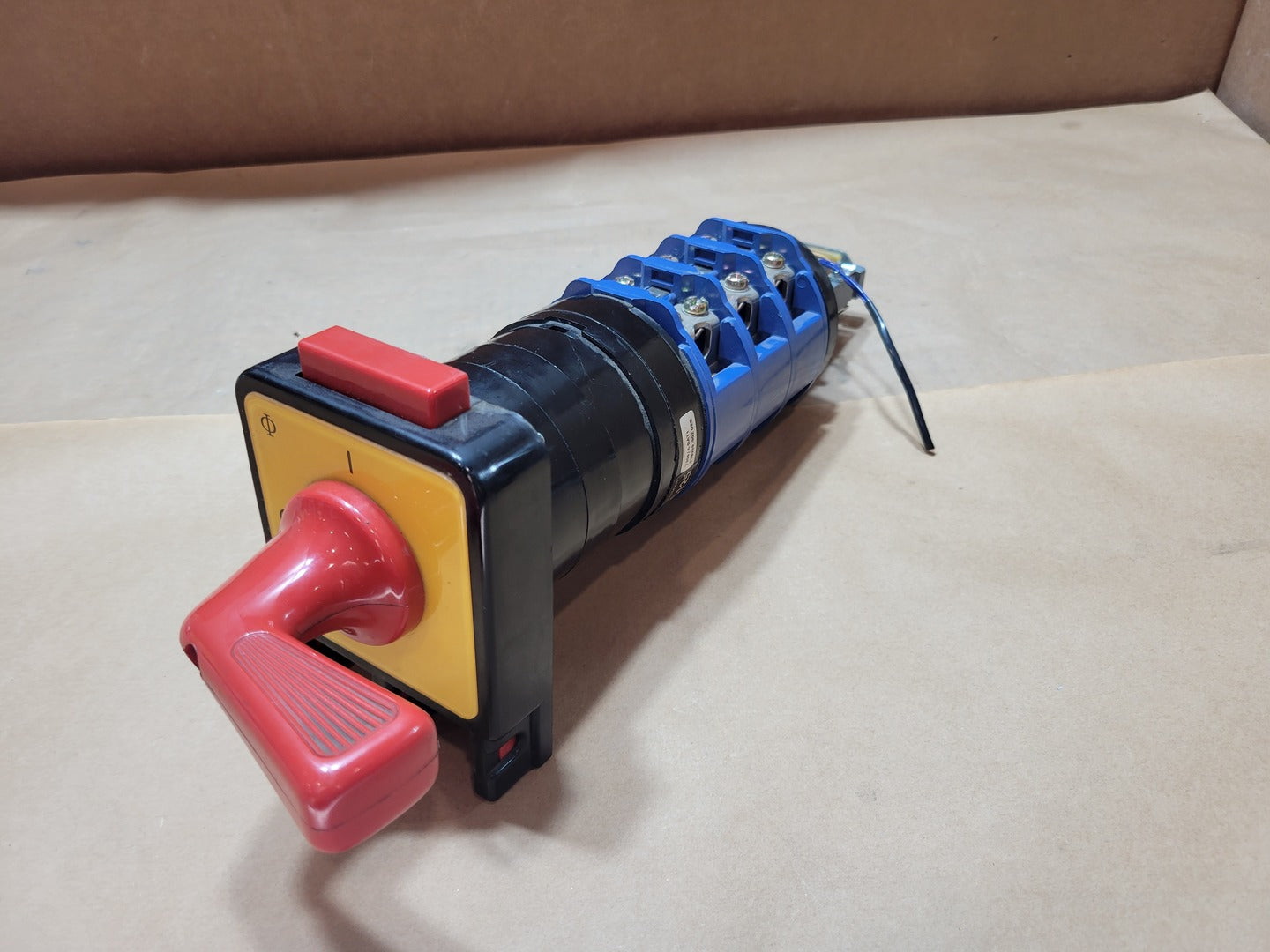

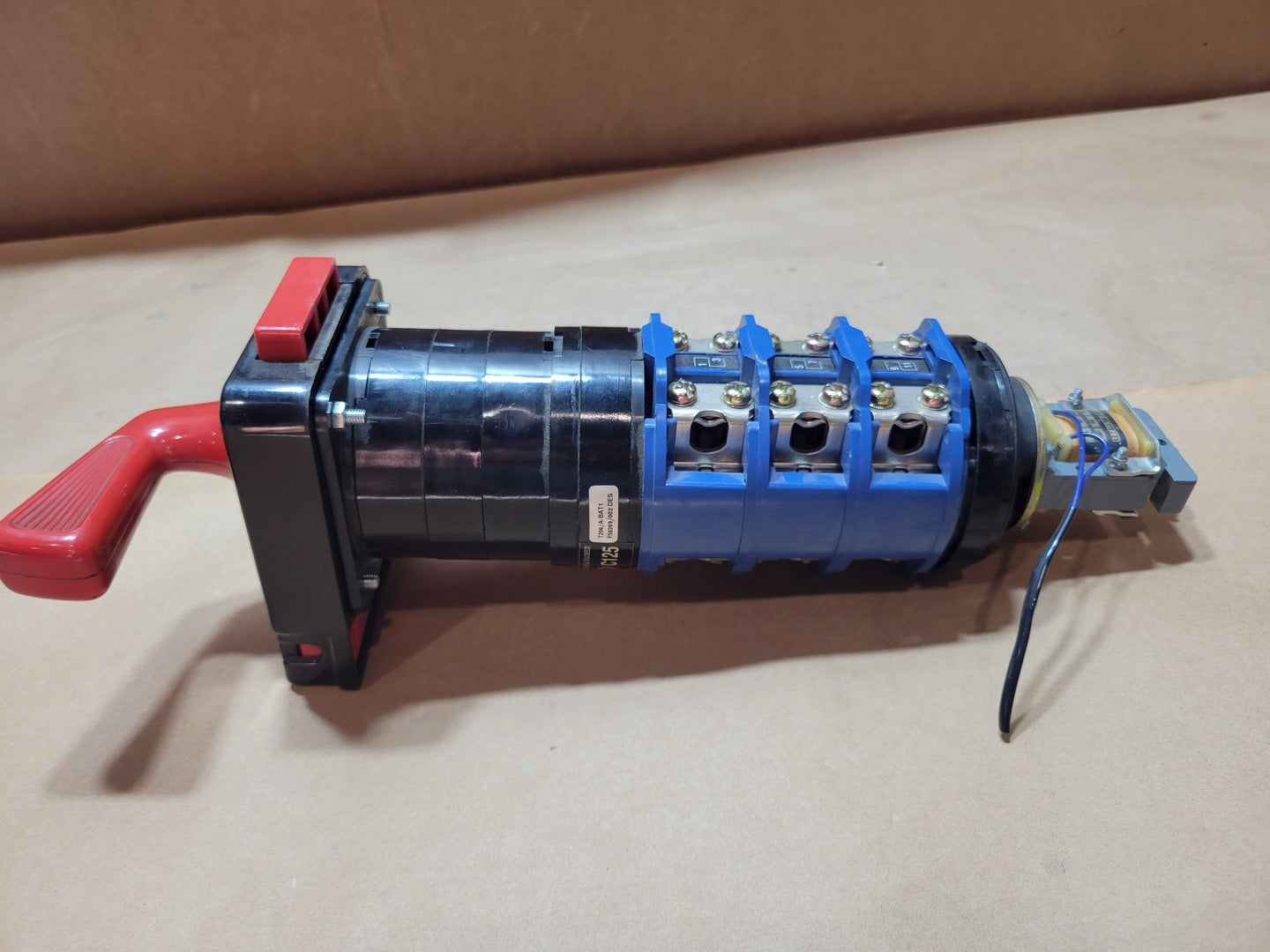

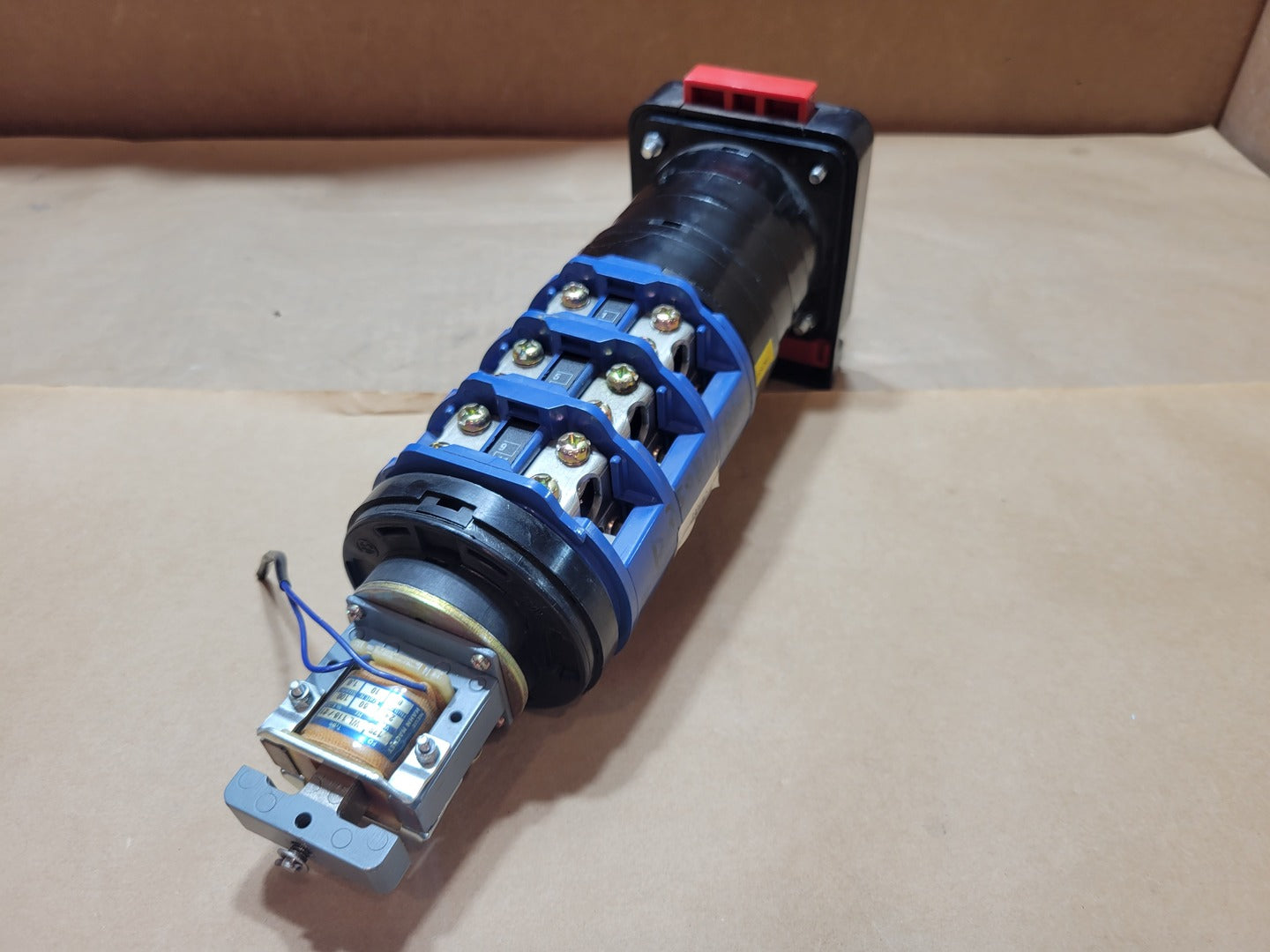

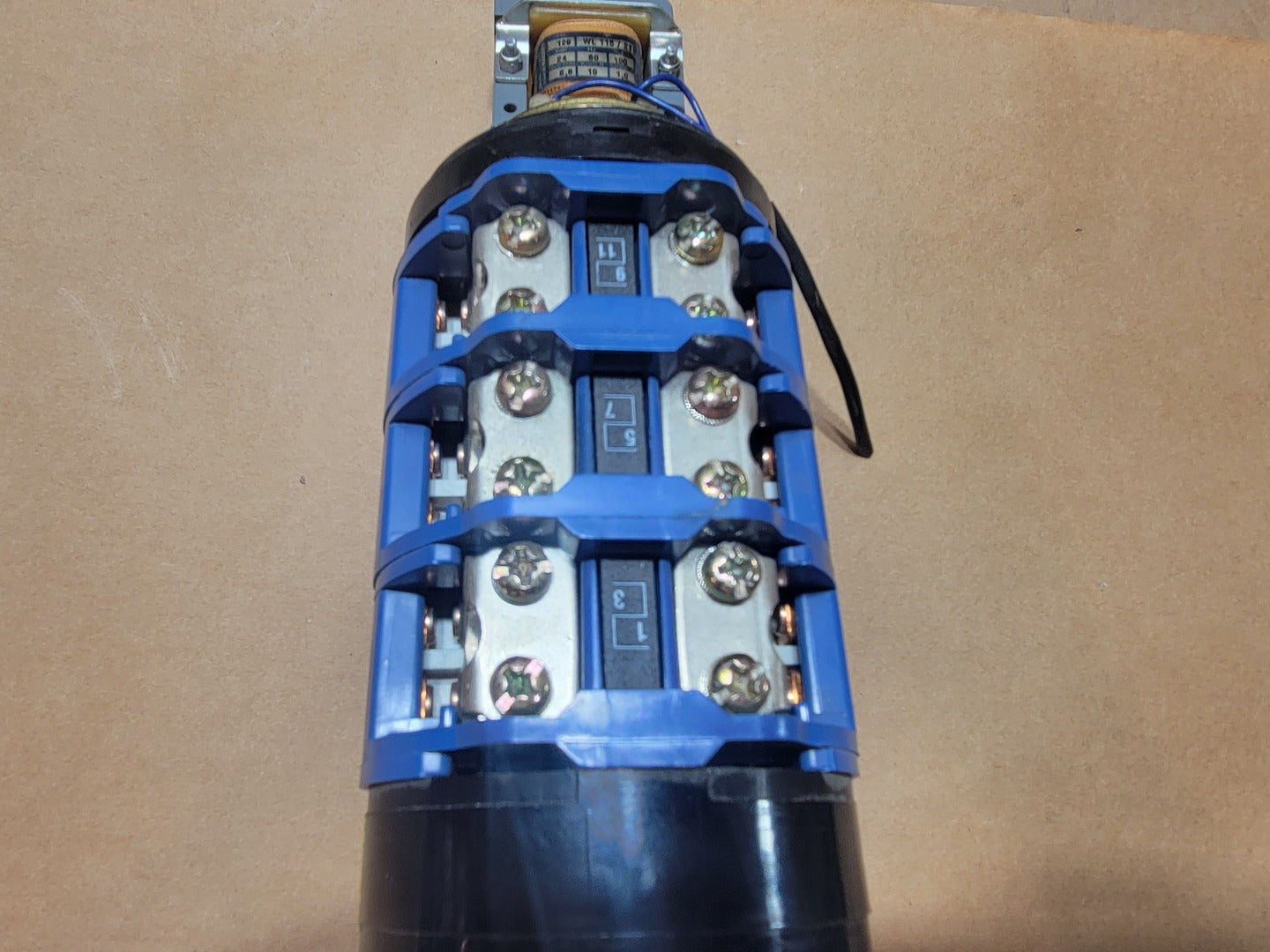

Series: C125 Switch Type: Rotary cam switch / switch-disconnector Operating Positions: 0-I / OFF-ON Operating Angle: Approximately 90° Rated Continuous Current (Iu/Ith): 150 A Conventional Enclosed Thermal Current: 150 A Rated Insulation Voltage (Ui): 690 V AC/DC Rated Impulse Withstand Voltage (Uimp): 6 kV, based on current C125 data Utilization Category AC-21A: 150 A at up to 690 V Rated Short-Time Withstand Current (Icw): 2,000 A for 1 second Maximum IEC Fuse Rating: 200 A gG Contact Material: Silver, based on the C125 series specification Terminal Type: Screw terminals Handle Style: Red pistol-grip rotary handle Faceplate Colour: Yellow |
