Description

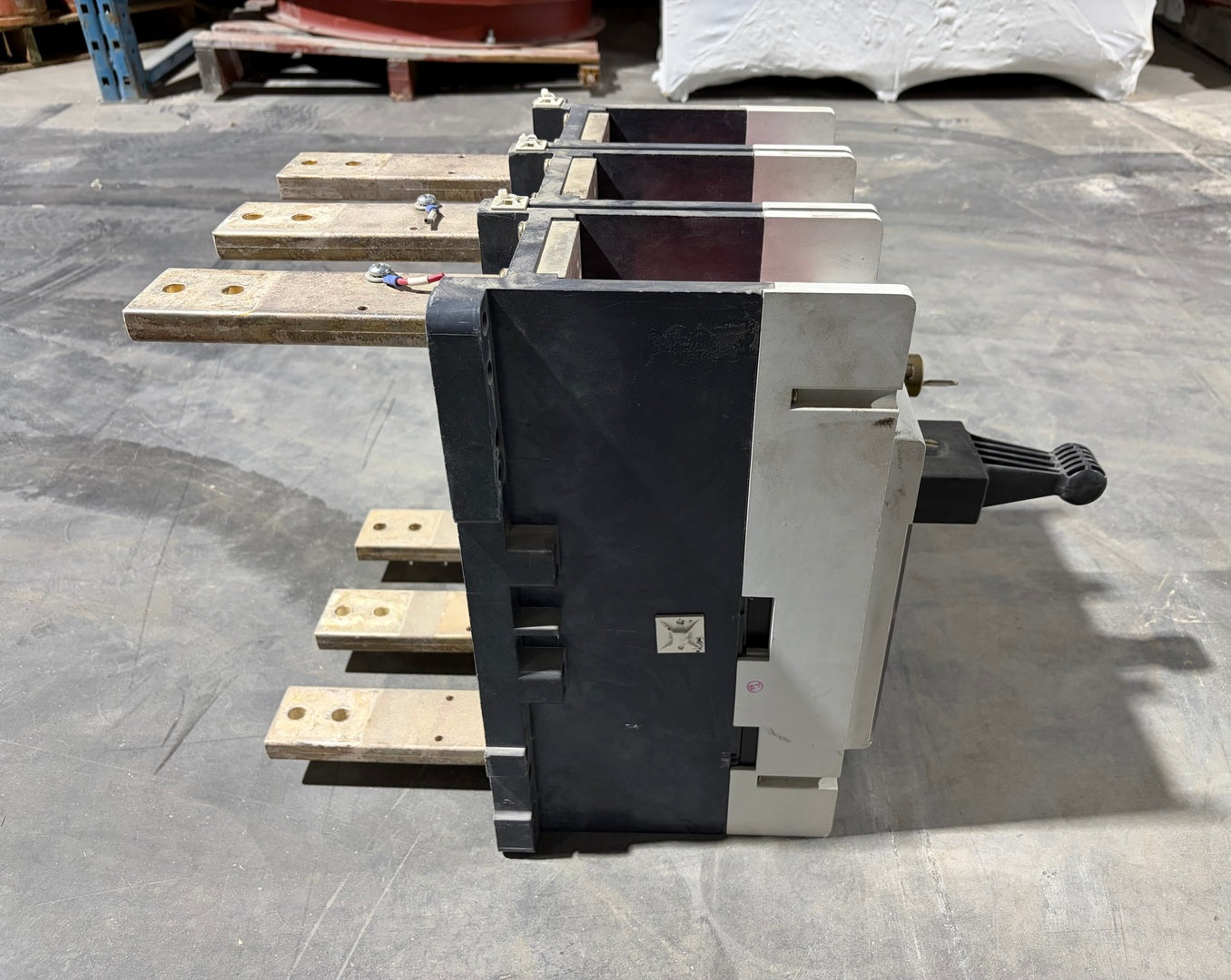

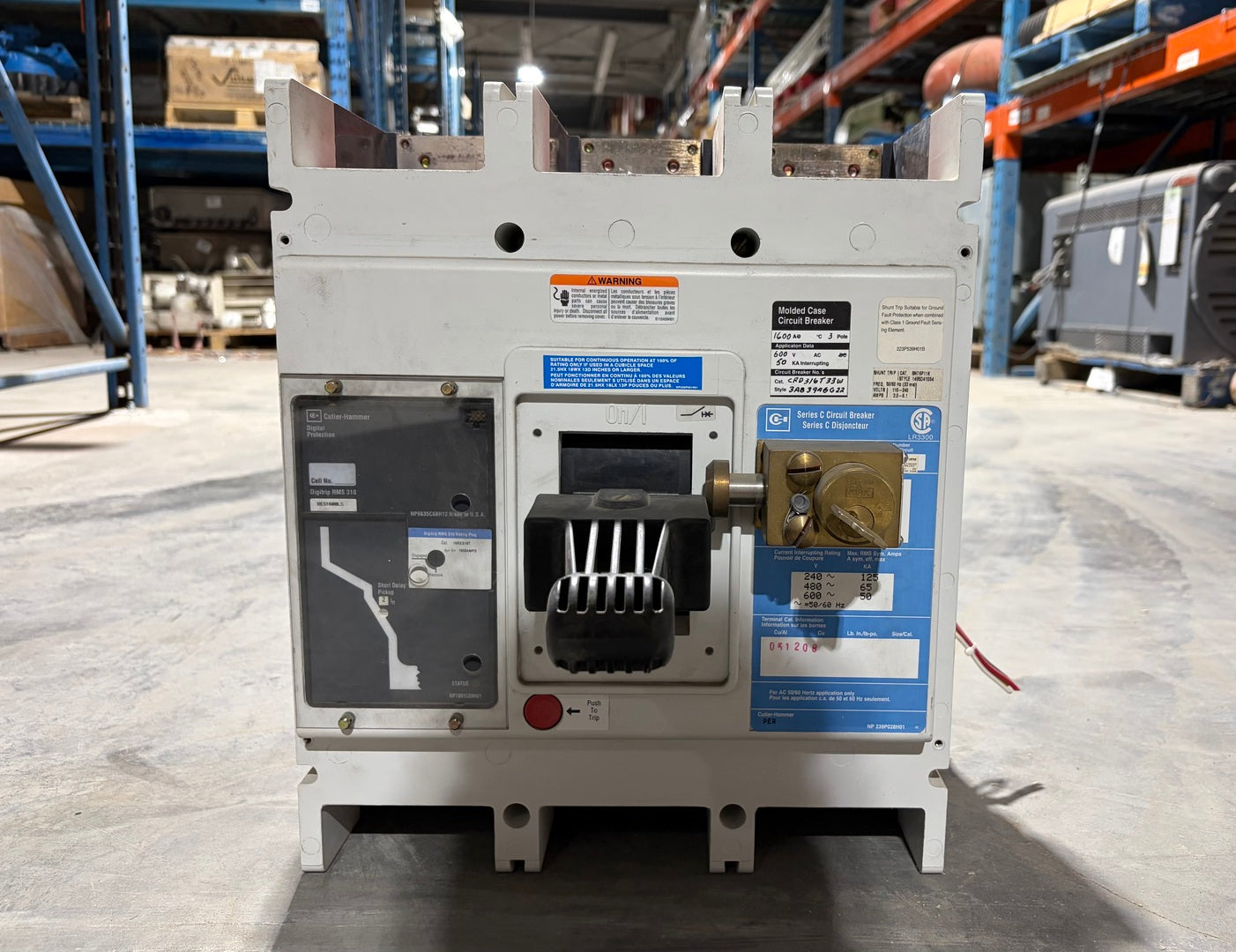

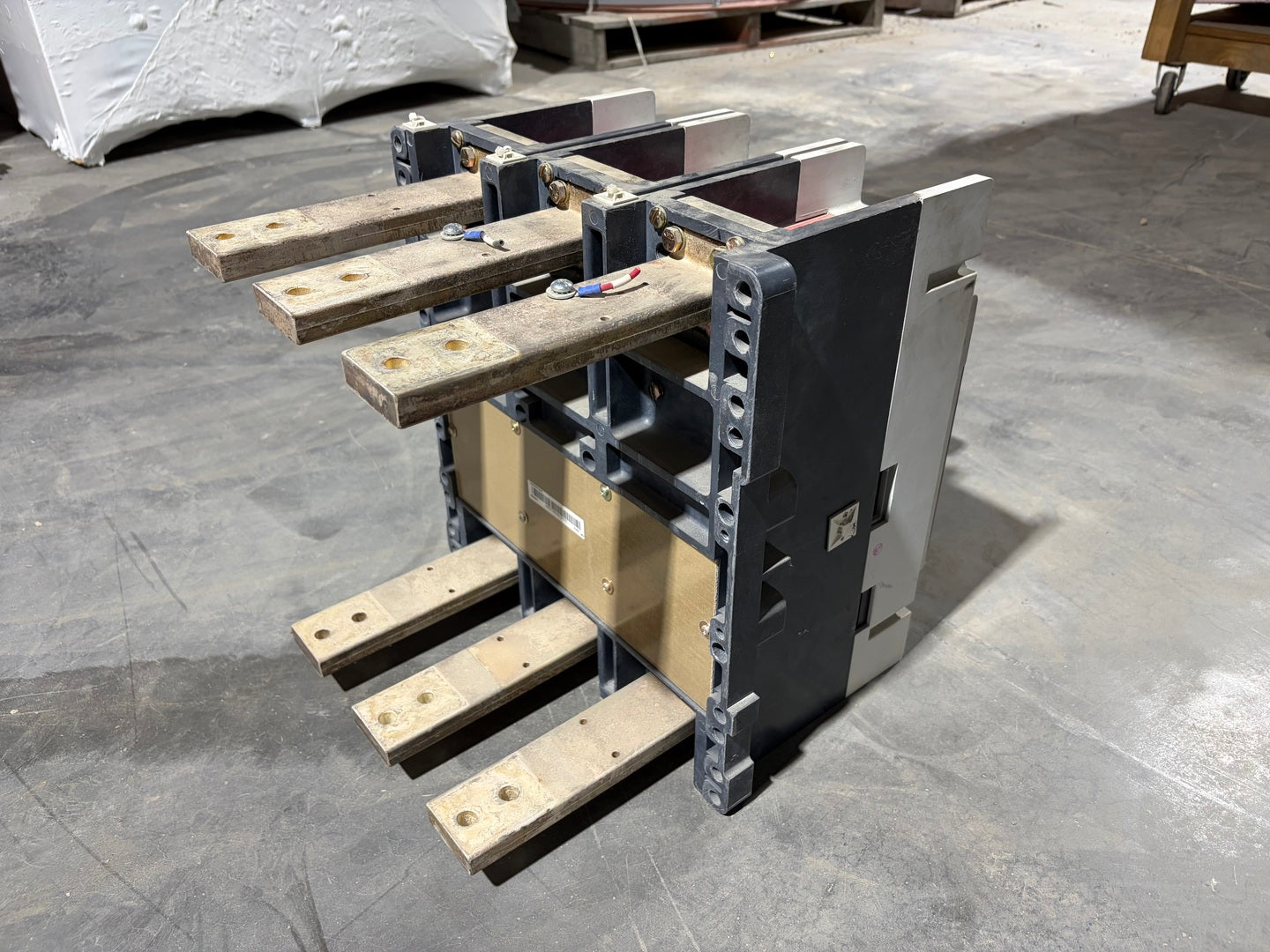

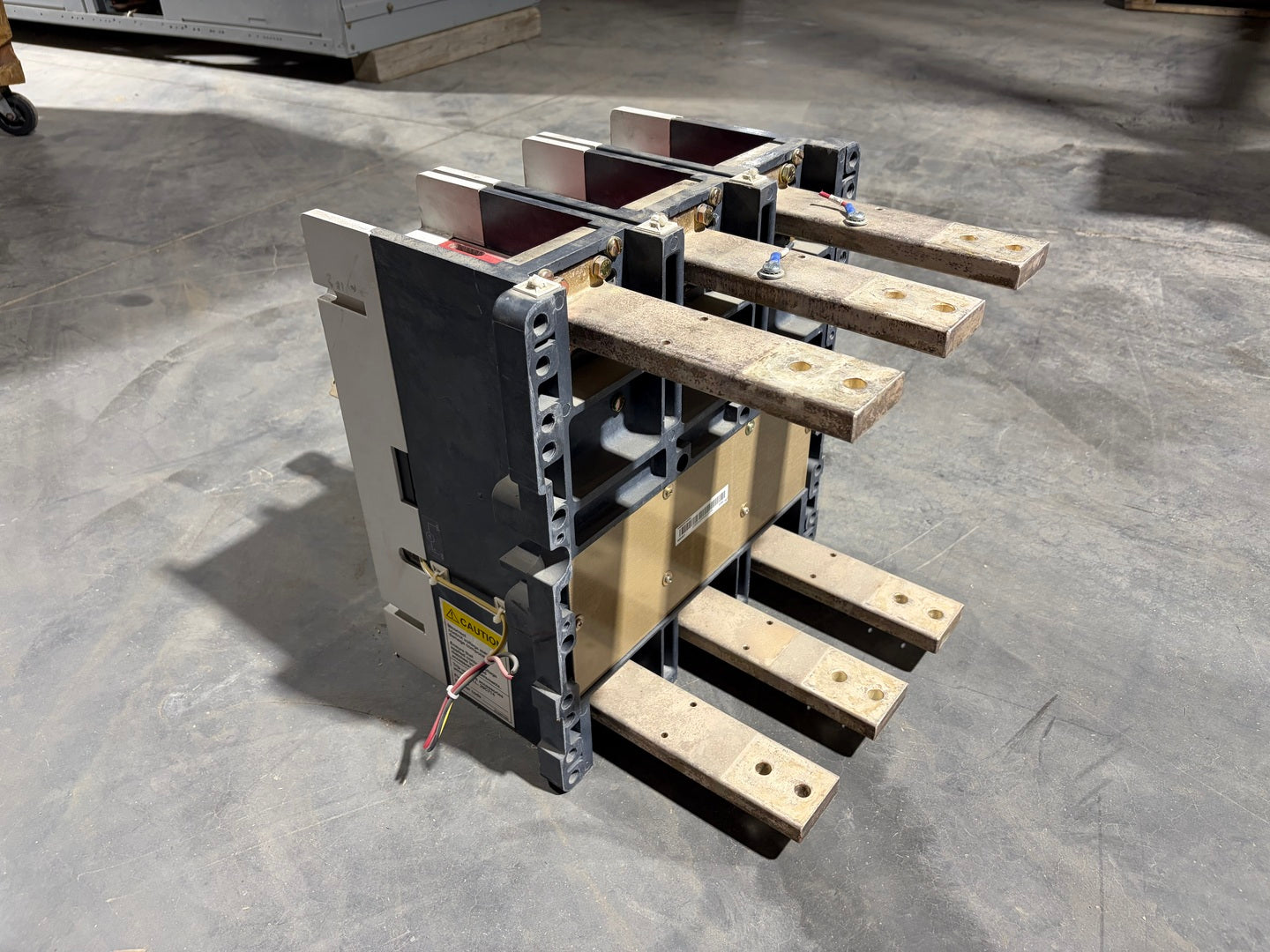

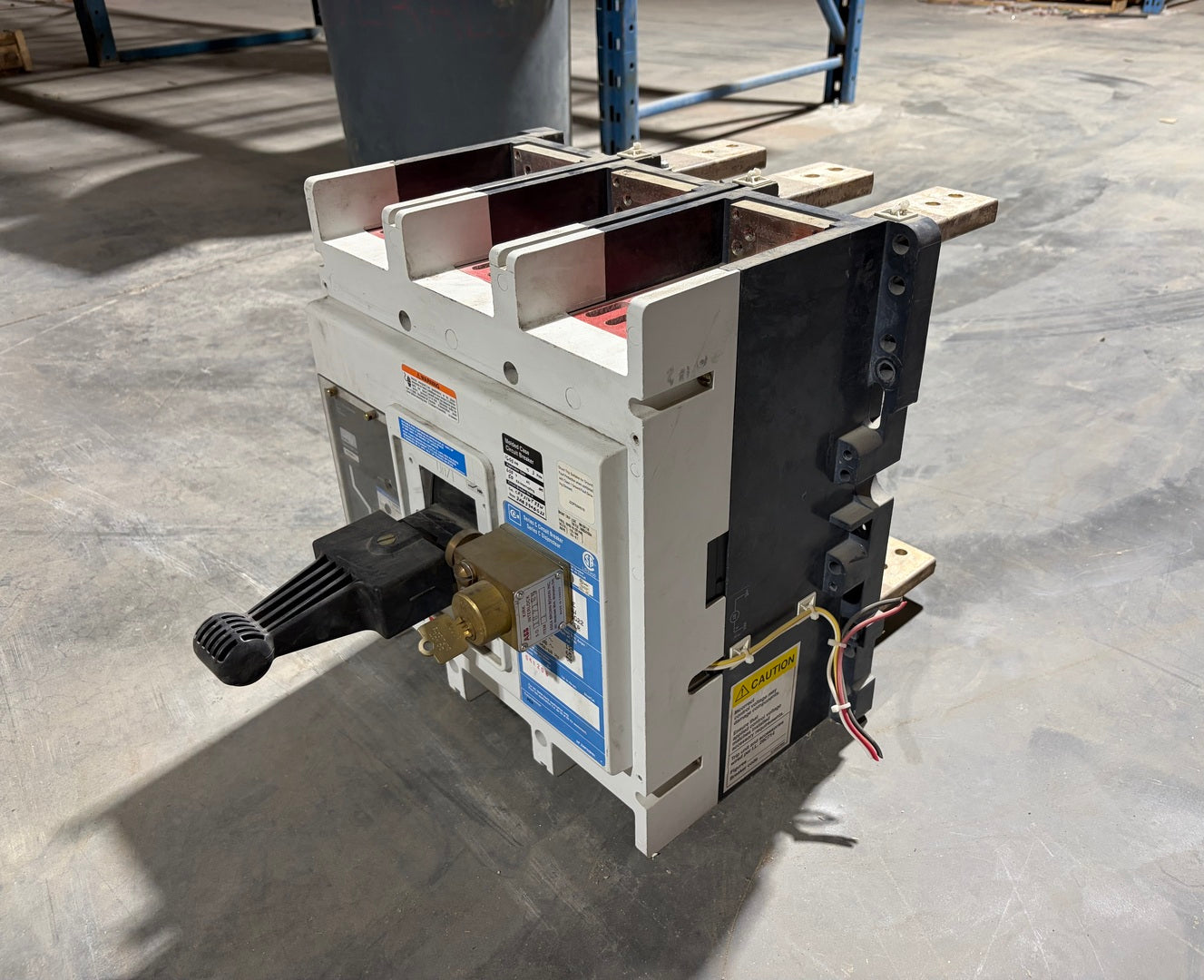

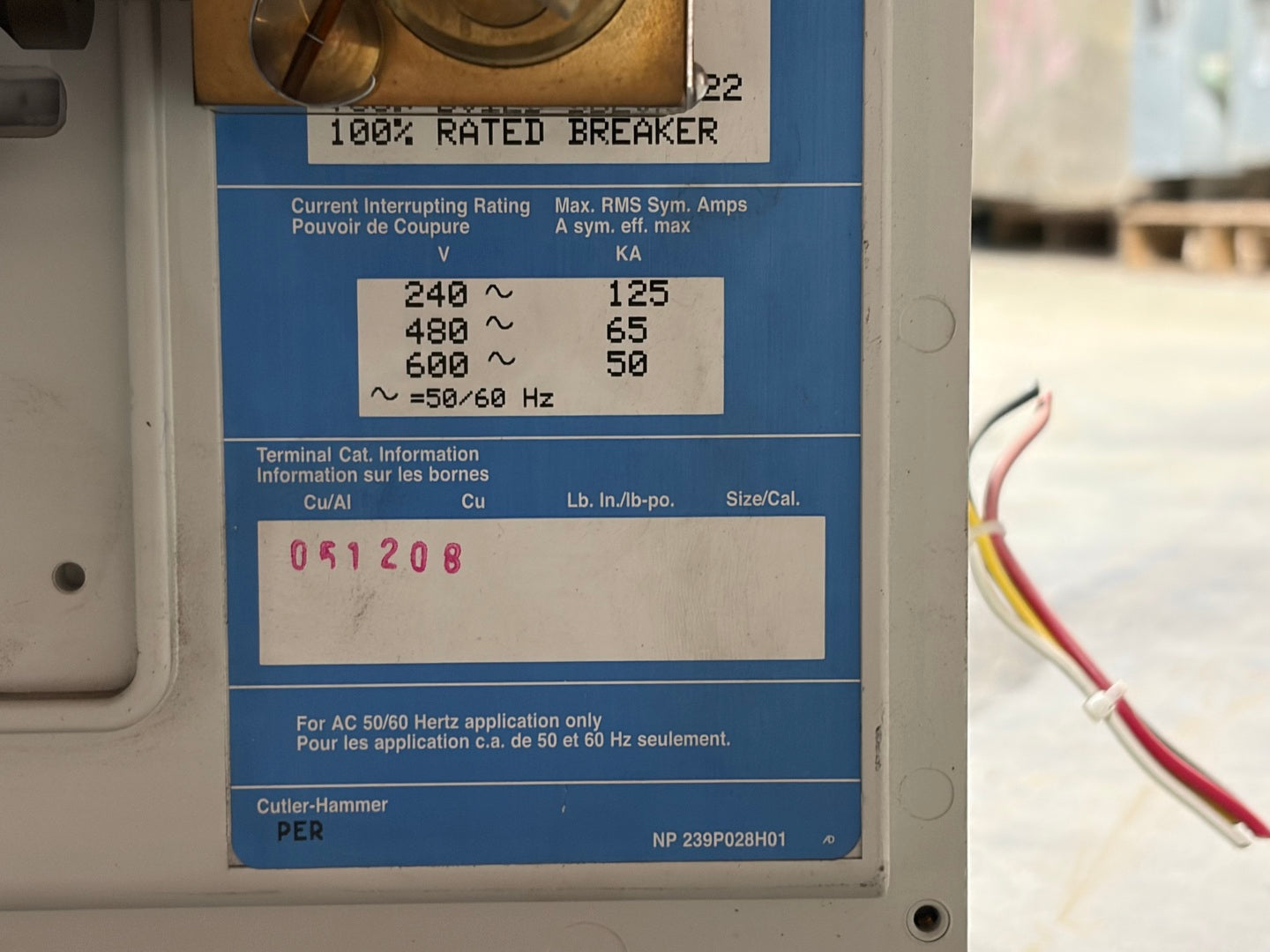

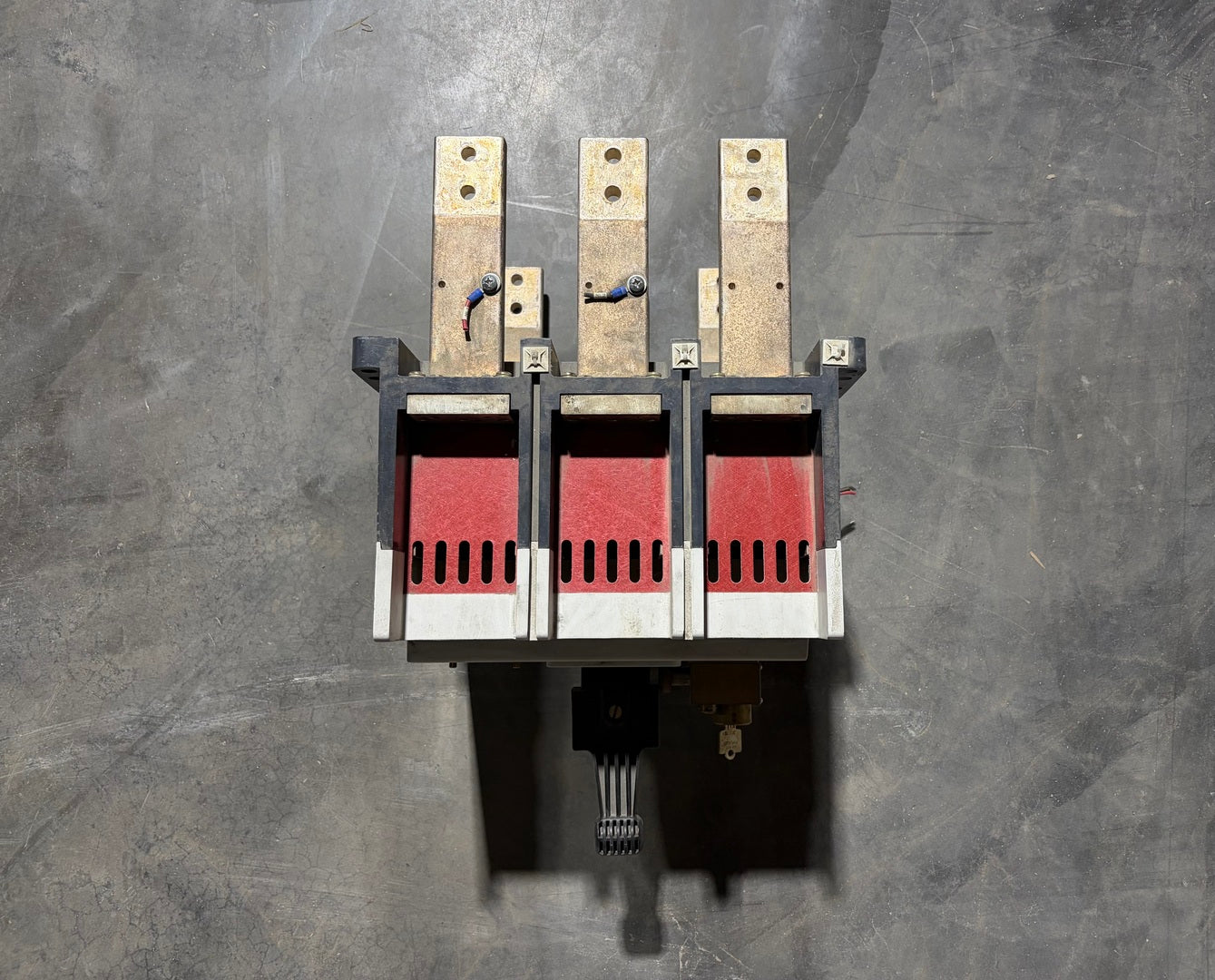

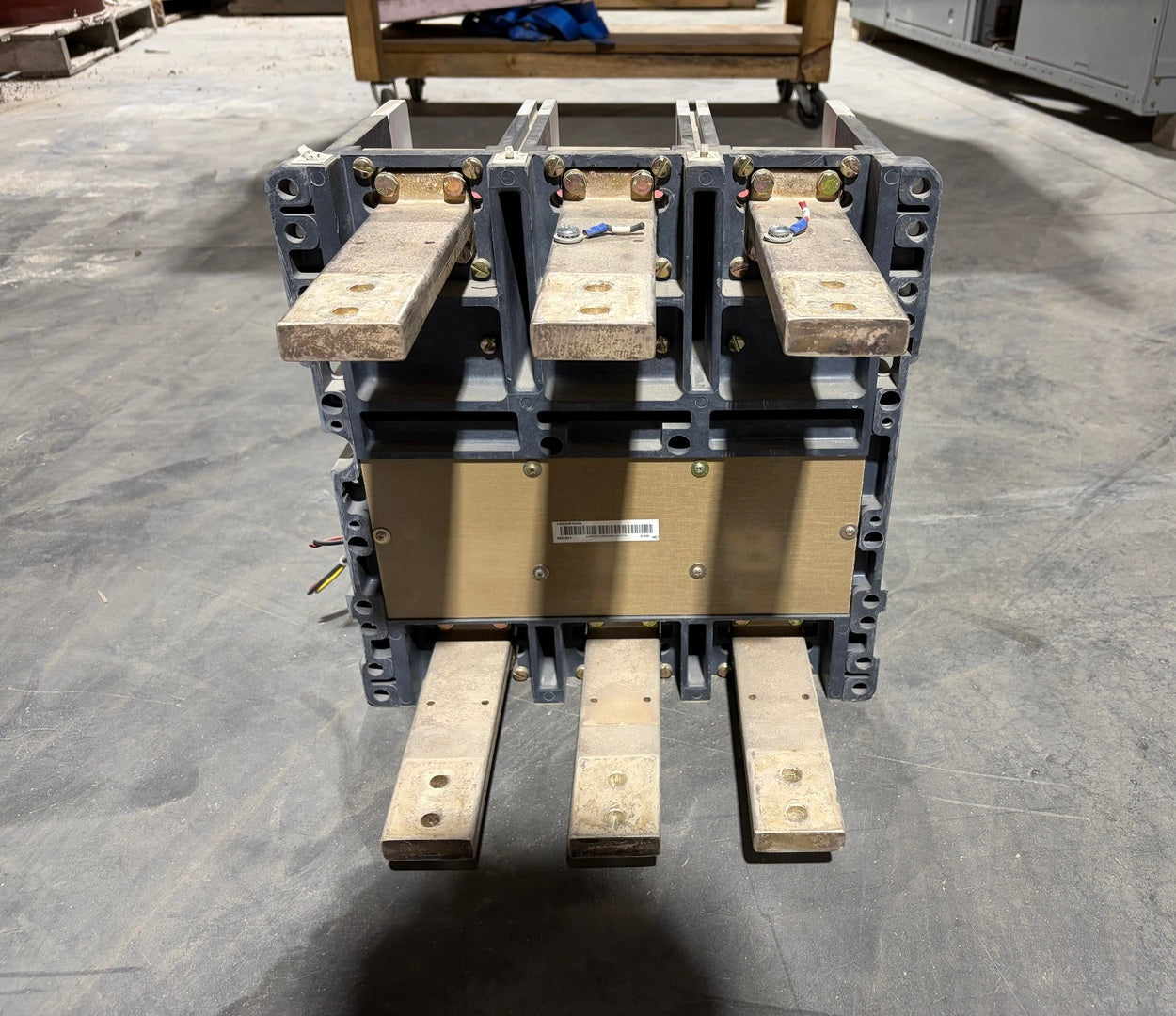

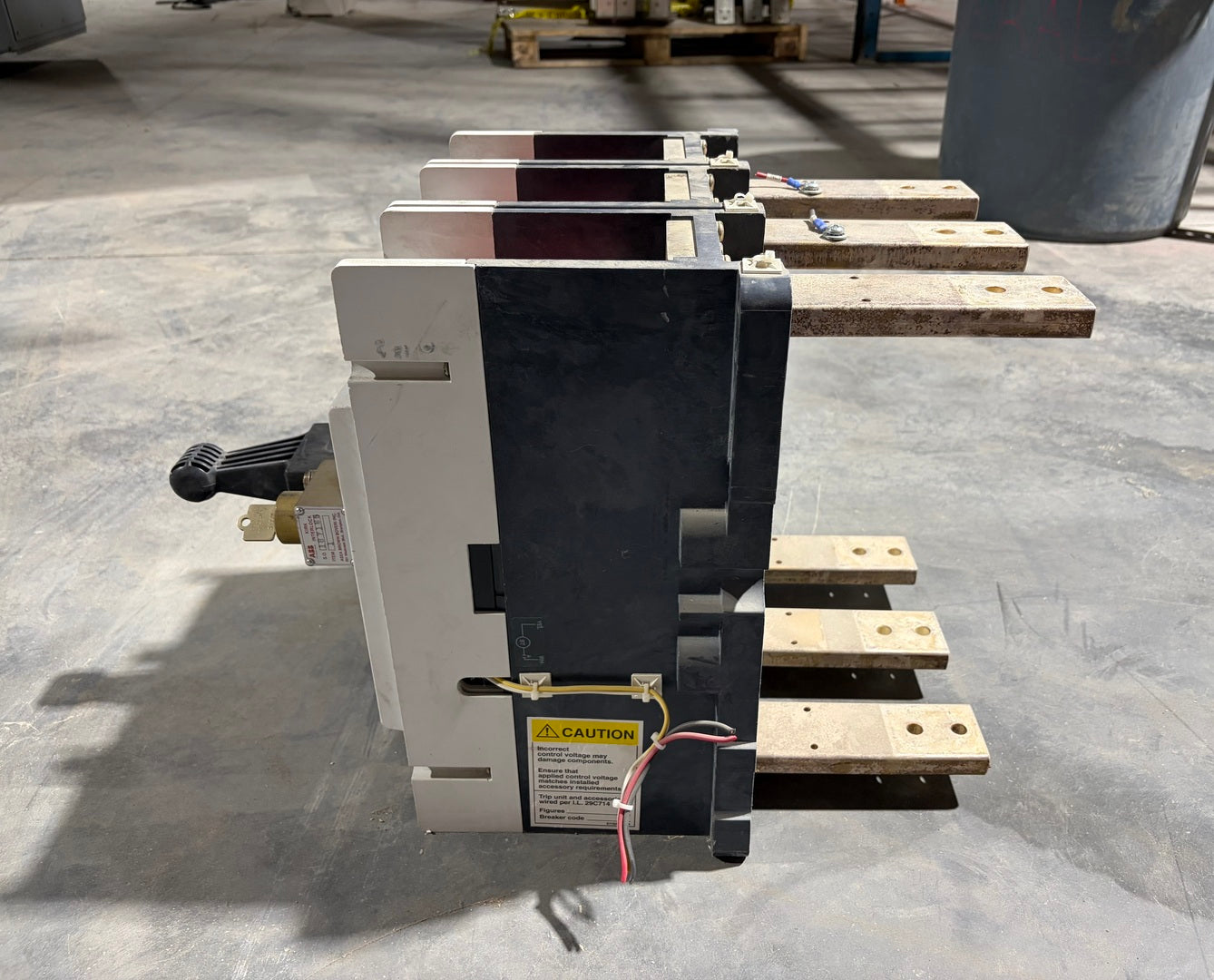

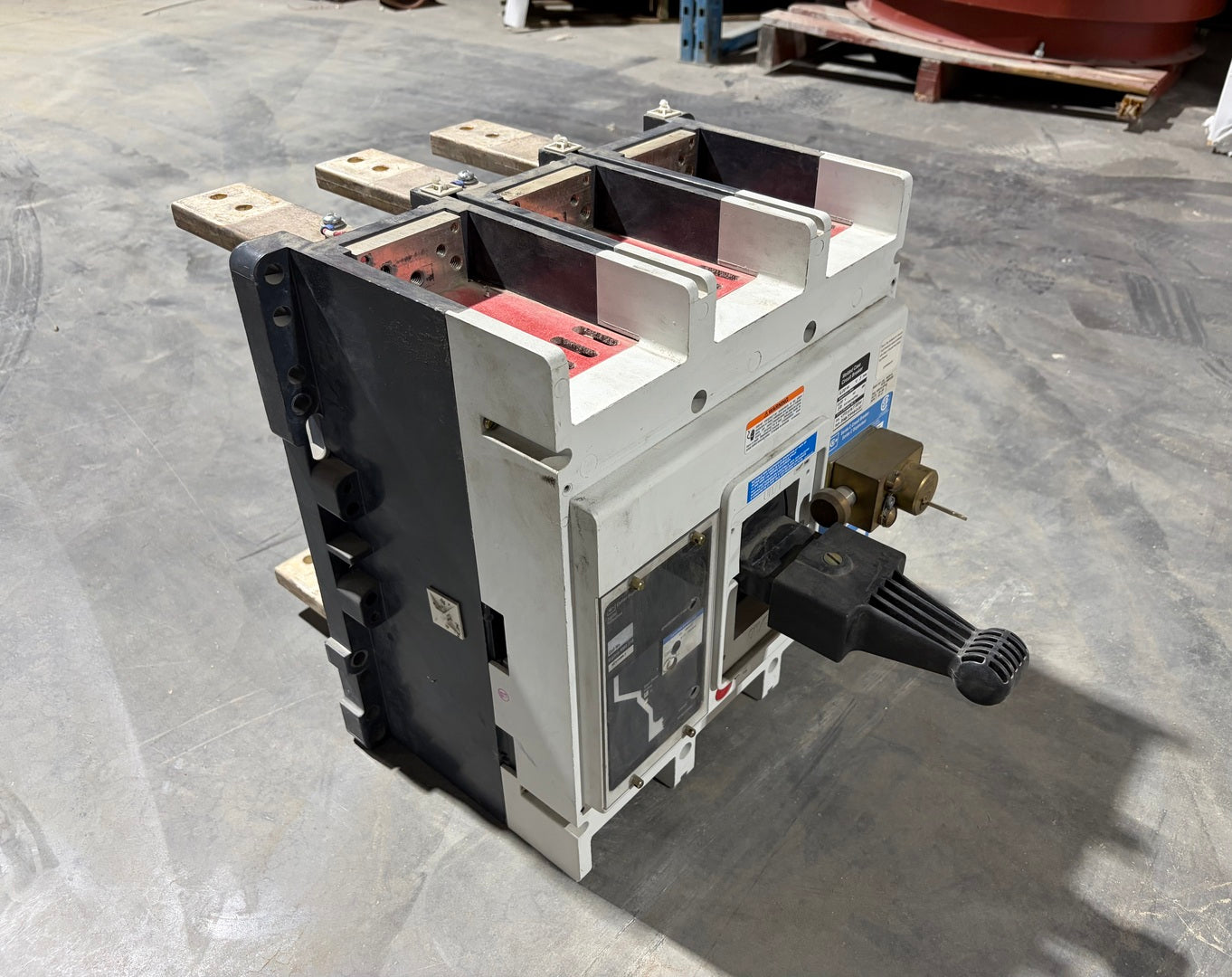

Heavy-duty Cutler-Hammer Series C CRD316T33W electronic molded-case circuit breaker rated for 1,600A, 600VAC, three-pole applications. This R-frame breaker features a Digitrip RMS 310 RES1600LS electronic trip unit with a 1,600A interchangeable rating plug, LS protection functions, shunt trip and Kirk key interlock. It is a 100%-rated breaker intended for high-capacity industrial and commercial power-distribution systems.
| Specifications | |
|---|---|
| Model | CRD316T33W |
| Condition | Used | General |
| Amps | 1600 amps |
| # of Poles | 3 |
| Voltage | 600 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

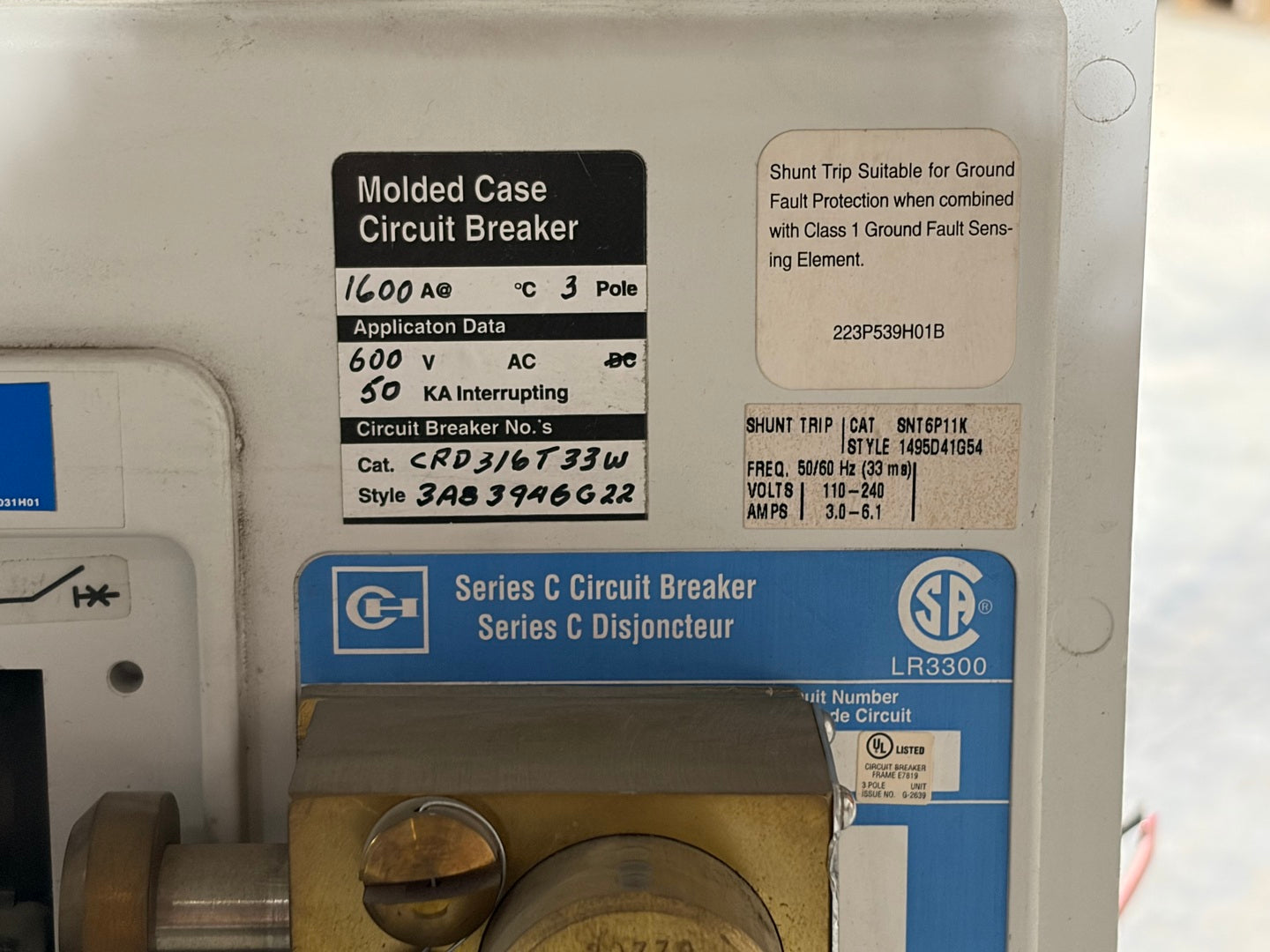

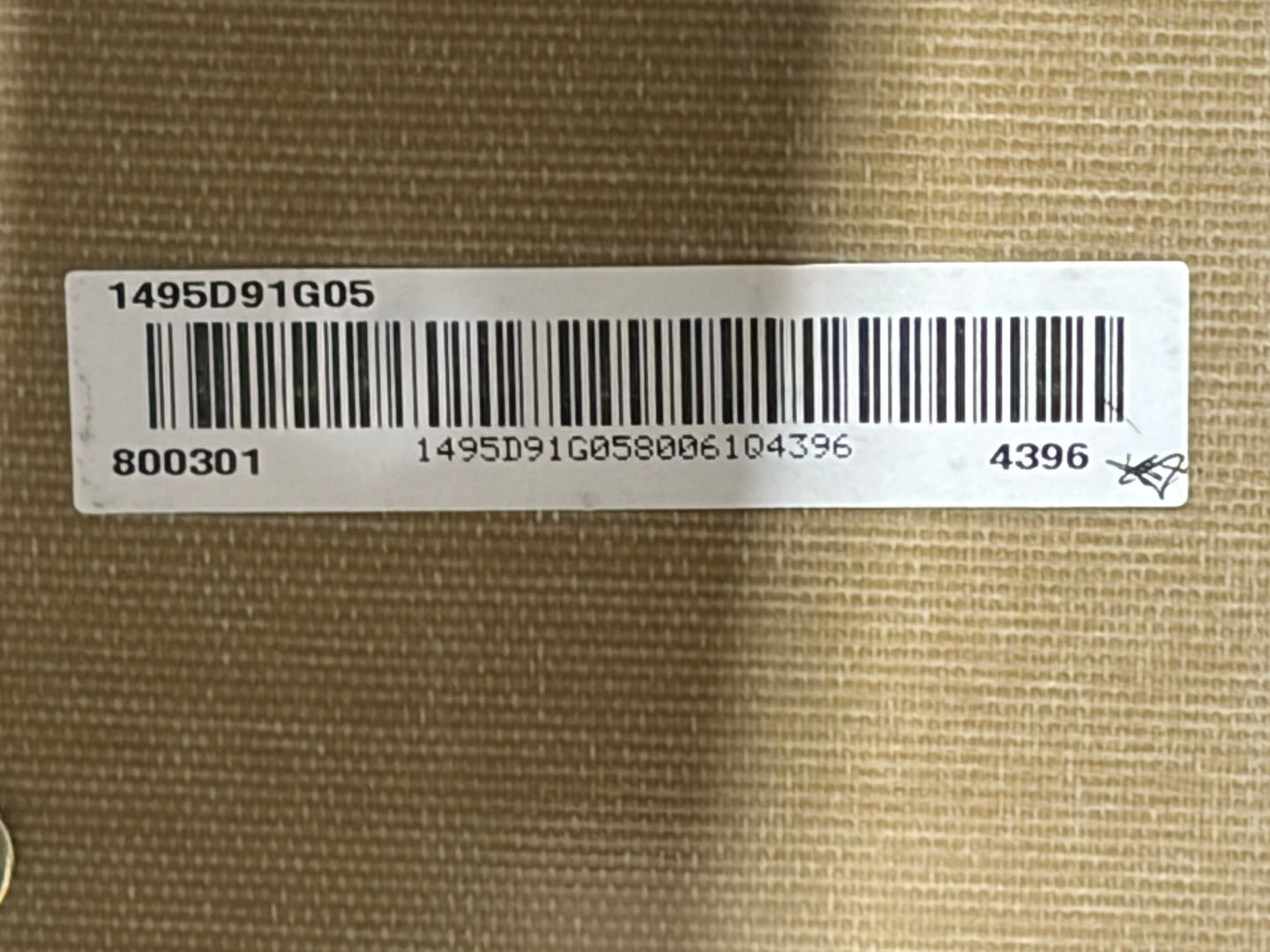

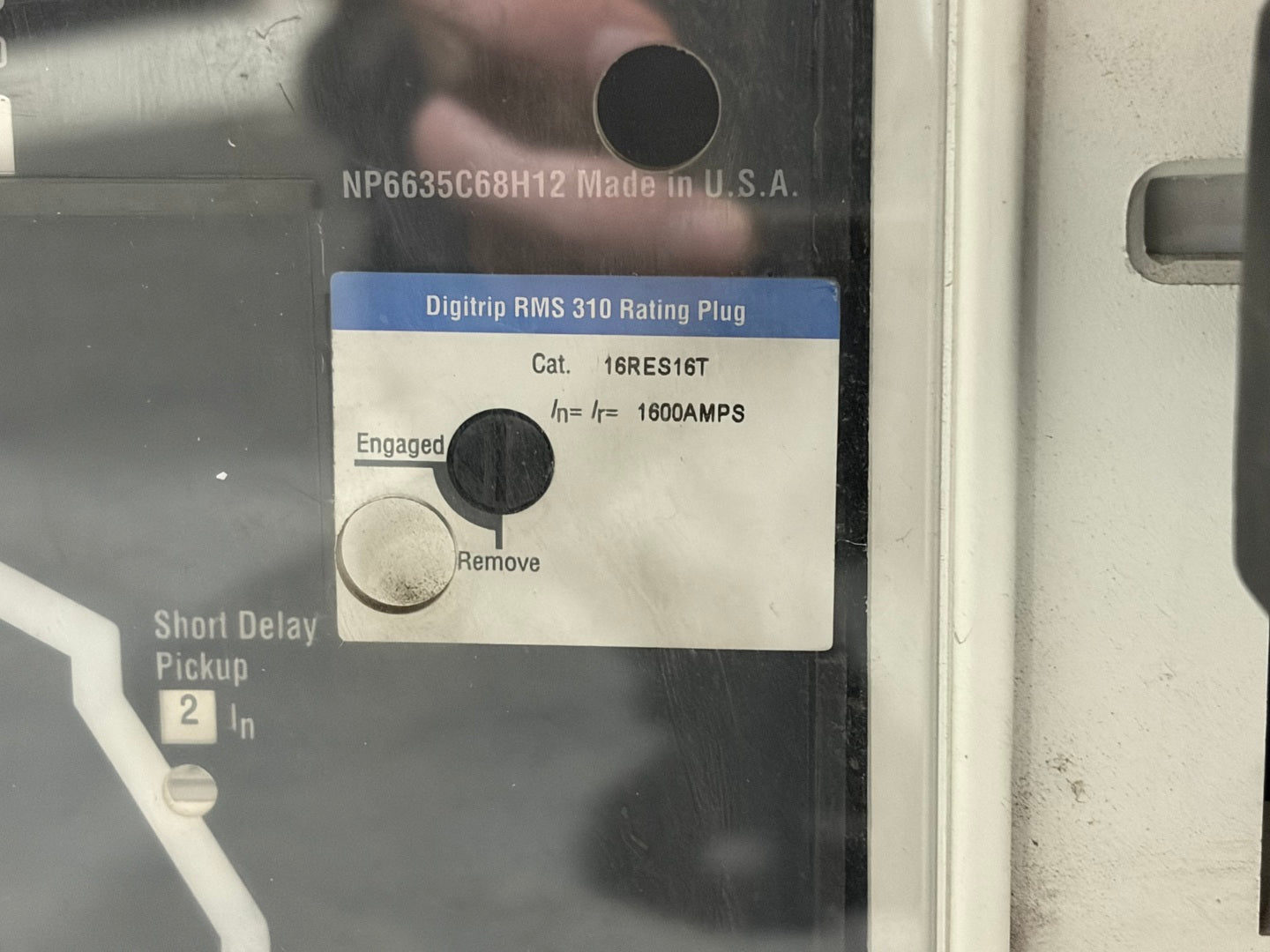

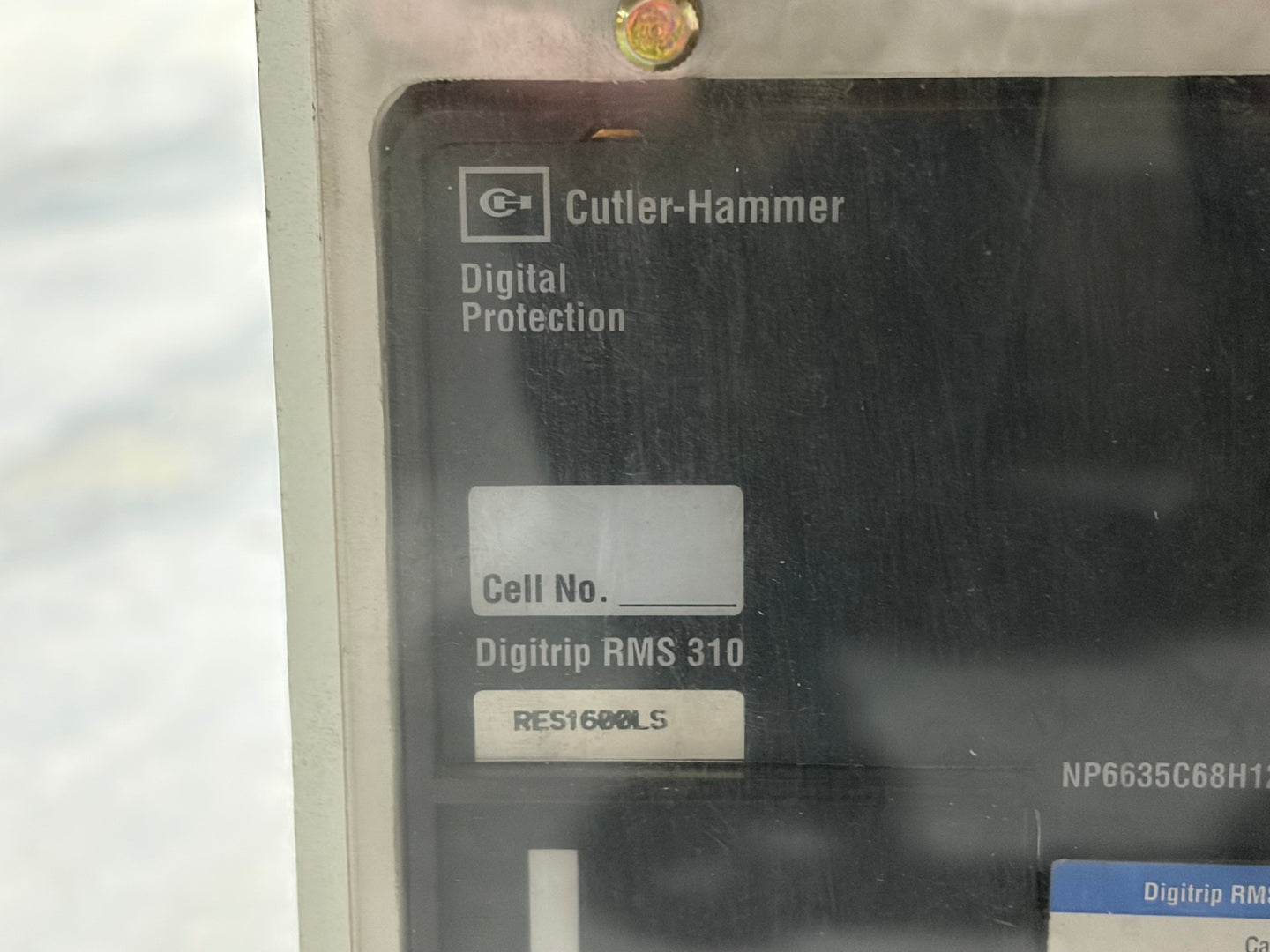

Style number: 3A83946G22 Series: Series C Breaker type: Electronic molded-case circuit breaker Frame type: R-frame Frequency: 50/60 Hz Application rating: 100% rated Mounting/connection: Bolt-on bus-bar connection Trip unit: Cutler-Hammer Digitrip RMS 310 Trip-unit model: RES1600LS Protection functions: LS - long-time and short-time Rating plug: 16RES16T Rating-plug current: 1,600A Short-delay pickup shown: 2 x In Shunt-trip catalog number: SNT6P11K Shunt-trip style: 1495D91G04 Shunt-trip voltage: 110-240VAC, 50/60 Hz |
