Description
| Year: | 2006 |
| Condition | Used | Electrical |
|---|---|
| Amps | 1600 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

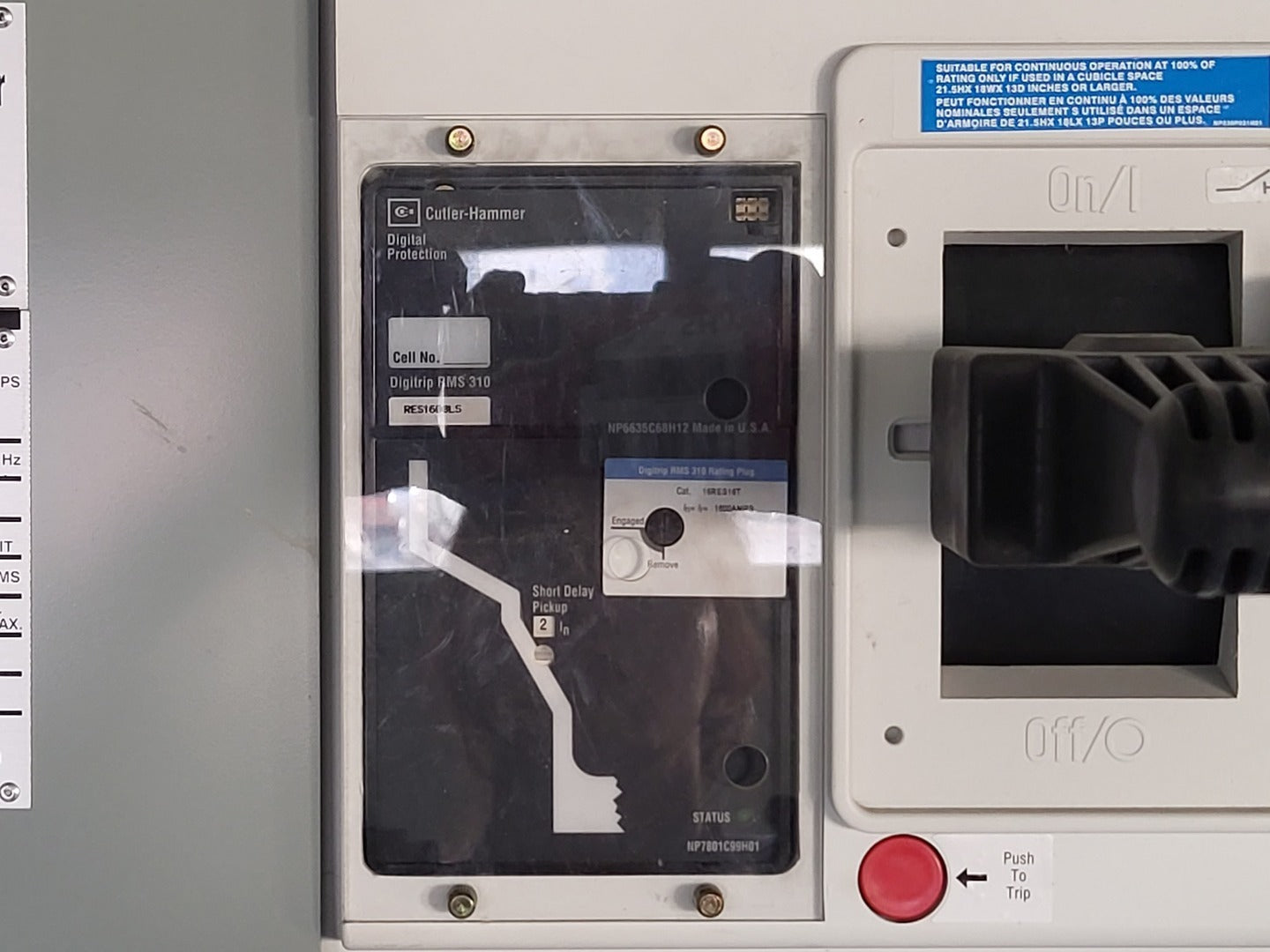

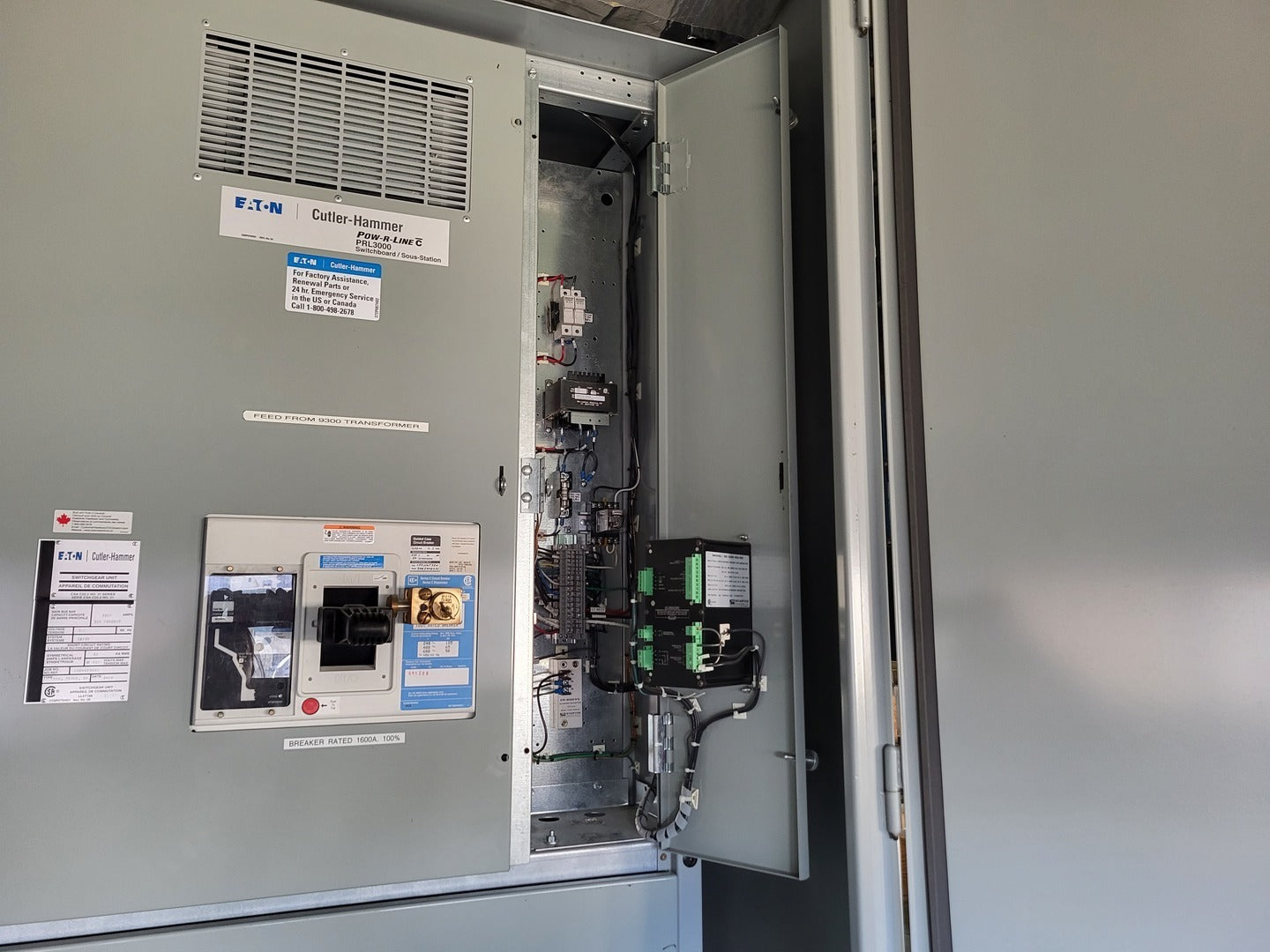

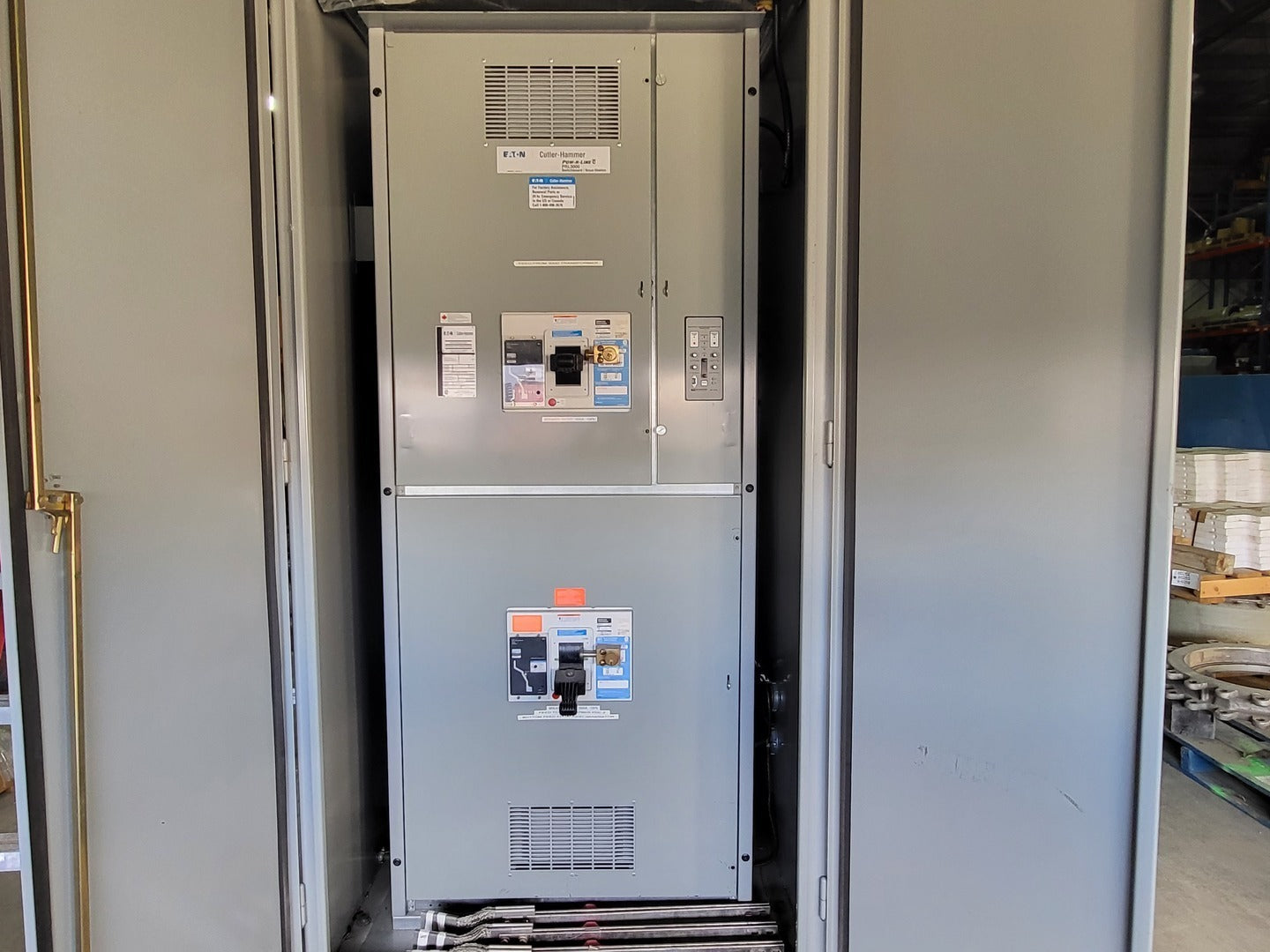

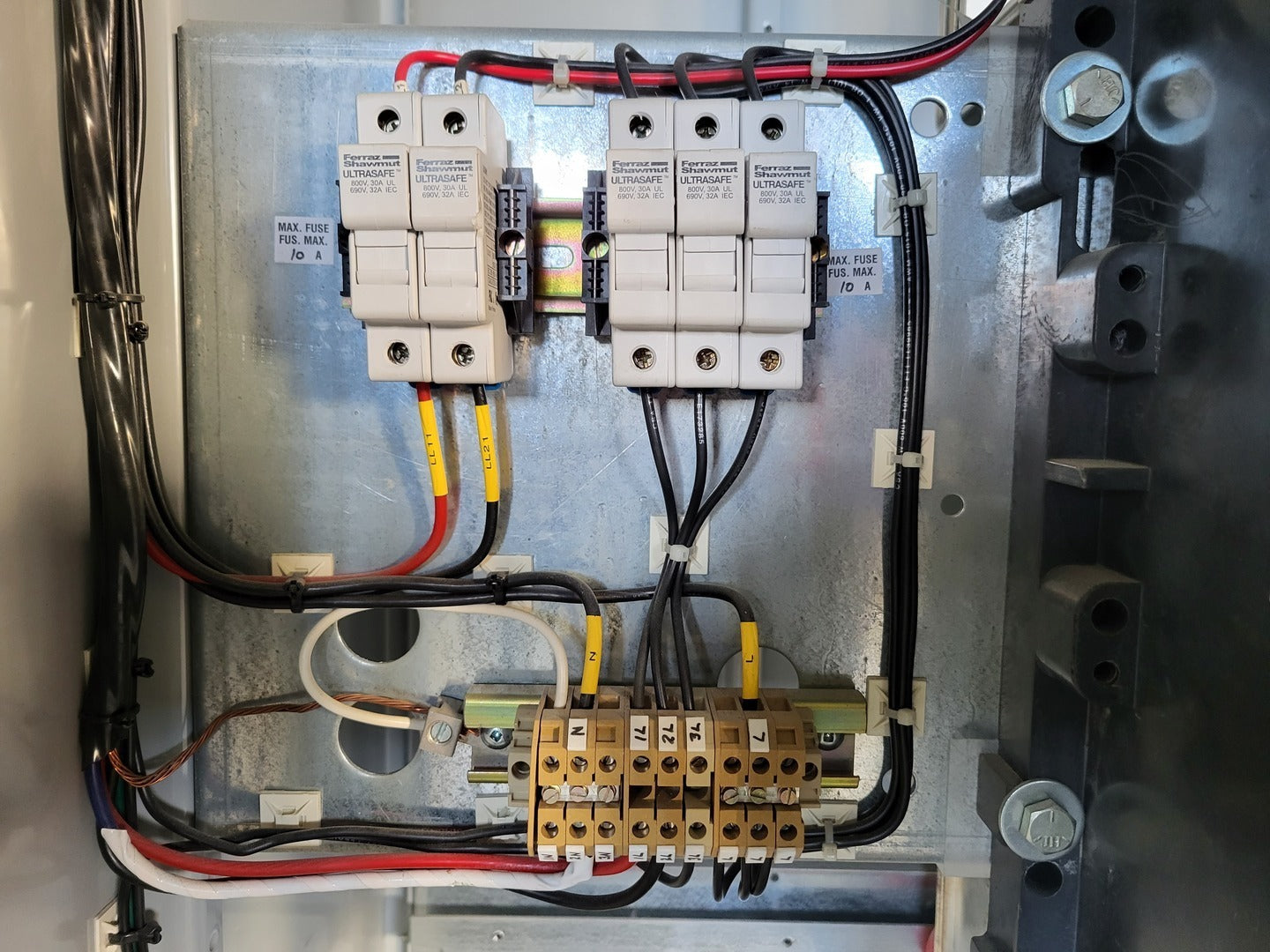

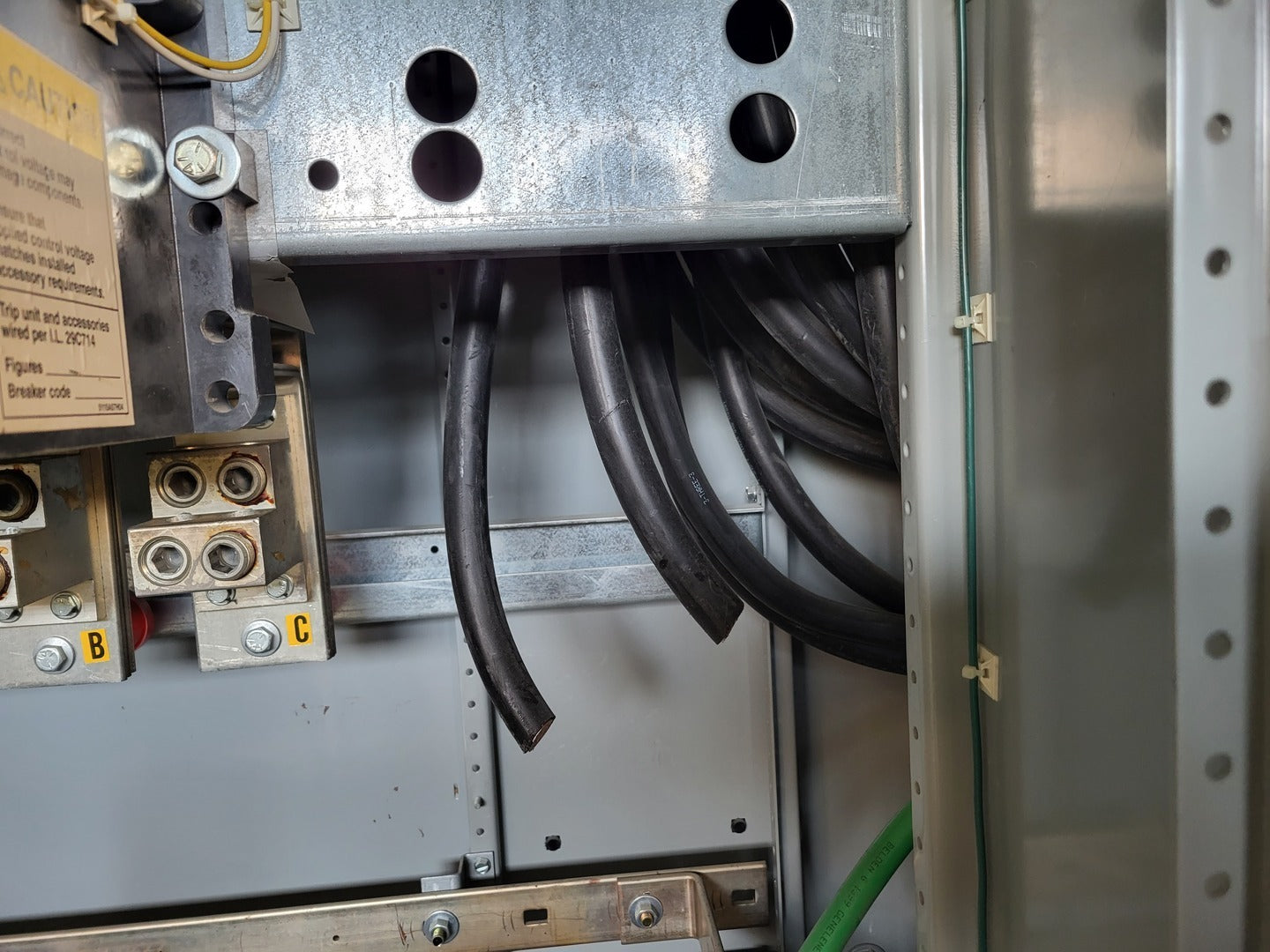

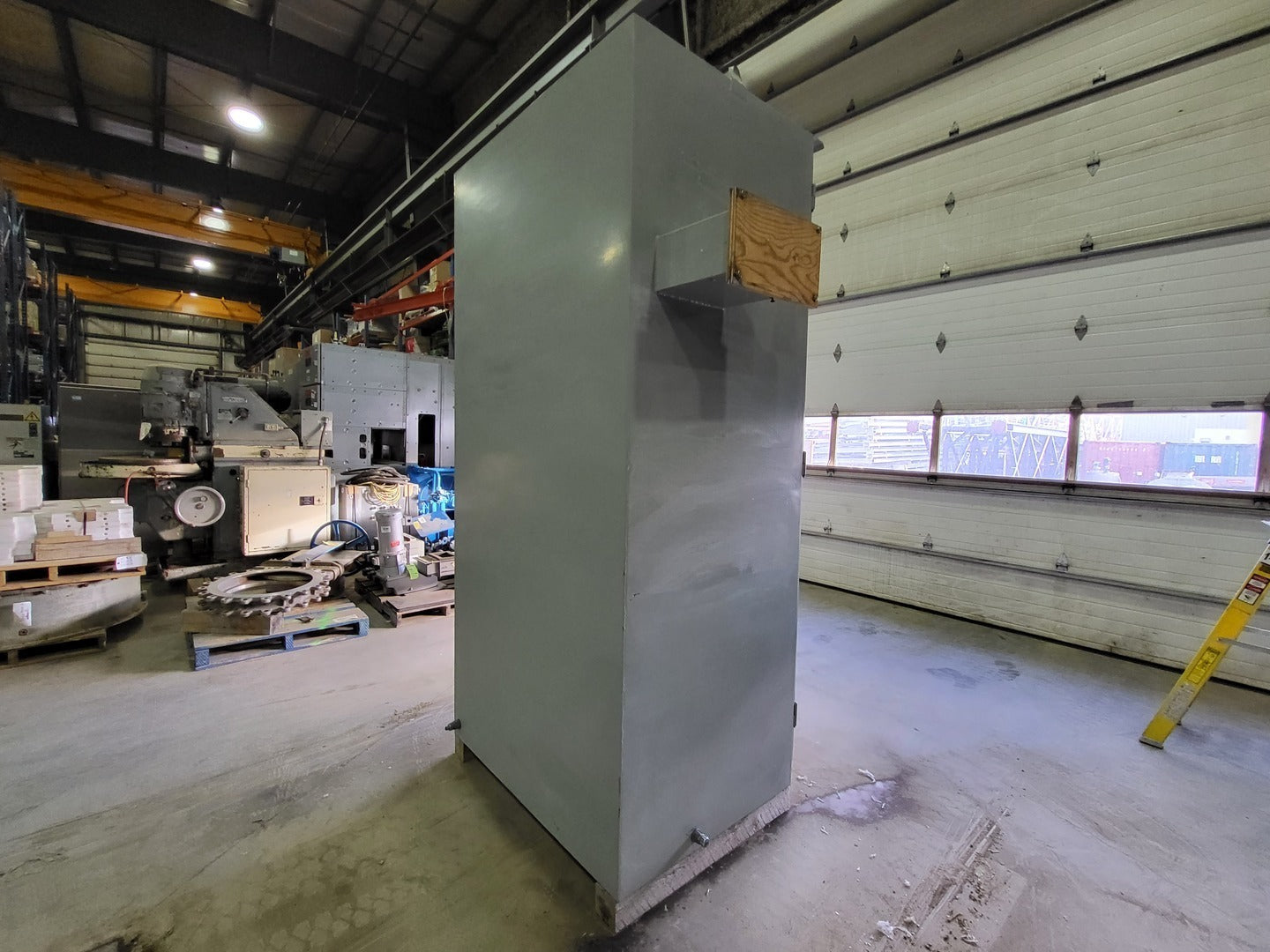

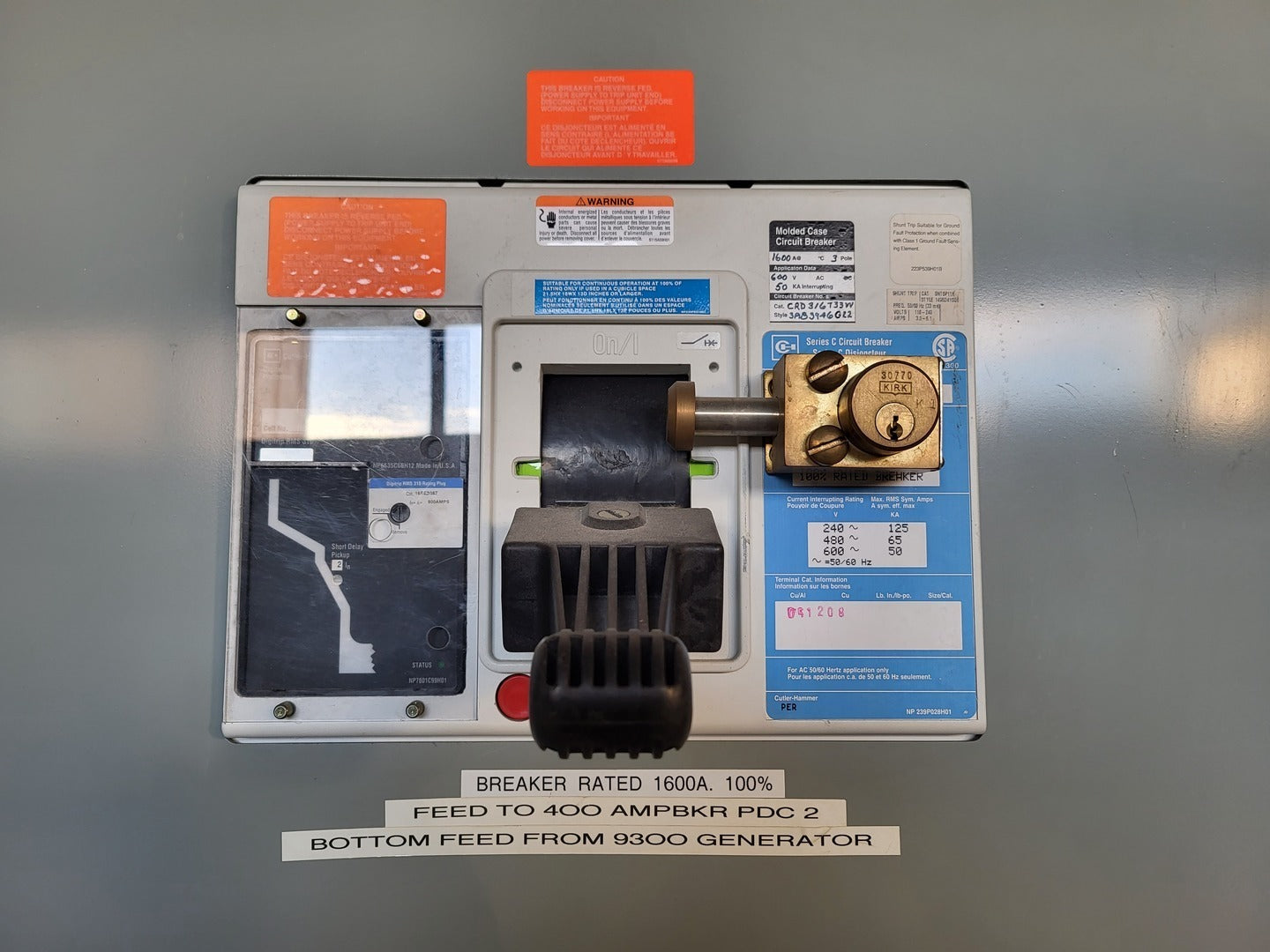

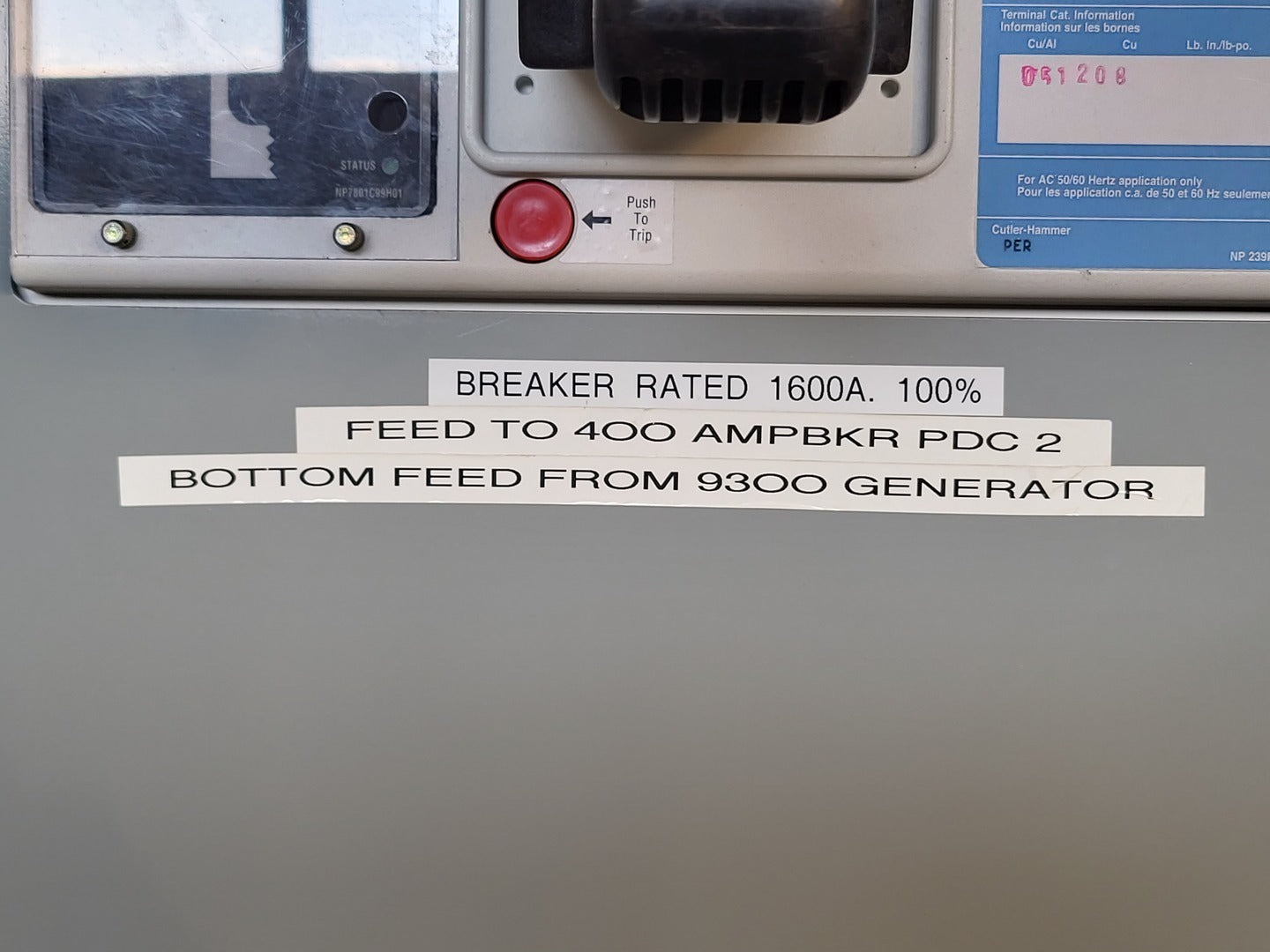

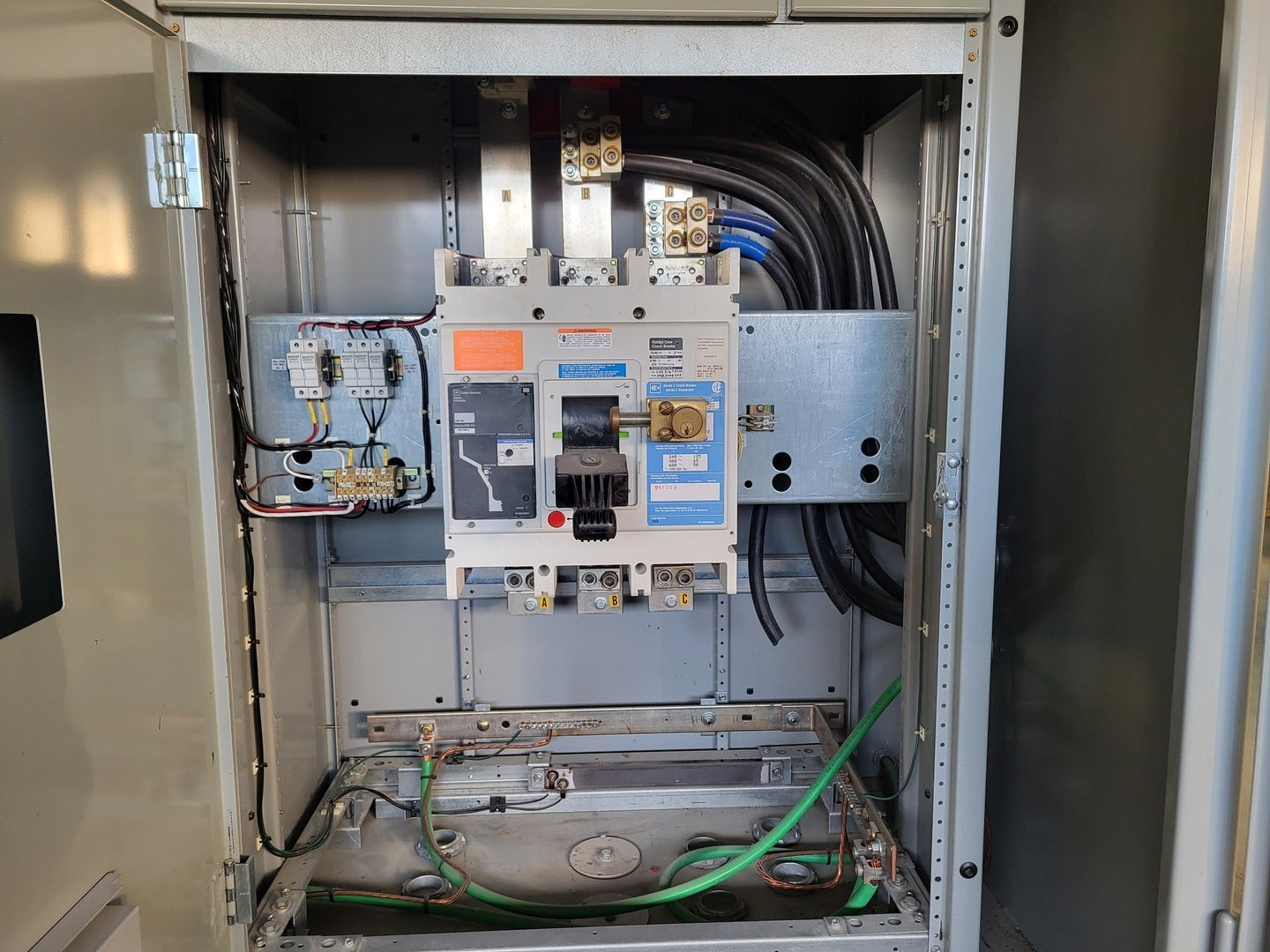

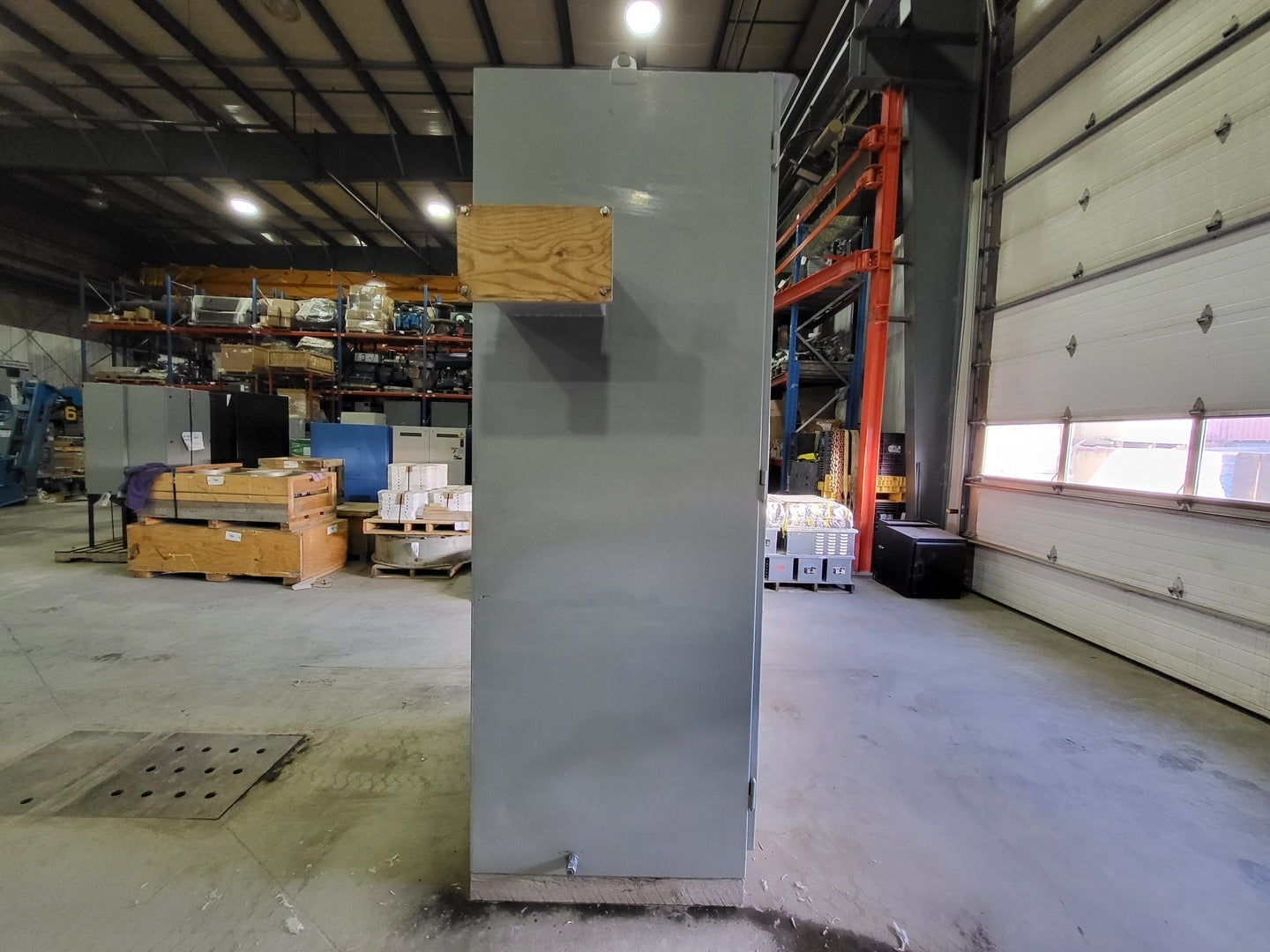

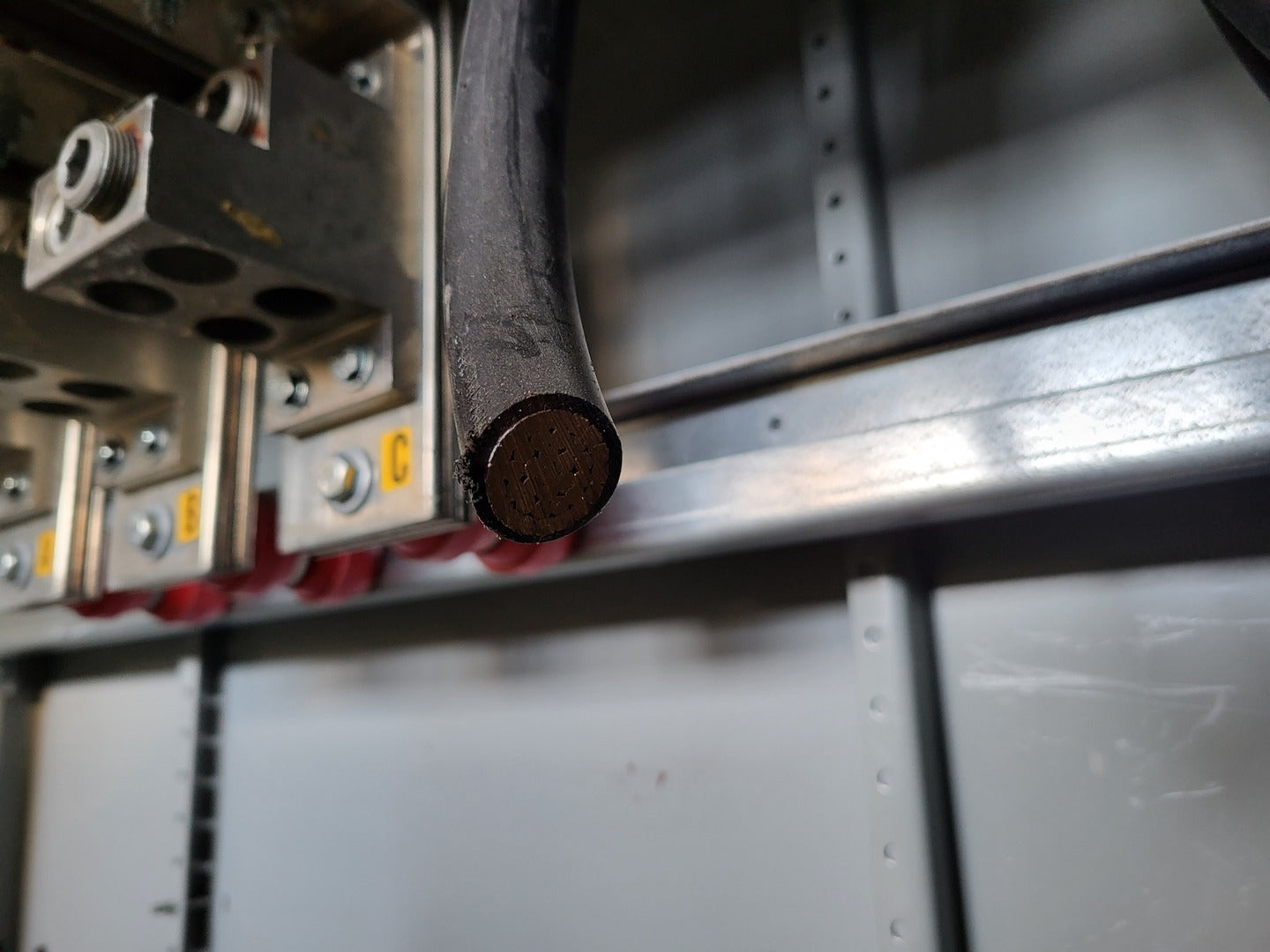

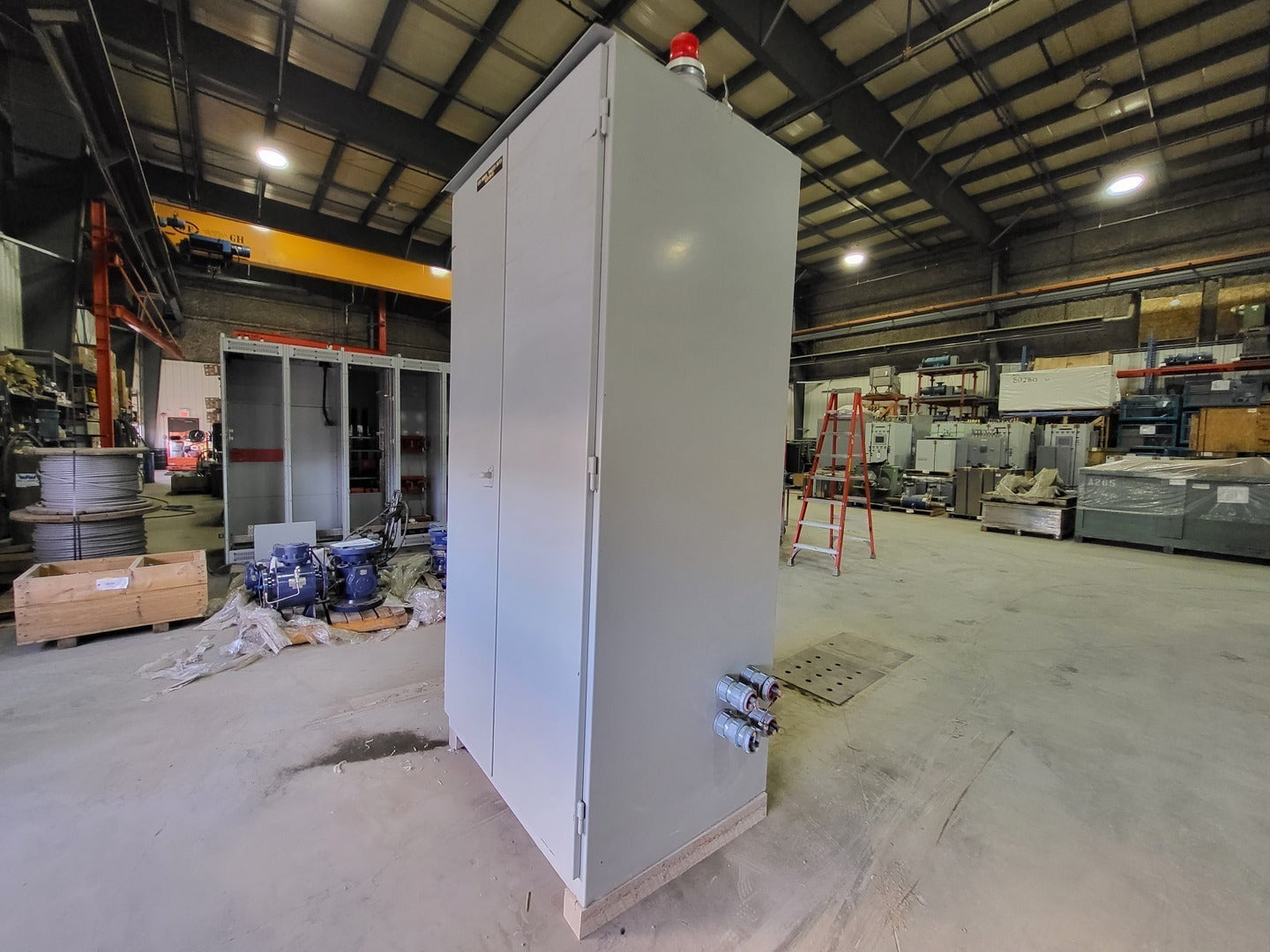

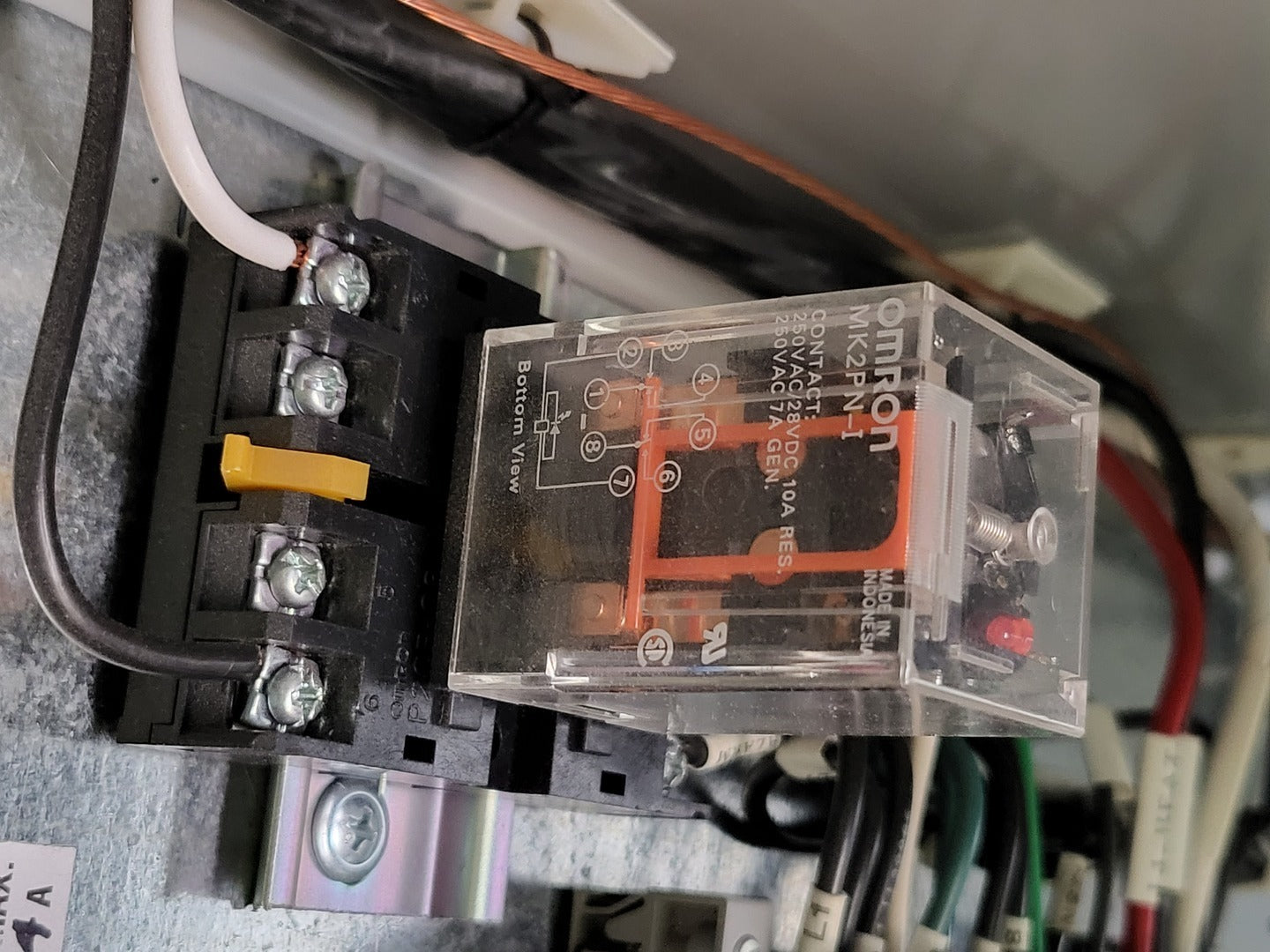

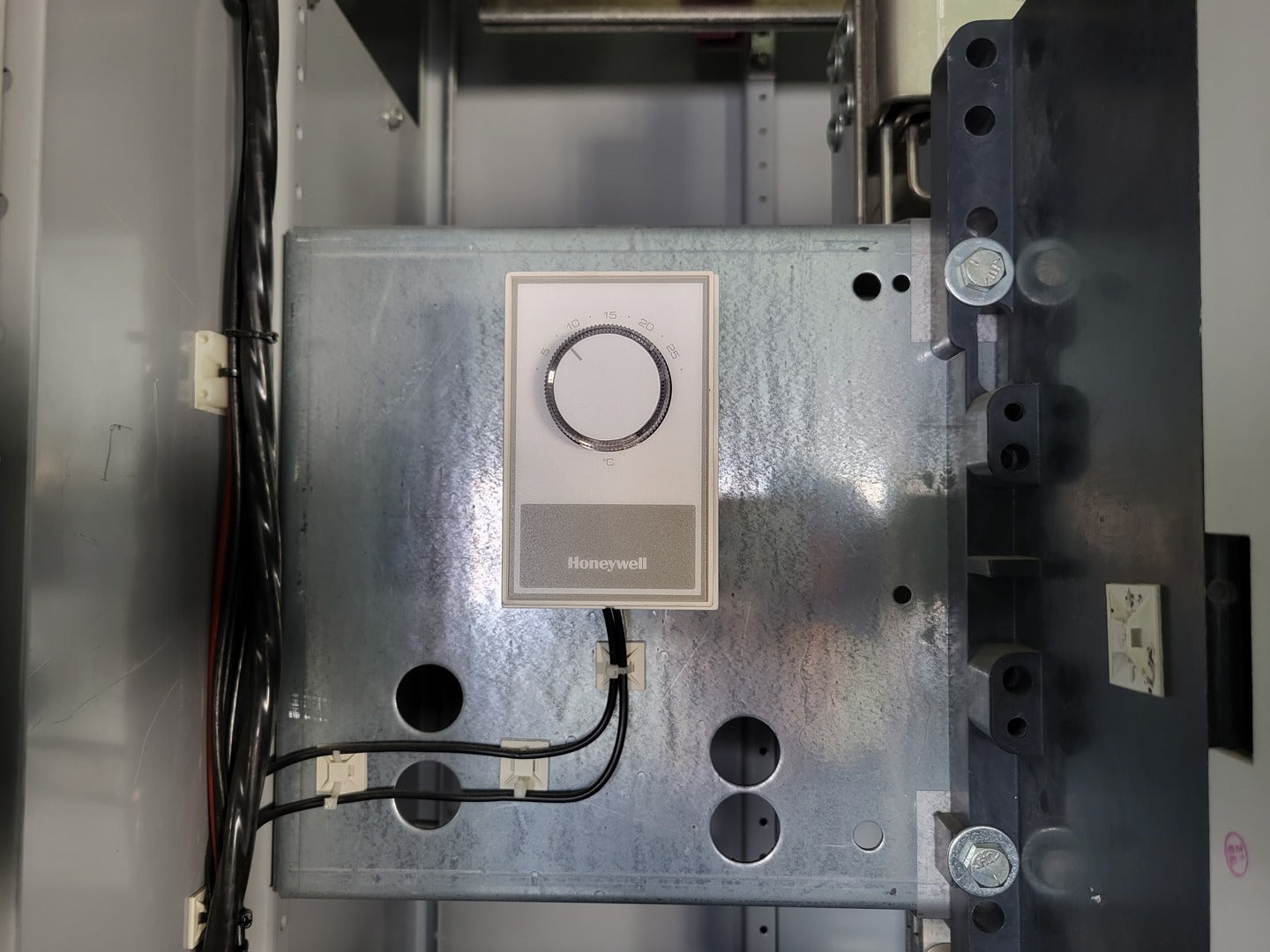

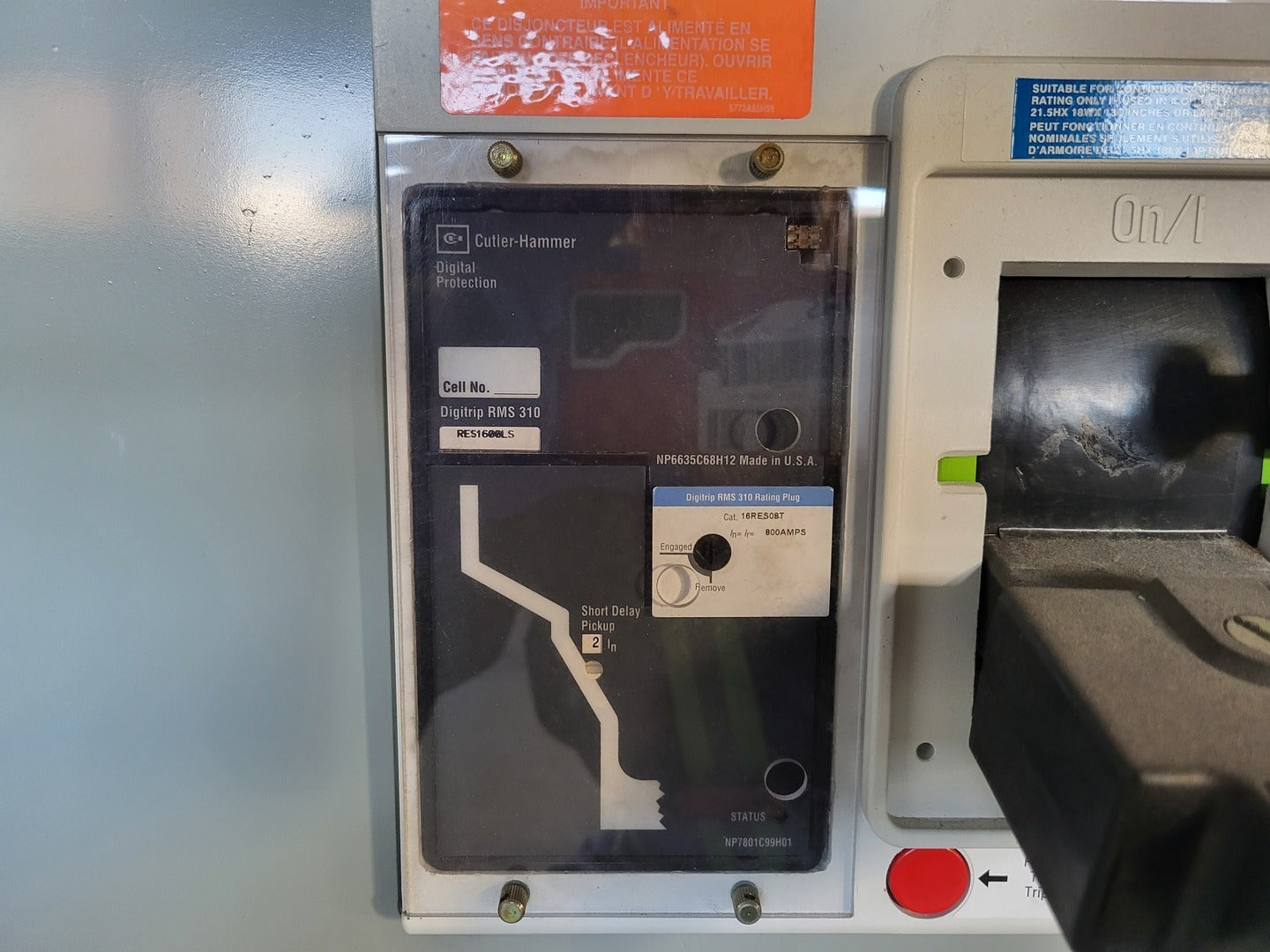

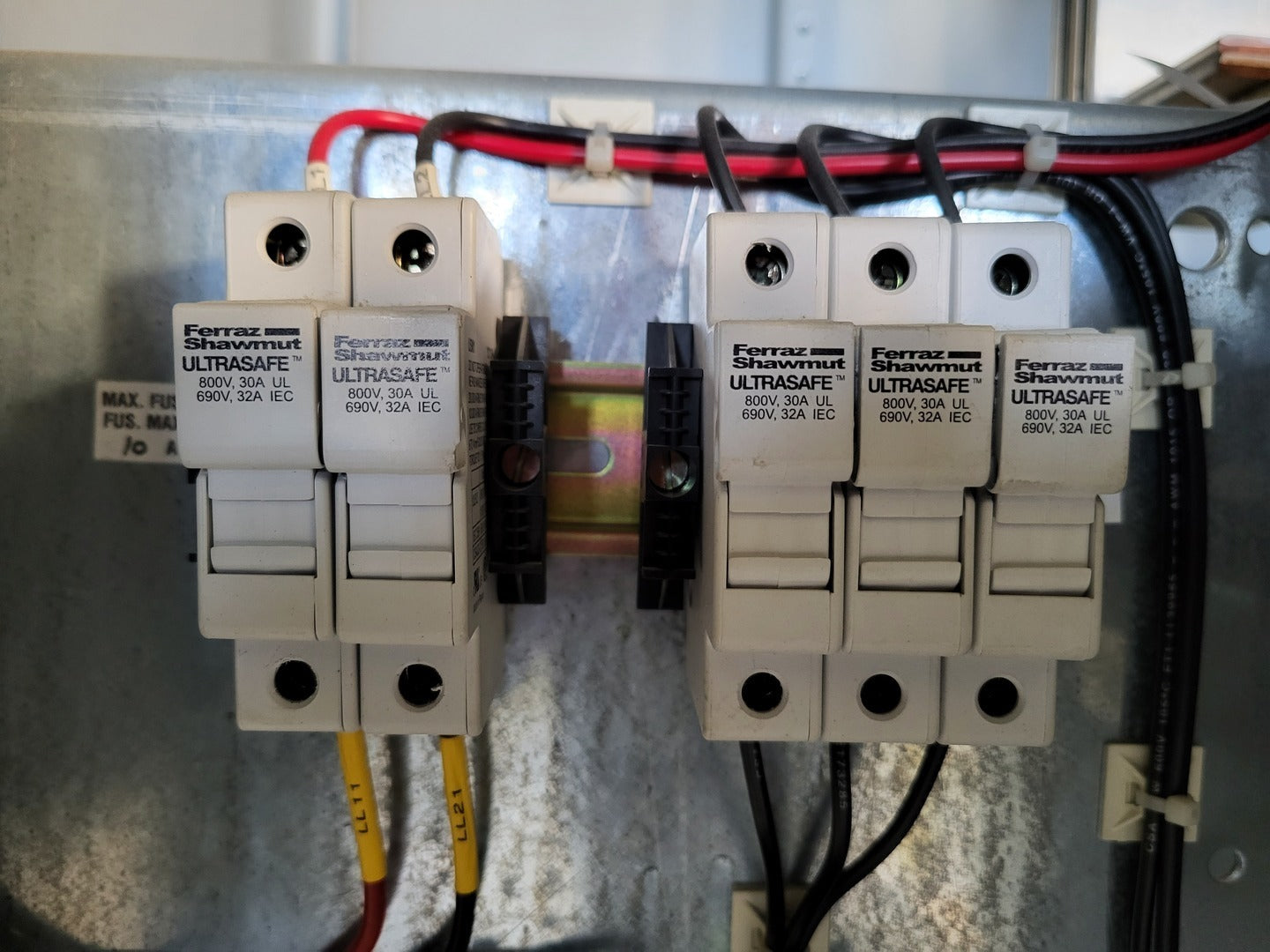

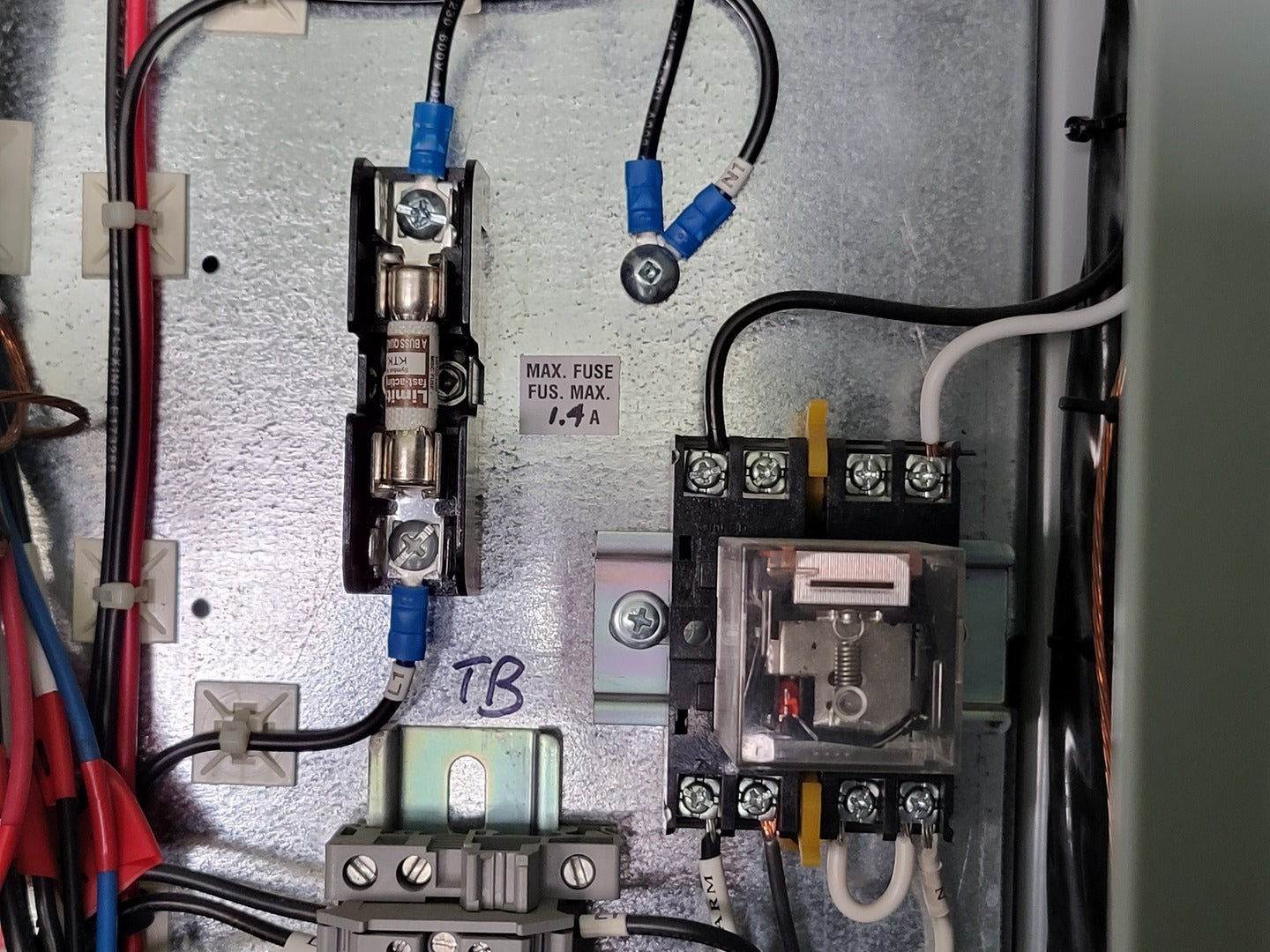

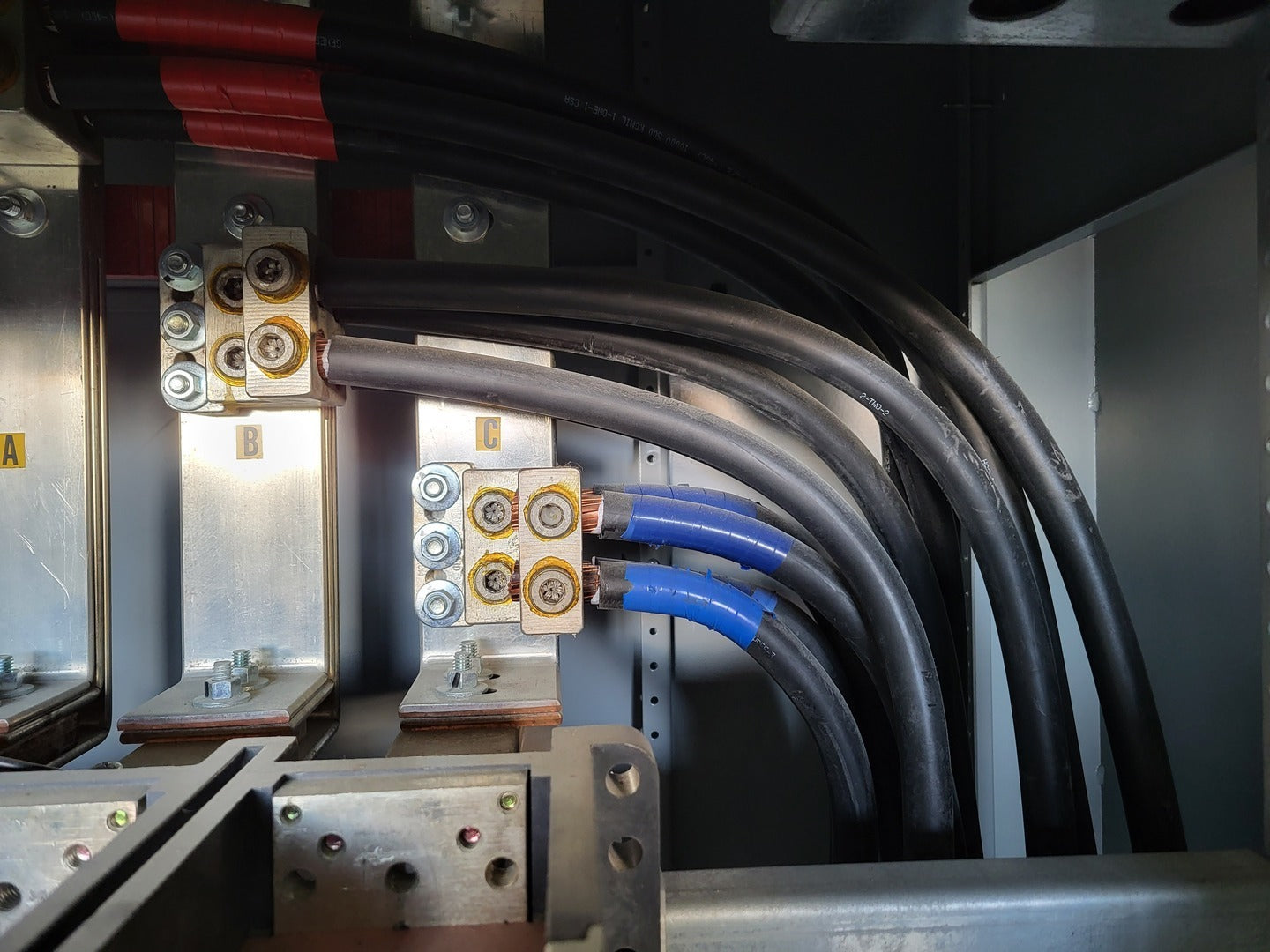

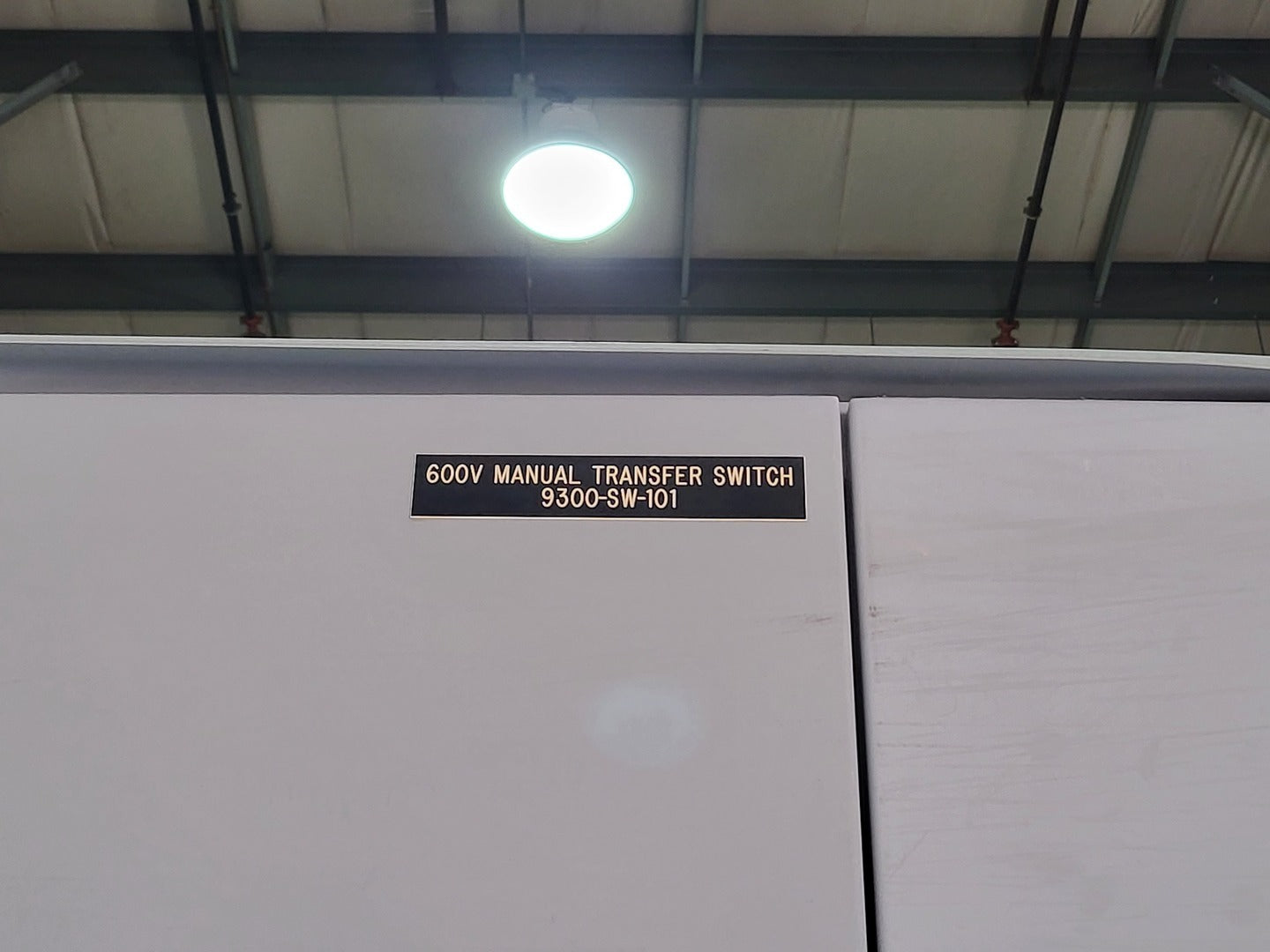

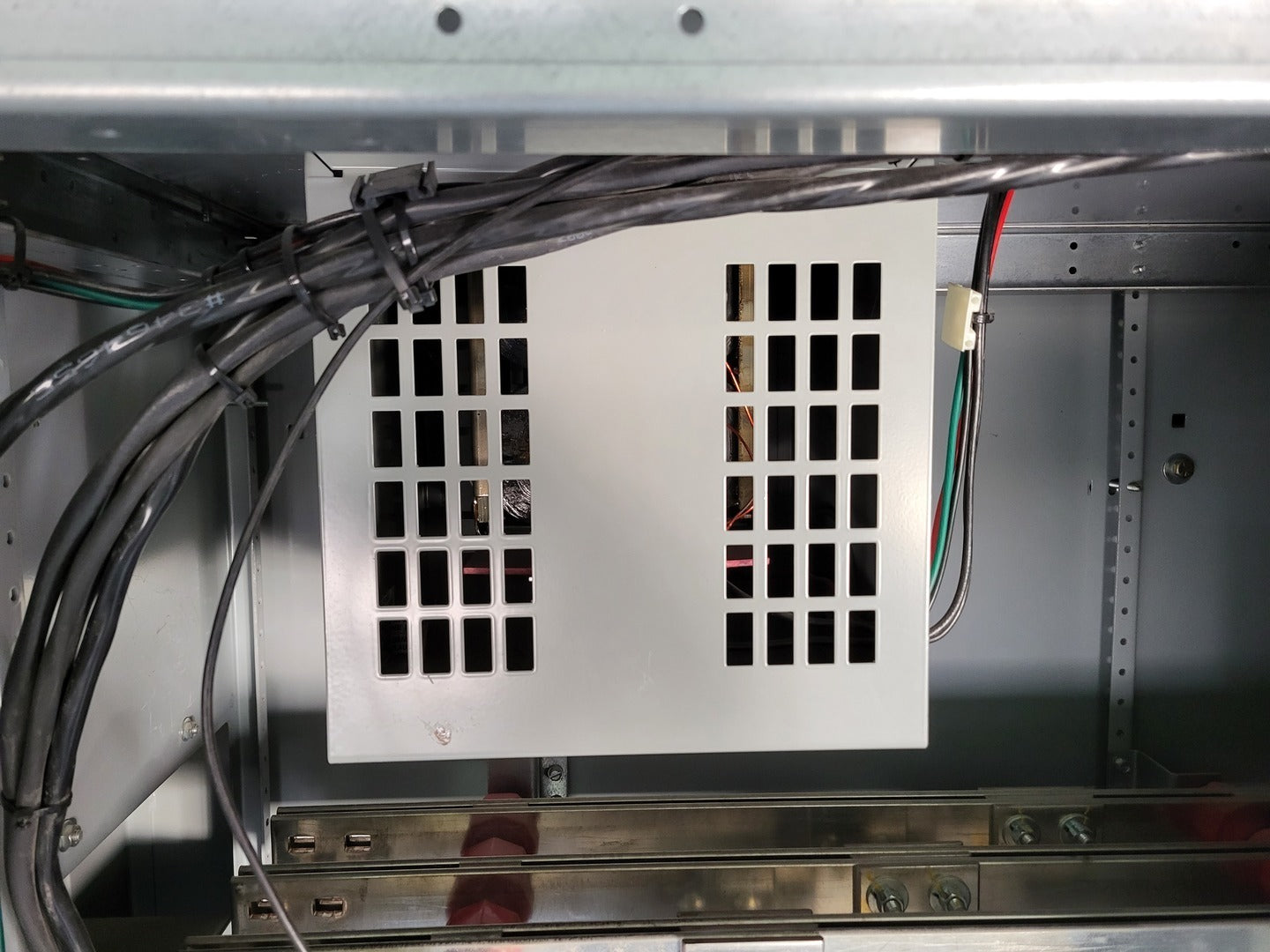

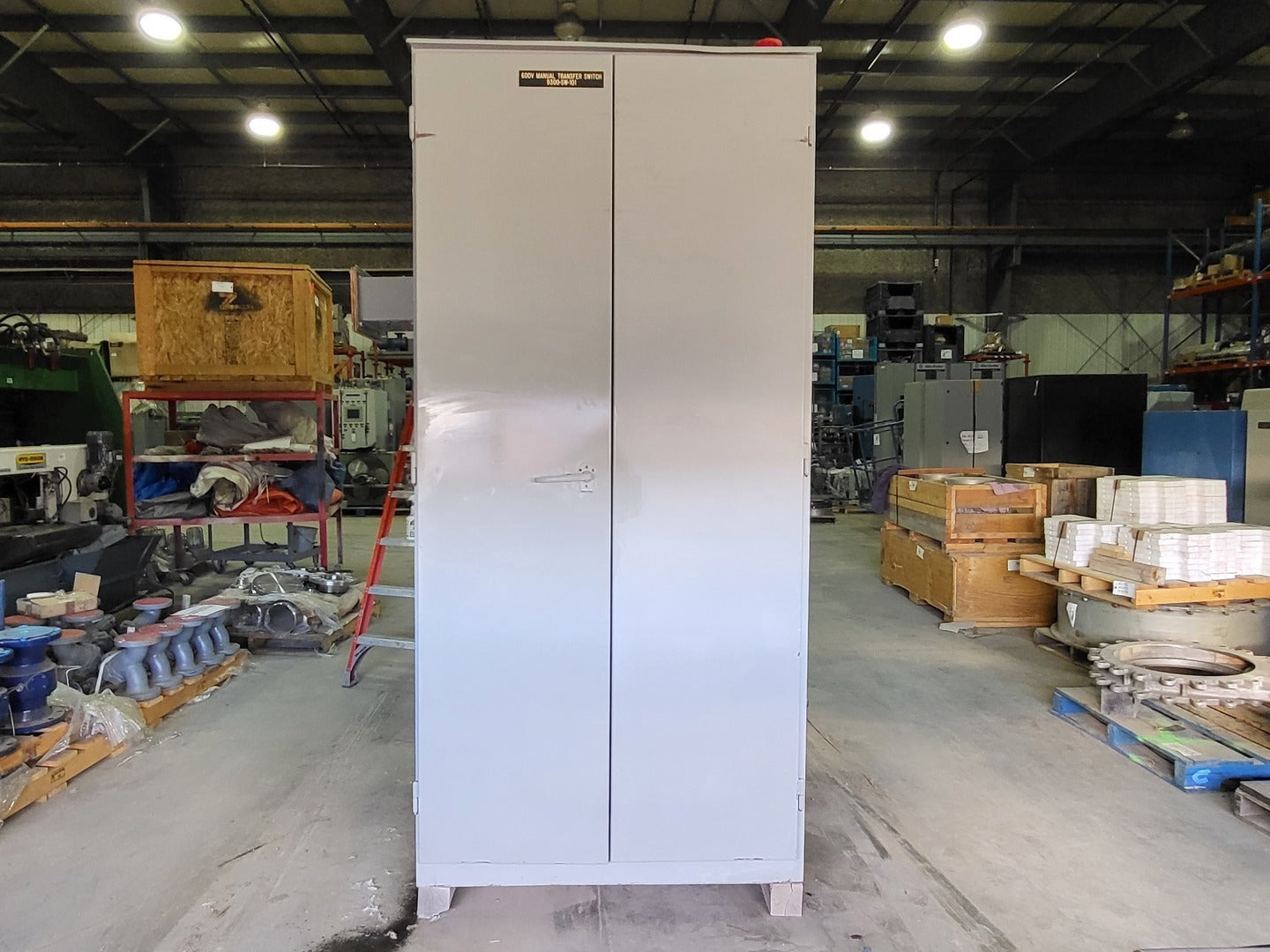

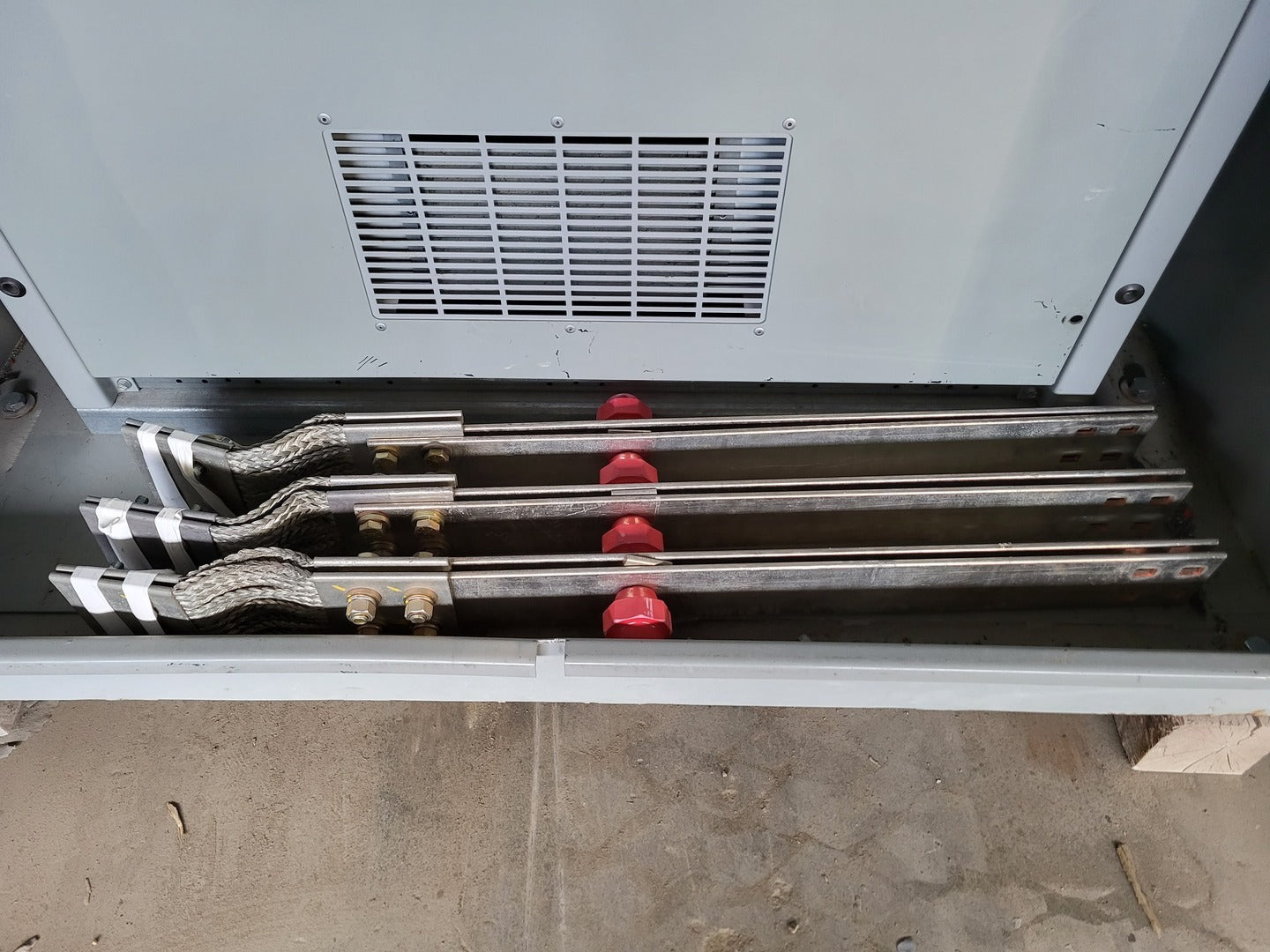

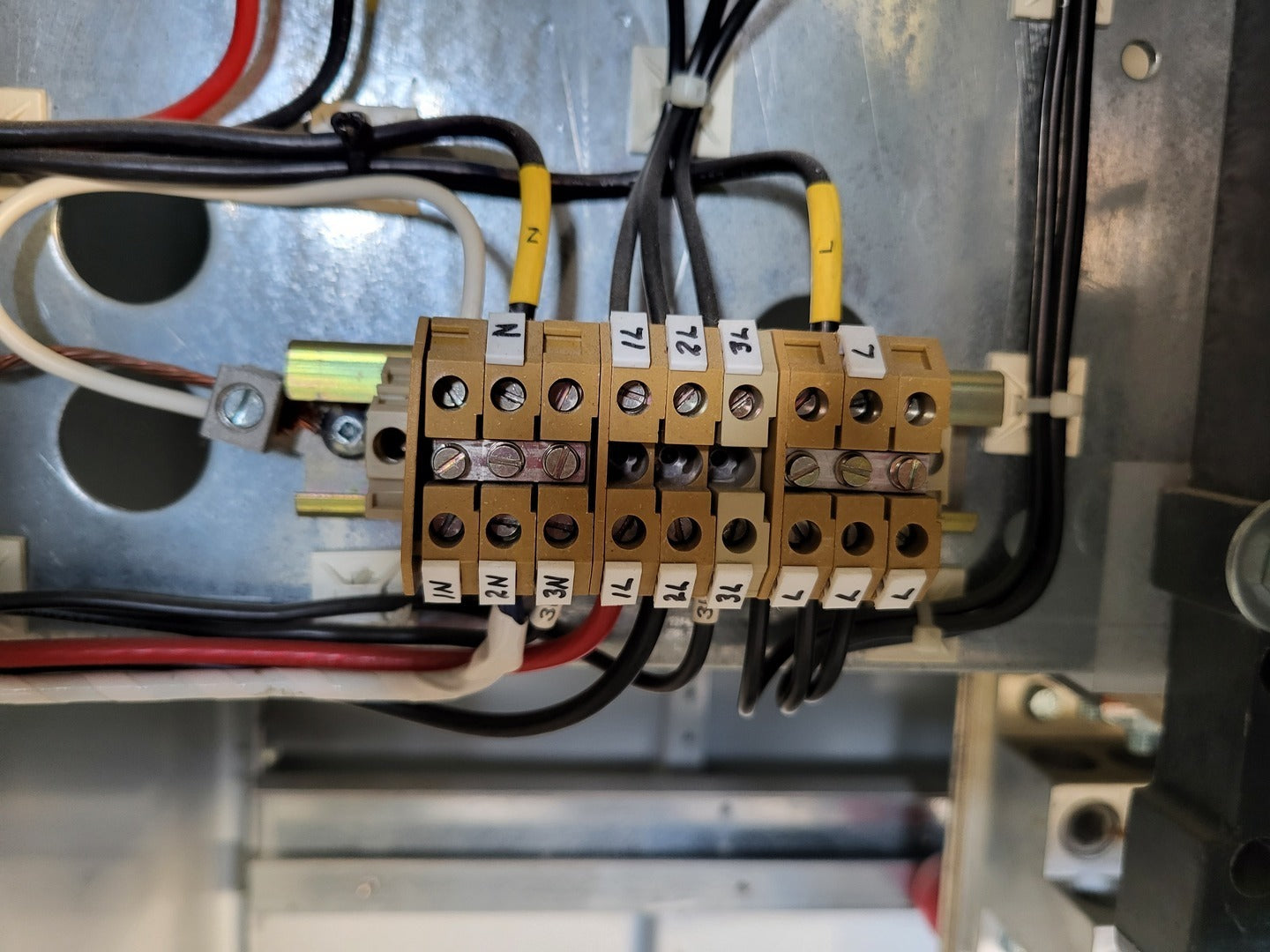

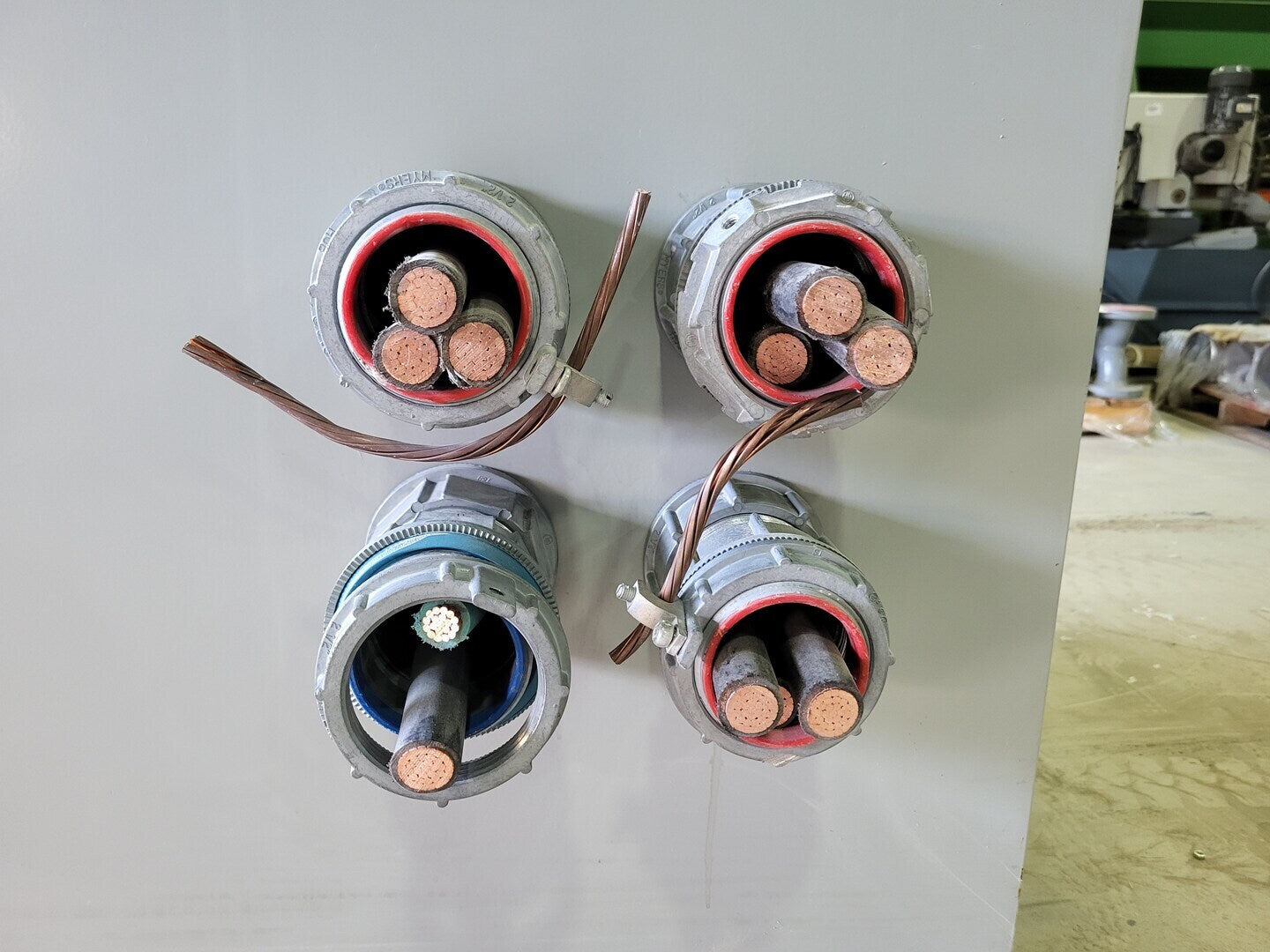

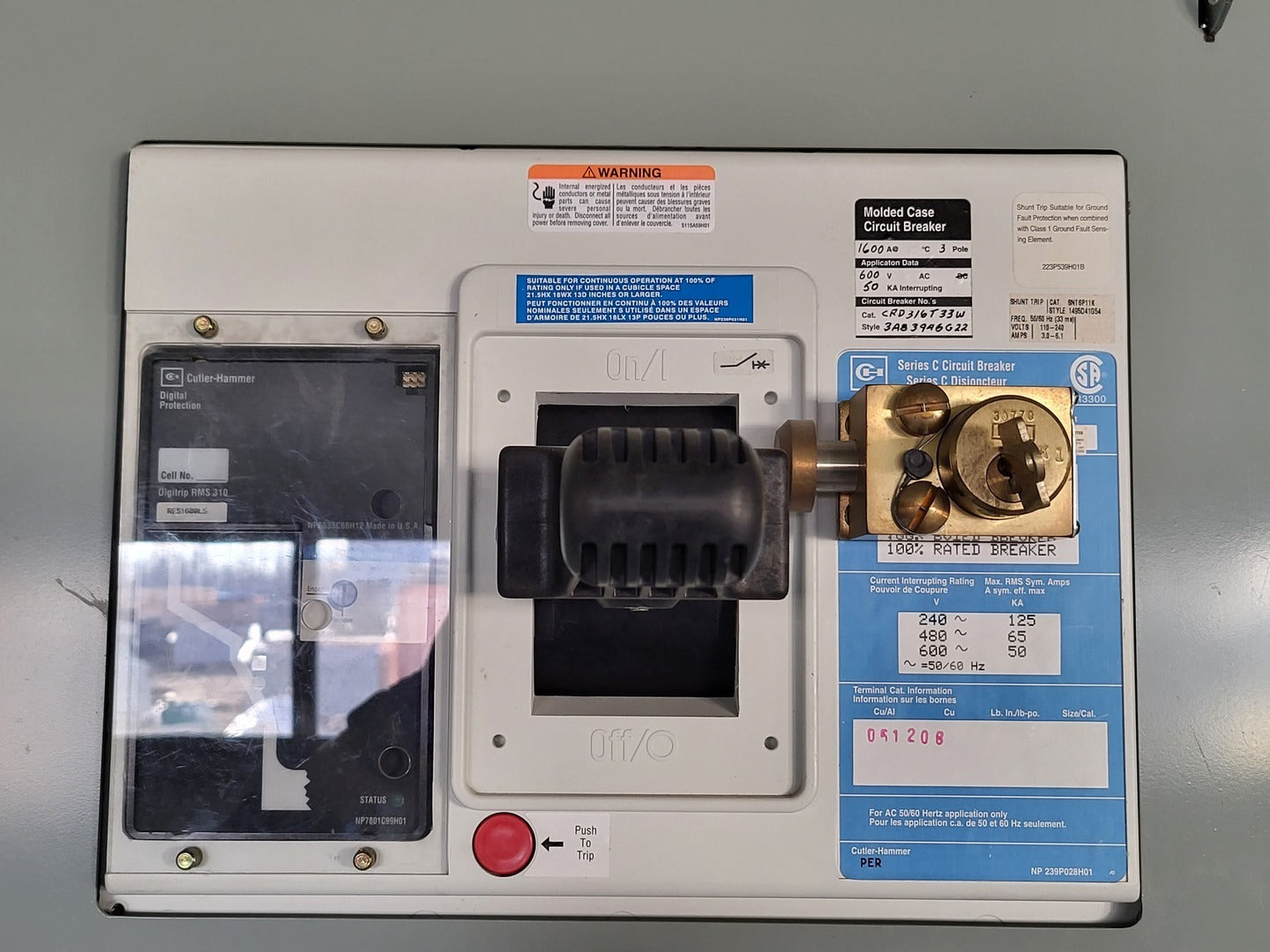

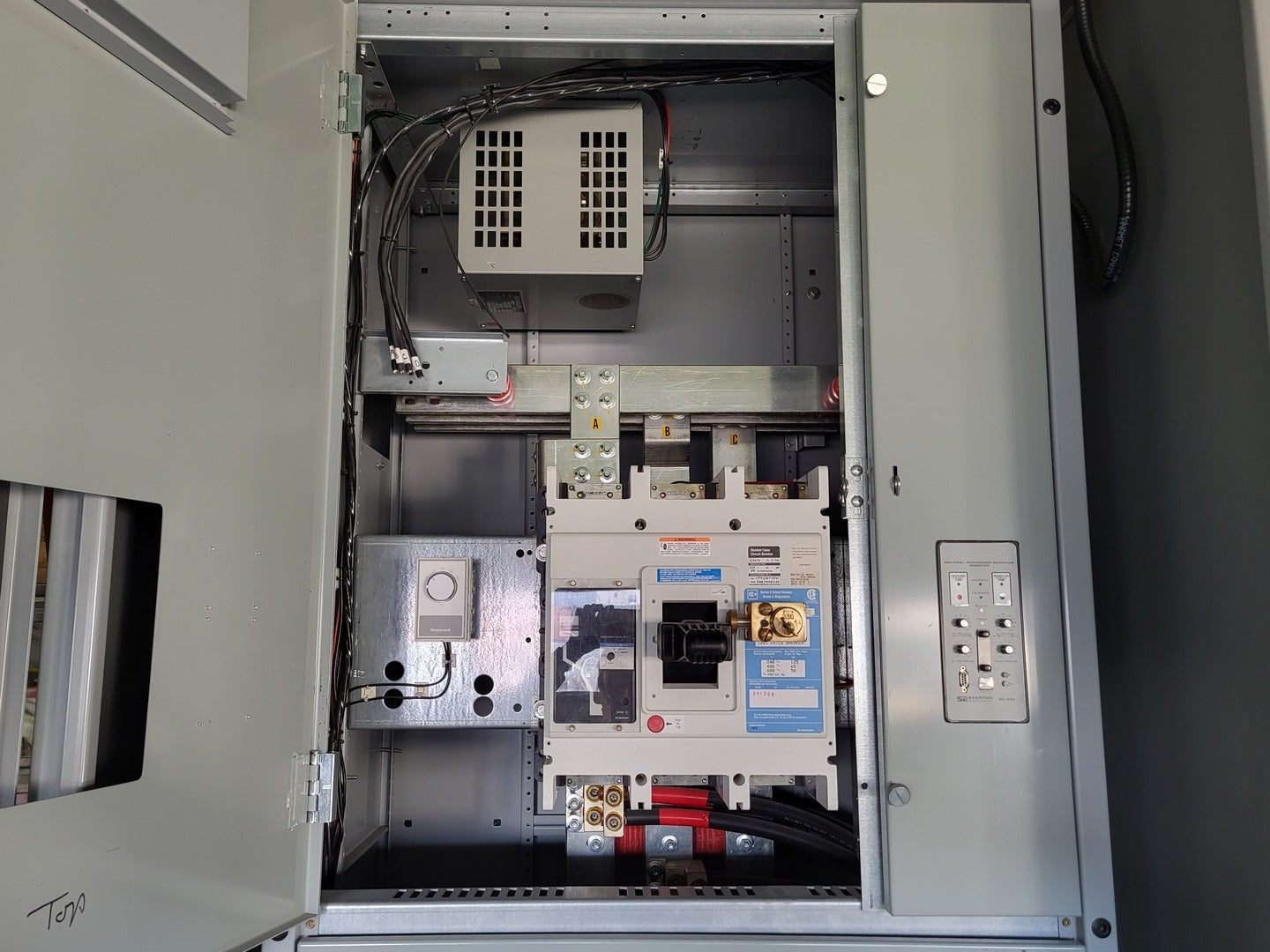

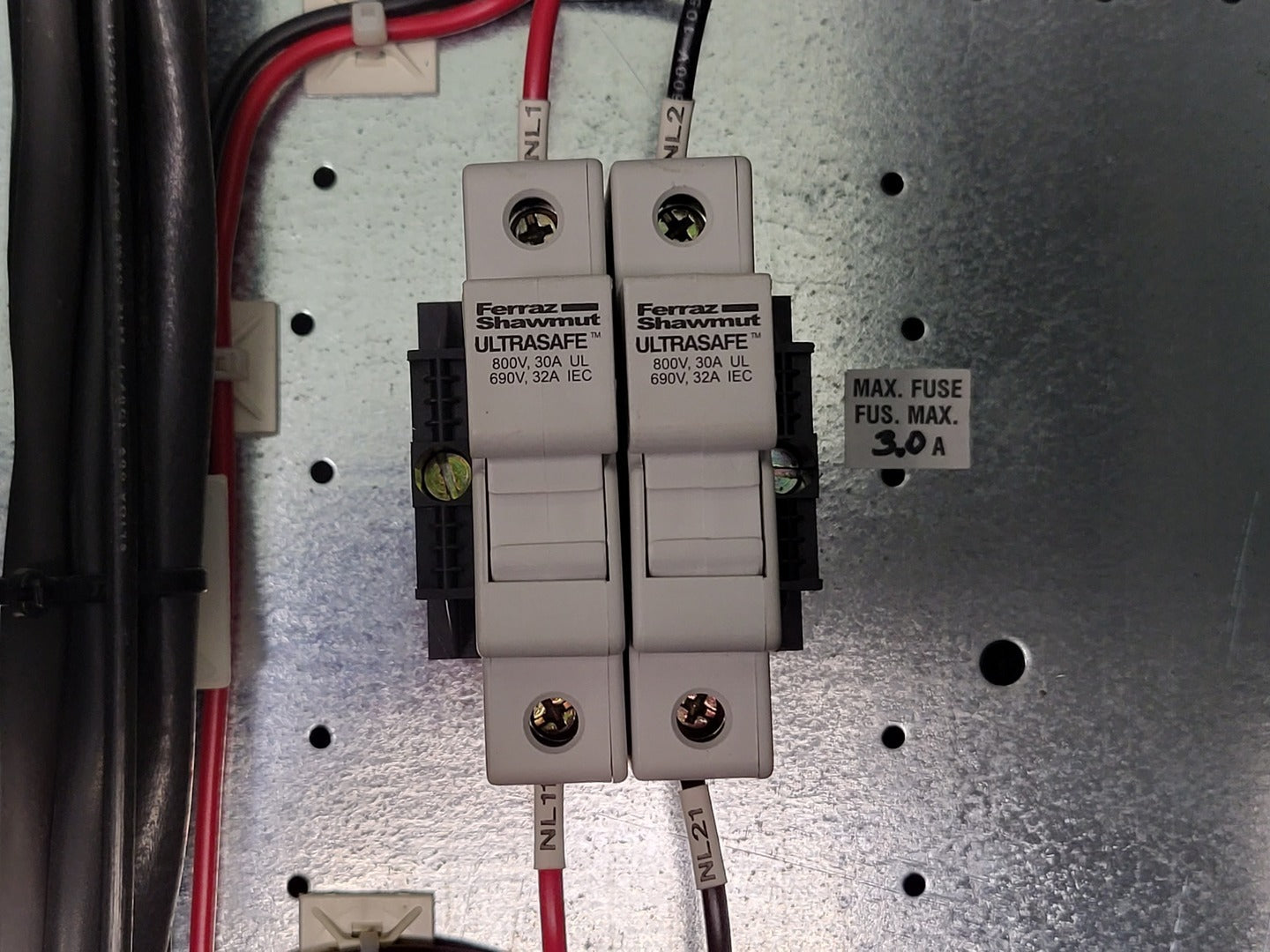

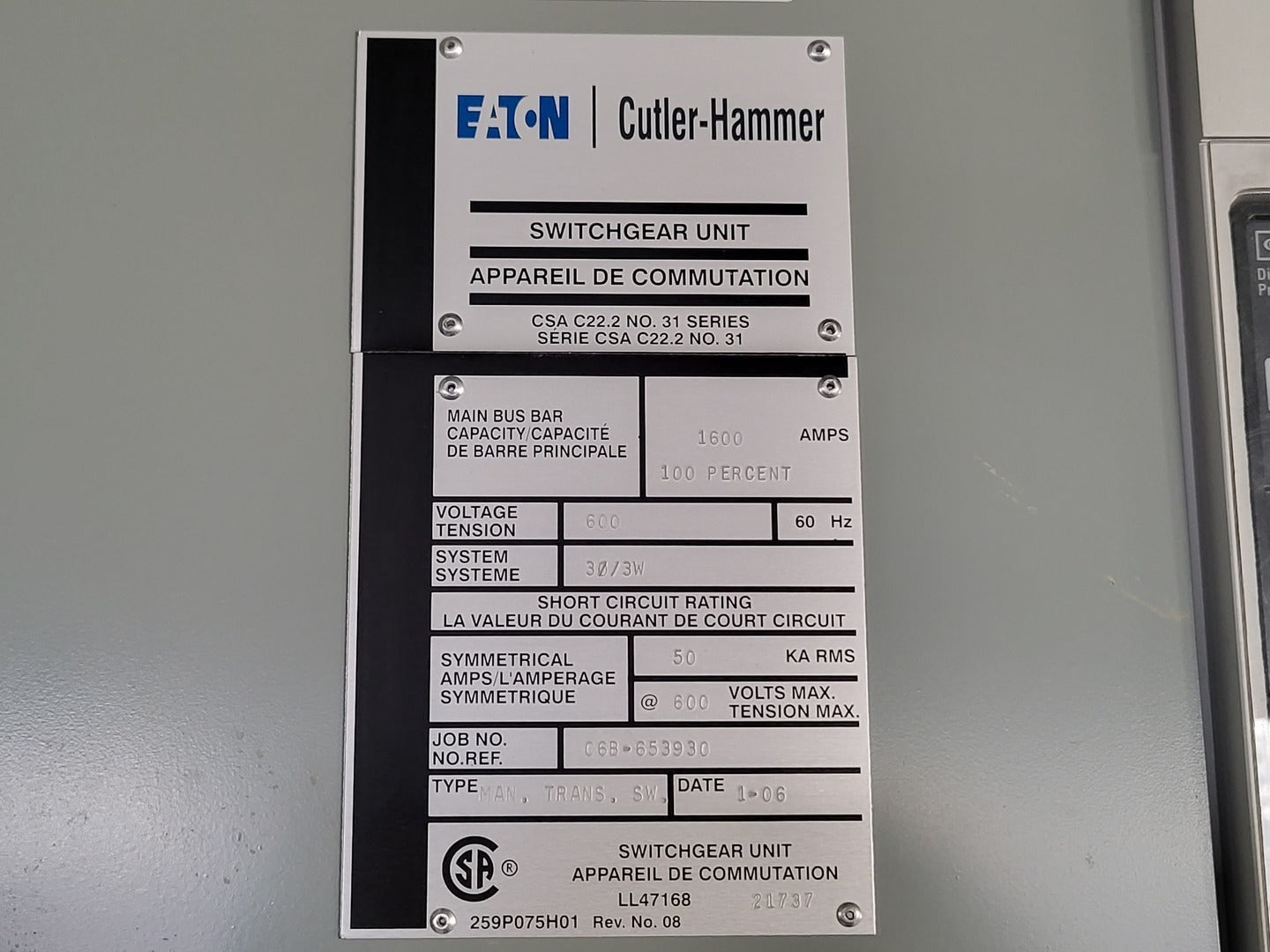

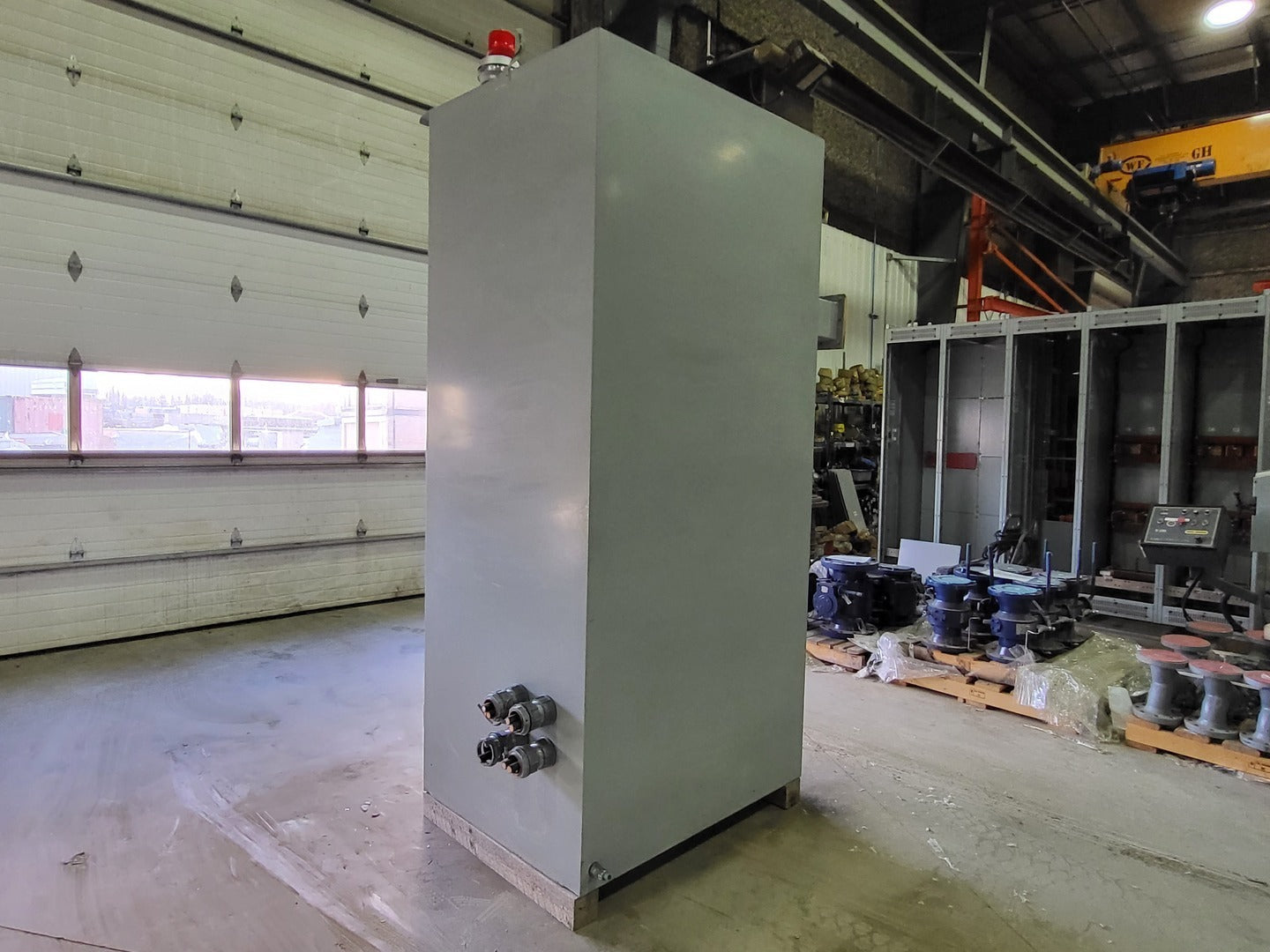

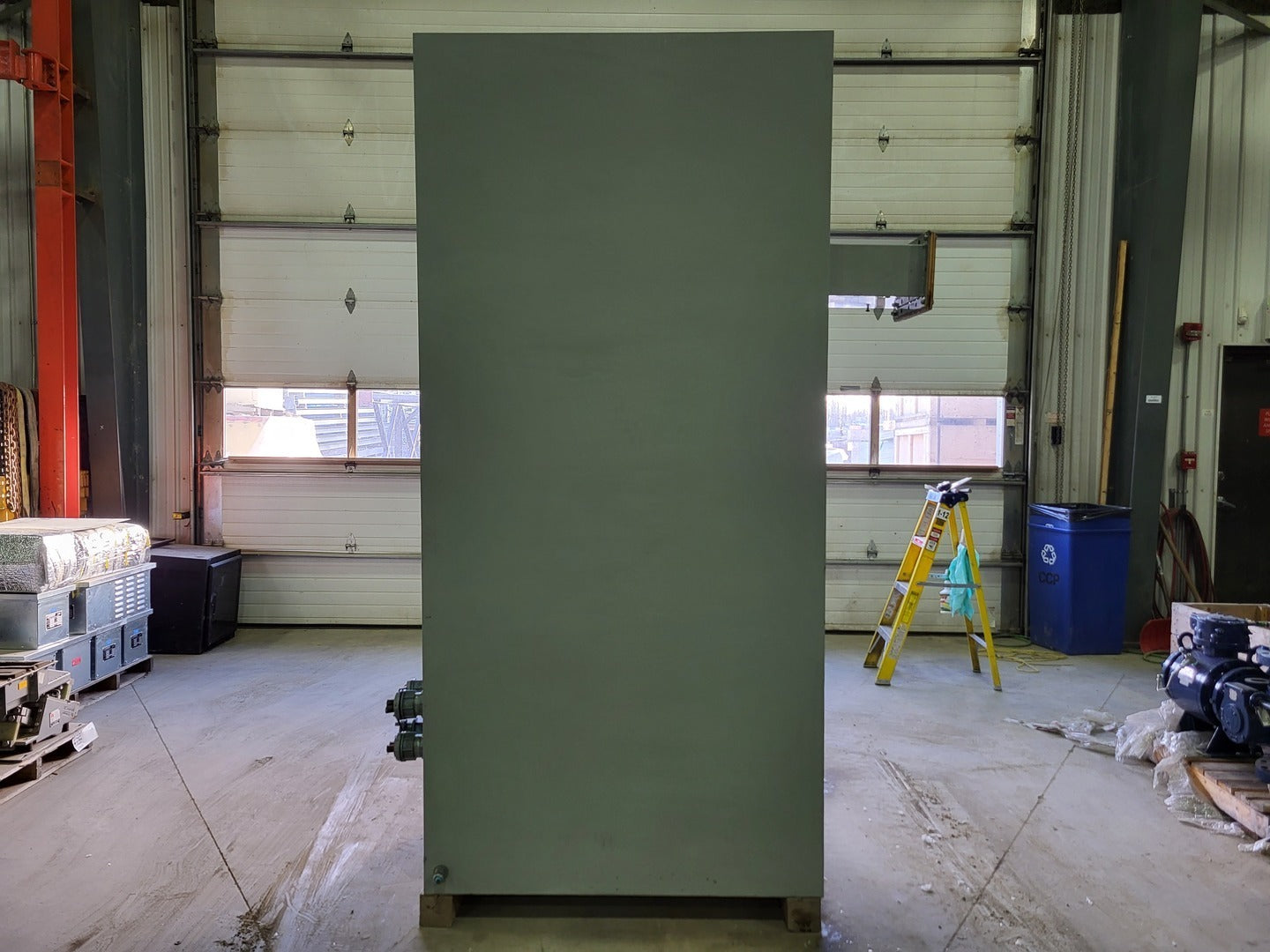

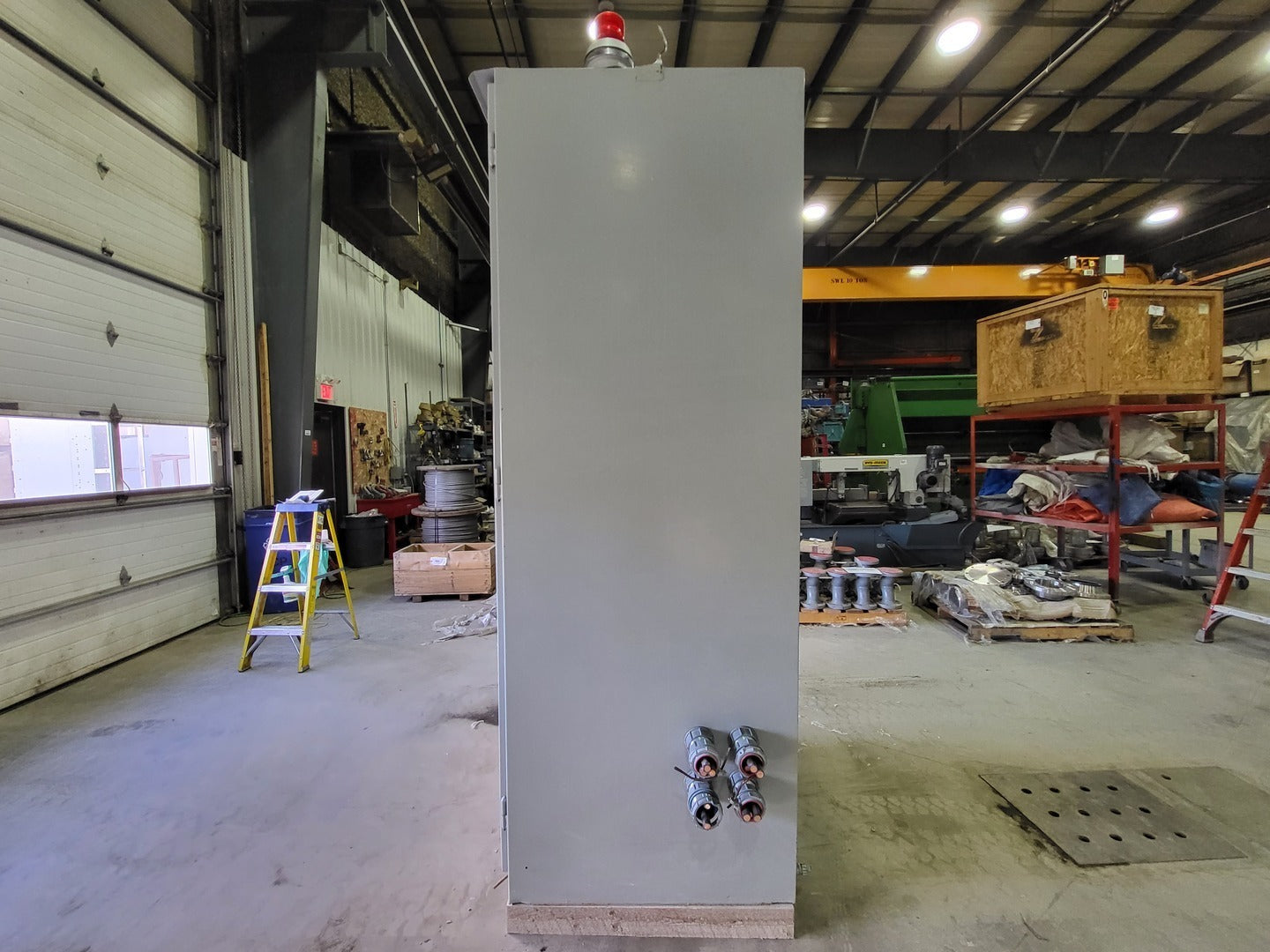

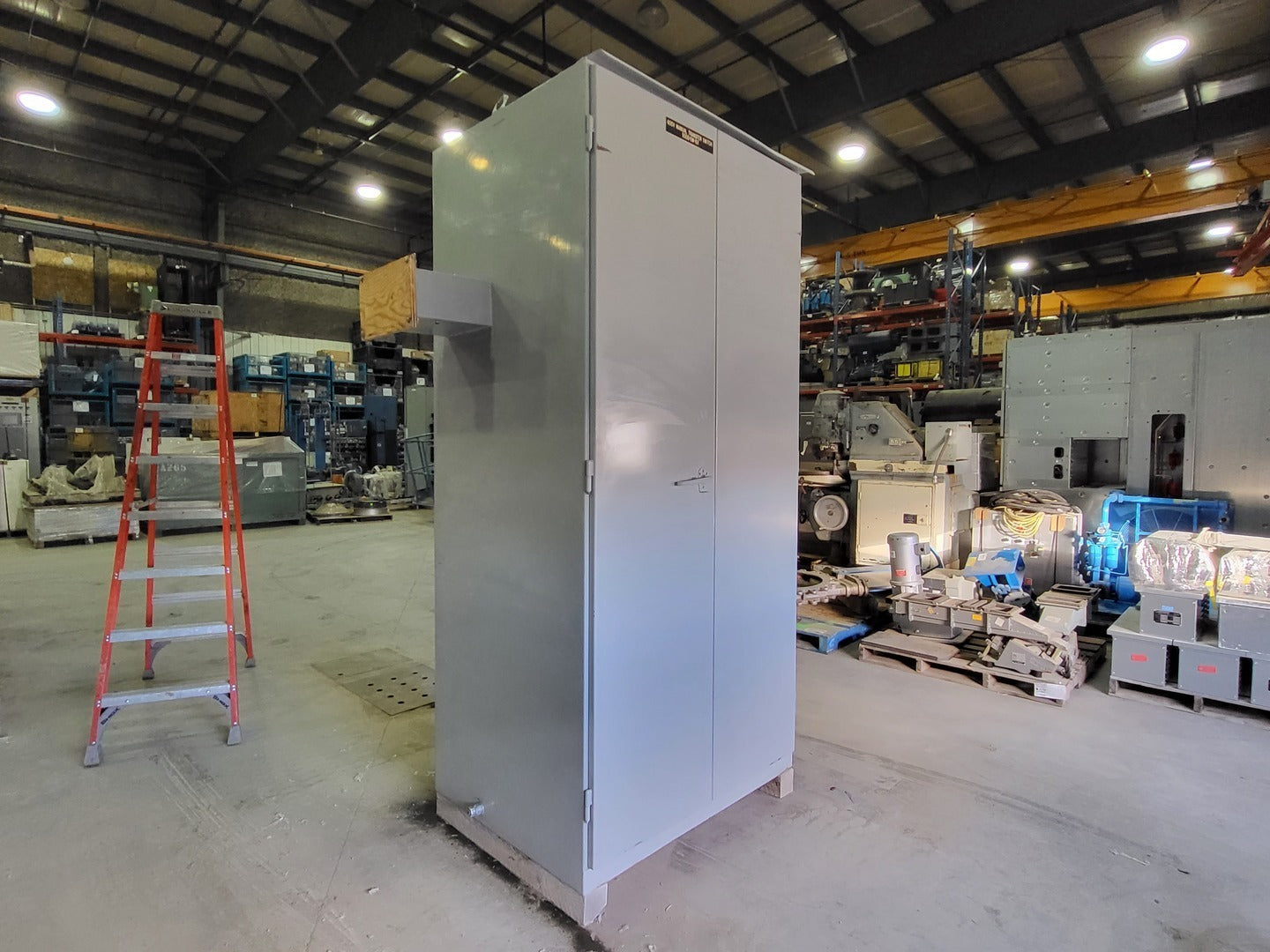

Equipment Type: Manual Transfer Switchgear Switchgear Standard: CSA C22.2 No. 31 Series Frequency: 60 Hz System: 3ph / 3W Main Bus Rating: 1600 Amps Bus Rating: 100% Rated Short Circuit Rating: 50 kA RMS Symmetrical @ 600V Transfer Method: Manual Circuit Breakers: Two Eaton/Cutler-Hammer low-voltage power circuit breakers Breaker Trip Units: Digitrip RMS Breaker Frame: Appears approximately 1600A class Bus Material: Copper bus bars Cable Terminations: Mechanical compression lugs Ground Bus: Present Control Fuse Holders: Ferraz Shawmut ULTRASAFE Fuse Holder Rating: 800V UL / 690V IEC / 30A UL / 32A IEC Relay: Omron MK2PN-I relay Thermostat: Honeywell enclosure thermostat Enclosure Heater: Heater assembly installed Bus Material: Appears copper bus bars Ground Bus: Present Neutral Terminal Block: Present Cable Terminations: Heavy mechanical compression lugs Enclosure: Floor-standing steel enclosure Finish: Industrial gray painted steel Cooling: Natural ventilation with vented panels Certification: CSA Job Number: 06B-653930 Switchgear Unit Number: LL47168 Revision: 259P075H01 Rev.08 Transfer Switch Identification: 9300-SW-101 |
