MYCOM 160VLD Ammonia Screw Compressor Package 125 HP 575V NH3 Refrigeration Skid
MYCOM

160VLD Ammonia Screw Compressor Package 125 HP 575V NH3 Refrigeration Skid

SKU: 136637
Price:
$23,250 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

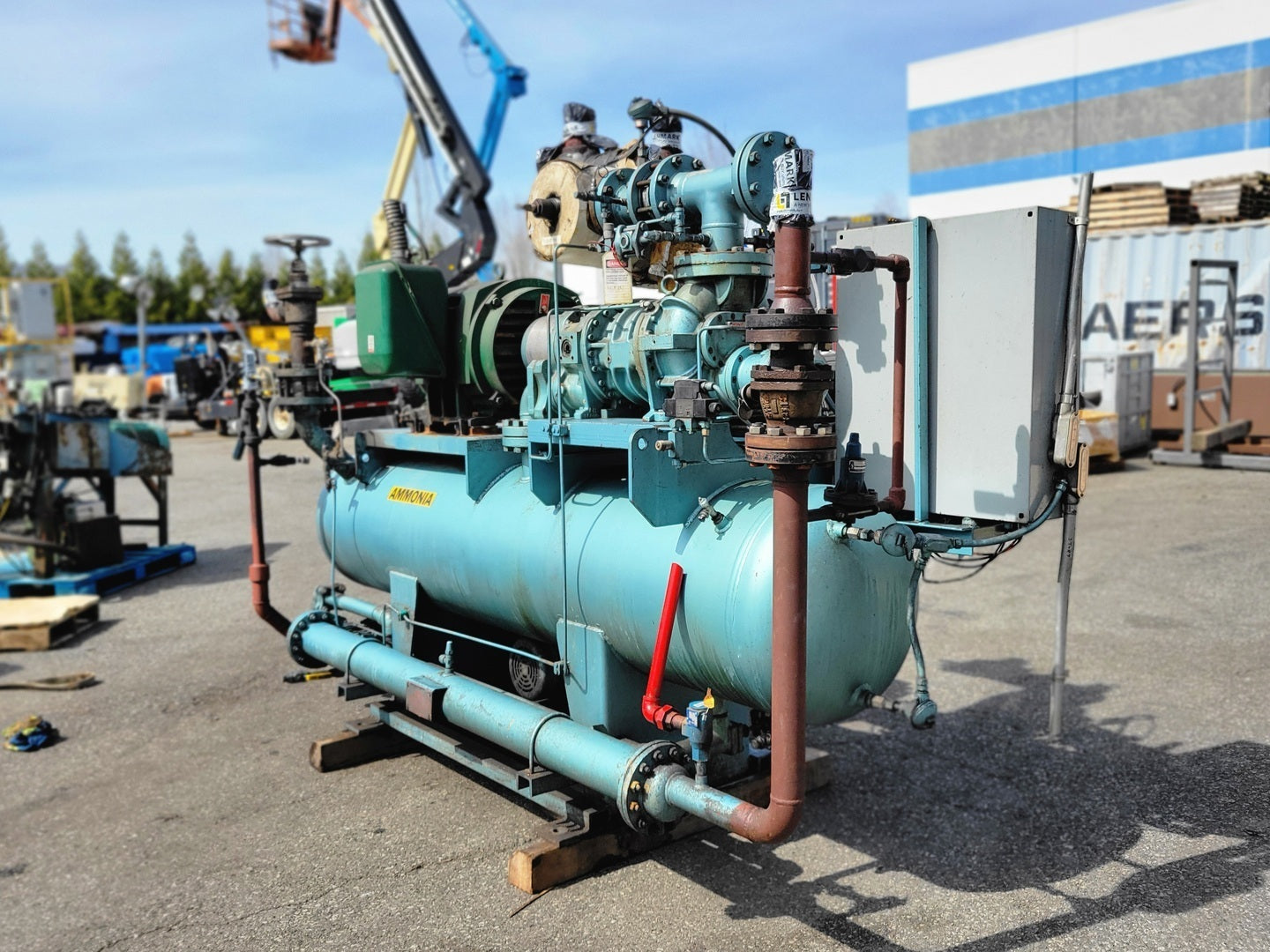

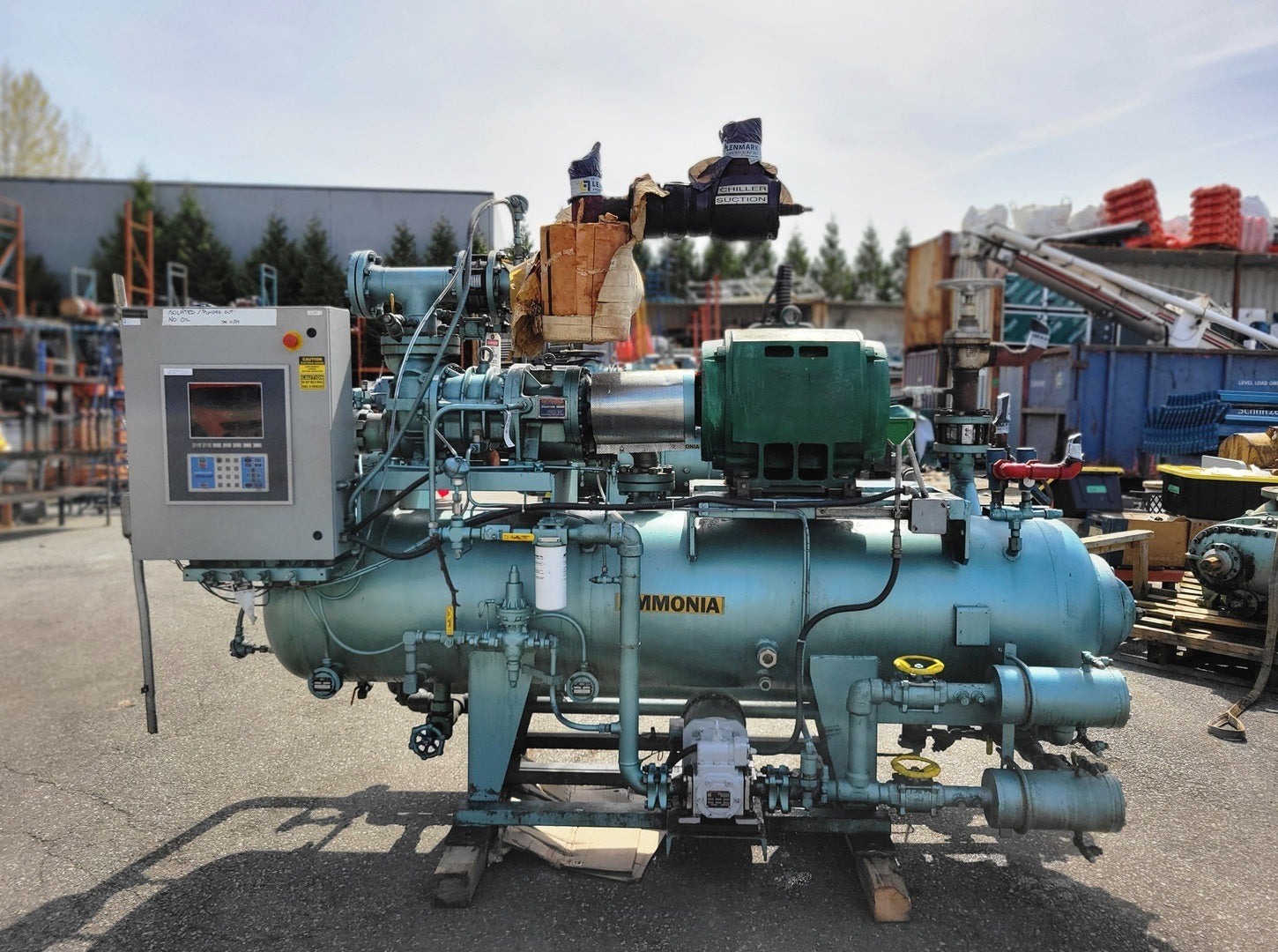

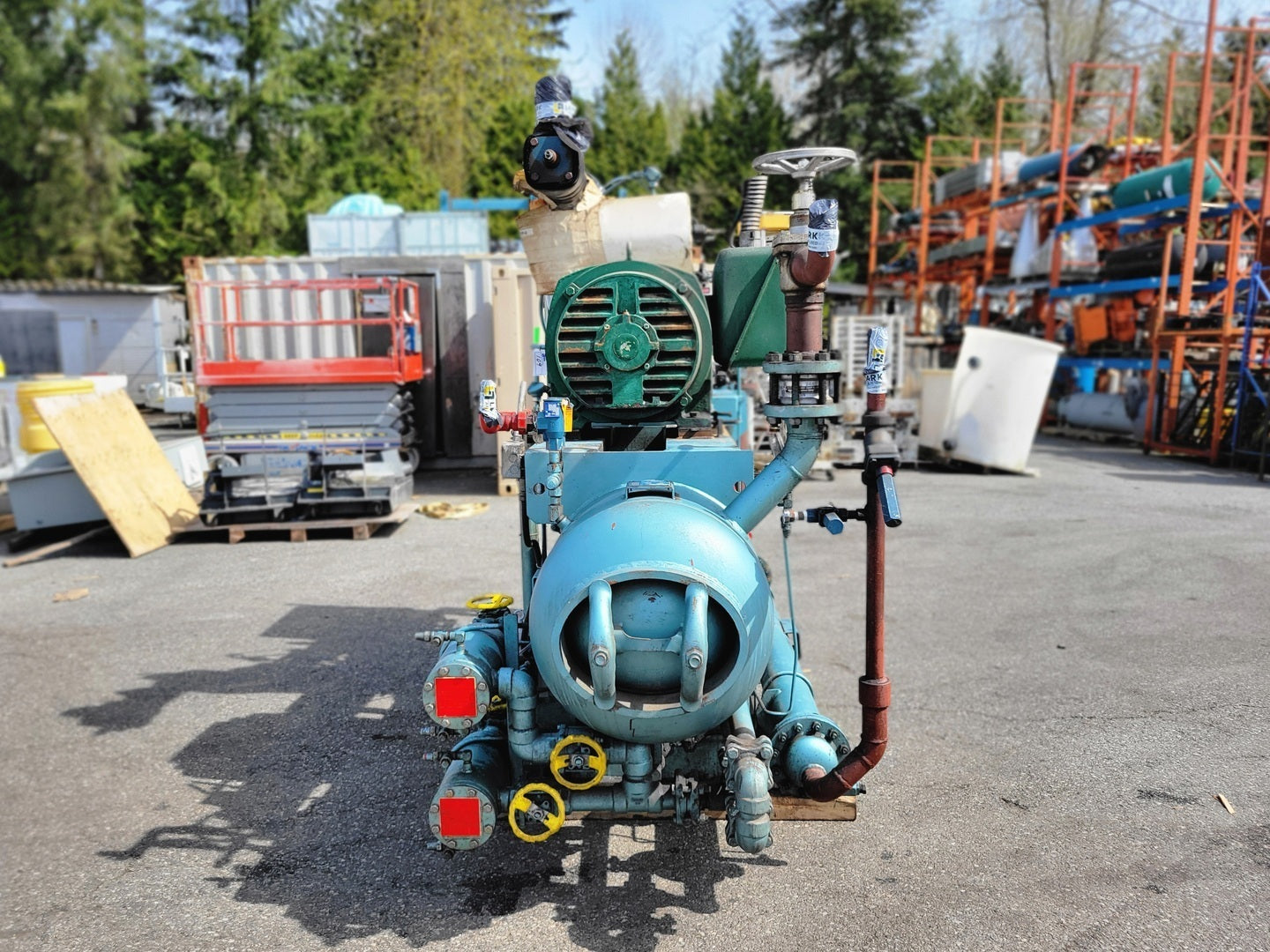

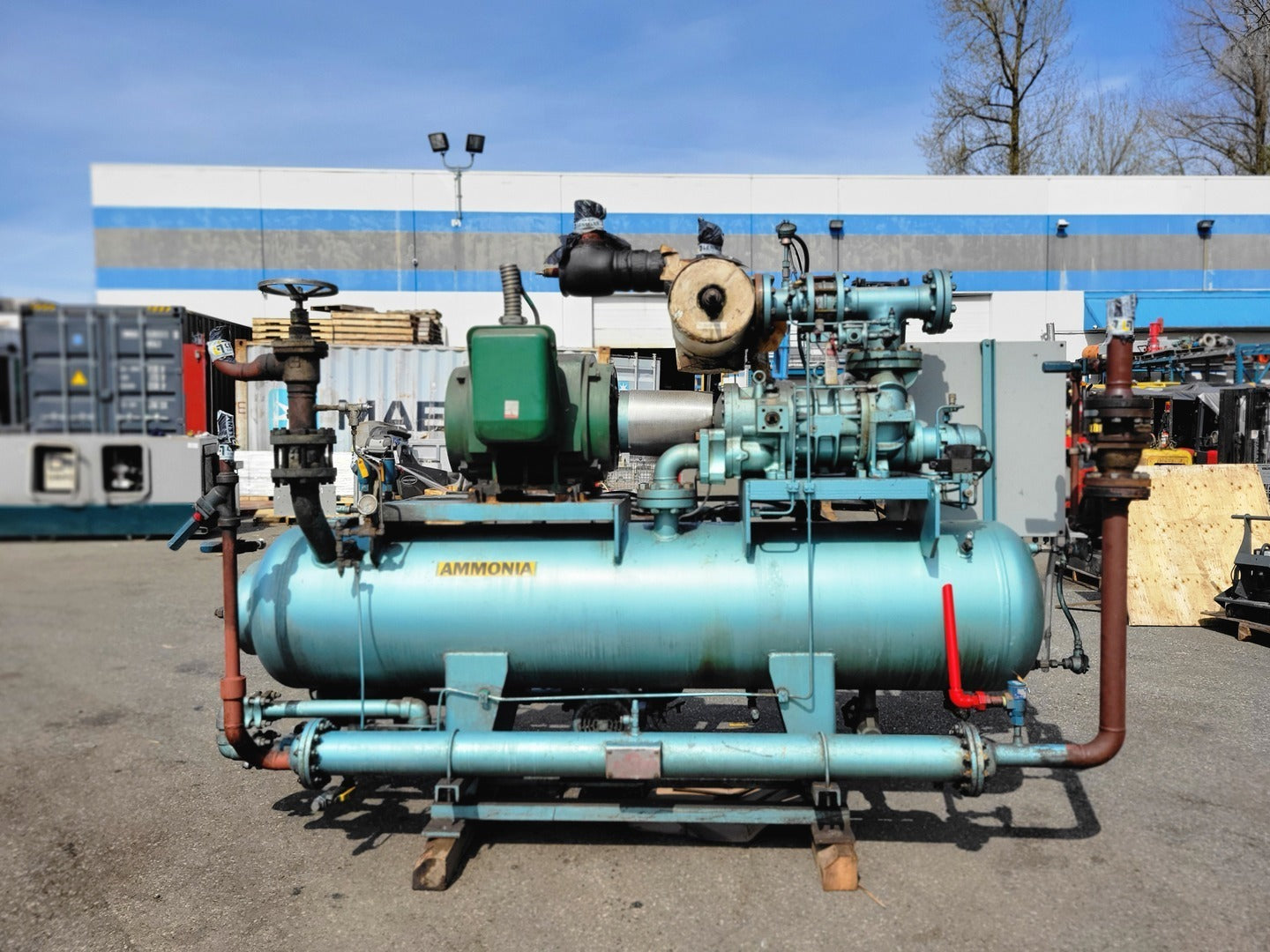

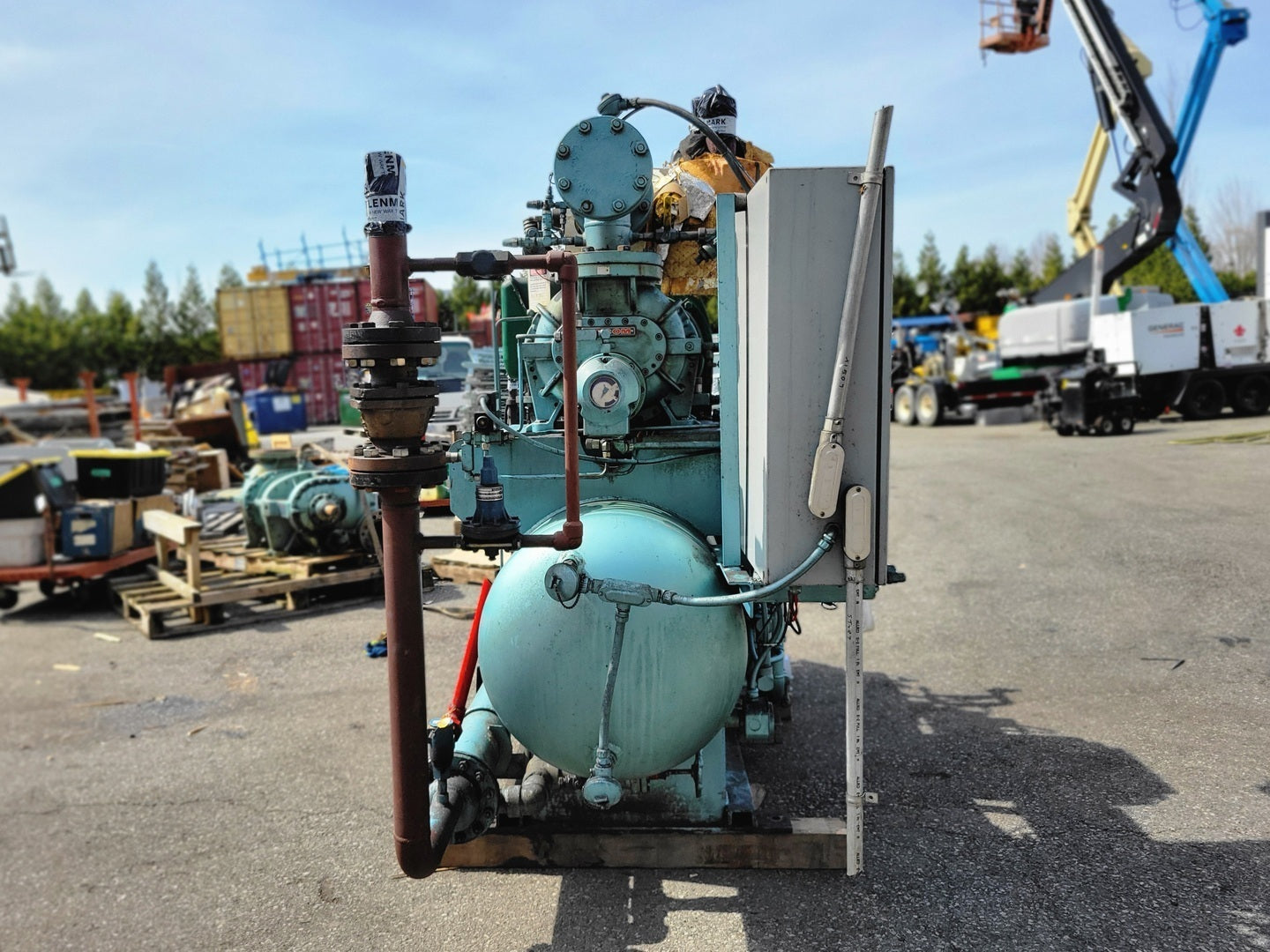

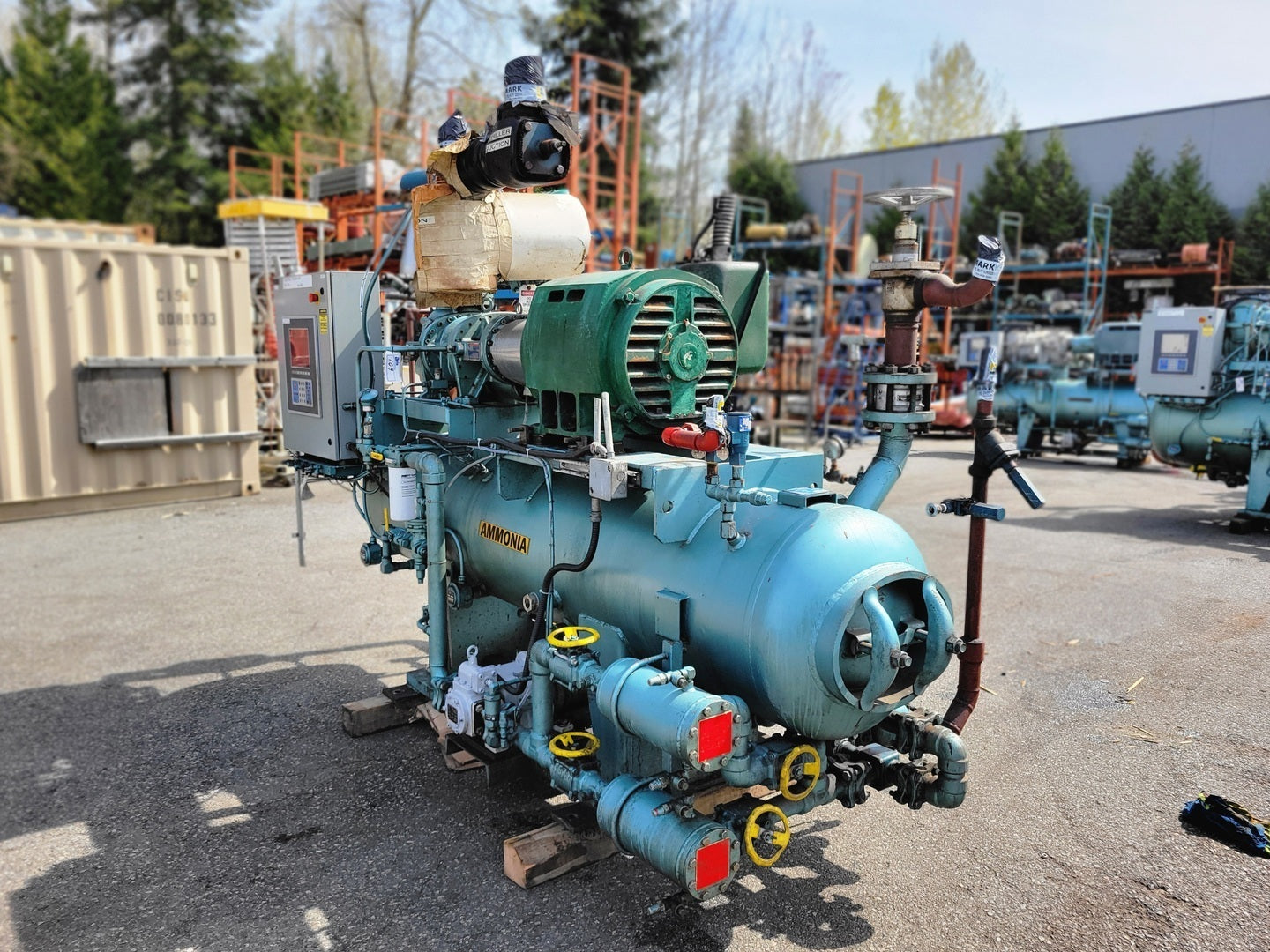

Complete industrial ammonia refrigeration package featuring a MYCOM 160VLD screw compressor, 125 HP Toshiba motor, horizontal pressure vessel, ammonia pump, and integrated controls. Skid-mounted and ready for retrofit or rebuild projects. Ideal for cold storage, food processing, and industrial refrigeration applications.
Specifications
Model 160VLD
S/N: 1615053
Condition Used
General
Compressor Air Type Rotary Screw
Power Type Electric
Mount Skid Mounted
Electrical
Horsepower 125 hp
Voltage 575 volts
Phase 3-phase
Other Specifications

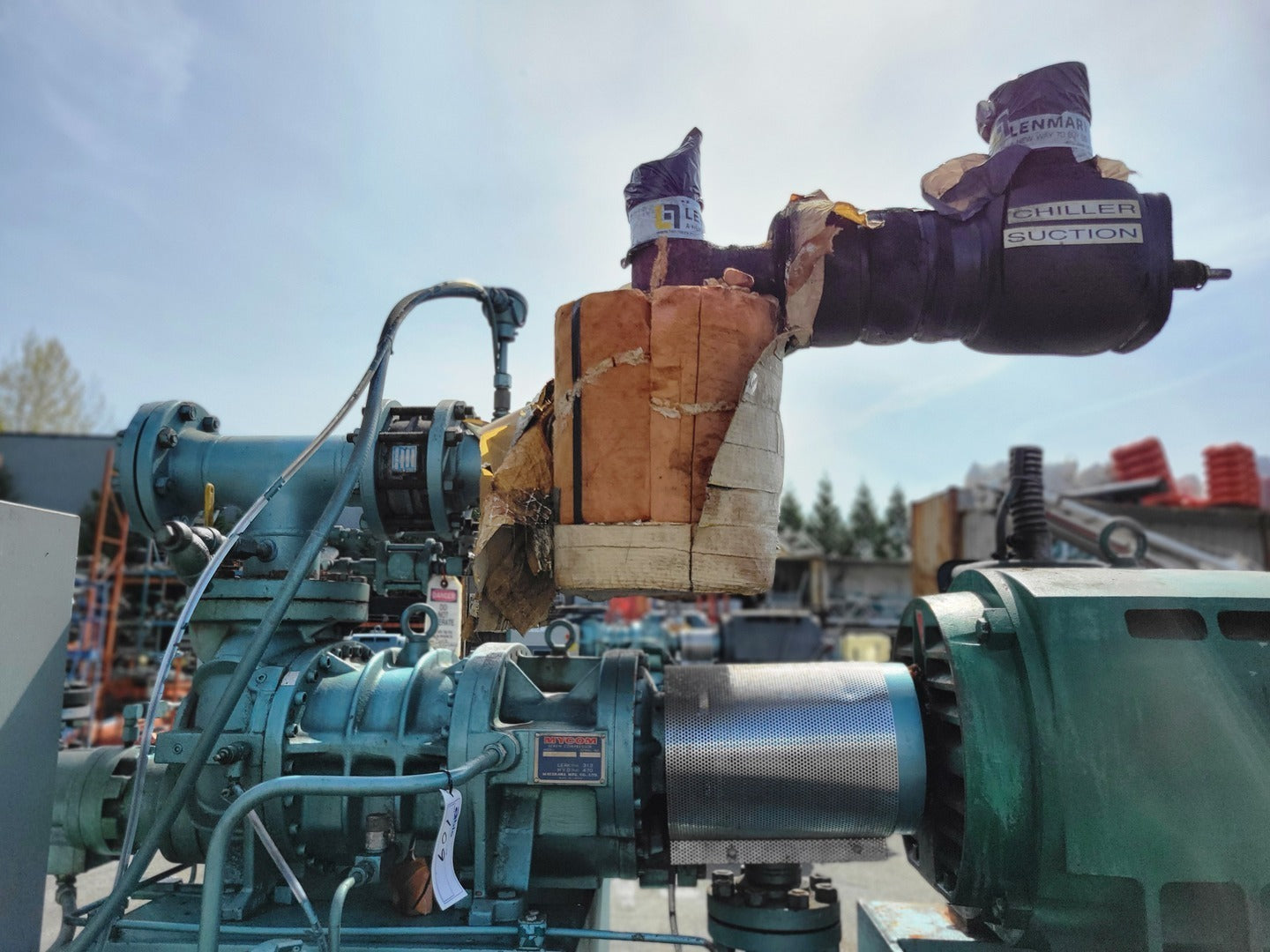

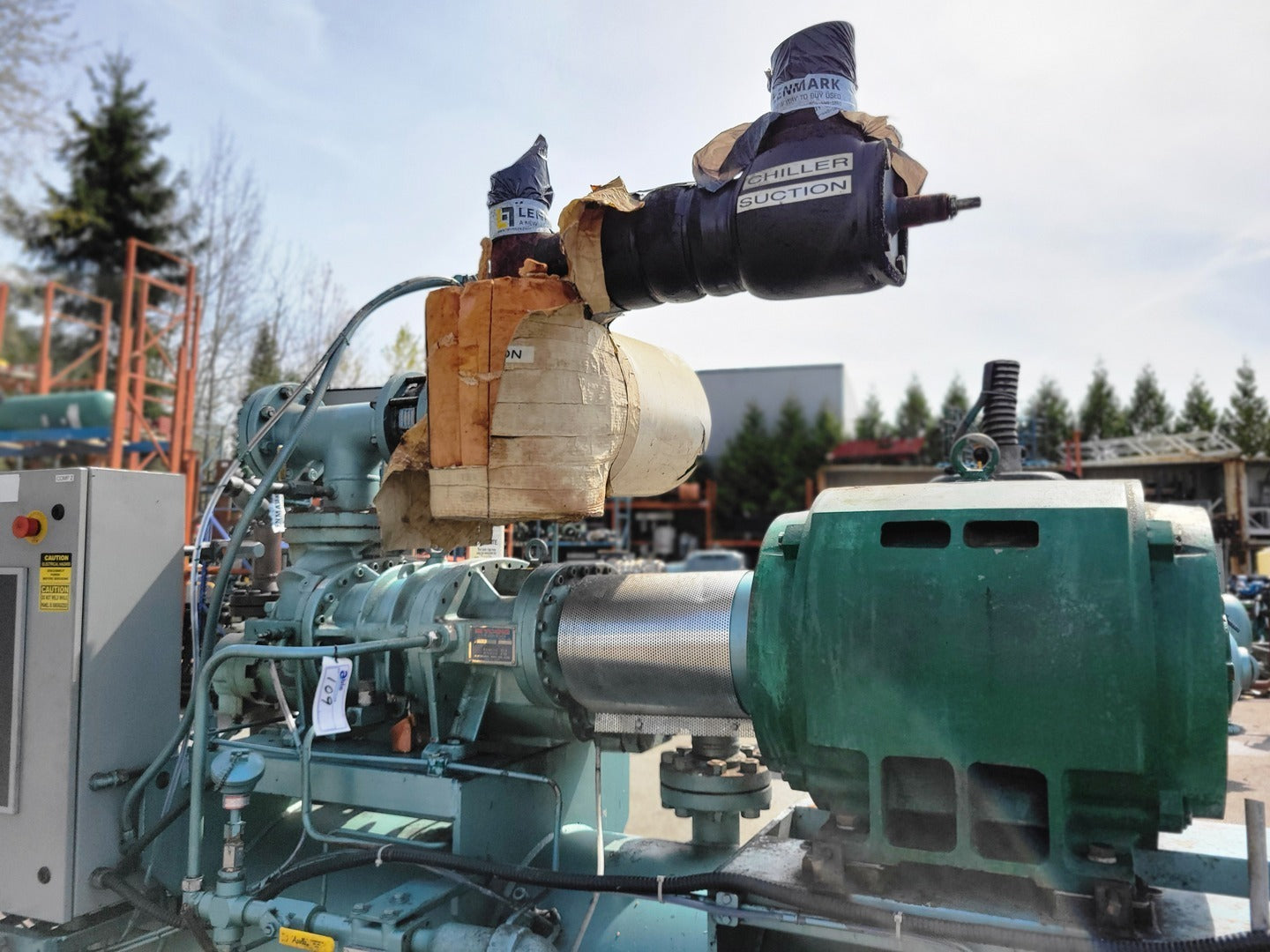

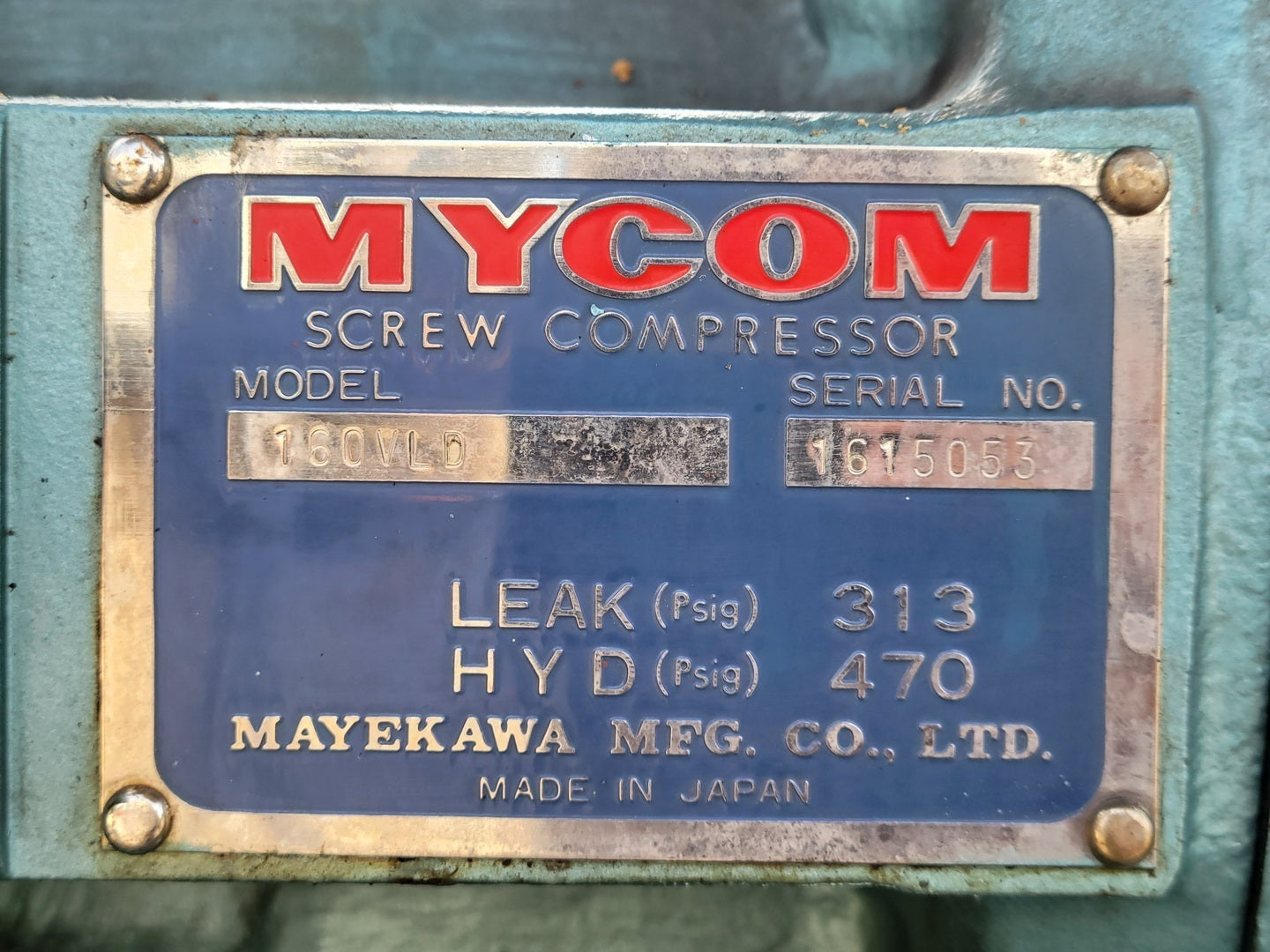

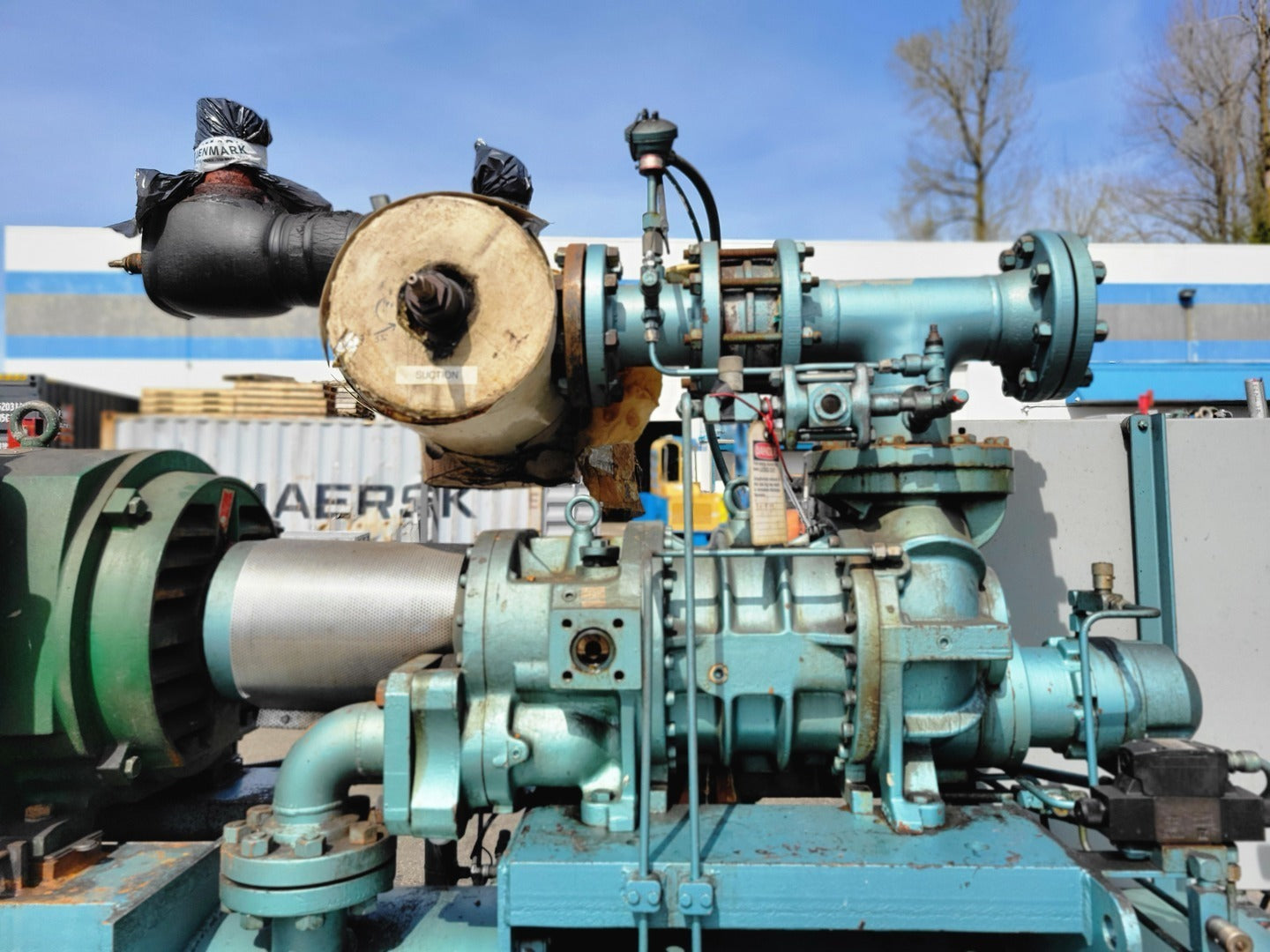

Compressor

  1. Manufacturer: MYCOM (Mayekawa)
  2. Type: Screw Compressor
  3. Model: 160VLD
  4. Refrigerant: Ammonia (NH3)
  5. Leak Test Pressure: 313 PSIG
  6. Hydro Test Pressure: 470 PSIG
  7. Made in Japan

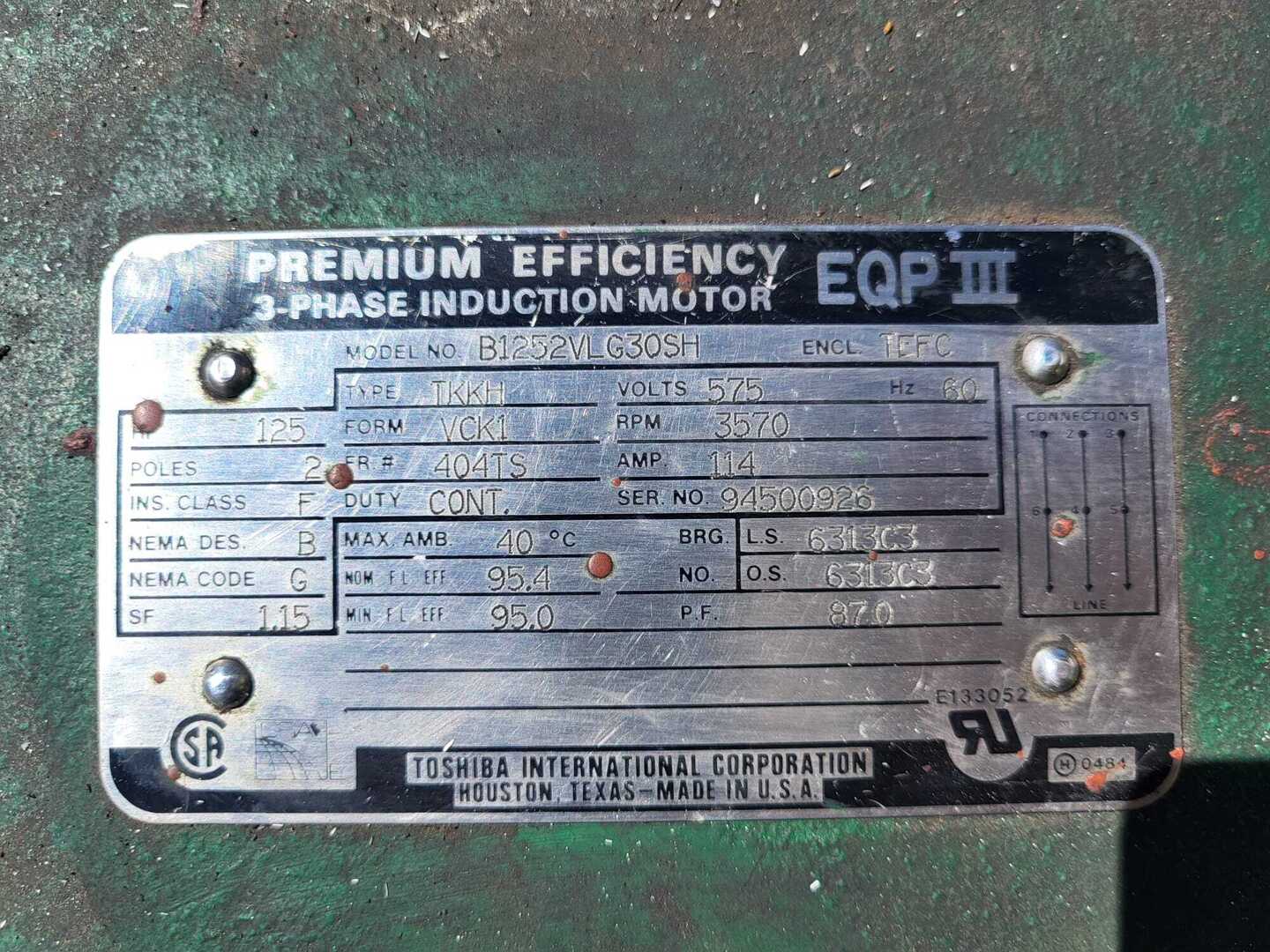

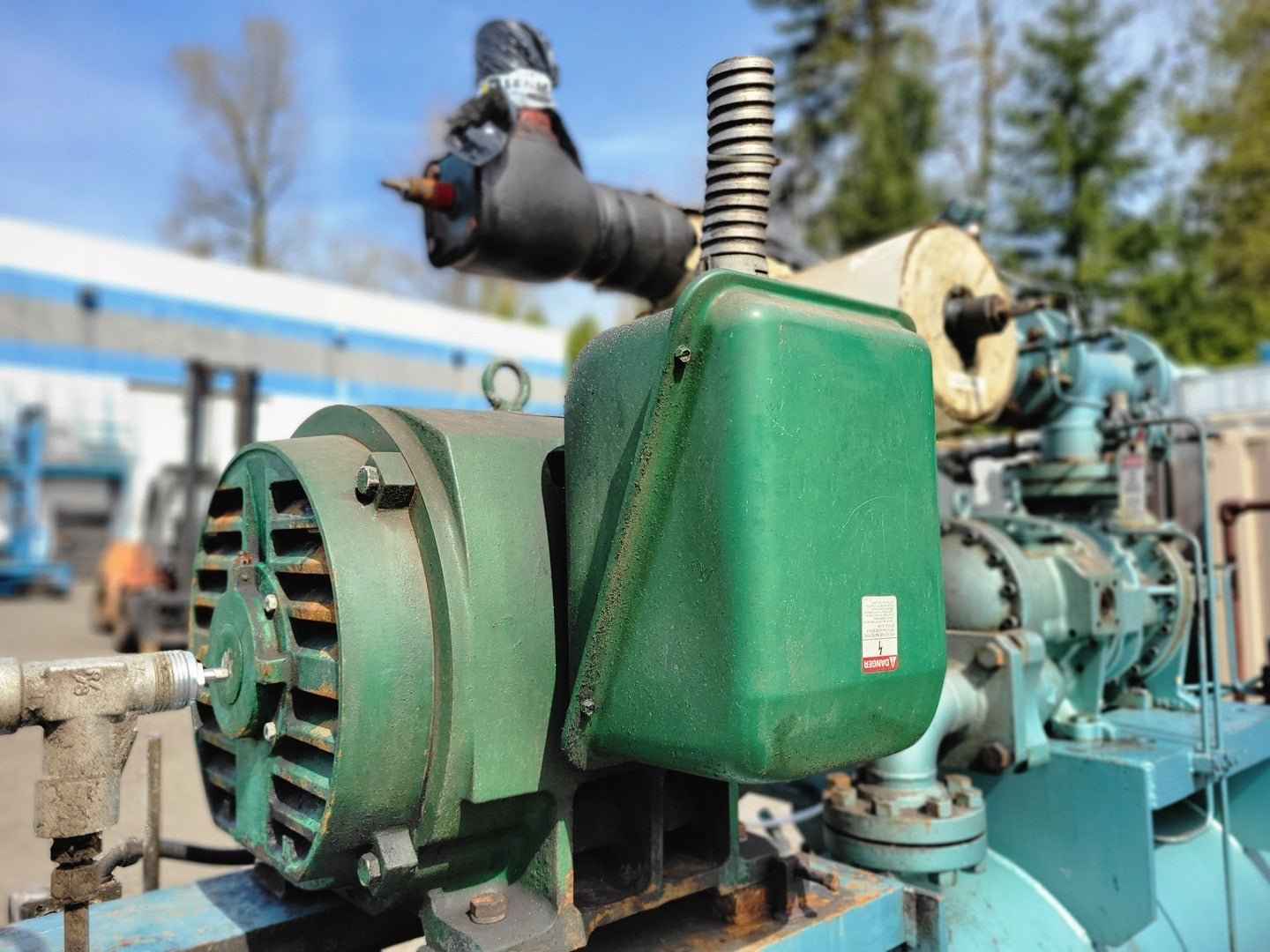

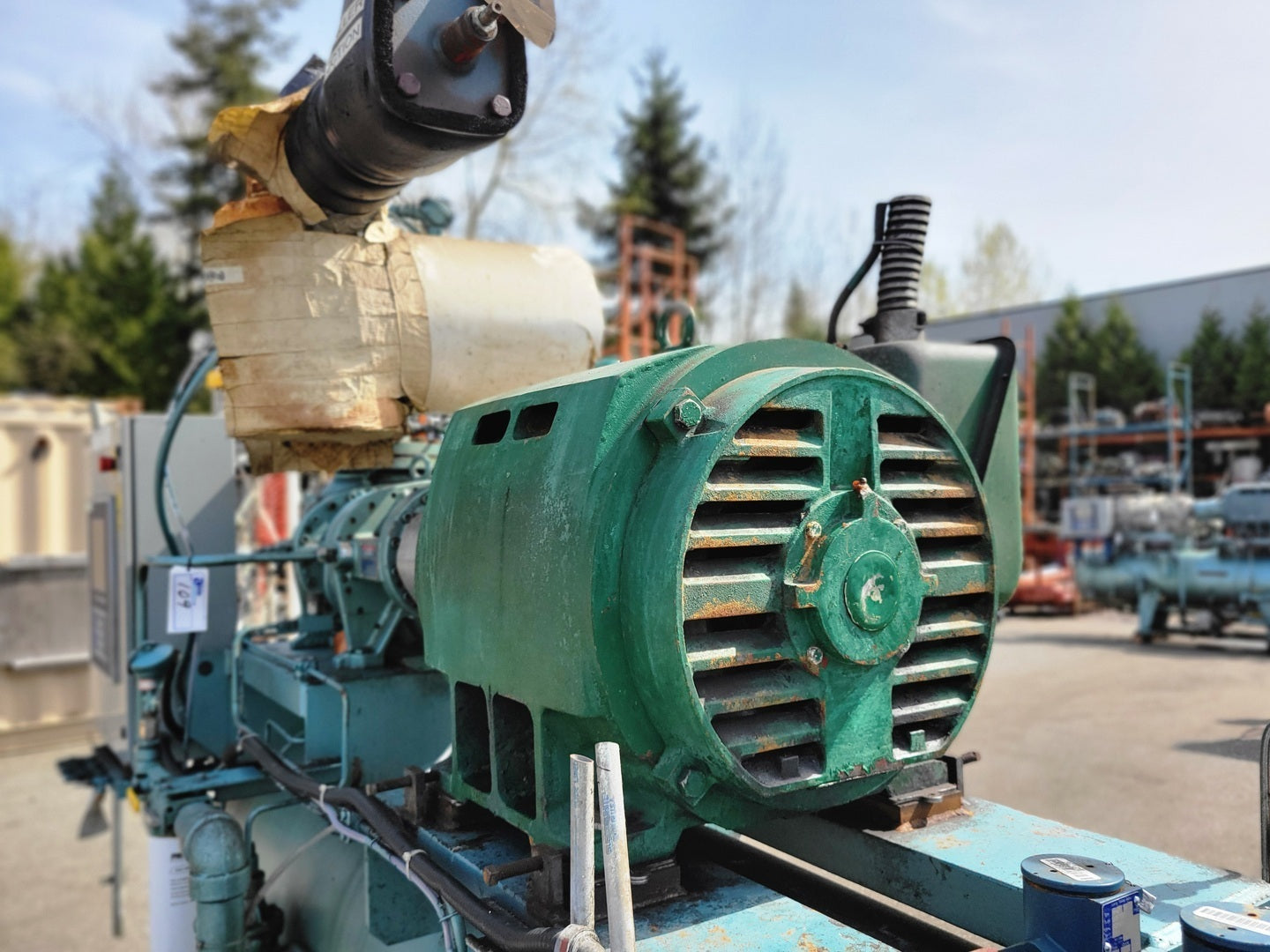

Motor

  1. Manufacturer: Toshiba
  2. Type: 3-Phase Induction Motor
  3. Power: 125 HP
  4. Voltage: 575V
  5. Frequency: 60 Hz
  6. Speed: 3570 RPM
  7. Enclosure: TEFC
  8. Frame: 404TS
  9. Duty: Continuous

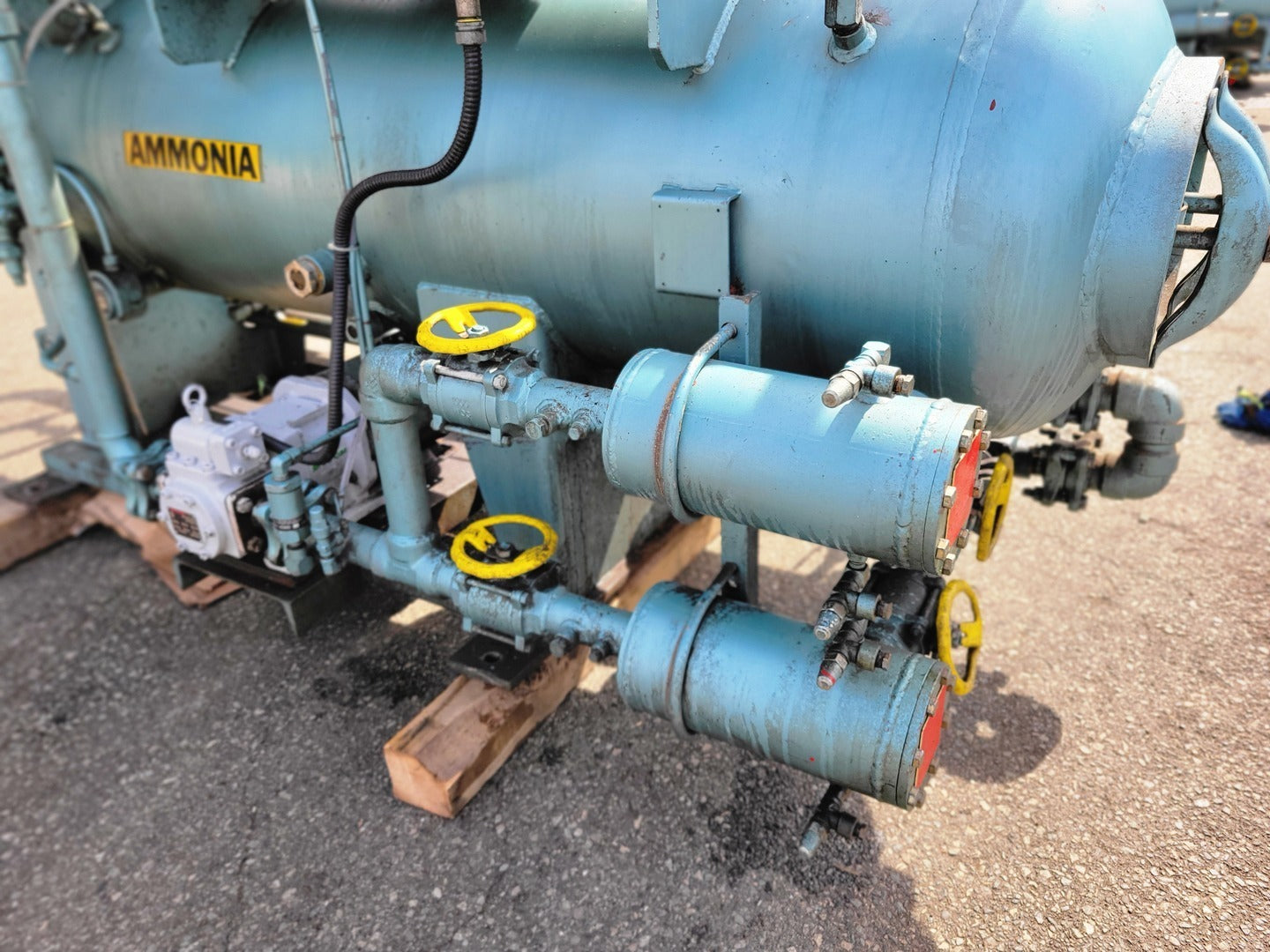

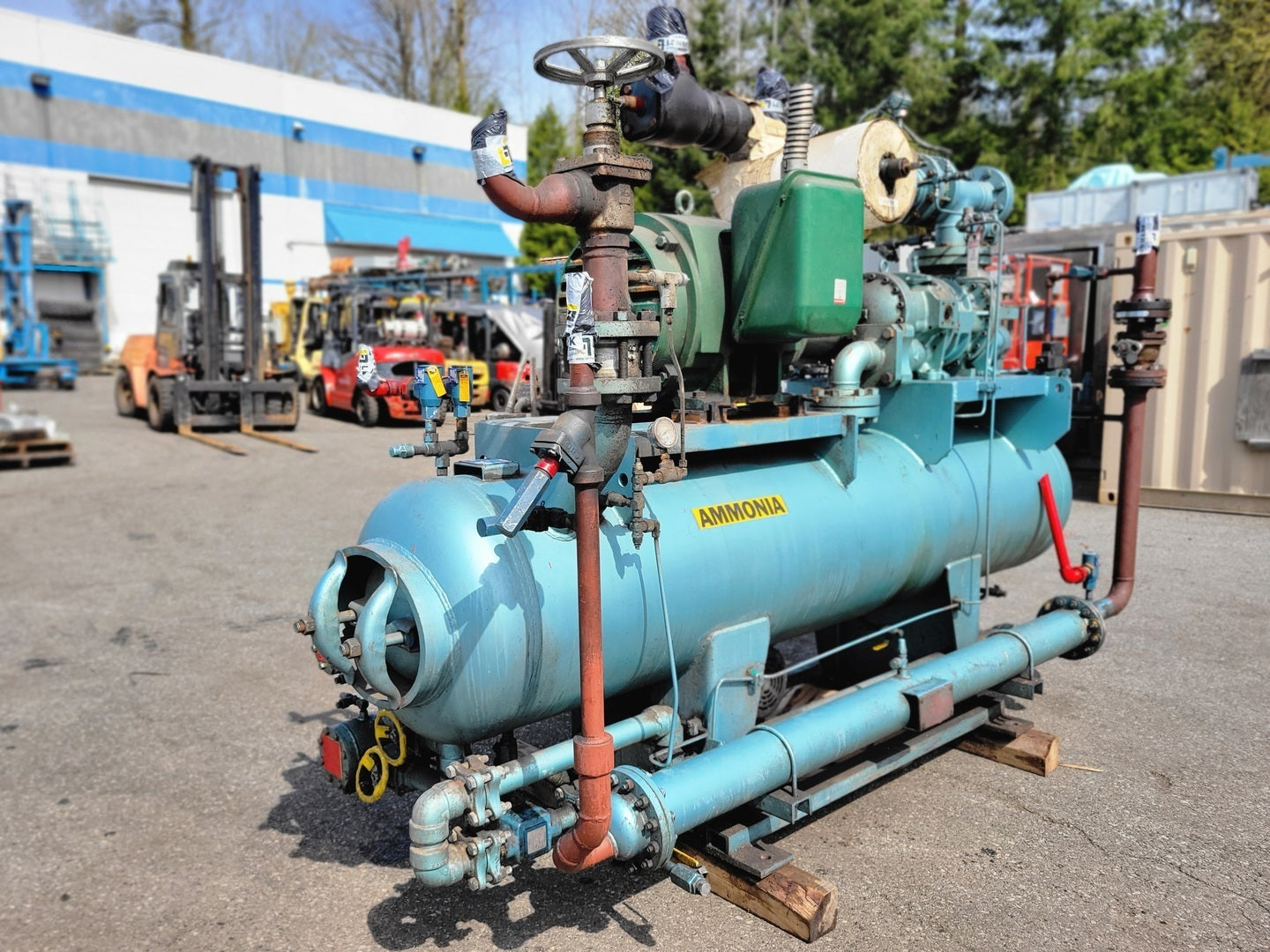

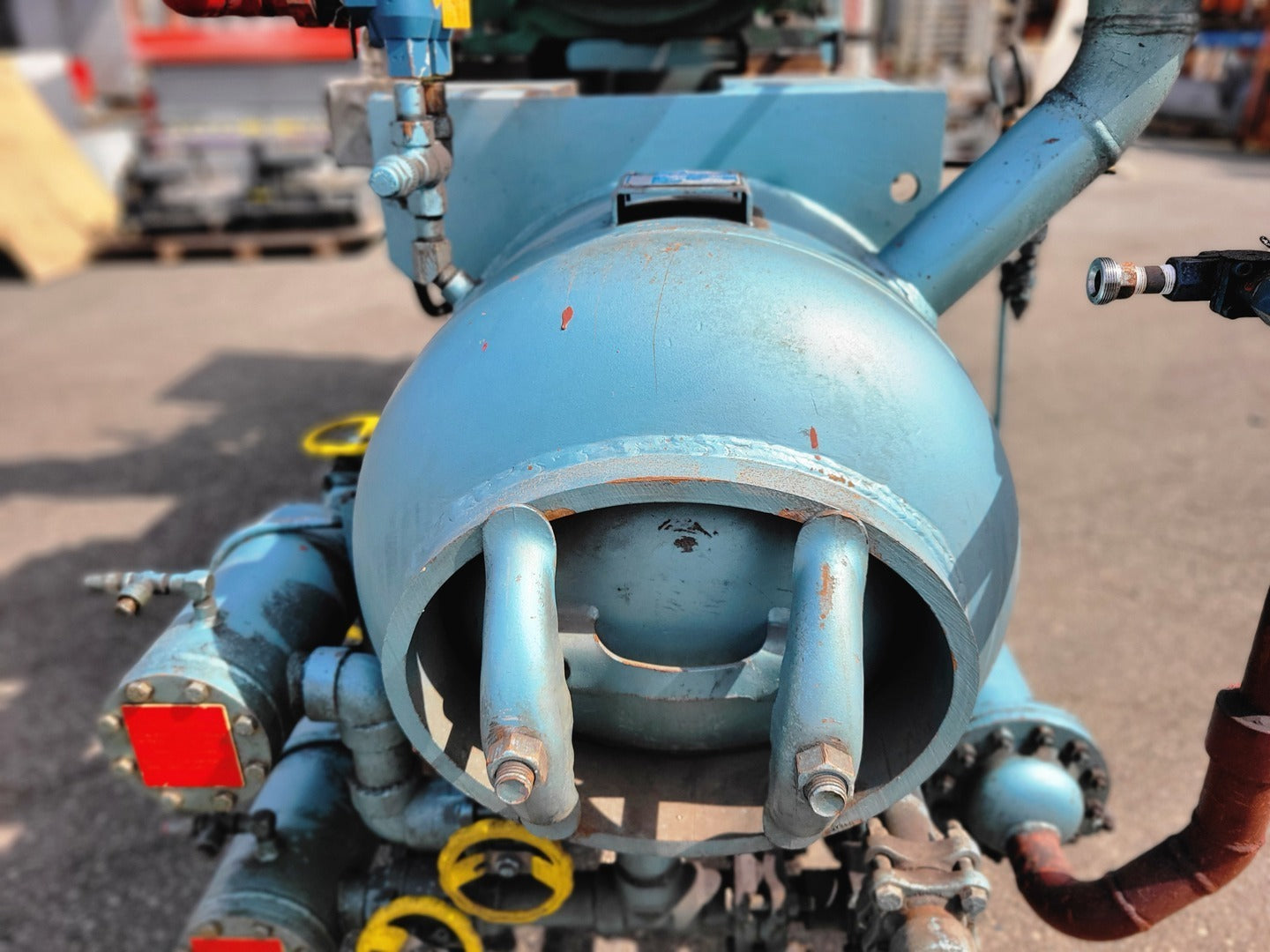

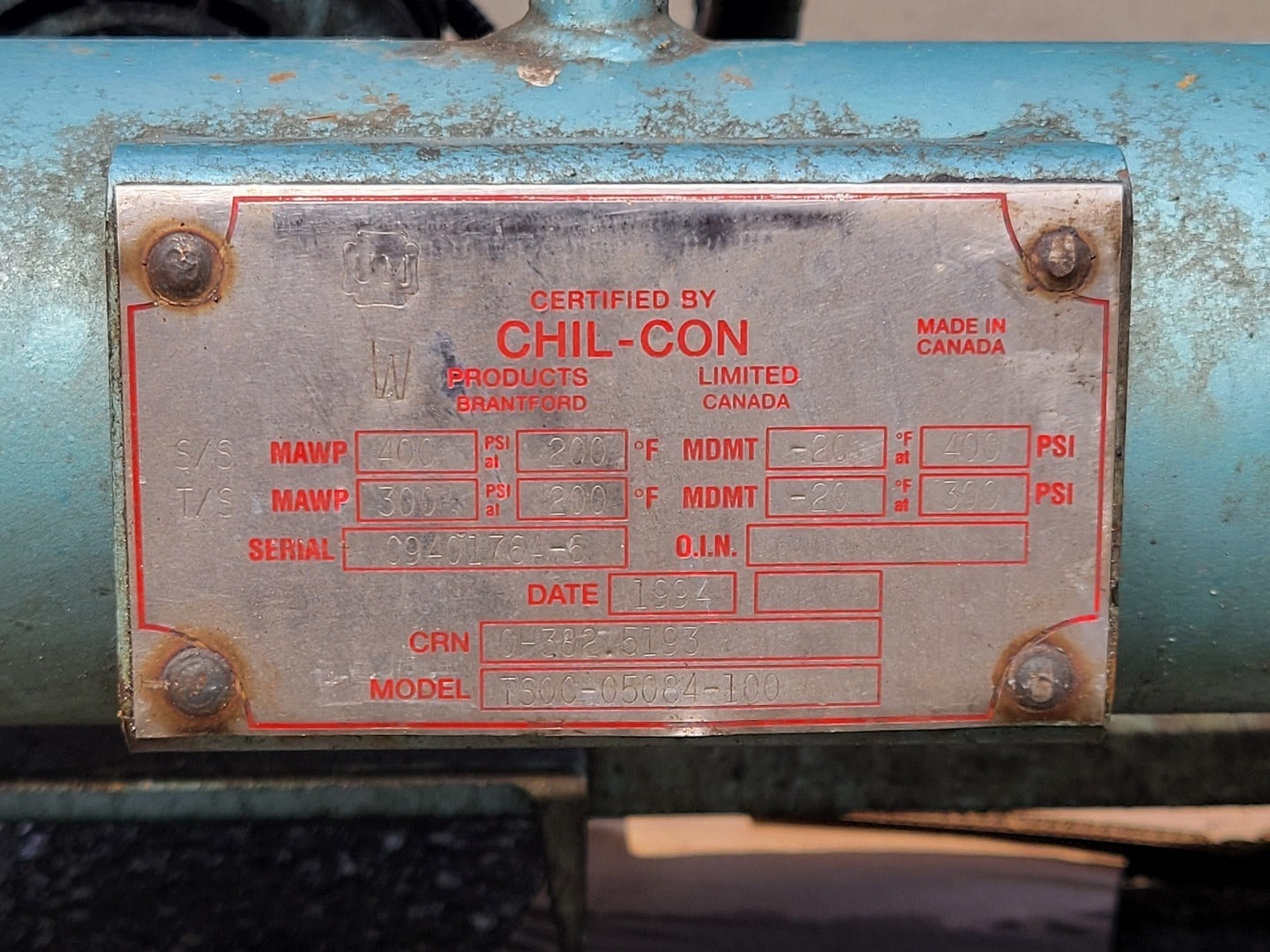

Pressure Vessel (Receiver / Oil Separator)

  1. Manufacturer: Chil-Con Products (Canada)
  2. Type: Horizontal Pressure Vessel
  3. MAWP:
  4. 400 PSI (Shell)
  5. 300 PSI (Tube Side)
  6. MDMT: 20°F
  7. Year Built: 1994
  8. CRN Registered
  9. Model: TSOC-05084-100

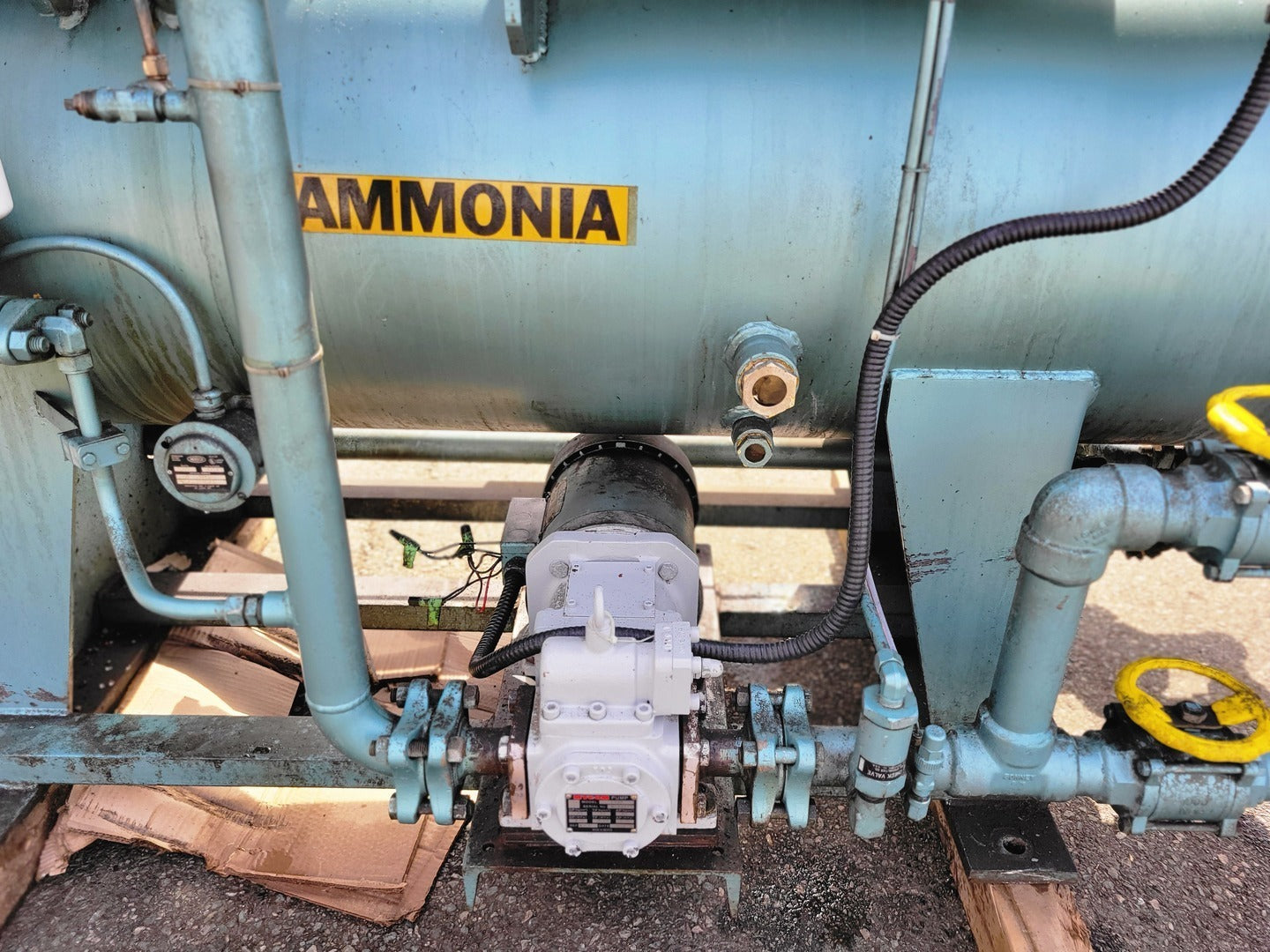

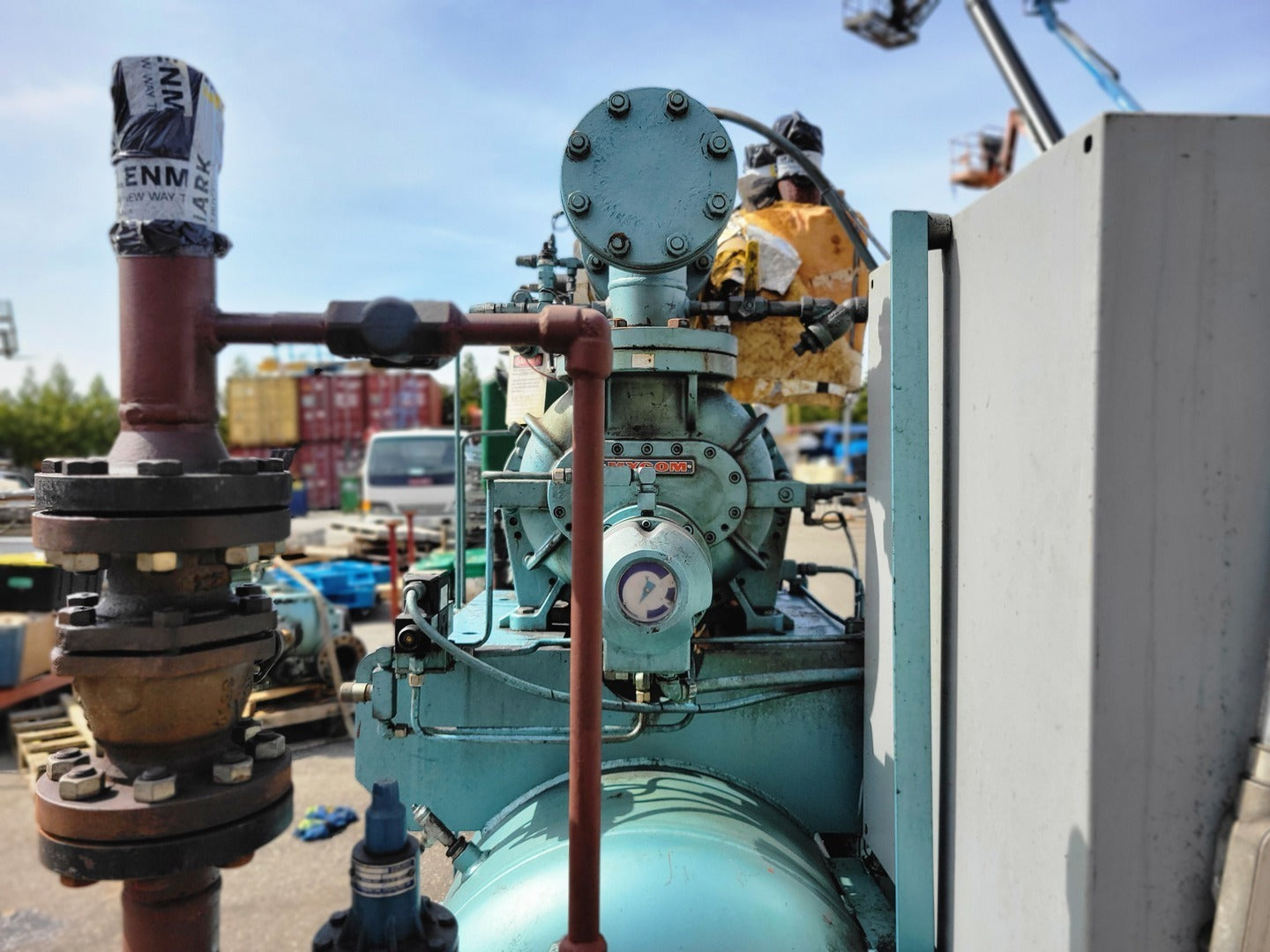

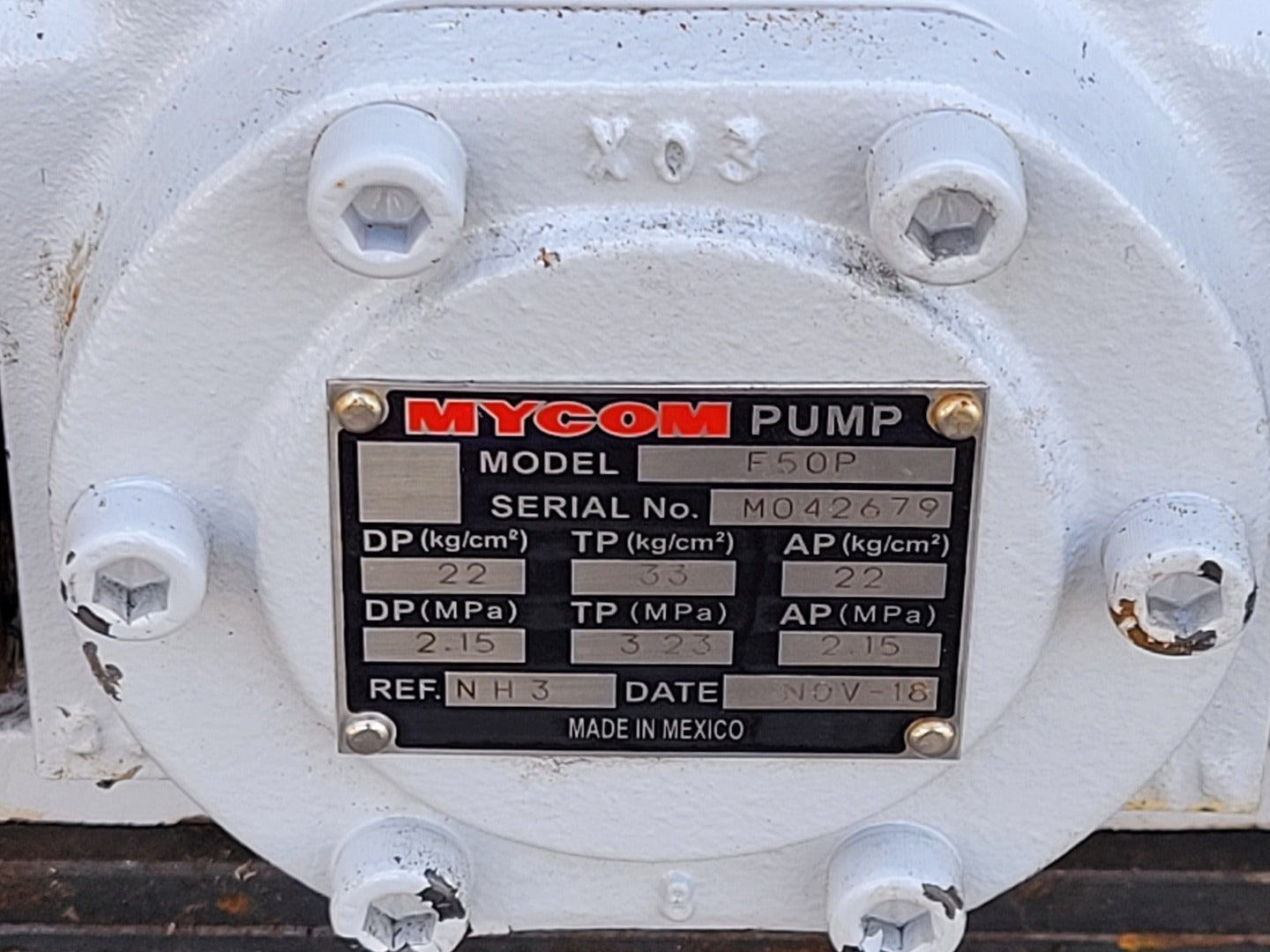

Ammonia Pump

  1. Manufacturer: MYCOM
  2. Model: F50P
  3. Application: NH3 recirculation
  4. Max Pressure:
  5. TP: 33 kg/cm2
  6. DP/AP: 22 kg/cm2

Additional Components

  1. Skid-mounted system

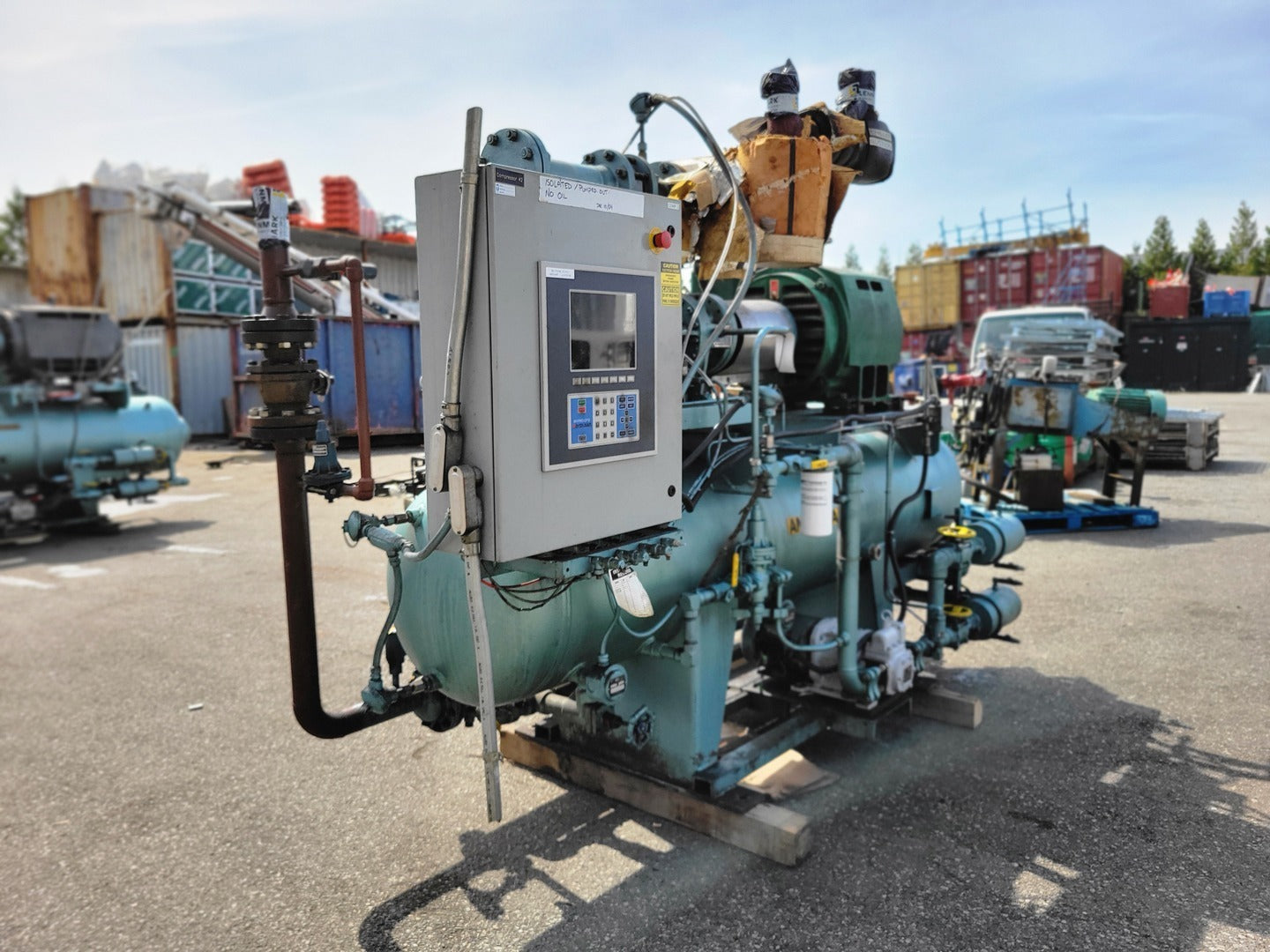

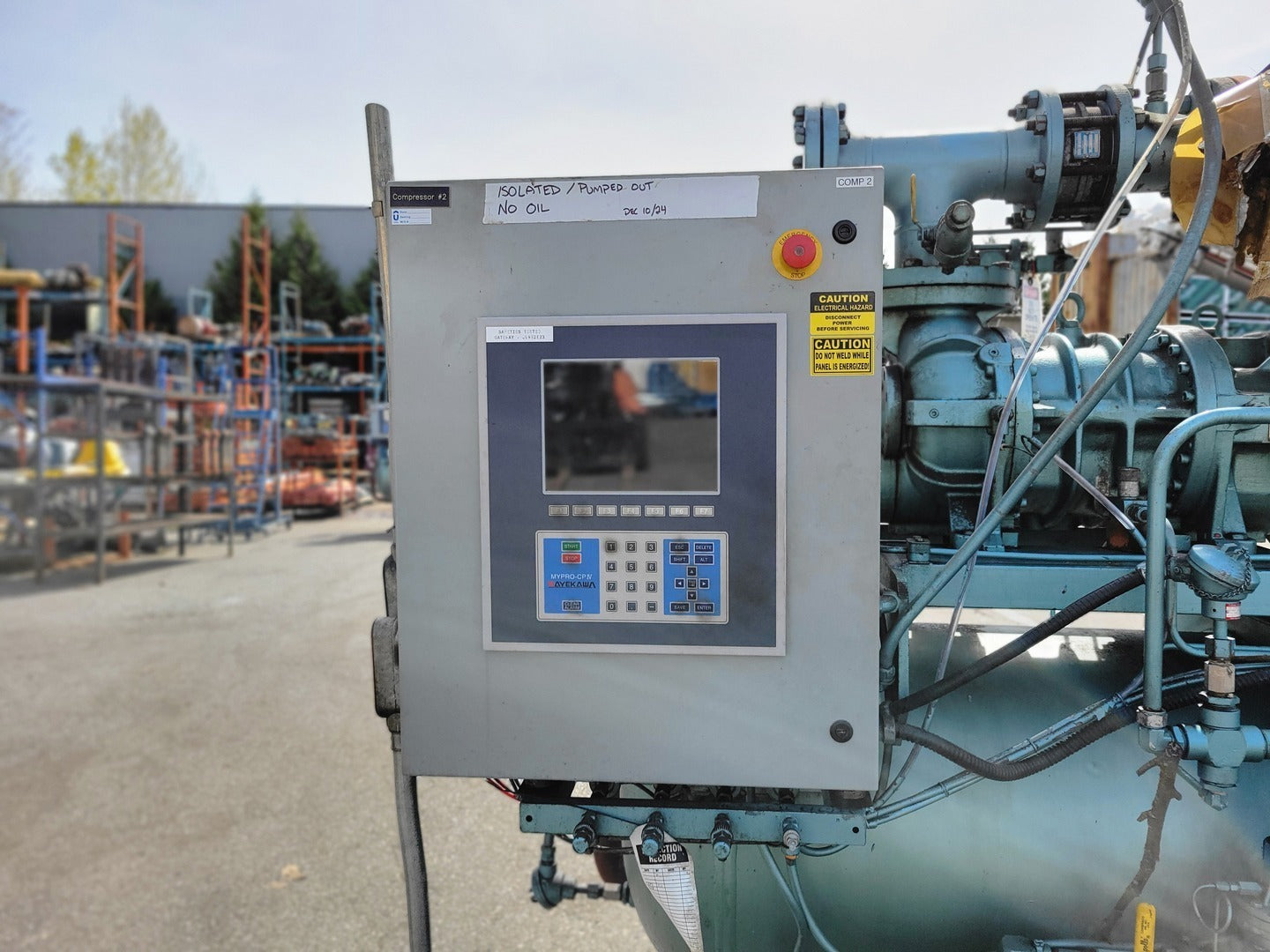

  2. Industrial control panel (automated operation)

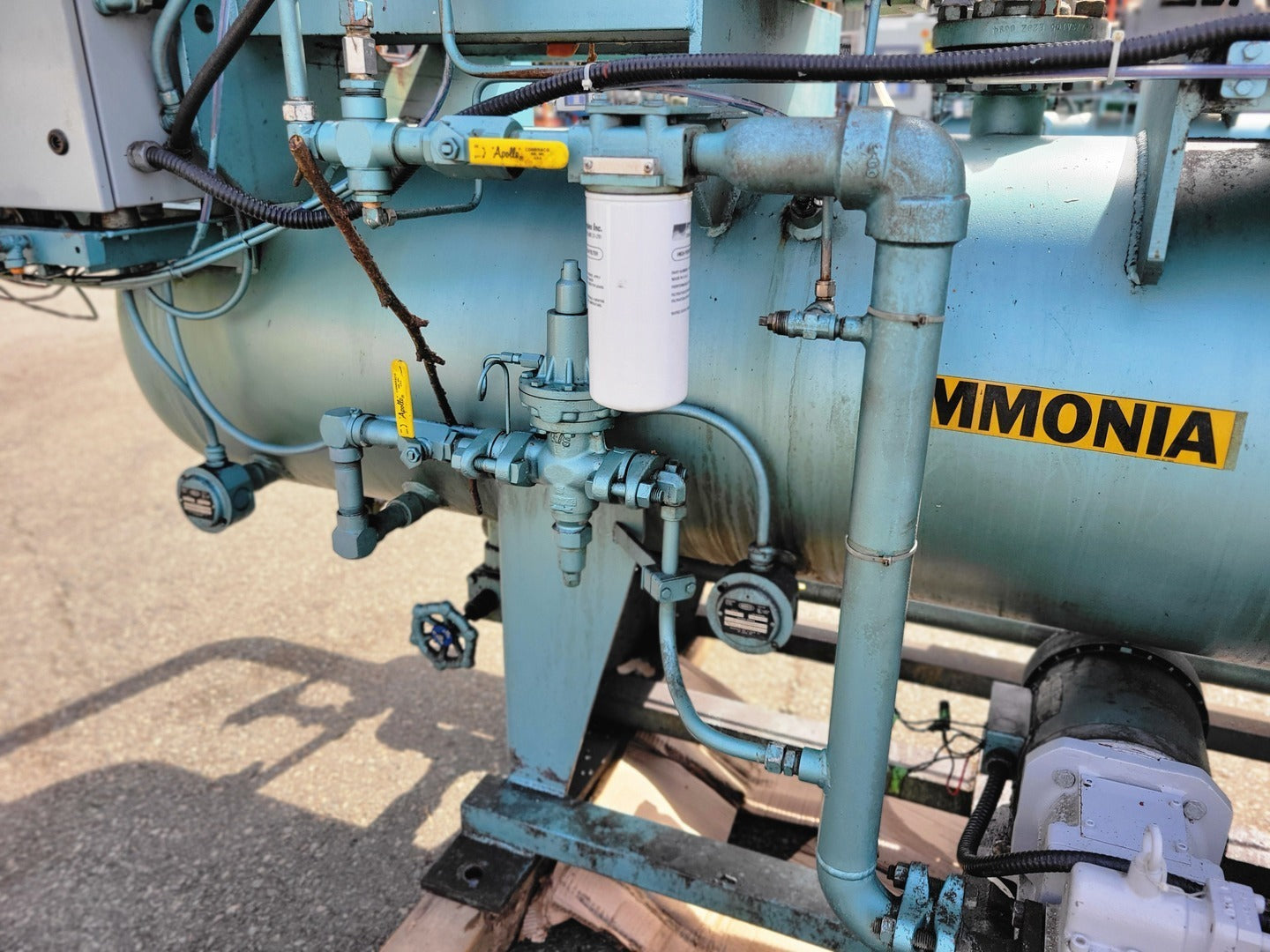

  3. Oil filtration system

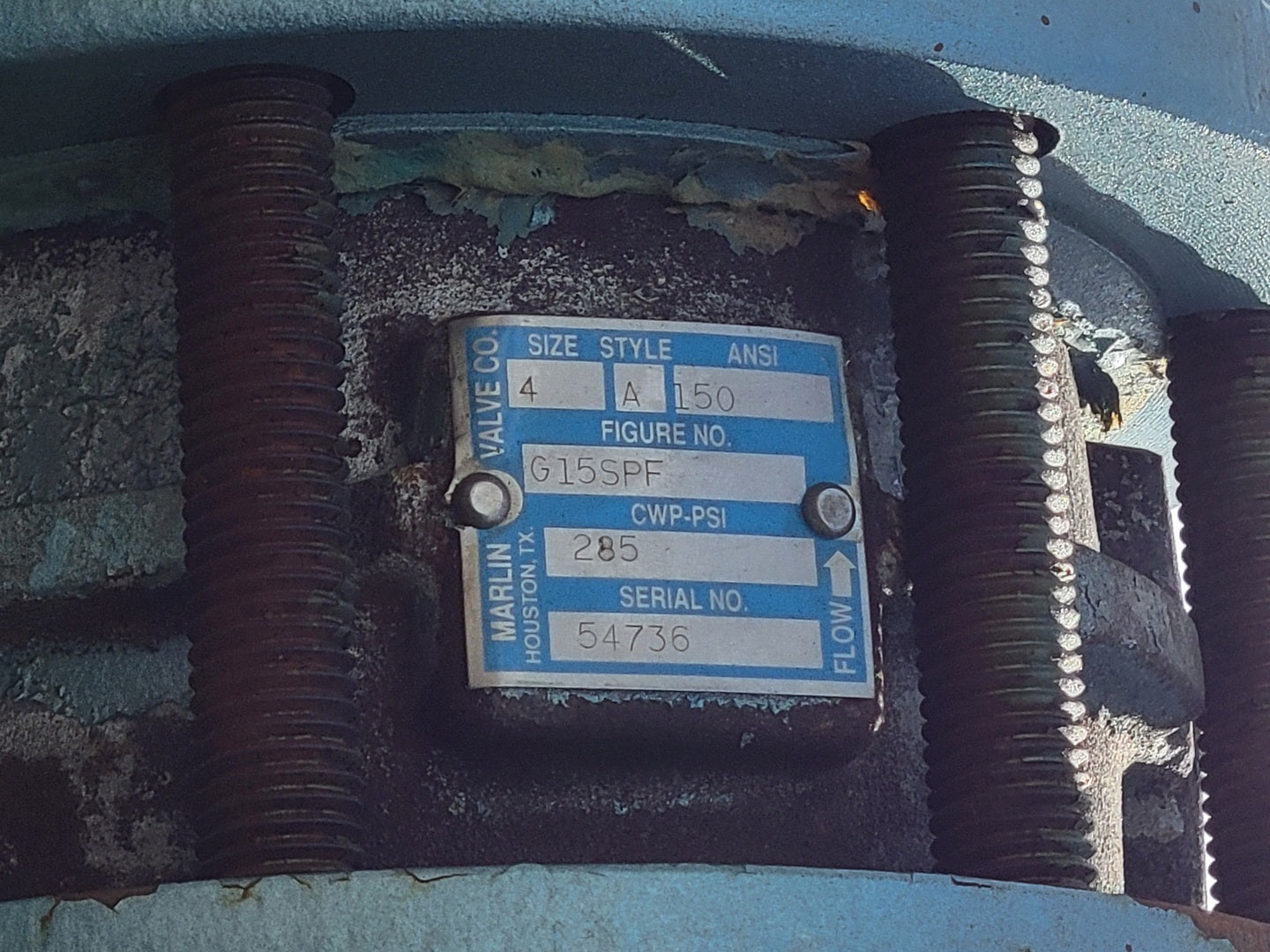

  4. Piping, valves, and regulators
  5. Insulated suction components

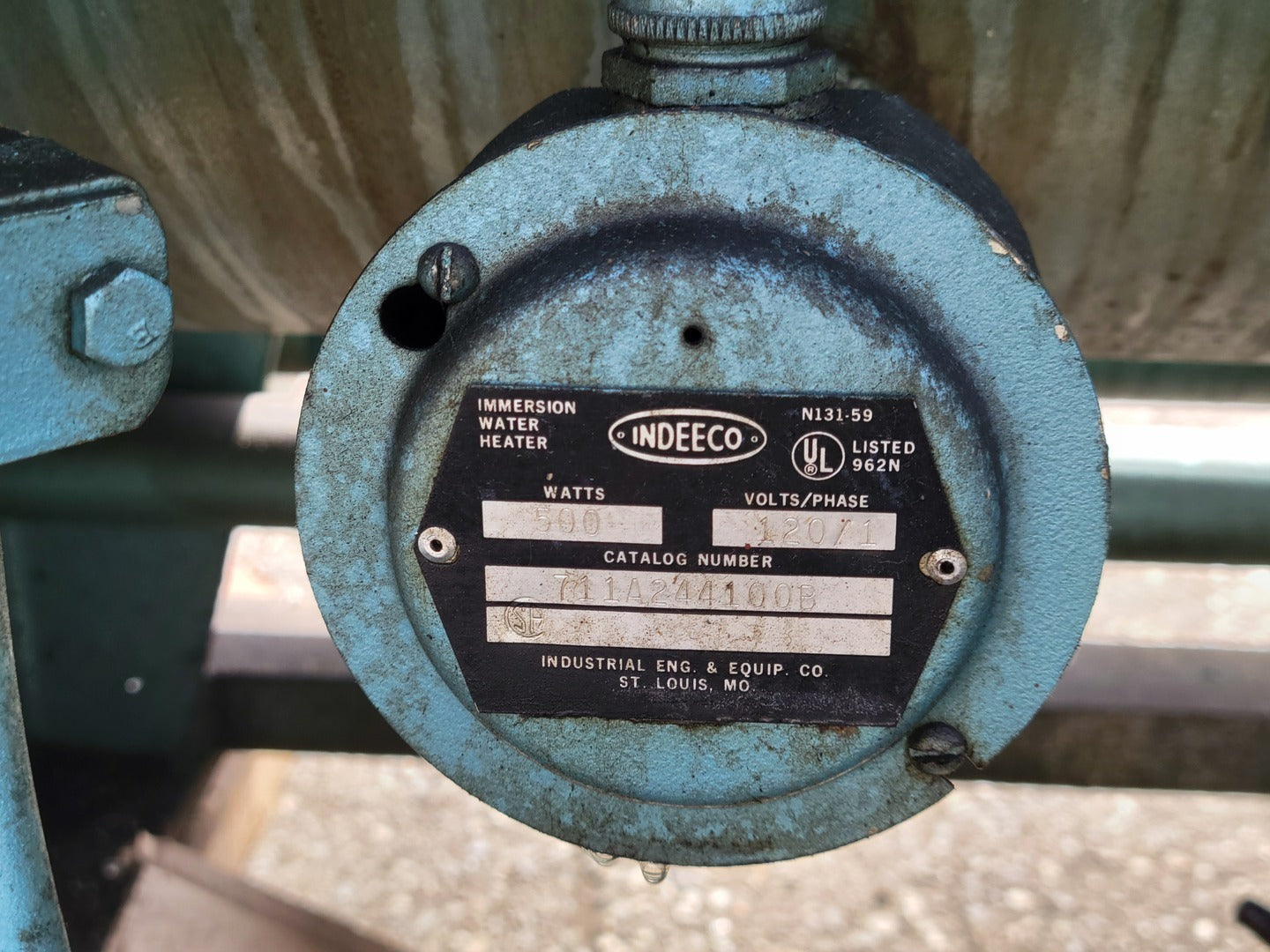

  6. Indeeco immersion heater (oil heating)
  7. Gauges and instrumentation
