Description

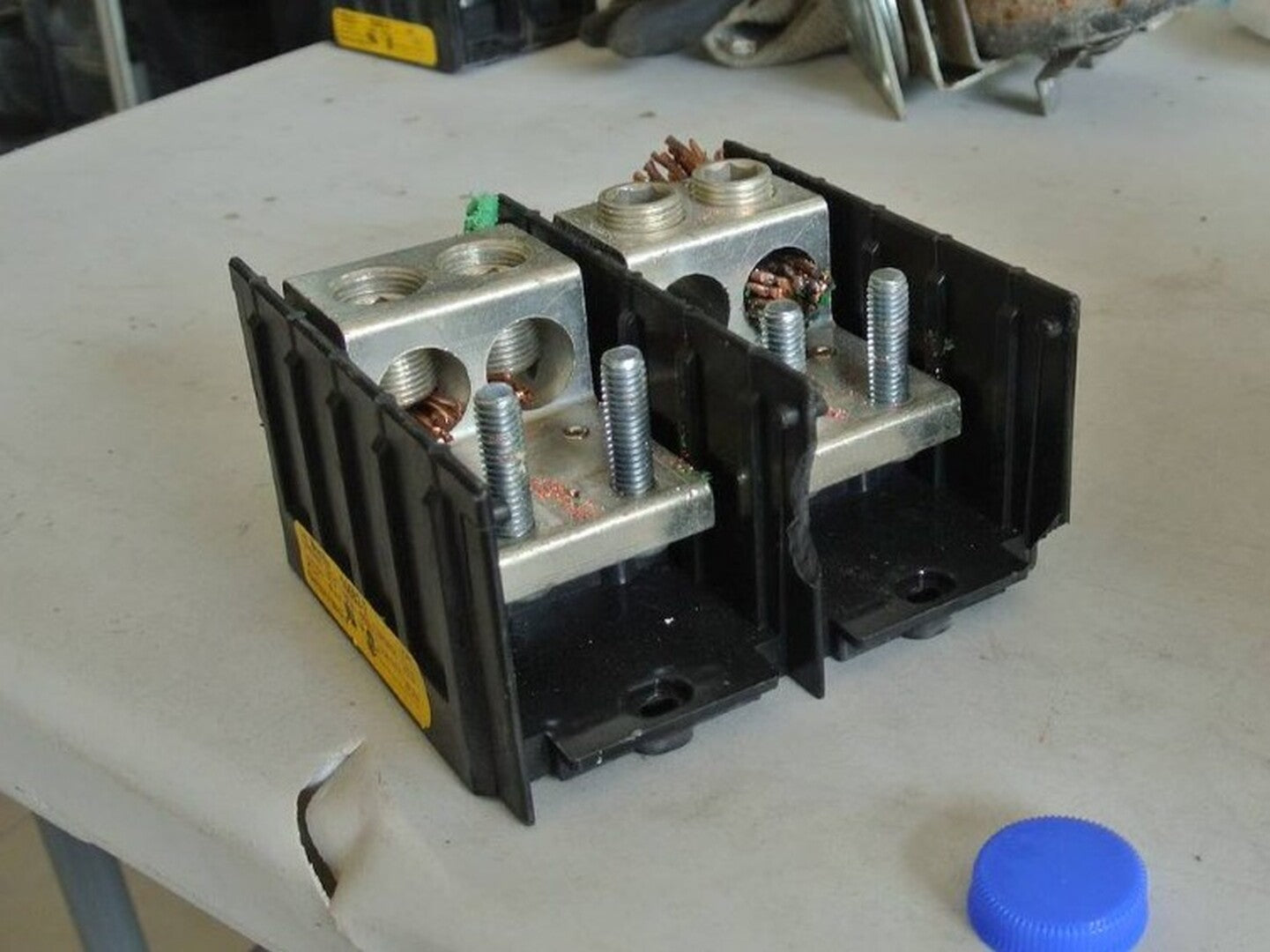

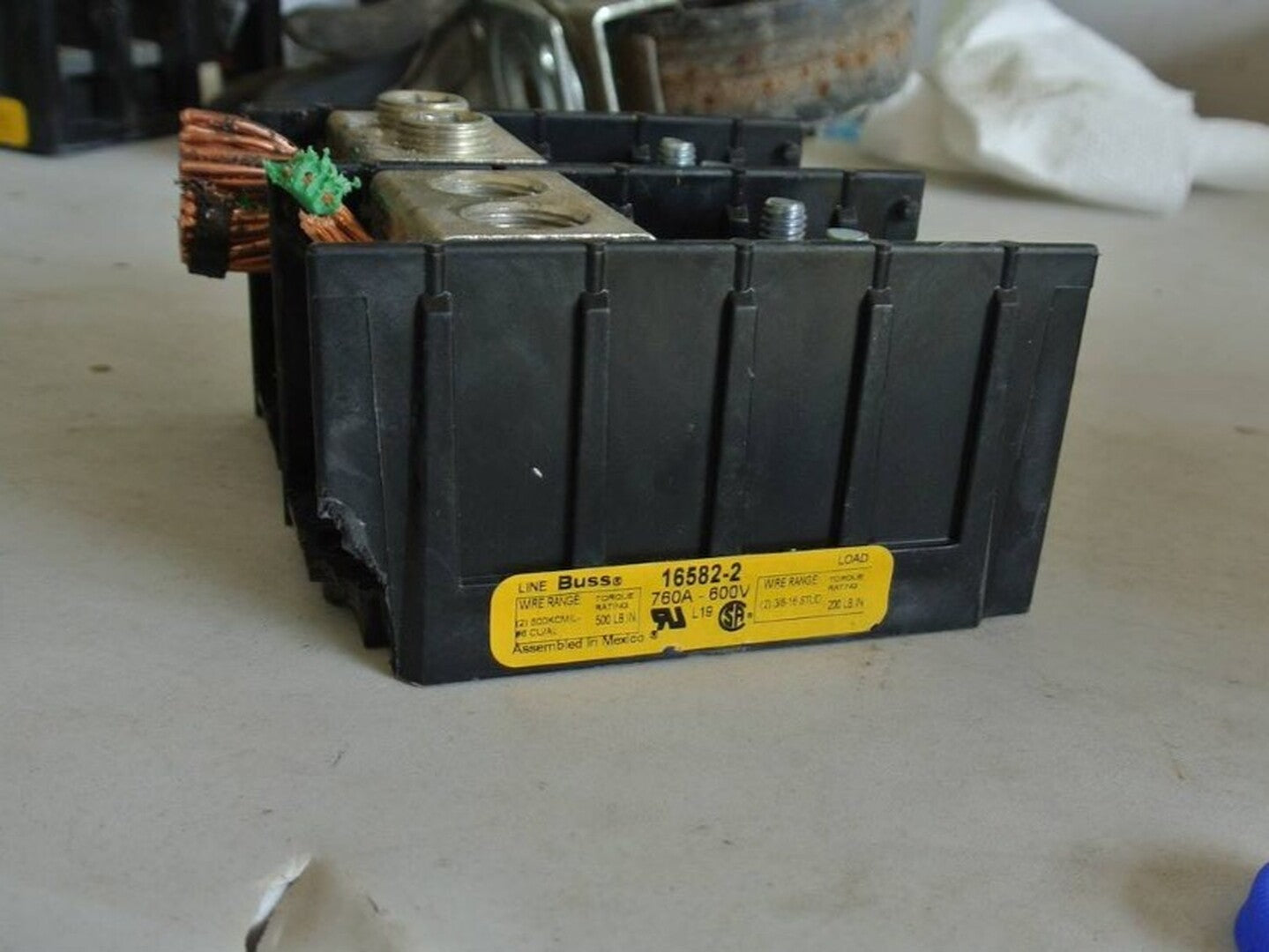

Bussmann 16582-2 two-pole power terminal block rated 760 A and 600 V. Features two screw-clamp line connections and two load-side studs per pole. Used assembly with attached cable lugs and cut conductor remnants, suitable for evaluation as a replacement component in compatible electrical distribution equipment.
| Specifications | |
|---|---|
| Model | 16582-2 |
| Condition | Used |
| Other Specifications |
|---|
|
Model: 16582-2 Series: 165 Component type: Stud power terminal / distribution block Number of poles: 2 Current rating: 760 A Voltage rating: 600 V Line connections: 2 screw-clamp ports per pole Line conductor range: 6 AWG-500 kcmil copper or aluminum Line terminal torque: 500 lb-in Load connections: 2 studs per pole Load stud size: 3/8-16 x 1-5/8 in Load terminal torque: 200 lb-in Short-circuit current rating: 10 kA |
