Description

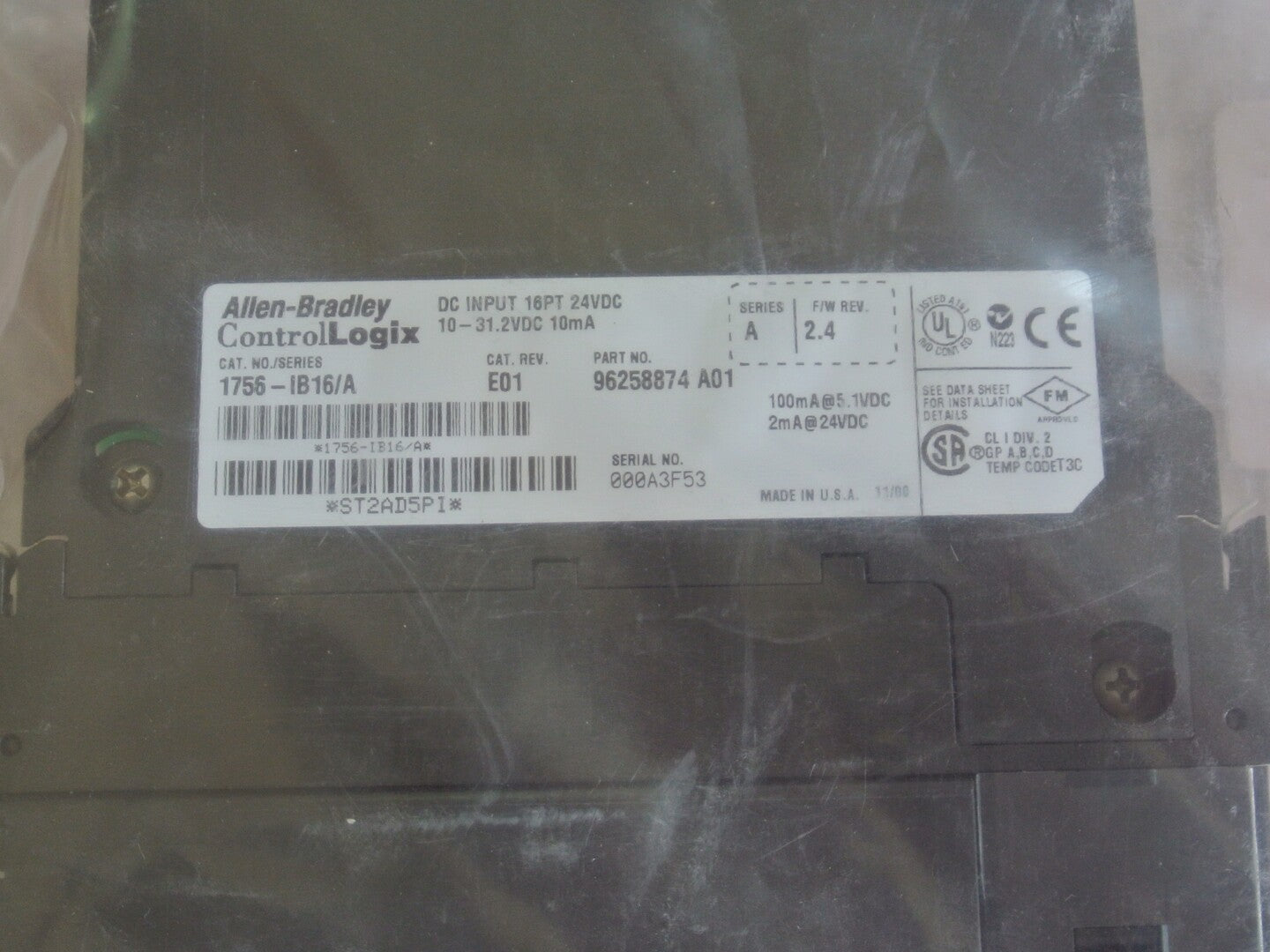

Allen-Bradley 1756-IB16/A Series A ControlLogix 16-point DC digital input module for industrial PLC and automation systems. Rated for 12/24 VDC sinking inputs with a 10-31.2 VDC operating range.
| Specifications | |
|---|---|
| Model | 1756-IB16/A |
| S/N: | 000A3F53 |
| Made In | UNITED STATES |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Series: A Module Type: DC Digital Input Module Number of Inputs: 16 (2 groups of 8) Voltage Category: 12/24 VDC Sink Nominal Input Voltage: 24 VDC Operating Voltage: 10-31.2 VDC Maximum On-State Input Current: 10 mA Backplane Current @ 5.1 VDC: 100 mA Backplane Current @ 24 VDC: 2 mA Total Backplane Power: 0.56 W Maximum Power Dissipation: 5.1 W @ 60°C Isolation: 250 V continuous, inputs-to-backplane and group-to-group |
