Description

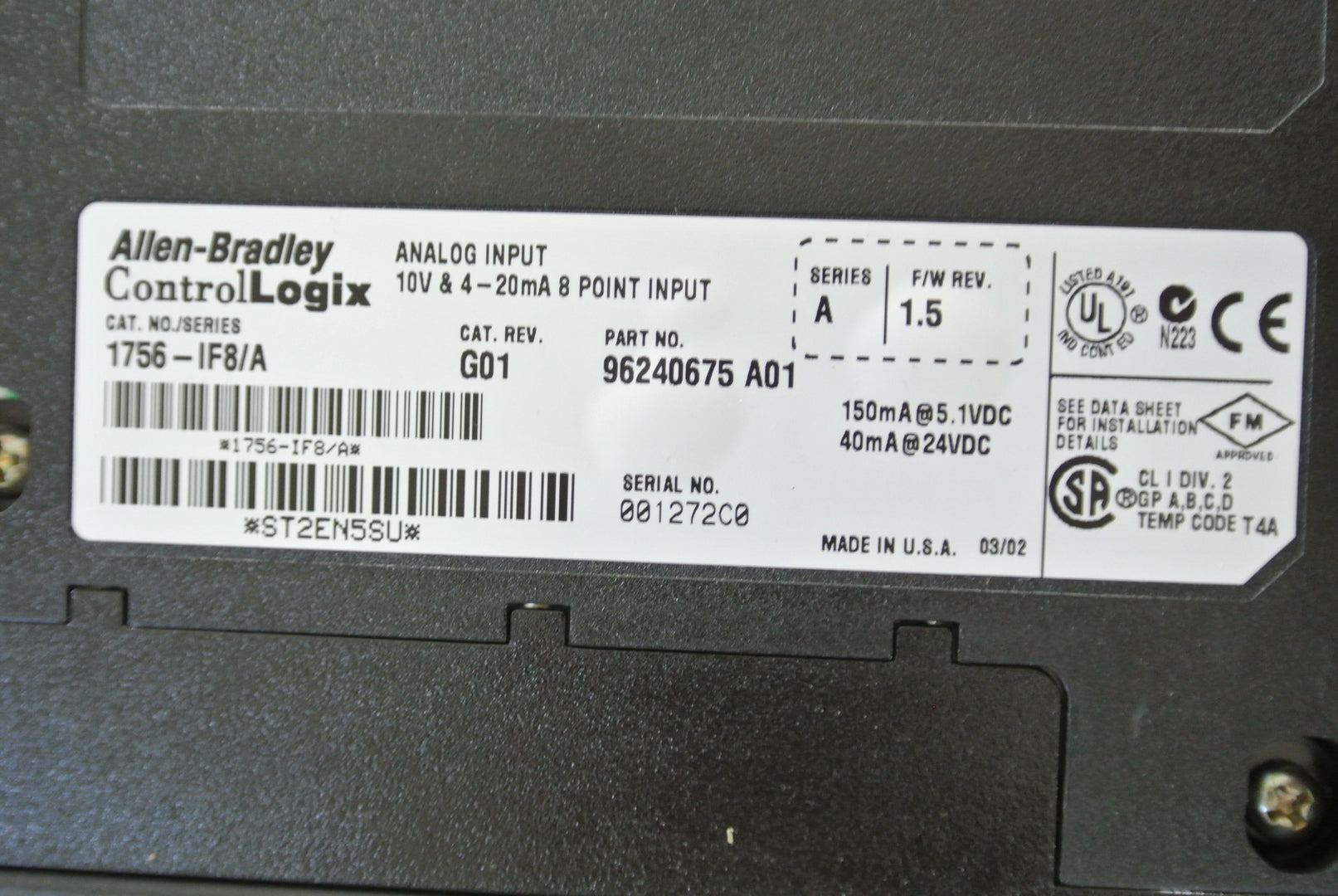

Allen-Bradley 1756-IF8 Series A ControlLogix analog input module, offered in surplus new condition. Supports voltage and current signals with configurable single-ended or differential wiring. Suitable for process monitoring, machine automation and replacement inventory.
| Specifications | |
|---|---|
| Model | 1756-IF8/A |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Series: A Product Family: ControlLogix Module Type: Analog voltage/current input Single-Ended Inputs: 8 Differential Inputs: 4 High-Speed Differential Inputs: 2 Selectable Voltage Ranges: -10 to +10 VDC, 0-10 VDC, 0-5 VDC Current Input Range: 0-20 mA, accommodating 4-20 mA signals Resolution: 16 bits unipolar; 15 bits plus sign bipolar Backplane Current at 5.1 VDC: 150 mA Backplane Current at 24 VDC: 40 mA Total Backplane Power: 1.73 W Terminal Block: 36-position removable terminal block Compatible Terminal Blocks: 1756-TBCH or 1756-TBS6H |
