Description

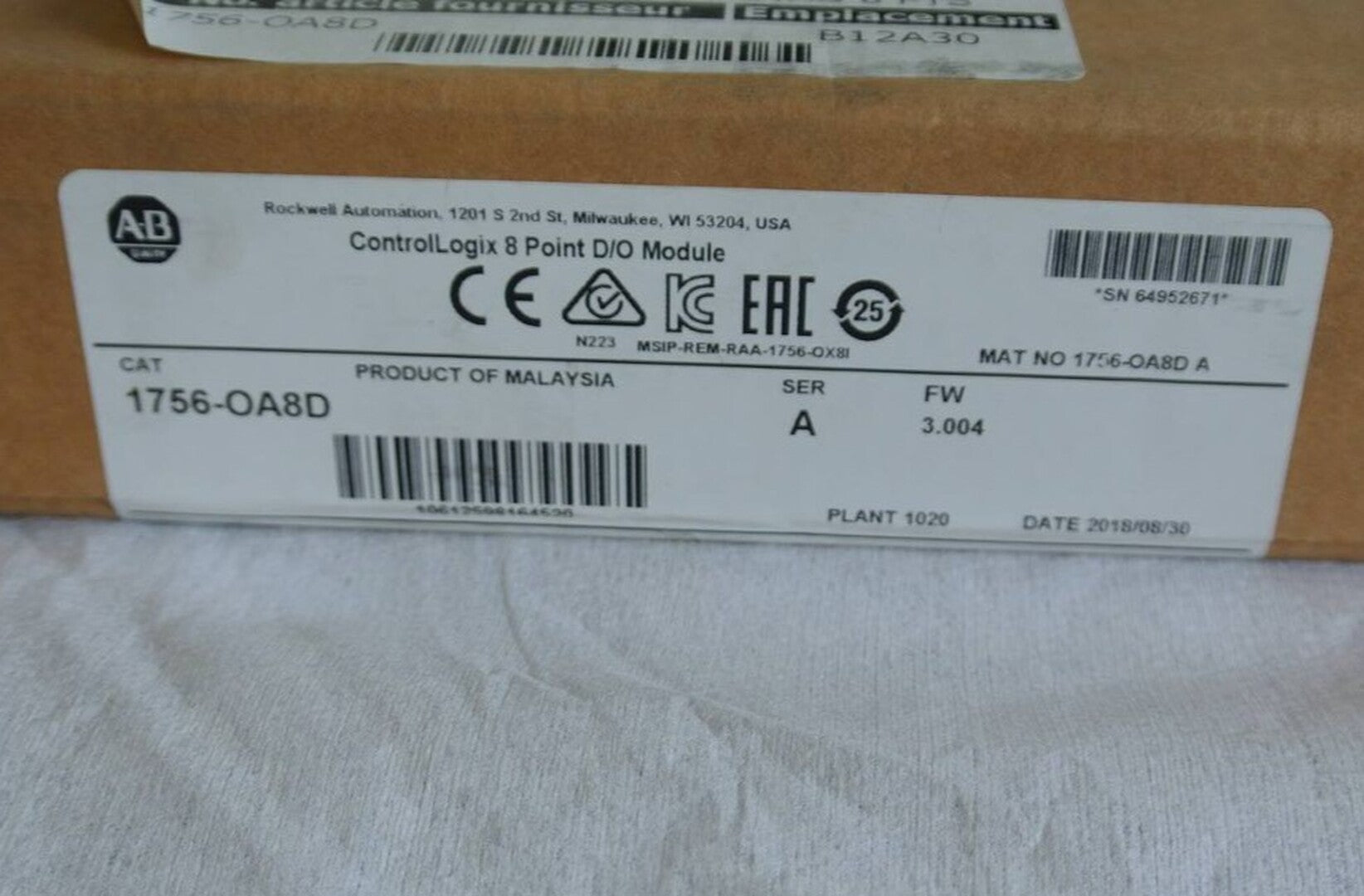

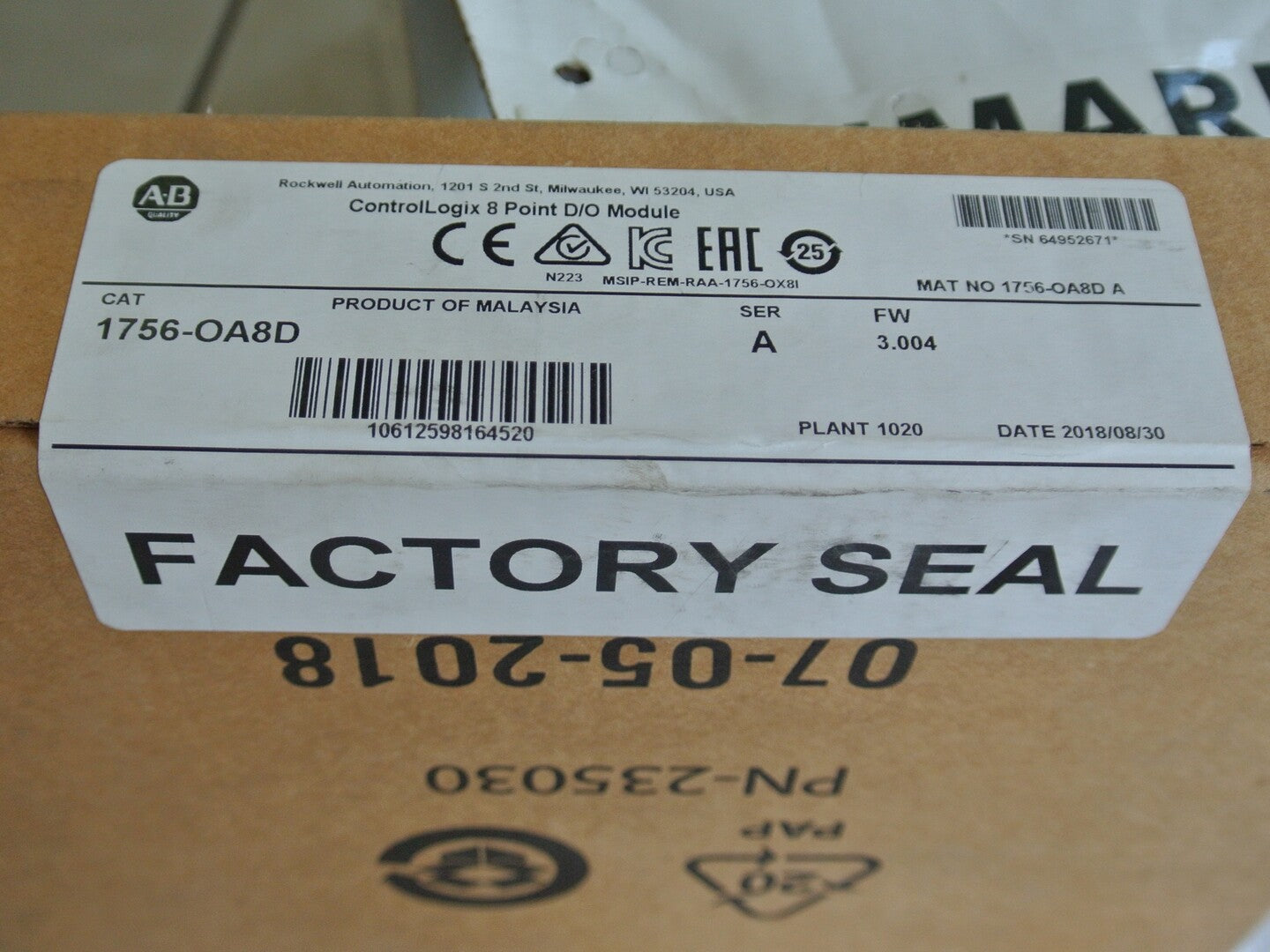

Allen-Bradley 1756-OA8D Series A ControlLogix digital output module with eight diagnostic AC outputs. Designed for nominal 120 VAC applications, with an operating range of 74-132 VAC and electronic fusing per output.
| Specifications | |
|---|---|
| Model | 1756-OA8D |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Series: A Product Family: ControlLogix Module Type: Diagnostic digital AC output Number of Outputs: 8 Output Grouping: 2 groups of 4 points Nominal Voltage: 120 VAC Nominal Frequency: 50/60 Hz Operating Voltage Range: 74-132 VAC Operating Frequency Range: 47-63 Hz Maximum Current per Point: 1 A at 30 °C, derated to 0.5 A at 60 °C Maximum Current per Module: 8 A at 30 °C, derated to 4 A at 60 °C Protection: Electronic fusing per point Connection: 20-pin removable terminal block interface Compatible Terminal Blocks: 1756-TBNH or 1756-TBSH |
