Description

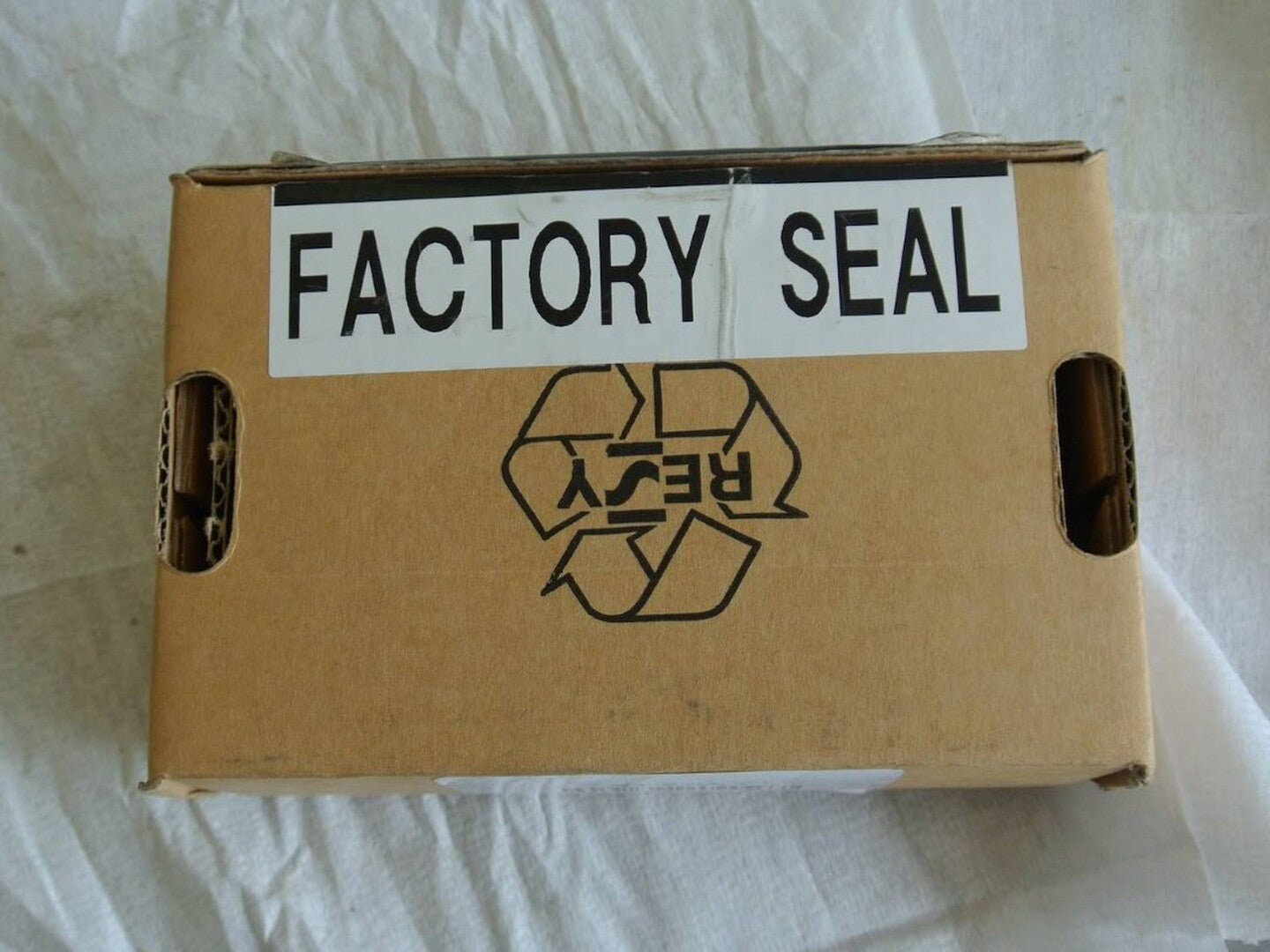

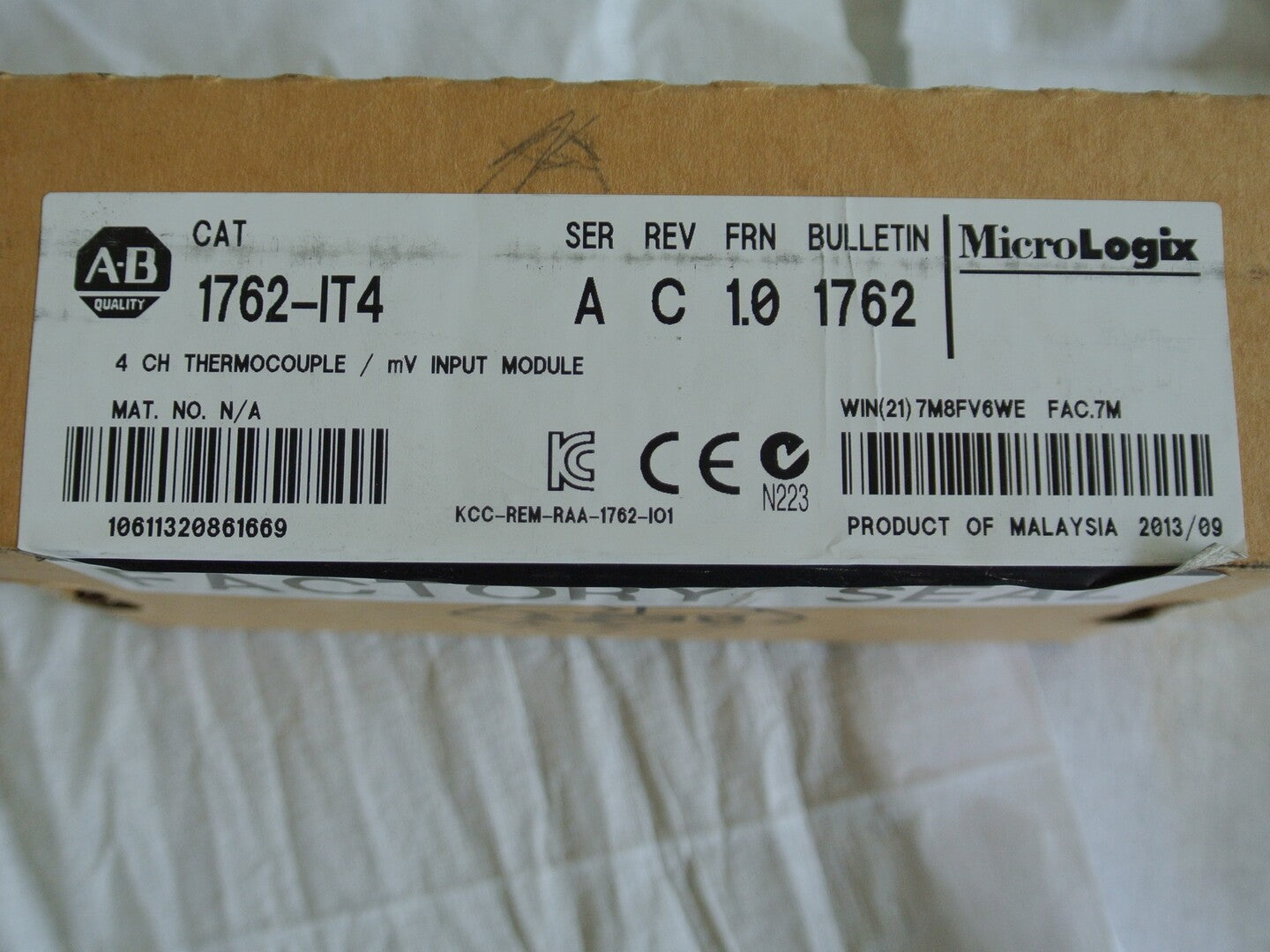

Allen-Bradley 1762-IT4 Series A MicroLogix expansion I/O module providing four configurable thermocouple/millivolt input channels for temperature and low-level analog signal measurement. The photographed unit is in original Allen-Bradley packaging with the FACTORY SEAL visibly intact.
| Specifications | |
|---|---|
| Model | 1762-IT4 |
| Made In | MALAYSIA |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Module Type: Thermocouple / Millivolt Input Module Number of Input Channels: 4 Input Types: Thermocouple and mV Supported Thermocouples: J, K, T, E, R, S, B, N and C Millivolt Input Ranges: +/-50 mV and +/-100 mV Resolution: 15-bit plus sign Converter Type: Delta-Sigma Input Impedance: >10 M ohm Common-Mode Voltage Range: +/-10 VDC Maximum Bus Current: 40 mA @ 5 VDC; 50 mA @ 24 VDC Maximum Heat Dissipation: 1.5 W Input Filtering: Programmable Calibration: Automatic calibration supported |
