Description

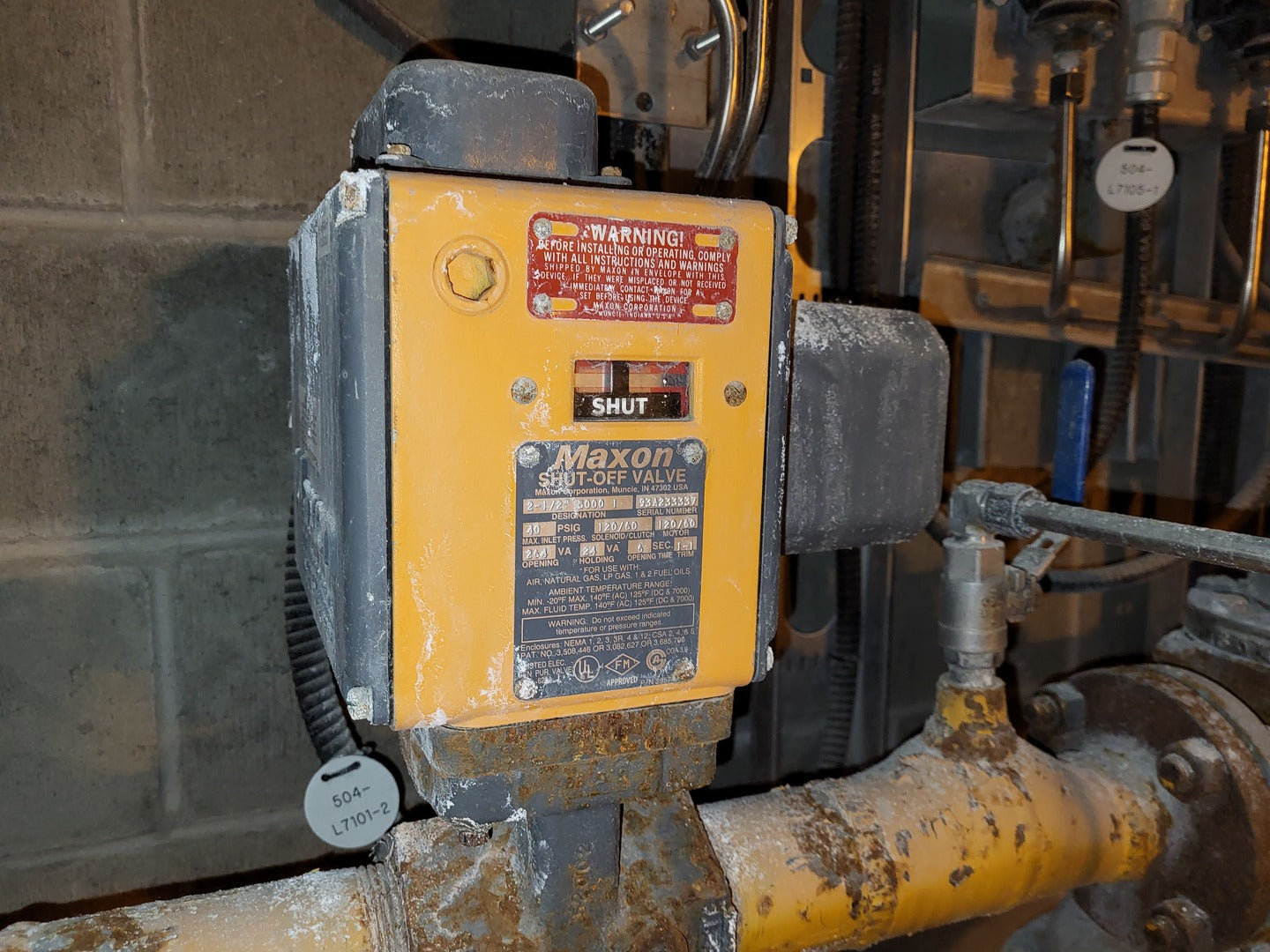

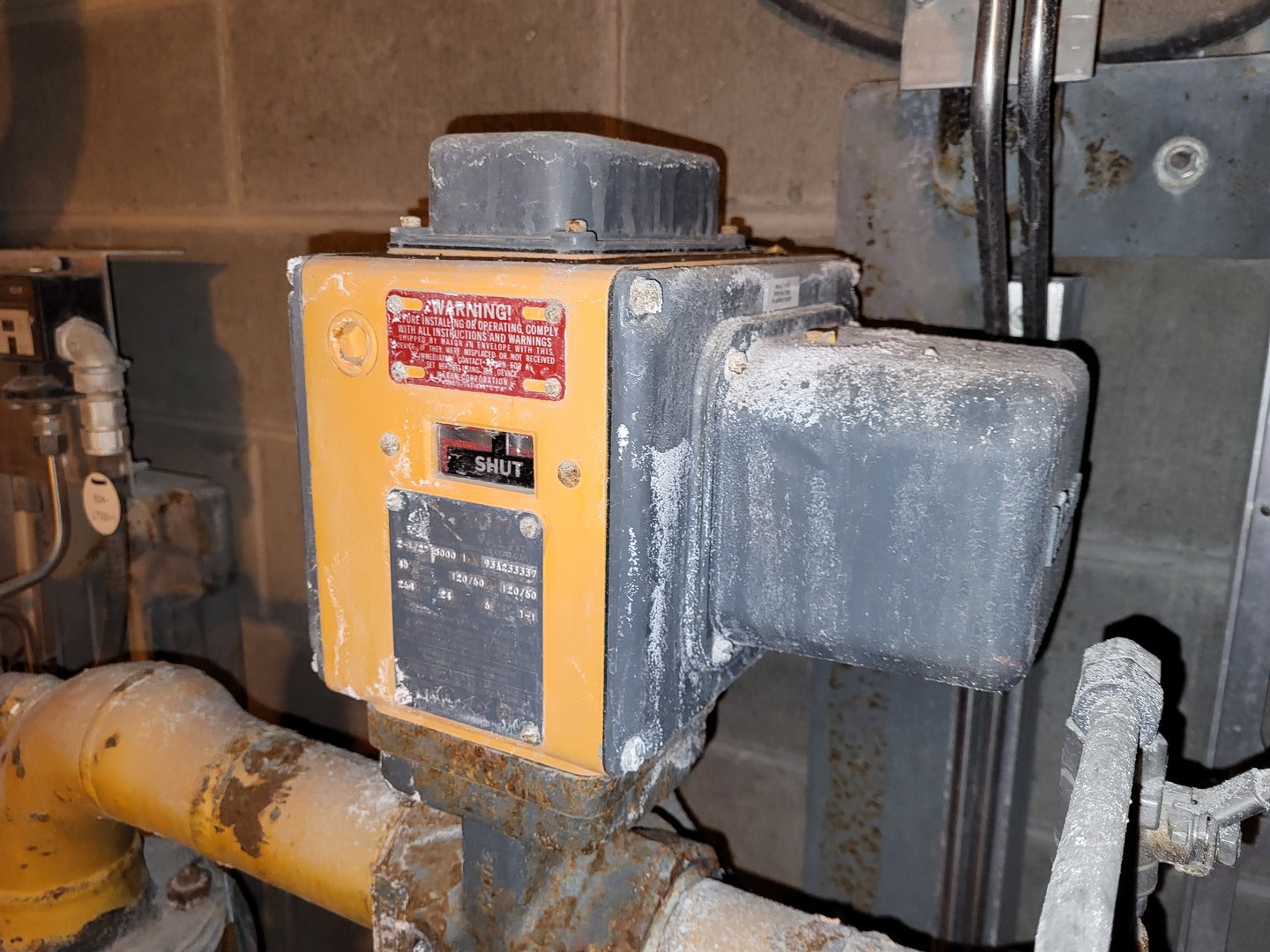

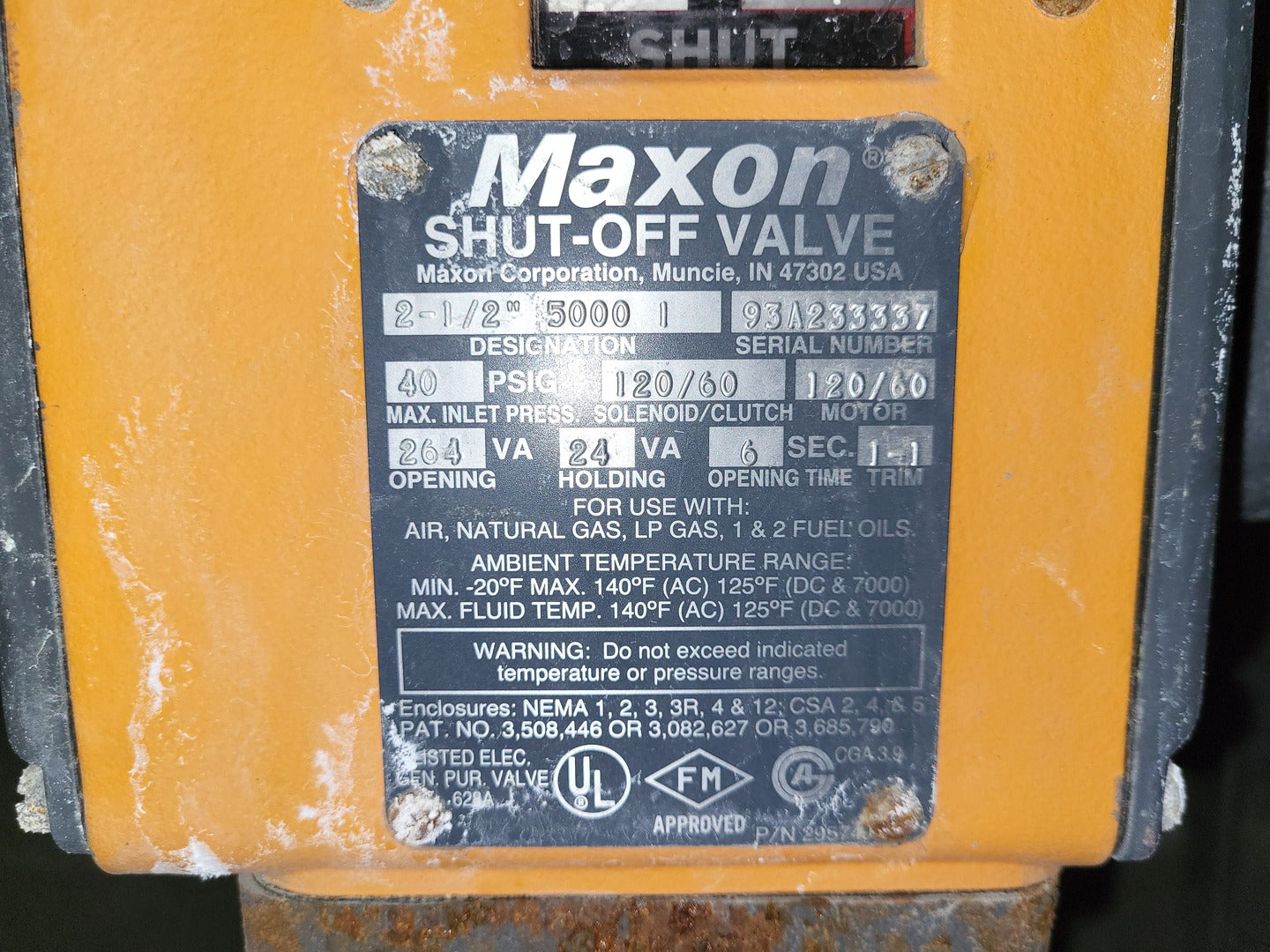

The Natural Gas Shut-Off Valve 5000-1 by MAXON CORPORATION is an automatic (motorized) valve with a normally closed shut-off position. With a 40 psi maximum inlet pressure, this valve has a 1-1 body trim and is made of cast iron. It is suitable for general purpose use and has switch options of VCS-1 and VOS-1. The valve has a motor voltage rating of 120V and a solenoid voltage rating of 120V, with an opening time of 6 seconds. The valve is Class 250 and has flange connection ends. It is available in enclosures 1, 2, 3, 3R, 4, and 12.
| Specifications | |
|---|---|
| Model | 5000-1 |
| S/N: | 93A233337 |
| Condition | Used | General |
| Class | 250 |
| Connection Ends | Flange |
| Other Specifications |
|---|
|
Flow Capacity: Standard Valve Type: Automatic (Motorized) Valve Normal Position: Normally Closed Shut-Off Valve Classification Area: General Purpose Switch Options: VCS-1 and VOS-1 Motor Voltage Rating: 120V, 264 VA Solenoid Voltage Rating: 120V, 24 VA Opening Time: 6 Seconds Maximum Inlet Pressure: 40 psi Body Trim: 1-1 Body Material: Cast Iron Enclosure Type: 1, 2, 3, 3R, 4 & 12 |
