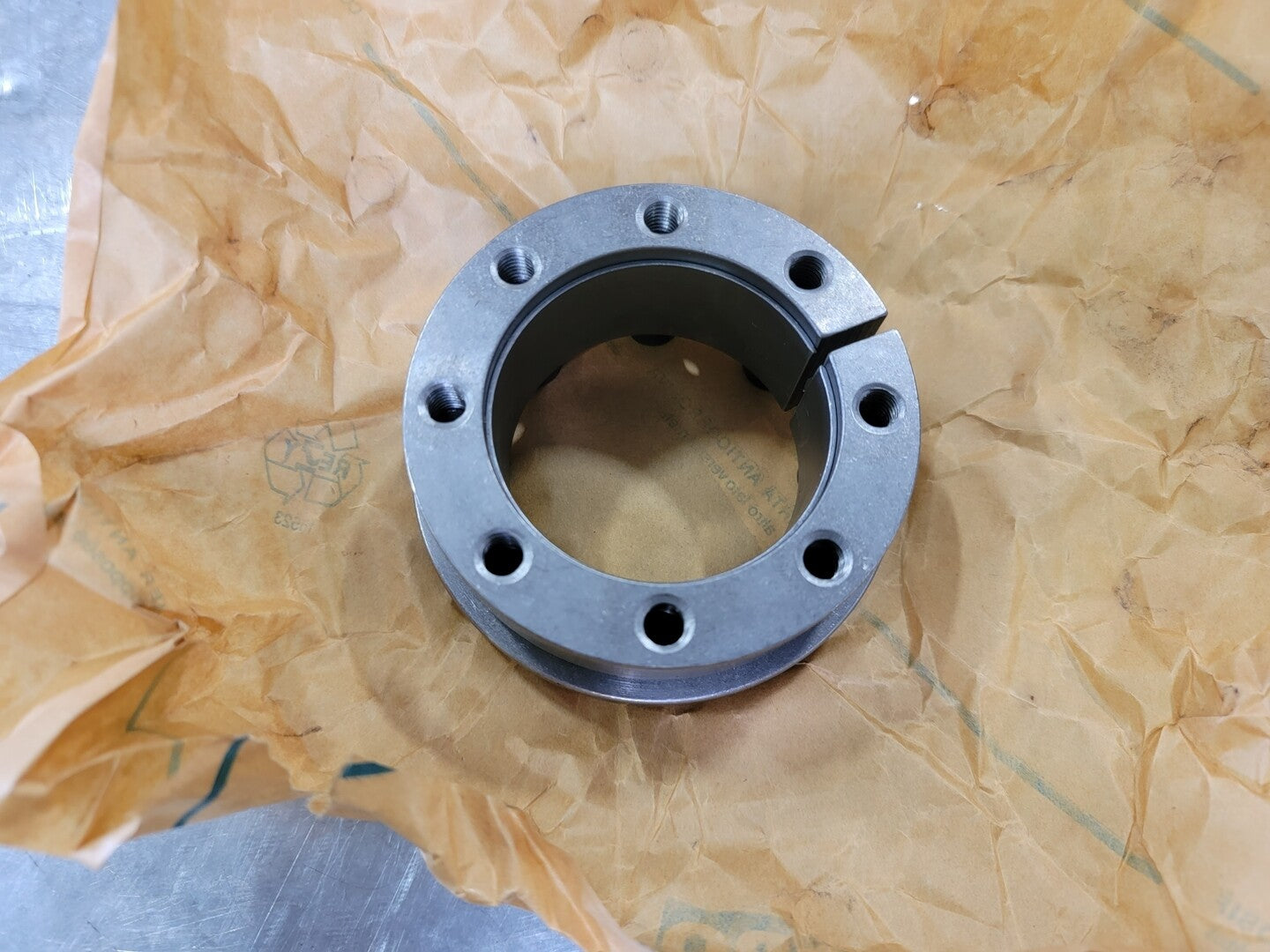

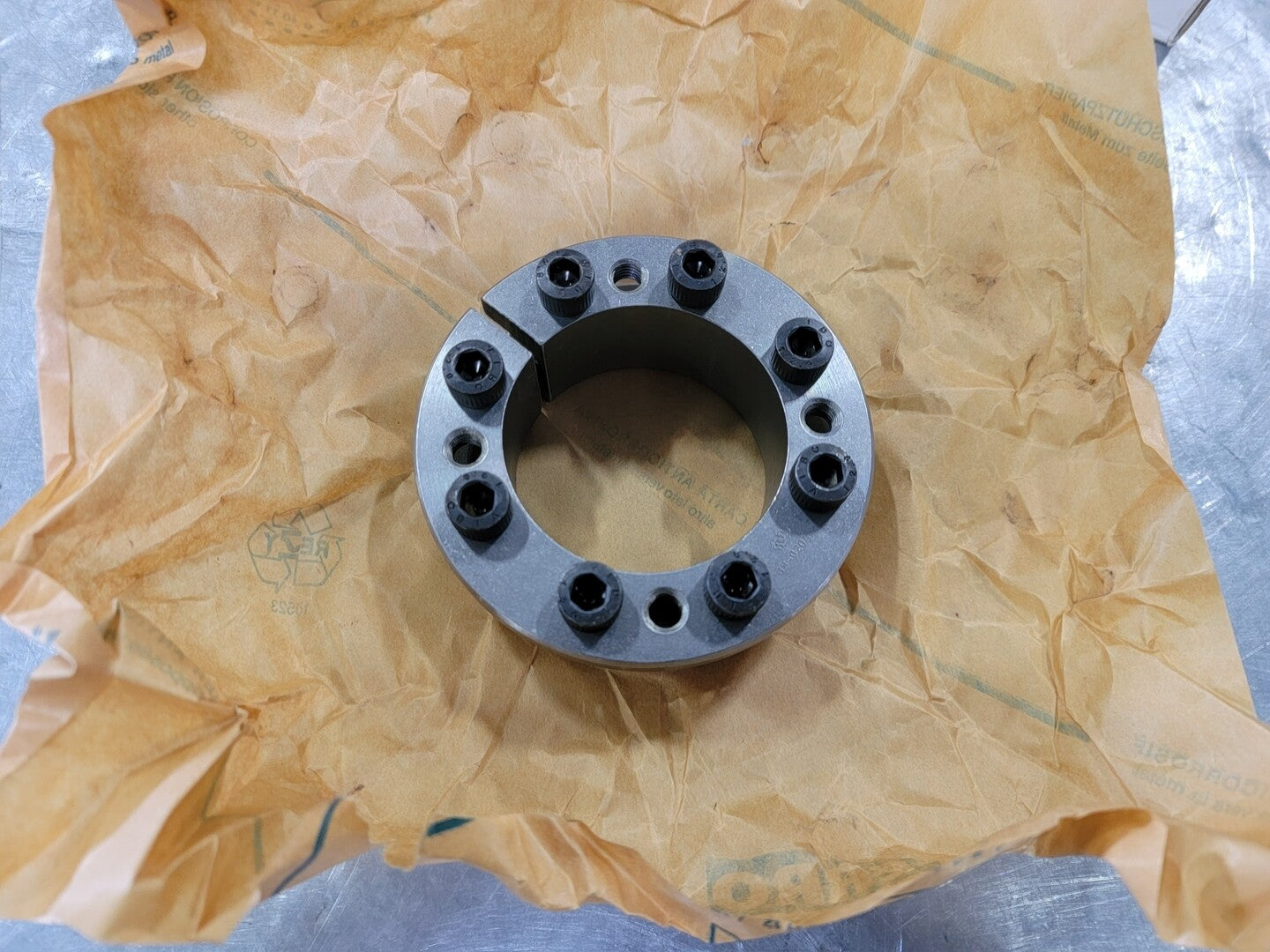

1061 Series 2-3/8" x 90 mm Keyless Locking Assembly

SKU: 22179
Price:
$105 CAD

Shipping calculated at checkout

Stock:
3 in Stock
Make an Offer

Need An Answer Now?

Description

Specifications
Model MAV 1061 2-3/8" x 90 mm
Made In ITALY
Condition Surplus New
General
Type Keyless Bushing
Series 1061
Bore Diameter 2-3/8 "
Other Specifications

Type: Keyless Locking Assembly / Shaft-Hub Locking Device

Series: MAV 1061

Bore Diameter: 60 mm (2-3/8")

Outside Diameter: 90 mm

Design: Single taper, self-centering, self-locking

Axial Position: Fixed during tightening

Connection Type: Keyless friction locking

Recommended Shaft Tolerance: h8

Recommended Hub Bore Tolerance: H8

Screw Tightening Torque (Ma): 41 Nm (30 ft-lb)

Features:-

  1. Eliminates keys, keyways, and splines
  2. Provides zero-backlash shaft-to-hub connection
  3. Self-centering and self-locking design
  4. Maintains hub axial position during installation
  5. High torque transmission capability
  6. Even distribution of clamping forces reduces shaft stress
  7. Easy installation and removal using integrated jack-off threads
  8. Suitable for repeated assembly and disassembly

Ideal Applications:-

  1. Conveyor systems
  2. Gear mounting
  3. Timing pulleys
  4. Chain sprockets
  5. Couplings
  6. Fans and blowers
  7. Industrial drive systems
  8. Packaging machinery
  9. Material handling equipment
  10. General power transmission assemblies
