Description
| Specifications | |
|---|---|

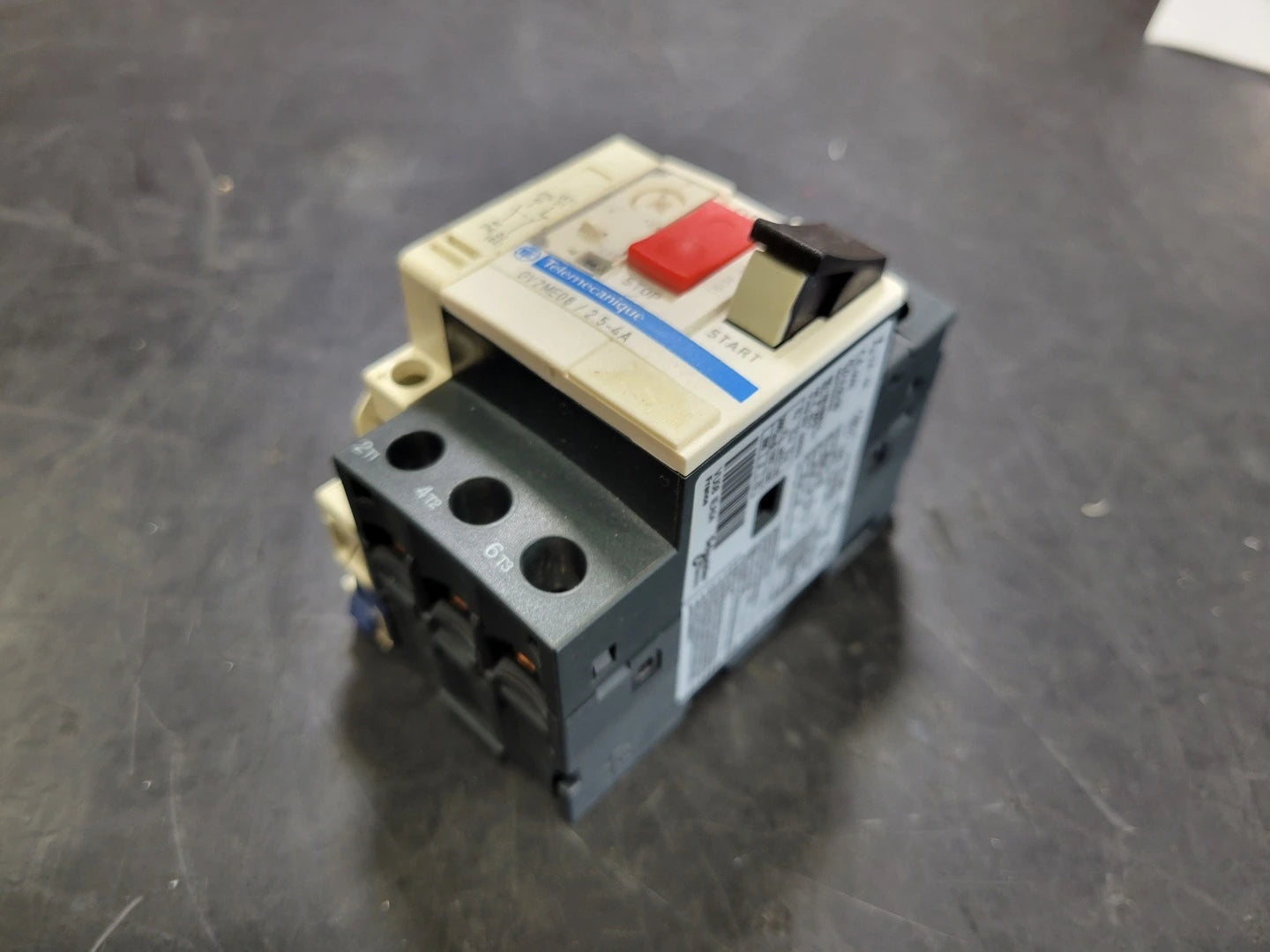

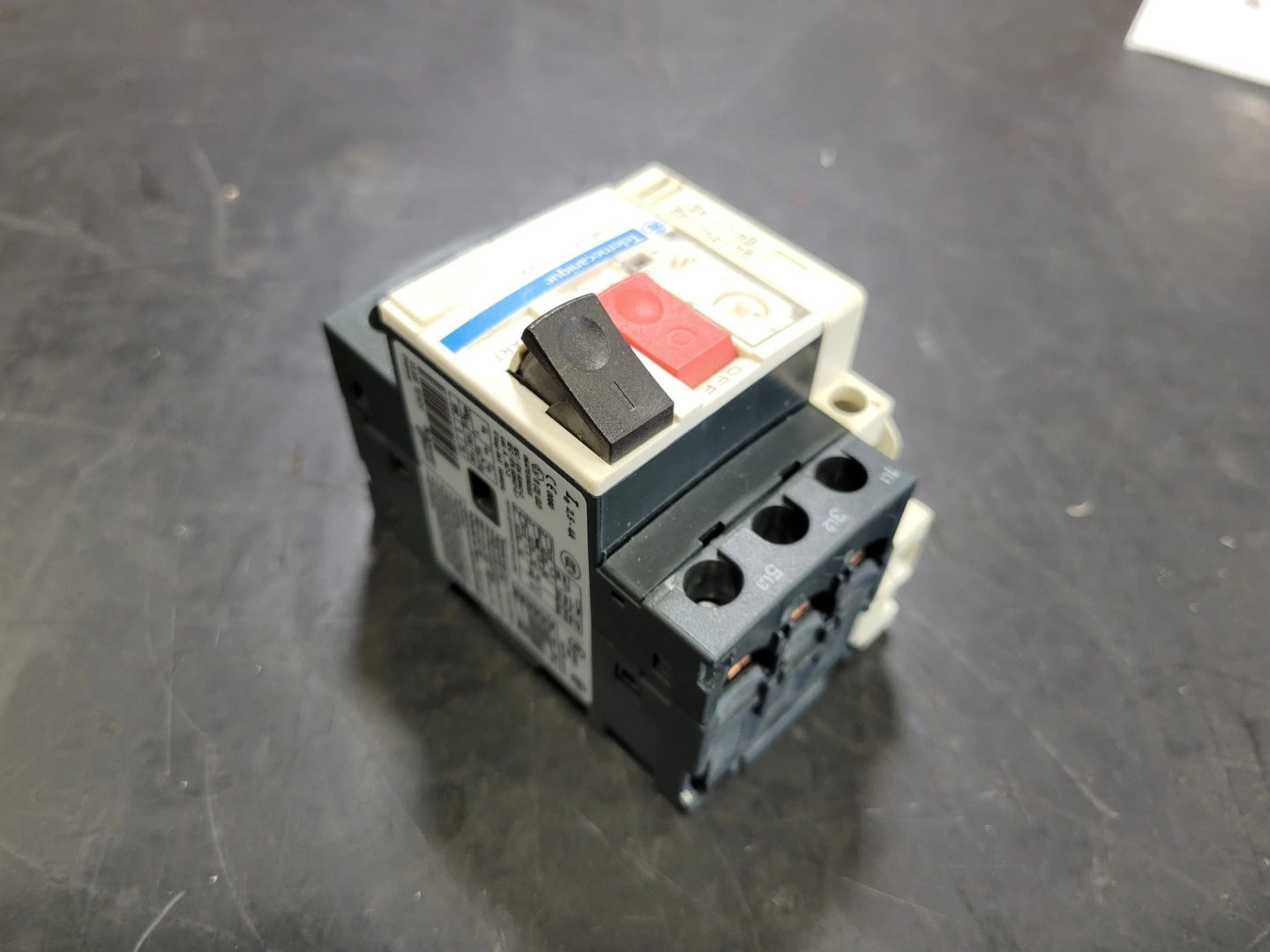

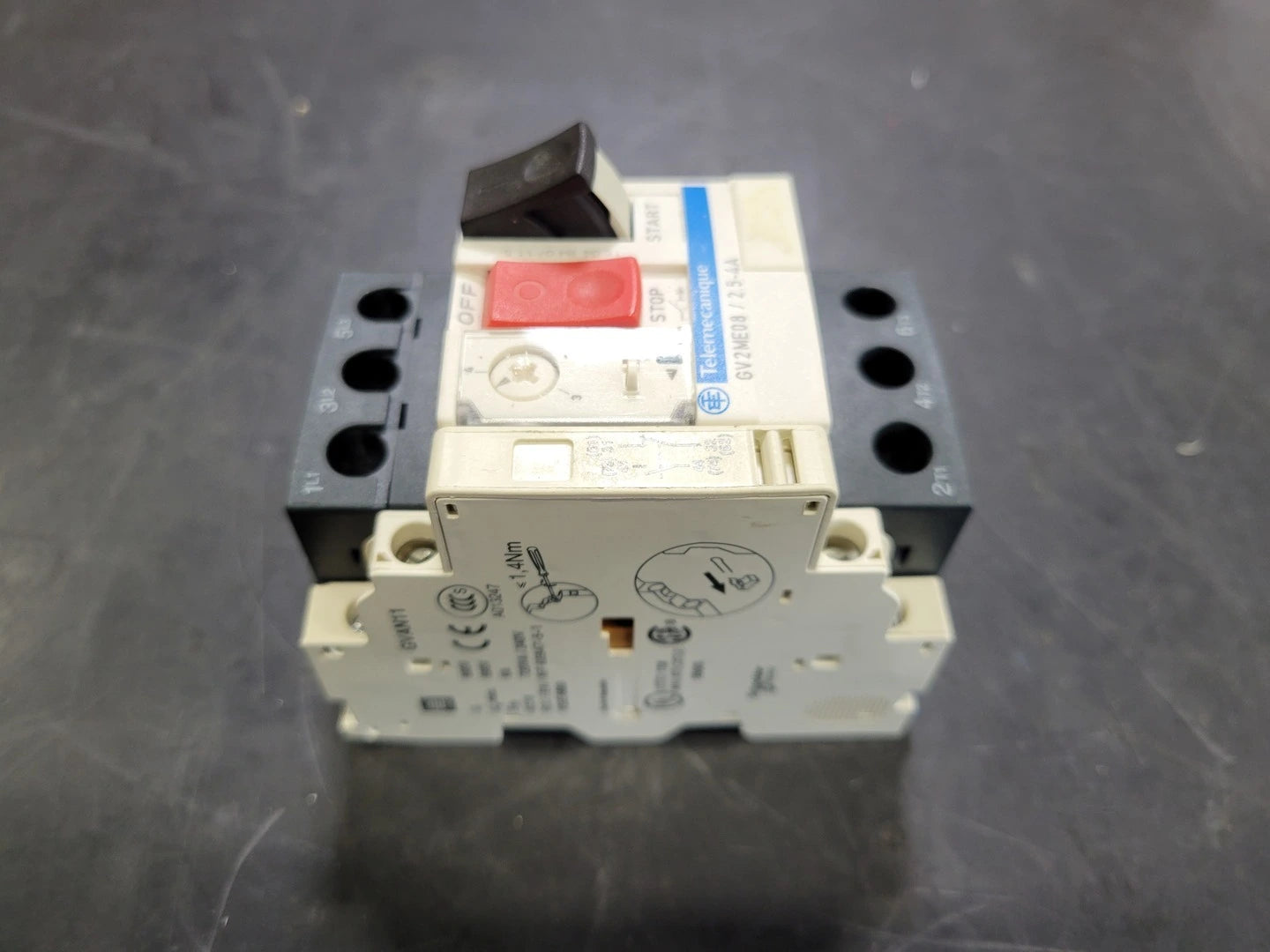

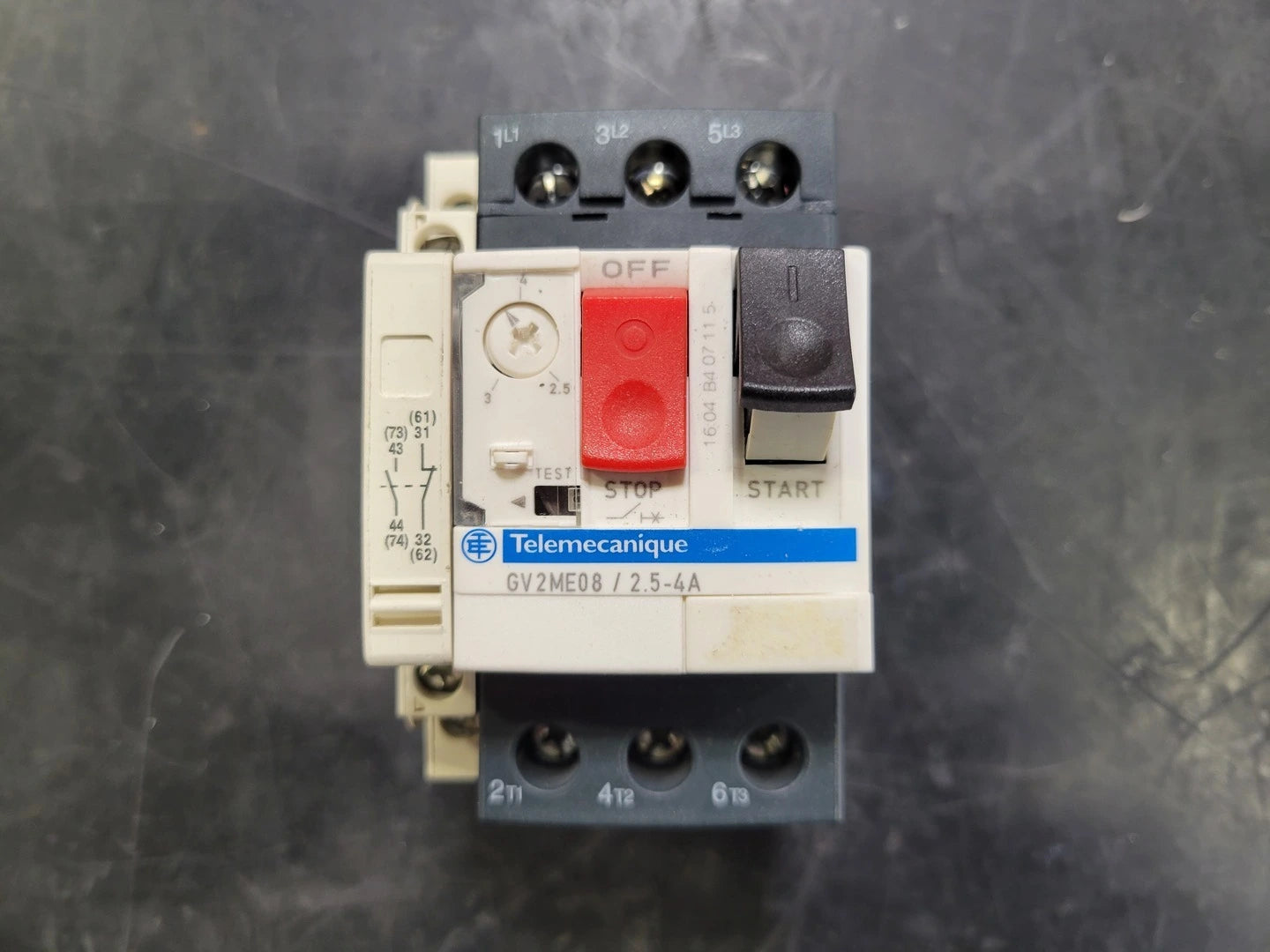

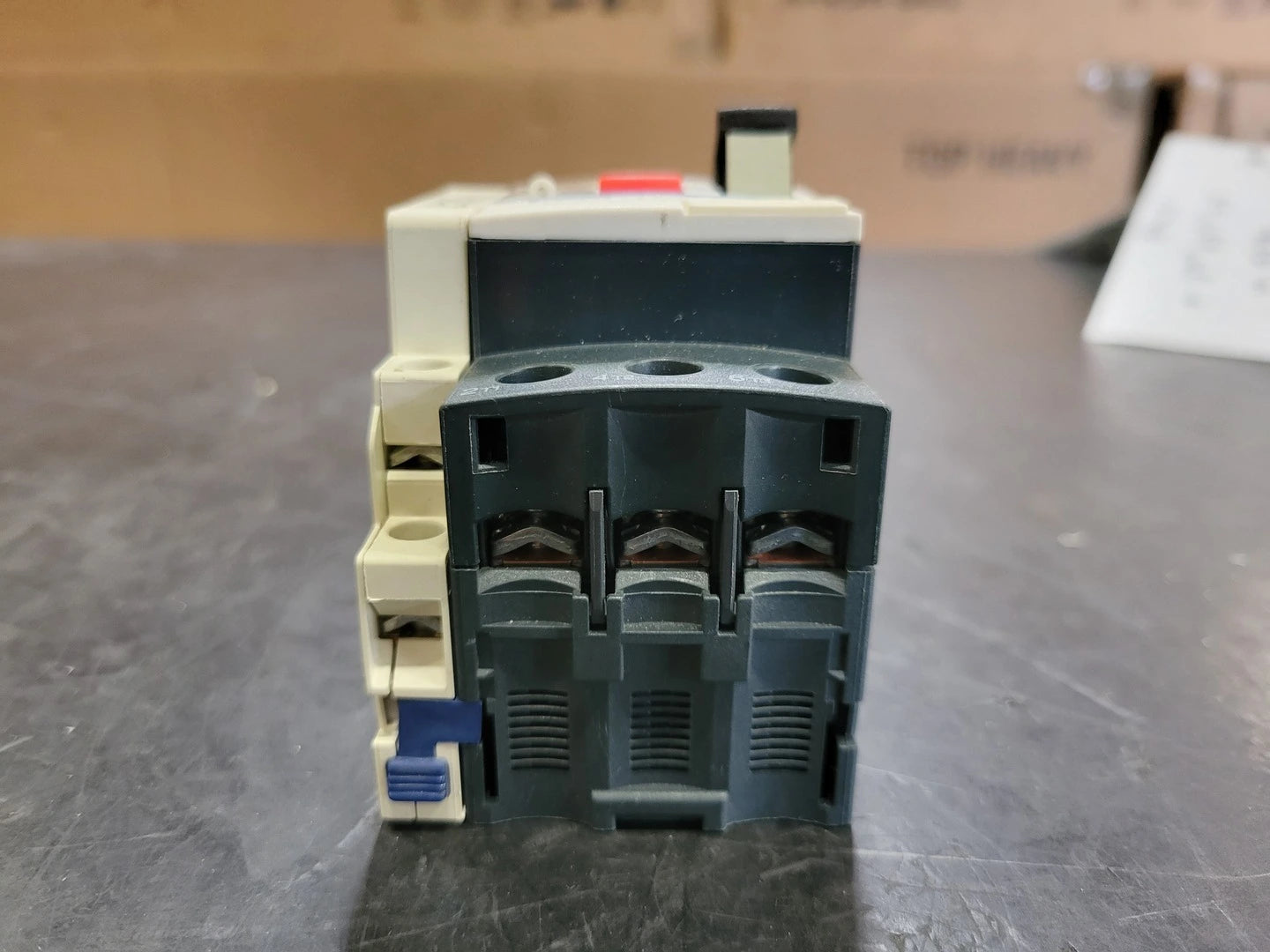

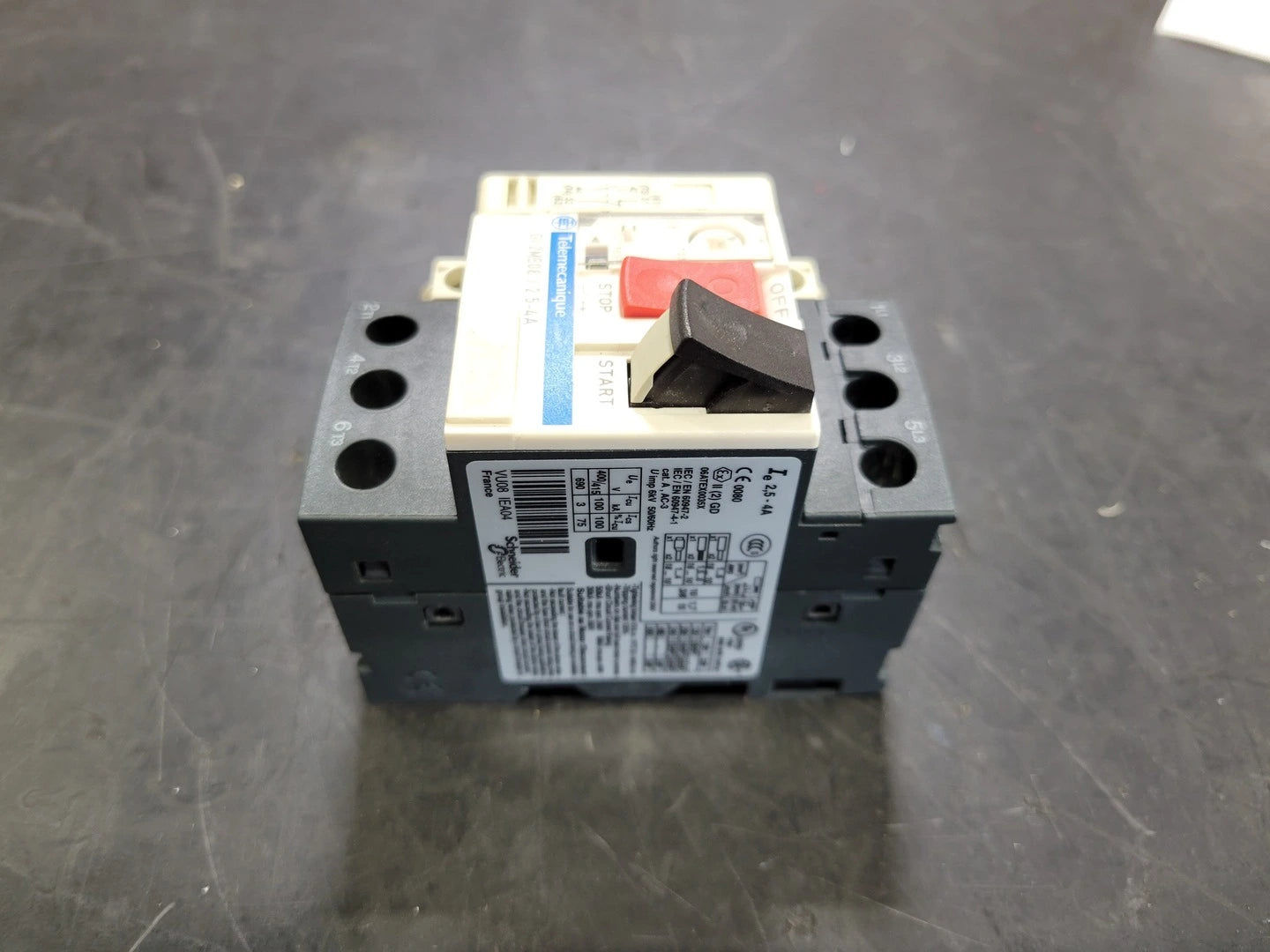

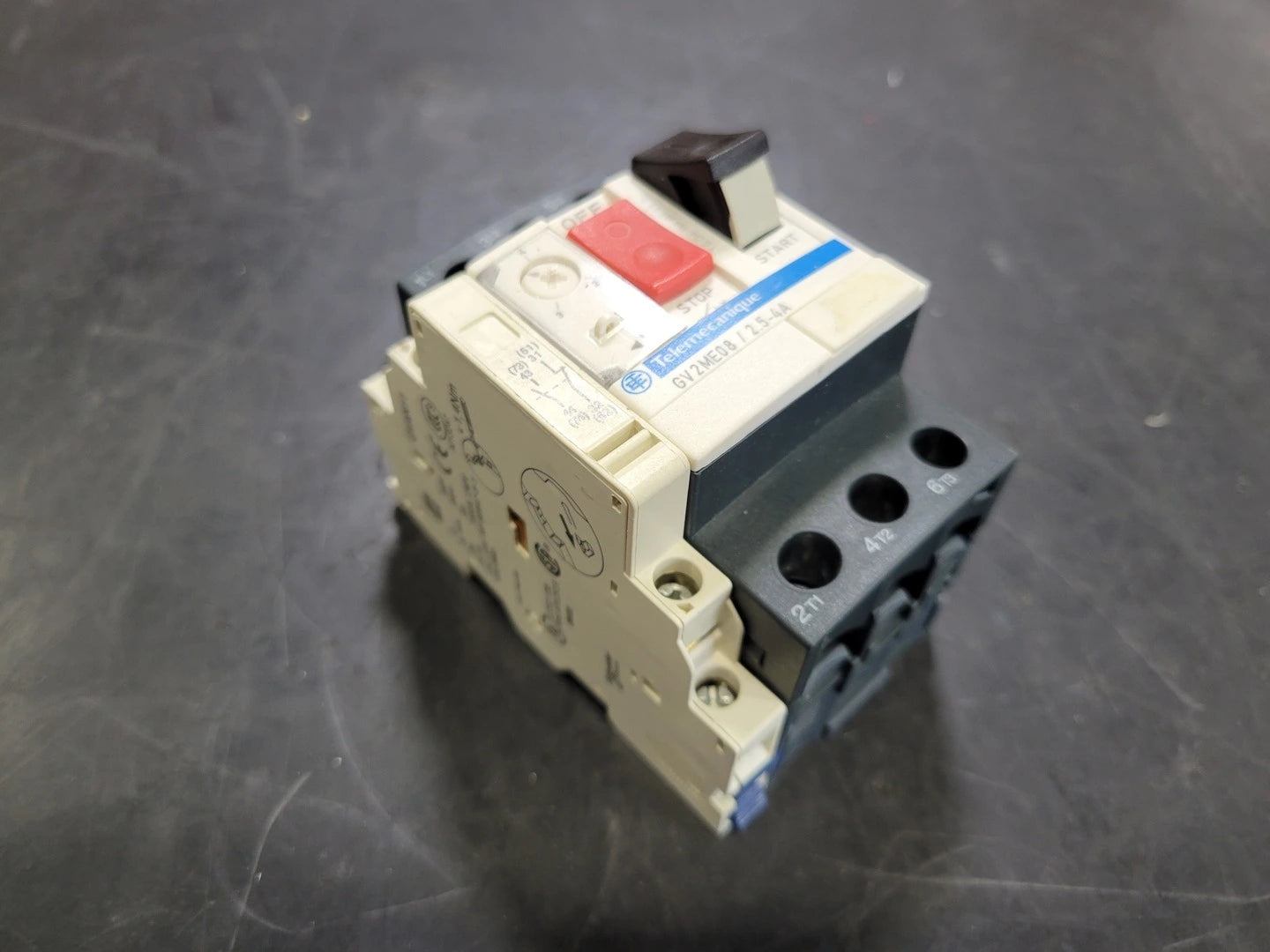

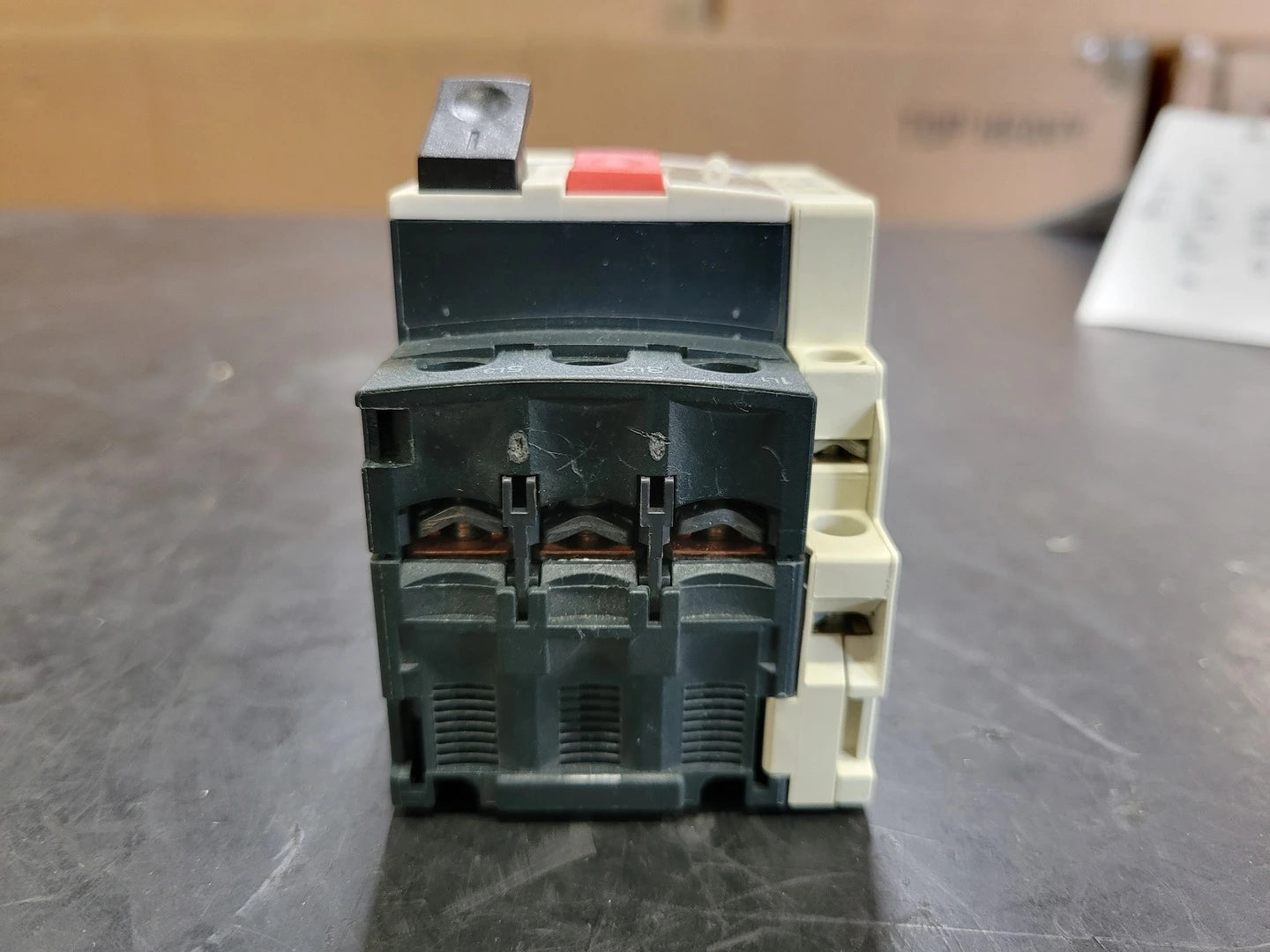

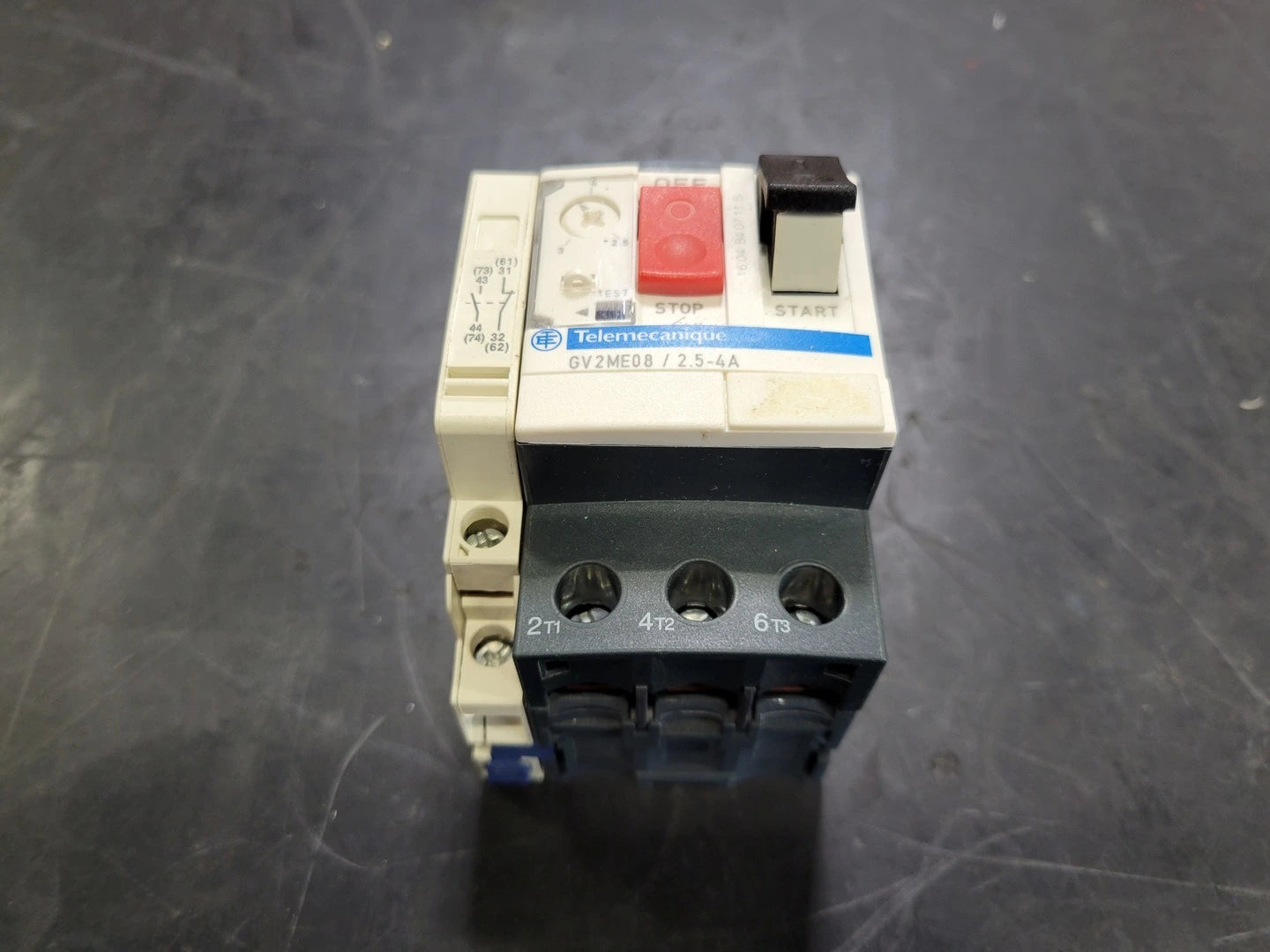

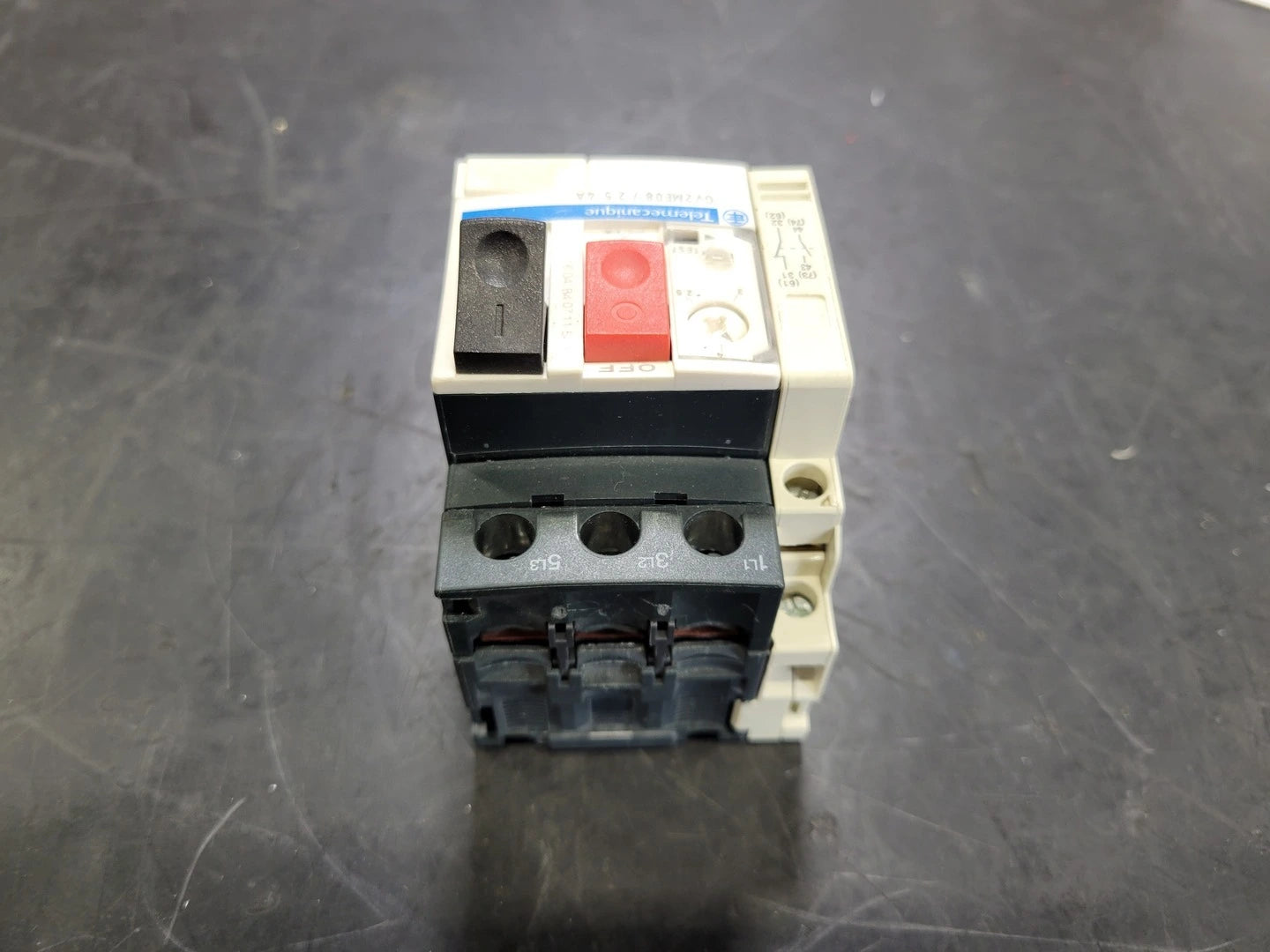

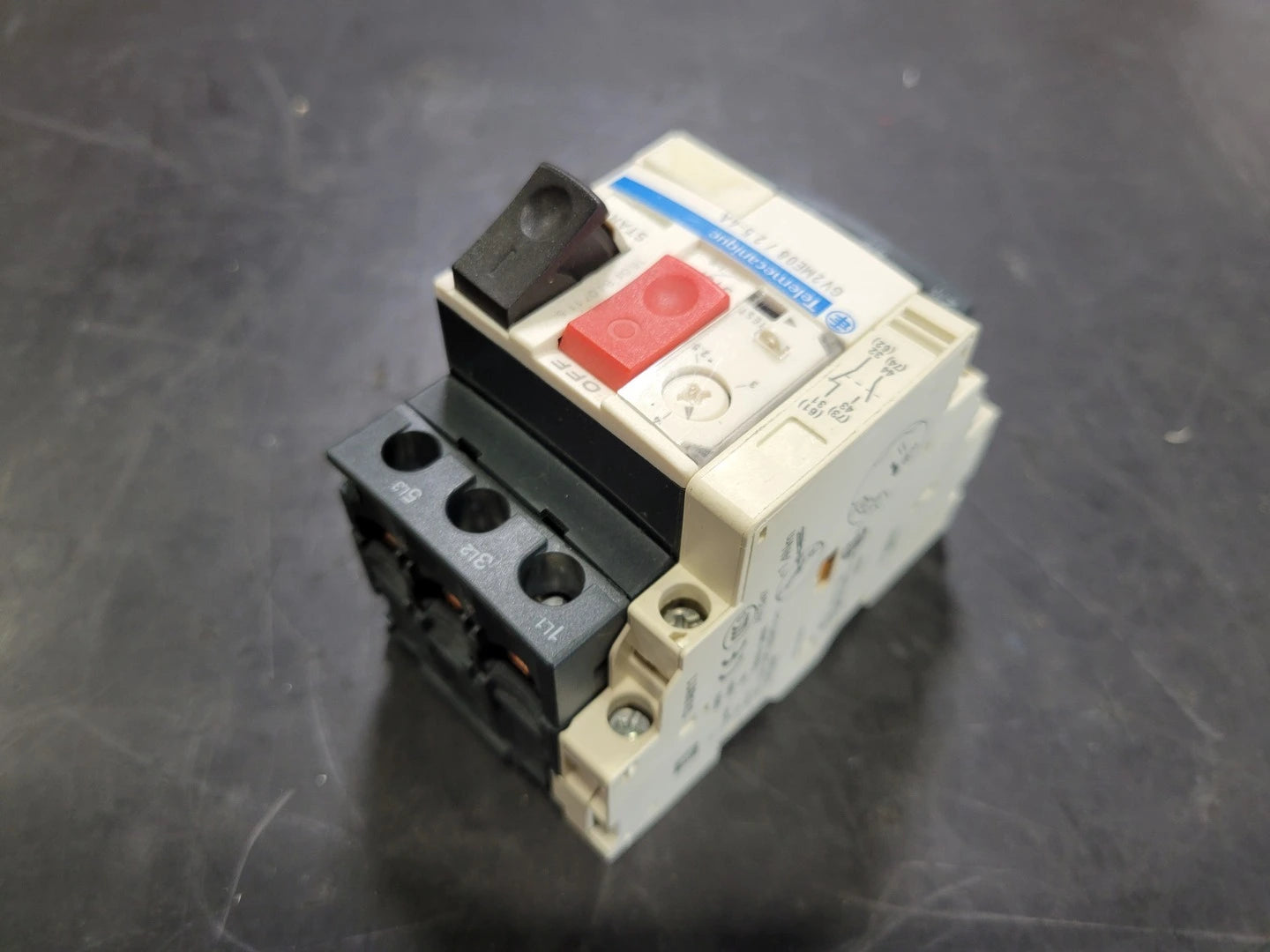

| Model | GV2ME08 |
| Condition | Used |
| Other Specifications |
|---|
|
Poles description: 3P
Network type: AC
Utilisation category: Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
Network frequency: 50/60 Hz conforming to IEC 60947-4-1
Fixing mode: 35 mm symmetrical DIN rail: clipped
Panel: screwed (with adaptor plate)
Motor power kW: 1.1 kW at 400/415 V AC 50/60 Hz
1.5 kW at 400/415 V AC 50/60 Hz
1.5 kW at 500 V AC 50/60 Hz
2.2 kW at 500 V AC 50/60 Hz
3 kW at 690 V AC 50/60 Hz
2.2 kW at 690 V AC 50/60 Hz

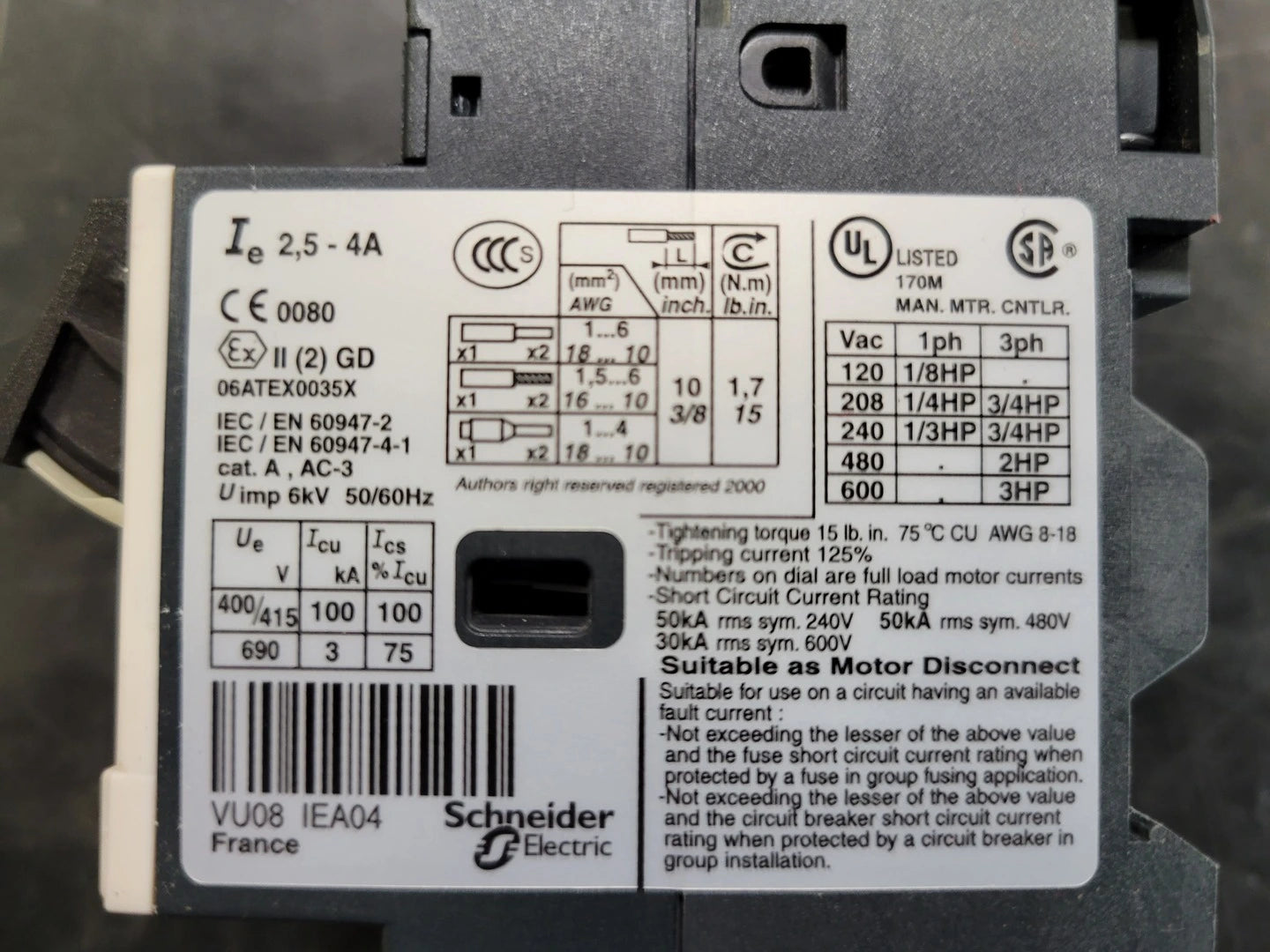

Breaking capacity: 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Control type: Push-button
[In] rated current: 4 A
Thermal protection adjustment range: 2.5?4 A conforming to IEC 60947-4-1
Magnetic tripping current: 51 A
[Ith] conventional free air thermal current: 4 A conforming to IEC 60947-4-1
[Ue] rated operational voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Phase failure sensitivity: Yes conforming to IEC 60947-4-1
Suitability for isolation: Yes conforming to IEC 60947-1 § 7-1-6
Power dissipation per pole: 2.5 W
Mechanical durability: 100000 cycles
Electrical durability: 100000 cycles for AC-3 at 415 V In
Rated duty: Continuous conforming to IEC 60947-4-1
Tightening torque: 1.7 N.m - on screw clamp terminal
|
