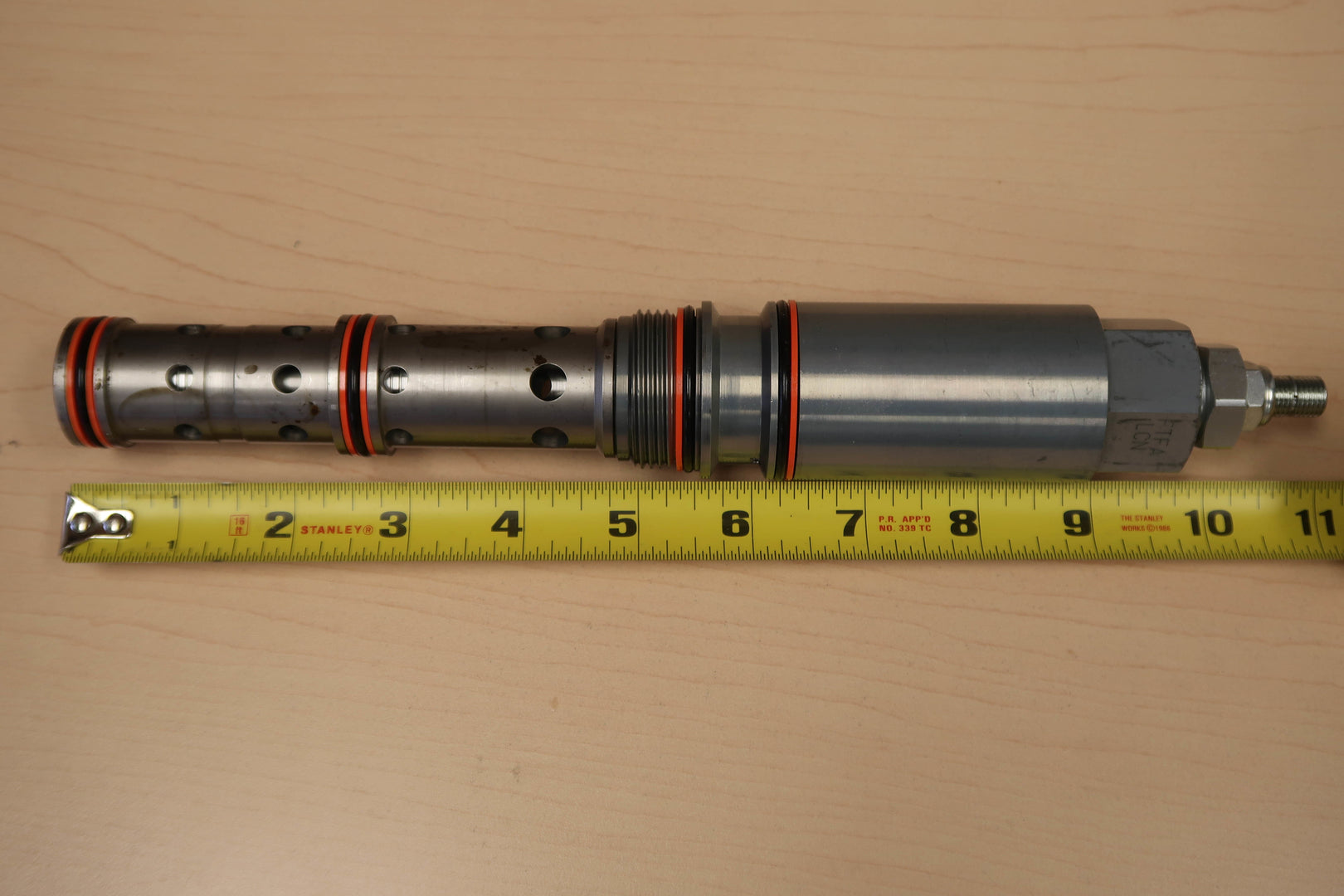

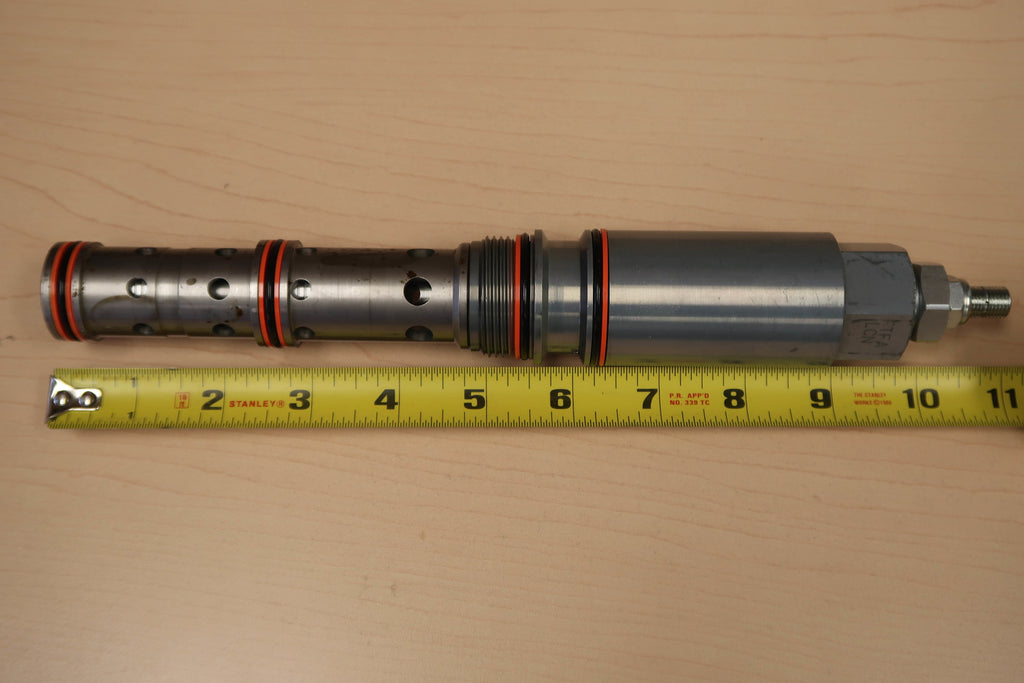

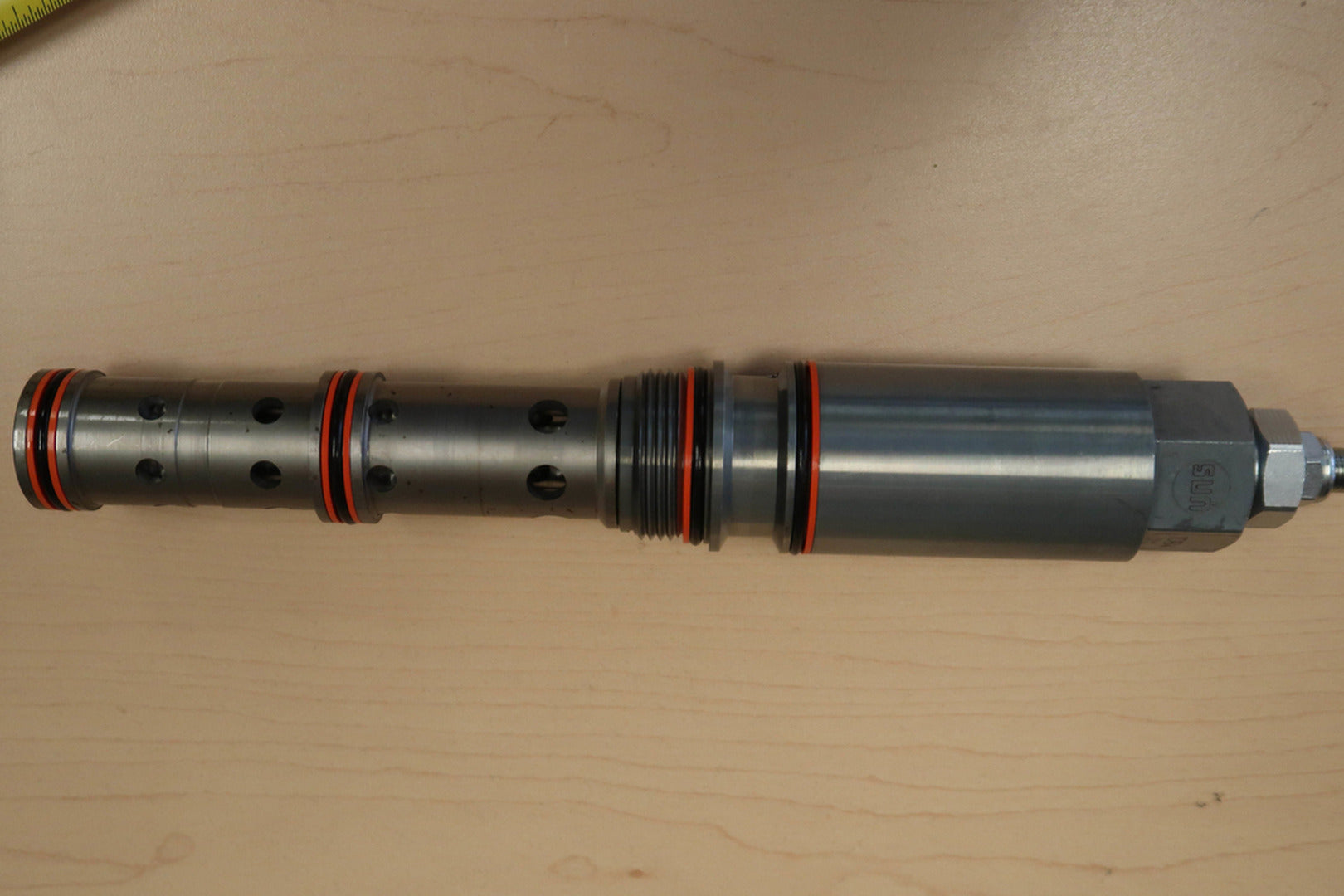

2 Way, Pilot Shifted, Dual Path, Proportional Throttle FTFALCN

SKU: 10642
Price:
$150 CAD

Shipping calculated at checkout

Stock:
2 in Stock
Make an Offer

Need An Answer Now?

Description

Specifications
Model FTFALCN
Condition Used
Other Specifications

Cavity: T-53AD

Series: 3

Capacity: 50 gpm

Maximum Operating Pressure: 5000 psi

Pilot Pressure Required to Shift Valve: 50 - 120 psi

Pilot Pressure Required for Full Shift at Rated Flow: 290-340 psi

Maximum Valve Leakage at 110 SUS (24 cst): 10 in3/min. @ 1000 psi

Pilot Volume Displacement: 0.10 in3

Adjustment - No. of CCW Turns from Fully Closed to Fully Open: 5

Hysteresis: 35%

Valve Hex Size: 1-1/4"

Valve Installation Torque: 150-160 lbf ft.

Adjustment Screw Internal Hex Size: 5/32 in.

Locknut Hex Size: 9/16 in.

Locknut Torque: 80-90 lbf in.
