Description
| Specifications | |
|---|---|

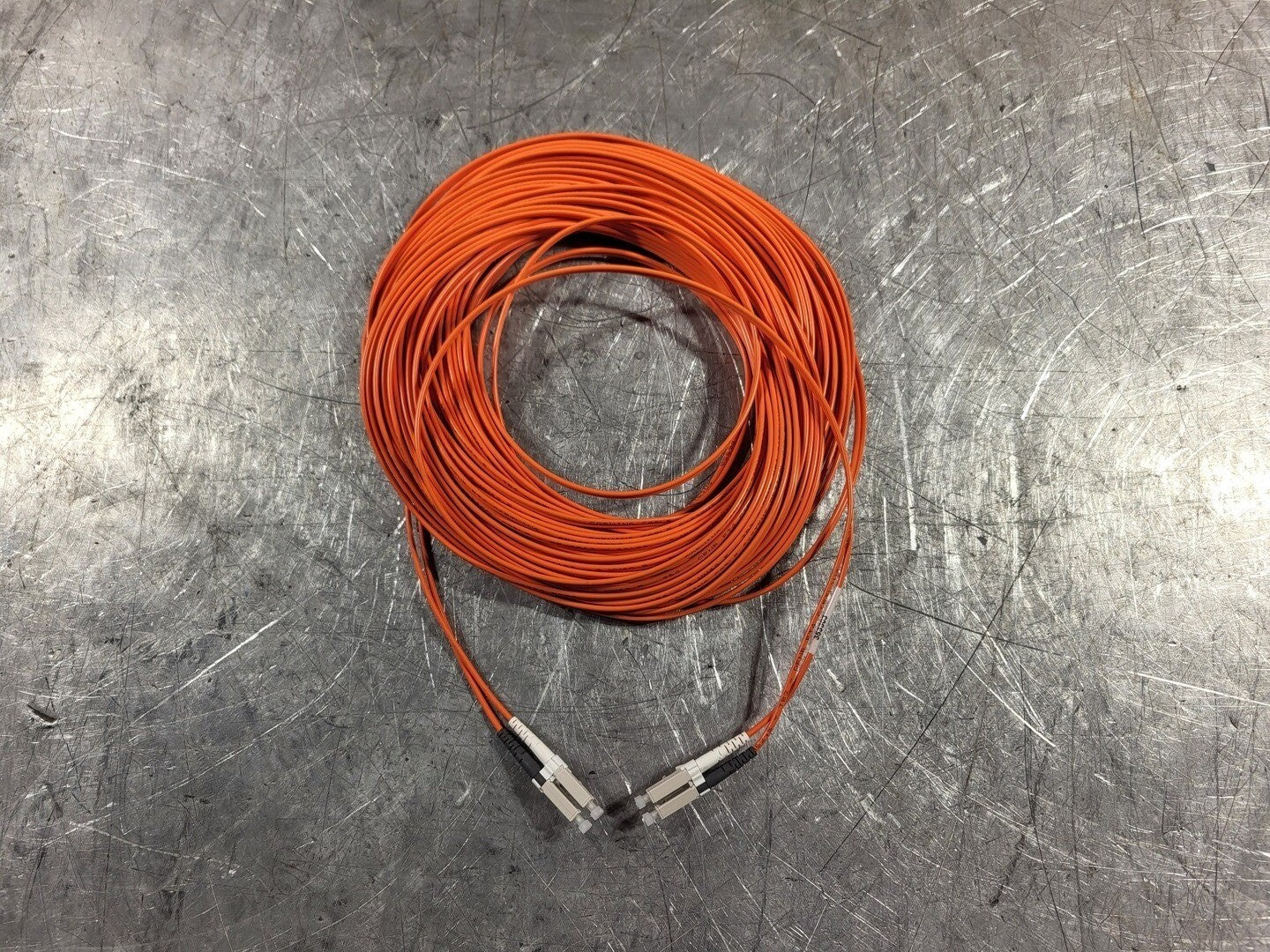

| Model | PC1LPLPP-20-0 |
| Condition | Surplus New | General |
| Length | 65.6 ft | Electrical |
| Wire Type | Ethernet/Fibre/Communication |
| Other Specifications |
|---|
|
Connector A: LC UPC Duplex Fiber Count: 2 Fibers Fiber Mode: OM1 62.5/125 um Polarity: A (Tx) to B (Rx) Cable Outside Diameter: 2.00 mm Minimum Bend Radius (Optical Fiber): 15 mm Connector Durability: 1000 times Insertion Loss: </-0.3 dB Attenuation @ 850 mm: 3.0 dB/km Operating Temperature: -20 to 70 deg. C (-4 to 158 deg. F) Connector B: LC UPC Duplex Fiber Grade: G.651 Wavelength: 850/1300 nm Cable-Type: Tight-Buffered Cable Jacket: Riser (OFNR) Minimum Bend Radius (Fiber Cable): 20/10D (Dynamic/Static) Tensile Strength (Long/Short Term): 90/150 N Return Loss: >/-30 dB Attenuation @ 1300 nm: 1.0 dB/km Storage Temperature: -40 to 80 deg. C (-40 to 176 deg. F) Length: 20 meters Color: Orange |
