2000A 480Y/277V Eaton Switchgear Power Distribution Center w/ 45kVA Transformer & Panels (Containerized)

SKU: 142837
Price:
$52,500 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

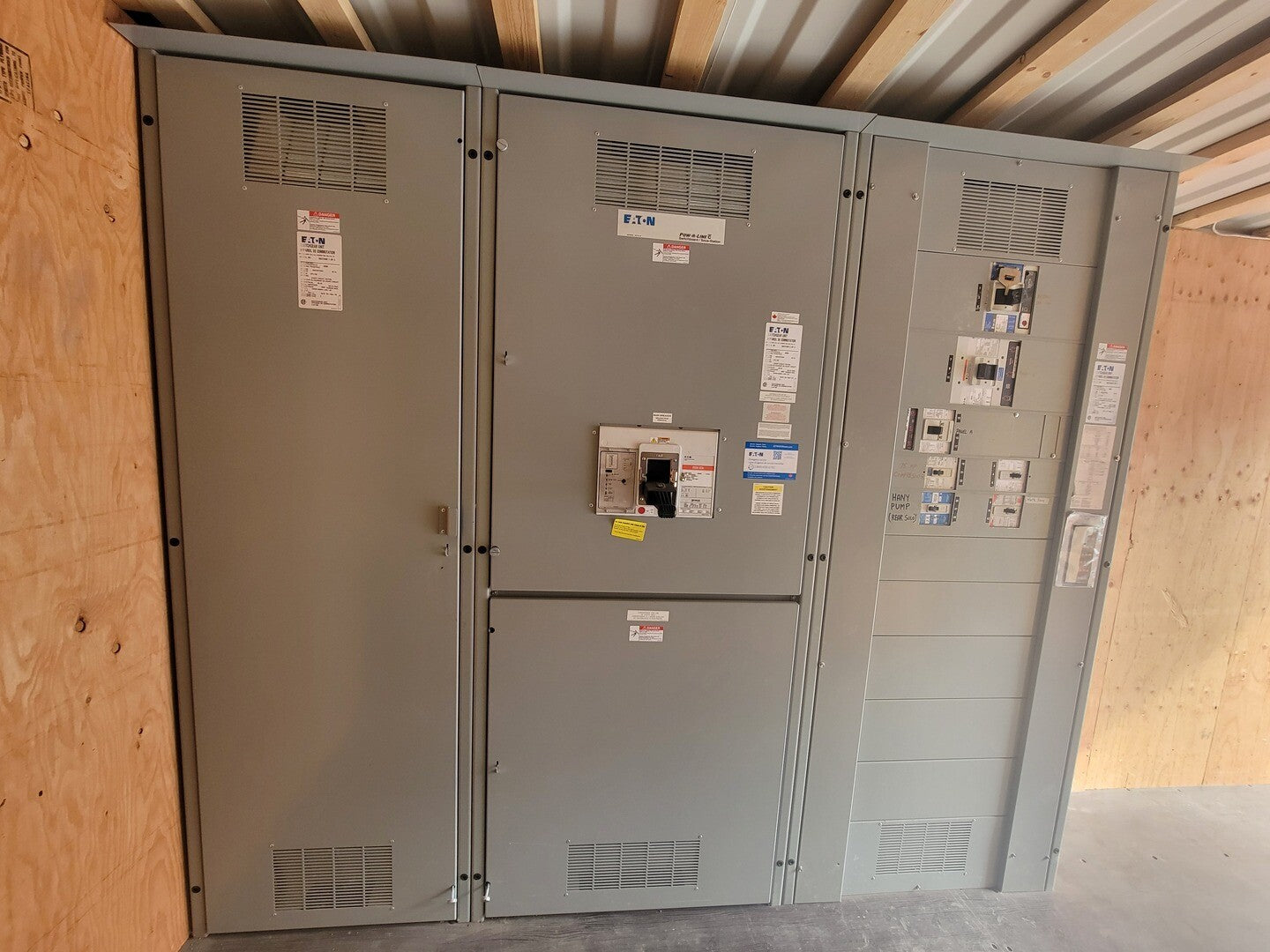

Containerized 2000A Eaton switchgear power distribution center with integrated 45 kVA transformer and Square D panelboards. Designed for 480Y/277V service with 208Y/120V secondary distribution. Fully wired and ready for deployment, ideal for industrial, mining, or temporary power applications requiring a complete, portable electrical distribution solution.
Condition Used
Other Specifications

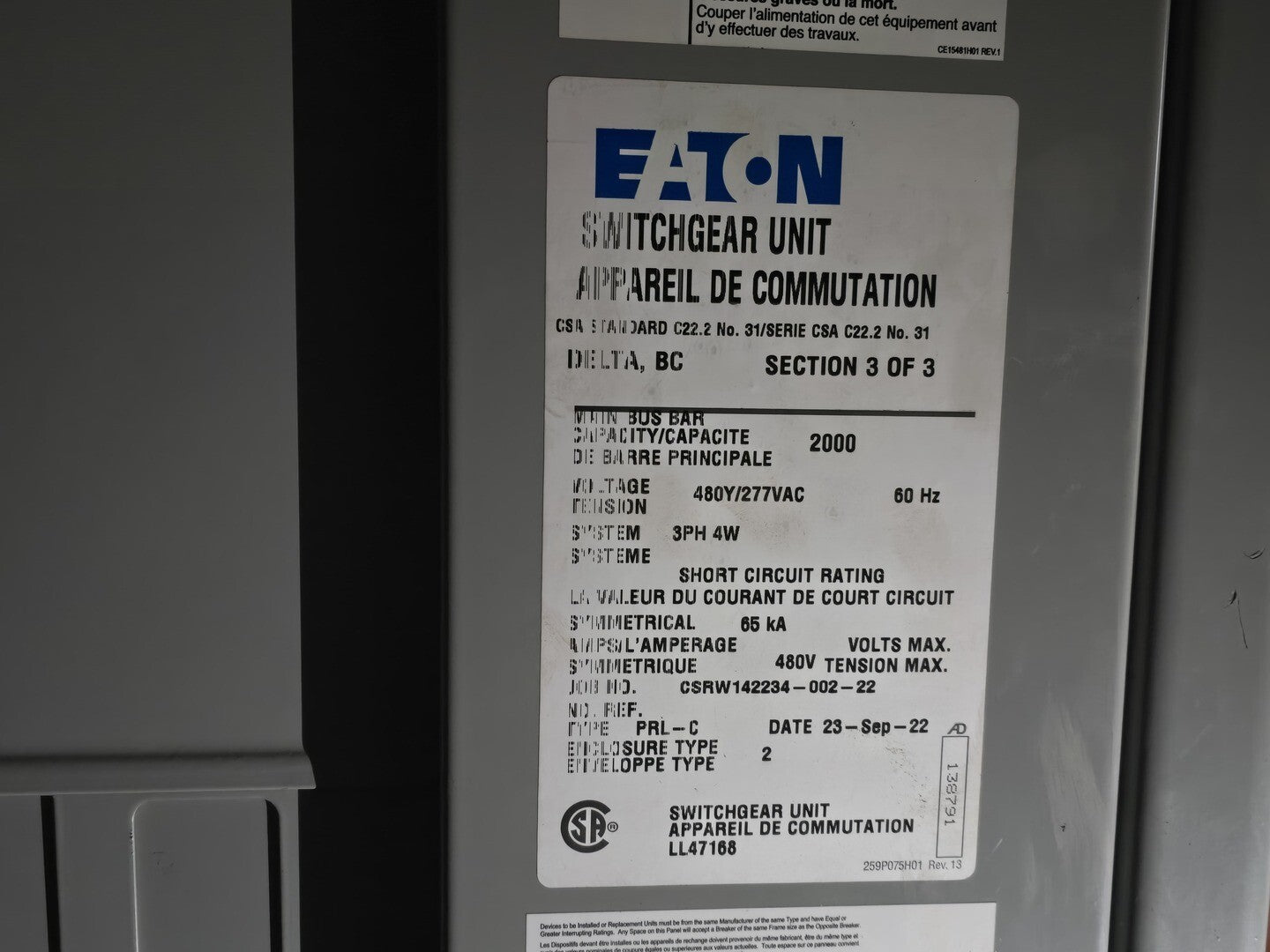

Switchgear (Main Assembly)

  1. Manufacturer: Eaton
  2. Type: Low Voltage Switchgear
  3. Sections: 3 Sections
  4. Bus Rating: 2000 Amps
  5. Voltage: 480Y/277V
  6. Phase: 3 Phase, 4 Wire
  7. Frequency: 60 Hz
  8. Short Circuit Rating: 65 kA
  9. Enclosure Type: Type 2

Main Breaker

  1. Manufacturer: Eaton
  2. Model: RGH 65k
  3. Rating: 2000 Amps
  4. Poles: 3 Pole
  5. Voltage Rating: Up to 600V

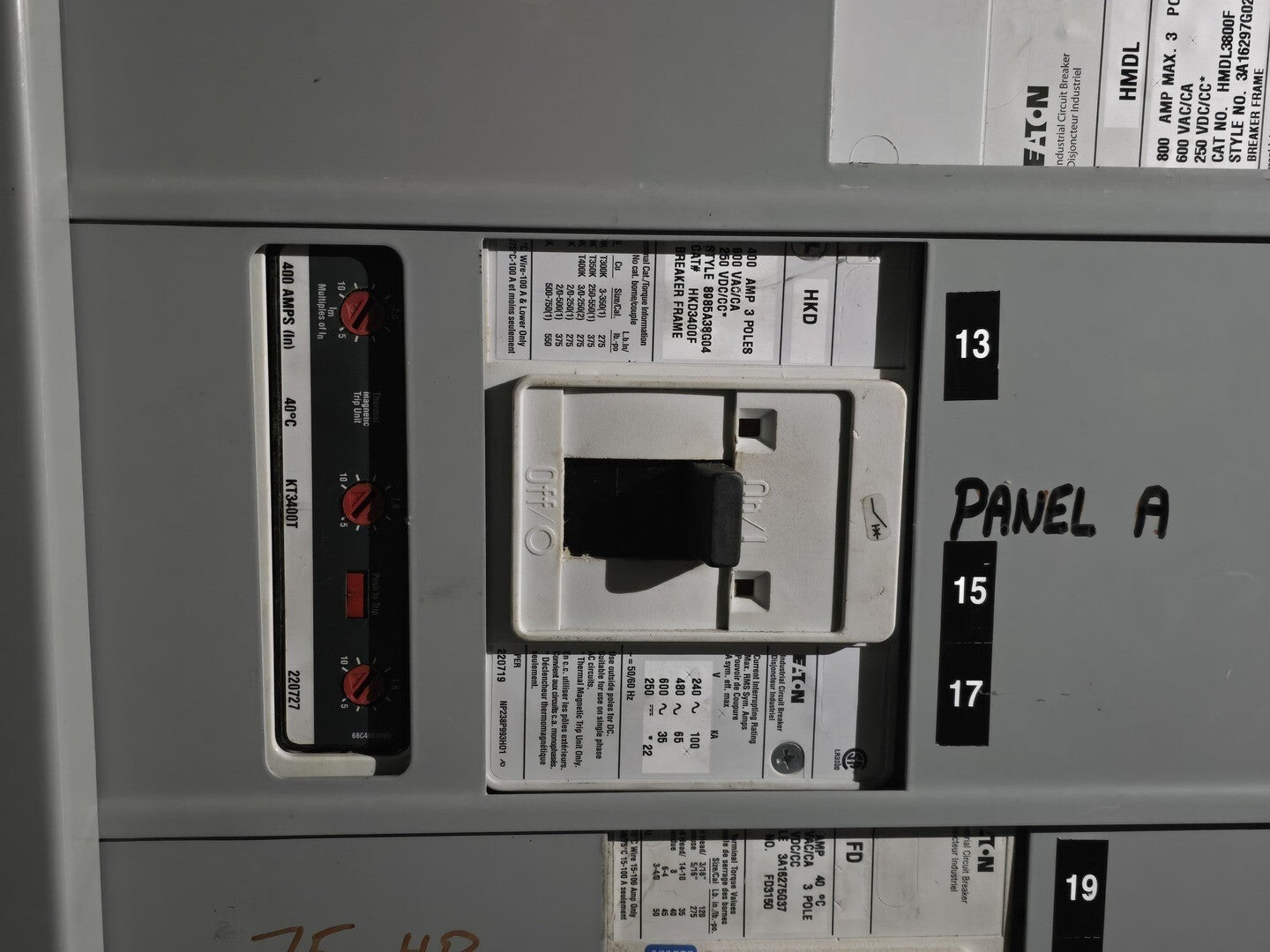

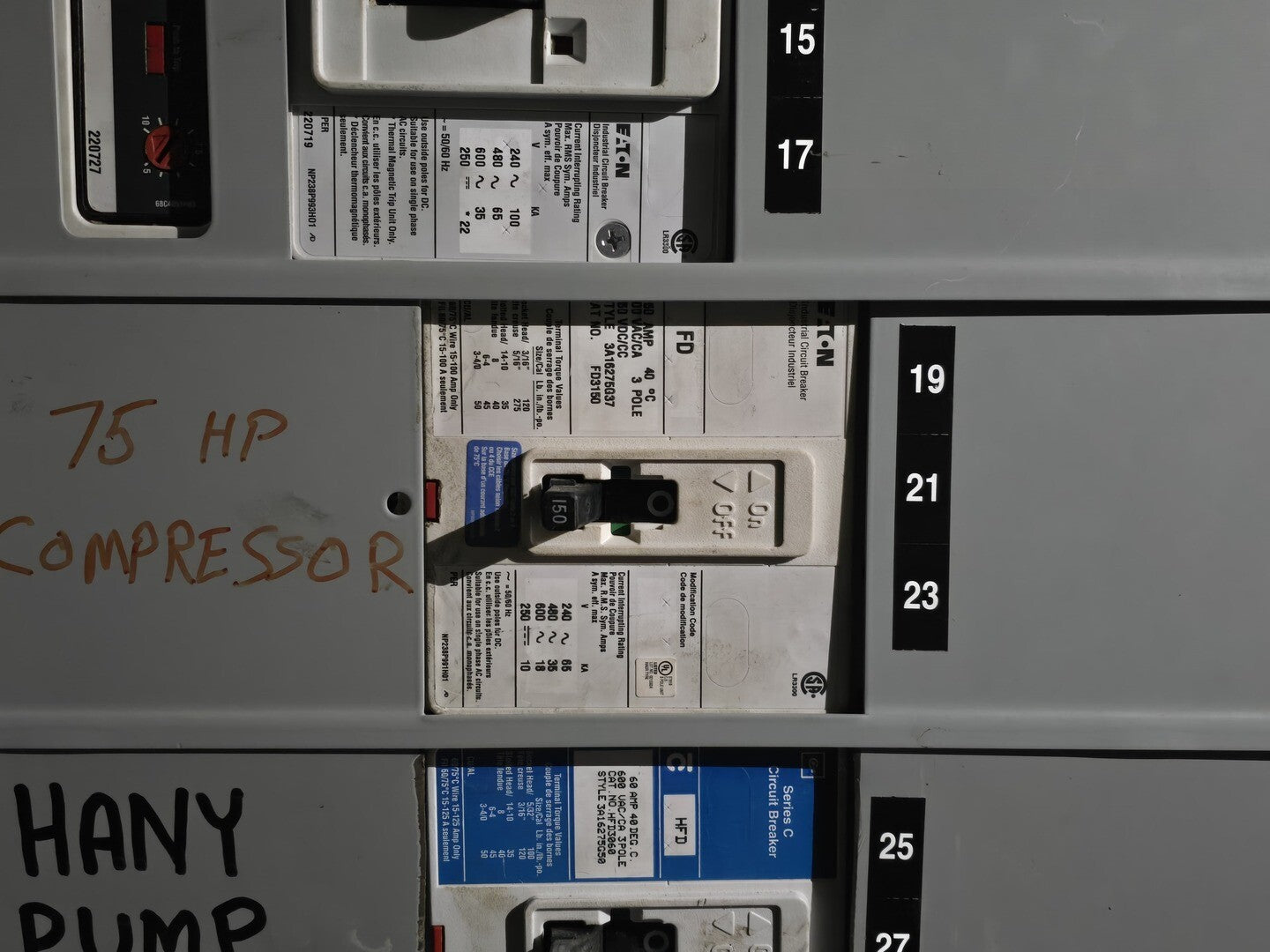

Feeder Breakers (Installed)

  1. 800A - Eaton Series C (HMDL)
  2. 400A - Eaton HKD
  3. 150A - Eaton FD
  4. 90A - Federal Pioneer
  5. 60A - Eaton HFD
  6. 50A - Eaton HFD
  7. Additional branch breakers installed in panelboards

Transformer

  1. Manufacturer: Rex Power Magnetics
  2. Capacity: 45 kVA
  3. Phase: 3 Phase
  4. Primary Voltage: 480V Delta
  5. Secondary Voltage: 208Y/120V
  6. Frequency: 60 Hz
  7. Enclosure: Type 3R
  8. Insulation Class: 220°C

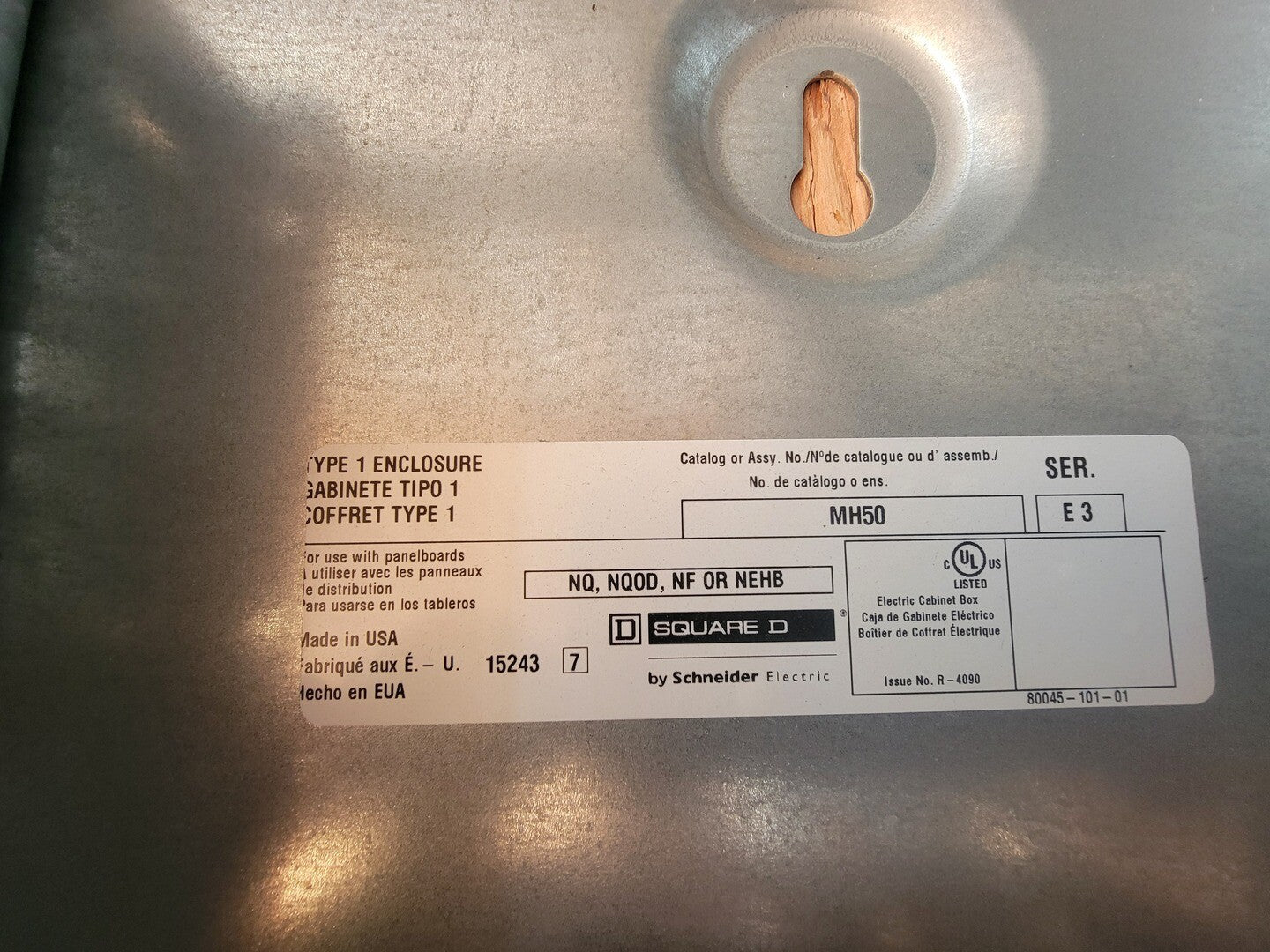

Panelboards

  1. Manufacturer: Square D (Schneider Electric)
  2. Type: NQ / NQOD Panelboards
  3. Enclosure: Type 1
  4. Configuration: Multi-circuit distribution panels
  5. Application: Branch circuit distribution (lighting, receptacles, equipment)

Additional Components

  1. Eaton Meter Socket / Service Entry Section
  2. Pre-installed feeder cabling and conduit
  3. Grounding and bonding system
  4. Fully wired and integrated assembly
