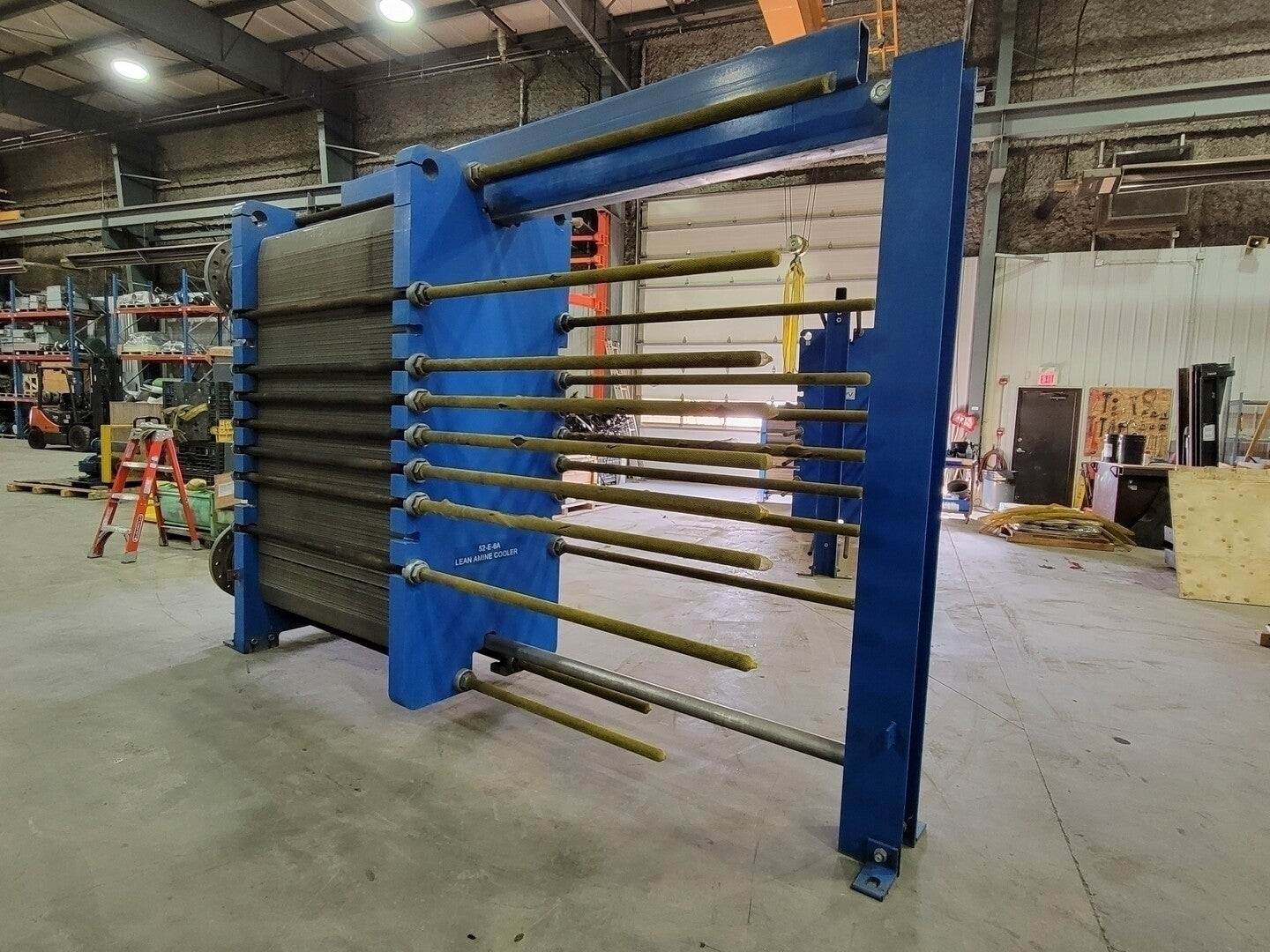

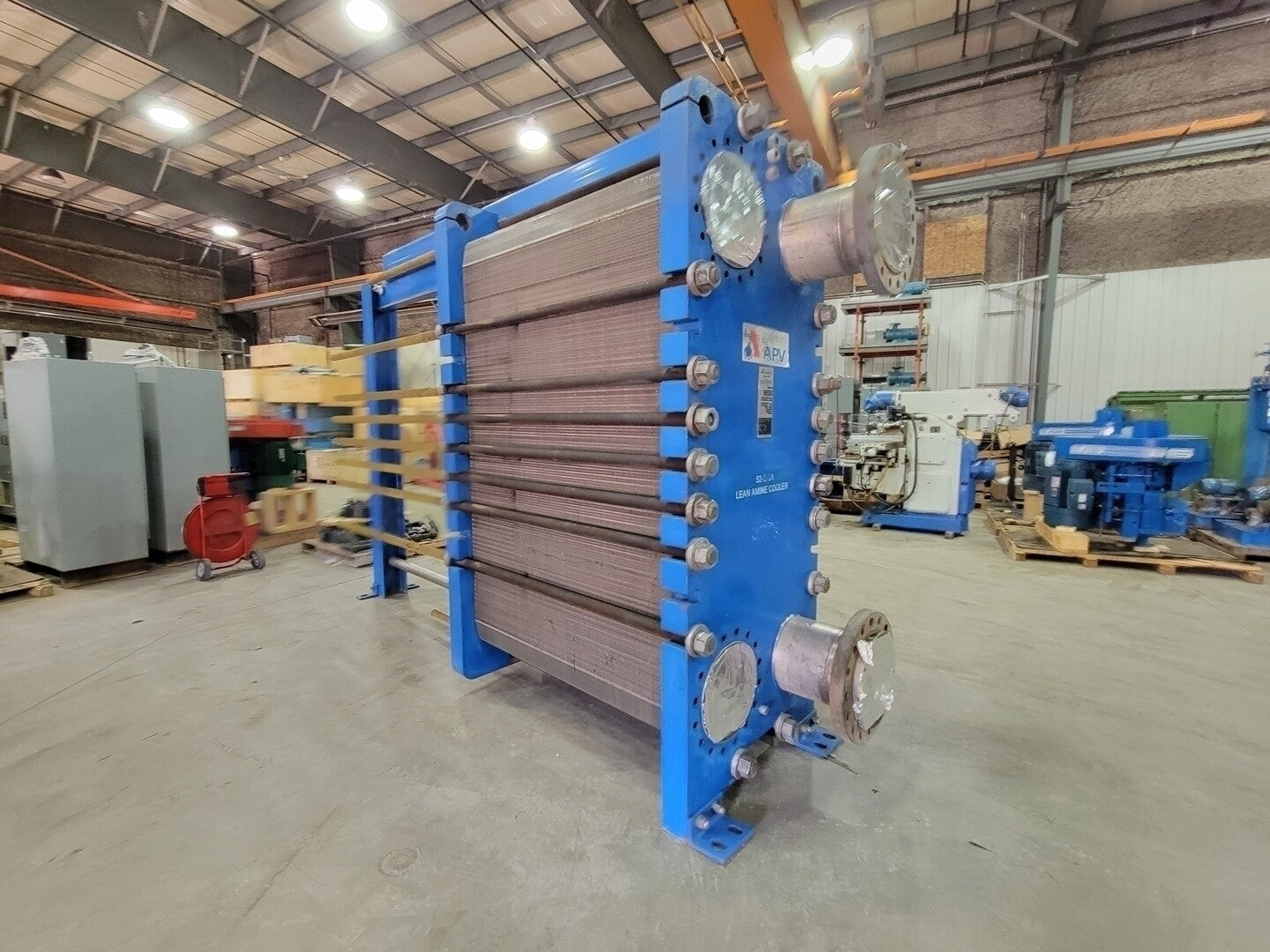

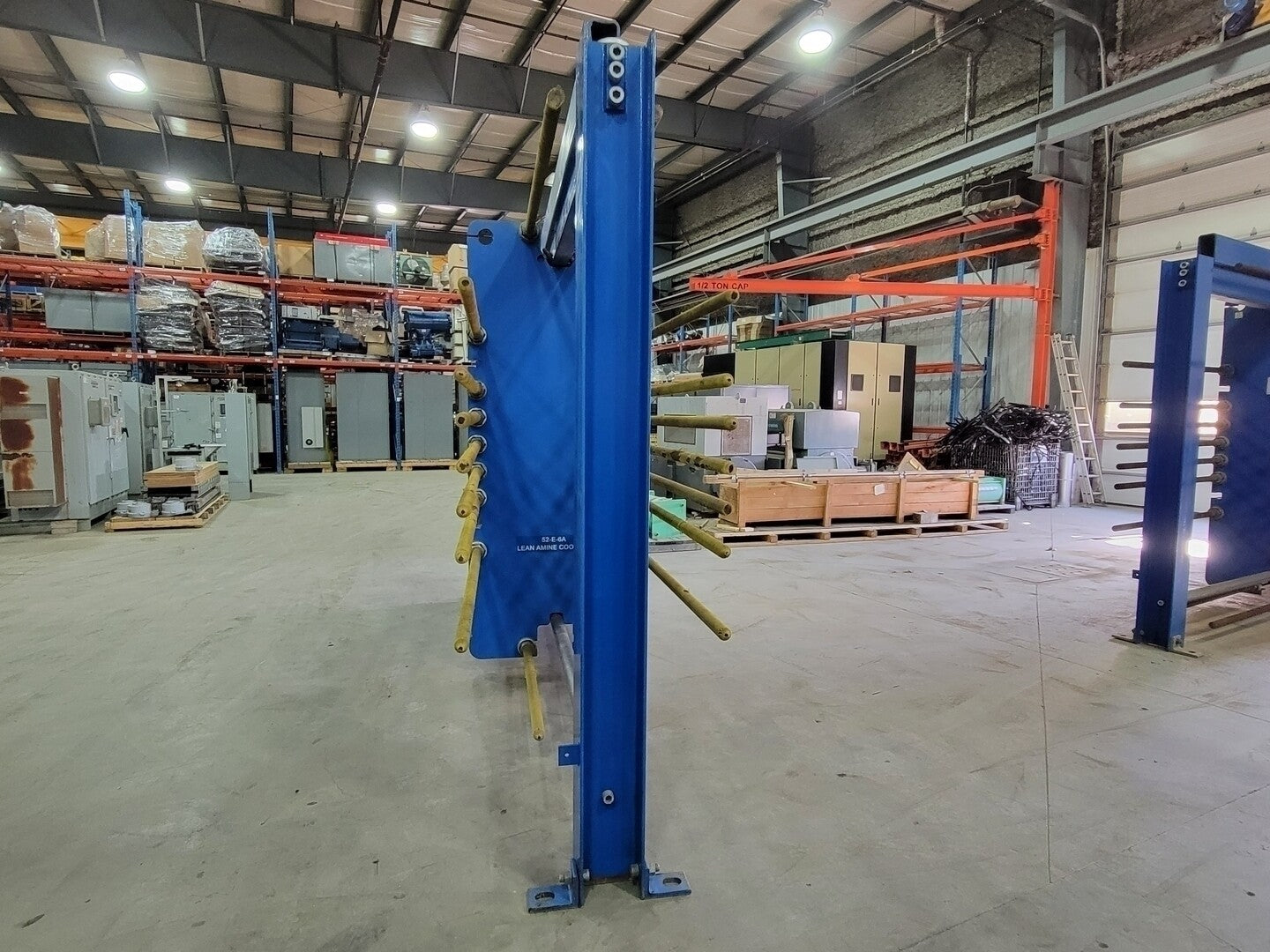

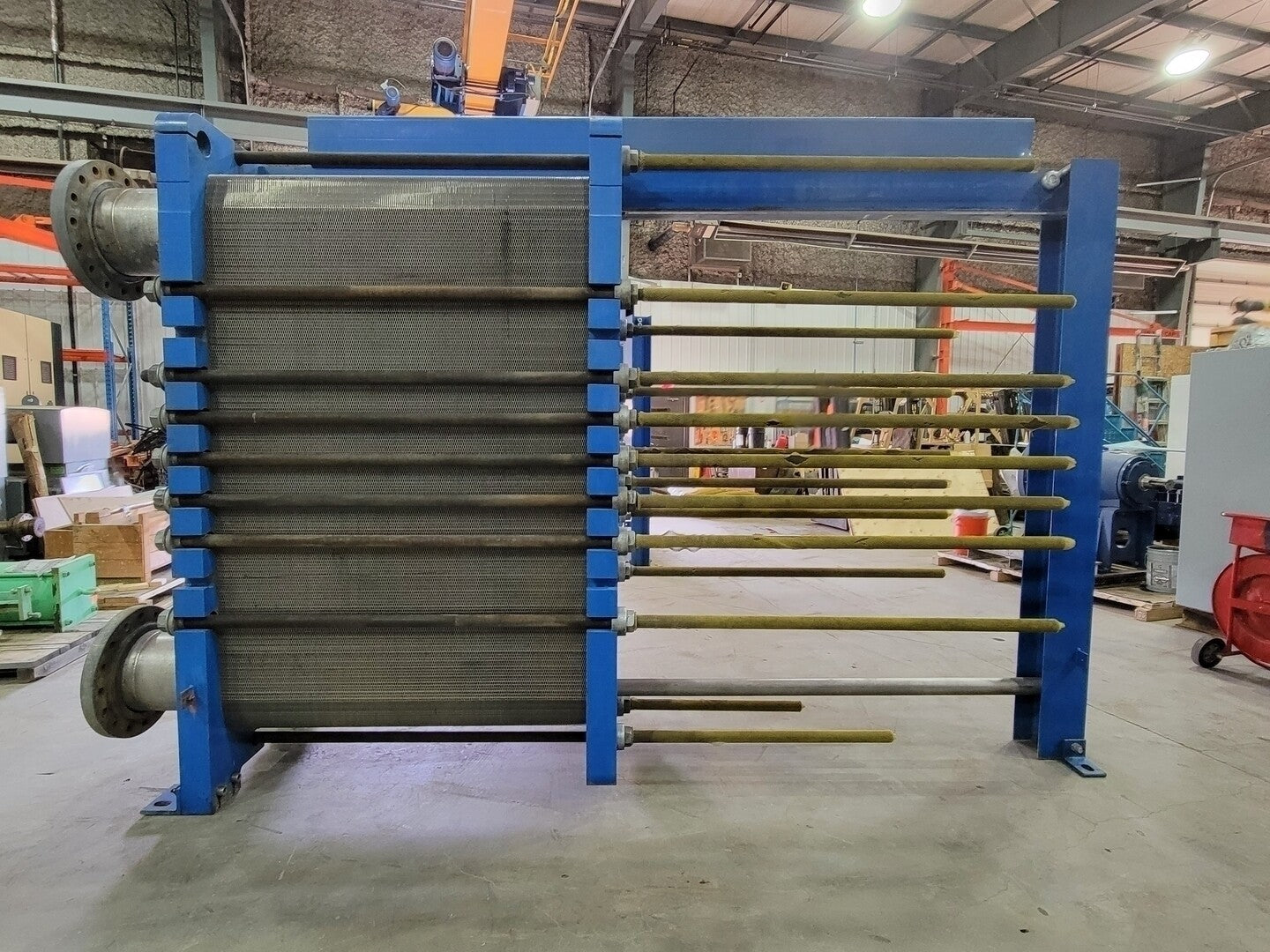

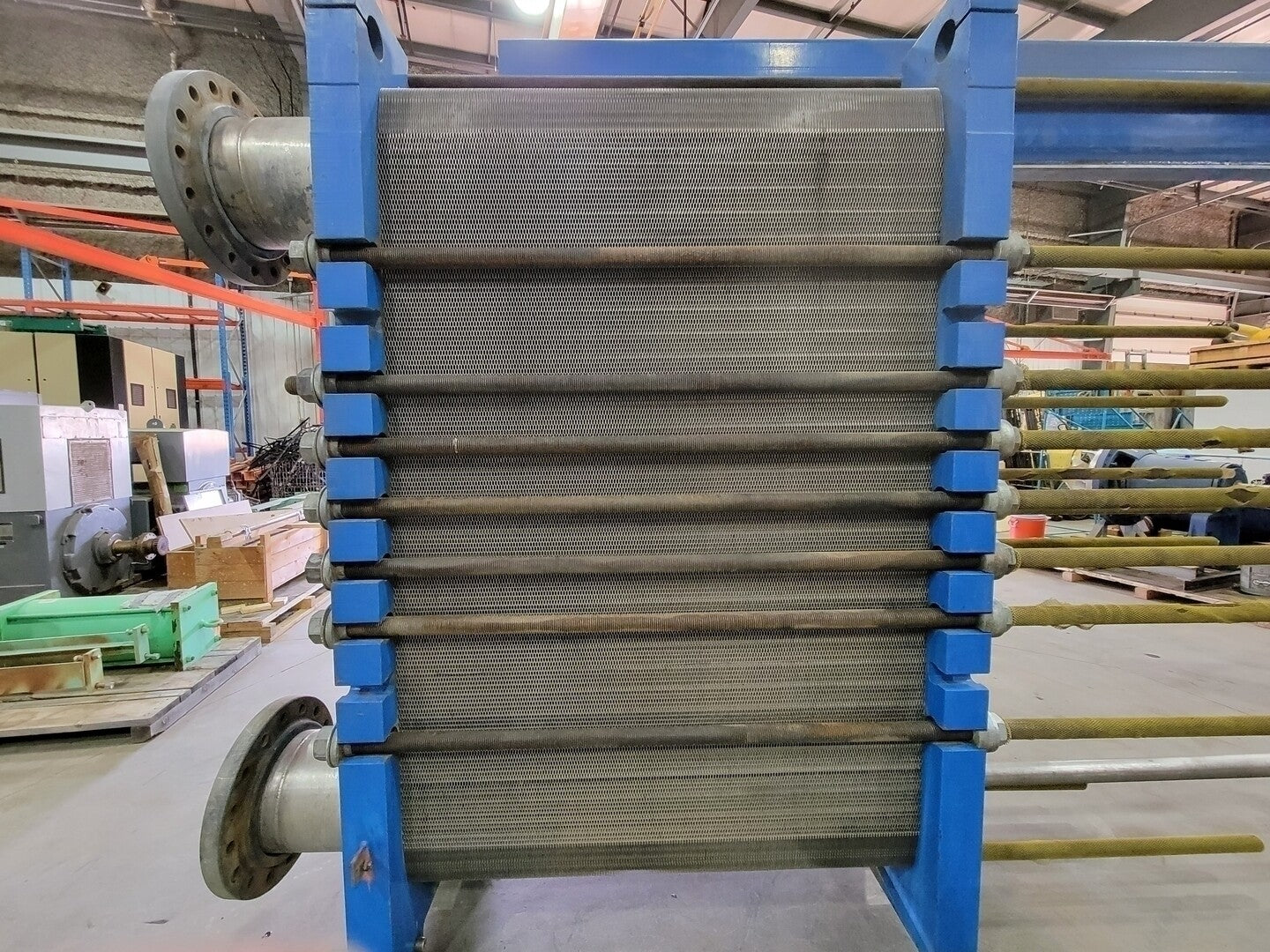

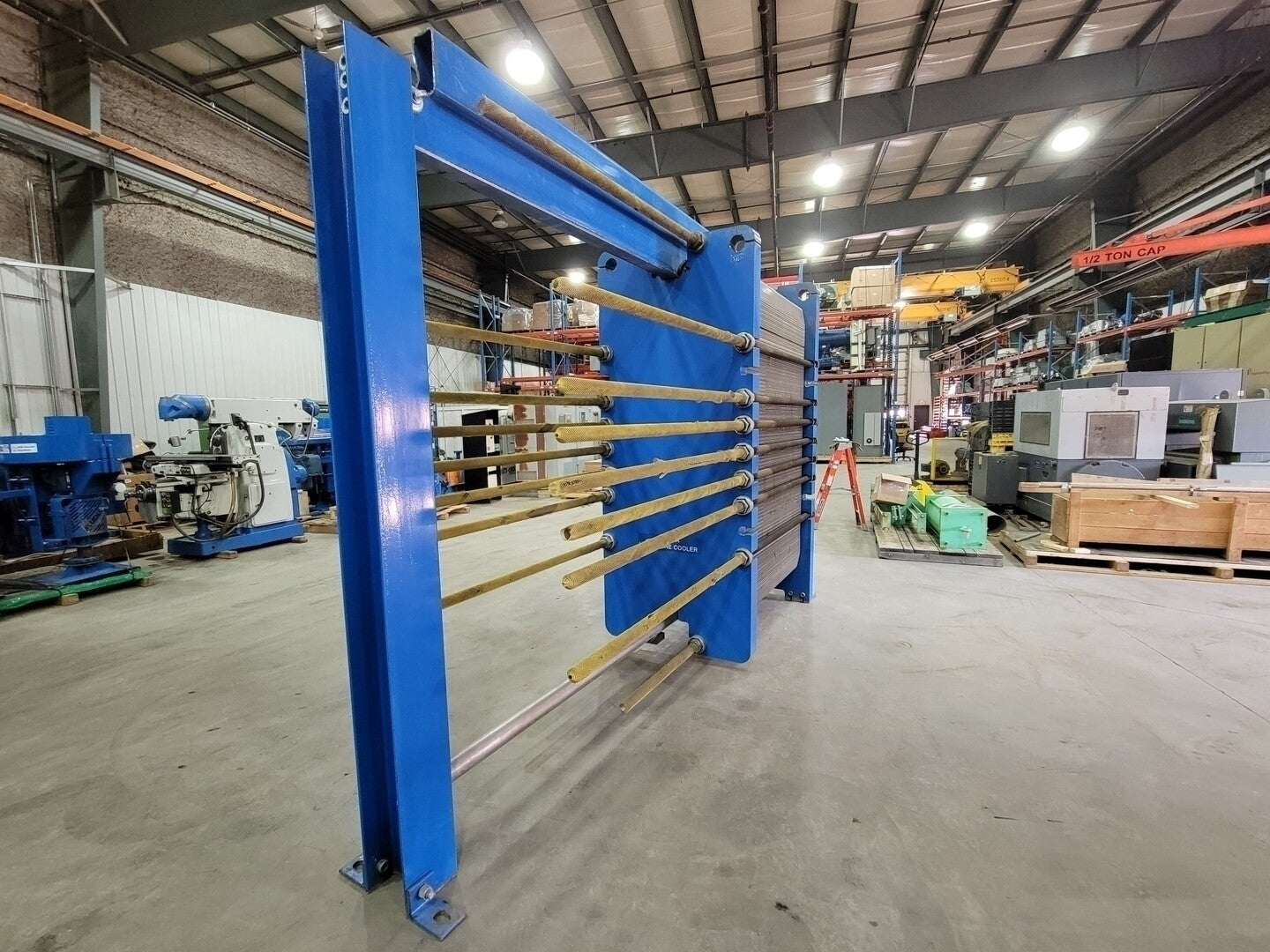

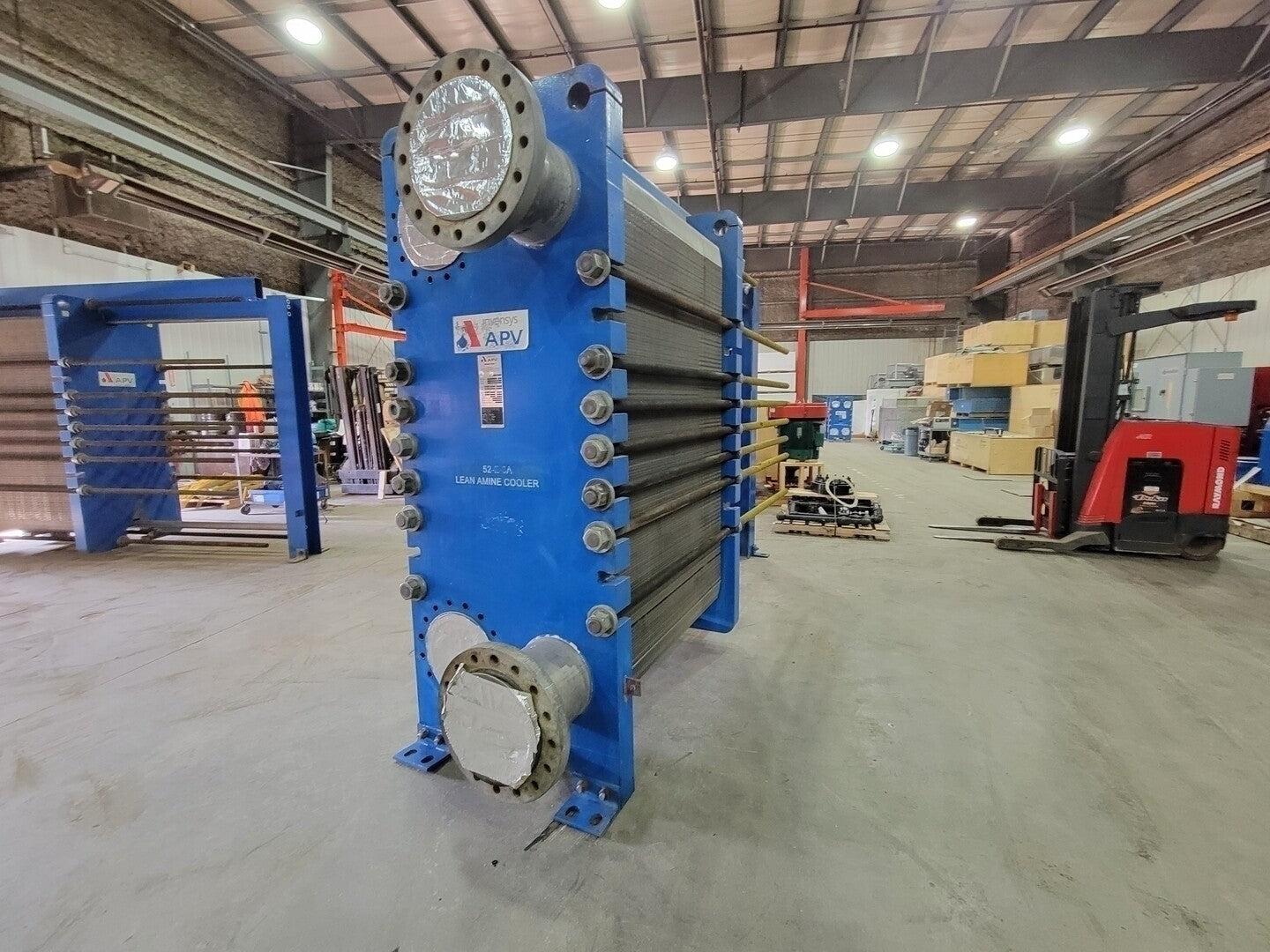

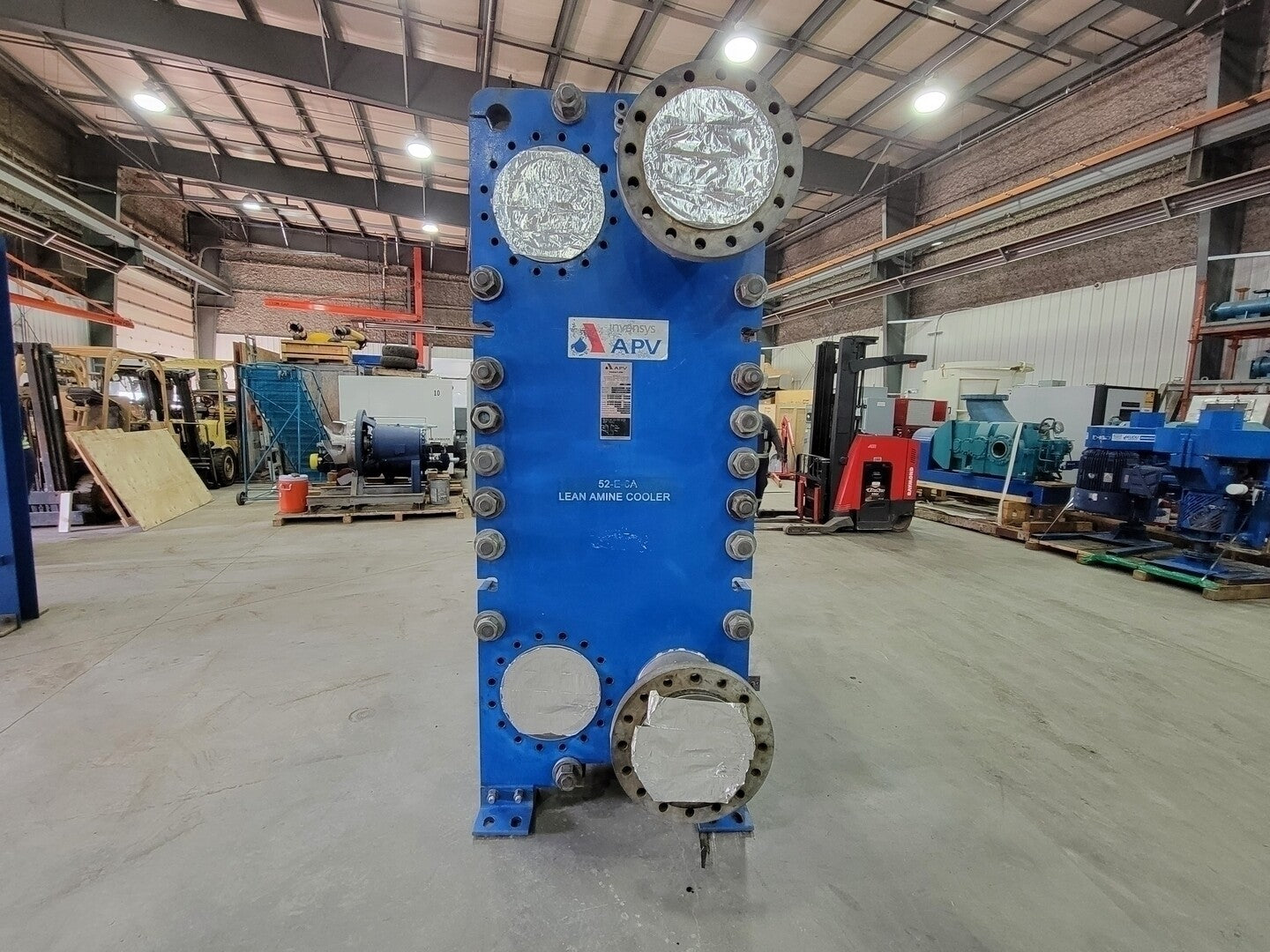

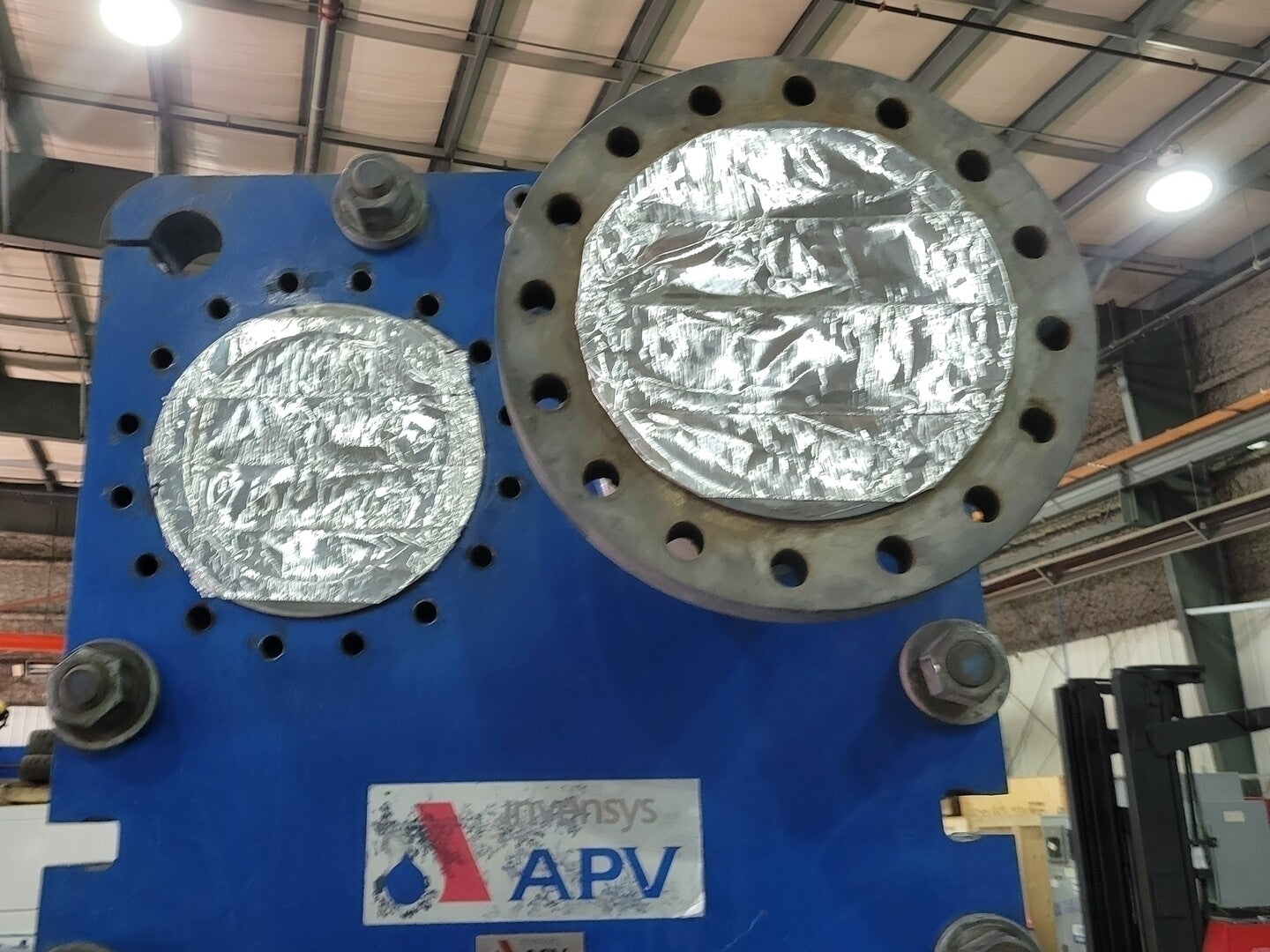

2007 Paraflow B134 MGS-20 Plate Heat Exchanger

SKU: 82863

Price:
$98,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left

Description

Specifications

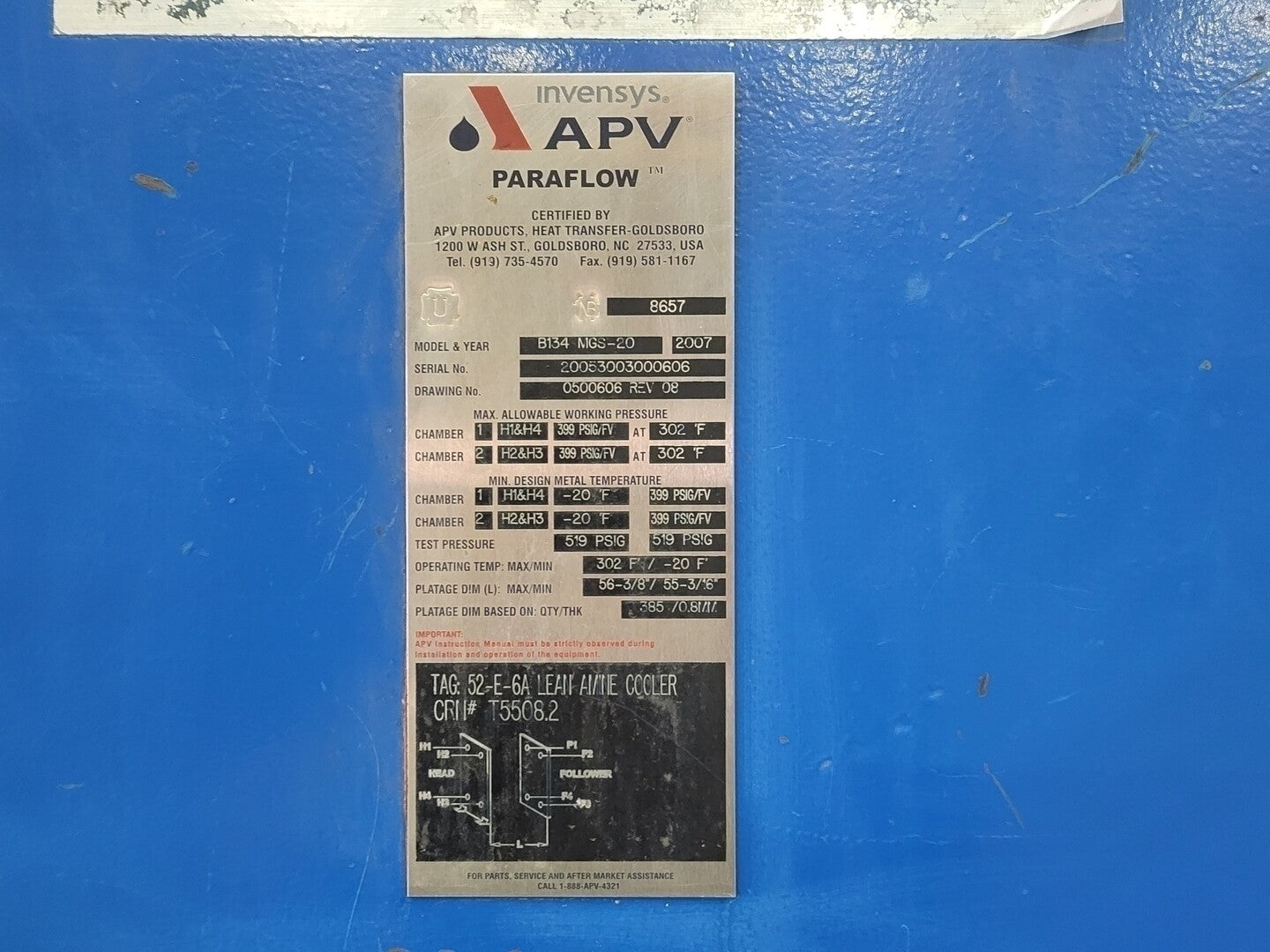

Model B134 MGS-20
Year: 2007
S/N: 20053003000606
Made In USA
Condition Used

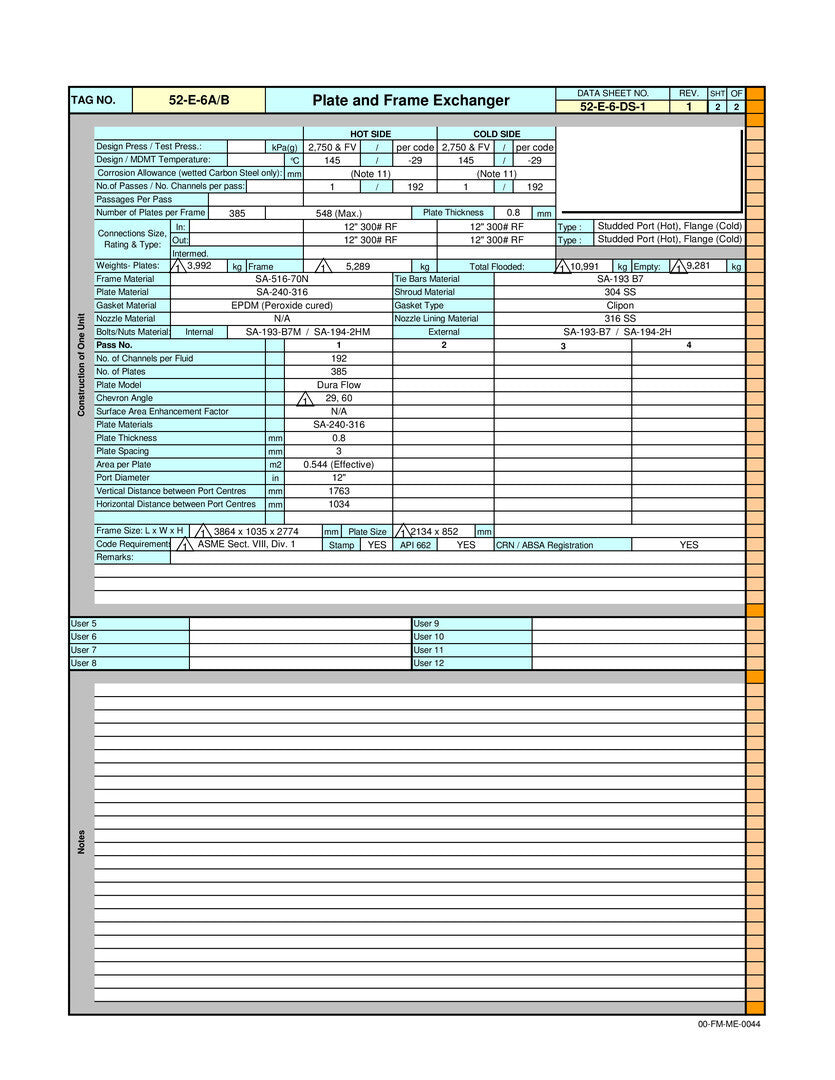

Other Specifications
Max. Allowable Working Pressure: 399 PSIG/FV @ 302 oF
Min. Design Metal Temperature: -20 oF @ 399 PSIG/FV
Operating Temp.: Max. 302 oF / Min. -20 oF
Heat Transfer Area: 5524.3 sq. ft.
Frame Size: No. 35
Max. Frame Capacity: 537 Plates
Dry Weight: 20462 lbs.
Flooded Weight: 24230 lbs.
Total Liquid Volume: 452.4 US Gals. (1712.6 L)

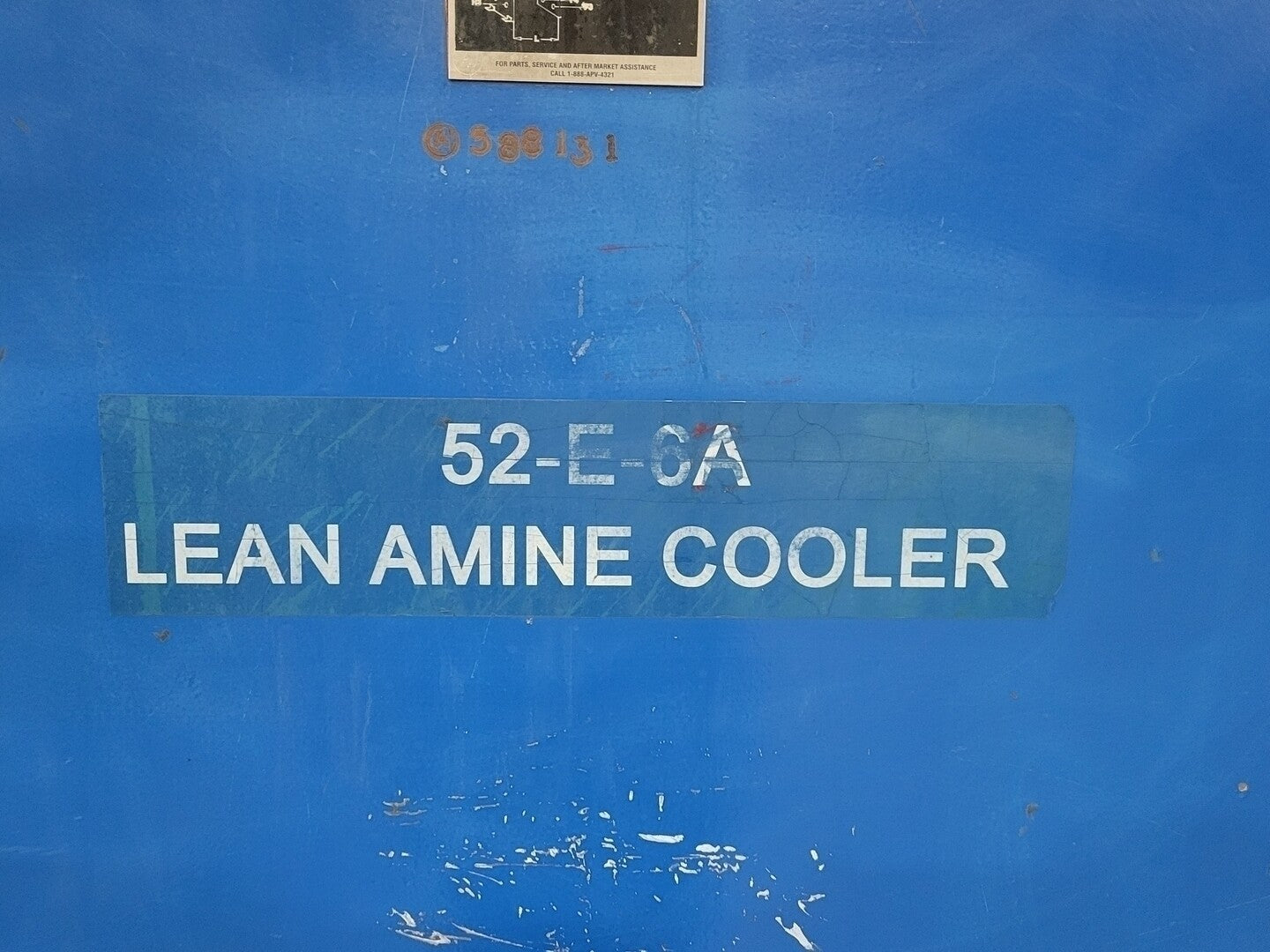

Operation Liquids: Lean diethanolamine, inhibited water

Materials
Frame: SA-516-70N

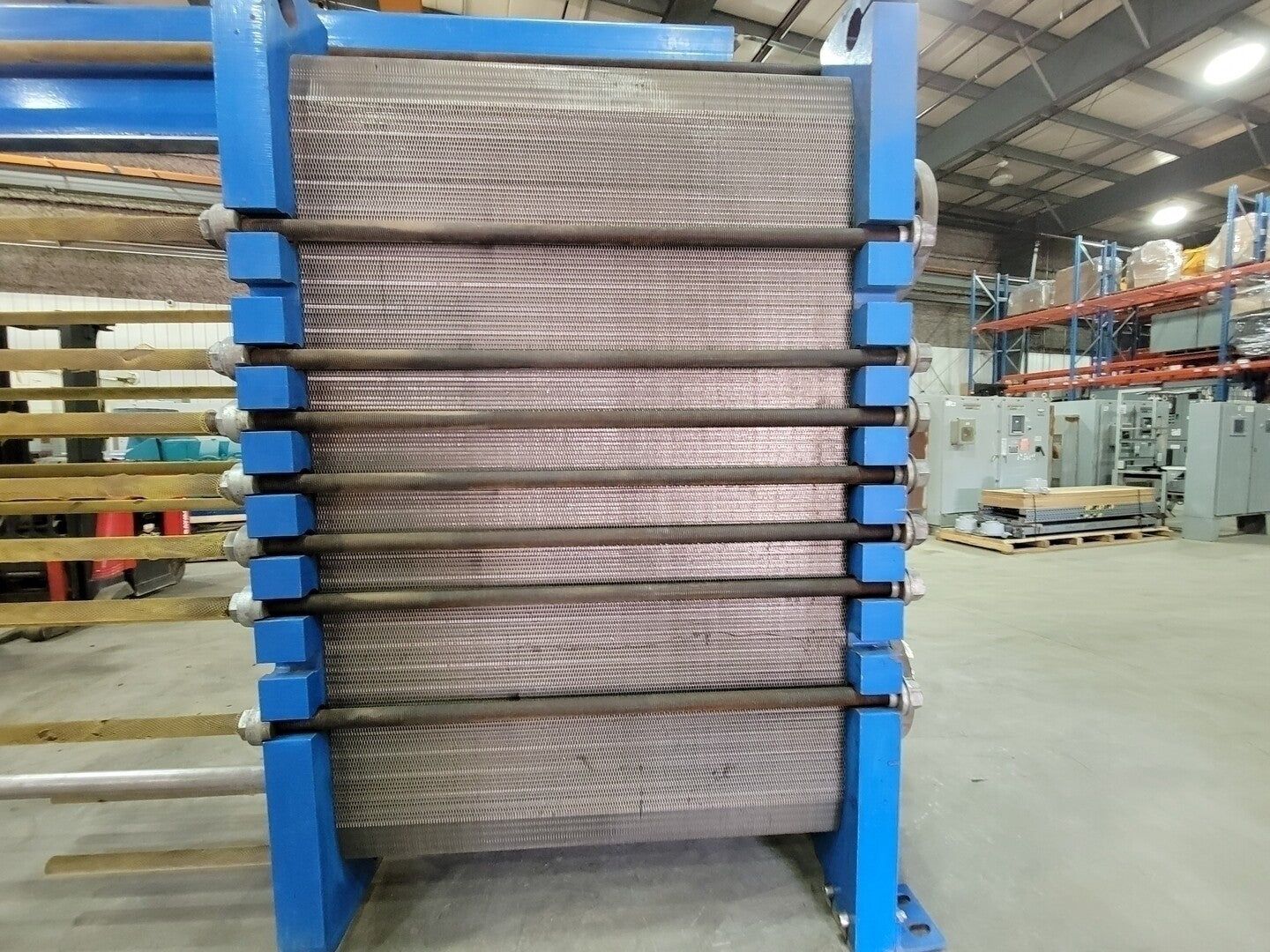

Plates: SA-240-316
Gasket: EPDM (Peroxide cured)
Tie Bars: SA-193 B7
Shroud: 304 SS

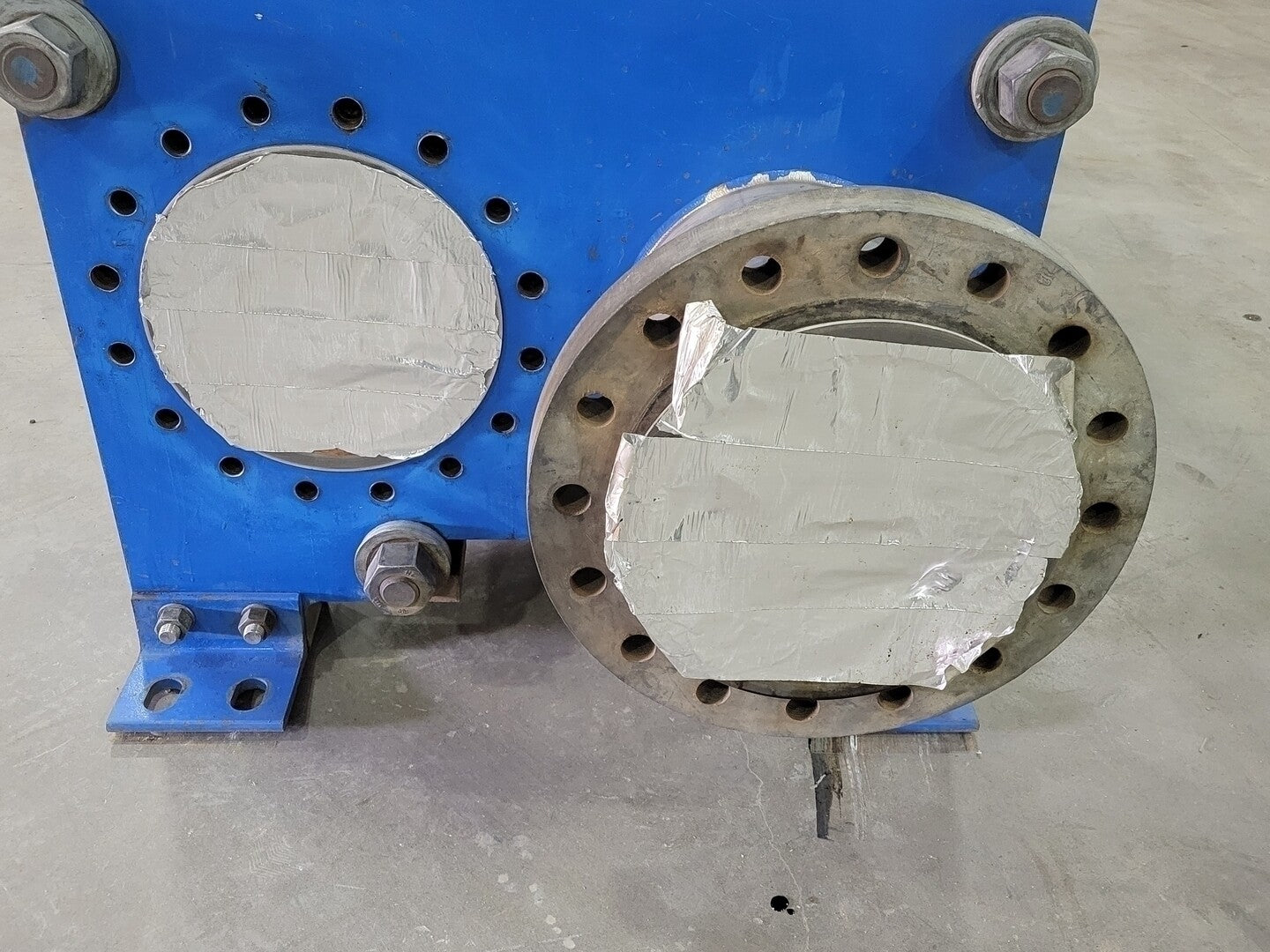

Nozzle Lining: 316 SS
Bolts/Nuts (Internal): SA-193-B7M / SA-194-2HM
Bolts/Nuts (External): SA-193-B7 / SA-194-2H
