Features

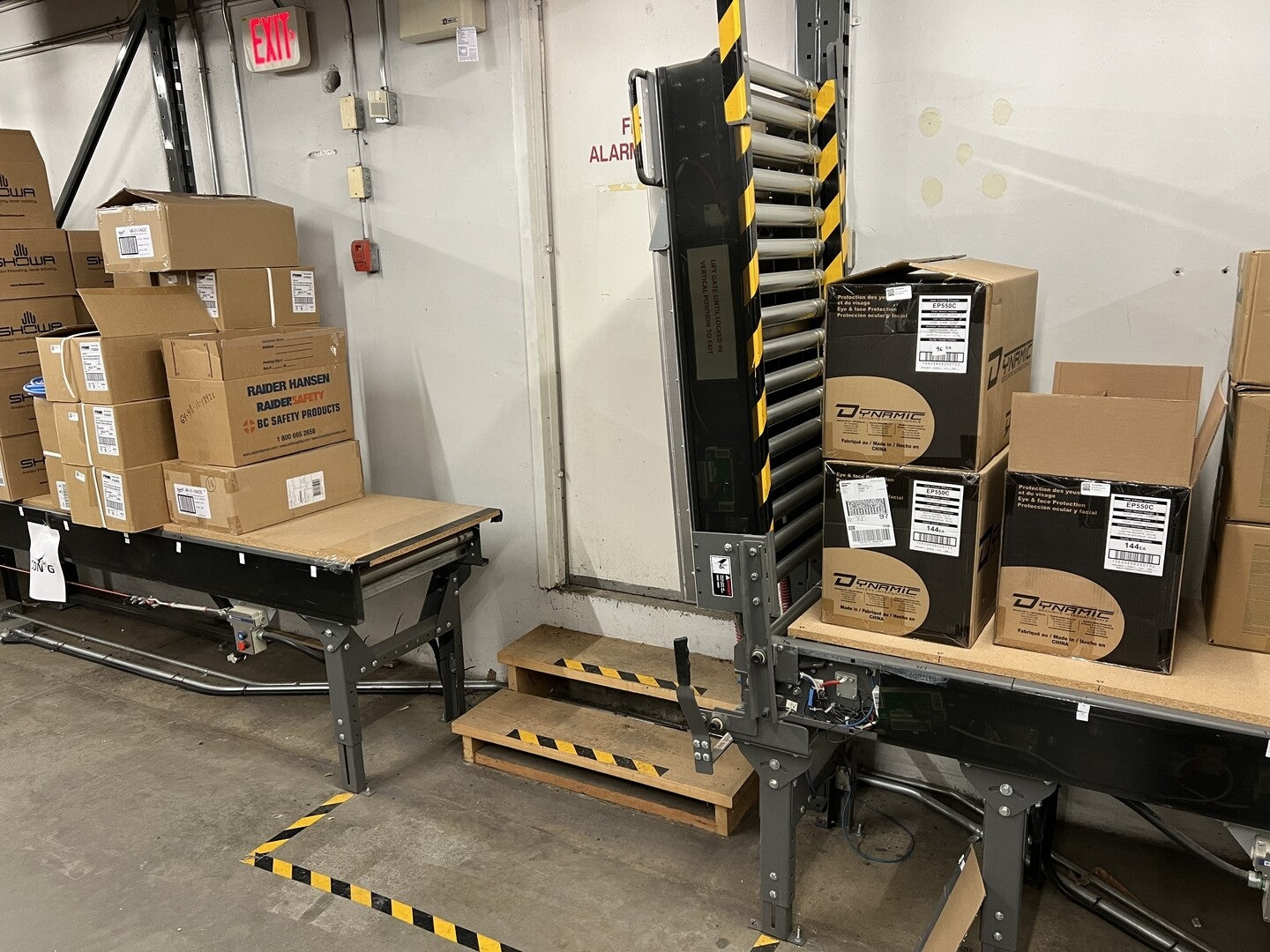

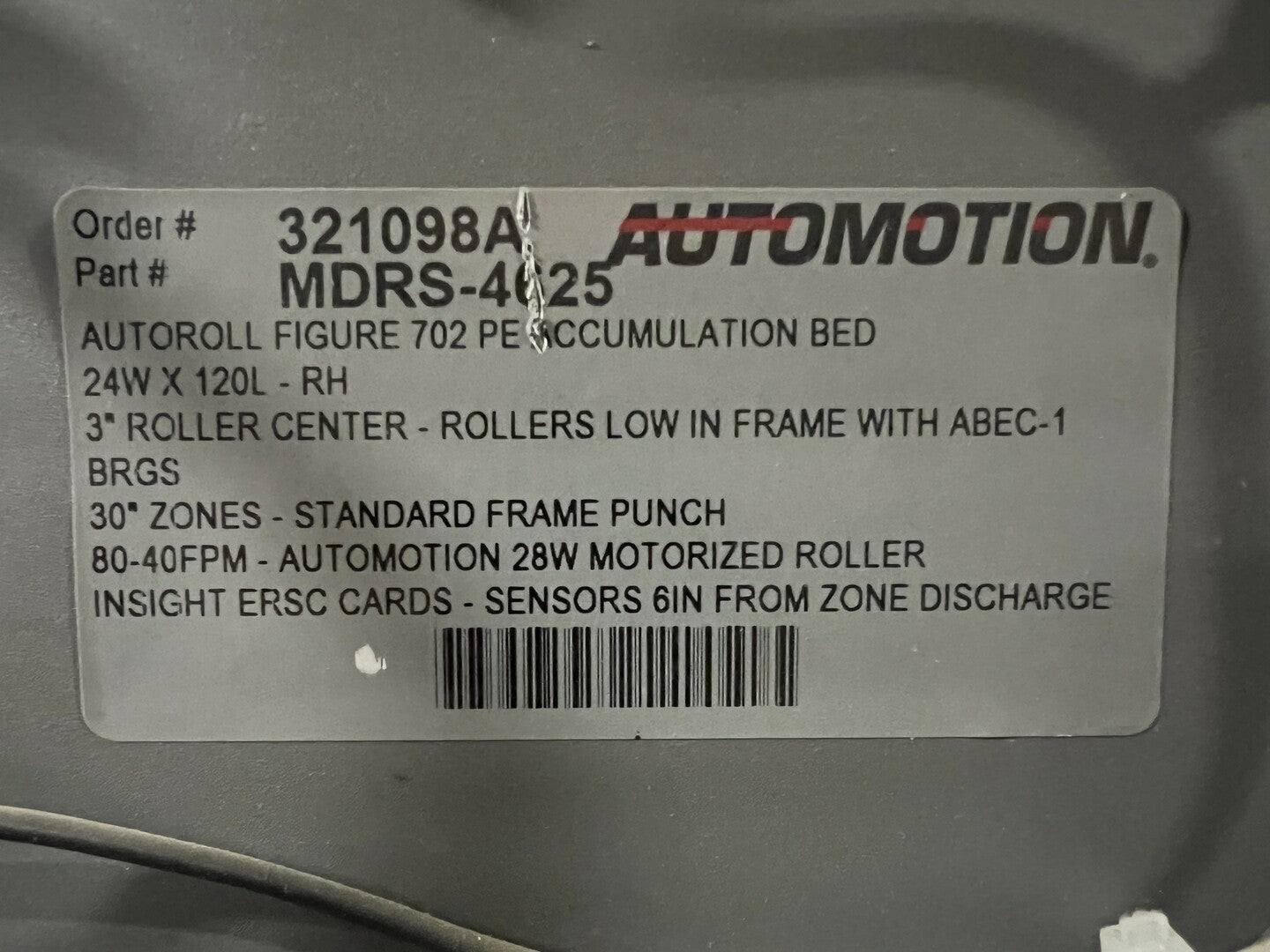

- 4 Motorized Conveyor Rollers (MDR) per 10 ft. conveyor section
- 2 MDR Control Cards per 10 ft. section
- 12 ft. Vertical Lift
- 10 ft. Portec Spiral Chute
Video Link 1
Video Link 2
Video Link 3

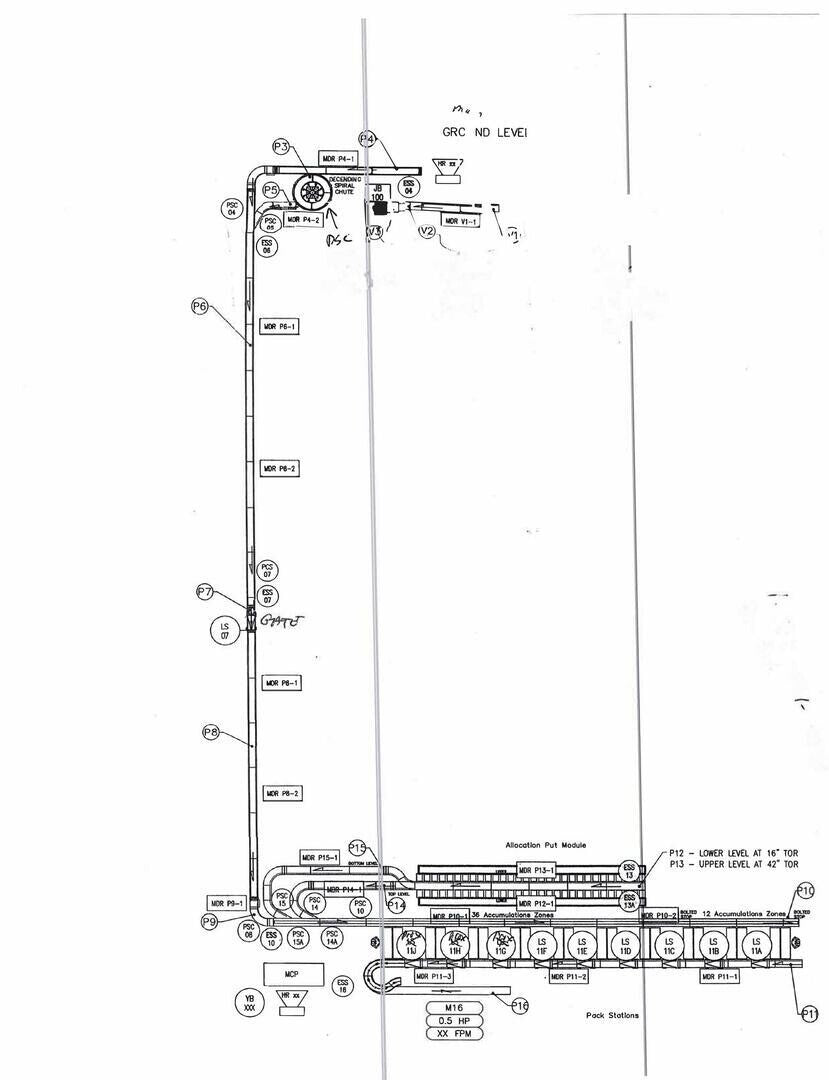

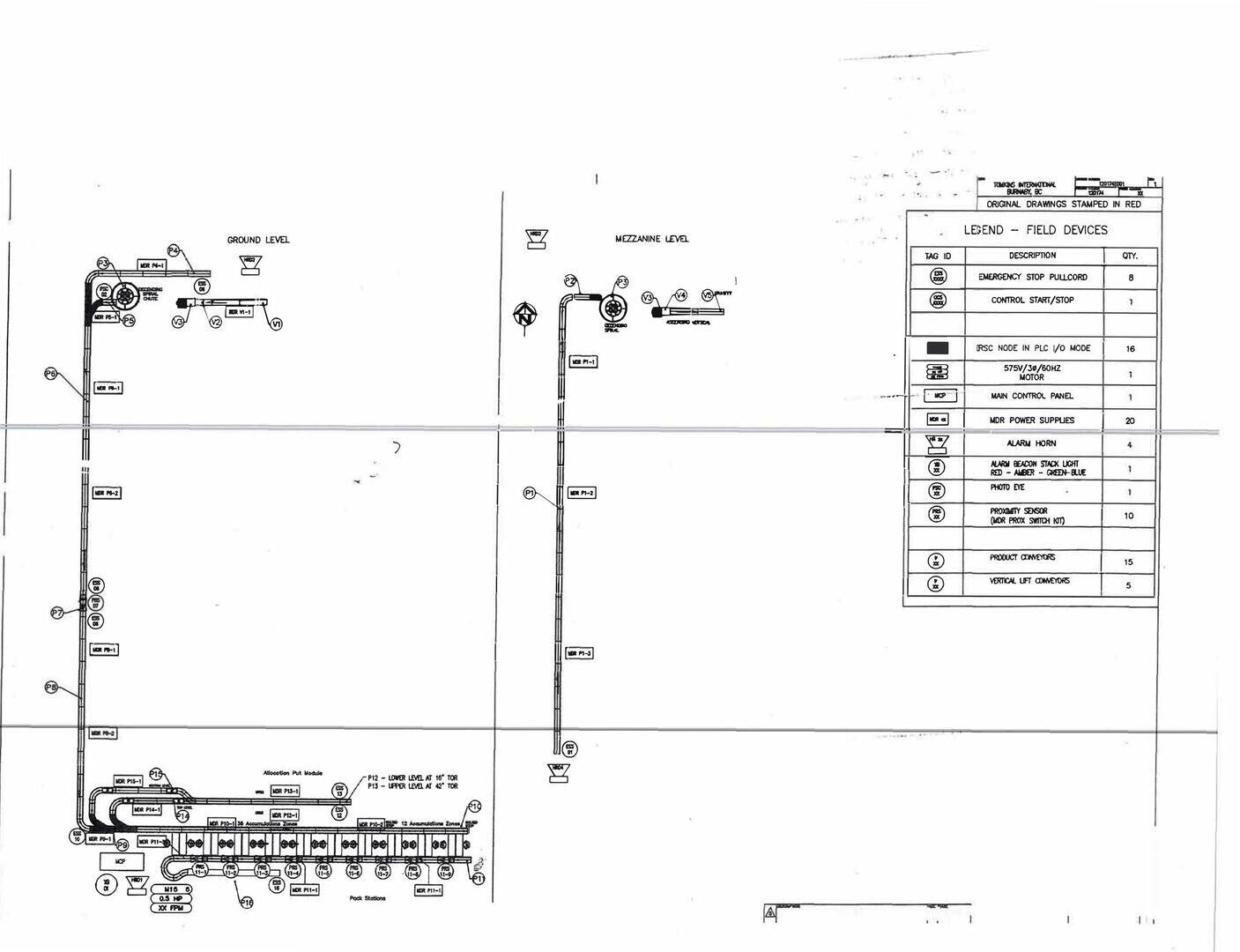

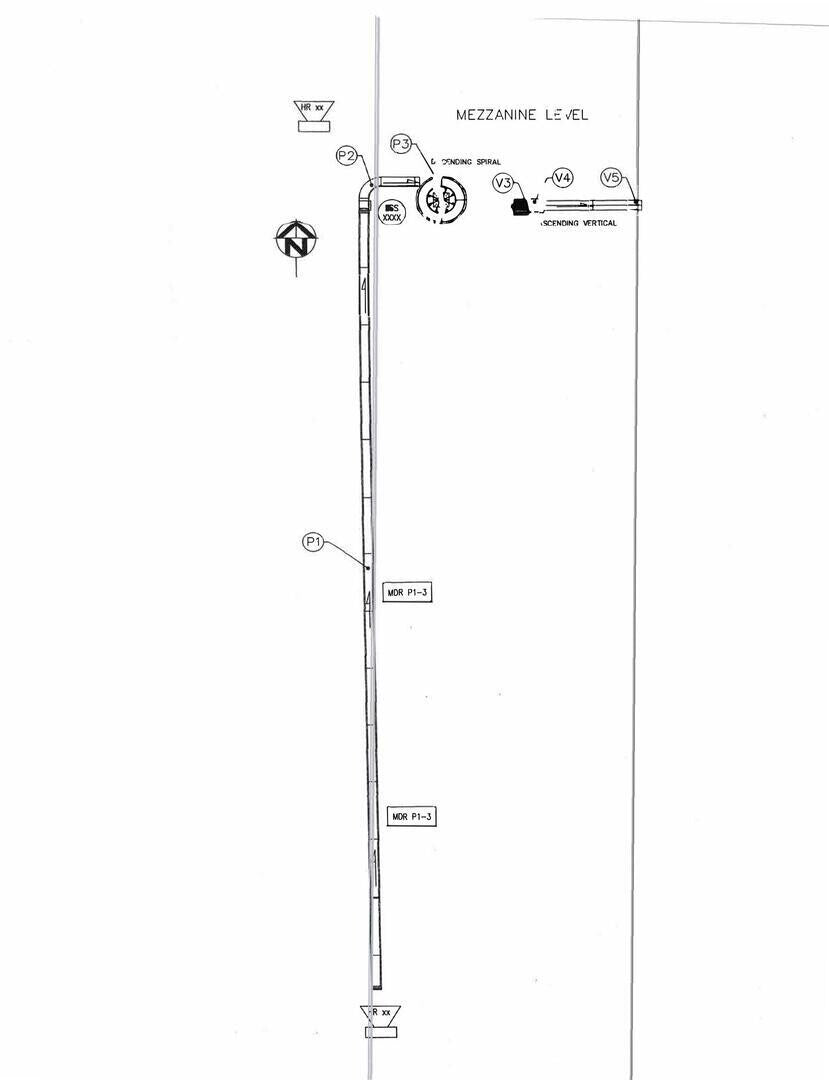

PDF Diagram Current System
Total Inventory List (Current System and Additional Parts)

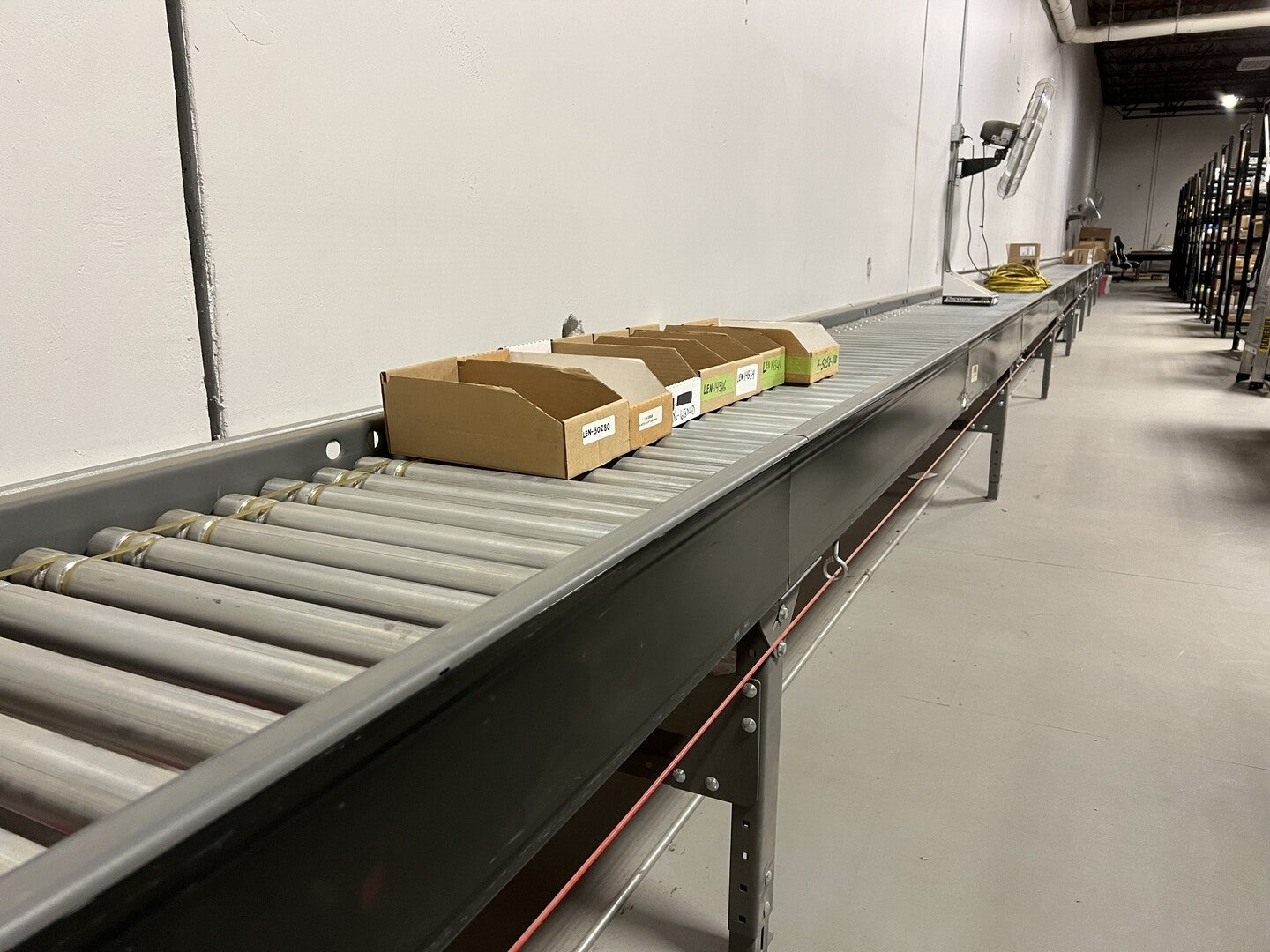

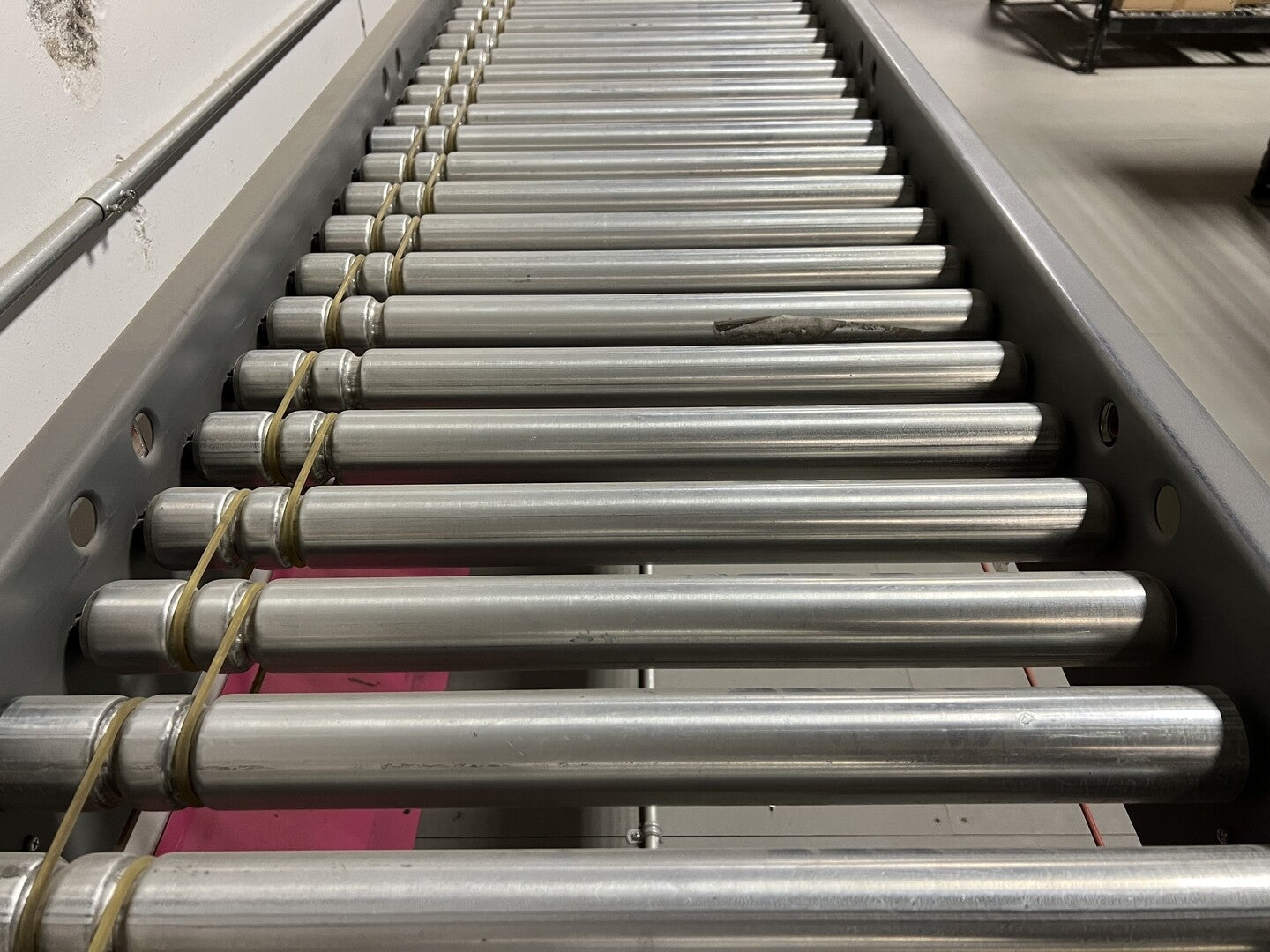

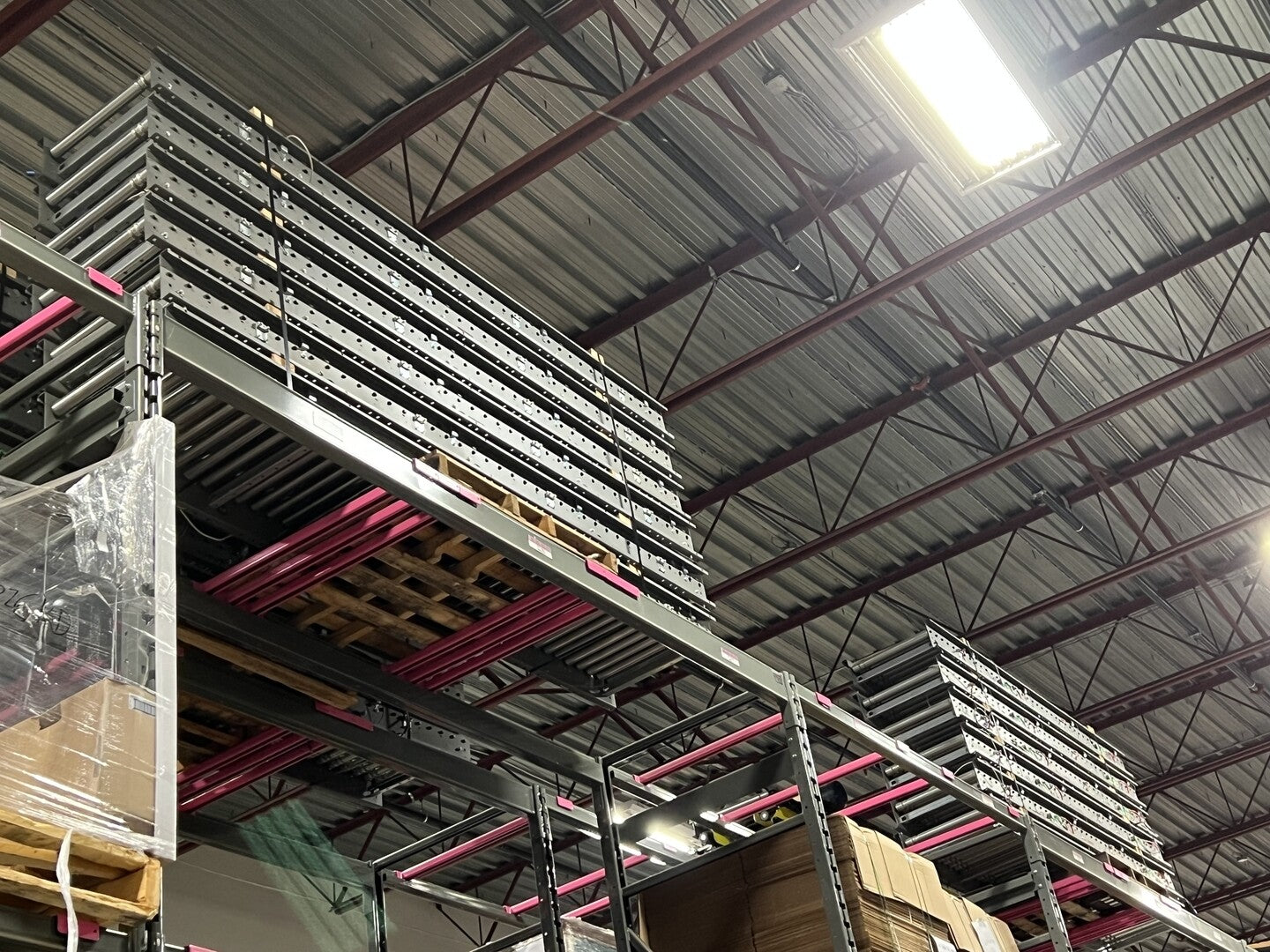

- 12" x 21.5" Pulse Roll Conveyor Section: 2 qty
- 18" x 21.5" Pulse Roll Conveyor Section: 1 qty
- 4" x 21.5" Pulse Roll Conveyor Section: 1 qty
- 24" x 21.5" Pulse Roll Conveyor Section: 3 qty
- 48" x 21.5" Pulse Roll Conveyor Section: 1 qty
- 60" x 21.5" Pulse Roll Conveyor Section: 9 qty
- 72" x 21.5" Pulse Roll Conveyor Section: 9 qty
- 78" x 21.5" Pulse Roll Conveyor Section: 2 qty
- 96" x 21.5" Pulse Roll Conveyor Section: 2 qty
- 120" x 21.5" Pulse Roll Conveyor Section: 66 qty
- 30 Degree Pulse Roll Curve Section: 1 qty
- 45 Degree Pulse Roll Curve Section: 2 qty
- 60 Degree Pulse Roll Curve Section: 2 qty

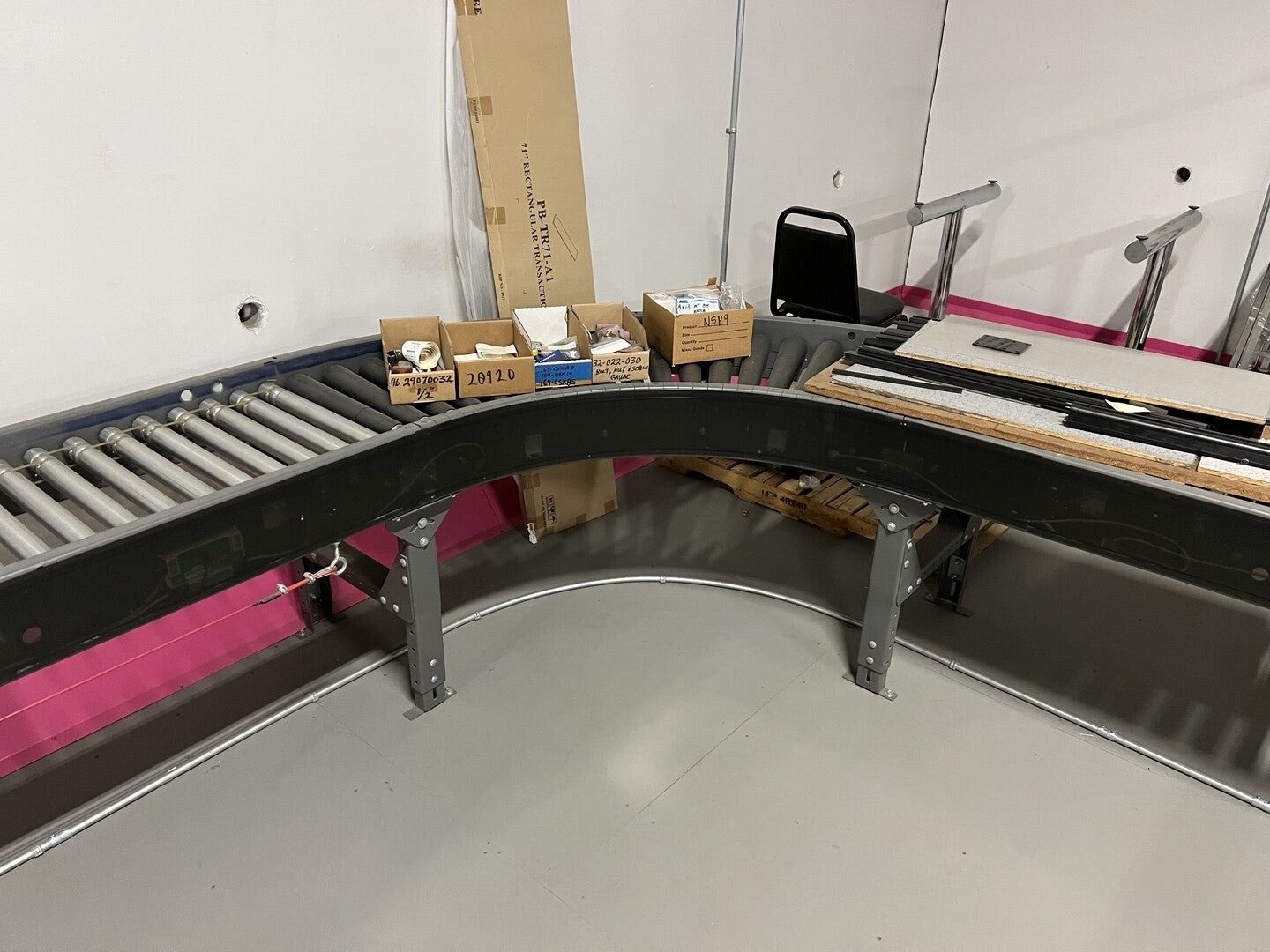

- 90 Degree Pulse Roll Curve Section: 8 qty
- 30 Degree Merge Pulse Roll Merge Conveyor Section: 2 qty
- 60 Degree L/H Pulse Roll Merge Conveyor Section: 1 qty
- 72" x 21.5" Spring Return Pulse Roll Gate: 10 qty
- Power Supply 480VAC - 24VDC: 21 qty
- Transformer 600V - 480V 3ph: 21 qty
- 12' Vertical Reciprocating Conveyor Lift: 1 qty
- 10' Portec Spiral Chute: 1 qty
- 24" - 30" Leg Sets: 109 qty
- 72" Duplex Legs: 13 qty

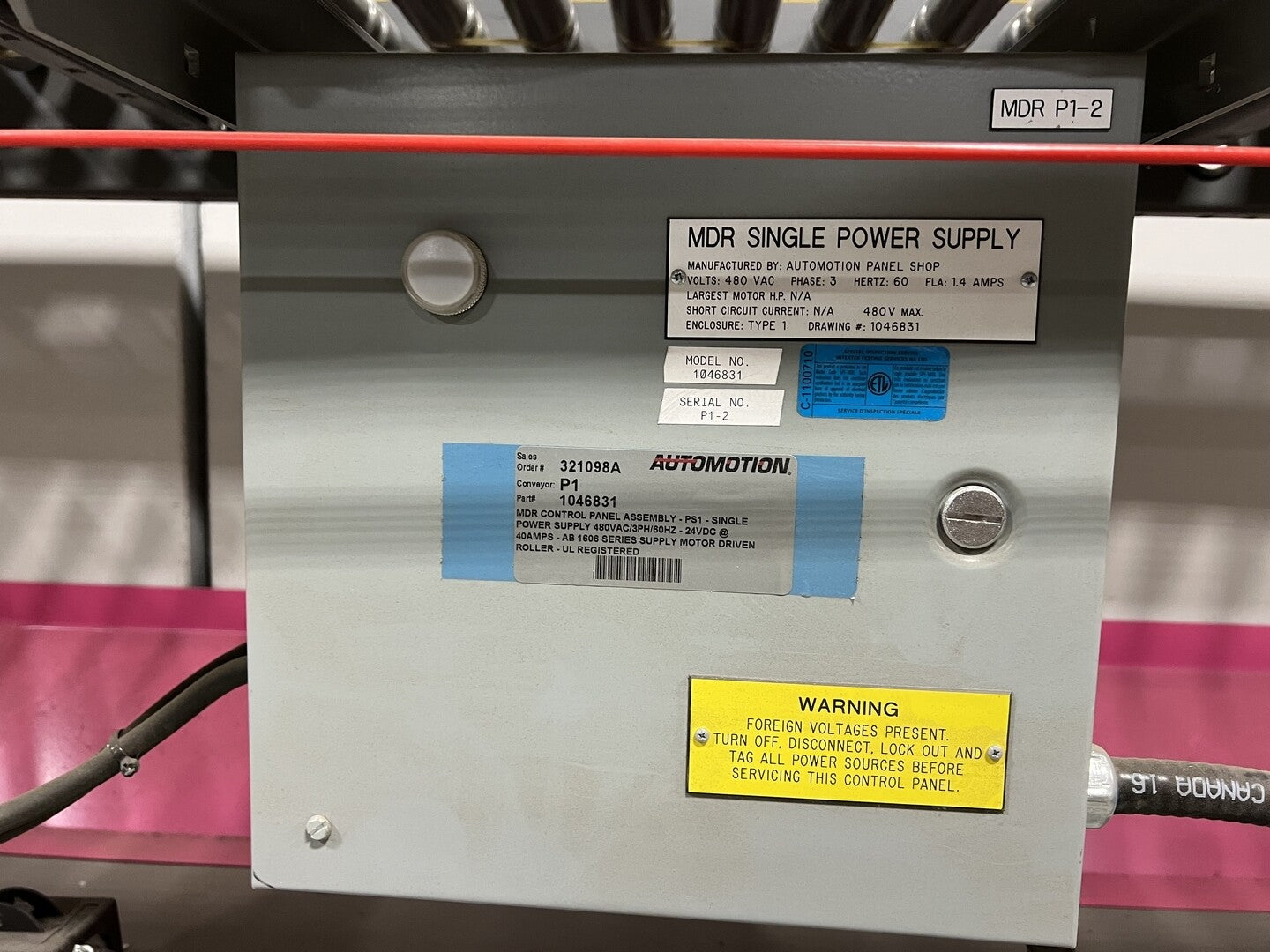

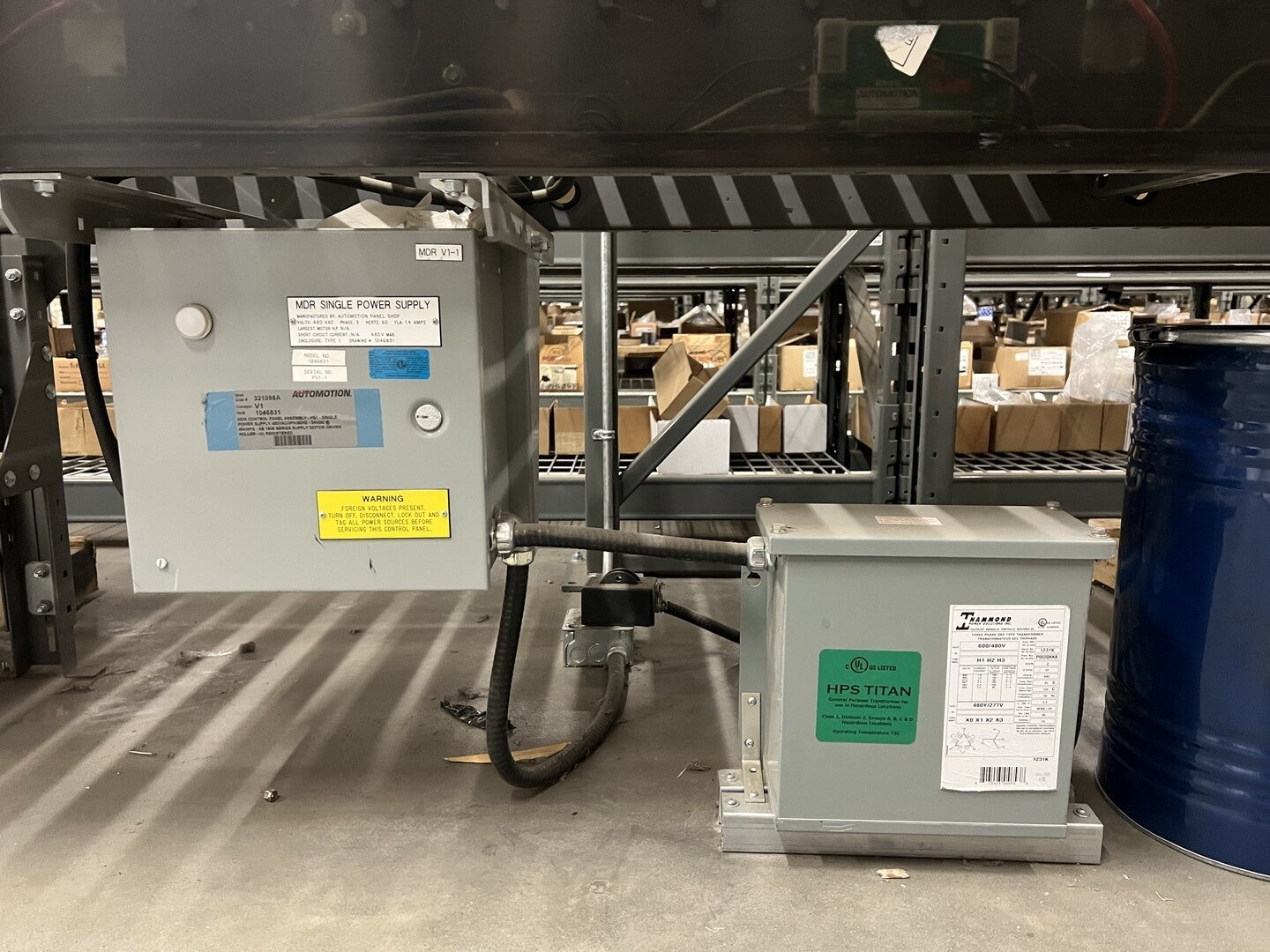

MDR Power Supply
Voltage AC: 480 V
Voltage DC: 24 V
Phase: 3
Hertz: 60

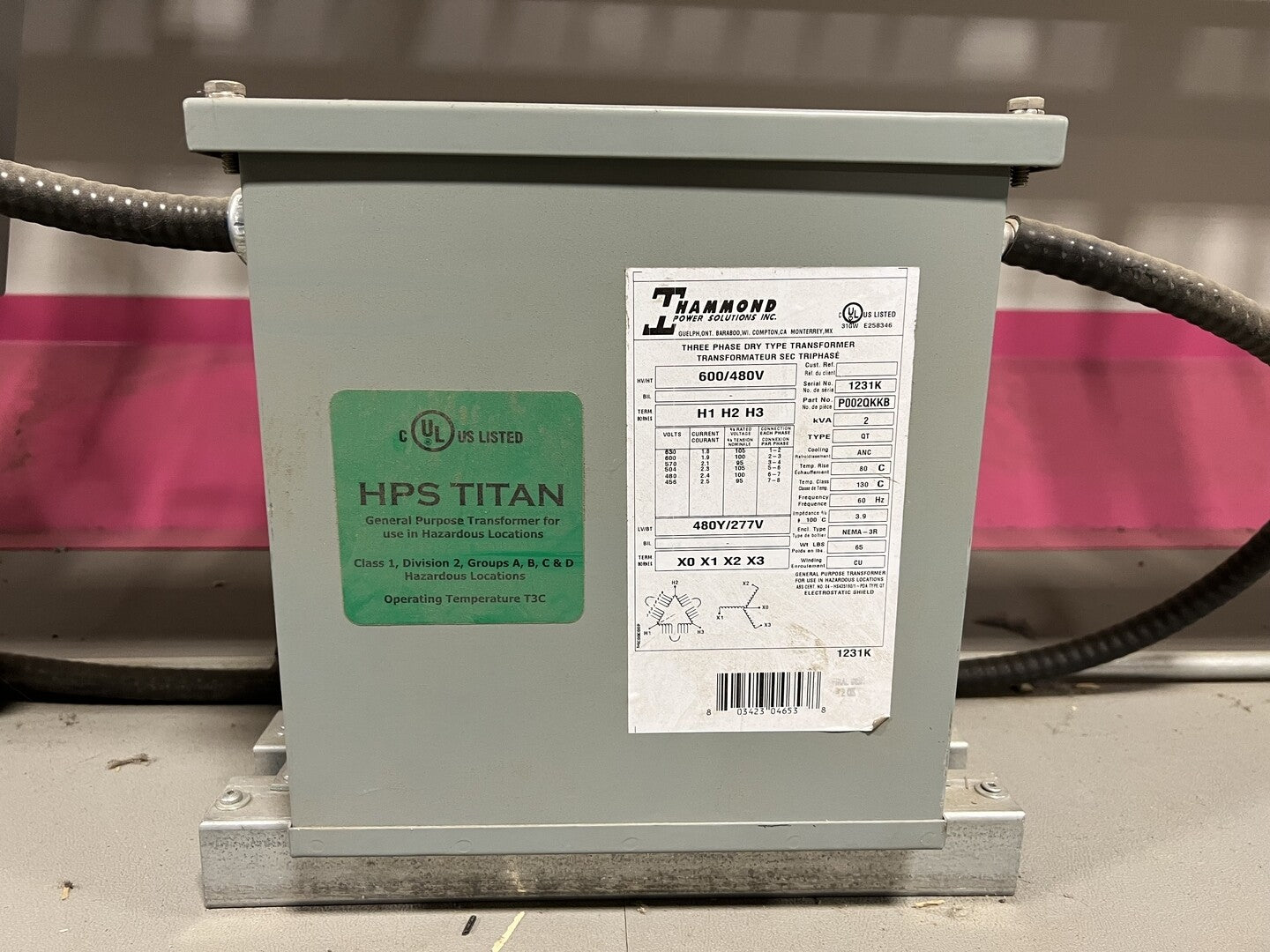

Transformer
kVA: 2
Phase: 3
Primary Voltage: 600/480 V
Secondary: 480Y/277 V

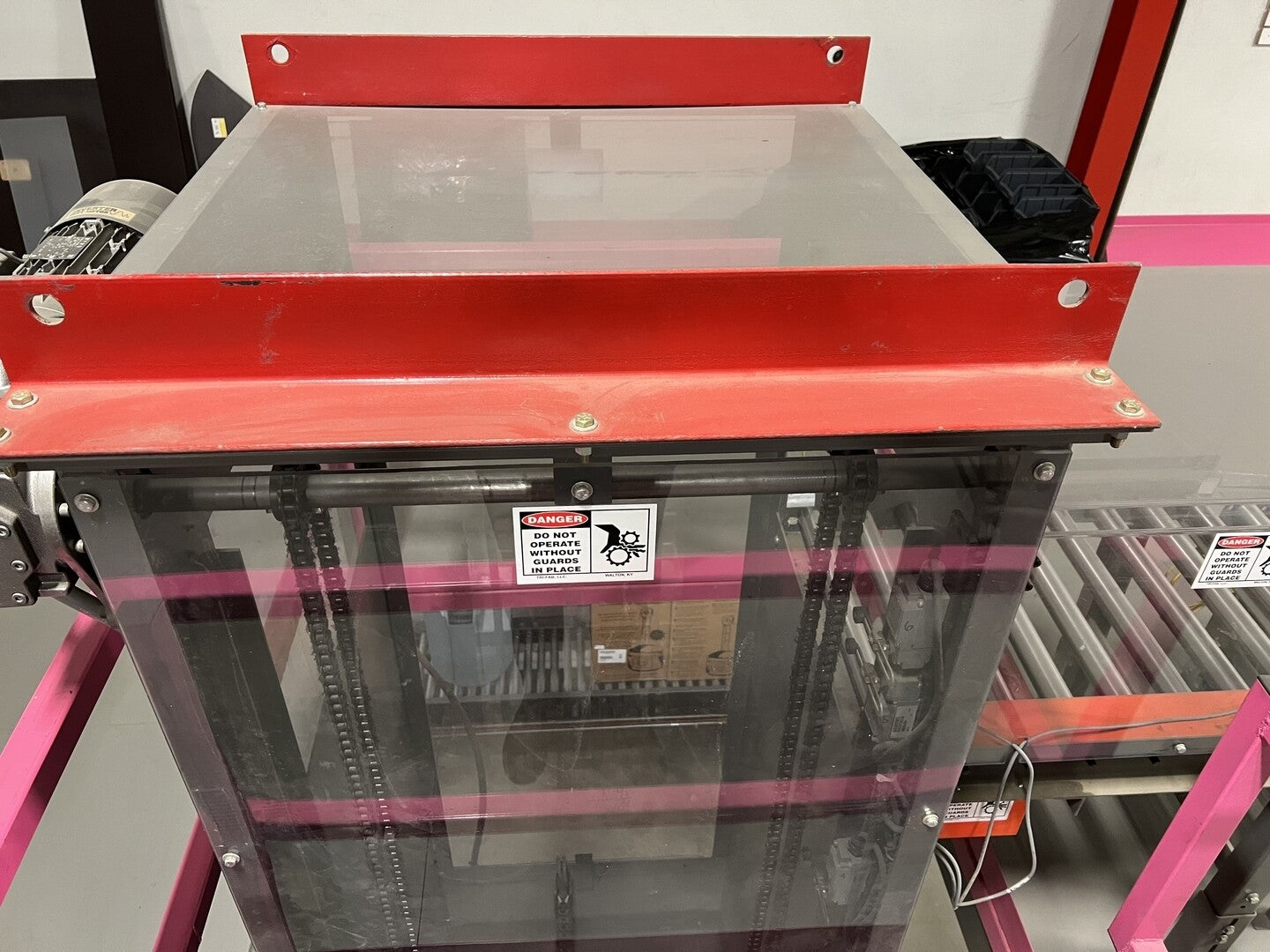

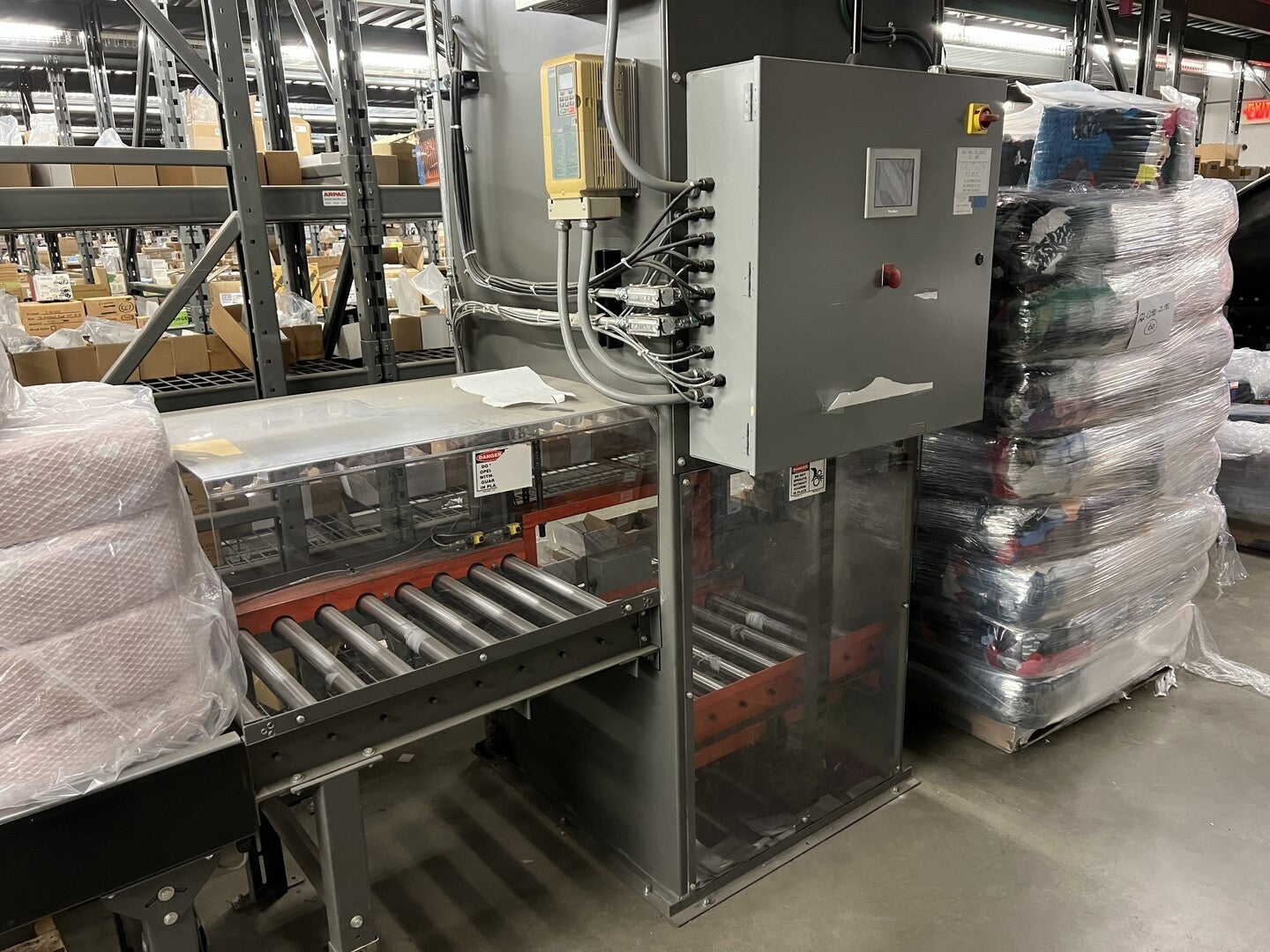

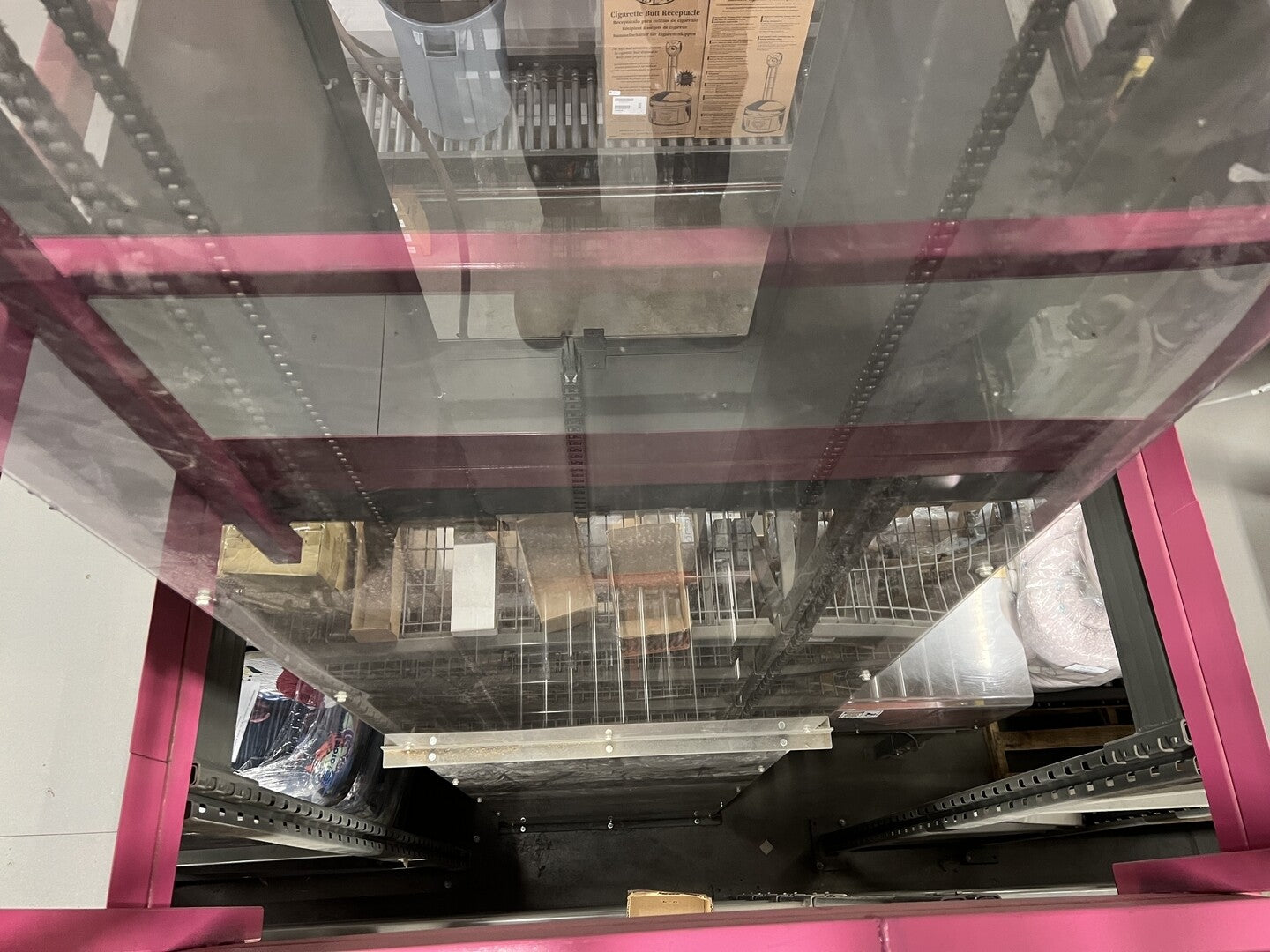

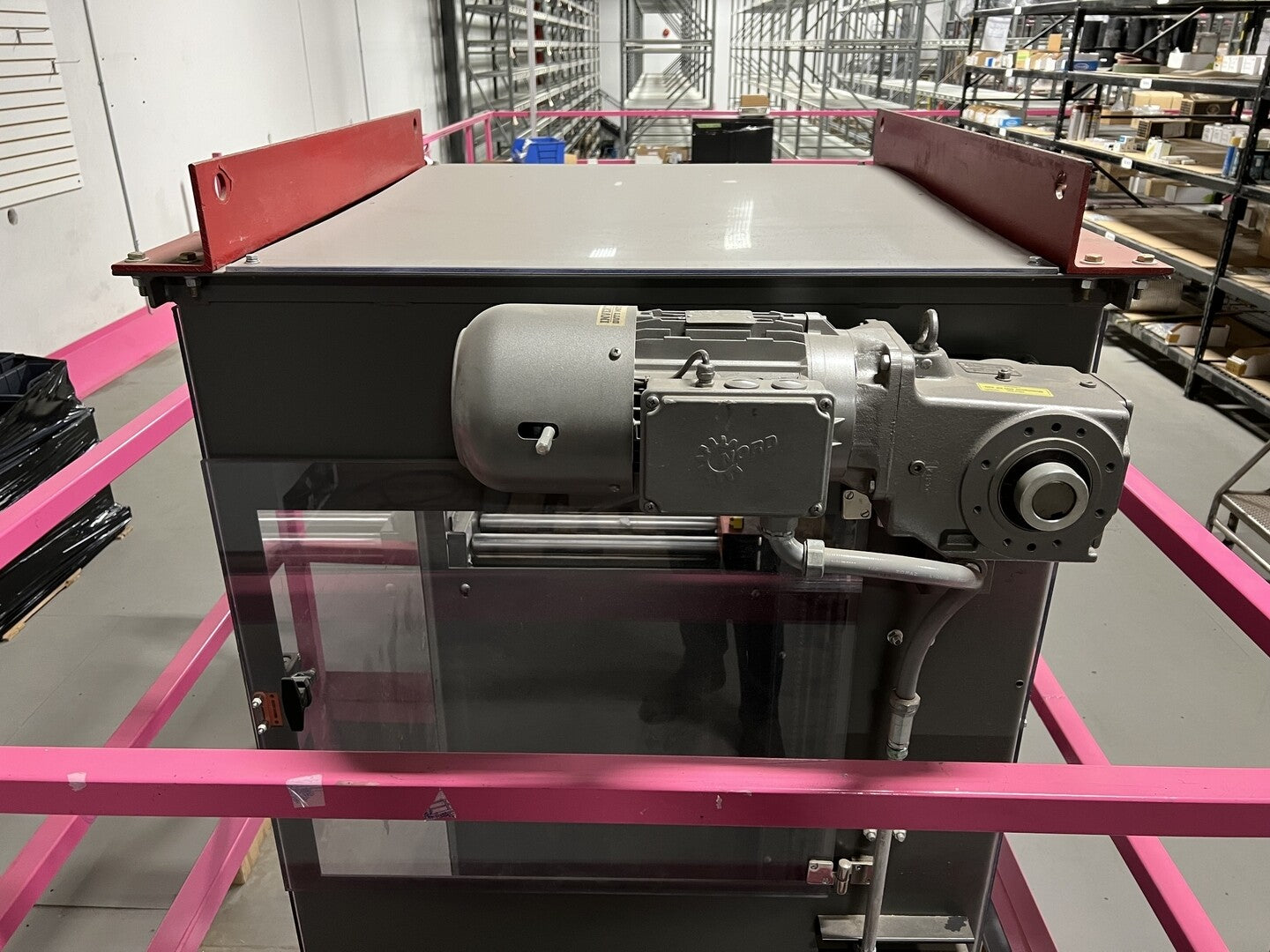

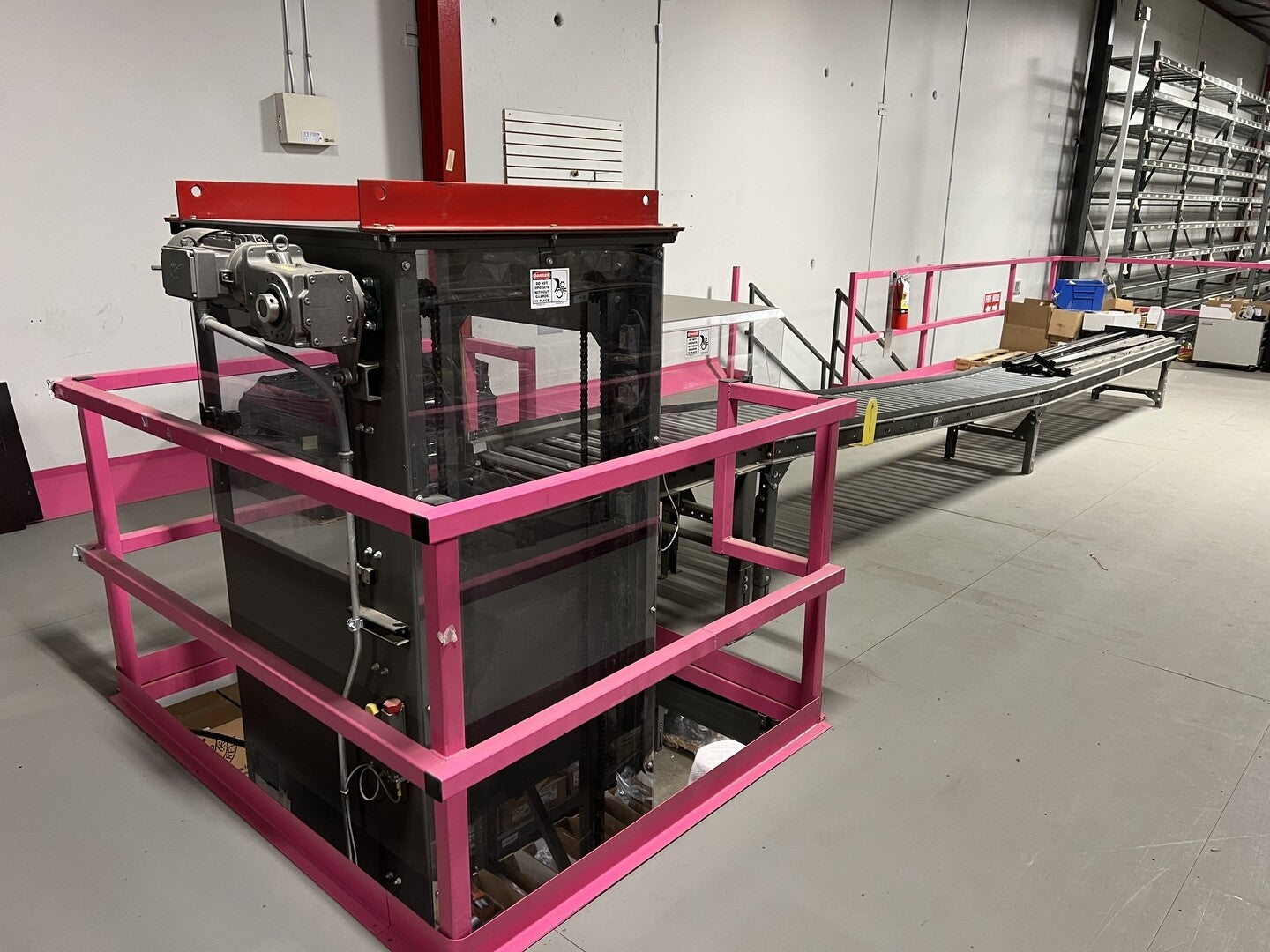

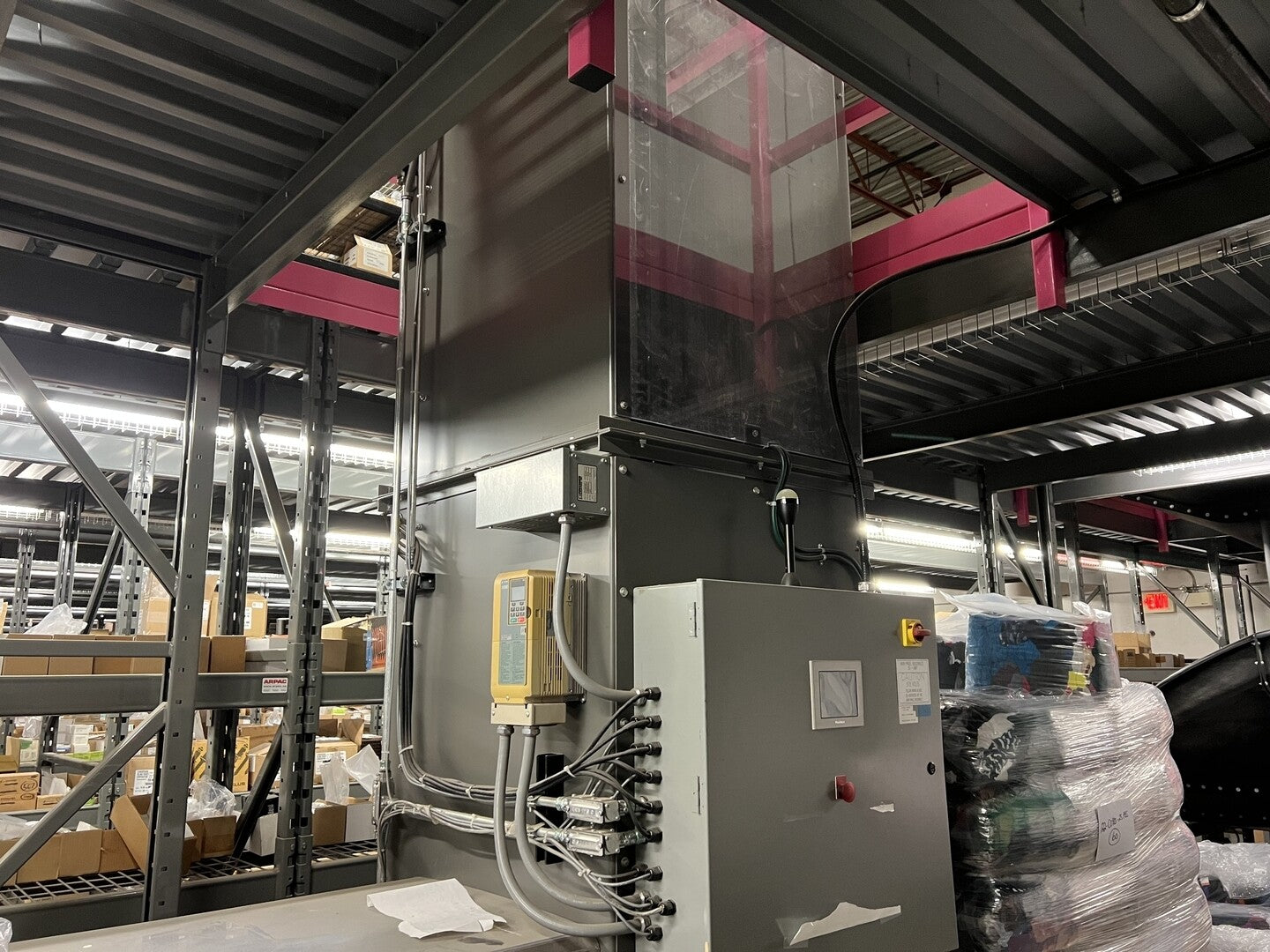

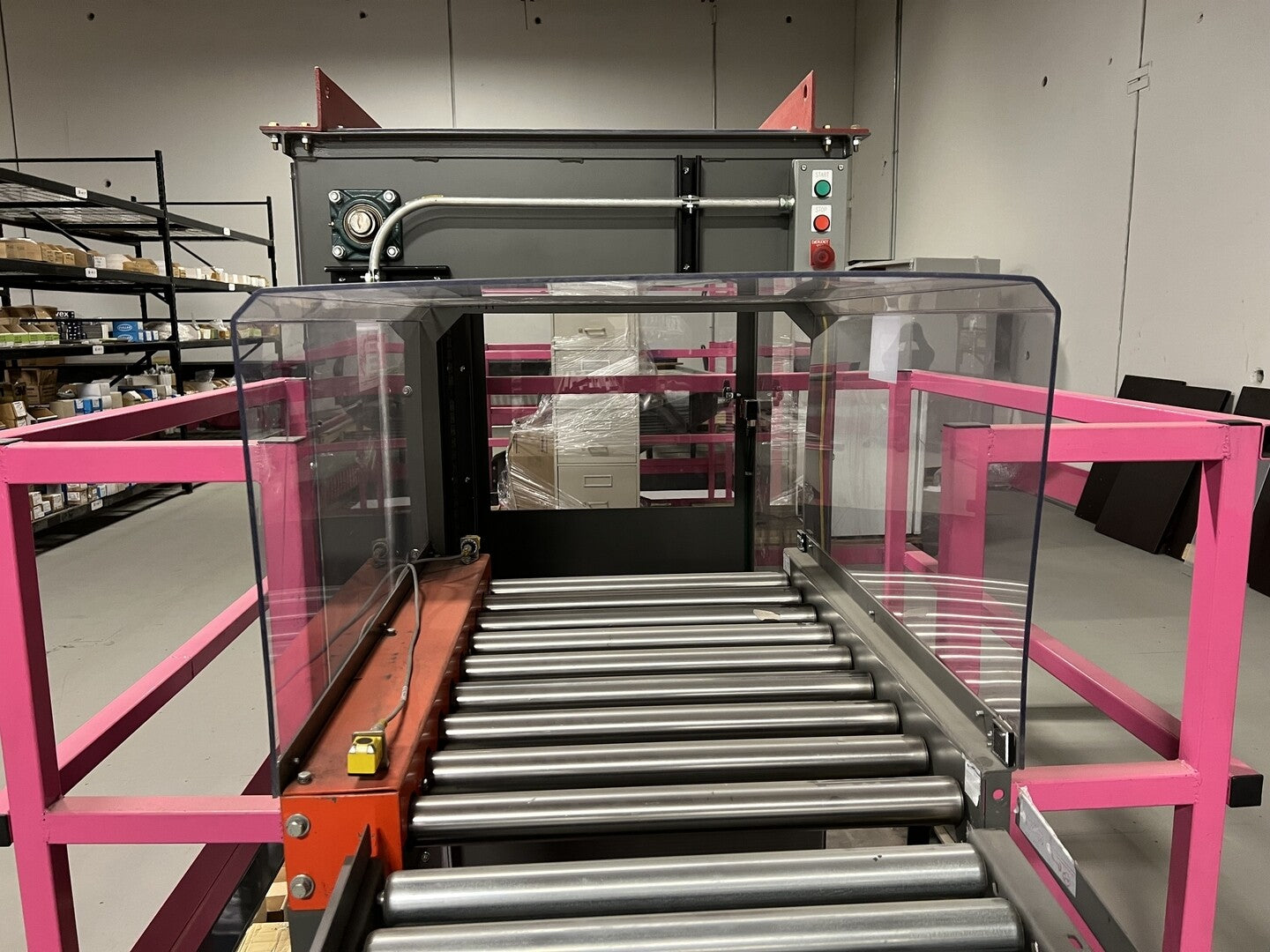

12 ft. Vertical Lift

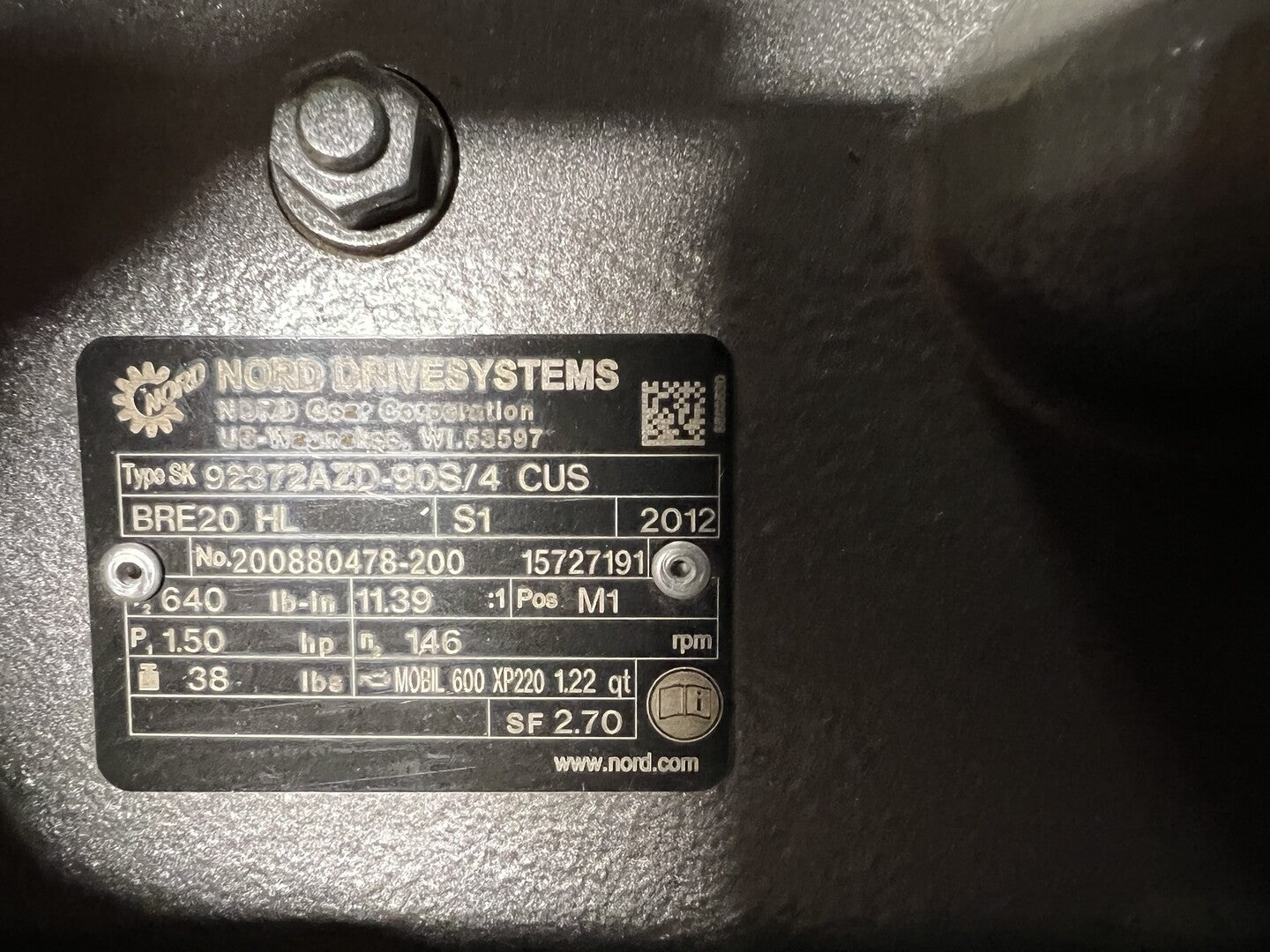

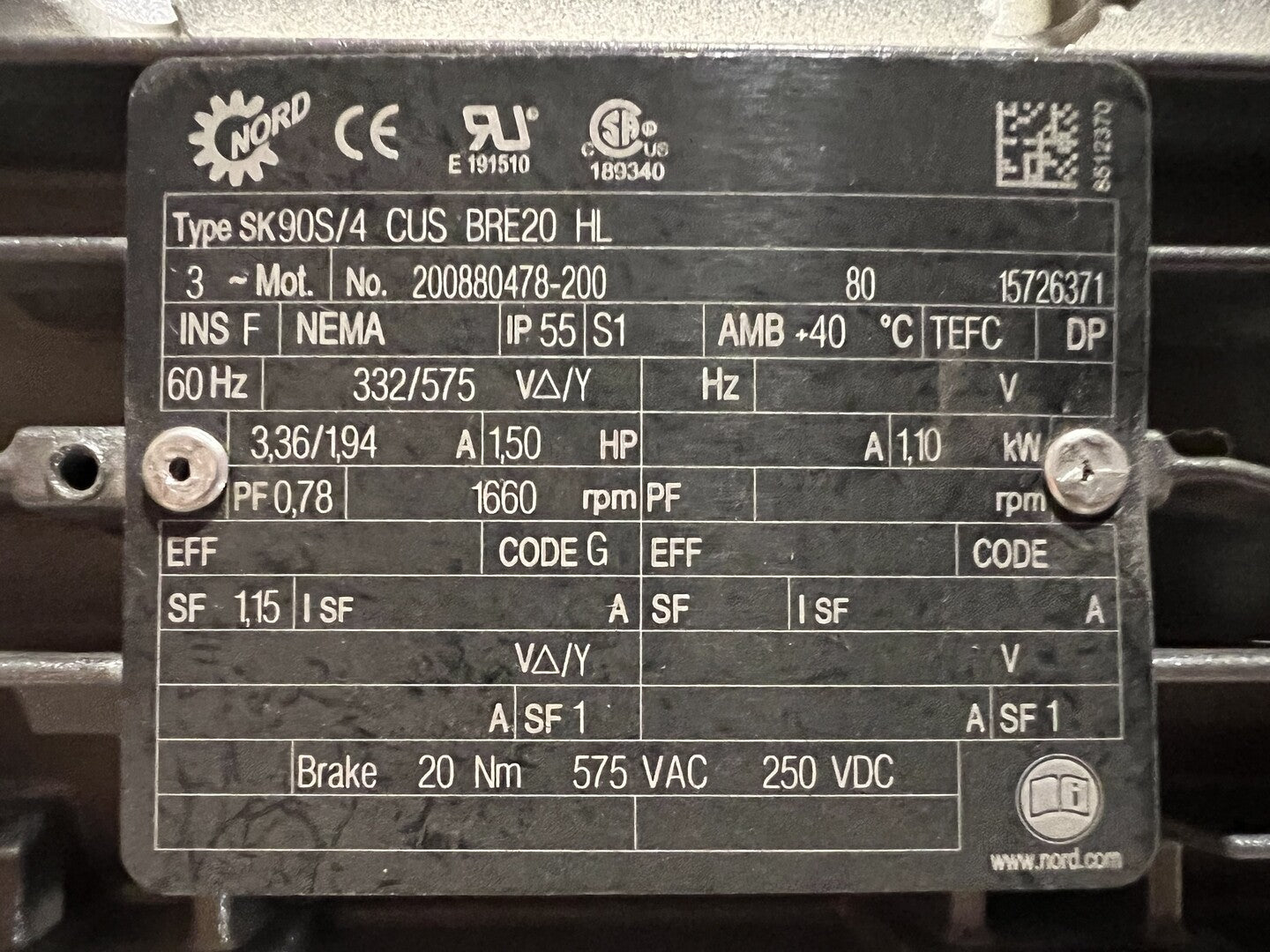

Motor: 1.5 hp, 3-ph, 332/575 V, 3.36/1.94 A, 1660 rpm
Gearbox Ratio: 11.39

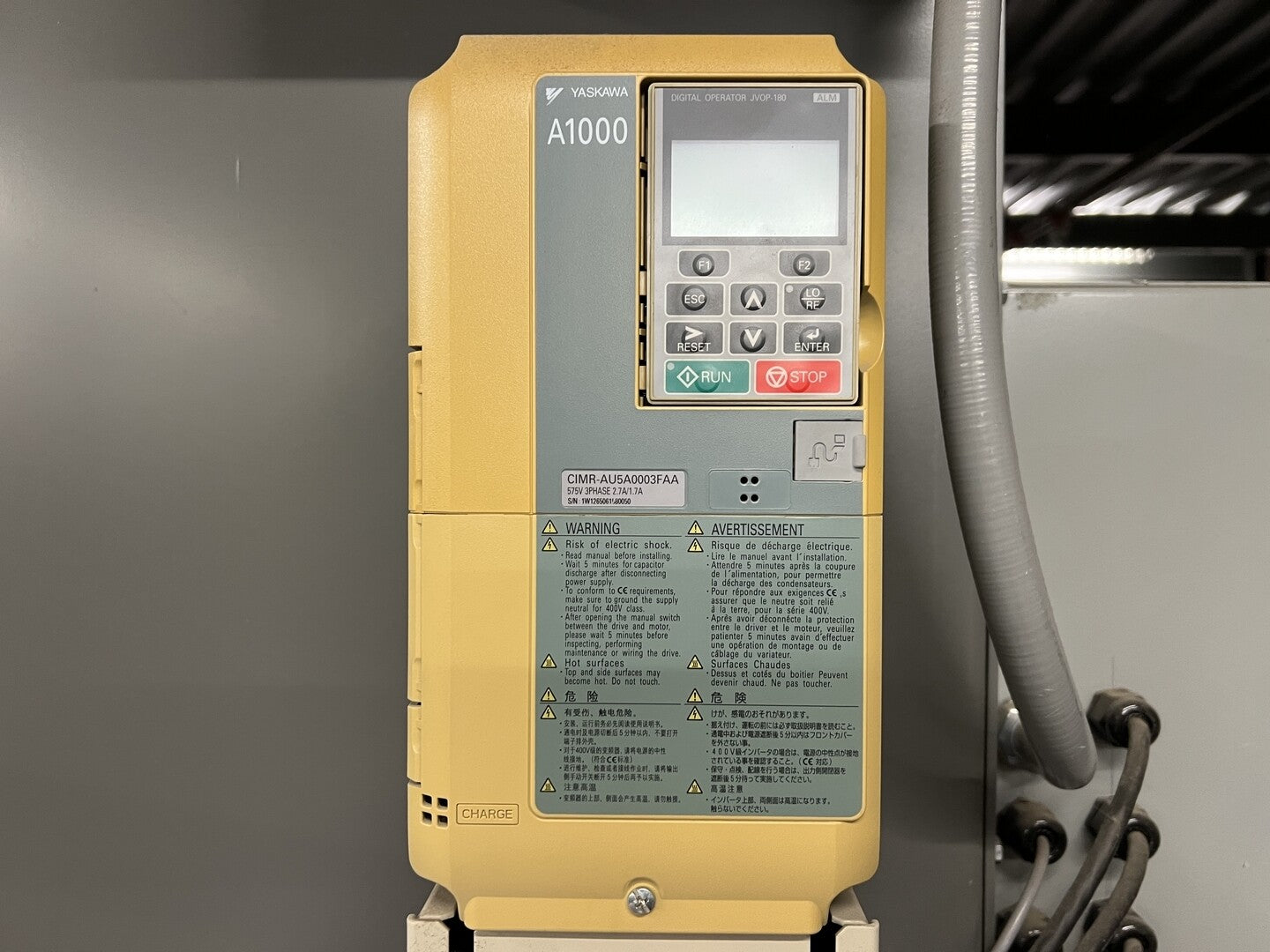

YASKAWA Digital Operator:
-
Model: JVOP-180
-
Electrical: 575 V, 3-ph, 2.7/1.7 A

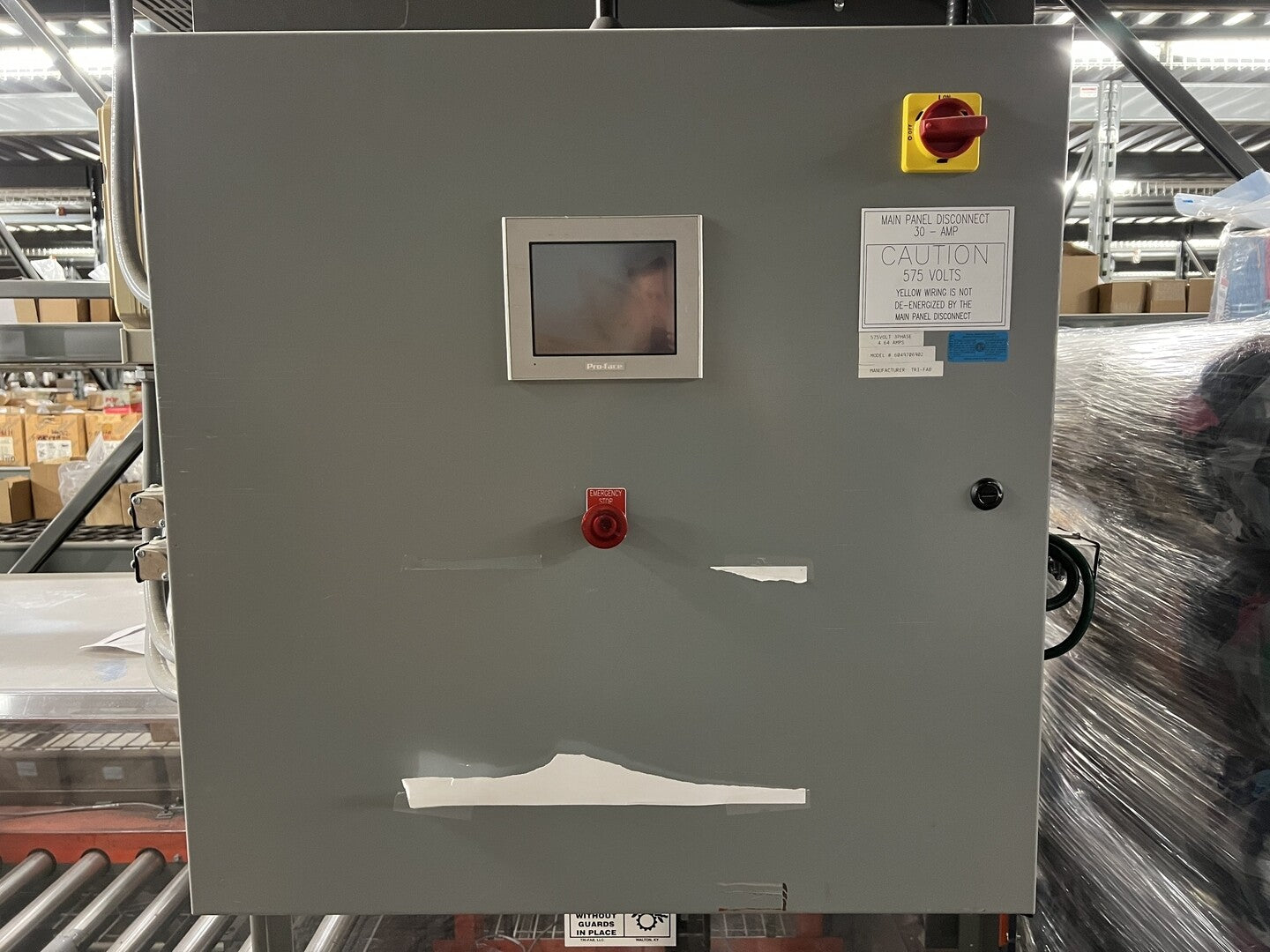

Main Panel Disconnect: 30 A, 575 V

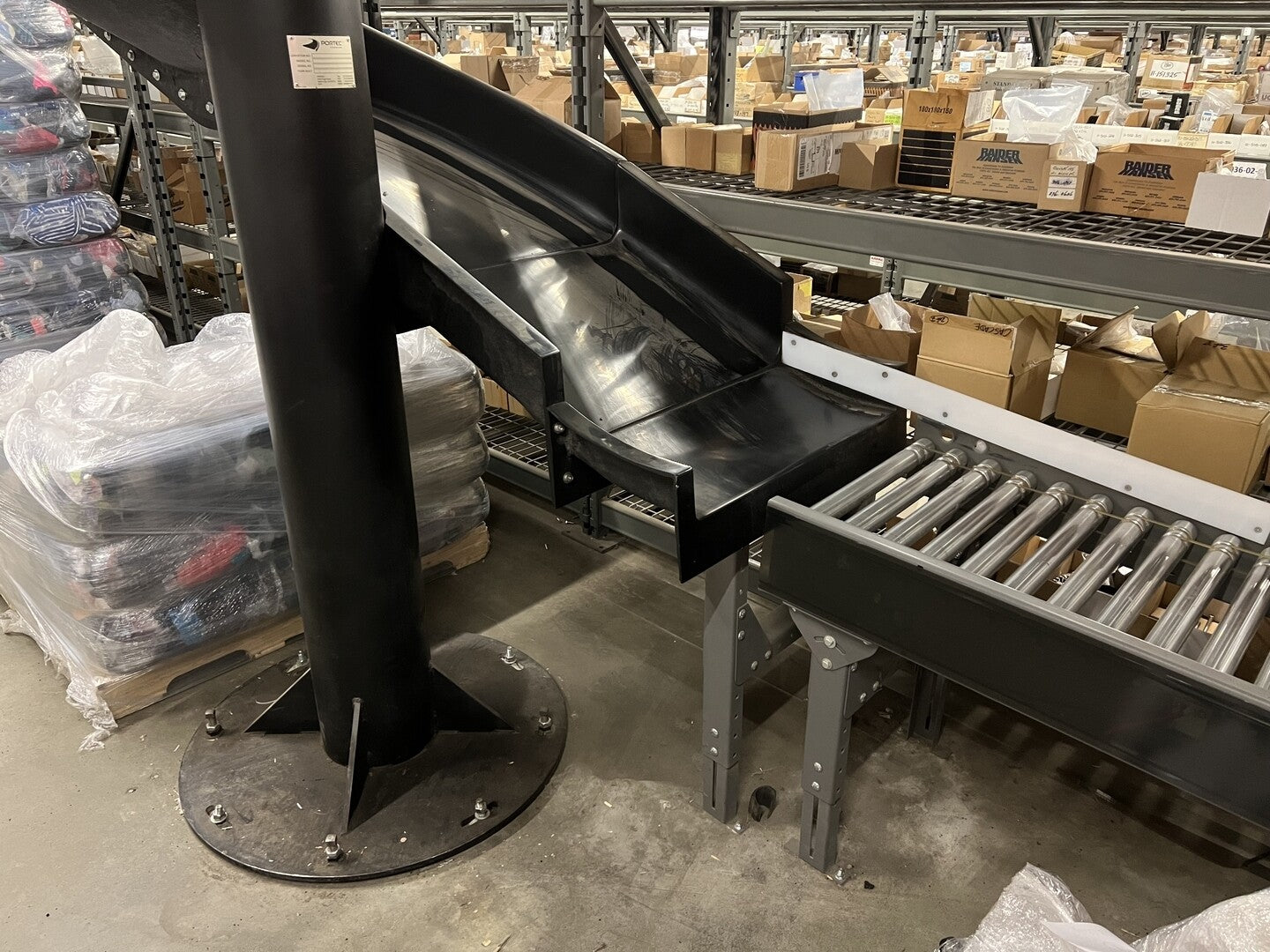

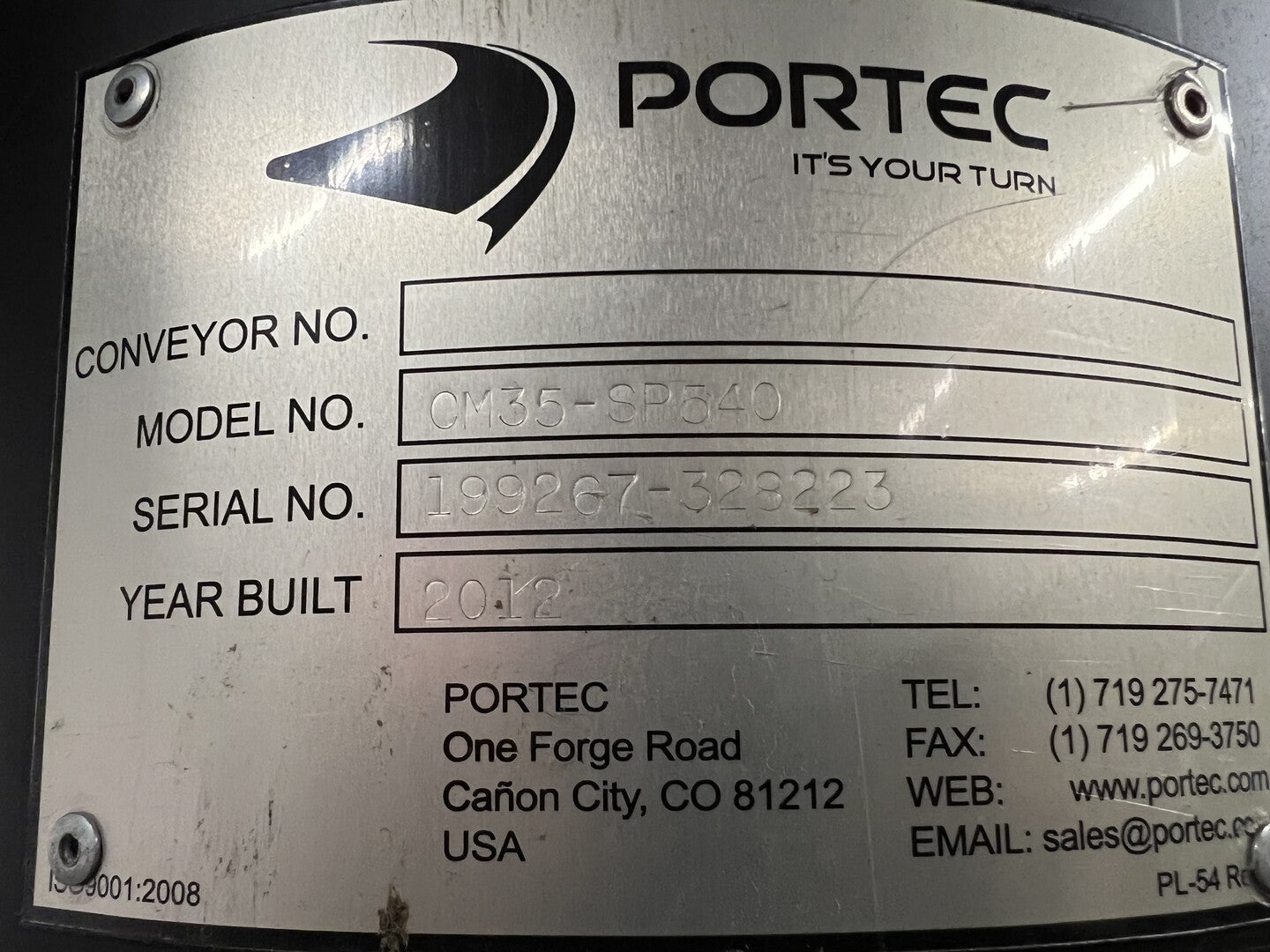

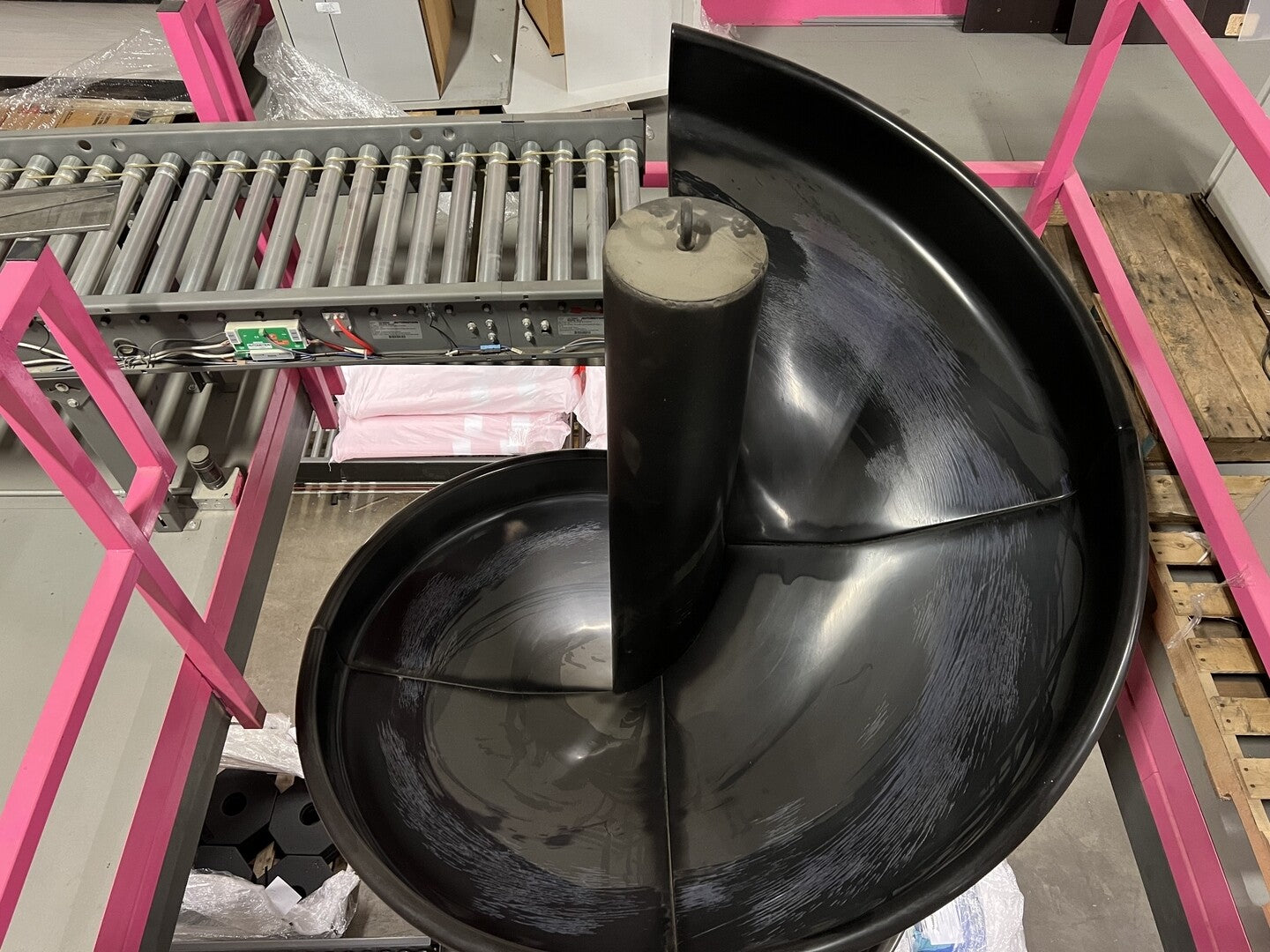

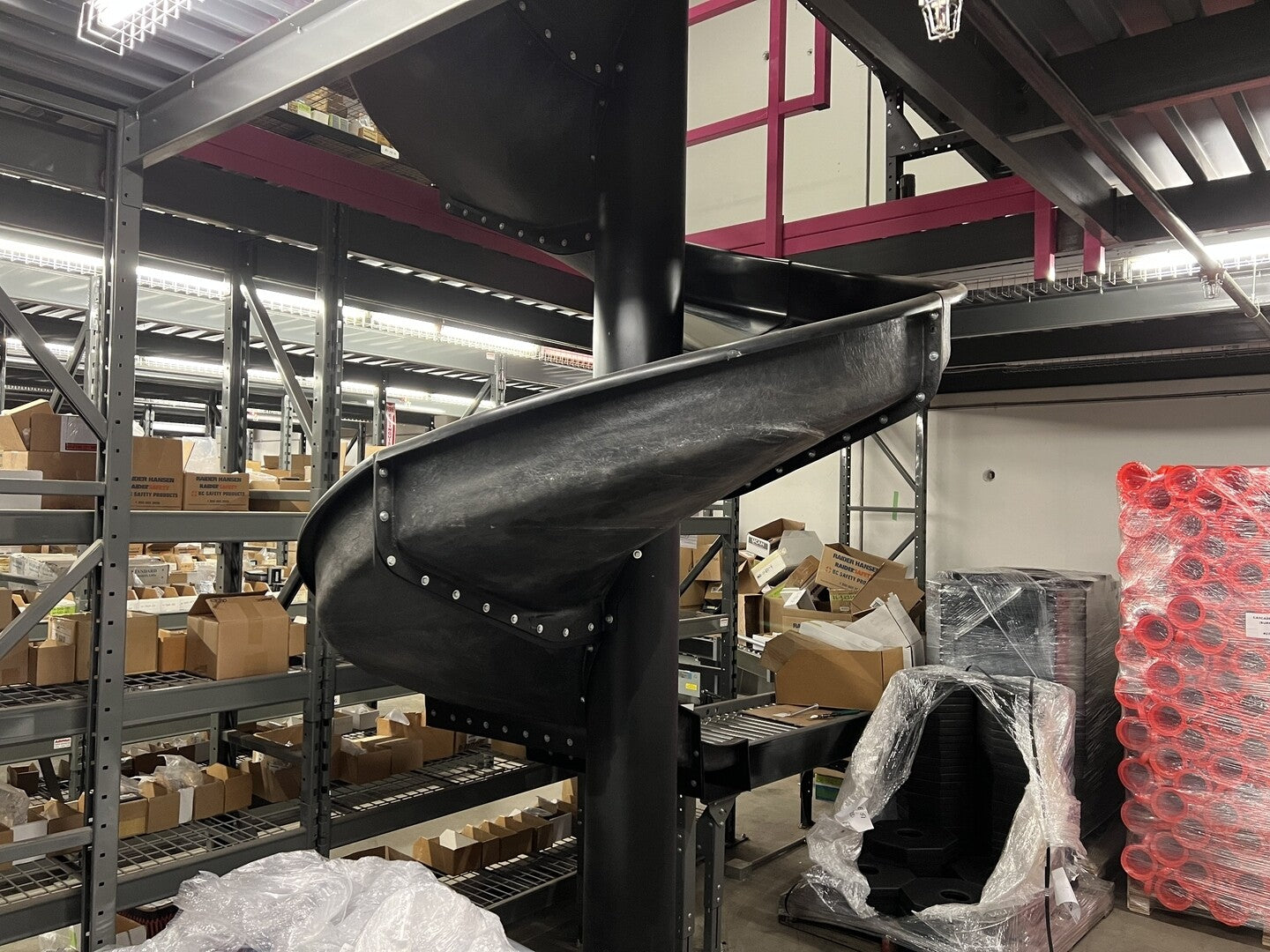

Spiral Chute
Brand: Portec
Model: OM35-SP540
Length: 10 ft.
|
